RB11R-JDZER (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

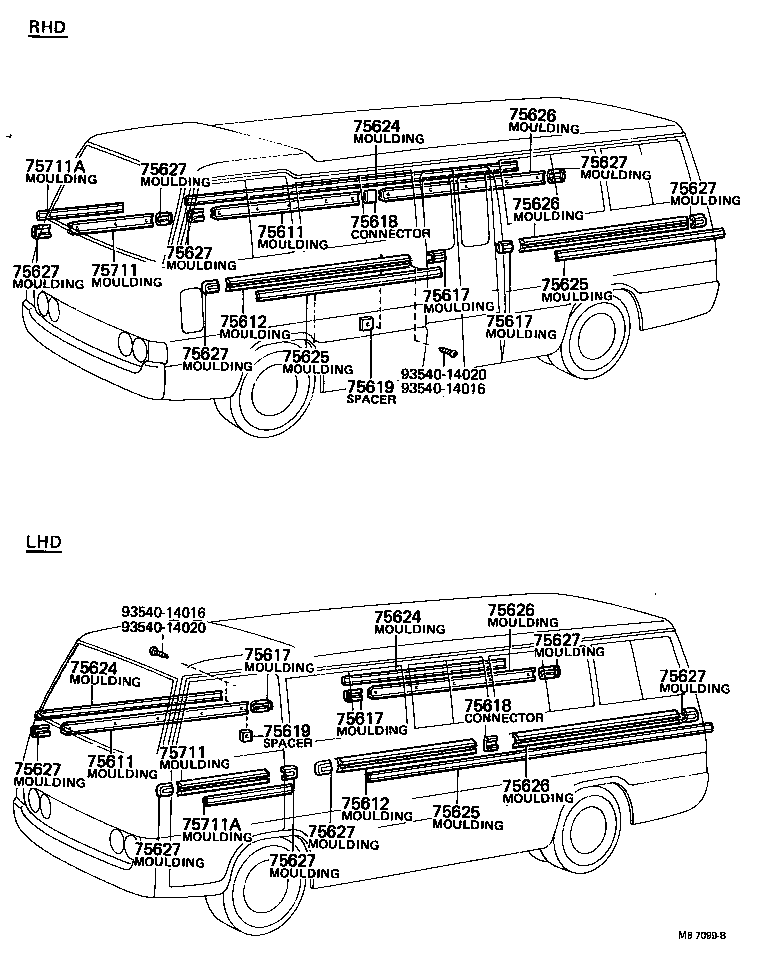

(7708-7802)

Click highlighted areas on diagram

diagram 75611 75611 75612 75612 75617 75617 75617 75617 75618 75618 75619 75619 75624 75624 75624 75625 75625 75625 75626 75626 75626 75626 75627 75627 75627 75627 75627 75627 75627 75627 75627 75627 75627 75627 75711 75711 75711A 75711A 9354014016 9354014016 9354014020 9354014020
Part # Description Qty Price
75611 - MOULDING, SIDE PANEL FRONT, RH
75611-90501

BB10,RB1#..RHD..(BC,DLX)

 1
75611 - MOULDING, SIDE PANEL FRONT, RH
75611-90501

BB10,RB1#..RHD..(BC,DLX)

 1
75612 - MOULDING, SIDE PANEL FRONT, LH
75612-90500

BB10,RB1#..RHD..(BC,DLX)

 1
75612 - MOULDING, SIDE PANEL FRONT, LH
75612-90500

BB10,RB1#..RHD..(BC,DLX)

 1
75617 - MOULDING, SIDE PANEL END, NO.2
75617-90500

BB10,RB1#..BC,DLX

 2
75617 - MOULDING, SIDE PANEL END, NO.2
75617-90500

BB10,RB1#..BC,DLX

 2
75617 - MOULDING, SIDE PANEL END, NO.2
75617-90500

BB10,RB1#..BC,DLX

 2
75617 - MOULDING, SIDE PANEL END, NO.2
75617-90500

BB10,RB1#..BC,DLX

 2
75618 - CONNECTOR, SIDE PANEL MOULDING
75618-90500

BB10,RB1#..BC,DLX

 1
75618 - CONNECTOR, SIDE PANEL MOULDING
75618-90500

BB10,RB1#..BC,DLX

 1
75619 - SPACER, SIDE PANEL MOULDING
75619-90500

BB10,RB1#..BC,DLX

 35
75619 - SPACER, SIDE PANEL MOULDING
75619-90500

BB10,RB1#..BC,DLX

 35
75624 - MOULDING, SIDE PANEL INNER, RH
75621-90503

BB10,RB1#..RHD..(BC,DLX)

 1
75624 - MOULDING, SIDE PANEL INNER, RH
75621-90503

BB10,RB1#..RHD..(BC,DLX)

 1
75624 - MOULDING, SIDE PANEL INNER, RH
75621-90503

BB10,RB1#..RHD..(BC,DLX)

 1
75625 - MOULDING, SIDE PANEL INNER, LH
75623-90502

BB10,RB1#..RHD..(BC,DLX)

RR

 1
75622-90503

BB10,RB1#..RHD..(BC,DLX)

FR

 1
75625 - MOULDING, SIDE PANEL INNER, LH
75623-90502

BB10,RB1#..RHD..(BC,DLX)

RR

 1
75622-90503

BB10,RB1#..RHD..(BC,DLX)

FR

 1
75625 - MOULDING, SIDE PANEL INNER, LH
75623-90502

BB10,RB1#..RHD..(BC,DLX)

RR

 1
75622-90503

BB10,RB1#..RHD..(BC,DLX)

FR

 1
75626 - MOULDING, SIDE PANEL, REAR
75613-90500

BB10,RB1#..BC,DLX

 2
75626 - MOULDING, SIDE PANEL, REAR
75613-90500

BB10,RB1#..BC,DLX

 2
75626 - MOULDING, SIDE PANEL, REAR
75613-90500

BB10,RB1#..BC,DLX

 2
75626 - MOULDING, SIDE PANEL, REAR
75613-90500

BB10,RB1#..BC,DLX

 2
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75711 - MOULDING, FRONT DOOR OUTSIDE, NO.1
75615-90500

BB10,RB1#..BC,DLX

 1
75711 - MOULDING, FRONT DOOR OUTSIDE, NO.1
75615-90500

BB10,RB1#..BC,DLX

 1
75711A - MOULDING, FRONT DOOR INNER
75624-90502

BB10,RB1#..BC,DLX

 1
75711A - MOULDING, FRONT DOOR INNER
75624-90502

BB10,RB1#..BC,DLX

 1
Common parts
93540-14016
93540-14020

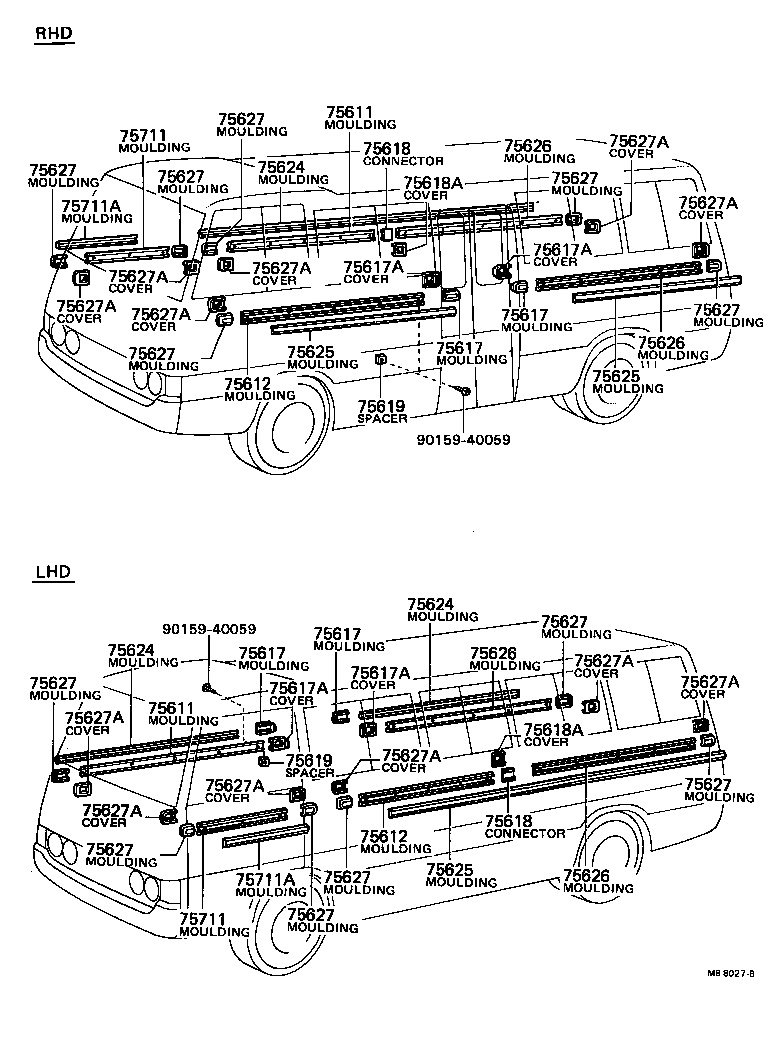

(7802- )

Click highlighted areas on diagram

diagram 75611 75611 75612 75612 75617 75617 75617 75617 75617A 75617A 75617A 75617A 75618 75618 75618A 75618A 75619 75619 75624 75624 75624 75625 75625 75625 75626 75626 75626 75626 75627 75627 75627 75627 75627 75627 75627 75627 75627 75627 75627 75627 75627A 75627A 75627A 75627A 75627A 75627A 75627A 75627A 75627A 75627A 75627A 75627A 75711 75711 75711A 75711A 9015940059 9015940059
Part # Description Qty Price
75611 - MOULDING, SIDE PANEL FRONT, RH
75611-90501

BB10,RB1#..RHD..(BC,DLX)

 1
75611 - MOULDING, SIDE PANEL FRONT, RH
75611-90501

BB10,RB1#..RHD..(BC,DLX)

 1
75612 - MOULDING, SIDE PANEL FRONT, LH
75612-90500

BB10,RB1#..RHD..(BC,DLX)

 1
75612 - MOULDING, SIDE PANEL FRONT, LH
75612-90500

BB10,RB1#..RHD..(BC,DLX)

 1
75617 - MOULDING, SIDE PANEL END, NO.2
75617-90500

BB10,RB1#..BC,DLX

 2
75617 - MOULDING, SIDE PANEL END, NO.2
75617-90500

BB10,RB1#..BC,DLX

 2
75617 - MOULDING, SIDE PANEL END, NO.2
75617-90500

BB10,RB1#..BC,DLX

 2
75617 - MOULDING, SIDE PANEL END, NO.2
75617-90500

BB10,RB1#..BC,DLX

 2
75618 - CONNECTOR, SIDE PANEL MOULDING
75618-90500

BB10,RB1#..BC,DLX

 1
75618 - CONNECTOR, SIDE PANEL MOULDING
75618-90500

BB10,RB1#..BC,DLX

 1
75619 - SPACER, SIDE PANEL MOULDING
75619-90500

BB10,RB1#..BC,DLX

 35
75619 - SPACER, SIDE PANEL MOULDING
75619-90500

BB10,RB1#..BC,DLX

 35
75624 - MOULDING, SIDE PANEL INNER, RH
75621-90503

BB10,RB1#..RHD..(BC,DLX)

 1
75624 - MOULDING, SIDE PANEL INNER, RH
75621-90503

BB10,RB1#..RHD..(BC,DLX)

 1
75624 - MOULDING, SIDE PANEL INNER, RH
75621-90503

BB10,RB1#..RHD..(BC,DLX)

 1
75625 - MOULDING, SIDE PANEL INNER, LH
75623-90502

BB10,RB1#..RHD..(BC,DLX)

RR

 1
75622-90503

BB10,RB1#..RHD..(BC,DLX)

FR

 1
75625 - MOULDING, SIDE PANEL INNER, LH
75623-90502

BB10,RB1#..RHD..(BC,DLX)

RR

 1
75622-90503

BB10,RB1#..RHD..(BC,DLX)

FR

 1
75625 - MOULDING, SIDE PANEL INNER, LH
75623-90502

BB10,RB1#..RHD..(BC,DLX)

RR

 1
75622-90503

BB10,RB1#..RHD..(BC,DLX)

FR

 1
75626 - MOULDING, SIDE PANEL, REAR
75613-90500

BB10,RB1#..BC,DLX

 2
75626 - MOULDING, SIDE PANEL, REAR
75613-90500

BB10,RB1#..BC,DLX

 2
75626 - MOULDING, SIDE PANEL, REAR
75613-90500

BB10,RB1#..BC,DLX

 2
75626 - MOULDING, SIDE PANEL, REAR
75613-90500

BB10,RB1#..BC,DLX

 2
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75627 - MOULDING, SIDE PANEL END, NO.1
75616-90500

BB10,RB1#..BC,DLX

 6
75711 - MOULDING, FRONT DOOR OUTSIDE, NO.1
75615-90500

BB10,RB1#..BC,DLX

 1
75711 - MOULDING, FRONT DOOR OUTSIDE, NO.1
75615-90500

BB10,RB1#..BC,DLX

 1
75711A - MOULDING, FRONT DOOR INNER
75624-90502

BB10,RB1#..BC,DLX

 1
75711A - MOULDING, FRONT DOOR INNER
75624-90502

BB10,RB1#..BC,DLX

 1
Common parts
90159-40059
