RB11R-JDZER (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

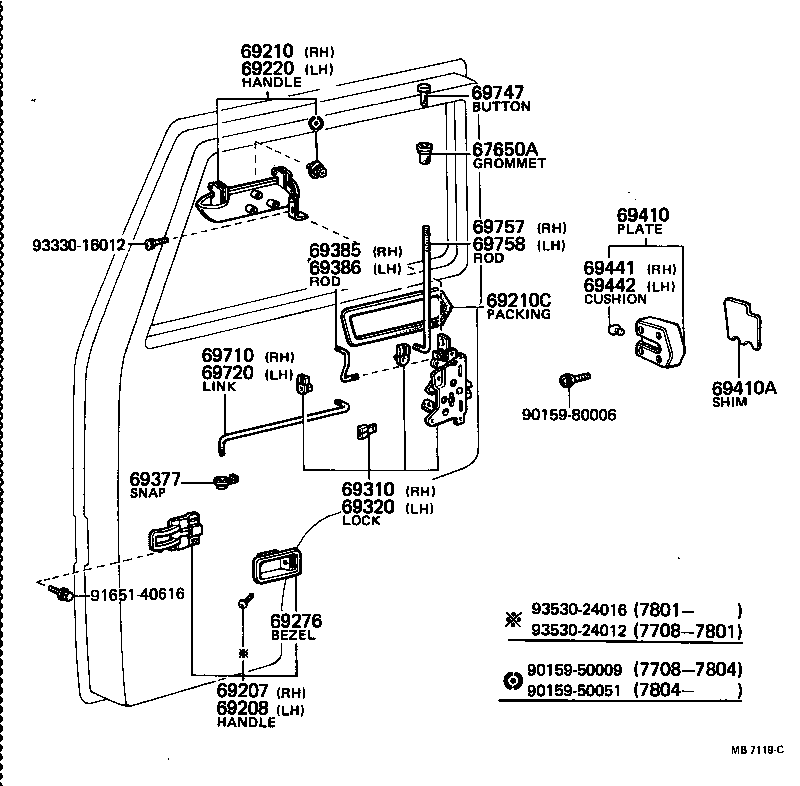

Click highlighted areas on diagram

diagram 67650A 69207 69208 69210 69210C 69220 69276 69310 69320 69377 69385 69386 69410 69410A 69441 69442 69710 69720 69747 69757 69758 9015950009 9015950051 9015980006 9165140616 9333016012 9353024012 9353024016
Part # Description Qty Price
67650A - GROMMET(FOR DOOR PANEL LOCK BUTTON)
90480-10102

BB10,RB1#

 1
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69270-39015

BB10,RB1#..RHD

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-39015

BB10,RB1#..RHD

 1
69210C - PACKING, FRONT DOOR HANDLE
67328-90500

BB10,RB1#

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69276-30010

BB10,RB1#

 1
69310 - LOCK ASSY, FRONT DOOR, RH
67310-90501

BB10,RB1#..RHD

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69377-30020

BB10,RB1#

 3
69385 - ROD, KEY REMOTE CONTROL, RH
67323-90500

BB10,RB1#..RHD

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20032

BB10,RB1#..RHD

 1
69410A - SHIM, FRONT DOOR LOCK STRIKER PLATE
67318-90500

BB10,RB1#..RHD

 1
69441 - CUSHION, DOOR LOCK, RH
69441-20031

BB10,RB1#..RHD

 1
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
67416-90500

BB10,RB1#..RHD

 1
69747 - BUTTON, DOOR LOCKING
69747-20020

BB10,RB1#

 1
69757 - ROD, FRONT DOOR LOCKING CONTROL, NO.2 RH
67317-90500

BB10,RB1#..RHD

 1
Common parts
90159-50009
90159-50051
90159-80006
91651-40616
93330-16012
93530-24012
93530-24016
