RB11R-JDZER (1977)
Toyota Coaster
Production
Aug 1977
-
Nov 1979
Engine
20R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

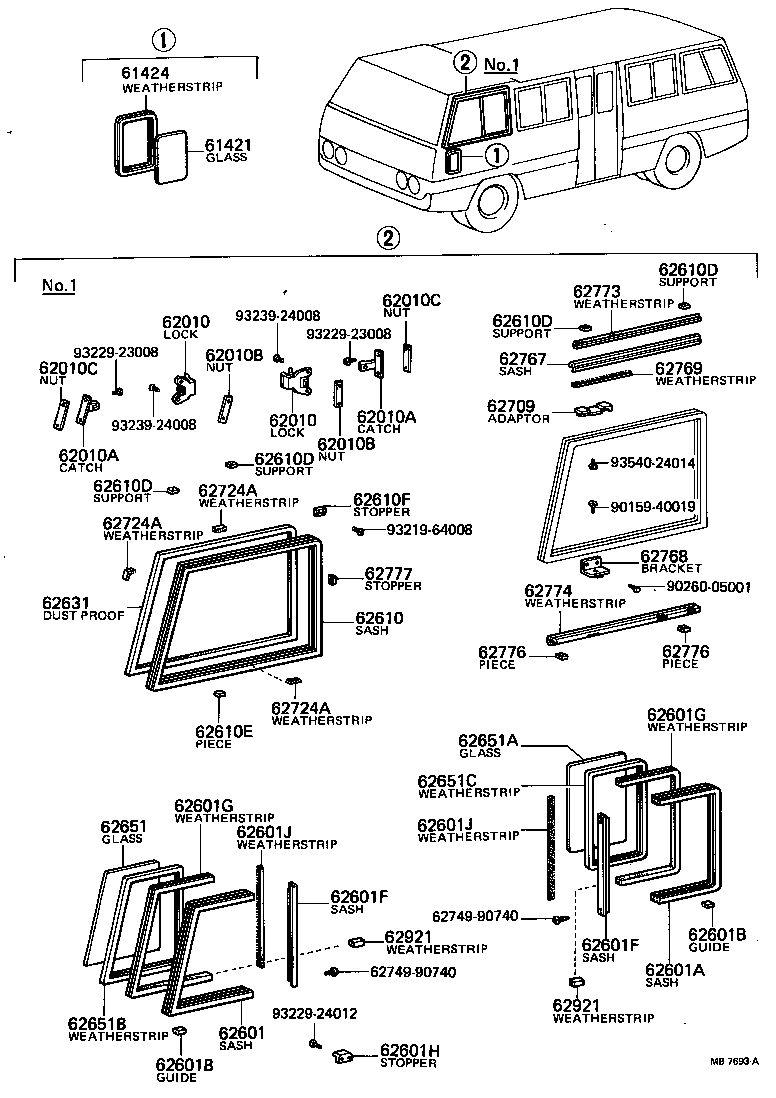

(7708- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61421 - GLASS, SIDE LOWER WINDOW | ||||
| 61411-90502 |
BB10,RB1# |
1 | ||
| 61424 - WEATHERSTRIP, SIDE LOWER WINDOW GLASS | ||||
| 61424-90504 |
BB10,RB1# |
1 | ||
| 62010 - LOCK ASSY, SIDE WINDOW | ||||
| 62010-90740 |
BB10,RB1# |
16 | ||
| 62010 - LOCK ASSY, SIDE WINDOW | ||||
| 62010-90740 |
BB10,RB1# |
16 | ||
| 62010A - CATCH, LOCK | ||||
| 62756-90740 |
BB10,RB1# |
16 | ||
| 62010A - CATCH, LOCK | ||||
| 62756-90740 |
BB10,RB1# |
16 | ||
| 62010B - NUT, PLATE, NO.1 | ||||
| 62759-90740 |
BB10,RB1# |
16 | ||
| 62010B - NUT, PLATE, NO.1 | ||||
| 62759-90740 |
BB10,RB1# |
16 | ||
| 62010C - NUT, PLATE, NO.2 | ||||
| 62761-90740 |
BB10,RB1# |
16 | ||
| 62010C - NUT, PLATE, NO.2 | ||||
| 62761-90740 |
BB10,RB1# |
16 | ||
| 62601 - SASH SUB-ASSY, SIDE WINDOW INNER FRONT, NO.1 | ||||
| 62078-90740 |
BB10,RB1#..RHD |
1 | ||
| 62601A - SASH SUB-ASSY, SIDE WINDOW INNER REAR, NO.1 | ||||
| 62789-90740 |
BB10,RB1#..RHD |
1 | ||
| 62601B - GUIDE, SIDE WINDOW INNER SASH, NO.1 | ||||
| 62744-90740 |
BB10,RB1# |
4 | ||
| 62601B - GUIDE, SIDE WINDOW INNER SASH, NO.1 | ||||
| 62744-90740 |
BB10,RB1# |
4 | ||
| 62601F - SASH, SIDE WINDOW INNER CENTER, NO.1 | ||||
| 62792-90740 |
BB10,RB1# |
2 | ||
| 62601F - SASH, SIDE WINDOW INNER CENTER, NO.1 | ||||
| 62792-90740 |
BB10,RB1# |
2 | ||
| 62601G - WEATHERSTRIP, RUN CHANNEL, NO.1 | ||||
| 62742-90743 |
BB10,RB1# RR |
1 | ||
| 62742-90742 |
BB10,RB1# FR |
1 | ||
| 62601G - WEATHERSTRIP, RUN CHANNEL, NO.1 | ||||
| 62742-90743 |
BB10,RB1# RR |
1 | ||
| 62742-90742 |
BB10,RB1# FR |
1 | ||
| 62601H - STOPPER, SIDE WINDOW, NO.1 | ||||
| 62747-90740 |
BB10,RB1# |
1 | ||
| 62601J - WEATHERSTRIP, SIDE WINDOW CENTER, NO.1 | ||||
| 62786-90740 |
BB10,RB1# |
2 | ||
| 62601J - WEATHERSTRIP, SIDE WINDOW CENTER, NO.1 | ||||
| 62786-90740 |
BB10,RB1# |
2 | ||
| 62610 - SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE) | ||||
| 62018-90740 |
BB10,RB1#..RHD LH |
1 | ||
| 62610D - SUPPORT, SIDE WINDOW OUTER SASH, NO.1 | ||||
| 62727-90740 |
BB10,RB1# |
2 | ||
| 62610D - SUPPORT, SIDE WINDOW OUTER SASH, NO.1 | ||||
| 62727-90740 |
BB10,RB1# |
2 | ||
| 62610D - SUPPORT, SIDE WINDOW OUTER SASH, NO.1 | ||||
| 62727-90740 |
BB10,RB1# |
2 | ||
| 62610D - SUPPORT, SIDE WINDOW OUTER SASH, NO.1 | ||||
| 62727-90740 |
BB10,RB1# |
2 | ||
| 62610E - PIECE, SIDE WINDOW OUTER SASH, NO.1 | ||||
| 62729-90740 |
BB10,RB1# |
1 | ||
| 62610F - STOPPER, SIDE WINDOW, REAR | ||||
| 62733-90740 |
BB10,RB1# |
1 | ||
| 62631 - DUST PROOF, SIDE WINDOW, NO.1 | ||||
| 62791-90500 |
BB10,RB1# |
1 | ||
| 62651 - GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE) | ||||
| 62757-90741 |
BB10,RB1#..BC,DLX |
1 | ||
| 62651A - GLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE) | ||||
| 62758-90741 |
BB10,RB1#..BC,DLX |
1 | ||
| 62651B - WEATHERSTRIP, SIDE WINDOW, FRONT NO.1 | ||||
| 62787-90740 |
BB10,RB1# |
1 | ||
| 62651C - WEATHERSTRIP, SIDE WINDOW, REAR NO.1 | ||||
| 62788-90740 |
BB10,RB1# |
1 | ||
| 62709 - ADAPTER, SIDE WINDOW | ||||
| 62762-90740 |
BB10,RB1# |
16 | ||
| 62724A - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB10,RB1# UPR |
21 | ||
| 62725-90740 |
BB10,RB1# LWR |
8 | ||
| 62724A - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB10,RB1# UPR |
21 | ||
| 62725-90740 |
BB10,RB1# LWR |
8 | ||
| 62724A - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB10,RB1# UPR |
21 | ||
| 62725-90740 |
BB10,RB1# LWR |
8 | ||
| 62767 - SASH, FRONT SIDE WINDOW WATER PROOF, LH | ||||
| 62767-90740 |
BB10,RB1#..RHD |
1 | ||
| 62768 - BRACKET, SIDE WINDOW, LOWER | ||||
| 61768-90740 |
BB10,RB1# |
16 | ||
| 62769 - WEATHERSTRIP, FRONT SIDE WINDOW, UPPER | ||||
| 62769-90740 |
BB10,RB1# |
1 | ||
| 62773 - WEATHERSTRIP, FRONT SIDE WINDOW WATER PROOF, UPPER | ||||
| 62773-90740 |
BB10,RB1# |
1 | ||
| 62774 - WEATHERSTRIP, FRONT SIDE WINDOW WATER PROOF | ||||
| 62774-90740 |
BB10,RB1# |
1 | ||
| 62776 - PIECE, SIDE WINDOW WATER PROOF, LOWER | ||||
| 62776-90740 |
BB10,RB1# |
16 | ||
| 62776 - PIECE, SIDE WINDOW WATER PROOF, LOWER | ||||
| 62776-90740 |
BB10,RB1# |
16 | ||
| 62777 - STOPPER, SIDE WINDOW | ||||
| 62777-90740 |
BB10,RB1# |
8 | ||
| 62921 - WEATHERSTRIP, RUN CHANNEL, LOWER | ||||
| 62921-90500 |
BB10,RB1# |
16 | ||
| 62921 - WEATHERSTRIP, RUN CHANNEL, LOWER | ||||
| 62921-90500 |
BB10,RB1# |
16 | ||
| Common parts | ||||
| 62749-90740 | ||||
| 90159-40019 | ||||
| 90260-05001 | ||||
| 93219-64008 | ||||
| 93229-23008 | ||||
| 93229-24012 | ||||
| 93239-24008 | ||||
| 93540-24014 | ||||

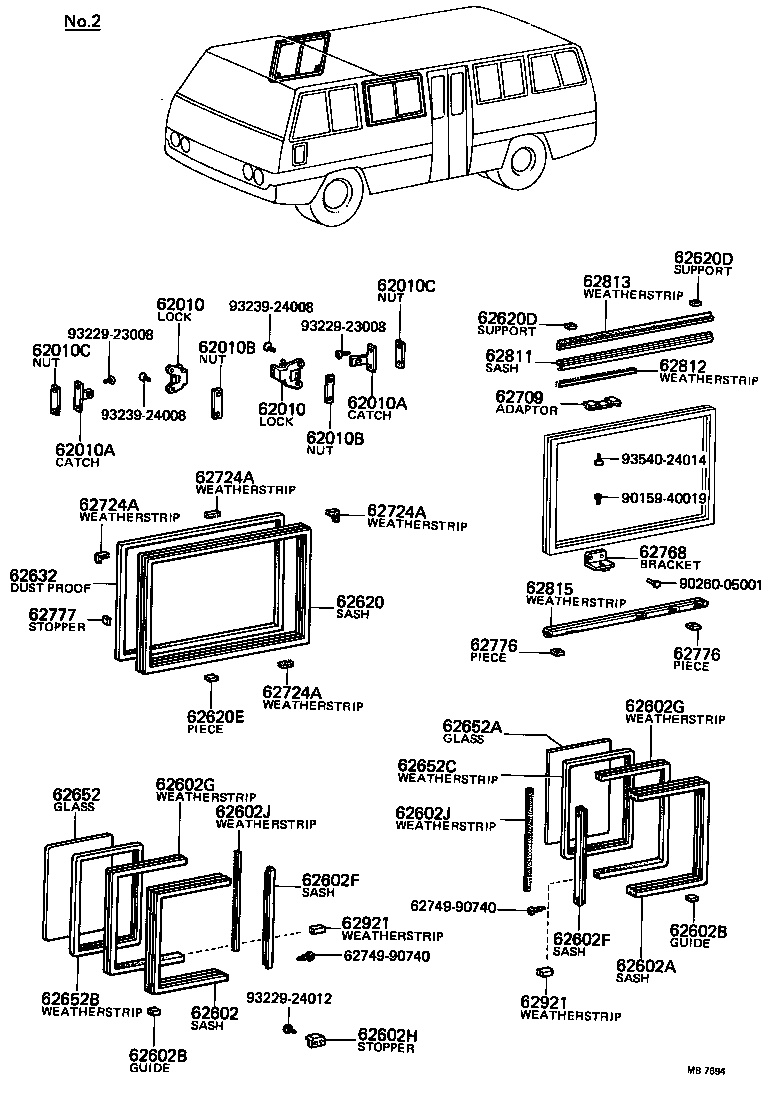

(7708- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62010 - LOCK ASSY, SIDE WINDOW | ||||
| 62010-90740 |
BB10,RB1# |
16 | ||
| 62010 - LOCK ASSY, SIDE WINDOW | ||||
| 62010-90740 |
BB10,RB1# |
16 | ||
| 62010A - CATCH, LOCK | ||||
| 62756-90740 |
BB10,RB1# |
16 | ||
| 62010A - CATCH, LOCK | ||||
| 62756-90740 |
BB10,RB1# |
16 | ||
| 62010B - NUT, PLATE, NO.1 | ||||
| 62759-90740 |
BB10,RB1# |
16 | ||
| 62010B - NUT, PLATE, NO.1 | ||||
| 62759-90740 |
BB10,RB1# |
16 | ||
| 62010C - NUT, PLATE, NO.2 | ||||
| 62761-90740 |
BB10,RB1# |
16 | ||
| 62010C - NUT, PLATE, NO.2 | ||||
| 62761-90740 |
BB10,RB1# |
16 | ||
| 62602 - SASH SUB-ASSY, SIDE WINDOW INNER FRONT, NO.2 | ||||
| 62081-90740 |
BB10,RB1# RH |
1 | ||
| 62082-90740 |
BB10,RB1# LH |
1 | ||
| 62602A - SASH SUB-ASSY, SIDE WINDOW INNER REAR, NO.2 | ||||
| 62084-90740 |
BB10,RB1# LH |
1 | ||
| 62083-90740 |
BB10,RB1# RH |
1 | ||
| 62602B - GUIDE, SIDE WINDOW INNER SASH, NO.2 | ||||
| 62744-90740 |
BB10,RB1# |
8 | ||
| 62602B - GUIDE, SIDE WINDOW INNER SASH, NO.2 | ||||
| 62744-90740 |
BB10,RB1# |
8 | ||
| 62602F - SASH, SIDE WINDOW INNER CENTER, NO.2 | ||||
| 62822-90740 |
BB10,RB1# |
4 | ||
| 62602F - SASH, SIDE WINDOW INNER CENTER, NO.2 | ||||
| 62822-90740 |
BB10,RB1# |
4 | ||
| 62602G - WEATHERSTRIP, RUN CHANNEL, NO.2 | ||||
| 62742-90744 |
BB10,RB1# FR |
2 | ||
| 62742-90742 |
BB10,RB1# RR |
2 | ||
| 62602G - WEATHERSTRIP, RUN CHANNEL, NO.2 | ||||
| 62742-90744 |
BB10,RB1# FR |
2 | ||
| 62742-90742 |
BB10,RB1# RR |
2 | ||
| 62602H - STOPPER, SIDE WINDOW, NO.2 | ||||
| 62747-90740 |
BB10,RB1# |
4 | ||
| 62602J - WEATHERSTRIP, SIDE WINDOW CENTER, NO.2 | ||||
| 62823-90740 |
BB10,RB1# |
4 | ||
| 62602J - WEATHERSTRIP, SIDE WINDOW CENTER, NO.2 | ||||
| 62823-90740 |
BB10,RB1# |
4 | ||
| 62620 - SASH ASSY, SIDE WINDOW OUTER, NO.2 (FOR SLIDE TYPE) | ||||
| 62021-90740 |
BB10,RB1#..RHD RH |
1 | ||
| 62023-90740 |
BB10,RB1#..RHD LH |
1 | ||
| 62620D - SUPPORT, SIDE WINDOW OUTER SASH, NO.2 | ||||
| 62727-90740 |
BB10,RB1# |
4 | ||
| 62620D - SUPPORT, SIDE WINDOW OUTER SASH, NO.2 | ||||
| 62727-90740 |
BB10,RB1# |
4 | ||
| 62620E - PIECE, SIDE WINDOW OUTER SASH, NO.2 | ||||
| 62729-90740 |
BB10,RB1# |
2 | ||
| 62632 - DUST PROOF, SIDE WINDOW, NO.2 | ||||
| 62792-90500 |
BB10,RB1# |
2 | ||
| 62652 - GLASS, SIDE WINDOW, NO.2, FRONT (FOR SLIDE TYPE) | ||||
| 62731-90741 |
BB10,RB1#..BC,DLX |
2 | ||
| 62652A - GLASS, SIDE WINDOW, NO.2, REAR (FOR SLIDE TYPE) | ||||
| 62732-90741 |
BB10,RB1#..BC,DLX |
2 | ||
| 62652B - WEATHERSTRIP, SIDE WINDOW, FRONT NO.2 | ||||
| 62824-90740 |
BB10,RB1# |
2 | ||
| 62652C - WEATHERSTRIP, SIDE WINDOW, REAR NO.2 | ||||
| 62825-90740 |
BB10,RB1# |
2 | ||
| 62709 - ADAPTER, SIDE WINDOW | ||||
| 62762-90740 |
BB10,RB1# |
16 | ||
| 62724A - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB10,RB1# UPR |
21 | ||
| 62725-90740 |
BB10,RB1# LWR |
8 | ||
| 62724A - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB10,RB1# UPR |
21 | ||
| 62725-90740 |
BB10,RB1# LWR |
8 | ||
| 62724A - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB10,RB1# UPR |
21 | ||
| 62725-90740 |
BB10,RB1# LWR |
8 | ||
| 62724A - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB10,RB1# UPR |
21 | ||
| 62725-90740 |
BB10,RB1# LWR |
8 | ||
| 62768 - BRACKET, SIDE WINDOW, LOWER | ||||
| 61768-90740 |
BB10,RB1# |
16 | ||
| 62776 - PIECE, SIDE WINDOW WATER PROOF, LOWER | ||||
| 62776-90740 |
BB10,RB1# |
16 | ||
| 62776 - PIECE, SIDE WINDOW WATER PROOF, LOWER | ||||
| 62776-90740 |
BB10,RB1# |
16 | ||
| 62777 - STOPPER, SIDE WINDOW | ||||
| 62777-90740 |
BB10,RB1# |
8 | ||
| 62811 - SASH, SIDE WINDOW WATER PROOF | ||||
| 62811-90740 |
BB10,RB1# |
4 | ||
| 62812 - WEATHERSTRIP, SIDE WINDOW, UPPER | ||||
| 62812-90740 |
BB10,RB1# |
4 | ||
| 62813 - WEATHERSTRIP, SIDE WINDOW WATER PROOF, UPPER | ||||
| 62813-90740 |
BB10,RB1# |
4 | ||
| 62815 - WEATHERSTRIP, SIDE WINDOW WATER PROOF | ||||
| 62815-90740 |
BB10,RB1# LH |
2 | ||
| 62814-90740 |
BB10,RB1# RH |
2 | ||
| 62921 - WEATHERSTRIP, RUN CHANNEL, LOWER | ||||
| 62921-90500 |
BB10,RB1# |
16 | ||
| 62921 - WEATHERSTRIP, RUN CHANNEL, LOWER | ||||
| 62921-90500 |
BB10,RB1# |
16 | ||
| Common parts | ||||
| 62749-90740 | ||||
| 90159-40019 | ||||
| 90260-05001 | ||||
| 93229-23008 | ||||
| 93229-24012 | ||||
| 93239-24008 | ||||
| 93540-24014 | ||||

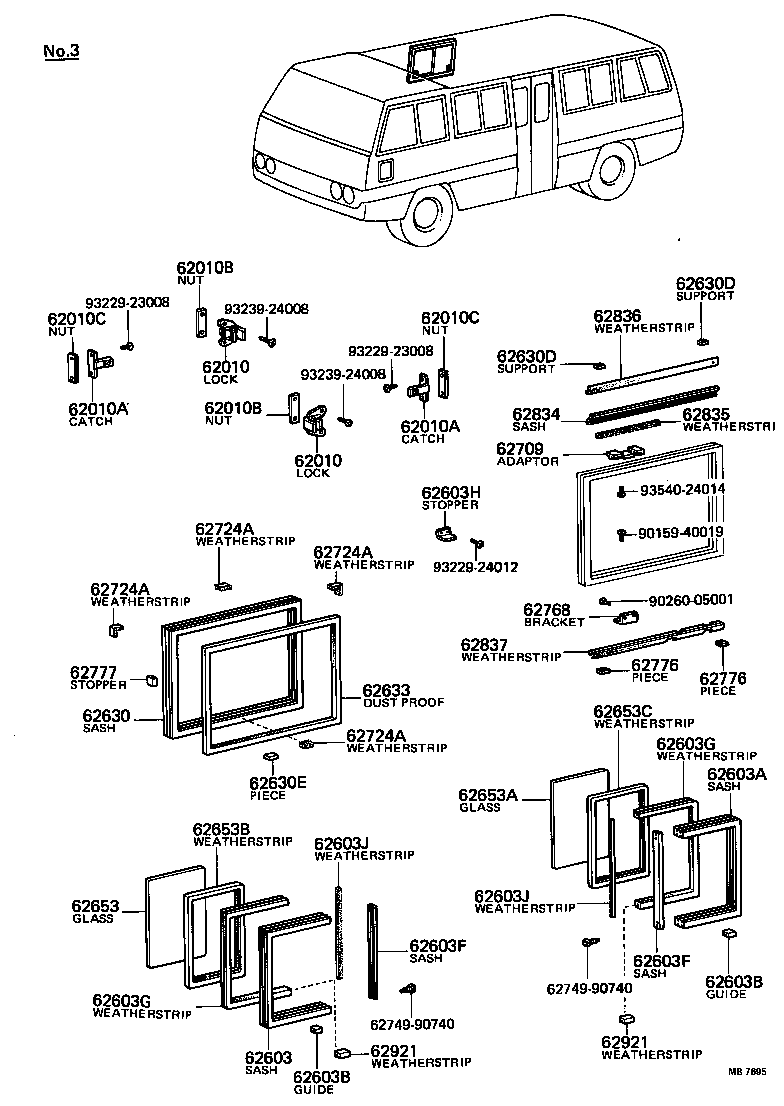

(7708- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62010 - LOCK ASSY, SIDE WINDOW | ||||
| 62010-90740 |
BB10,RB1# |
16 | ||
| 62010 - LOCK ASSY, SIDE WINDOW | ||||
| 62010-90740 |
BB10,RB1# |
16 | ||
| 62010A - CATCH, LOCK | ||||
| 62756-90740 |
BB10,RB1# |
16 | ||
| 62010A - CATCH, LOCK | ||||
| 62756-90740 |
BB10,RB1# |
16 | ||
| 62010B - NUT, PLATE, NO.1 | ||||
| 62759-90740 |
BB10,RB1# |
16 | ||
| 62010B - NUT, PLATE, NO.1 | ||||
| 62759-90740 |
BB10,RB1# |
16 | ||
| 62010C - NUT, PLATE, NO.2 | ||||
| 62761-90740 |
BB10,RB1# |
16 | ||
| 62010C - NUT, PLATE, NO.2 | ||||
| 62761-90740 |
BB10,RB1# |
16 | ||
| 62603 - SASH SUB-ASSY, SIDE WINDOW INNER FRONT, NO.3 | ||||
| 62085-90740 |
BB10,RB1#..RHD |
1 | ||
| 62603A - SASH SUB-ASSY, SIDE WINDOW INNER REAR, NO.3 | ||||
| 62087-90740 |
BB10,RB1#..RHD |
1 | ||
| 62603B - GUIDE, SIDE WINDOW INNER SASH, NO.3 | ||||
| 62744-90740 |
BB10,RB1# |
4 | ||
| 62603B - GUIDE, SIDE WINDOW INNER SASH, NO.3 | ||||
| 62744-90740 |
BB10,RB1# |
4 | ||
| 62603F - SASH, SIDE WINDOW INNER CENTER, NO.3 | ||||
| 62822-90740 |
BB10,RB1# |
2 | ||
| 62603F - SASH, SIDE WINDOW INNER CENTER, NO.3 | ||||
| 62822-90740 |
BB10,RB1# |
2 | ||
| 62603G - WEATHERSTRIP, RUN CHANNEL, NO.3 | ||||
| 62742-90741 |
BB10,RB1# RR |
1 | ||
| 62742-90743 |
BB10,RB1# FR |
1 | ||
| 62603G - WEATHERSTRIP, RUN CHANNEL, NO.3 | ||||
| 62742-90741 |
BB10,RB1# RR |
1 | ||
| 62742-90743 |
BB10,RB1# FR |
1 | ||
| 62603H - STOPPER, SIDE WINDOW, NO.3 | ||||
| 62747-90740 |
BB10,RB1# |
2 | ||
| 62603J - WEATHERSTRIP, SIDE WINDOW CENTER, NO.3 | ||||
| 62823-90740 |
BB10,RB1# |
2 | ||
| 62603J - WEATHERSTRIP, SIDE WINDOW CENTER, NO.3 | ||||
| 62823-90740 |
BB10,RB1# |
2 | ||
| 62630 - SASH ASSY, SIDE WINDOW OUTER, NO.3 (FOR SLIDE TYPE) | ||||
| 62025-90740 |
BB10,RB1#..RHD RH |
1 | ||
| 62630D - SUPPORT, SIDE WINDOW OUTER SASH, NO.3 | ||||
| 62727-90740 |
BB10,RB1# |
2 | ||
| 62630D - SUPPORT, SIDE WINDOW OUTER SASH, NO.3 | ||||
| 62727-90740 |
BB10,RB1# |
2 | ||
| 62630E - PIECE, SIDE WINDOW OUTER SASH, NO.3 | ||||
| 62729-90740 |
BB10,RB1# |
1 | ||
| 62633 - DUST PROOF, SIDE WINDOW, NO.3 | ||||
| 62793-90500 |
BB10,RB1# |
1 | ||
| 62653 - GLASS, SIDE WINDOW, NO.3, FRONT (FOR SLIDE TYPE) | ||||
| 62771-90741 |
BB10,RB1#..BC,DLX |
1 | ||
| 62653A - GLASS, SIDE WINDOW, NO.3, REAR (FOR SLIDE TYPE) | ||||
| 62772-90741 |
BB10,RB1#..BC,DLX |
1 | ||
| 62653B - WEATHERSTRIP, SIDE WINDOW, FRONT NO.3 | ||||
| 62842-90740 |
BB10,RB1# |
1 | ||
| 62653C - WEATHERSTRIP, SIDE WINDOW, REAR NO.3 | ||||
| 62843-90740 |
BB10,RB1# |
1 | ||
| 62709 - ADAPTER, SIDE WINDOW | ||||
| 62762-90740 |
BB10,RB1# |
16 | ||
| 62724A - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB10,RB1# UPR |
21 | ||
| 62725-90740 |
BB10,RB1# LWR |
8 | ||
| 62724A - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB10,RB1# UPR |
21 | ||
| 62725-90740 |
BB10,RB1# LWR |
8 | ||
| 62724A - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB10,RB1# UPR |
21 | ||
| 62725-90740 |
BB10,RB1# LWR |
8 | ||
| 62724A - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB10,RB1# UPR |
21 | ||
| 62725-90740 |
BB10,RB1# LWR |
8 | ||
| 62768 - BRACKET, SIDE WINDOW, LOWER | ||||
| 61768-90740 |
BB10,RB1# |
16 | ||
| 62776 - PIECE, SIDE WINDOW WATER PROOF, LOWER | ||||
| 62776-90740 |
BB10,RB1# |
16 | ||
| 62776 - PIECE, SIDE WINDOW WATER PROOF, LOWER | ||||
| 62776-90740 |
BB10,RB1# |
16 | ||
| 62777 - STOPPER, SIDE WINDOW | ||||
| 62777-90740 |
BB10,RB1# |
8 | ||
| 62834 - SASH, CENTER SIDE WINDOW WATER PROOF | ||||
| 62834-90740 |
BB10,RB1# |
1 | ||
| 62835 - WEATHERSTRIP, CENTER SIDE WINDOW, UPPER | ||||
| 62835-90740 |
BB10,RB1# |
1 | ||
| 62836 - WEATHERSTRIP, CENTER SIDE WINDOW WATER PROOF, UPPER | ||||
| 62836-90740 |
BB10,RB1# |
1 | ||
| 62837 - WEATHERSTRIP, CENTER SIDE WINDOW WATER PROOF | ||||
| 62837-90740 |
BB10,RB1#..RHD |
1 | ||
| 62921 - WEATHERSTRIP, RUN CHANNEL, LOWER | ||||
| 62921-90500 |
BB10,RB1# |
16 | ||
| 62921 - WEATHERSTRIP, RUN CHANNEL, LOWER | ||||
| 62921-90500 |
BB10,RB1# |
16 | ||
| Common parts | ||||
| 62749-90740 | ||||
| 90159-40019 | ||||
| 90260-05001 | ||||
| 93229-23008 | ||||
| 93229-24012 | ||||
| 93239-24008 | ||||
| 93540-24014 | ||||

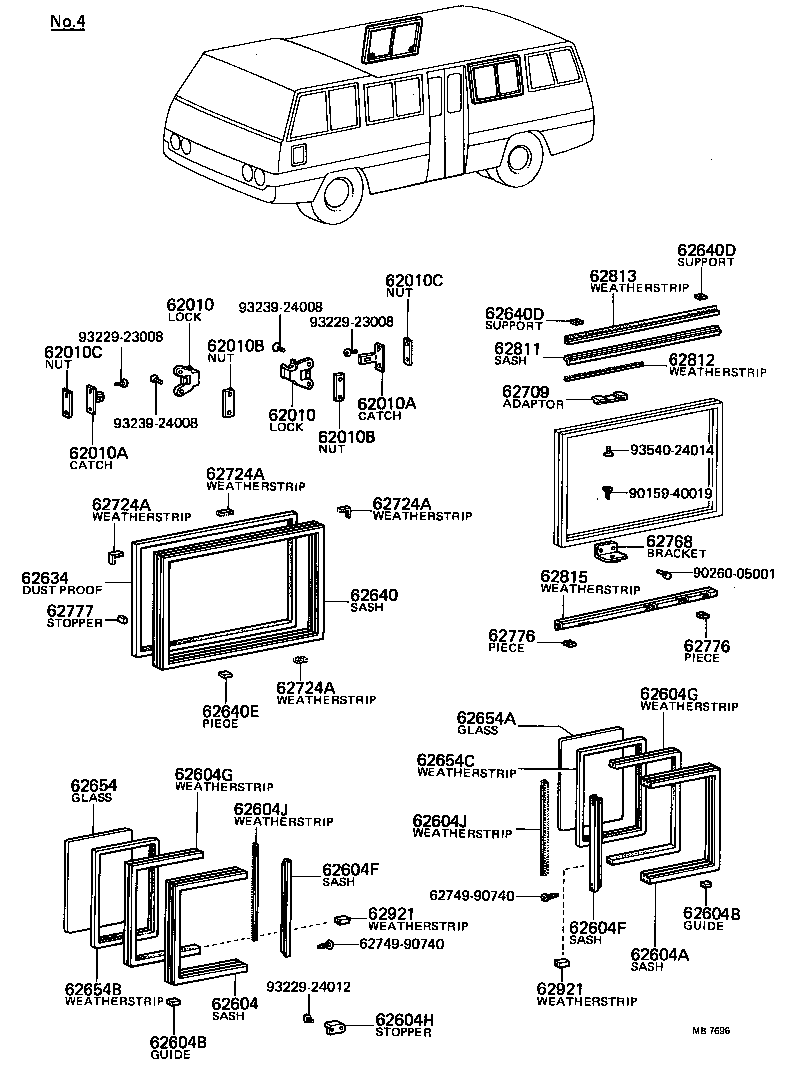

(7708- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62010 - LOCK ASSY, SIDE WINDOW | ||||
| 62010-90740 |
BB10,RB1# |
16 | ||
| 62010 - LOCK ASSY, SIDE WINDOW | ||||
| 62010-90740 |
BB10,RB1# |
16 | ||
| 62010A - CATCH, LOCK | ||||
| 62756-90740 |
BB10,RB1# |
16 | ||
| 62010A - CATCH, LOCK | ||||
| 62756-90740 |
BB10,RB1# |
16 | ||
| 62010B - NUT, PLATE, NO.1 | ||||
| 62759-90740 |
BB10,RB1# |
16 | ||
| 62010B - NUT, PLATE, NO.1 | ||||
| 62759-90740 |
BB10,RB1# |
16 | ||
| 62010C - NUT, PLATE, NO.2 | ||||
| 62761-90740 |
BB10,RB1# |
16 | ||
| 62010C - NUT, PLATE, NO.2 | ||||
| 62761-90740 |
BB10,RB1# |
16 | ||
| 62604 - SASH SUB-ASSY, SIDE WINDOW INNER FRONT, NO.4 | ||||
| 62082-90740 |
BB10,RB1# LH |
1 | ||
| 62081-90740 |
BB10,RB1# RH |
1 | ||
| 62604A - SASH SUB-ASSY, SIDE WINDOW INNER REAR, NO.4 | ||||
| 62083-90740 |
BB10,RB1# RH |
1 | ||
| 62084-90740 |
BB10,RB1# LH |
1 | ||
| 62604B - GUIDE, SIDE WINDOW INNER SASH, NO.4 | ||||
| 62744-90740 |
BB10,RB1# |
8 | ||
| 62604B - GUIDE, SIDE WINDOW INNER SASH, NO.4 | ||||
| 62744-90740 |
BB10,RB1# |
8 | ||
| 62604F - SASH, SIDE WINDOW INNER CENTER, NO.4 | ||||
| 62822-90740 |
BB10,RB1# |
4 | ||
| 62604F - SASH, SIDE WINDOW INNER CENTER, NO.4 | ||||
| 62822-90740 |
BB10,RB1# |
4 | ||
| 62604G - WEATHERSTRIP, RUN CHANNEL, NO.4 | ||||
| 62742-90742 |
BB10,RB1# RR |
2 | ||
| 62742-90744 |
BB10,RB1# FR |
2 | ||
| 62604G - WEATHERSTRIP, RUN CHANNEL, NO.4 | ||||
| 62742-90742 |
BB10,RB1# RR |
2 | ||
| 62742-90744 |
BB10,RB1# FR |
2 | ||
| 62604H - STOPPER, SIDE WINDOW, NO.4 | ||||
| 62747-90740 |
BB10,RB1# |
4 | ||
| 62604J - WEATHERSTRIP, SIDE WINDOW CENTER, NO.4 | ||||
| 62823-90740 |
BB10,RB1# |
4 | ||
| 62604J - WEATHERSTRIP, SIDE WINDOW CENTER, NO.4 | ||||
| 62823-90740 |
BB10,RB1# |
4 | ||
| 62634 - DUST PROOF, SIDE WINDOW, NO.4 | ||||
| 62792-90500 |
BB10,RB1# |
2 | ||
| 62640 - SASH ASSY, SIDE WINDOW OUTER, NO.4 (FOR SLIDE TYPE) | ||||
| 62022-90740 |
BB10,RB1#..RHD LH |
1 | ||
| 62027-90740 |
BB10,RB1#..RHD RH |
1 | ||
| 62640D - SUPPORT, SIDE WINDOW OUTER SASH, NO.4 | ||||
| 62727-90740 |
BB10,RB1# |
4 | ||
| 62640D - SUPPORT, SIDE WINDOW OUTER SASH, NO.4 | ||||
| 62727-90740 |
BB10,RB1# |
4 | ||
| 62640E - PIECE, SIDE WINDOW OUTER SASH, NO.4 | ||||
| 62729-90740 |
BB10,RB1# |
2 | ||
| 62654 - GLASS, SIDE WINDOW, NO.4, FRONT (FOR SLIDE TYPE) | ||||
| 62731-90741 |
BB10,RB1#..BC,DLX |
2 | ||
| 62654A - GLASS, SIDE WINDOW, NO.4, REAR (FOR SLIDE TYPE) | ||||
| 62732-90741 |
BB10,RB1#..BC,DLX |
2 | ||
| 62654B - WEATHERSTRIP, SIDE WINDOW, FRONT NO.4 | ||||
| 62824-90740 |
BB10,RB1# |
2 | ||
| 62654C - WEATHERSTRIP, SIDE WINDOW, REAR NO.4 | ||||
| 62825-90740 |
BB10,RB1# |
2 | ||
| 62709 - ADAPTER, SIDE WINDOW | ||||
| 62762-90740 |
BB10,RB1# |
16 | ||
| 62724A - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB10,RB1# UPR |
21 | ||
| 62725-90740 |
BB10,RB1# LWR |
8 | ||
| 62724A - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB10,RB1# UPR |
21 | ||
| 62725-90740 |
BB10,RB1# LWR |
8 | ||
| 62724A - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB10,RB1# UPR |
21 | ||
| 62725-90740 |
BB10,RB1# LWR |
8 | ||
| 62724A - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB10,RB1# UPR |
21 | ||
| 62725-90740 |
BB10,RB1# LWR |
8 | ||
| 62768 - BRACKET, SIDE WINDOW, LOWER | ||||
| 61768-90740 |
BB10,RB1# |
16 | ||
| 62776 - PIECE, SIDE WINDOW WATER PROOF, LOWER | ||||
| 62776-90740 |
BB10,RB1# |
16 | ||
| 62776 - PIECE, SIDE WINDOW WATER PROOF, LOWER | ||||
| 62776-90740 |
BB10,RB1# |
16 | ||
| 62777 - STOPPER, SIDE WINDOW | ||||
| 62777-90740 |
BB10,RB1# |
8 | ||
| 62811 - SASH, SIDE WINDOW WATER PROOF | ||||
| 62811-90740 |
BB10,RB1# |
4 | ||
| 62812 - WEATHERSTRIP, SIDE WINDOW, UPPER | ||||
| 62812-90740 |
BB10,RB1# |
4 | ||
| 62813 - WEATHERSTRIP, SIDE WINDOW WATER PROOF, UPPER | ||||
| 62813-90740 |
BB10,RB1# |
4 | ||
| 62815 - WEATHERSTRIP, SIDE WINDOW WATER PROOF | ||||
| 62815-90740 |
BB10,RB1# LH |
2 | ||
| 62814-90740 |
BB10,RB1# RH |
2 | ||
| 62921 - WEATHERSTRIP, RUN CHANNEL, LOWER | ||||
| 62921-90500 |
BB10,RB1# |
16 | ||
| 62921 - WEATHERSTRIP, RUN CHANNEL, LOWER | ||||
| 62921-90500 |
BB10,RB1# |
16 | ||
| Common parts | ||||
| 62749-90740 | ||||
| 90159-40019 | ||||
| 90260-05001 | ||||
| 93229-23008 | ||||
| 93229-24012 | ||||
| 93239-24008 | ||||
| 93540-24014 | ||||

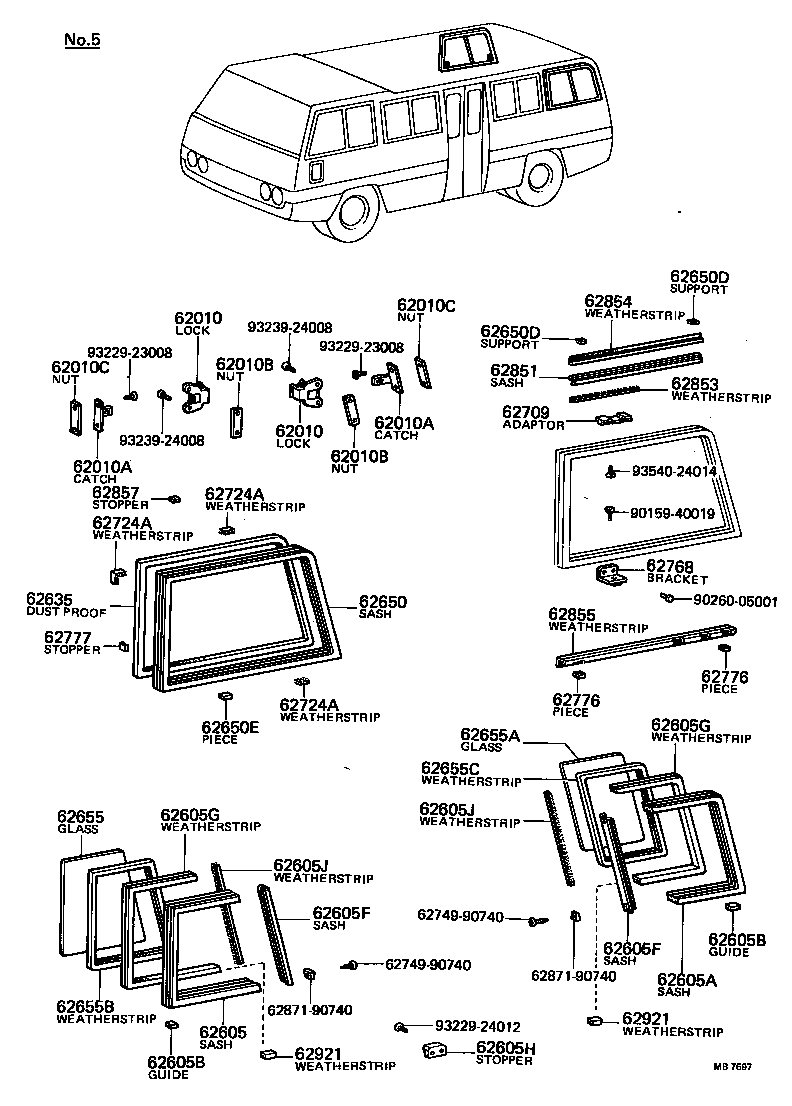

(7708- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62010 - LOCK ASSY, SIDE WINDOW | ||||
| 62010-90740 |
BB10,RB1# |
16 | ||
| 62010 - LOCK ASSY, SIDE WINDOW | ||||
| 62010-90740 |
BB10,RB1# |
16 | ||
| 62010A - CATCH, LOCK | ||||
| 62756-90740 |
BB10,RB1# |
16 | ||
| 62010A - CATCH, LOCK | ||||
| 62756-90740 |
BB10,RB1# |
16 | ||
| 62010B - NUT, PLATE, NO.1 | ||||
| 62759-90740 |
BB10,RB1# |
16 | ||
| 62010B - NUT, PLATE, NO.1 | ||||
| 62759-90740 |
BB10,RB1# |
16 | ||
| 62010C - NUT, PLATE, NO.2 | ||||
| 62761-90740 |
BB10,RB1# |
16 | ||
| 62010C - NUT, PLATE, NO.2 | ||||
| 62761-90740 |
BB10,RB1# |
16 | ||
| 62605 - SASH SUB-ASSY, SIDE WINDOW INNER FRONT, NO.5 | ||||
| 62091-90740 |
BB10,RB1# LH |
1 | ||
| 62089-90740 |
BB10,RB1# RH |
1 | ||
| 62605A - SASH SUB-ASSY, SIDE WINDOW INNER REAR, NO.5 | ||||
| 62092-90740 |
BB10,RB1# RH |
1 | ||
| 62093-90740 |
BB10,RB1# LH |
1 | ||
| 62605B - GUIDE, SIDE WINDOW INNER SASH, NO.5 | ||||
| 62744-90740 |
BB10,RB1# |
8 | ||
| 62605B - GUIDE, SIDE WINDOW INNER SASH, NO.5 | ||||
| 62744-90740 |
BB10,RB1# |
8 | ||
| 62605F - SASH, SIDE WINDOW INNER CENTER,NO.5 | ||||
| 62866-90740 |
BB10,RB1# LH,RR;RH,FR |
1 | ||
| 62865-90740 |
BB10,RB1# RH,RR;LH,FR |
1 | ||
| 62605F - SASH, SIDE WINDOW INNER CENTER,NO.5 | ||||
| 62866-90740 |
BB10,RB1# LH,RR;RH,FR |
1 | ||
| 62865-90740 |
BB10,RB1# RH,RR;LH,FR |
1 | ||
| 62605G - WEATHERSTRIP, RUN CHANNEL, NO.5 | ||||
| 62742-90744 |
BB10,RB1# RR |
2 | ||
| 62742-90742 |
BB10,RB1# FR |
2 | ||
| 62605G - WEATHERSTRIP, RUN CHANNEL, NO.5 | ||||
| 62742-90744 |
BB10,RB1# RR |
2 | ||
| 62742-90742 |
BB10,RB1# FR |
2 | ||
| 62605H - STOPPER, SIDE WINDOW, NO.5 | ||||
| 62747-90740 |
BB10,RB1# |
1 | ||
| 62605J - WEATHERSTRIP, SIDE WINDOW CENTER, NO.5 | ||||
| 62867-90740 |
BB10,RB1# |
4 | ||
| 62605J - WEATHERSTRIP, SIDE WINDOW CENTER, NO.5 | ||||
| 62867-90740 |
BB10,RB1# |
4 | ||
| 62635 - DUST PROOF, SIDE WINDOW, NO.5 | ||||
| 62794-90500 |
BB10,RB1# |
2 | ||
| 62650 - SASH ASSY, SIDE WINDOW OUTER, NO.5 (FOR SLIDE TYPE) | ||||
| 62029-90740 |
BB10,RB1# RH |
1 | ||
| 62031-90740 |
BB10,RB1# LH |
1 | ||
| 62650D - SUPPORT, SIDE WINDOW OUTER SASH, NO.5 | ||||
| 62727-90740 |
BB10,RB1# |
4 | ||
| 62650D - SUPPORT, SIDE WINDOW OUTER SASH, NO.5 | ||||
| 62727-90740 |
BB10,RB1# |
4 | ||
| 62650E - PIECE, SIDE WINDOW OUTER SASH, NO.5 | ||||
| 62729-90740 |
BB10,RB1# |
2 | ||
| 62655 - GLASS, SIDE WINDOW, NO.5, FRONT (FOR SLIDE TYPE) | ||||
| 62751-90741 |
BB10,RB1#..BC,DLX |
2 | ||
| 62655A - GLASS, SIDE WINDOW, NO.5, REAR (FOR SLIDE TYPE) | ||||
| 62752-90741 |
BB10,RB1#..BC,DLX |
2 | ||
| 62655B - WEATHERSTRIP, SIDE WINDOW, FRONT NO.5 | ||||
| 62868-90740 |
BB10,RB1# |
2 | ||
| 62655C - WEATHERSTRIP, SIDE WINDOW, REAR NO.5 | ||||
| 62869-90740 |
BB10,RB1# |
2 | ||
| 62709 - ADAPTER, SIDE WINDOW | ||||
| 62762-90740 |
BB10,RB1# |
16 | ||
| 62724A - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB10,RB1# UPR |
21 | ||
| 62725-90740 |
BB10,RB1# LWR |
8 | ||
| 62724A - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB10,RB1# UPR |
21 | ||
| 62725-90740 |
BB10,RB1# LWR |
8 | ||
| 62724A - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB10,RB1# UPR |
21 | ||
| 62725-90740 |
BB10,RB1# LWR |
8 | ||
| 62768 - BRACKET, SIDE WINDOW, LOWER | ||||
| 61768-90740 |
BB10,RB1# |
16 | ||
| 62776 - PIECE, SIDE WINDOW WATER PROOF, LOWER | ||||
| 62776-90740 |
BB10,RB1# |
16 | ||
| 62776 - PIECE, SIDE WINDOW WATER PROOF, LOWER | ||||
| 62776-90740 |
BB10,RB1# |
16 | ||
| 62777 - STOPPER, SIDE WINDOW | ||||
| 62777-90740 |
BB10,RB1# |
8 | ||
| 62851 - SASH, REAR SIDE WINDOW WATER PROOF | ||||
| 62852-90740 |
BB10,RB1# LH |
1 | ||
| 62851-90740 |
BB10,RB1# RH |
1 | ||
| 62853 - WEATHERSTRIP, REAR SIDE WINDOW, UPPER | ||||
| 62853-90740 |
BB10,RB1# |
2 | ||
| 62854 - WEATHERSTRIP, REAR SIDE WINDOW WATER PROOF, UPPER | ||||
| 62854-90740 |
BB10,RB1# |
2 | ||
| 62855 - WEATHERSTRIP, REAR SIDE WINDOW WATER PROOF | ||||
| 62855-90740 |
BB10,RB1# RH |
1 | ||
| 62856-90740 |
BB10,RB1# LH |
1 | ||
| 62857 - STOPPER, SLIDING WINDOW | ||||
| 62857-90740 |
BB10,RB1# |
2 | ||
| 62921 - WEATHERSTRIP, RUN CHANNEL, LOWER | ||||
| 62921-90500 |
BB10,RB1# |
16 | ||
| 62921 - WEATHERSTRIP, RUN CHANNEL, LOWER | ||||
| 62921-90500 |
BB10,RB1# |
16 | ||
| Common parts | ||||
| 62749-90740 | ||||
| 62871-90740 | ||||
| 90159-40019 | ||||
| 90260-05001 | ||||
| 93229-23008 | ||||
| 93229-24012 | ||||
| 93239-24008 | ||||
| 93540-24014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
