RB11R-JDZER (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

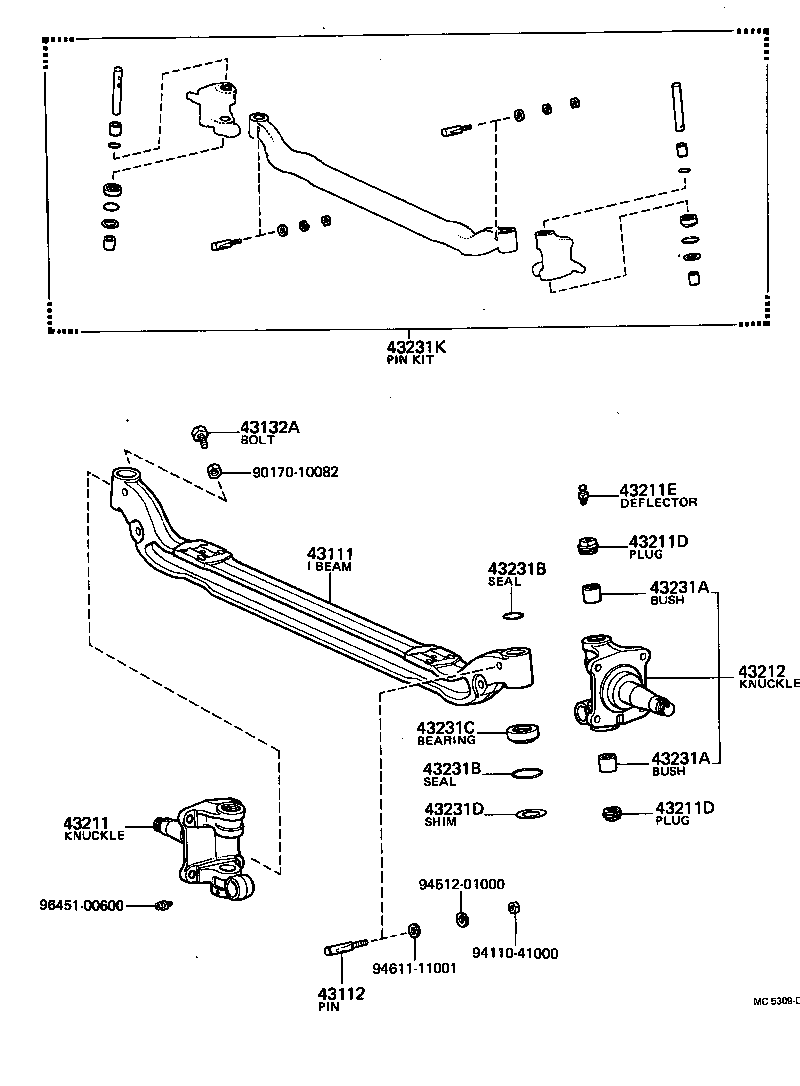

Click highlighted areas on diagram

diagram 43111 43112 43132A 43211 43211D 43211D 43211E 43212 43231A 43231A 43231B 43231B 43231C 43231D 43231K 9017010082 9411041000 9451201000 9461111001 9645100600
Part # Description Qty Price
43111 - I BEAM, FRONT AXLE
43111-36020

RB1#

 1
43112 - PIN, KING PIN LOCK
43112-36020

BB10,RB1#

 2
43132A - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)
90106-10006

BB10,RB1#

 2
43211 - KNUCKLE, STEERING, RH
43201-36040

BB10,RB1#

 1
43211D - PLUG (FOR STEERING KNUCKLE)
90345-58001

BB10,RB1#

UPR

 2
90345-58002

BB10,RB1#

LWR

 2
43211D - PLUG (FOR STEERING KNUCKLE)
90345-58001

BB10,RB1#

UPR

 2
90345-58002

BB10,RB1#

LWR

 2
43211E - DEFLECTOR, DUST (FOR STEERING KNUCKLE)
90930-03048

BB10,RB1#

 2
43212 - KNUCKLE, STEERING, LH
43202-36030

BB10,RB1#

 1
43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS
90999-73082

BB10,RB1#

 4
43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS
90999-73082

BB10,RB1#

 4
43231B - SEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)
96710-02042

BB10,RB1#

LWR

 2
96710-01028

BB10,RB1#

UPR

 1
43231B - SEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)
96710-02042

BB10,RB1#

LWR

 2
96710-01028

BB10,RB1#

UPR

 1
43231C - BEARING (FOR STEERING KNUCKLE KING PIN)
90367-28011

BB10,RB1#

 2
43231D - SHIM (FOR KING PIN)
90564-28128

BB10,RB1#

T=0.20,T=0.20

 2
90564-28130

BB10,RB1#

T=0.30,T=0.30

 2
90564-28131

BB10,RB1#

T=0.35,T=0.35

 2
90564-28129

BB10,RB1#

T=0.25,T=0.25

 2
90564-28144

BB10,RB1#

T=0.40,T=0.40

 2
90564-28145

BB10,RB1#

T=0.45,T=0.45

 2
43231K - PIN KIT, STEERING KNUCKLE KING
04431-36030

BB10,RB1#

 1
Common parts
90170-10082
94110-41000
94512-01000
94611-11001
96451-00600
