RB11R-JDZER (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

Click highlighted areas on diagram

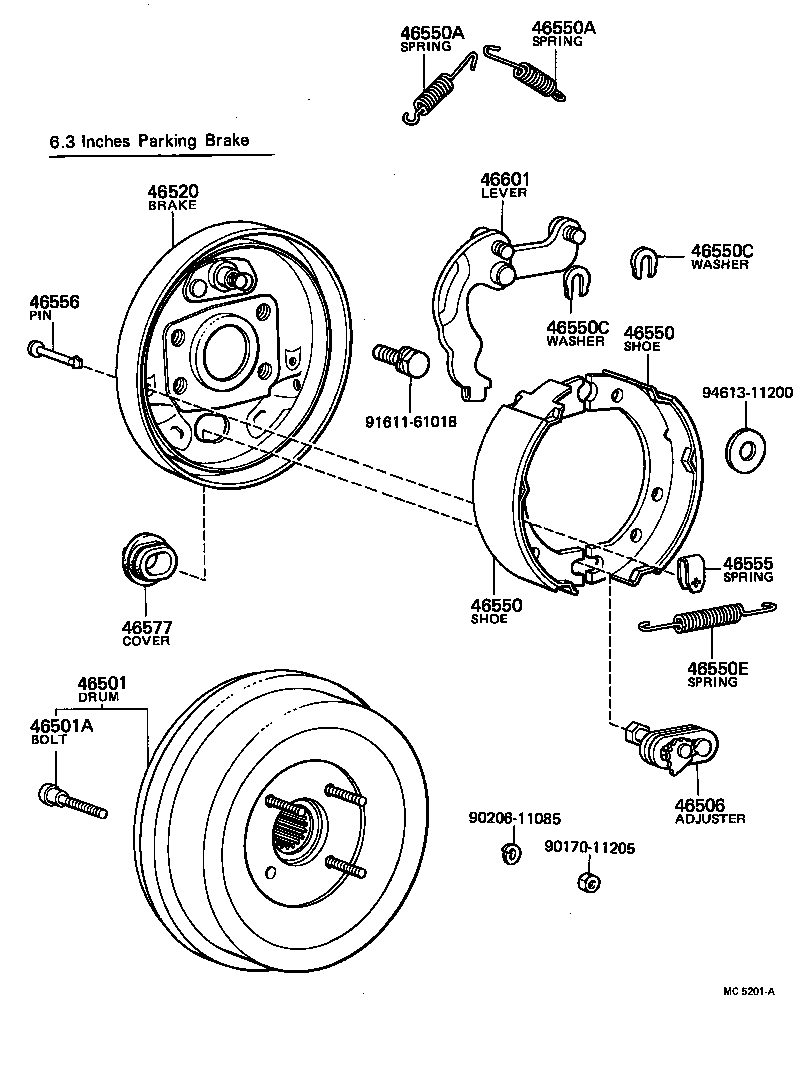

diagram 46501 46501A 46506 46520 46550 46550 46550A 46550A 46550C 46550C 46550E 46555 46556 46577 46601 9017011205 9020611085 9161161018 9461311200
Part # Description Qty Price
46501 - DRUM SUB-ASSY, PARKING BRAKE
46501-36011

BB10,RB1#

 1
46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM)
90114-11124

BB10,RB1#

 4
46506 - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER
46506-36020

BB10,RB1#

 1
46520 - PLATE SUB-ASSY, PARKING BRAKE
46503-36020

BB10,RB1#

 1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46530-36020

BB10,RB1#

 2
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46530-36020

BB10,RB1#

 2
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90506-18012

BB10,RB1#

 2
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90506-18012

BB10,RB1#

 2
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06013

BB10,RB1#

 2
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06013

BB10,RB1#

 2
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-14048

BB10,RB1#

 1
46555 - SPRING, BRAKE SHOE HOLD DOWN
46555-35010

BB10,RB1#

 2
46556 - PIN, SHOE HOLD DOWN SPRING
46556-35010

BB10,RB1#

 2
46577 - COVER, ADJUSTING CAM HOLE
46577-36010

BB10,RB1#

 1
46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE
46601-36020

BB10,RB1#

 1
Common parts
90170-11205
90206-11085
91611-61018
94613-11200

(7708-7905) ; (7905- )GEN,IRQ

Click highlighted areas on diagram

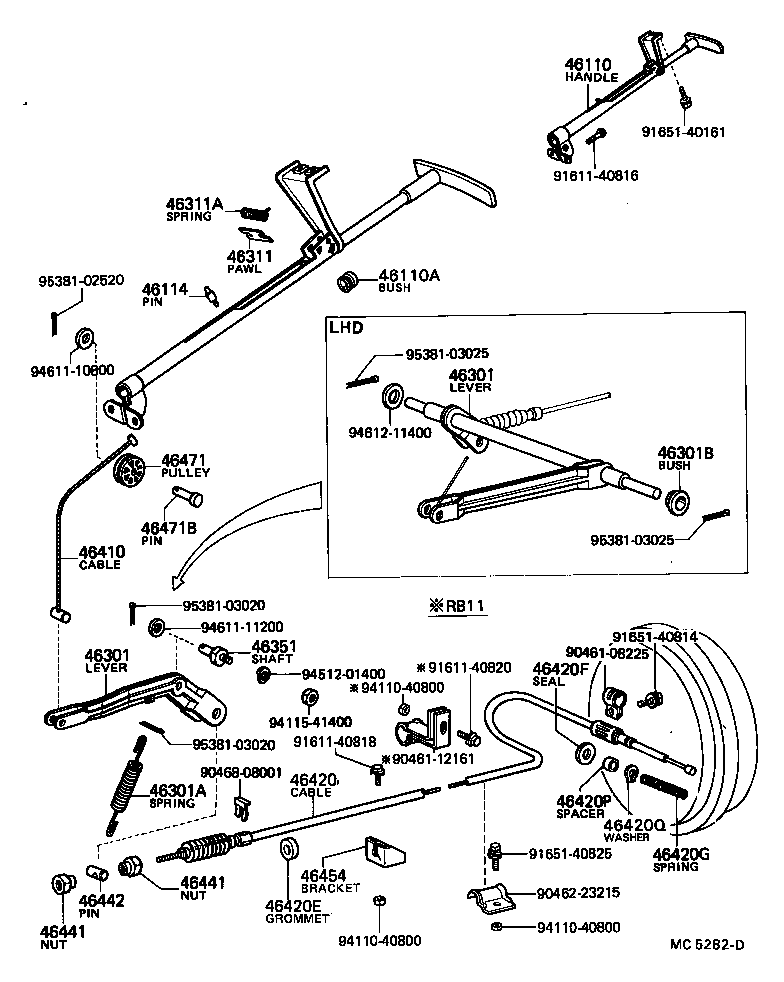

diagram 46110 46110A 46114 46301 46301 46301A 46301B 46311 46311A 46351 46410 46420 46420E 46420F 46420G 46420P 46420Q 46441 46441 46442 46454 46471 46471B 9046108255 9046112161 9046223215 9046808001 9161140816 9161140818 9161140820 9165140161 9165140814 9165140825 9411040800 9411040800 9411040800 9411541400 9451201400 9461110800 9461111200 9461211400 9538102520 9538103020 9538103020 9538103025 9538103025
Part # Description Qty Price
46110 - HANDLE ASSY, PARKING BRAKE CONTROL
46104-36011

BB10,RB1#..RHD

 1
46104-36011

BB10,RB1#..RHD..GEN

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-30020

BB10,RB11..GEN

 1
46114-30020

BB10,RB1#

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-36021

BB10,RB1#..RHD

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-36021

BB10,RB1#..RHD

 1
46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER)
90506-18055

BB10,RB1#

 1
46311 - PAWL, PARKING BRAKE
46311-30030

BB10,RB1#

 1
46311A - SPRING(FOR PARKING BRAKE PAWL)
90508-07040

BB10,RB1#

 1
46351 - SHAFT, INTERMEDIATE LEVER PIVOT
46351-36010

BB10,RB1#..RHD

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-36080

BB10,RB1#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-36140

RB1#..4F,4H

 1
46420E - GROMMET(FOR PARKING BRAKE CABLE CLAMP)
90480-30211

RB11..4H

 2
46420F - SEAL, DUST(FOR PARKING BRAKE CABLE)
90303-10001

BB10,RB1#

 1
46420G - SPRING(FOR PARKING CABLE INNER WIRE SET)
90501-14021

BB10,RB1#

 1
46420P - SPACER, PARKING BRAKE
90560-08002

BB10,RB1#

 1
46420Q - RING, E(FOR PARKING BRAKE CABLE)
96160-00700

BB10,RB1#

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-36020

BB10,RB1#

 2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-36020

BB10,RB1#

 2
46442 - PIN, WIRE PIVOT
46442-35010

BB10,RB1#

 1
46454 - BRACKET, CABLE RETAINER, FRONT
46454-36020

BB10,RB1#

 1
46471 - PULLEY, WIRE
46471-20010

BB10,RB1#

 1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08062

BB10,RB1#

 1
Common parts
90461-08255
90461-12161
90462-23215
90468-08001
91611-40816
91611-40818
91611-40820
91651-40161
91651-40814
91651-40825
94110-40800
94115-41400
94512-01400
94611-10800
94611-11200
94612-11400
95381-02520
95381-03020
95381-03025
