RB11R-JDZER (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

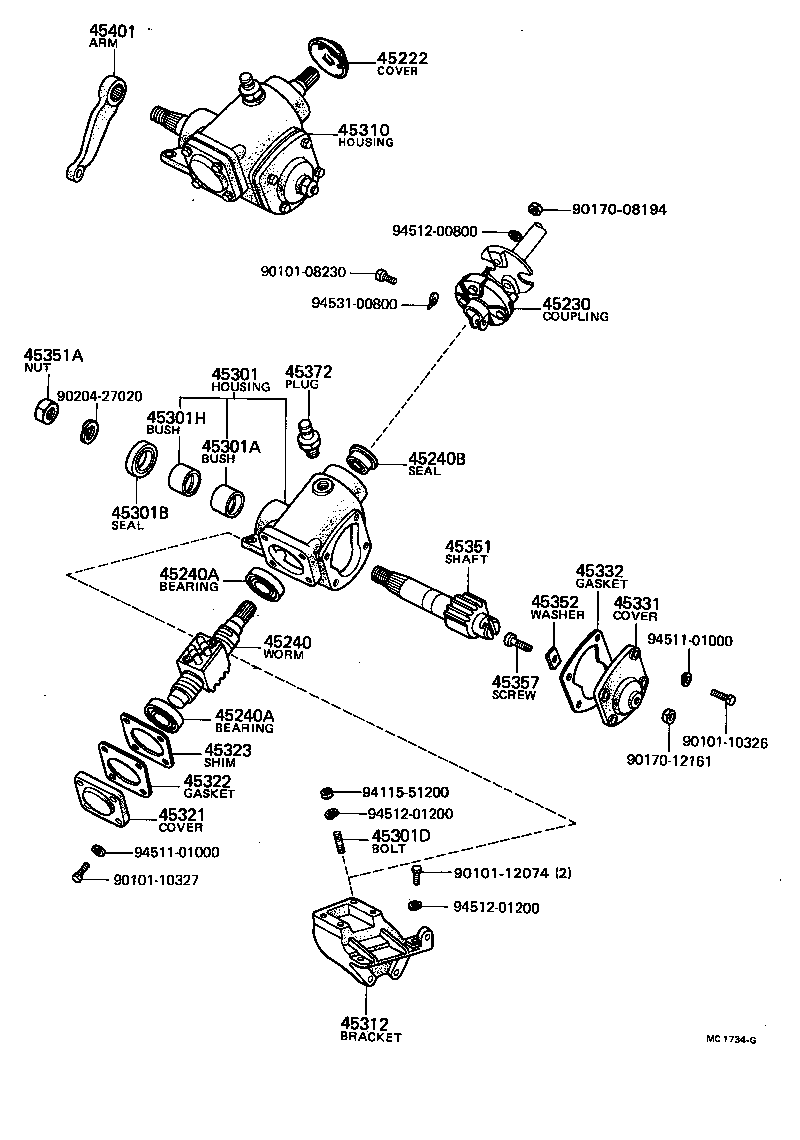

Click highlighted areas on diagram

diagram 45222 45230 45240 45240A 45240A 45240B 45301 45301A 45301B 45301D 45301H 45310 45312 45321 45322 45323 45331 45332 45351 45351A 45352 45357 45372 45401 9010108230 9010110326 9010110327 9010112074 9017008194 9017012161 9020427020 9411551200 9451101000 9451101000 9451200800 9451201200 9451201200 9453100800
Part # Description Qty Price
45230 - COUPLING ASSY, FLEXIBLE
45230-36010

BB10,RB1#

 1
45240 - WORM ASSY, STEERING
45240-36021

BB10,RB1#..RHD

 1
45240A - BEARING(FOR STEERING WORM)
90363-25046

BB10,RB1#

 2
45240A - BEARING(FOR STEERING WORM)
90363-25046

BB10,RB1#

 2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-22103

BB10,RB1#

 1
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-36031

BB10,RB1#..RHD

 1
45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1
90999-73060

BB10,RB1#

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90311-36104

BB10,RB1#

 1
45301D - BOLT, STUD(FOR STEERING GEAR HOUSING)
90116-12256

BB10,RB1#

 2
45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2
90999-73060

BB10,RB1#

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-36044

BB10,RB1#..RHD

 1
45312 - BRACKET, STEERING GEAR HOUSING
45312-36112

BB10,RB1#..RHD

 1
45321 - COVER, GEAR HOUSING END
45321-36010

BB10,RB1#

 1
45322 - GASKET, GEAR HOUSING END COVER
45322-37010

BB10,RB1#

 1
45323 - SHIM, GEAR HOUSING END COVER
45323-37030

BB10,RB1#

T=0.07,T=0.07

 1
45323-37020

BB10,RB1#

T=0.06,T=0.06

 1
45323-37040

BB10,RB1#

T=0.10,T=0.10

 1
45323-37010

BB10,RB1#

T=0.05,T=0.05

 1
45323-37050

BB10,RB1#

T=0.20,T=0.20

 1
45323-37060

BB10,RB1#

T=0.50,T=0.50

 1
45331 - COVER, SECTOR SHAFT END
45304-36010

BB10,RB1#

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-37010

BB10,RB1#

 1
45351 - SHAFT, STEERING SECTOR
45351-36011

BB10,RB1#

 1
45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-27033

BB10,RB1#

 1
45352 - WASHER, SECTOR SHAFT THRUST
45354-37010

BB10,RB1#

T=2.05,T=2.05

 1
45353-37010

BB10,RB1#

T=2.00,T=2.00

 1
45352-37010

BB10,RB1#

T=1.95,T=1.95

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-36010

BB10,RB1#

 1
45372 - PLUG, STEERING GEAR HOUSING OIL
90930-03058

BB10,RB1#

 1
45401 - ARM SUB-ASSY, PITMAN
45401-36170

BB10,RB1#..RHD

 1
Common parts
90101-08230
90101-10326
90101-10327
90101-12074
90170-08194
90170-12161
90204-27020
94115-51200
94511-01000
94512-00800
94512-01200
94531-00800

(7708- )

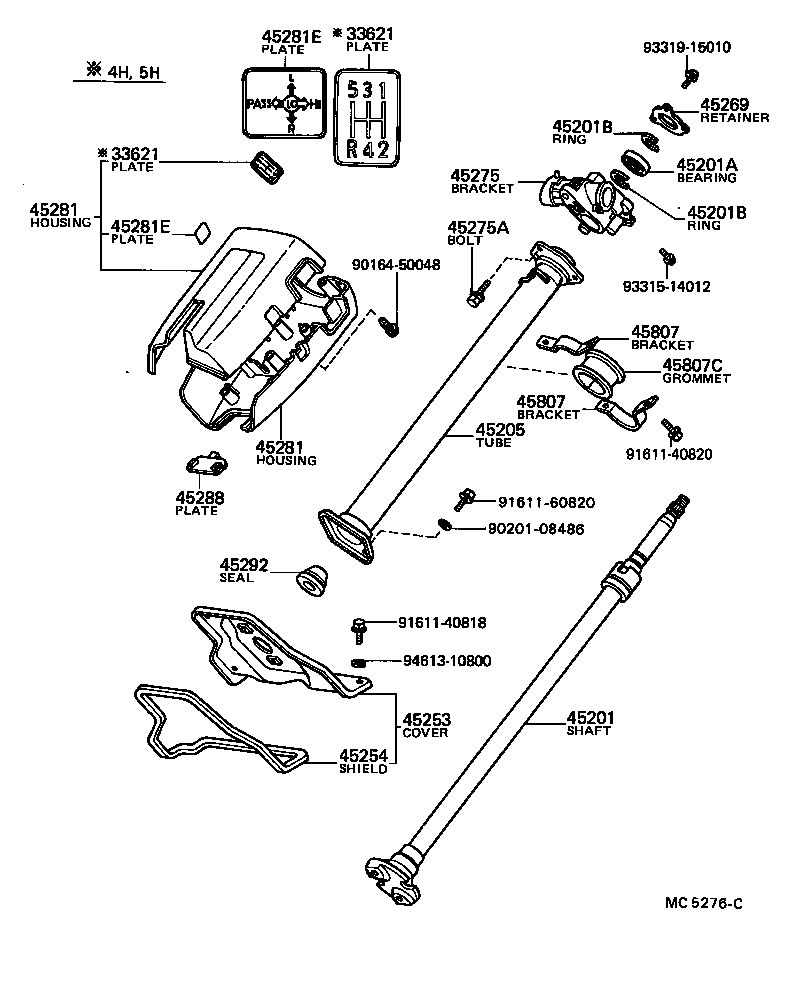

Click highlighted areas on diagram

diagram 33621 33621 45201 45201A 45201B 45201B 45205 45253 45254 45269 45275 45275A 45281 45281 45281E 45281E 45288 45292 45807 45807 45807C 9016450048 9020108486 9161140818 9161140820 9161160820 9331514012 9331915010 9461310800
Part # Description Qty Price
33621 - PLATE, CONTROL LEVER CAUTION
33621-36040

RB1#..RHD..4H

 1
33621 - PLATE, CONTROL LEVER CAUTION
33621-36040

RB1#..RHD..4H

 1
45201 - SHAFT SUB-ASSY, STEERING MAIN
45201-36110

BB10,RB1#

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

BB10,RB1#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

BB10,RB1#

T=1.20,LWR

 1
90520-17269

BB10,RB1#

T=1.20,UPR

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

BB10,RB1#

T=1.20,LWR

 1
90520-17269

BB10,RB1#

T=1.20,UPR

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-36130

BB10,RB1#

 1
45253 - COVER, STEERING COLUMN HOLE
45253-36060

BB10,RB1#..RHD

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-36020

BB10,RB1#..RHD

 1
45269 - RETAINER, MAIN SHAFT BEARING
45269-36010

BB10,RB1#

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45307-36050

RB1#..RHD

 1
45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET)
91611-40616

BB10,RB1#

 3
45281 - HOUSING, STEERING COLUMN
45287-36070

BB10,RB1#..RHD

LWR

 1
45286-36200

RB1#..RHD..4H

UPR

 1
45281 - HOUSING, STEERING COLUMN
45287-36070

BB10,RB1#..RHD

LWR

 1
45286-36200

RB1#..RHD..4H

UPR

 1
45281E - PLATE, SAFETY CAUTION
45283-22010

BB10,RB1#..RHD

 1
45281E - PLATE, SAFETY CAUTION
45283-22010

BB10,RB1#..RHD

 1
45288 - PLATE, STEERING COLUMN COVER
45288-36010

BB10,RB1#

 1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-36010

BB10,RB1#

 1
45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
55612-90501

BB10,RB1#

LWR

 1
55601-90500

BB10,RB1#

UPR

 1
45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
55612-90501

BB10,RB1#

LWR

 1
55601-90500

BB10,RB1#

UPR

 1
45807C - GROMMET(FOR STEERING COLUMN CLAMP)
90480-45092

BB10,RB1#

 1
Common parts
90164-50048
90201-08486
91611-40818
91611-40820
91611-60820
93315-14012
93319-15010
94613-10800
