RB11R-JDZER (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

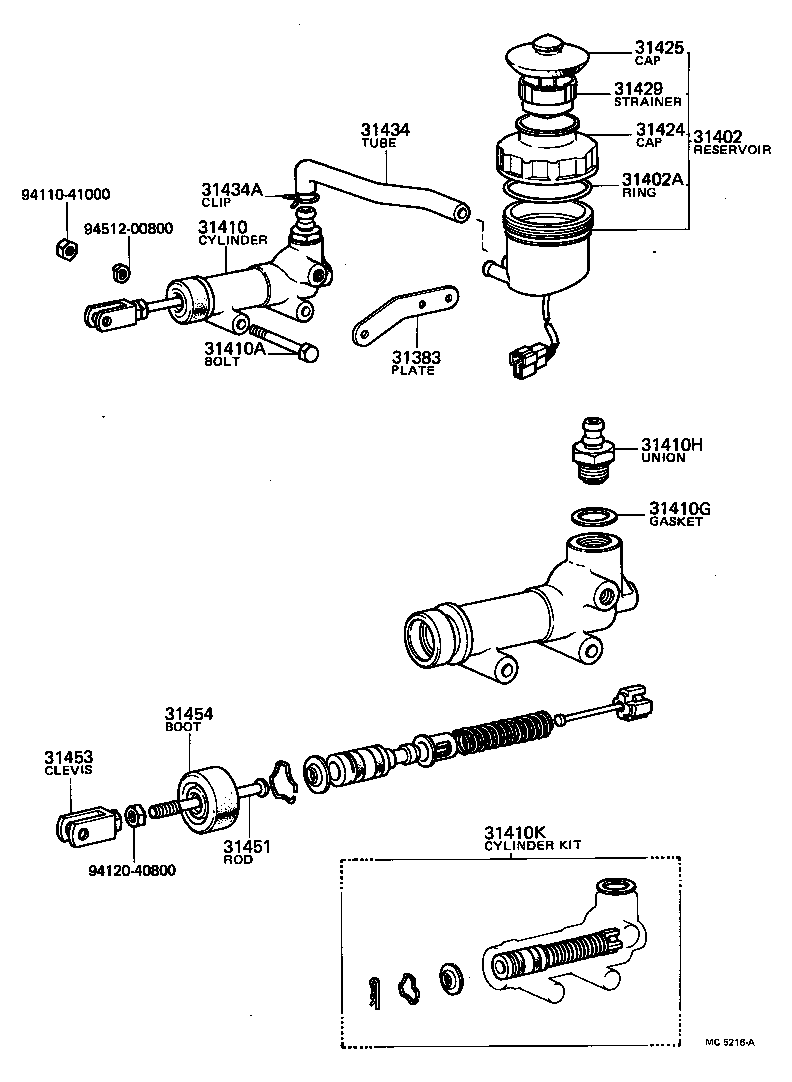

Click highlighted areas on diagram

diagram 31383 31402 31402A 31410 31410A 31410G 31410H 31410K 31424 31425 31429 31434 31434A 31451 31453 31454 9411041000 9412040800 9451200800
Part # Description Qty Price
31383 - PLATE, PEDAL SUPPORT SHAFT SET
55136-90740

BB10,RB1#

 1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
47220-36010

BB10,RB1#

 1
31402A - RING, O(FOR RESERVOIR CAP SET)
90301-59149

BB10,RB1#

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-36030

BB10,RB1#

 1
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
91121-40870

BB10,RB1#

 2
31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION)
90430-16242

BB10,RB1#

 1
31410H - UNION(FOR CLUTCH MASTER CYLINDER)
90404-16307

BB10,RB1#

 1
31410K - CYLINDER KIT, CLUTCH MASTER
04311-20050

BB10,RB1#

 1
31424 - CAP, RESERVOIR(FOR CLUTCH MASTER CYLINDER)
31424-36010

BB10,RB1#

 1
31425 - CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER
31440-35010

BB10,RB1#

 1
31429 - STRAINER, MASTER CYLINDER RESERVOIR
47299-36010

BB10,RB1#

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-36022

BB10,RB1#..RHD

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
90467-14044

BB10,RB1#

 2
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-14010

BB10,RB1#

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-22010

BB10,RB1#

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-14010

BB10,RB1#

 1
Common parts
94110-41000
94120-40800
94512-00800
