RB11R-JDZER (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

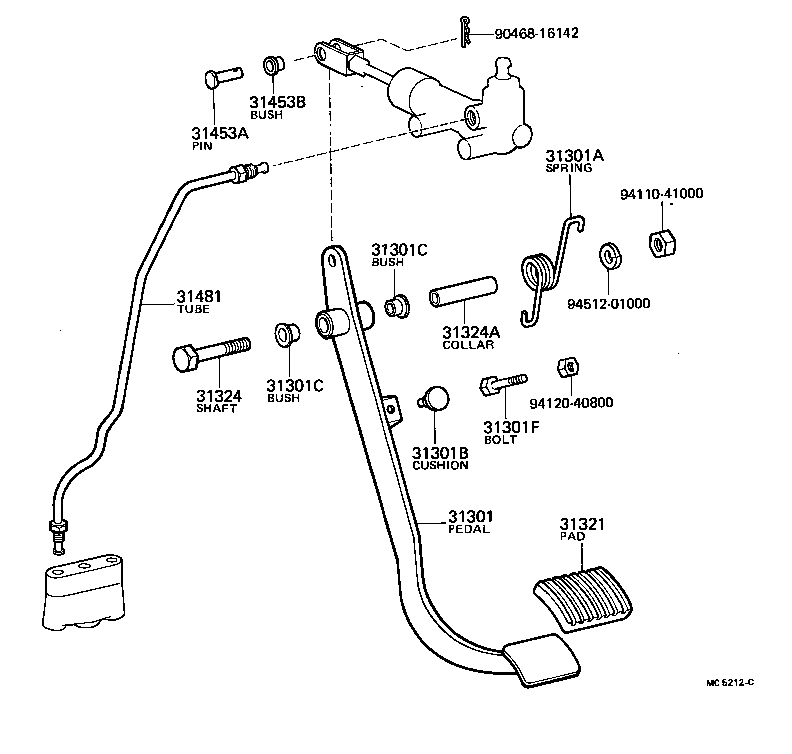

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 31481 9046816142 9411041000 9412040800 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-36050

BB10,RB1#

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35004

BB10,RB1#

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

BB10,RB1#

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

BB10,RB1#

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

BB10,RB1#

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08173

BB10,RB1#

 1
31321 - PAD, CLUTCH PEDAL
31321-36010

BB10,RB1#

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

BB10,RB1#

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

BB10,RB1#

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

BB10,RB1#

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

BB10,RB1#

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-36102

BB10,RB1#..RHD

 1
Common parts
90468-16142
94110-41000
94120-40800
94512-01000

(7708- )

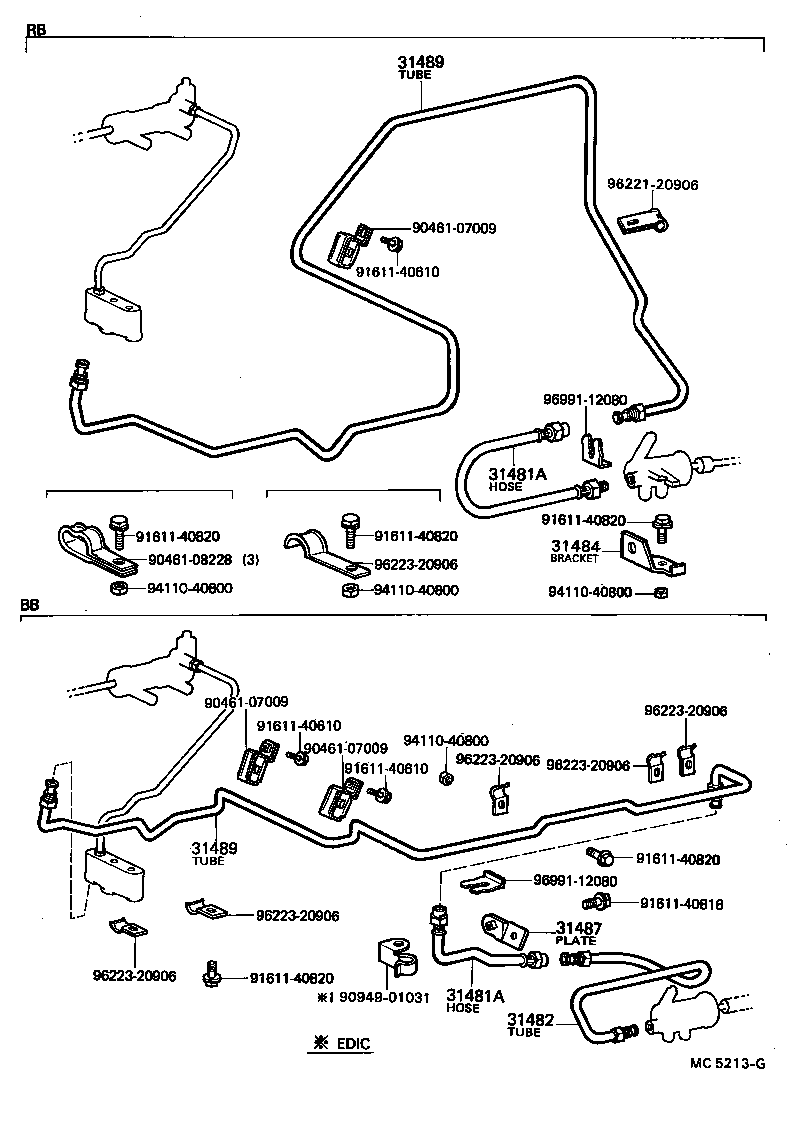

Click highlighted areas on diagram

diagram 31481A 31481A 31482 31484 31487 31489 31489 9046107009 9046107009 9046107009 9046108228 9094901031 9161140610 9161140610 9161140610 9161140816 9161140820 9161140820 9161140820 9161140820 9161140820 9411040800 9411040800 9411040800 9411040800 9622120906 9622320906 9622320906 9622320906 9622320906 9622320906 9622320906 9699112080 9699112080
Part # Description Qty Price
31481A - HOSE, CLUTCH, NO.1
96912-31363

RB1#

 1
96912-33605

RB1#

 1
31481A - HOSE, CLUTCH, NO.1
96912-31363

RB1#

 1
96912-33605

RB1#

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-36040

RB1#

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-36072

RB1#

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-36072

RB1#

 1
Common parts
90461-07009
90461-08228
90949-01031
91611-40610
91611-40816
91611-40820
94110-40800
96221-20906
96223-20906
96991-12080
