RB11R-JDZER (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

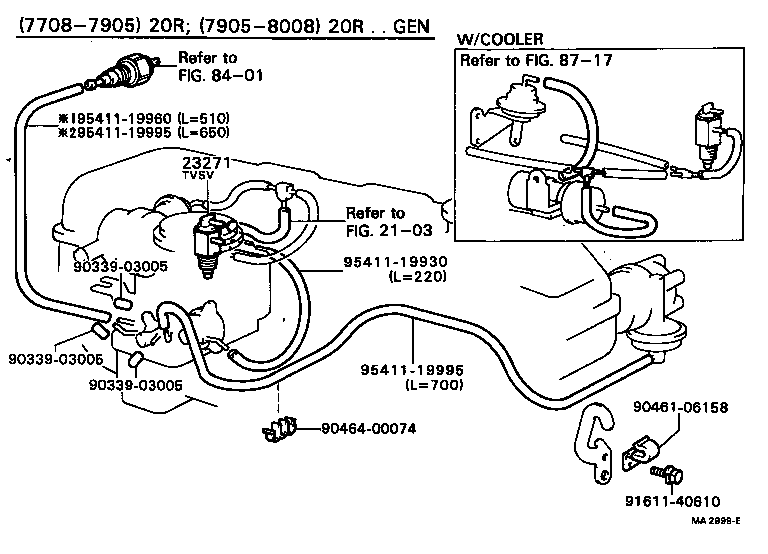

(7708-8008)20R

Click highlighted areas on diagram

diagram 2103 23271 8401 8717 9033903005 9033903005 9033903005 9046106158 9046400074 9161140610 9541119930 9541119960 9541119995 9541119995
Part # Description Qty Price
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02028

20R,22R..RB11,13

 1
Common parts
90339-03005
90461-06158
90464-00074
91611-40610
95411-19930
95411-19960
95411-19995
Linked diagrams
2103
8401
8717

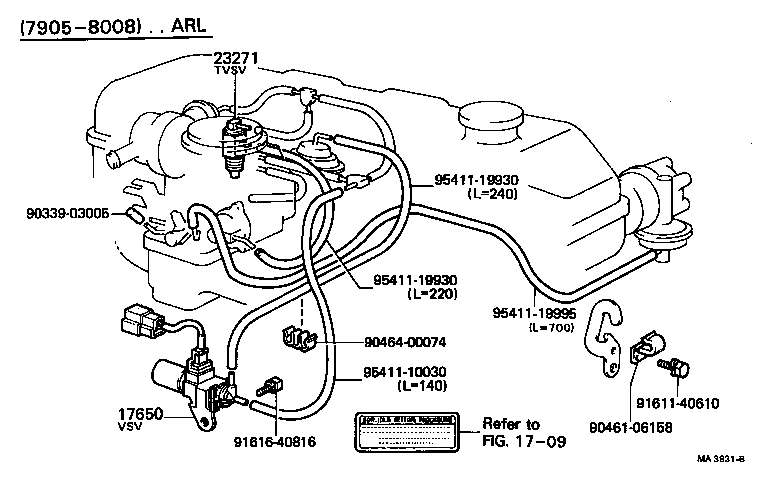

(7708-8008)20R

Click highlighted areas on diagram

diagram 1709 17650 23271 9033903005 9046106158 9046400074 9161140610 9161640816 9541110030 9541119930 9541119930 9541119995
Part # Description Qty Price
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02028

20R,22R..RB11,13

 1
Common parts
90339-03005
90461-06158
90464-00074
91611-40610
91616-40816
95411-10030
95411-19930
95411-19995
Linked diagrams
1709

(7708- )20R,22R

Click highlighted areas on diagram

diagram 9041304005 9041404001 9041404002 9046400074 9046400081 9046400082 9092501004 9092501005 9092501006 9092501008 9092501018 9092501019 9092501021 9092501026 9092501027 9092501029 9092501042 9092501043 9092501053 9092501054 9092501062 9092501064
Part # Description Qty Price
Common parts
90413-04005
90414-04001
90414-04002
90464-00074
90464-00081
90464-00082
90925-01004
90925-01005
90925-01006
90925-01008
90925-01018
90925-01019
90925-01021
90925-01026
90925-01027
90925-01029
90925-01042
90925-01043
90925-01053
90925-01054
90925-01062
90925-01064
