RB11R-JDZER (1977)
Toyota Coaster
Production
Aug 1977
-
Nov 1979
Engine
20R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708-7911)20R

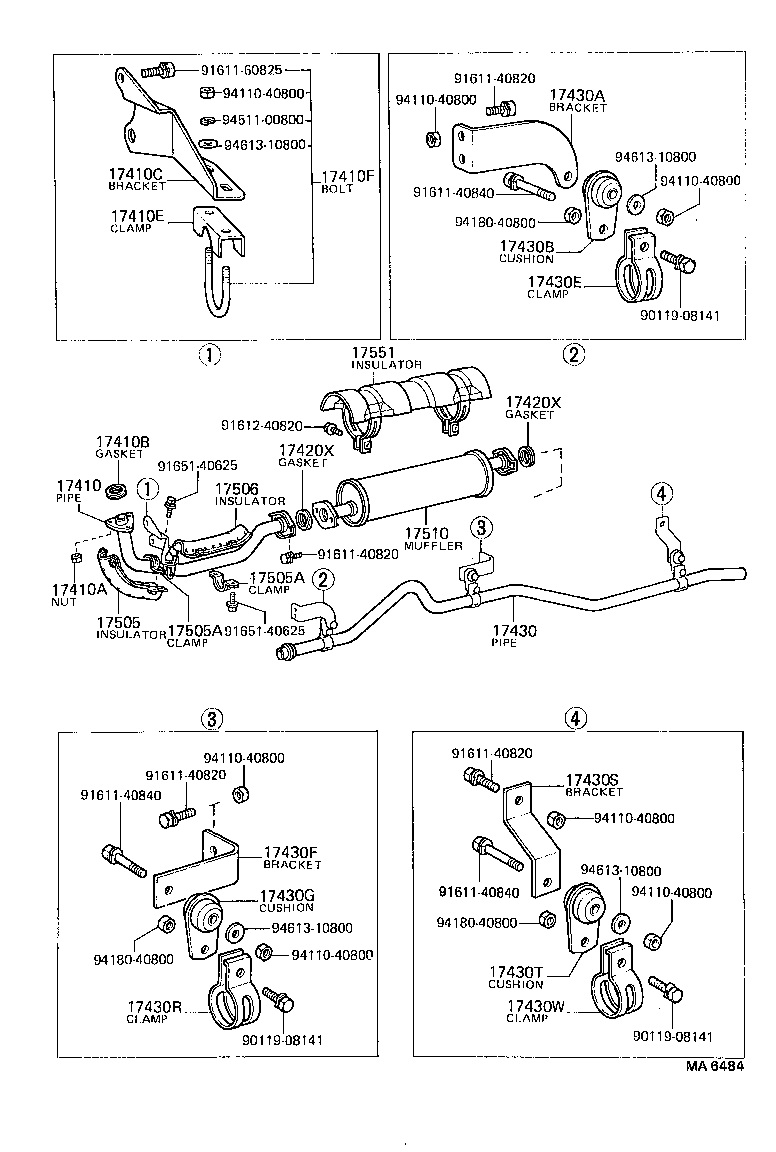

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-38040 |
20R..RB11 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10118 |
20R,5R..RB1# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06012 |
20R,22R..RB11,13 |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-38070 |
20R..RB11 |
1 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90917-04008 |
20R,2B..BB10,RB11 |
1 | ||
| 17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90118-08045 |
20R,2B..BB10,RB11 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
20R,2B..BB10,RB11 RR |
1 | ||
| 90917-06008 |
20R,2B..BB10,RB11 FR |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
20R,2B..BB10,RB11 RR |
1 | ||
| 90917-06008 |
20R,2B..BB10,RB11 FR |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-38010 |
20R..RB11 |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17572-38040 |
20R..RB11 |
1 | ||
| 17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 90917-08004 |
20R,2B,5R..BB10,RB1# |
1 | ||
| 17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 90461-23087 |
20R,2B..BB10,RB11 |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17573-48040 |
20R,5R..RB1# |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90917-08004 |
20R,2B,5R..BB10,RB1# |
1 | ||
| 17430R - CLAMP NO.2, EXHAUST TAIL PIPE (FOR CENTER) | ||||
| 90461-23087 |
20R,2B..BB10,RB11 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17573-40010 |
20R,5R..RB1# |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90917-08004 |
20R,2B,5R..BB10,RB1# |
1 | ||
| 17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90461-23087 |
20R,2B..BB10,RB11 |
1 | ||
| 17505 - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1 | ||||
| 17505-38030 |
20R,22R..RB11,13..BC |
1 | ||
| 17505A - CLAMP, EXHAUST PIPE(FOR HEAT INSULATOR) | ||||
| 17541-34020 |
20R,22R..RB11,13..BC |
4 | ||
| 17505A - CLAMP, EXHAUST PIPE(FOR HEAT INSULATOR) | ||||
| 17541-34020 |
20R,22R..RB11,13..BC |
4 | ||
| 17506 - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.2 | ||||
| 17506-38040 |
20R,22R..RB11,13..BC |
1 | ||
| 17510 - MUFFLER ASSY | ||||
| 17501-36011 |
20R,2B..BB10,RB11 |
1 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-57010 |
20R,22R..RB11,13..RHD |
1 | ||
| Common parts | ||||
| 90119-08141 | ||||
| 91611-40820 | ||||
| 91611-40840 | ||||
| 91611-60825 | ||||
| 91612-40820 | ||||
| 91651-40625 | ||||
| 94110-40800 | ||||
| 94180-40800 | ||||
| 94511-00800 | ||||
| 94613-10800 | ||||
