RB11R-JDZER (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )20R,22R

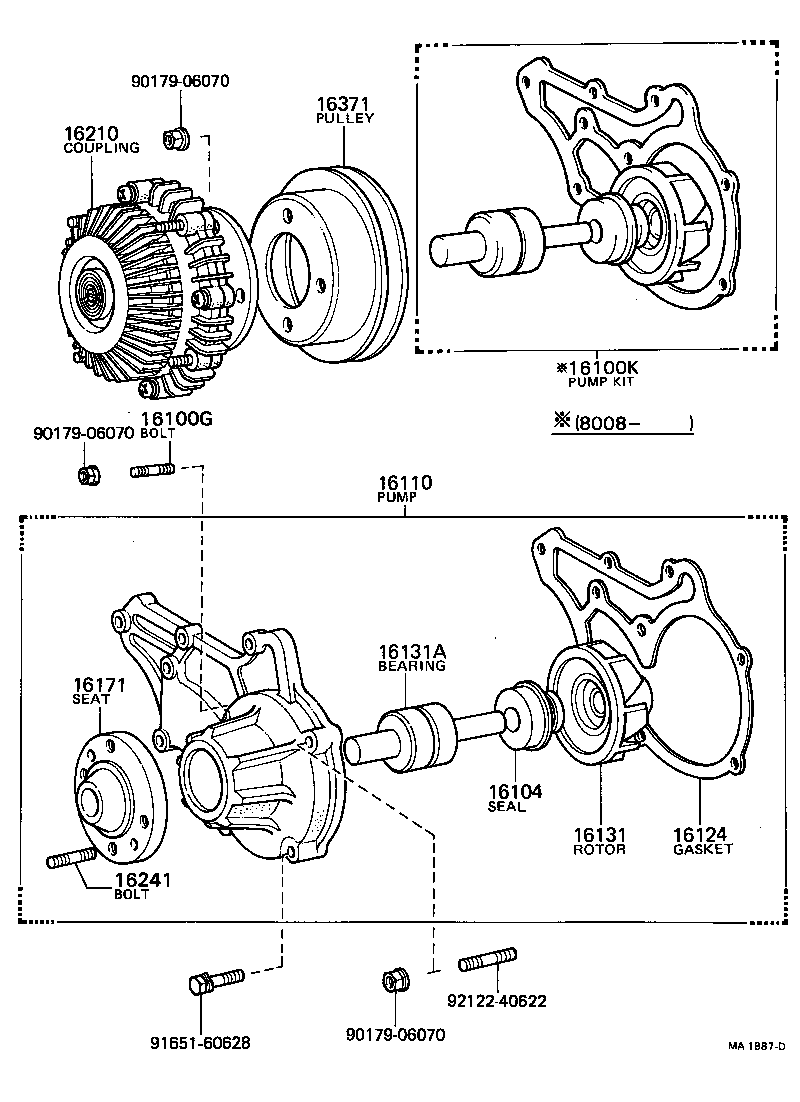

Click highlighted areas on diagram

diagram 16100G 16100K 16104 16110 16124 16131 16131A 16171 16210 16241 16371 9017906070 9017906070 9017906070 9165160628 9212240622
Part # Description Qty Price
16104 - SEAL SET, WATER PUMP
16104-41110

20R,5R..RB1#

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-38030

20R..RB11

 1
16124 - GASKET, WATER PUMP COVER
16129-38030

20R..RB11

 1
16131 - ROTOR, WATER PUMP
16131-38020

20R..RB11

 1
16131A - BEARING, WATER PUMP
16140-38011

20R..RB11

WPB16101ARS

 1
16171 - SEAT, WATER PUMP PULLEY
16171-38022

20R,22R..RB11,13

 1
16210 - COUPLING ASSY, FLUID
16210-38023

20R..RB11

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16193-33030

20R..RB11

L=20.5,S=5.5&9

 4
16371 - PULLEY, FAN
16173-38011

20R,22R..RB11,13

 1
Common parts
90179-06070
91651-60628
92122-40622
