RB11R-JDZER (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )20R,22R

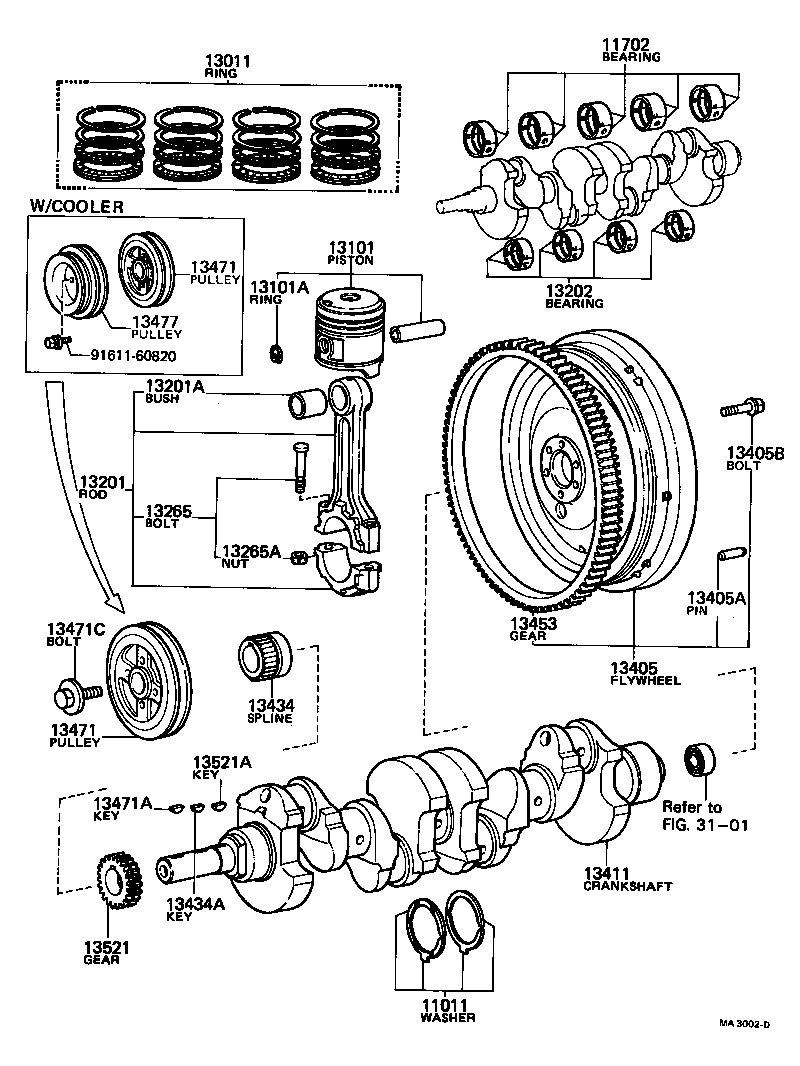

Click highlighted areas on diagram

diagram 11011 11702 13011 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405A 13405B 13411 13434 13434A 13453 13471 13471 13471A 13471C 13477 13521 13521A 3101 9161160820
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-38010

20R..RB11

STD,STD

 1
11013-38010

20R..RB11

O/S 0.250,O/S 0.25

 1
11012-38010

20R..RB11

O/S 0.125,O/S 0.125

 1
11702 - BEARING SET, CRANKSHAFT
11702-38010

20R,22R..RB11,13

STD,STD

 1
11704-38010

20R,22R..RB11,13

U/S 0.25,U/S 0.25

 1
13011 - RING SET, PISTON
13013-38020

20R..RB11

O/S 0.50

 1
13015-38020

20R..RB11

O/S 1.00

 1
13011-38030

20R..RB11

STD

 1
13101 - PISTON SUB-ASSY, W/PIN
13101-38030

20R..RB11

STD

 4
13103-38030

20R..RB11

O/S 0.50

 4
13105-38030

20R..RB11

O/S 1.00

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-25105

20R,22R..RB11,13

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-38011

20R,22R..RB11,13

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73072

20R,22R..RB11,13

 1
13202 - BEARING SET, CONNECTING ROD
13204-38011

20R,22R..RB11,13

U/S 0.25,U/S 0.25

 1
13202-38011

20R,22R..RB11,13

STD,STD

 1
13265 - BOLT, CONNECTING ROD
13265-39025

20R,22R..RB11,13

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-10198

20R,22R,5R..RB1#

 8
13405 - FLYWHEEL SUB-ASSY
13405-39105

20R..RB11

N=115

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

20R,22R,5R..RB1#

L=23,OD=8,L=23,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90913-01011

20R,22R..RB11,13

*11-1.25PX26-18

 6
13411 - CRANKSHAFT
13411-38010

20R,22R..RB11,13

 1
13434 - SPLINE, OIL PUMP DRIVE
13434-38010

20R,22R..RB11,13

N=42

 1
13434A - KEY(FOR OIL PUMP DRIVE SPLINE)
90280-05010

20R,22R..RB11,13

 1
13453 - GEAR, FLYWHEEL RING
13453-20010

20R,22R,5R..RB1#

N=115

 1
13471 - PULLEY, CRANKSHAFT
13471-38030

20R..RB11

 1
13471 - PULLEY, CRANKSHAFT
13471-38030

20R..RB11

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

20R..RB11

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-14048

20R..RB11

 1
13477 - PULLEY, CRANKSHAFT, NO.2
88358-36040

20R..RB11..BC

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-38010

20R,22R..RB11,13

N=18

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

20R..RB11

 1
Common parts
91611-60820
Linked diagrams
3101
