Toyota Coaster RB11 MOUNTING - JDM Part Detective

RB11R-JDZER (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979

Engine 20R

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

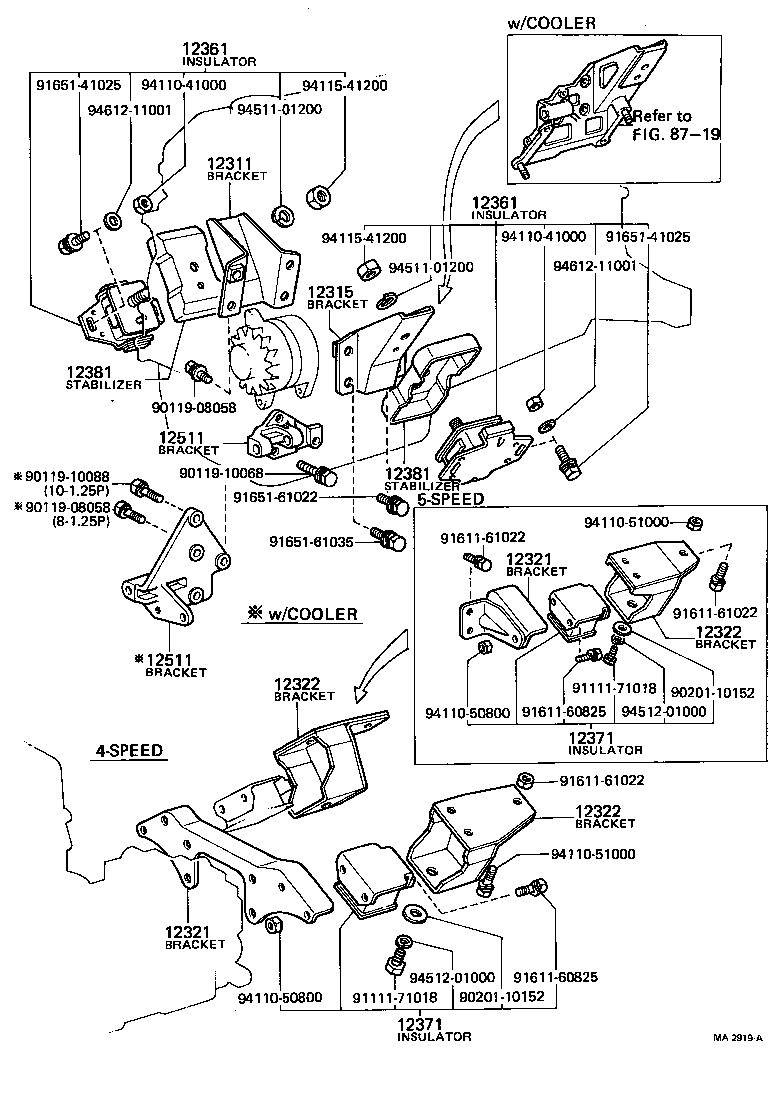

(7708-7808)20R

Click highlighted areas on diagram

Part #	Description	Period	Qty
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-38010	20R..RB11	08/1977 - 11/1979	1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-44012	20R,22R..RB11,13..4F,4H	08/1977 - 04/1982	1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-44012	20R,22R..RB11,13..4F,4H	08/1977 - 04/1982	1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12326-38010	20R,22R..RB11,13..4F,4H LH	08/1977 - 04/1982	1
12322-38010	20R,22R..RB11,13..4F,4H RH	08/1977 - 04/1982	1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12326-38010	20R,22R..RB11,13..4F,4H LH	08/1977 - 04/1982	1
12322-38010	20R,22R..RB11,13..4F,4H RH	08/1977 - 04/1982	1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12326-38010	20R,22R..RB11,13..4F,4H LH	08/1977 - 04/1982	1
12322-38010	20R,22R..RB11,13..4F,4H RH	08/1977 - 04/1982	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-39155	20R..RB11	08/1977 - 08/1978	2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-39155	20R..RB11	08/1977 - 08/1978	2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-59035	20R,22R..RB11,13	08/1977 - 04/1982	2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-59035	20R,22R..RB11,13	08/1977 - 04/1982	2
12381 - STABILIZER, ENGINE MOUNTING
12381-38010	20R..RB11	08/1977 - 08/1978	2
12381 - STABILIZER, ENGINE MOUNTING
12381-38010	20R..RB11	08/1977 - 08/1978	2
12511 - BRACKET, ALTERNATOR, NO.1
88688-36070	20R..RB11..BC	08/1977 - 08/1980	1
12511 - BRACKET, ALTERNATOR, NO.1
88688-36070	20R..RB11..BC	08/1977 - 08/1980	1
Common parts
90119-08058
90119-10068
90119-10088
90201-10152
91111-71018
91611-60825
91611-61022
91651-41025
91651-61022
91651-61035
94110-41000
94110-50800
94110-51000
94115-41200
94511-01200
94512-01000
94612-11001
Linked diagrams
8719

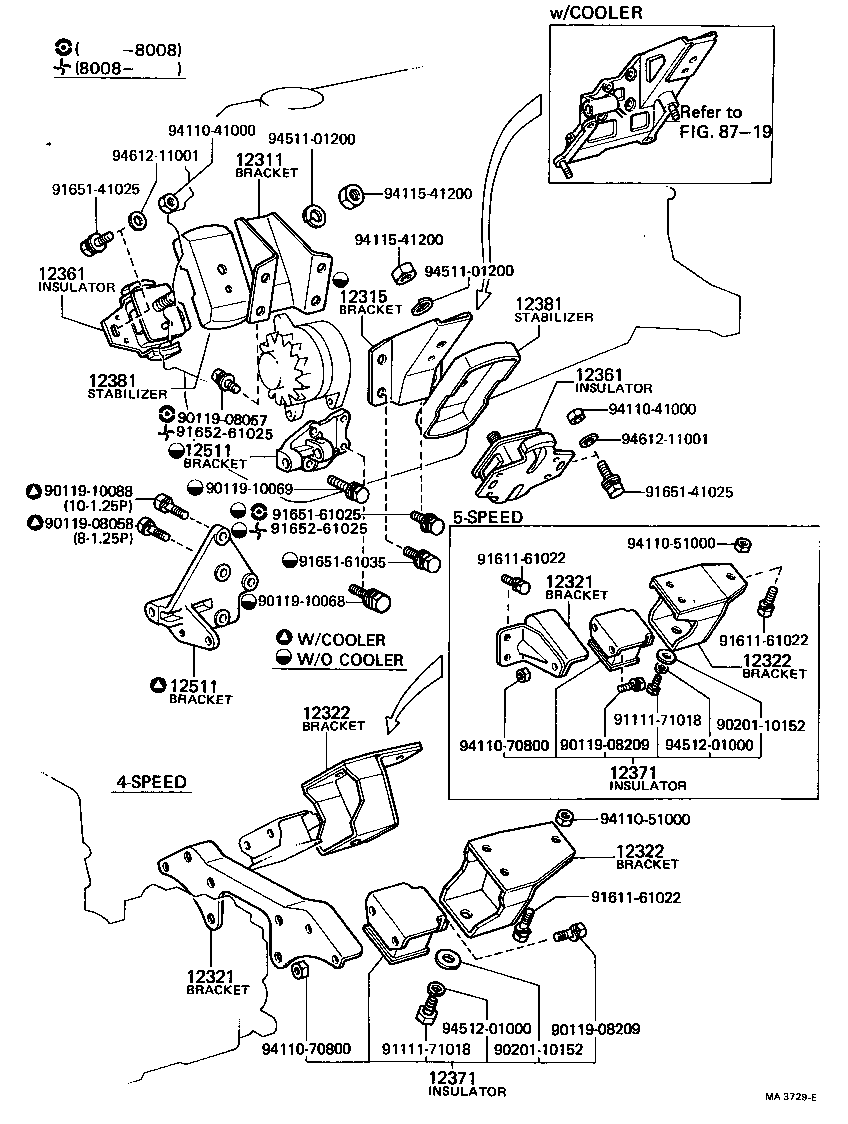

(7808- )20R,22R

Click highlighted areas on diagram

Part #	Description	Period	Qty
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-38010	20R..RB11	08/1977 - 11/1979	1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-44012	20R,22R..RB11,13..4F,4H	08/1977 - 04/1982	1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-44012	20R,22R..RB11,13..4F,4H	08/1977 - 04/1982	1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12326-38010	20R,22R..RB11,13..4F,4H LH	08/1977 - 04/1982	1
12322-38010	20R,22R..RB11,13..4F,4H RH	08/1977 - 04/1982	1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12326-38010	20R,22R..RB11,13..4F,4H LH	08/1977 - 04/1982	1
12322-38010	20R,22R..RB11,13..4F,4H RH	08/1977 - 04/1982	1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12326-38010	20R,22R..RB11,13..4F,4H LH	08/1977 - 04/1982	1
12322-38010	20R,22R..RB11,13..4F,4H RH	08/1977 - 04/1982	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-39155	20R..RB11	08/1977 - 08/1978	2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-39155	20R..RB11	08/1977 - 08/1978	2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-59035	20R,22R..RB11,13	08/1977 - 04/1982	2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-59035	20R,22R..RB11,13	08/1977 - 04/1982	2
12381 - STABILIZER, ENGINE MOUNTING
12381-38010	20R..RB11	08/1977 - 08/1978	2
12381 - STABILIZER, ENGINE MOUNTING
12381-38010	20R..RB11	08/1977 - 08/1978	2
12511 - BRACKET, ALTERNATOR, NO.1
88688-36070	20R..RB11..BC	08/1977 - 08/1980	1
12511 - BRACKET, ALTERNATOR, NO.1
88688-36070	20R..RB11..BC	08/1977 - 08/1980	1
Common parts
90119-08057
90119-08058
90119-08209
90119-10068
90119-10069
90119-10088
90201-10152
91111-71018
91611-61022
91651-41025
91651-61025
91651-61035
91652-61025
94110-41000
94110-51000
94110-70800
94115-41200
94511-01200
94512-01000
94612-11001
Linked diagrams
8719

RB11R-JDZER (1977)

(7708-7808)20R

(7808- )20R,22R
