RB11R-JDZER (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )20R,22R

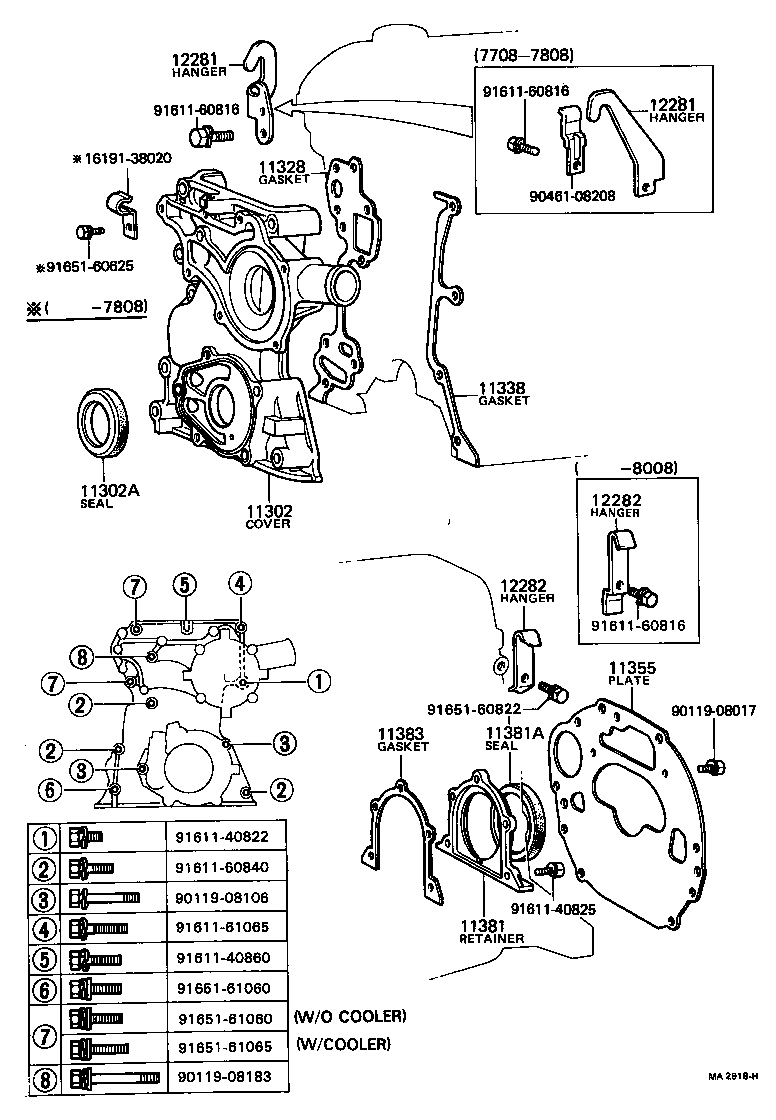

Click highlighted areas on diagram

diagram 11302 11302A 11328 11338 11355 11381 11381A 11383 12281 12281 12282 12282 1619138020 9011908017 9011908106 9011908183 9046108208 9161140822 9161140825 9161140860 9161160816 9161160816 9161160816 9161160840 9161161065 9165160625 9165160822 9165161060 9165161060 9165161065
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-38020

20R..RB11

 1
11321-38030

20R..RB11

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

20R,5R..RB1#

TC3 45 68 12X3

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-38020

20R,22R..RB11,13

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11338-38020

20R..RB11

 1
11355 - PLATE, REAR END
11355-38011

20R,22R..RB11,13

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-33010

20R..RB11

 1
11381A - SEAL, ENGINE REAR OIL
90311-80068

20R..RB11

TC 80 100 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-33010

20R,22R..RB11,13

 1
12281 - HANGER, ENGINE, NO.1
12281-38010

20R..RB11

 1
12281 - HANGER, ENGINE, NO.1
12281-38010

20R..RB11

 1
12282 - HANGER, ENGINE, NO.2
12282-38010

20R..RB11

 1
12282 - HANGER, ENGINE, NO.2
12282-38010

20R..RB11

 1
Common parts
16191-38020
90119-08017
90119-08106
90119-08183
90461-08208
91611-40822
91611-40825
91611-40860
91611-60816
91611-60840
91611-61065
91651-60625
91651-60822
91651-61060
91651-61065
