RB11L-QDR (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

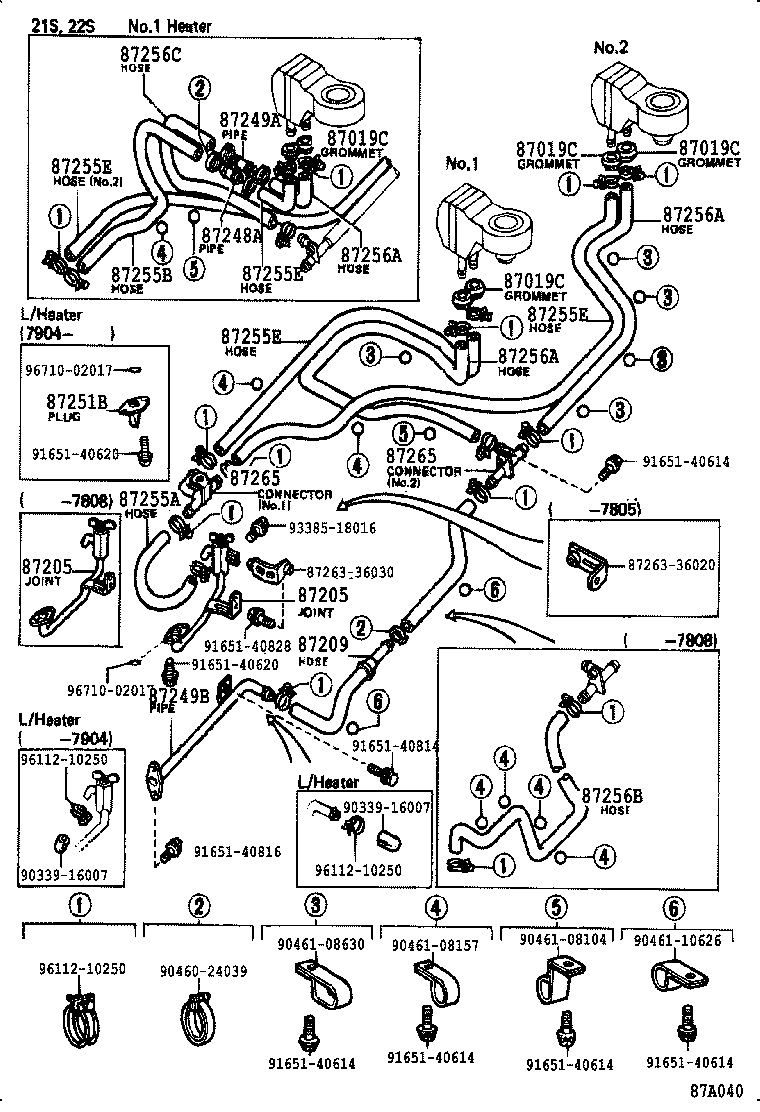

(7708-7911)RB11..LHD

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 87205 87205 87209 87248A 87249A 87249B 87251B 87255A 87255B 87255E 87255E 87255E 87255E 87256A 87256A 87256A 87256B 87256C 8726336020 8726336030 87265 87265 9033916007 9033916007 9046024039 9046108104 9046108157 9046108630 9046110626 9165140614 9165140614 9165140614 9165140614 9165140614 9165140620 9165140620 9165140814 9165140816 9165140828 9338518016 9611210250 9611210250 9611210250 9671002017 9671002017
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01059

BB10,RB1#

FR HEATER

 1
90480-69217

BB10,RB1#

OD=60,RR,NO.1 HEATER

 1
90480-20005

BB10,RB1#

OD=24,RR HEATER

 4
87019C - GROMMET, HEATER HOSE
90480-01059

BB10,RB1#

FR HEATER

 1
90480-69217

BB10,RB1#

OD=60,RR,NO.1 HEATER

 1
90480-20005

BB10,RB1#

OD=24,RR HEATER

 4
87019C - GROMMET, HEATER HOSE
90480-01059

BB10,RB1#

FR HEATER

 1
90480-69217

BB10,RB1#

OD=60,RR,NO.1 HEATER

 1
90480-20005

BB10,RB1#

OD=24,RR HEATER

 4
87019C - GROMMET, HEATER HOSE
90480-01059

BB10,RB1#

FR HEATER

 1
90480-69217

BB10,RB1#

OD=60,RR,NO.1 HEATER

 1
90480-20005

BB10,RB1#

OD=24,RR HEATER

 4
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87240-36060

RB11

RR

 1
87240-36051

RB11

FR

 1
87240-36062

RB11

RR

 1
87240-36061

RB11

RR

 1
87240-36050

RB11

FR

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87240-36060

RB11

RR

 1
87240-36051

RB11

FR

 1
87240-36062

RB11

RR

 1
87240-36061

RB11

RR

 1
87240-36050

RB11

FR

 1
87209 - HOSE SUB-ASSY, WATER
87209-36180

RB11

 1
87251B - PLUG, HEATER WATER
87208-36030

RB11..GEN

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87209-36150

RB11..GEN

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-31400

RB11..LHD..(25S,26S)

L=1400,RR,NO.1 HEATER

 1
99552-33000

BB10,RB1#..GEN

L=3000,RR,NO.2 HEATER

 1
99552-31550

RB11..LHD..(25S,26S)

L=1550,RR,NO.1 HEATER

 1
99552-32750

RB11..GEN

L=2750,RR,NO.2 HEATER

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-31400

RB11..LHD..(25S,26S)

L=1400,RR,NO.1 HEATER

 1
99552-33000

BB10,RB1#..GEN

L=3000,RR,NO.2 HEATER

 1
99552-31550

RB11..LHD..(25S,26S)

L=1550,RR,NO.1 HEATER

 1
99552-32750

RB11..GEN

L=2750,RR,NO.2 HEATER

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-31400

RB11..LHD..(25S,26S)

L=1400,RR,NO.1 HEATER

 1
99552-33000

BB10,RB1#..GEN

L=3000,RR,NO.2 HEATER

 1
99552-31550

RB11..LHD..(25S,26S)

L=1550,RR,NO.1 HEATER

 1
99552-32750

RB11..GEN

L=2750,RR,NO.2 HEATER

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-31400

RB11..LHD..(25S,26S)

L=1400,RR,NO.1 HEATER

 1
99552-33000

BB10,RB1#..GEN

L=3000,RR,NO.2 HEATER

 1
99552-31550

RB11..LHD..(25S,26S)

L=1550,RR,NO.1 HEATER

 1
99552-32750

RB11..GEN

L=2750,RR,NO.2 HEATER

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-32200

BB10,RB1#..GEN

L=2200,RR,NO.2 HEATER

 1
99552-31260

BB10,RB1#..LHD..(25S,26S)

L=1260,RR,NO.1 HEATER

 1
99552-32100

BB10,RB1#..LHD

L=2100,RR,NO.2 HEATER

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-32200

BB10,RB1#..GEN

L=2200,RR,NO.2 HEATER

 1
99552-31260

BB10,RB1#..LHD..(25S,26S)

L=1260,RR,NO.1 HEATER

 1
99552-32100

BB10,RB1#..LHD

L=2100,RR,NO.2 HEATER

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-32200

BB10,RB1#..GEN

L=2200,RR,NO.2 HEATER

 1
99552-31260

BB10,RB1#..LHD..(25S,26S)

L=1260,RR,NO.1 HEATER

 1
99552-32100

BB10,RB1#..LHD

L=2100,RR,NO.2 HEATER

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99552-32100

RB11..GEN

L=2100

 1
99552-30800

RB11..GEN

L=800

 1
87265 - CONNECTOR, HEATER WATER HOSE
87251-36100

BB10,RB1#..LHD

3 WAY,NO.2

 1
87251-36150

RB11..GEN

3 WAY,NO.1

 1
87265 - CONNECTOR, HEATER WATER HOSE
87251-36100

BB10,RB1#..LHD

3 WAY,NO.2

 1
87251-36150

RB11..GEN

3 WAY,NO.1

 1
Common parts
87263-36020
87263-36030
90339-16007
90460-24039
90461-08104
90461-08157
90461-08630
90461-10626
91651-40614
91651-40620
91651-40814
91651-40816
91651-40828
93385-18016
96112-10250
96710-02017

(7708-7911)RB11

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 87019C 87019C 87019C 87205 87205 87209 87248A 87249A 87249B 87251B 87255A 87255B 87255E 87255E 87255E 87256A 87256A 87256A 87256B 87256B 87256C 8726336020 8726336021 87265 87265 9033916007 9033916007 9046024039 9046108104 9046108157 9046108630 9046110262 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140620 9165140620 9165140814 9165140816 9165140828 9338518016 9611210250 9671002017 9671002017
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01059

BB10,RB1#

FR HEATER

 1
90480-69217

BB10,RB1#

OD=60,RR,NO.1 HEATER

 1
90480-20005

BB10,RB1#

OD=24,RR HEATER

 4
87019C - GROMMET, HEATER HOSE
90480-01059

BB10,RB1#

FR HEATER

 1
90480-69217

BB10,RB1#

OD=60,RR,NO.1 HEATER

 1
90480-20005

BB10,RB1#

OD=24,RR HEATER

 4
87019C - GROMMET, HEATER HOSE
90480-01059

BB10,RB1#

FR HEATER

 1
90480-69217

BB10,RB1#

OD=60,RR,NO.1 HEATER

 1
90480-20005

BB10,RB1#

OD=24,RR HEATER

 4
87019C - GROMMET, HEATER HOSE
90480-01059

BB10,RB1#

FR HEATER

 1
90480-69217

BB10,RB1#

OD=60,RR,NO.1 HEATER

 1
90480-20005

BB10,RB1#

OD=24,RR HEATER

 4
87019C - GROMMET, HEATER HOSE
90480-01059

BB10,RB1#

FR HEATER

 1
90480-69217

BB10,RB1#

OD=60,RR,NO.1 HEATER

 1
90480-20005

BB10,RB1#

OD=24,RR HEATER

 4
87019C - GROMMET, HEATER HOSE
90480-01059

BB10,RB1#

FR HEATER

 1
90480-69217

BB10,RB1#

OD=60,RR,NO.1 HEATER

 1
90480-20005

BB10,RB1#

OD=24,RR HEATER

 4
87019C - GROMMET, HEATER HOSE
90480-01059

BB10,RB1#

FR HEATER

 1
90480-69217

BB10,RB1#

OD=60,RR,NO.1 HEATER

 1
90480-20005

BB10,RB1#

OD=24,RR HEATER

 4
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87240-36060

RB11

RR

 1
87240-36051

RB11

FR

 1
87240-36062

RB11

RR

 1
87240-36061

RB11

RR

 1
87240-36050

RB11

FR

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87240-36060

RB11

RR

 1
87240-36051

RB11

FR

 1
87240-36062

RB11

RR

 1
87240-36061

RB11

RR

 1
87240-36050

RB11

FR

 1
87209 - HOSE SUB-ASSY, WATER
87209-36180

RB11

 1
87251B - PLUG, HEATER WATER
87208-36030

RB11..GEN

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87209-36150

RB11..GEN

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-31400

RB11..LHD..(25S,26S)

L=1400,RR,NO.1 HEATER

 1
99552-33000

BB10,RB1#..GEN

L=3000,RR,NO.2 HEATER

 1
99552-31550

RB11..LHD..(25S,26S)

L=1550,RR,NO.1 HEATER

 1
99552-32750

RB11..GEN

L=2750,RR,NO.2 HEATER

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-31400

RB11..LHD..(25S,26S)

L=1400,RR,NO.1 HEATER

 1
99552-33000

BB10,RB1#..GEN

L=3000,RR,NO.2 HEATER

 1
99552-31550

RB11..LHD..(25S,26S)

L=1550,RR,NO.1 HEATER

 1
99552-32750

RB11..GEN

L=2750,RR,NO.2 HEATER

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-31400

RB11..LHD..(25S,26S)

L=1400,RR,NO.1 HEATER

 1
99552-33000

BB10,RB1#..GEN

L=3000,RR,NO.2 HEATER

 1
99552-31550

RB11..LHD..(25S,26S)

L=1550,RR,NO.1 HEATER

 1
99552-32750

RB11..GEN

L=2750,RR,NO.2 HEATER

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-32200

BB10,RB1#..GEN

L=2200,RR,NO.2 HEATER

 1
99552-31260

BB10,RB1#..LHD..(25S,26S)

L=1260,RR,NO.1 HEATER

 1
99552-32100

BB10,RB1#..LHD

L=2100,RR,NO.2 HEATER

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-32200

BB10,RB1#..GEN

L=2200,RR,NO.2 HEATER

 1
99552-31260

BB10,RB1#..LHD..(25S,26S)

L=1260,RR,NO.1 HEATER

 1
99552-32100

BB10,RB1#..LHD

L=2100,RR,NO.2 HEATER

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-32200

BB10,RB1#..GEN

L=2200,RR,NO.2 HEATER

 1
99552-31260

BB10,RB1#..LHD..(25S,26S)

L=1260,RR,NO.1 HEATER

 1
99552-32100

BB10,RB1#..LHD

L=2100,RR,NO.2 HEATER

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99552-32100

RB11..GEN

L=2100

 1
99552-30800

RB11..GEN

L=800

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99552-32100

RB11..GEN

L=2100

 1
99552-30800

RB11..GEN

L=800

 1
87265 - CONNECTOR, HEATER WATER HOSE
87251-36100

BB10,RB1#..LHD

3 WAY,NO.2

 1
87251-36150

RB11..GEN

3 WAY,NO.1

 1
87265 - CONNECTOR, HEATER WATER HOSE
87251-36100

BB10,RB1#..LHD

3 WAY,NO.2

 1
87251-36150

RB11..GEN

3 WAY,NO.1

 1
Common parts
87263-36020
87263-36021
90339-16007
90460-24039
90461-08104
90461-08157
90461-08630
90461-10262
91651-40614
91651-40620
91651-40814
91651-40816
91651-40828
93385-18016
96112-10250
96710-02017

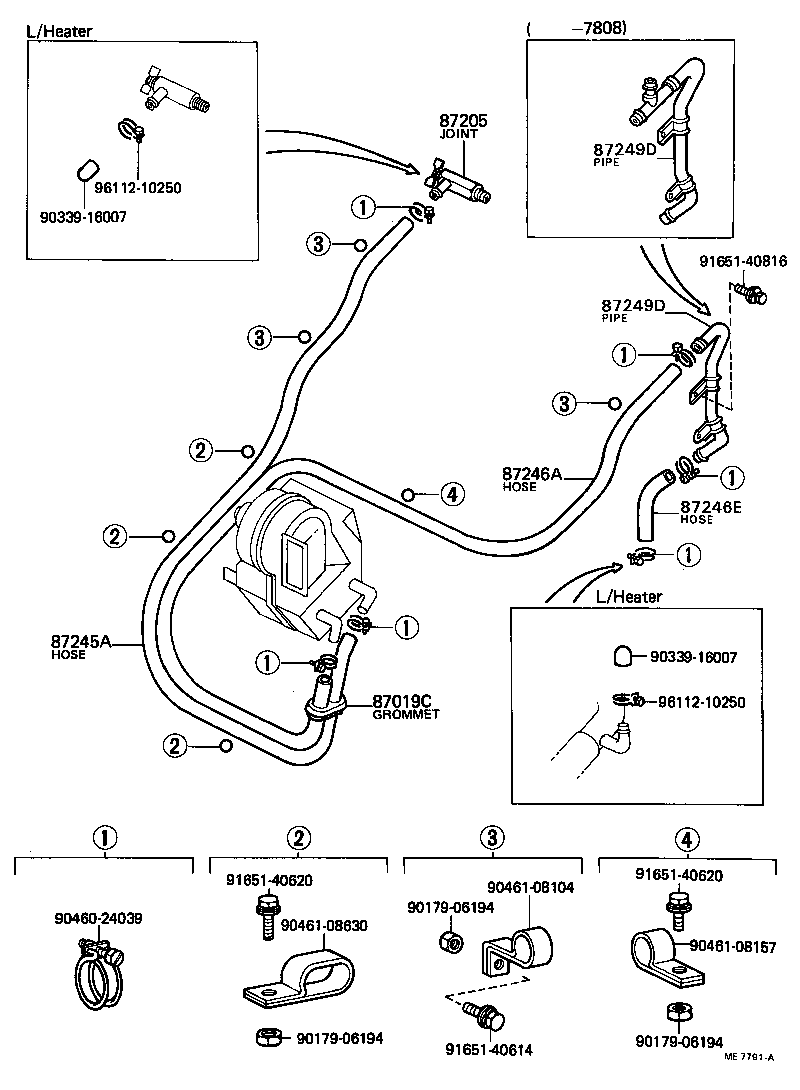

(7708-7911)RB11..LHD

Click highlighted areas on diagram

diagram 87019C 87205 87245A 87246A 87246E 87249D 87249D 9017906194 9017906194 9017906194 9033916007 9033916007 9046108104 9046108157 9046108630 9165140614 9165140620 9165140620 9165140816 9611210250 9611210250 9946024039
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01059

BB10,RB1#

FR HEATER

 1
90480-69217

BB10,RB1#

OD=60,RR,NO.1 HEATER

 1
90480-20005

BB10,RB1#

OD=24,RR HEATER

 4
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87240-36060

RB11

RR

 1
87240-36051

RB11

FR

 1
87240-36062

RB11

RR

 1
87240-36061

RB11

RR

 1
87240-36050

RB11

FR

 1
87245A - HOSE, HEATER WATER, INLET A
99552-32300

RB11..LHD

L=2300

 1
99552-32200

RB11..LHD

L=2200

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-36100

RB11..LHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
99552-30070

RB11

L=70

 1
87249D - PIPE, HEATER WATER OUTLET, D
87251-36160

RB11

 1
87251-36161

RB11

 1
87249D - PIPE, HEATER WATER OUTLET, D
87251-36160

RB11

 1
87251-36161

RB11

 1
Common parts
90179-06194
90339-16007
90461-08104
90461-08157
90461-08630
91651-40614
91651-40620
91651-40816
96112-10250
99460-24039
