RB11L-QDR (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )RB11,13..LHD

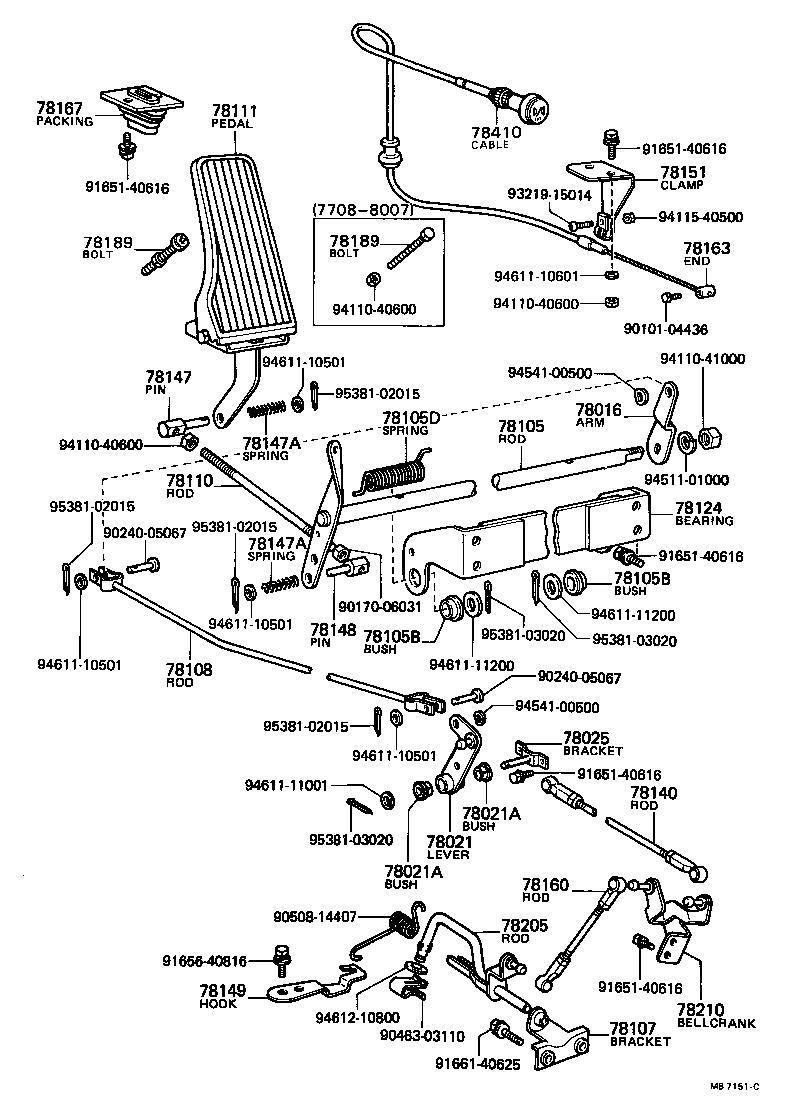

Click highlighted areas on diagram

diagram 78016 78021 78021A 78021A 78025 78105 78105B 78105B 78105D 78107 78108 78110 78111 78124 78140 78147 78147A 78147A 78148 78149 78151 78160 78163 78167 78189 78189 78205 78210 78410 9010104436 9017006031 9024005067 9024005067 9046303110 9050814407 9165140616 9165140616 9165140616 9165140616 9165140616 9165640816 9166140625 9321915014 9411040600 9411040600 9411040600 9411041000 9411540500 9451101000 9454100500 9454100500 9461110501 9461110501 9461110501 9461110501 9461110601 9461111001 9461111200 9461111200 9461210800 9538102015 9538102015 9538102015 9538102015 9538103020 9538103020 9538103020
Part # Description Qty Price
78016 - ARM SUB-ASSY, ACCELERATOR LINK ROD
78145-90502

BB10,RB1#

 1
78021 - LEVER SUB-ASSY, ACCELERATOR CONTROL, NO.1
78106-90740

RB11,13

 1
78021A - BUSH, ACCELERATOR CONTROL LEVER
90386-10150

BB10,RB1#

 2
78021A - BUSH, ACCELERATOR CONTROL LEVER
90386-10150

BB10,RB1#

 2
78025 - BRACKET SUB-ASSY, ACCELERATOR CONNECTING ROD ARM
78105-90500

BB10,RB1#

 1
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78103-90507

BB10,RB1#..LHD

 1
78105B - BUSH (FOR ACCELERATOR TORQUE ROD)
90386-12151

BB10,RB1#

 2
78105B - BUSH (FOR ACCELERATOR TORQUE ROD)
90386-12151

BB10,RB1#

 2
78105D - SPRING (FOR ACCELERATOR TORQUE ROD)
90508-23310

BB10,RB1#..LHD

 1
78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD
78107-20031

RB11,13

 1
78108 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4
78107-90502

BB10,RB1#

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78121-90504

BB10,RB1#

 1
78111 - PEDAL, ACCELERATOR
78110-90501

BB10,RB1#

 1
78124 - BEARING, ACCELERATOR LINK, NO.1
78108-90501

BB10,RB1#..LHD

 1
78140 - ROD ASSY, ACCELERATOR, NO.3
78140-90740

RB11,13

 1
78147 - PIN, CONNECTING ROD, RH
78147-90011

BB10,RB1#

 1
78147A - SPRING, ACCELERATOR ROD PIN
90501-10005

BB10,RB1#

 2
78147A - SPRING, ACCELERATOR ROD PIN
90501-10005

BB10,RB1#

 2
78148 - PIN, CONNECTING ROD, LH
78145-90011

BB10,RB1#

 1
78149 - HOOK, ACCELERATOR TORQUE ROD SPRING
78149-20060

RB11,13

 1
78151 - CLAMP, THROTTLE WIRE
78151-90740

BB10,RB1#

 1
78160 - ROD ASSY, ACCELERATOR, NO.4
78160-90740

RB11,13

 1
78163 - END, FLEXIBLE WIRE
78163-55020

BB10,RB1#

 2
78167 - PACKING, ACCELERATOR PEDAL HINGE
78167-90503

BB10,RB1#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
91131-40650

BB10,RB1#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
91131-40650

BB10,RB1#

 1
78205 - ROD SUB-ASSY, ACCELERATOR TORQUE
78205-90740

RB11

 1
78210 - BELLCRANK ASSY, ACCELERATOR
78210-90740

RB11,13

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90505

BB10,RB1#..LHD

 1
Common parts
90101-04436
90170-06031
90240-05067
90463-03110
90508-14407
91651-40616
91656-40816
91661-40625
93219-15014
94110-40600
94110-41000
94115-40500
94511-01000
94541-00500
94611-10501
94611-10601
94611-11001
94611-11200
94612-10800
95381-02015
95381-03020
