RB11L-QDR (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )LHD

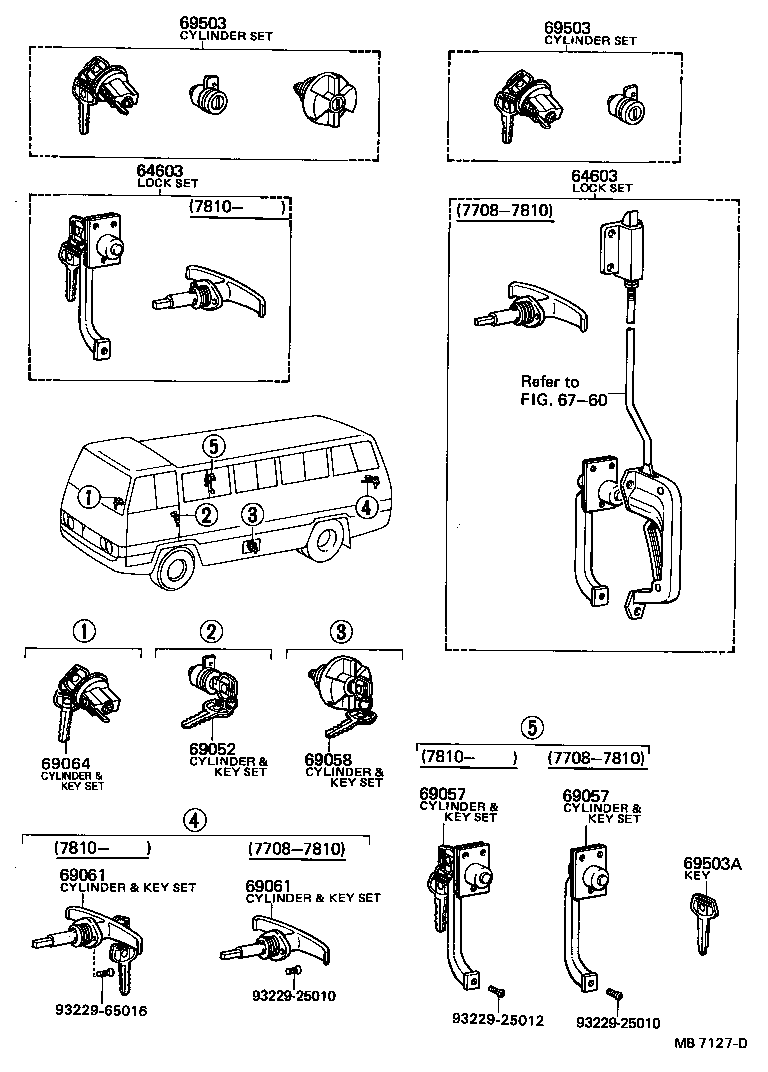

Click highlighted areas on diagram

diagram 64603 64603 6760 69052 69057 69057 69058 69061 69061 69064 69503 69503 69503A 9322925010 9322925010 9322925012 9322965016
Part # Description Qty Price
64603 - LOCK SET, DOOR
64603-90502

BB10,RB1#..LHD

 1
64603 - LOCK SET, DOOR
64603-90502

BB10,RB1#..LHD

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-36020

BB10,RB1#..LHD

 1
69057 - CYLINDER & KEY SET, CENTER DOOR LOCK
67207-90500

BB10,RB1#

 1
69057 - CYLINDER & KEY SET, CENTER DOOR LOCK
67207-90500

BB10,RB1#

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-95400

RB1#

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
64610-90500

BB10,RB1#

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
64610-90500

BB10,RB1#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-90742

RB1#..LHD

 1
69503 - CYLINDER SET, LOCK
69005-90754

RB1#..LHD

 1
69005-90755

RB1#..LHD

W/FUEL TANK CAP LOCK

 1
69503 - CYLINDER SET, LOCK
69005-90754

RB1#..LHD

 1
69005-90755

RB1#..LHD

W/FUEL TANK CAP LOCK

 1
69503A - KEY, BLANK
90999-00066

RB1#

MASTER KEY

 1
90999-00076

BB10,RB1#

LUGGAGE & CENTER DOOR

 1
Common parts
93229-25010
93229-25012
93229-65016
Linked diagrams
6760
