RB11L-QDR (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )LHD

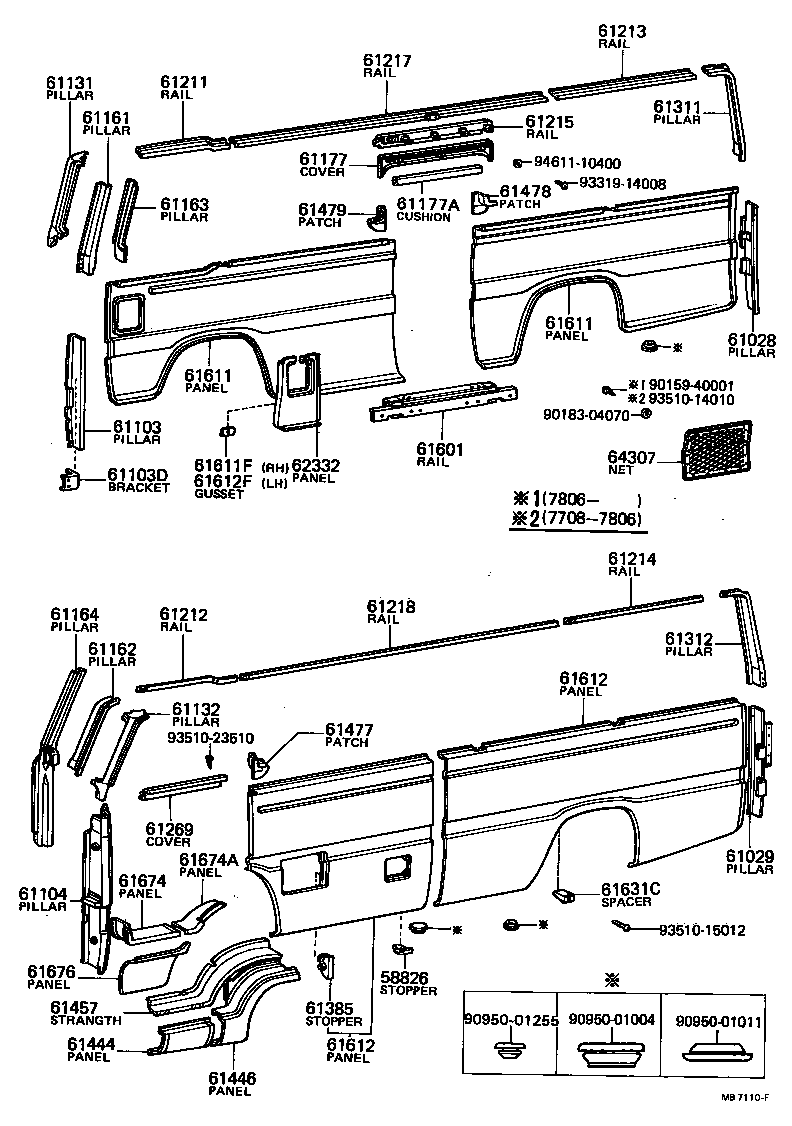

Click highlighted areas on diagram

diagram 58826 61028 61029 61103 61103D 61104 61131 61132 61161 61162 61163 61164 61177 61177A 61211 61212 61213 61214 61215 61217 61218 61269 61311 61312 61385 61444 61446 61457 61477 61478 61479 61601 61611 61611 61611F 61612 61612 61612F 61631C 61674 61674A 61676 62332 64307 9015940001 9018304070 9095001004 9095001011 9095001255 9331914008 9351014010 9351015012 9351023510 9461110400
Part # Description Qty Price
58826 - STOPPER, FUEL INLET COVER, UPPER
58825-90503

BB10,RB1#..LHD

 1
61028 - PILLAR SUB-ASSY, REAR INNER, RH
61203-90741

BB10,RB11,13..BC

 1
61029 - PILLAR SUB-ASSY, REAR INNER, LH
61209-90740

BB10,RB1#

 1
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61131-90740

BB10,RB1#..LHD

 1
61103D - BRACKET, WASHER TANK, RH
61817-90740

BB10,RB1#..LHD

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61104-90740

BB10,RB1#..LHD

 1
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61111-90741

BB10,RB1#..LHD

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61112-90740

BB10,RB1#..LHD

 1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61115-90740

BB10,RB1#..LHD

 1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61116-90741

BB10,RB1#..LHD

 1
61163 - PILLAR, FRONT BODY, INNER RH
61191-90741

BB10,RB1#..LHD

 1
61164 - PILLAR, FRONT BODY, INNER LH
61908-90740

BB10,RB1#..LHD

 1
61177 - COVER, CENTER DOOR GUIDE
63307-90500

BB10,RB1#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61001-90740

BB10,RB1#..LHD..SRF

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-90740

BB10,RB1#..LHD..SRF

 1
61213 - RAIL, ROOF SIDE, OUTER REAR RH
61005-90740

BB10,RB1#

 1
61214 - RAIL, ROOF SIDE, OUTER REAR LH
61006-90740

BB10,RB1#

 1
61215 - RAIL, CENTER DOOR SIDE, RH
61907-90741

BB10,RB1#..LHD

 1
61217 - RAIL, ROOF SIDE, OUTER CENTER RH
61003-90741

BB10,RB1#..LHD

 1
61003-90742

BB10,RB1#..LHD

 1
61218 - RAIL, ROOF SIDE, OUTER CENTER LH
61004-90741

BB10,RB1#..LHD

 1
61269 - COVER, FRONT DOOR WEATHERSTRIP SET
61269-90501

BB10,RB1#..LHD

 1
61311 - PILLAR, REAR RH
61122-90740

BB10,RB1#..SRF

 1
61312 - PILLAR, REAR LH
61126-90740

BB10,RB1#..SRF

 1
61385 - STOPPER, AIR CLEANER SERVICE HOLE COVER
61385-90500

BB10,RB1#

 1
61444 - PANEL, STEP SIDE UNDER, FRONT LH
61444-90500

BB10,RB1#..LHD

 1
61446 - PANEL, STEP SIDE, REAR LH
61446-90740

BB10,RB1#..LHD

 1
61457 - STRANGTH, STEP, LH
61457-90500

BB10,RB1#..LHD

 1
61477 - PATCH, FRONT DOOR PILLAR, LH
61767-90740

BB10,RB1#..LHD

 1
61478 - PATCH, CENTER DOOR PILLAR
61478-90740

BB10,RB1#

 1
61479 - PATCH, CENTER DOOR PILLAR
61479-90740

BB10,RB1#

 1
61601 - RAIL SUB-ASSY, CENTER DOOR, UNDER
61601-90741

BB10,RB1#..LHD

 1
61611 - PANEL, QUARTER, RH
61382-90745

BB10,RB11,13..LHD..BC

RR

 1
61381-90744

BB10,RB1#..LHD

FR

 1
61611 - PANEL, QUARTER, RH
61382-90745

BB10,RB11,13..LHD..BC

RR

 1
61381-90744

BB10,RB1#..LHD

FR

 1
61611F - GUSSET, QUARTER PANEL, LOWER RH
61773-90740

BB10,RB1#

 1
61612 - PANEL, QUARTER, LH
61384-90740

BB10,RB1#..LHD

RR

 1
61383-90740

BB10,RB1#..LHD

FR

 1
61612 - PANEL, QUARTER, LH
61384-90740

BB10,RB1#..LHD

RR

 1
61383-90740

BB10,RB1#..LHD

FR

 1
61612F - GUSSET, QUARTER PANEL, LOWER LH
61773-90740

BB10,RB1#

 1
61631C - SPACER(FOR QUARTER WHEEL HOUSE)
57194-90500

BB10,RB1#

 2
61674 - PANEL, FRONT DOOR STEP, FRONT LH
61612-90501

BB10,RB1#..LHD

 1
61674A - PANEL, FRONT DOOR STEP, REAR LH
61624-90500

BB10,RB1#..LHD

 1
61676 - PANEL, FRONT DOOR STEP SIDE, LH
61616-90500

BB10,RB1#..LHD

 1
62332 - PANEL SUB-ASSY, SIDE LOWER WINDOW
62302-90501

BB10,RB1#..LHD

 1
64307 - NET SUB-ASSY, CONDENSER AIR GUIDE
88325-90740

BB10,RB11,13..BC

 1
Common parts
90159-40001
90183-04070
90950-01004
90950-01011
90950-01255
93319-14008
93510-14010
93510-15012
93510-23510
94611-10400
