RB11L-QDR (1977)
Toyota Coaster
Production
Aug 1977
-
Nov 1979
Engine
20R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708- )LHD

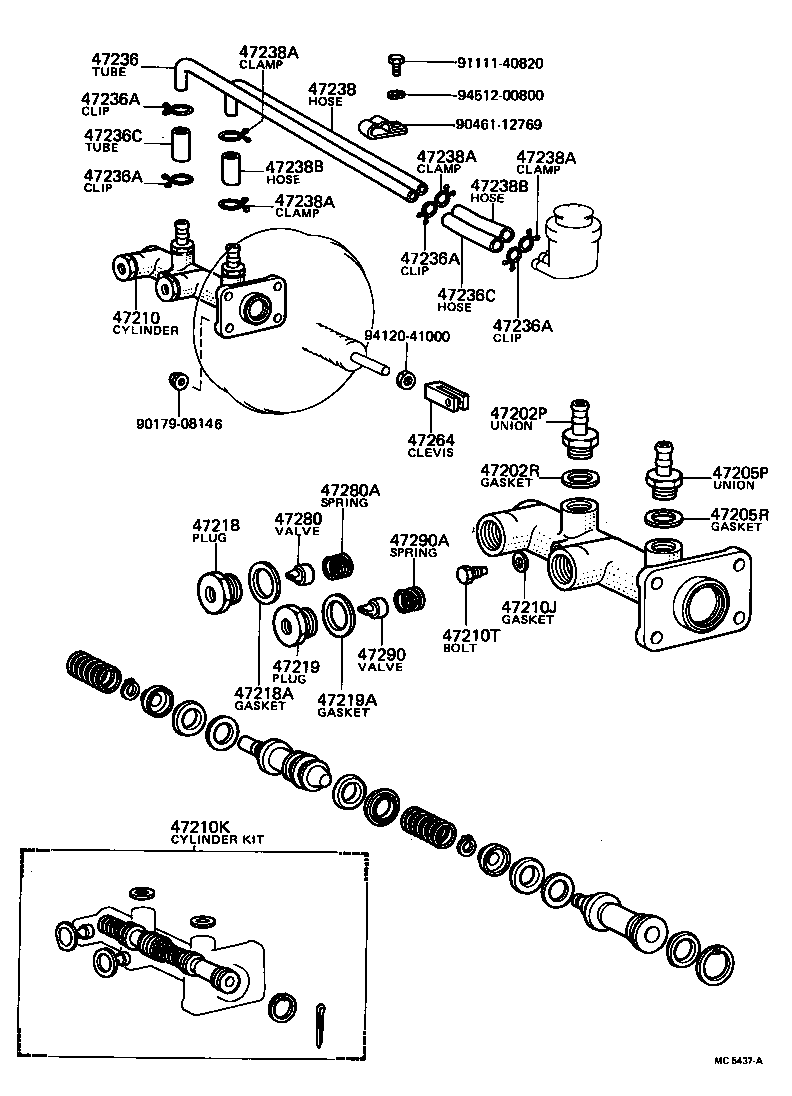

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90404-16233 |
BB10,RB1# |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16044 |
BB10,RB1# |
1 | ||
| 47205P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE) | ||||
| 90404-16233 |
BB10,RB1# |
1 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16044 |
BB10,RB1# |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-36070 |
BB10,RB1#..LHD ID=25.40 |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
BB10,RB1# |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-36020 |
BB10,RB1# |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
BB10,RB1# |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-36030 |
BB10,RB1#..LHD |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
BB10,RB1#..LHD |
1 | ||
| 47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE) | ||||
| 47218-36030 |
BB10,RB1#..LHD |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-11001 |
BB10,RB1#..LHD |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47234-36040 |
BB10,RB1#..LHD |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16141 |
BB10,RB1#..LHD |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16141 |
BB10,RB1#..LHD |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16141 |
BB10,RB1#..LHD |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16141 |
BB10,RB1#..LHD |
4 | ||
| 47236C - HOSE, RESERVOIR TUBE | ||||
| 90445-17828 |
BB10,RB1#..LHD L=70 |
1 | ||
| 90445-17829 |
BB10,RB1#..LHD L=113 |
1 | ||
| 47236C - HOSE, RESERVOIR TUBE | ||||
| 90445-17828 |
BB10,RB1#..LHD L=70 |
1 | ||
| 90445-17829 |
BB10,RB1#..LHD L=113 |
1 | ||
| 47238 - HOSE, MASTER CYLINDER BRIDGE | ||||
| 47235-36040 |
BB10,RB1#..LHD |
1 | ||
| 47238A - CLAMP, HOSE(FOR MASTER CYLINDER BRIDGE HOSE) | ||||
| 90467-16141 |
BB10,RB1#..LHD |
4 | ||
| 47238A - CLAMP, HOSE(FOR MASTER CYLINDER BRIDGE HOSE) | ||||
| 90467-16141 |
BB10,RB1#..LHD |
4 | ||
| 47238A - CLAMP, HOSE(FOR MASTER CYLINDER BRIDGE HOSE) | ||||
| 90467-16141 |
BB10,RB1#..LHD |
4 | ||
| 47238A - CLAMP, HOSE(FOR MASTER CYLINDER BRIDGE HOSE) | ||||
| 90467-16141 |
BB10,RB1#..LHD |
4 | ||
| 47238B - HOSE(FOR RESERVOIRE BRAKE NO.2) | ||||
| 90445-17828 |
BB10,RB1#..LHD L=70 |
1 | ||
| 90445-17829 |
BB10,RB1#..LHD L=113 |
1 | ||
| 47238B - HOSE(FOR RESERVOIRE BRAKE NO.2) | ||||
| 90445-17828 |
BB10,RB1#..LHD L=70 |
1 | ||
| 90445-17829 |
BB10,RB1#..LHD L=113 |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-35010 |
BB10,RB1# |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
BB10,RB1# |
1 | ||
| 47280A - SPRING, COMPRESSION | ||||
| 90504-05003 |
BB10,RB1# |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47281-30020 |
BB10,RB1# |
1 | ||
| 47290A - SPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE) | ||||
| 90504-05003 |
BB10,RB1# |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90461-12769 | ||||
| 91111-40820 | ||||
| 94120-41000 | ||||
| 94512-00800 | ||||
