RB10L-JRE (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-7911)5R

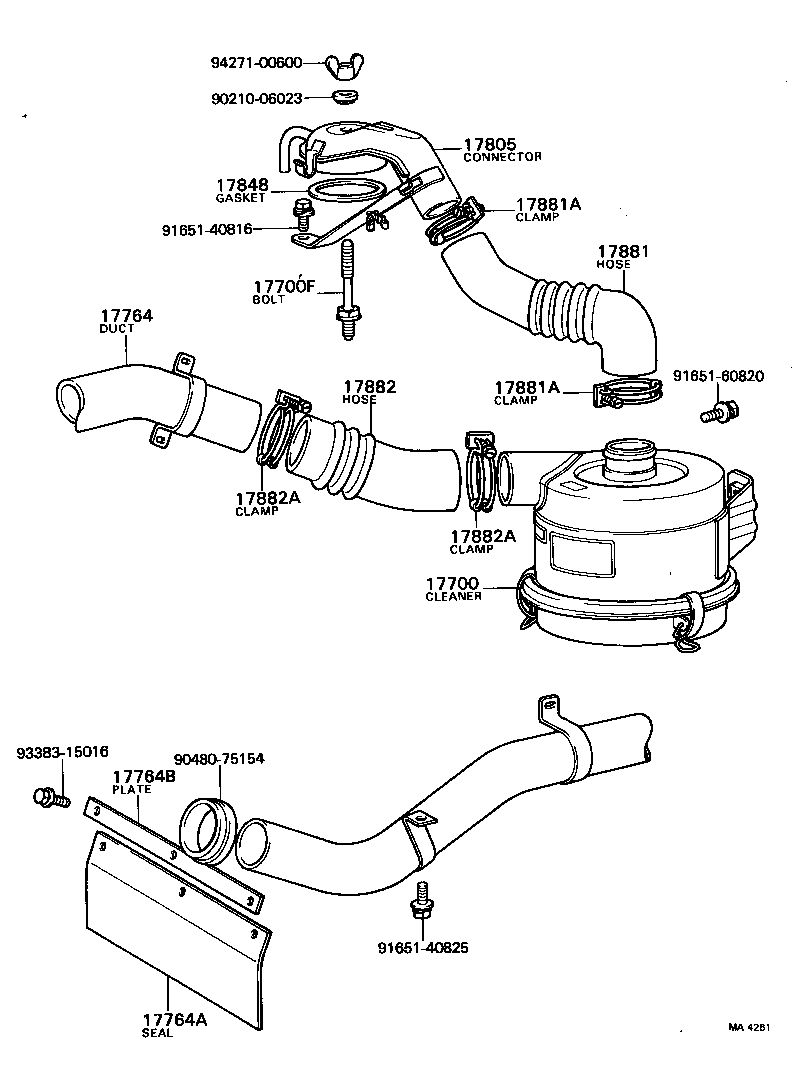

Click highlighted areas on diagram

diagram 17700 17700F 17764 17764A 17764B 17805 17848 17881 17881A 17881A 17882 17882A 17882A 9021006023 9048075154 9165140816 9165140825 9165160820 9338315016 9427100600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-44281

5R..RB10

 1
17700-44291

5R..RB10

OIL BATH

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06309

5R..RB10

L=66,S=12&25

 1
17764 - DUCT, AIR CLEANER
58609-90500

20R,22R,5R..RB1#

 1
17764A - SEAL, AIR CLEANER DUCT
58395-90740

20R,22R,5R..RB1#

 1
17764B - PLATE, AIR CLEANER SEALD
58396-90740

20R,5R..RB1#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17861-44070

5R..RB10

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-72114

5R..RB10

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-44020

5R..RB10

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

5R..RB10

ID=75

 1
96111-10690

5R..RB10

ID=69

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

5R..RB10

ID=75

 1
96111-10690

5R..RB10

ID=69

 1
17882 - HOSE, AIR CLEANER, NO.2
17883-44010

5R..RB10

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750

20R,22R,5R..RB1#

ID=75

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750

20R,22R,5R..RB1#

ID=75

 2
Common parts
90210-06023
90480-75154
91651-40816
91651-40825
91651-60820
93383-15016
94271-00600

(7708- )5R

Click highlighted areas on diagram

diagram 1709 1709 1709 1709 17700 17700 17700A 17700A 17700B 17701 17701 17801 17801 17807 17841 17841 17841 17845 17845 9427100600 9451100600 9461110600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-44281

5R..RB10

 1
17700-44281

5R..RB10

 1
17700-44291

5R..RB10

OIL BATH

 1
17700-44291

5R..RB10

OIL BATH

 1
17700 - CLEANER ASSY, AIR
17700-44281

5R..RB10

 1
17700-44281

5R..RB10

 1
17700-44291

5R..RB10

OIL BATH

 1
17700-44291

5R..RB10

OIL BATH

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00800

20R,22R,5R..RB1#

 1
94271-00800

20R,22R,5R..RB1#

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00800

20R,22R,5R..RB1#

 1
94271-00800

20R,22R,5R..RB1#

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08004

20R,22R,5R..RB1#

 1
90210-08004

20R,22R,5R..RB1#

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-38070

20R,5R..RB1#

 1
17701-38070

20R,5R..RB1#

 1
17702-44020

5R..RB10

OIL BATH

 1
17702-44020

5R..RB10

OIL BATH

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-38070

20R,5R..RB1#

 1
17701-38070

20R,5R..RB1#

 1
17702-44020

5R..RB10

OIL BATH

 1
17702-44020

5R..RB10

OIL BATH

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-44070

5R..RB10

 1
17801-44070

5R..RB10

 1
17801-56010

20R,22R,5R..RB1#

OIL BATH

 1
17801-56010

20R,22R,5R..RB1#

OIL BATH

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-44070

5R..RB10

 1
17801-44070

5R..RB10

 1
17801-56010

20R,22R,5R..RB1#

OIL BATH

 1
17801-56010

20R,22R,5R..RB1#

OIL BATH

 1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17807-56010

20R,22R,5R..RB1#

 1
17807-56010

20R,22R,5R..RB1#

 1
17841 - GASKET, FILTER ELEMENT
17841-56020

20R,22R,5R..RB1#

OIL BATH

 1
17841-56020

20R,22R,5R..RB1#

OIL BATH

 1
17841-56010

20R,5R..RB1#

 2
17841-56010

20R,5R..RB1#

 2
17841 - GASKET, FILTER ELEMENT
17841-56020

20R,22R,5R..RB1#

OIL BATH

 1
17841-56020

20R,22R,5R..RB1#

OIL BATH

 1
17841-56010

20R,5R..RB1#

 2
17841-56010

20R,5R..RB1#

 2
17841 - GASKET, FILTER ELEMENT
17841-56020

20R,22R,5R..RB1#

OIL BATH

 1
17841-56020

20R,22R,5R..RB1#

OIL BATH

 1
17841-56010

20R,5R..RB1#

 2
17841-56010

20R,5R..RB1#

 2
17845 - GASKET, AIR CLEANER CAP
17845-56020

20R,22R,5R..RB1#

 1
17845-56020

20R,22R,5R..RB1#

 1
17845 - GASKET, AIR CLEANER CAP
17845-56020

20R,22R,5R..RB1#

 1
17845-56020

20R,22R,5R..RB1#

 1
Common parts
94271-00600
94511-00600
94611-10600
Linked diagrams
1709
