HZB70R-ZGMSS (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )GCC,GEN,SA

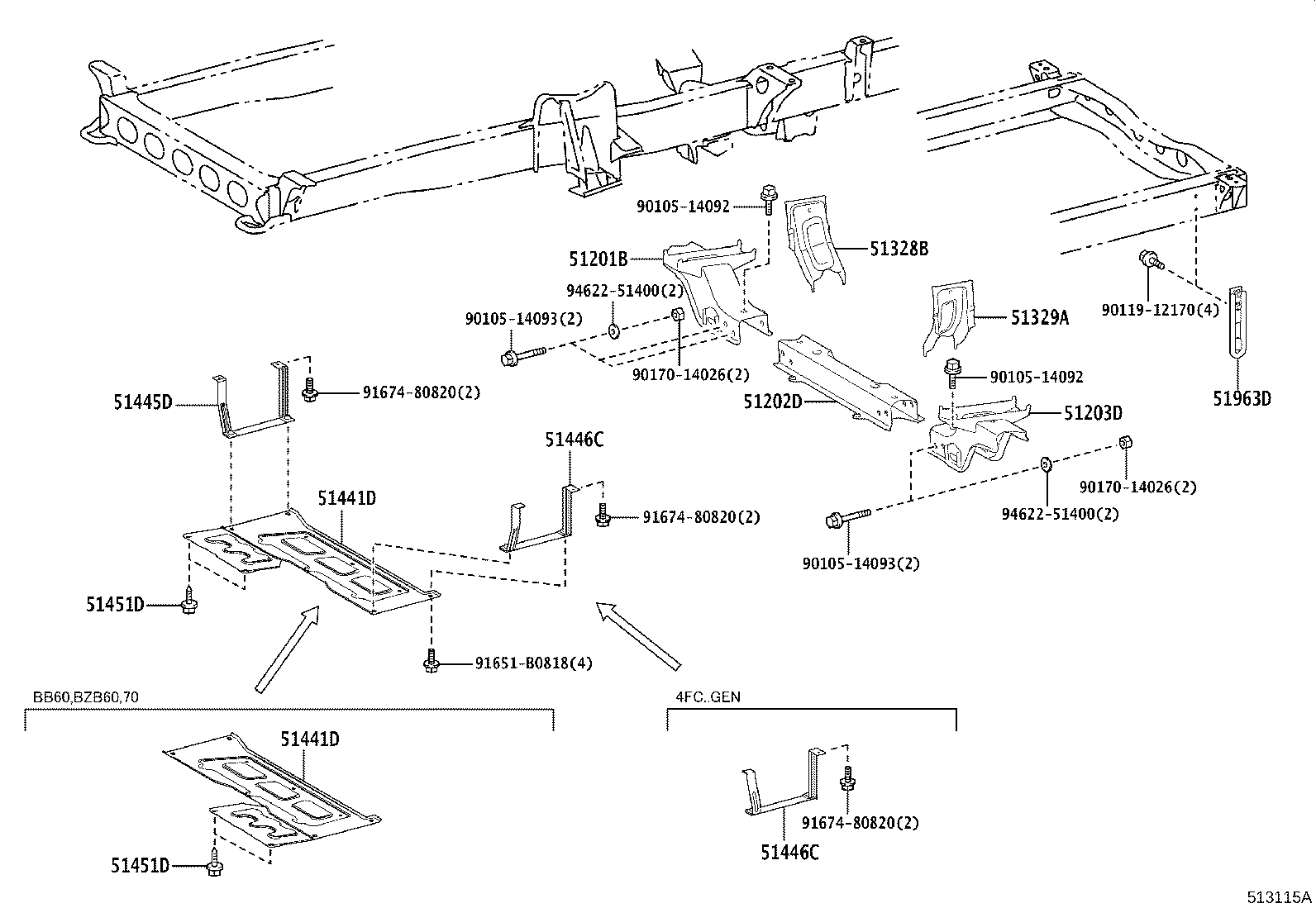

Click highlighted areas on diagram

diagram 51201B 51202D 51203D 51328B 51329A 51441D 51441D 51445D 51446C 51446C 51451D 51451D 51963D 9010514092 9010514092 9010514093 9010514093 9011912170 9017014026 9017014026 91651B0818 9167480820 9167480820 9167480820 9462251400 9462251400
Part # Description Qty Price
51201B - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION, RH
51201-36160

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
51202D - CROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER
51202-36220

XZB60,70..(5F,6FC)..(GEN,SA);BZB60,HZB60,70,TRB60,70,XZB80..5F,6FC

 1
51203D - CROSSMENBER SUB-ASSY, FRONT SUSPENSION, LH
51203-36330

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
51328B - SUPPORT, FRONT SUSPENSION MEMBER, RH
51328-36020

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
51329A - SUPPORT, FRONT SUSPENSION MEMBER, LH
51329-36010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
51441D - COVER, ENGINE UNDER
51441-36252

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA)

 1
51441-36282

BZB60,70

 1
51441D - COVER, ENGINE UNDER
51441-36252

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA)

 1
51441-36282

BZB60,70

 1
51445D - BRACKET, ENGINE UNDER COVER, RH
51445-36040

XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA)

 1
51446C - BRACKET, ENGINE UNDER COVER, LH
51446-36040

XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA)

 1
51446C - BRACKET, ENGINE UNDER COVER, LH
51446-36040

XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA)

 1
51451D - SCREW, NO.1
90159-60477

XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA)

 2
51451D - SCREW, NO.1
90159-60477

XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA)

 2
51963D - HOOK, TRANSPORT, REAR LH
51963-36060

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
Common parts
90105-14092
90105-14093
90119-12170
90170-14026
91651-B0818
91674-80820
94622-51400
