HZB70R-ZGMSS (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(1701-1908)RHD

Click highlighted areas on diagram

CONDENSER

diagram 8844636050 8844636050 88450 88453 88454A 88454B 88461A 88461C 88461D 88463C 8846928010 88471 88471 88550 88550D 88605J 8861936060 88645H 88706G 88706G 88706G 88706G 88706G 88706G 88706H 88715A 88715B 88715R 88715R 88715R 88716A 88716B 9009932130 9011906330 9165140625 9165140625 9165140625 9165140630 9165140630 9165140630 9165140630 9338516016
Part # Description Qty Price
88450 - CONDENSER ASSY, W/RECEIVER
88450-36380

HZB60,70,TRB60,70,XZB70,80..WC

 1
88450-36360

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 1
88450-V4010

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88460-36190

BZB60,70

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-37110

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
16361-13030

BZB60,70,XZB60..GEN

 4
16361-13030

HZB70,TRB60,70,XZB70..WC

 4
88454A - SHROUD, FAN
88454-36150

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 1
88454-36130

BZB60,70

 1
88454B - SHROUD, FAN
88454-36081

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 4
88454-36170

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.1

 1
88454-36180

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.2

 1
88454-36140

BZB60,70

 4
88461A - CORE, COOLER CONDENSER
88461-36040

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88461C - CORE, COOLER CONDENSER, NO.2
88461-36020

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88461D - CORE, COOLER CONDENSER, NO.3
88461-36030

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

 1
88463C - BRACKET, COOLER CONDENSER, NO.4
88463-37370

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 8
88463-37370

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50020

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50020

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-36111

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 4
88550-36220

BZB60,70

 4
88550D - MOTOR ASSY, BLOWER
88306-36070

BZB60,70

 2
16363-47050

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.2

 1
16363-47060

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.1

 1
88306-36060

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 2
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-36510

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88605-36460

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 1
88605-36450

BZB60,70

 1
88645H - SWITCH, PRESSURE NO.1
88645-36050

BZB60,70

 1
88645-60030

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706H - RING, O, NO.2(FOR LIQUID TUBE)
90099-14120

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=10.8,OD=15.6

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-36740

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88715-36601

BZB60,70

 1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-36610

BZB60,70

 1
88715-36760

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88715R - RING, O(FOR DISCHARGE TUBE)
90099-14120

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=10.8,OD=15.6

 1
90099-14120

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=10.8,OD=15.6

 3
88715R - RING, O(FOR DISCHARGE TUBE)
90099-14120

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=10.8,OD=15.6

 1
90099-14120

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=10.8,OD=15.6

 3
88715R - RING, O(FOR DISCHARGE TUBE)
90099-14120

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=10.8,OD=15.6

 1
90099-14120

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=10.8,OD=15.6

 3
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-36511

BZB60,70

 1
88716-36A80

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-36520

BZB60,70

 1
88716-36260

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88716-36A90

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

 1
Common parts
88446-36050
88469-28010
88619-36060
90099-32130
90119-06330
91651-40625
91651-40630
93385-16016

ILLUST NO. 1 OF 4(1701- )BZB60,70

Click highlighted areas on diagram

CONDENSER

diagram 88415C 88415D 88415E 88415G 88415H 88415J 88415K 88440C 8844636050 88450 88453 88454A 88454B 88460 88460 88550 88550D 88605J 88645H 88715A 88715B 88716A 88716B 9009120609 9017906274
Part # Description Qty Price
88450 - CONDENSER ASSY, W/RECEIVER
88450-36380

HZB60,70,TRB60,70,XZB70,80..WC

 1
88450-36360

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 1
88450-V4010

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88460-36190

BZB60,70

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-37110

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
16361-13030

BZB60,70,XZB60..GEN

 4
16361-13030

HZB70,TRB60,70,XZB70..WC

 4
88454A - SHROUD, FAN
88454-36150

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 1
88454-36130

BZB60,70

 1
88454B - SHROUD, FAN
88454-36081

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 4
88454-36170

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.1

 1
88454-36180

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.2

 1
88454-36140

BZB60,70

 4
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-36111

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 4
88550-36220

BZB60,70

 4
88550D - MOTOR ASSY, BLOWER
88306-36070

BZB60,70

 2
16363-47050

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.2

 1
16363-47060

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.1

 1
88306-36060

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 2
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-36510

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88605-36460

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 1
88605-36450

BZB60,70

 1
88645H - SWITCH, PRESSURE NO.1
88645-36050

BZB60,70

 1
88645-60030

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-36740

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88715-36601

BZB60,70

 1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-36610

BZB60,70

 1
88715-36760

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-36511

BZB60,70

 1
88716-36A80

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-36520

BZB60,70

 1
88716-36260

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88716-36A90

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

 1
Common parts
88446-36050
90091-20609
90179-06274

ILLUST NO. 2 OF 4(1701- )BZB60,70

Click highlighted areas on diagram

CONDENSER BRACKET

diagram 88415L 88463 88463A 9165160616 91651B0820 91651B0820 91651B0820 91651B0820
Part # Description Qty Price
88415L - COVER, DUST, NO.8
88415-36300

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88415-36310

BZB60,70

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88688-36490

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88688-36740

BZB60,70

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88688-36871

BZB60,70

 1
88688-36A10

HZB60..RHD..WC;XZB70..6FC..ARL;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW);HZB70,TRB70,XZB60,80..(01S,17S,19S,23S,25S,30S)..(5F,6FC)..WC

 1
Common parts
91651-60616
91651-B0820

ILLUST NO. 3 OF 4(1701- )RHD

Click highlighted areas on diagram

PIPING(ROOF)

diagram 8714 8714 8856936110 88578D 88578D 88578D 88578D 88578D 88578D 88716D 88717A 88717B 88718A 88718B 88718C 88718L 88718L 88718L 88726C 88897T 8963936030 9009914119 9009914126 9167380616 9167380616 9167380616 9167380616
Part # Description Qty Price
88578D - PACKING, COOLER PIPE, NO.1
88578-36080

XZB70..6FC..ARL;HZB60,70,XZB70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 6
88578-90B01

BB60,BZB60,70,HZB70,XZB60,70..RHD..WC

 6
88578D - PACKING, COOLER PIPE, NO.1
88578-36080

XZB70..6FC..ARL;HZB60,70,XZB70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 6
88578-90B01

BB60,BZB60,70,HZB70,XZB60,70..RHD..WC

 6
88578D - PACKING, COOLER PIPE, NO.1
88578-36080

XZB70..6FC..ARL;HZB60,70,XZB70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 6
88578-90B01

BB60,BZB60,70,HZB70,XZB60,70..RHD..WC

 6
88578D - PACKING, COOLER PIPE, NO.1
88578-36080

XZB70..6FC..ARL;HZB60,70,XZB70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 6
88578-90B01

BB60,BZB60,70,HZB70,XZB60,70..RHD..WC

 6
88578D - PACKING, COOLER PIPE, NO.1
88578-36080

XZB70..6FC..ARL;HZB60,70,XZB70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 6
88578-90B01

BB60,BZB60,70,HZB70,XZB60,70..RHD..WC

 6
88578D - PACKING, COOLER PIPE, NO.1
88578-36080

XZB70..6FC..ARL;HZB60,70,XZB70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 6
88578-90B01

BB60,BZB60,70,HZB70,XZB60,70..RHD..WC

 6
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-36A30

XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-36480

XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-36490

XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-36300

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-36310

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88718-36320

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88718L - CLAMP, PIPING
90469-22001

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 3
88718L - CLAMP, PIPING
90469-22001

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 3
88718L - CLAMP, PIPING
90469-22001

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 3
88726C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-36A20

XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88897T - GROMMET, COOLER
88897-36040

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
Common parts
88569-36110
89639-36030
90099-14119
90099-14126
91673-80616
Linked diagrams
8714

ILLUST NO. 4 OF 4(2001- )TRB60,70..19S,20S,23S,26S,30S

Click highlighted areas on diagram

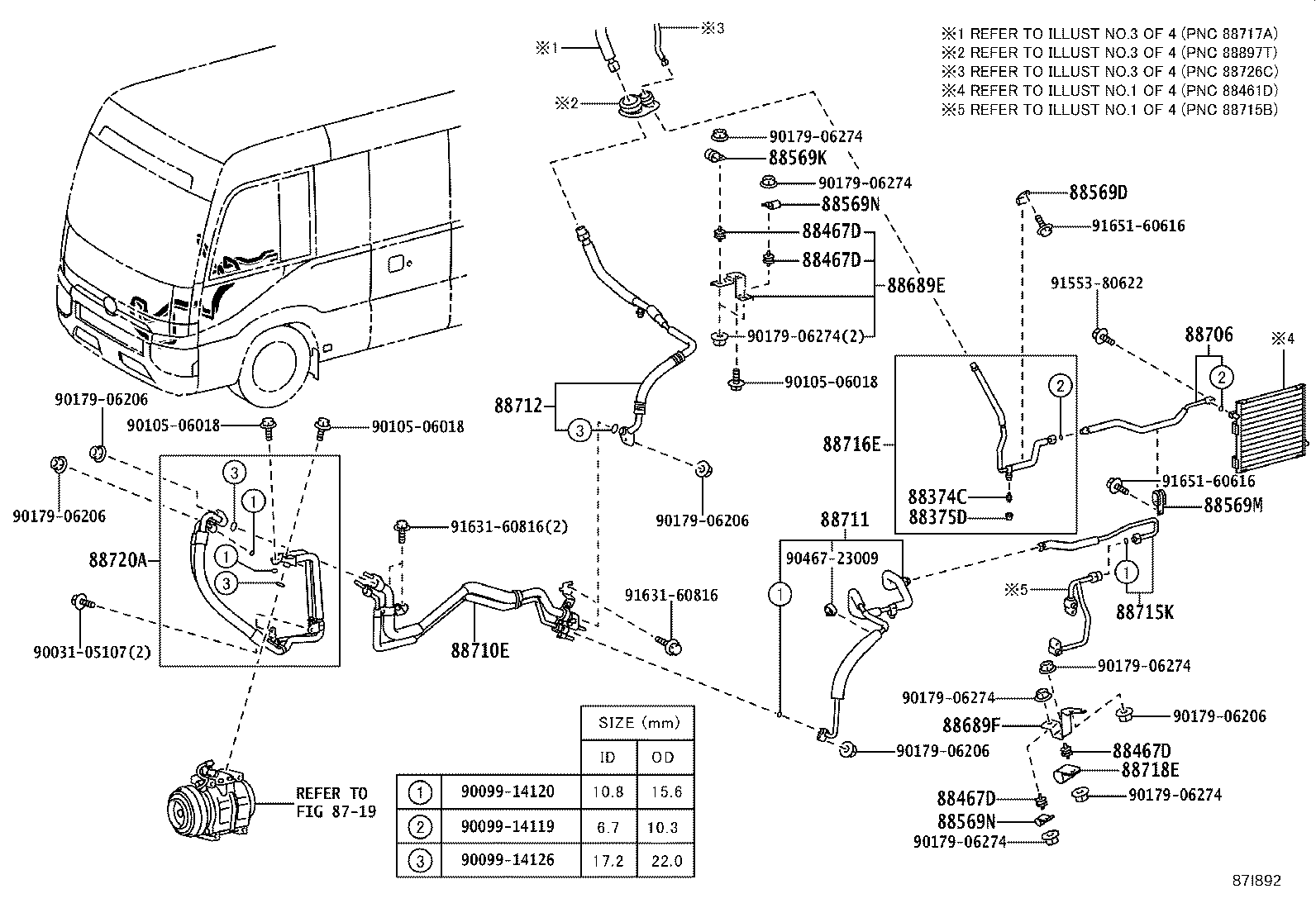

PIPING(FLOOR)

diagram 8719 88374B 88374C 88375B 88375D 88467D 88467D 88467D 88467D 88467D 8846928010 88569D 88569K 88569L 88569L 88569M 88569N 88569N 88569N 88689E 88689F 88689G 88710E 88711 88712 88715J 88715J 88715K 88716E 88716P 88717C 88717D 88G16Q 9009914119 9009914120 9009914126 9009932130 9010506018 9010506018 9010506018 9010506018 9017906161 9017906206 9017906206 9017906274 9017906274 9155380622 9165160616 9165160616 9611110400
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

XZB70..LHD..WC;HZB60,70,TRB60,70..WC

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

XZB70..LHD..WC;HZB60,70,TRB60,70..WC

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88569D - CLAMP, COOLER, NO.1
88569-36190

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88569K - CLAMP, COOLER, NO.2
88569-36120

BZB60,HZB60,70,TRB60,70..WC

 1
88569L - CLAMP, COOLER, NO.3
88569-36220

HZB60,70..RHD..WC

 1
88569L - CLAMP, COOLER, NO.3
88569-36220

HZB60,70..RHD..WC

 1
88569M - CLAMP, PIPING, NO.1
88569-36270

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88569-30560

BZB60,70

 2
88569N - CLAMP, PIPING, NO.2
88569-30560

XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88569N - CLAMP, PIPING, NO.2
88569-30560

XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88569N - CLAMP, PIPING, NO.2
88569-30560

XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88689E - BRACKET, COOLER, NO.1
88688-36260

XZB70..6FC..ARL;HZB60,70,XZB60,70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88689F - BRACKET, COOLER, NO.2
88688-36580

HZB60,70..RHD..WC

 1
88689G - BRACKET, COOLER, NO.3
88688-3B130

TRB60,70..WC

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-36520

TRB60,70..WC

 1
88710-36530

HZB60,70..RHD..WC

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-36530

HZB60,70..WC

 1
88711-36740

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
88711-36721

TRB60,70..WC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-36510

HZB60,70..WC

 1
88712-36461

BZB60,70

 1
88712-36692

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
88712-36680

TRB60,70..WC

 1
88715J - TUBE, DISCHARGE, J
88715-36790

TRB60,70..WC

NO.2

 1
88715J - TUBE, DISCHARGE, J
88715-36790

TRB60,70..WC

NO.2

 1
88715K - TUBE, DISCHARGE, K
88715-36770

HZB60,70,XZB60,70,80..RHD..WC

 1
88715-V4010

XZB70..6FC..ARL;HZB60,70,XZB70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-36A50

XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88716P - PIPE, COOLER REFRIGERANT LIQUID, P
88716-V4050

XZB70..6FC..ARL;HZB60,70,XZB70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-36450

TRB60,70..WC

 1
88G16Q - RING, O, NO.1(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 1
Common parts
88469-28010
90099-14119
90099-14120
90099-14126
90099-32130
90105-06018
90179-06161
90179-06206
90179-06274
91553-80622
91651-60616
96111-10400
Linked diagrams
8719

ILLUST NO. 4 OF 4(2001- )HZB60,70..RHD

Click highlighted areas on diagram

PIPING(FLOOR)

diagram 8719 88374B 88374C 88375B 88375D 88467D 88467D 88467D 8846928010 88569D 88569K 88569L 88569M 88569N 88569N 88689E 88689F 88710E 88711 88712 88715G 88715K 88716E 88716P 88717U 88G16Q 9009914119 9009914120 9009914126 9009932130 9010506018 9010506018 9010506018 9010506018 9017906274 9155380622 9165160616 9165160616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

XZB70..LHD..WC;HZB60,70,TRB60,70..WC

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

XZB70..LHD..WC;HZB60,70,TRB60,70..WC

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88569D - CLAMP, COOLER, NO.1
88569-36190

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88569K - CLAMP, COOLER, NO.2
88569-36120

BZB60,HZB60,70,TRB60,70..WC

 1
88569L - CLAMP, COOLER, NO.3
88569-36220

HZB60,70..RHD..WC

 1
88569M - CLAMP, PIPING, NO.1
88569-36270

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88569-30560

BZB60,70

 2
88569N - CLAMP, PIPING, NO.2
88569-30560

XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88569N - CLAMP, PIPING, NO.2
88569-30560

XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88689E - BRACKET, COOLER, NO.1
88688-36260

XZB70..6FC..ARL;HZB60,70,XZB60,70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88689F - BRACKET, COOLER, NO.2
88688-36580

HZB60,70..RHD..WC

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-36520

TRB60,70..WC

 1
88710-36530

HZB60,70..RHD..WC

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-36530

HZB60,70..WC

 1
88711-36740

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
88711-36721

TRB60,70..WC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-36510

HZB60,70..WC

 1
88712-36461

BZB60,70

 1
88712-36692

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
88712-36680

TRB60,70..WC

 1
88715G - TUBE, DISCHARGE, G
88715-36810

HZB60,70..RHD..WC

 1
88715K - TUBE, DISCHARGE, K
88715-36770

HZB60,70,XZB60,70,80..RHD..WC

 1
88715-V4010

XZB70..6FC..ARL;HZB60,70,XZB70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-36A50

XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88716P - PIPE, COOLER REFRIGERANT LIQUID, P
88716-V4050

XZB70..6FC..ARL;HZB60,70,XZB70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88717U - TUBE, SUCTION, NO.1
88717-36160

HZB60,70..RHD..WC

 1
88G16Q - RING, O, NO.1(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 1
Common parts
88469-28010
90099-14119
90099-14120
90099-14126
90099-32130
90105-06018
90179-06274
91553-80622
91651-60616
Linked diagrams
8719

ILLUST NO. 2 OF 4(1701-1908)BB60,HZB70,XZB60,70..RHD

Click highlighted areas on diagram

CONDENSER BRACKET

diagram 88415L 88415L 88463 88463 88463A 88463B 88463B 88467 88467 88467 88467 88467A 88467A 88469D 88469D 9046707215 9046707215 9155380840 9155380840 9162160614 9162160614 9165160816 9165160816
Part # Description Qty Price
88415L - COVER, DUST, NO.8
88415-36300

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88415-36310

BZB60,70

 1
88415L - COVER, DUST, NO.8
88415-36300

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88415-36310

BZB60,70

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88688-36490

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88688-36740

BZB60,70

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88688-36490

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88688-36740

BZB60,70

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88688-36871

BZB60,70

 1
88688-36A10

HZB60..RHD..WC;XZB70..6FC..ARL;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW);HZB70,TRB70,XZB60,80..(01S,17S,19S,23S,25S,30S)..(5F,6FC)..WC

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88688-36A30

HZB60..LHD..WC;XZB70..6FC..ARL;HZB70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88688-36A30

HZB60..LHD..WC;XZB70..6FC..ARL;HZB70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-90B00

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 6
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-90B00

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 6
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-90B00

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 6
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-90B00

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 6
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-90B01

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 6
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-90B01

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 6
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-90B00

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 6
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-90B00

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 6
Common parts
90467-07215
91553-80840
91621-60614
91651-60816

ILLUST NO. 1 OF 4(2001- )RHD

Click highlighted areas on diagram

CONDENSER

diagram 8844636060 8844636060 8844636060 88450 88453 88453A 88454B 88454B 88461A 88461C 88463C 8846928010 88471 88471 88550D 88550D 8856936260 8856936260 8856936260 88590B 88590B 88605J 8861936060 88645H 88688E 88706G 88706G 88706G 88706G 88706G 88706G 88706G 88706G 88715A 88715B 88715R 88715R 88715R 88716A 88716B 88716L 88716M 9009932130 9011906330 9165140625 9165140625 9165140625 9165140630 9165140630 9165140630 9338516016
Part # Description Qty Price
88450 - CONDENSER ASSY, W/RECEIVER
88450-36380

HZB60,70,TRB60,70,XZB70,80..WC

 1
88450-36360

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 1
88450-V4010

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88460-36190

BZB60,70

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-37110

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
16361-13030

BZB60,70,XZB60..GEN

 4
16361-13030

HZB70,TRB60,70,XZB70..WC

 4
88453A - FAN, COOLING
16361-37100

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88454B - SHROUD, FAN
88454-36081

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 4
88454-36170

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.1

 1
88454-36180

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.2

 1
88454-36140

BZB60,70

 4
88454B - SHROUD, FAN
88454-36081

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 4
88454-36170

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.1

 1
88454-36180

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.2

 1
88454-36140

BZB60,70

 4
88461A - CORE, COOLER CONDENSER
88461-36040

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88461C - CORE, COOLER CONDENSER, NO.2
88461-36020

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88463C - BRACKET, COOLER CONDENSER, NO.4
88463-37370

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 8
88463-37370

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50020

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50020

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88550D - MOTOR ASSY, BLOWER
88306-36070

BZB60,70

 2
16363-47050

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.2

 1
16363-47060

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.1

 1
88306-36060

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 2
88550D - MOTOR ASSY, BLOWER
88306-36070

BZB60,70

 2
16363-47050

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.2

 1
16363-47060

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.1

 1
88306-36060

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 2
88590B - BLOWER ASSY, W/SHROUD
88590-36030

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.2

 1
88590-36020

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.1

 1
88590B - BLOWER ASSY, W/SHROUD
88590-36030

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.2

 1
88590-36020

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.1

 1
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-36510

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88605-36460

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 1
88605-36450

BZB60,70

 1
88645H - SWITCH, PRESSURE NO.1
88645-36050

BZB60,70

 1
88645-60030

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-V4020

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-36740

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88715-36601

BZB60,70

 1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-36610

BZB60,70

 1
88715-36760

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88715R - RING, O(FOR DISCHARGE TUBE)
90099-14120

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=10.8,OD=15.6

 1
90099-14120

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=10.8,OD=15.6

 3
88715R - RING, O(FOR DISCHARGE TUBE)
90099-14120

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=10.8,OD=15.6

 1
90099-14120

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=10.8,OD=15.6

 3
88715R - RING, O(FOR DISCHARGE TUBE)
90099-14120

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=10.8,OD=15.6

 1
90099-14120

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=10.8,OD=15.6

 3
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-36511

BZB60,70

 1
88716-36A80

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-36520

BZB60,70

 1
88716-36260

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88716-36A90

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

 1
88716L - PIPE, COOLER REFRIGERANT LIQUID, L
88716-36292

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88716M - PIPE, COOLER REFRIGERANT LIQUID, M
88716-V4040

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
Common parts
88446-36060
88469-28010
88569-36260
88619-36060
90099-32130
90119-06330
91651-40625
91651-40630
93385-16016

ILLUST NO. 2 OF 4(1908- )BB60,HZB60,70,XZB70,80..RHD

Click highlighted areas on diagram

CONDENSER BRACKET

diagram 88415L 88415L 88463 88463 88463A 88463B 88463B 88467 88467 88467 88467 88467A 88467A 88469D 88469D 9046707215 9046707215 9155380840 9155380840 9162160614 9162160614 9165160816 9165160816
Part # Description Qty Price
88415L - COVER, DUST, NO.8
88415-36300

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88415-36310

BZB60,70

 1
88415L - COVER, DUST, NO.8
88415-36300

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88415-36310

BZB60,70

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88688-36490

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88688-36740

BZB60,70

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88688-36490

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88688-36740

BZB60,70

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88688-36871

BZB60,70

 1
88688-36A10

HZB60..RHD..WC;XZB70..6FC..ARL;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW);HZB70,TRB70,XZB60,80..(01S,17S,19S,23S,25S,30S)..(5F,6FC)..WC

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88688-36A30

HZB60..LHD..WC;XZB70..6FC..ARL;HZB70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88688-36A30

HZB60..LHD..WC;XZB70..6FC..ARL;HZB70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-90B00

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 6
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-90B00

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 6
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-90B00

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 6
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-90B00

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 6
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-90B01

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 6
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-90B01

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 6
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-90B00

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 6
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-90B00

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 6
Common parts
90467-07215
91553-80840
91621-60614
91651-60816

ILLUST NO. 1 OF 4(1908-2101)HZB60,70,XZB70,80..RHD

Click highlighted areas on diagram

CONDENSER

diagram 8844636060 8844636060 8844636060 88450 88453 88453A 88454B 88454B 88461A 88461C 88461D 88463C 8846928010 88471 88471 88550D 88550D 88590B 88590B 88605J 8861936060 88645H 88706G 88706G 88706G 88706G 88706G 88706G 88706H 88715A 88715B 88715R 88715R 88715R 88716A 88716B 9009932130 9011906330 9165140625 9165140625 9165140625 9165140630 9165140630 9165140630 9165140630 9338516016
Part # Description Qty Price
88450 - CONDENSER ASSY, W/RECEIVER
88450-36380

HZB60,70,TRB60,70,XZB70,80..WC

 1
88450-36360

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 1
88450-V4010

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88460-36190

BZB60,70

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-37110

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
16361-13030

BZB60,70,XZB60..GEN

 4
16361-13030

HZB70,TRB60,70,XZB70..WC

 4
88453A - FAN, COOLING
16361-37100

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88454B - SHROUD, FAN
88454-36081

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 4
88454-36170

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.1

 1
88454-36180

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.2

 1
88454-36140

BZB60,70

 4
88454B - SHROUD, FAN
88454-36081

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 4
88454-36170

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.1

 1
88454-36180

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.2

 1
88454-36140

BZB60,70

 4
88461A - CORE, COOLER CONDENSER
88461-36040

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88461C - CORE, COOLER CONDENSER, NO.2
88461-36020

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88461D - CORE, COOLER CONDENSER, NO.3
88461-36030

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

 1
88463C - BRACKET, COOLER CONDENSER, NO.4
88463-37370

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 8
88463-37370

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50020

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50020

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88550D - MOTOR ASSY, BLOWER
88306-36070

BZB60,70

 2
16363-47050

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.2

 1
16363-47060

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.1

 1
88306-36060

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 2
88550D - MOTOR ASSY, BLOWER
88306-36070

BZB60,70

 2
16363-47050

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.2

 1
16363-47060

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.1

 1
88306-36060

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 2
88590B - BLOWER ASSY, W/SHROUD
88590-36030

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.2

 1
88590-36020

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.1

 1
88590B - BLOWER ASSY, W/SHROUD
88590-36030

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.2

 1
88590-36020

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

NO.1

 1
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-36510

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88605-36460

XZB60..GEN;HZB70,TRB60,70,XZB70..WC

 1
88605-36450

BZB60,70

 1
88645H - SWITCH, PRESSURE NO.1
88645-36050

BZB60,70

 1
88645-60030

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=6.7,OD=10.3

 8
90099-14119

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=6.7,OD=10.3

 1
88706H - RING, O, NO.2(FOR LIQUID TUBE)
90099-14120

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=10.8,OD=15.6

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-36740

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88715-36601

BZB60,70

 1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-36610

BZB60,70

 1
88715-36760

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88715R - RING, O(FOR DISCHARGE TUBE)
90099-14120

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=10.8,OD=15.6

 1
90099-14120

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=10.8,OD=15.6

 3
88715R - RING, O(FOR DISCHARGE TUBE)
90099-14120

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=10.8,OD=15.6

 1
90099-14120

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=10.8,OD=15.6

 3
88715R - RING, O(FOR DISCHARGE TUBE)
90099-14120

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

ID=10.8,OD=15.6

 1
90099-14120

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

ID=10.8,OD=15.6

 3
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-36511

BZB60,70

 1
88716-36A80

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-36520

BZB60,70

 1
88716-36260

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88716-36A90

XZB60..GEN;HZB60,70,TRB60,70,XZB70,80..WC

 1
Common parts
88446-36060
88469-28010
88619-36060
90099-32130
90119-06330
91651-40625
91651-40630
93385-16016

ILLUST NO. 4 OF 4(1701-2001)HZB60,70..RHD

Click highlighted areas on diagram

PIPING(FLOOR)

diagram 8719 88374B 88374C 88375B 88375D 88467D 88467D 88467D 8846928010 88569D 88569K 88569L 88569M 88569N 88569N 88689E 88689F 88706 88710E 88711 88712 88715G 88715K 88716E 88717U 9009914119 9009914120 9009914126 9009932130 9010506018 9010506018 9010506018 9010506018 9017906274 9155380622 9165160616 9165160616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

XZB70..LHD..WC;HZB60,70,TRB60,70..WC

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

XZB70..LHD..WC;HZB60,70,TRB60,70..WC

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88569D - CLAMP, COOLER, NO.1
88569-36190

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88569K - CLAMP, COOLER, NO.2
88569-36120

BZB60,HZB60,70,TRB60,70..WC

 1
88569L - CLAMP, COOLER, NO.3
88569-36220

HZB60,70..RHD..WC

 1
88569M - CLAMP, PIPING, NO.1
88569-36270

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88569-30560

BZB60,70

 2
88569N - CLAMP, PIPING, NO.2
88569-30560

XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88569N - CLAMP, PIPING, NO.2
88569-30560

XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88689E - BRACKET, COOLER, NO.1
88688-36260

XZB70..6FC..ARL;HZB60,70,XZB60,70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88689F - BRACKET, COOLER, NO.2
88688-36580

HZB60,70..RHD..WC

 1
88706 - PIPE SUB-ASSY, LIQUID
88706-36170

HZB60,70,XZB70,80..RHD..WC

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-36520

TRB60,70..WC

 1
88710-36530

HZB60,70..RHD..WC

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-36530

HZB60,70..WC

 1
88711-36740

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
88711-36721

TRB60,70..WC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-36510

HZB60,70..WC

 1
88712-36461

BZB60,70

 1
88712-36692

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
88712-36680

TRB60,70..WC

 1
88715G - TUBE, DISCHARGE, G
88715-36810

HZB60,70..RHD..WC

 1
88715K - TUBE, DISCHARGE, K
88715-36770

HZB60,70,XZB60,70,80..RHD..WC

 1
88715-V4010

XZB70..6FC..ARL;HZB60,70,XZB70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-36A50

XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88717U - TUBE, SUCTION, NO.1
88717-36160

HZB60,70..RHD..WC

 1
Common parts
88469-28010
90099-14119
90099-14120
90099-14126
90099-32130
90105-06018
90179-06274
91553-80622
91651-60616
Linked diagrams
8719

ILLUST NO. 4 OF 4(1701-2001)TRB60,70..19S,20S,23S,26S,30S

Click highlighted areas on diagram

PIPING(FLOOR)

diagram 8719 88374B 88374C 88375B 88375D 88467D 88467D 88467D 88467D 88467D 8846928010 88569D 88569K 88569L 88569L 88569M 88569N 88569N 88569N 88689E 88689F 88689G 88706 88710E 88711 88712 88715J 88715J 88715K 88716E 88717C 88717D 9009914119 9009914120 9009914126 9009932130 9010506018 9010506018 9010506018 9010506018 9017906161 9017906206 9017906206 9017906274 9017906274 9155380622 9165160616 9165160616 9611110400
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

XZB70..LHD..WC;HZB60,70,TRB60,70..WC

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

XZB70..LHD..WC;HZB60,70,TRB60,70..WC

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88569D - CLAMP, COOLER, NO.1
88569-36190

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88569K - CLAMP, COOLER, NO.2
88569-36120

BZB60,HZB60,70,TRB60,70..WC

 1
88569L - CLAMP, COOLER, NO.3
88569-36220

HZB60,70..RHD..WC

 1
88569L - CLAMP, COOLER, NO.3
88569-36220

HZB60,70..RHD..WC

 1
88569M - CLAMP, PIPING, NO.1
88569-36270

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88569-30560

BZB60,70

 2
88569N - CLAMP, PIPING, NO.2
88569-30560

XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88569N - CLAMP, PIPING, NO.2
88569-30560

XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88569N - CLAMP, PIPING, NO.2
88569-30560

XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88689E - BRACKET, COOLER, NO.1
88688-36260

XZB70..6FC..ARL;HZB60,70,XZB60,70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88689F - BRACKET, COOLER, NO.2
88688-36580

HZB60,70..RHD..WC

 1
88689G - BRACKET, COOLER, NO.3
88688-3B130

TRB60,70..WC

 1
88706 - PIPE SUB-ASSY, LIQUID
88706-36170

HZB60,70,XZB70,80..RHD..WC

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-36520

TRB60,70..WC

 1
88710-36530

HZB60,70..RHD..WC

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-36530

HZB60,70..WC

 1
88711-36740

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
88711-36721

TRB60,70..WC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-36510

HZB60,70..WC

 1
88712-36461

BZB60,70

 1
88712-36692

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
88712-36680

TRB60,70..WC

 1
88715J - TUBE, DISCHARGE, J
88715-36790

TRB60,70..WC

NO.2

 1
88715J - TUBE, DISCHARGE, J
88715-36790

TRB60,70..WC

NO.2

 1
88715K - TUBE, DISCHARGE, K
88715-36770

HZB60,70,XZB60,70,80..RHD..WC

 1
88715-V4010

XZB70..6FC..ARL;HZB60,70,XZB70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-36A50

XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-36450

TRB60,70..WC

 1
Common parts
88469-28010
90099-14119
90099-14120
90099-14126
90099-32130
90105-06018
90179-06161
90179-06206
90179-06274
91553-80622
91651-60616
96111-10400
Linked diagrams
8719

ILLUST NO. 4 OF 4(1701-2001)XZB60,70,80..RHD

Click highlighted areas on diagram

PIPING(FLOOR)

diagram 8719 88374C 88375D 88467D 88467D 88467D 88467D 88569D 88569K 88569M 88569N 88569N 88689E 88689F 88706 88710E 88711 88712 88715K 88716E 88718E 88720A 9003105107 9009914119 9009914120 9009914126 9010506018 9010506018 9010506018 9017906206 9017906206 9017906206 9017906206 9017906206 9017906274 9017906274 9017906274 9017906274 9017906274 9017906274 9017906274 9046723009 9155380622 9163160816 9163160816 9165160616 9165160616
Part # Description Qty Price
88374C - VALVE, SERVICE, NO.2
88374-30010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-12030

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 4
88467-12030

BZB60,HZB60,70..RHD..WC

 3
88569D - CLAMP, COOLER, NO.1
88569-36190

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88569K - CLAMP, COOLER, NO.2
88569-36120

BZB60,HZB60,70,TRB60,70..WC

 1
88569M - CLAMP, PIPING, NO.1
88569-36270

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 1
88569-30560

BZB60,70

 2
88569N - CLAMP, PIPING, NO.2
88569-30560

XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88569N - CLAMP, PIPING, NO.2
88569-30560

XZB70..6FC..ARL;HZB60,70,XZB60,80..RHD..(5F,6FC)..WC;XZB70..(5F,6FC)..WC..(GCC,GEN,SA,TAIW)

 2
88689E - BRACKET, COOLER, NO.1
88688-36260

XZB70..6FC..ARL;HZB60,70,XZB60,70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88689F - BRACKET, COOLER, NO.2
88688-36580

HZB60,70..RHD..WC

 1
88706 - PIPE SUB-ASSY, LIQUID
88706-36170

HZB60,70,XZB70,80..RHD..WC

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-36520

TRB60,70..WC

 1
88710-36530

HZB60,70..RHD..WC

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-36530

HZB60,70..WC

 1
88711-36740

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
88711-36721

TRB60,70..WC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-36510

HZB60,70..WC

 1
88712-36461

BZB60,70

 1
88712-36692

XZB70..6FC..ARL;XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)

 1
88712-36680

TRB60,70..WC

 1
88715K - TUBE, DISCHARGE, K
88715-36770

HZB60,70,XZB60,70,80..RHD..WC

 1
88715-V4010

XZB70..6FC..ARL;HZB60,70,XZB70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-36A50

XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..WC..(GEN,SA)

 1
88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)
88718-87640

BZB60,70

 3
Common parts
90031-05107
90099-14119
90099-14120
90099-14126
90105-06018
90179-06206
90179-06274
90467-23009
91553-80622
91631-60816
91651-60616
Linked diagrams
8719
