HZB70R-ZGMSS (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

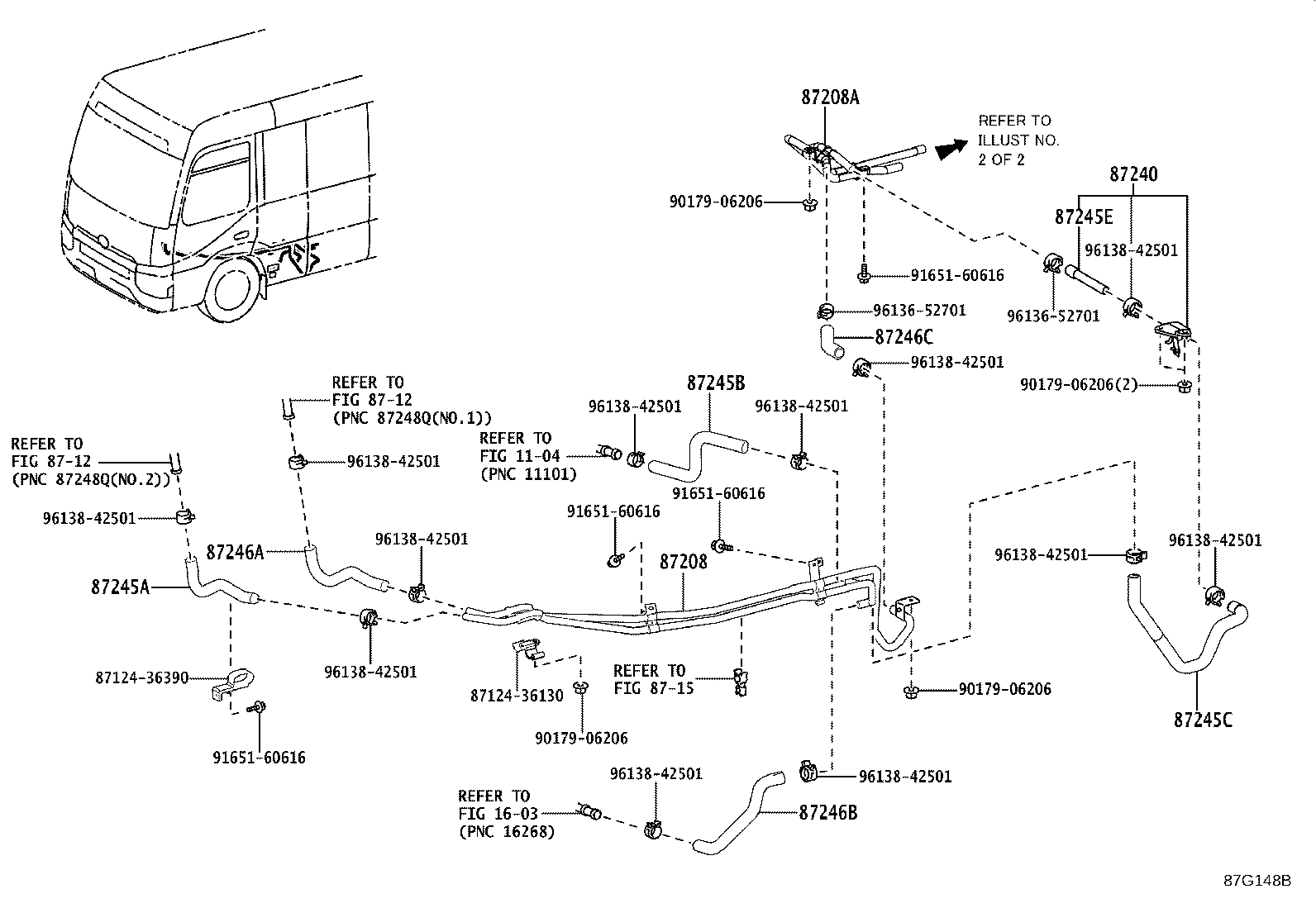

ILLUST NO. 1 OF 2(1701- )TRB60,70

Click highlighted areas on diagram

FRONT

diagram 1104 1603 8712 8712 8712436130 8712436390 8715 87208 87208A 87240 87245A 87245B 87245C 87245E 87246A 87246B 87246C 9017906206 9017906206 9017906206 9017906206 9165160616 9165160616 9165160616 9165160616 9613652701 9613652701 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36372

HZB60,70..RHD

FRONT HEATER-MANUAL 120W

 1
87208-36K30

TRB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36F20

HZB60,70..RHD

FRONT HEATER-MANUAL 120W

 1
87208-36F00

TRB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87240 - VALVE ASSY, HEATER WATER
87240-36120

HZB60,70,TRB60,70,XZB70..(23S,24S,25S,26S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3C360

HZB60,70..RHD

FRONT HEATER-MANUAL 120W

 1
87245B - HOSE, HEATER WATER, INLET B
87245-36E00

TRB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245-36272

HZB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-36M90

TRB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245-3B621

HZB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3C410

HZB60,70,TRB60,70,XZB70..(23S,24S,25S,26S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3C370

HZB60,70..RHD

FRONT HEATER-MANUAL 120W

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-36E10

TRB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245-3B481

HZB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-3C380

HZB60,70..RHD;XZB70..(23S,25S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
Common parts
87124-36130
87124-36390
90179-06206
91651-60616
96136-52701
96138-42501
Linked diagrams
1104
1603
8712
8715

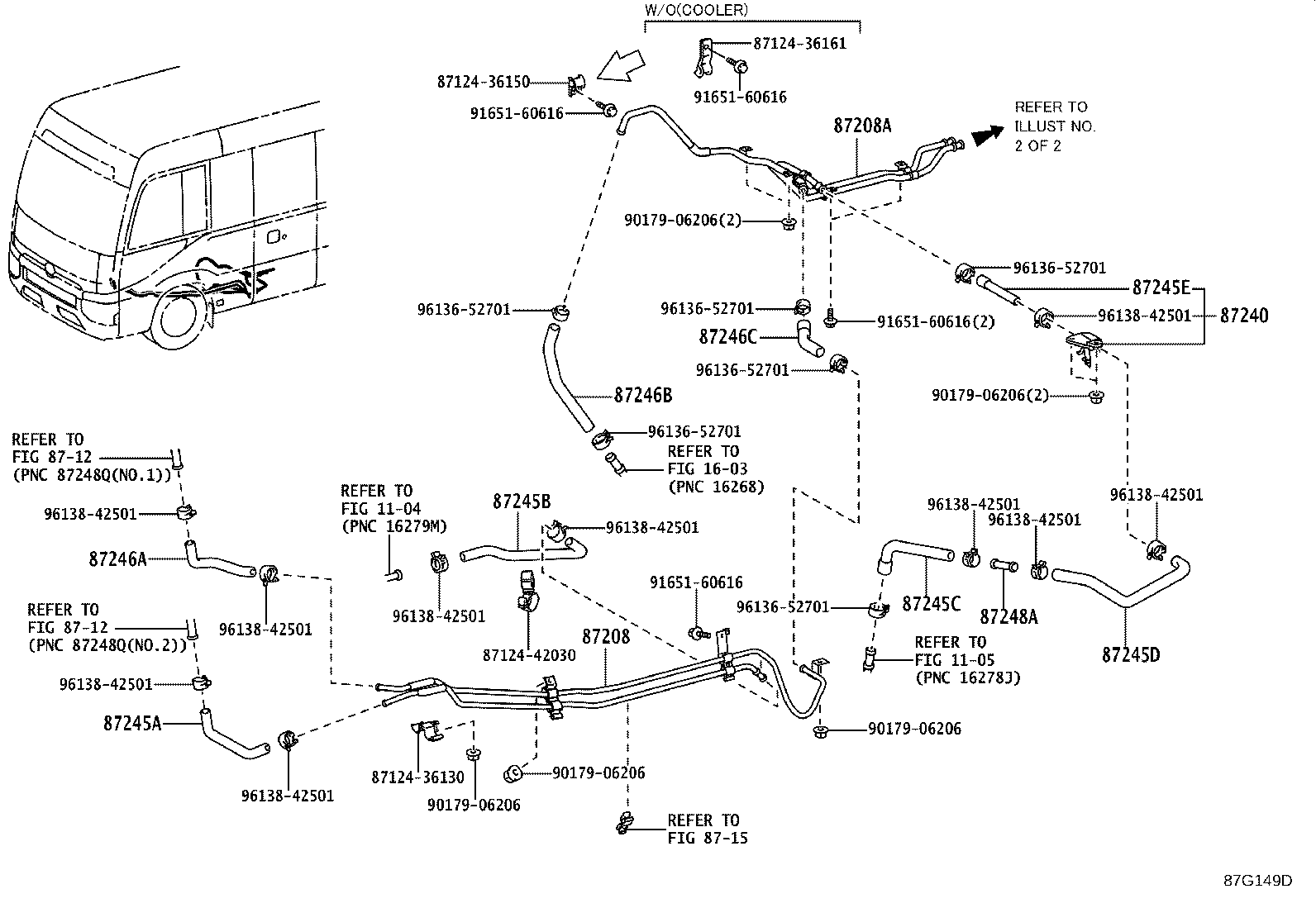

ILLUST NO. 1 OF 2(1701- )HZB60,70..RHD

Click highlighted areas on diagram

FRONT

diagram 1104 1105 1603 8712 8712 8712436130 8712436150 8712436161 8712442030 8715 87208 87208A 87240 87245A 87245B 87245C 87245D 87245E 87246A 87246B 87246C 87248A 9017906206 9017906206 9017906206 9017906206 9017906206 9165160616 9165160616 9165160616 9165160616 9613652701 9613652701 9613652701 9613652701 9613652701 9613652701 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36372

HZB60,70..RHD

FRONT HEATER-MANUAL 120W

 1
87208-36K30

TRB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36F20

HZB60,70..RHD

FRONT HEATER-MANUAL 120W

 1
87208-36F00

TRB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87240 - VALVE ASSY, HEATER WATER
87240-36120

HZB60,70,TRB60,70,XZB70..(23S,24S,25S,26S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3C360

HZB60,70..RHD

FRONT HEATER-MANUAL 120W

 1
87245B - HOSE, HEATER WATER, INLET B
87245-36E00

TRB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245-36272

HZB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-36M90

TRB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245-3B621

HZB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245D - HOSE, HEATER WATER, INLET D
87245-36263

HZB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3C410

HZB60,70,TRB60,70,XZB70..(23S,24S,25S,26S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3C370

HZB60,70..RHD

FRONT HEATER-MANUAL 120W

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-36E10

TRB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245-3B481

HZB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-3C380

HZB60,70..RHD;XZB70..(23S,25S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
87248A - PIPE, HEATER WATER INLET, A
87248-36300

HZB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
Common parts
87124-36130
87124-36150
87124-36161
87124-42030
90179-06206
91651-60616
96136-52701
96138-42501
Linked diagrams
1104
1105
1603
8712
8715

ILLUST NO. 2 OF 2(1701- )RHD..29S,30S

Click highlighted areas on diagram

REAR

diagram 8712 8712 8712436040 8712436810 87208E 87208G 87208H 87209D 87255C 87255D 87255G 87256C 87256D 87256G 9165160616 9165160616 9165160616 9165160616 9613652701 9613652701 9613652701 9613652701 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-36G40

HZB60,70,XZB70..RHD..(26S,29S,30S)

FRONT HEATER-MANUAL 120W

 1
87208G - PIPE SUB-ASSY, HEATER WATER, G
87208-36G70

HZB60,TRB60,70..GEN;HZB70,XZB70..LHD..GEN

FRONT HEATER-MANUAL 120W

 1
87208-36G60

HZB70,XZB70..RHD..(29S,30S)

FRONT HEATER-MANUAL 120W

 1
87208H - PIPE SUB-ASSY, HEATER WATER, H
87208-36G70

HZB60,TRB60,70..LHD..GEN;HZB70,XZB70..(23S,25S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
87209D - HOSE SUB-ASSY, WATER, D
87209-36F40

HZB70,XZB70..RHD..(29S,30S)

FRONT HEATER-MANUAL 120W

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-36P60

HZB70,XZB70..RHD..(29S,30S)

FRONT HEATER-MANUAL 120W

 1
87255D - HOSE, REAR HEATER WATER INLET, D
87245-36K20

HZB60,TRB60,70..LHD..GEN;HZB70,XZB70..(23S,25S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
87255G - HOSE, REAR HEATER WATER INLET, G
87245-36M60

HZB60,70,XZB70..RHD..(26S,29S,30S)

FRONT HEATER-MANUAL 120W

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-36P60

HZB70,XZB70..RHD..(29S,30S)

FRONT HEATER-MANUAL 120W

 1
87256D - HOSE, REAR HEATER WATER OUTLET, D
87245-36K20

HZB60,TRB60,70..LHD..GEN;HZB70,XZB70..(23S,25S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
87256G - HOSE, REAR HEATER WATER OUTLET, G
87245-36M80

HZB60,70,XZB70..RHD..(26S,29S,30S)

FRONT HEATER-MANUAL 120W

 1
Common parts
87124-36040
87124-36810
91651-60616
96136-52701
96138-42501
Linked diagrams
8712
