HZB70R-ZGMSS (2017)
Toyota Coaster
ILLUST NO. 1 OF 2(1701- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55123B - REINFORCEMENT, STEERING SUPPORT | ||||
| 55123-36030 |
XZB70..TAIW;XZB70..RHD..29S;HZB70..30S..STD;HZB70,TRB60,70,XZB80..(01S,20S,23S)..5F..WC STEERING COLUMN-WITH(TILT & TELESCOPIC) |
1 | ||
| 55123-36040 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70,80..5F..(GCC,GEN,TAIW) |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-36080B0 |
BZB60,HZB60,70,XZB60,70,80..RHD..(01S,17S,20S,26S,30S)..(5F,6FC) MD.GRAY,TRIM1# |
1 | ||
| 55311-36130B0 |
HZB70..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER),MD.GRAY,TRIM1# |
1 | ||
| 55305C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL | ||||
| 55305-36050 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-36050 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-36050 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-07117 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-36020 |
BB60,BZB60,70,HZB70,XZB60,70..RHD..5F..GEN |
1 | ||
| 55330-36021 |
HZB60,70,XZB70,80..RHD..5F..GEN |
1 | ||
| 55330-36012 |
HZB70,XZB70,80..RHD..(01S,29S,30S)..5F..(EX,STD) STEERING COLUMN-WITH(TILT & TELESCOPIC) |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-36010 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 55349E - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, LOWER | ||||
| 55349-36010 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-36020 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-36020 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-36010 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 55391A - PANEL, INSTRUMENT PANEL REINF, INNER NO.1 | ||||
| 55391-36020 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 55412A - CLIP, PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 90467-08186C3 |
XZB70..TAIW;XZB70..RHD..29S;HZB70..30S..STD;HZB70,TRB60,70,XZB80..(01S,20S,23S)..5F..WC STEERING COLUMN-WITH(TILT & TELESCOPIC),BLACK |
2 | ||
| 55429B - PROTECTOR, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55429-36010 |
XZB70..TAIW;XZB70..RHD..29S;HZB70..30S..STD;HZB70,TRB60,70,XZB80..(01S,20S,23S)..5F..WC STEERING COLUMN-WITH(TILT & TELESCOPIC) |
1 | ||
| 55771 - BRACKET, INSTRUMENT PANEL, UPPER | ||||
| 55771-36010 |
XZB70..LHD..29S;BZB60,HZB60,70,TRB60,70,XZB60,70,80..(01S,02S,17S,20S,23S,24S,25S,26S,30S)..(5F,6FC)..(GEN,TAIW) |
1 | ||
| 55959A - COVER, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55959-36040B0 |
HZB60,70,XZB70..RHD..(22S,26S,29S,30S)..GEN MD.GRAY,TRIM1# |
1 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55961-36040B0 |
HZB60,70,XZB70..RHD..(26S,29S,30S) FRONT HEATER-MANUAL 120W,MD.GRAY,TRIM1# |
1 | ||
| 55962A - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55962-36030B0 |
HZB60,70,XZB70..RHD..(26S,29S,30S) FRONT HEATER-MANUAL 120W,MD.GRAY,TRIM1# |
1 | ||
| 55969 - COVER, DEFROSTER NOZZLE OPENING, NO.2 | ||||
| 55969-36030B0 |
HZB60,70,XZB70..RHD..(22S,26S,29S,30S)..GEN MD.GRAY,TRIM1# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-36010B0 |
HZB70..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER),MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90119-06983 | ||||
| 90119-08D23 | ||||
| 90159-50322 | ||||
| 90179-06278 | ||||
| 90179-08241 | ||||
| 90183-05094 | ||||
| 90467-09241 | ||||
| 91553-80620 | ||||
| 91673-80816 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

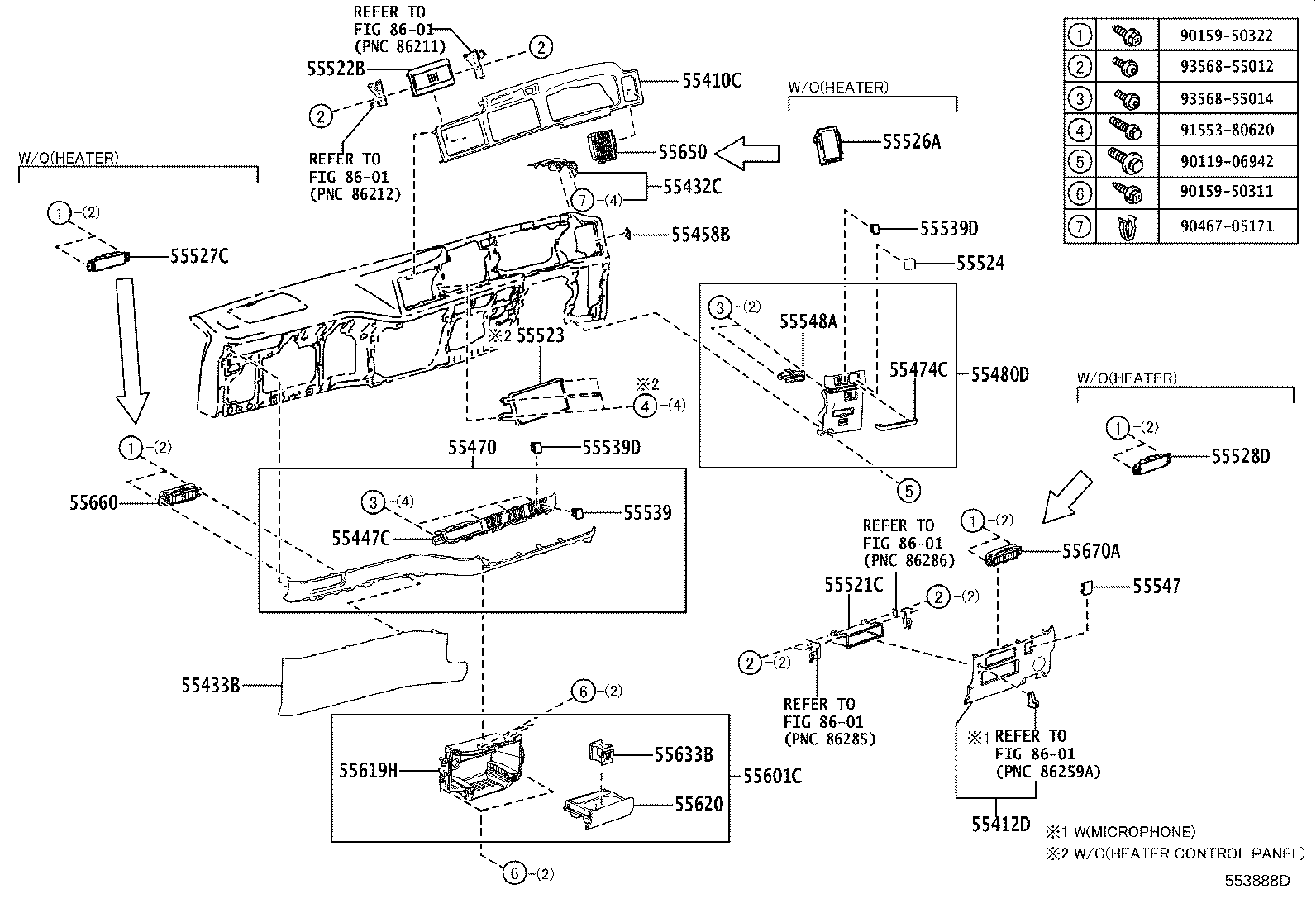

ILLUST NO. 2 OF 2(1701- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55411-36090 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-36070C0 |
HZB60,70,XZB70..RHD..(26S,29S,30S) MICROPHONE-WITH,BLACK,TRIM1# |
1 | ||
| 55412-36050C0 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70..RHD..(5F,6FC)..(DX,STD)..(GEN,SA) BLACK,TRIM1# |
1 | ||
| 55432C - DOOR, RESERVOIR TANK | ||||
| 55432-36050B0 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) MD.GRAY,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-36010C0 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) BLACK,TRIM1# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-36010C0 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) BLACK,TRIM1# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-36040B0 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) MD.GRAY,TRIM1# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-36010B1 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) MD.GRAY,TRIM1# |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-36010B0 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) MD.GRAY,TRIM1# |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-36010B0 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) MD.GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-44020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA) |
1 | ||
| 55521-44020 |
HZB60,70,TRB60,70;XZB70..(19S,23S,25S,29S,30S)..(GCC,GEN) MICROPHONE-WITH |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
HZB60,70,TRB60,70;XZB70..LHD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER |
1 | ||
| 55522-52020 |
XZB60..GEN;XZB70..6FC..ARL;XZB70..LHD..29S;BZB60,HZB60,70,TRB60,70,XZB70..(17S,19S,20S,22S,23S,24S,25S,26S,30S)..(5F,6FC)..(DX,STD)..(GCC,GEN) |
1 | ||
| 55522-52020 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA) |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-36020C0 |
BZB60,70,XZB60..GEN CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP),BLACK,TRIM1# |
1 | ||
| 55524-36020C0 |
BZB60,HZB60,70,TRB60,70,XZB60,70..(17S,20S,23S,24S,25S,26S,29S,30S)..(5F,6FC)..(DX,STD)..GEN CENTER DOOR-FOLDING(AUTO),BLACK,TRIM1# |
1 | ||
| 55524-36020C0 |
BZB60,HZB60,70,TRB60,70,XZB60,70..(17S,20S,23S,24S,25S,26S,29S,30S)..(5F,6FC)..(DX,STD)..(GEN,SA) BLACK,TRIM1# |
1 | ||
| 55526A - COVER, INSTRUMENT PANEL REGISTER OPENING, NO.1 | ||||
| 55526-36030 |
HZB60,70,XZB70..RHD..(22S,26S,29S,30S)..GEN |
1 | ||
| 55527C - COVER, INSTRUMENT PANEL REGISTER OPENING, NO.2 | ||||
| 55528-36030B0 |
HZB60,70,TRB60,70,XZB70..(22S,23S,24S,25S,26S,29S,30S)..GEN MD.GRAY,TRIM1# |
1 | ||
| 55528D - COVER, INSTRUMENT PANEL REGISTER OPENING, NO.3 | ||||
| 55528-36030C0 |
HZB60,70,TRB60,70,XZB70..(22S,23S,24S,25S,26S,29S,30S)..GEN BLACK,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-58130C0 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) BLACK |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-58130C0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) BLACK,TRIM1# |
1 | ||
| 55539-58130C0 |
XZB70..LHD..(23S,29S,30S)..GEN;HZB60,70,TRB60,70..(23S,24S,26S,30S)..GEN REAR WINDOW DEFOGGER-WITH,BLACK,TRIM1# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-58130C0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) BLACK,TRIM1# |
1 | ||
| 55539-58130C0 |
XZB70..LHD..(23S,29S,30S)..GEN;HZB60,70,TRB60,70..(23S,24S,26S,30S)..GEN REAR WINDOW DEFOGGER-WITH,BLACK,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-20020C0 |
XZB70..6FC..ARL;HZB60,70,XZB70..RHD..(22S,23S,26S,29S,30S)..(GEN,SA) BLACK,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-47020C0 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) BLACK,TRIM1# |
1 | ||
| 55601C - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-36010C0 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) BLACK,TRIM1# |
1 | ||
| 55619H - HOLDER, INSTRUMENT PANEL CUP, NO.2 | ||||
| 55630-36010 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-36010C0 |
XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) BLACK,TRIM1# |
1 | ||
| 55633B - SUPPORT, INSTRUMENT PANEL CUP HOLDER | ||||
| 55633-58030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-36040 |
HZB60,70,XZB70..RHD..(26S,29S,30S) FRONT HEATER-MANUAL 120W |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-36040B0 |
HZB60,70,TRB60,70,XZB70..(23S,24S,25S,26S,29S,30S)..GEN FRONT HEATER-MANUAL 120W,MD.GRAY,TRIM1# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55660-36040C0 |
HZB60,70,TRB60,70,XZB70..(23S,24S,25S,26S,29S,30S)..GEN FRONT HEATER-MANUAL 120W,BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 90159-50311 | ||||
| 90159-50322 | ||||
| 90467-05171 | ||||
| 91553-80620 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8601 | ||||
