HZB70R-ZGMSS (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

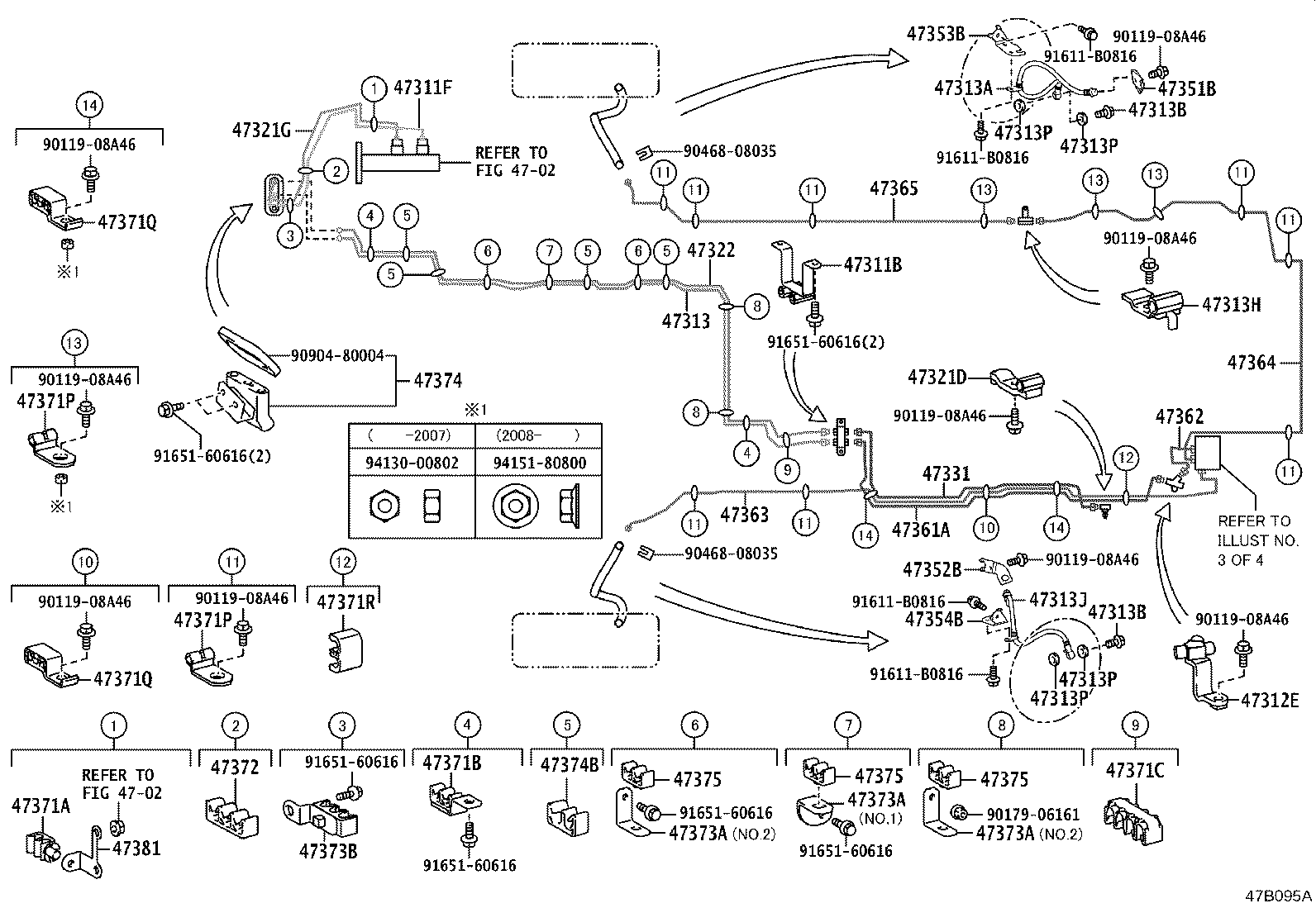

ILLUST NO. 1 OF 2(1701- )BB60,HZB60,70..RHD

Click highlighted areas on diagram

FR BRAKE TUBE(DISC BRAKE),W/O(ABS)

diagram 4702 4702 47311B 47311F 47312E 47313 47313A 47313B 47313B 47313H 47313J 47313P 47313P 47313P 47313P 47315 47321G 47322 47331 47351B 47352B 47353B 47354B 47362 47364 47365 47371A 47371B 47371C 47371P 47371P 47371Q 47371R 47371S 47372 47373A 47373A 47373A 47373B 47374 47374B 47375 47375 47375 47381 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9017906161 9046108639 9046808035 9046808035 9090480004 9094902124 91611B0816 91611B0816 91611B0816 91611B0816 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9413000802 9415180800
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90904-12083

XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN

 1
90412-12071

HZB70..GEN

ABS-WITH(ABS & VSC)

 1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-36552

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47311-36610

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47311-36542

HZB60,70..RHD

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-13517

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
90413-10317

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
90412-10311

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-36382

TRB70..GEN;BZB60,HZB60,70,TRB60..17S,19S,23S,25S,26S,30S

 1
47313-V4010

HZB70..GEN

ABS-WITH(ABS & VSC)

 1
47313-V4020

HZB60,70,TRB60,70..GEN

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H83

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
90947-02H77

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
90947-02H77

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 1
90947-02H77

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10023

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 2
90401-10023

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 2
90401-10023

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 2
90401-10015

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10023

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 2
90401-10023

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 2
90401-10023

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 2
90401-10015

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90412-10311

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02H77

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 1
90947-02H77

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 1
90947-02H77

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
90947-02H83

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
47315 - TUBE, FRONT BRAKE, NO.5
47315-36380

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
47315-36350

TRB60,70..GEN

ABS-WITH(ABS & VSC)

 1
47315-36390

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-36372

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47321-36430

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47321-36362

HZB60,70..RHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-36482

TRB70..GEN;BZB60,HZB60,70,TRB60..17S,19S,23S,25S,26S,30S

 1
47322-V4040

HZB60,70,TRB60,70..GEN

 1
47322-V4030

HZB70..GEN

ABS-WITH(ABS & VSC)

 1
47331 - TUBE, REAR BRAKE, NO.10
47331-36271

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47331-36300

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47331-V4030

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47331-V4020

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-36211

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 1
47351-36211

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
47351-36241

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47351-36211

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-36201

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 1
47352-36201

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
47352-36201

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 1
47352-36231

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-36260

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-36150

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
47362 - TUBE, FRONT BRAKE, NO.11
47362-36060

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47362-36070

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47364 - TUBE, FRONT BRAKE, NO.13
47364-36170

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47364-36150

BZB60,70

 1
47364-36160

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47364-V4020

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47364-V4010

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47365 - TUBE, FRONT BRAKE, NO.14
47365-36120

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47365-36140

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47365-36120

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47365-36120

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01D13

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
90464-00920

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 2
90949-04070

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-28020

XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN

 2
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01540

TRB70..GEN;XZB70..20S..5F;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 1
90949-01D13

HZB60,70,TRB60,70..GEN

 2
47371P - CLAMP, BRAKE TUBE, NO.14
90461-06112

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 11
90461-06112

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 5
90461-06112

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 4
90461-06112

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 6
47371P - CLAMP, BRAKE TUBE, NO.14
90461-06112

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 11
90461-06112

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 5
90461-06112

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 4
90461-06112

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 6
47371Q - CLAMP, BRAKE TUBE, NO.15
90949-01536

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 3
47371-36060

XZB70..LHD..29S;BZB60,HZB60,70,TRB60,70,XZB60,70,80..(01S,17S,20S,23S,24S,25S,26S,30S)..5F..GEN

 2
47371-36060

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47371R - CLAMP, BRAKE TUBE, NO.16
90480-01555

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
90949-01D59

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47371S - CLAMP, BRAKE TUBE, NO.17
90949-01536

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00903

HZB60,70..RHD

 1
47373A - BRACKET, TUBE CLAMP
47381-20320

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.1:REFER ILLUST.

 1
47381-36160

HZB60,70,TRB60,70..GEN

 2
47381-36160

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.2:REFER ILLUST.

 4
47373A - BRACKET, TUBE CLAMP
47381-20320

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.1:REFER ILLUST.

 1
47381-36160

HZB60,70,TRB60,70..GEN

 2
47381-36160

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.2:REFER ILLUST.

 4
47373A - BRACKET, TUBE CLAMP
47381-20320

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.1:REFER ILLUST.

 1
47381-36160

HZB60,70,TRB60,70..GEN

 2
47381-36160

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.2:REFER ILLUST.

 4
47373B - CLAMP, BRAKE TUBE, NO.3
90949-04068

BZB60,HZB60,70,XZB60..RHD

 1
90949-04066

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47374 - CONNECTOR, TUBE
47307-36110

XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN

 1
47307-36120

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00904

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
90464-00904

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 4
90949-04066

HZB70..GEN

ABS-WITH(ABS & VSC)

 2
47375 - CLAMP, BRAKE TUBE, NO.5
90480-01619

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 5
90480-01619

HZB60,70,TRB60,70..GEN

 2
90464-00920

HZB70..GEN

ABS-WITH(ABS & VSC)

 3
47375 - CLAMP, BRAKE TUBE, NO.5
90480-01619

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 5
90480-01619

HZB60,70,TRB60,70..GEN

 2
90464-00920

HZB70..GEN

ABS-WITH(ABS & VSC)

 3
47375 - CLAMP, BRAKE TUBE, NO.5
90480-01619

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 5
90480-01619

HZB60,70,TRB60,70..GEN

 2
90464-00920

HZB70..GEN

ABS-WITH(ABS & VSC)

 3
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36190

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47381-36120

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
Common parts
90119-08A46
90179-06161
90461-08639
90468-08035
90904-80004
90949-02124
91611-B0816
91651-60616
94130-00802
94151-80800
Linked diagrams
4702

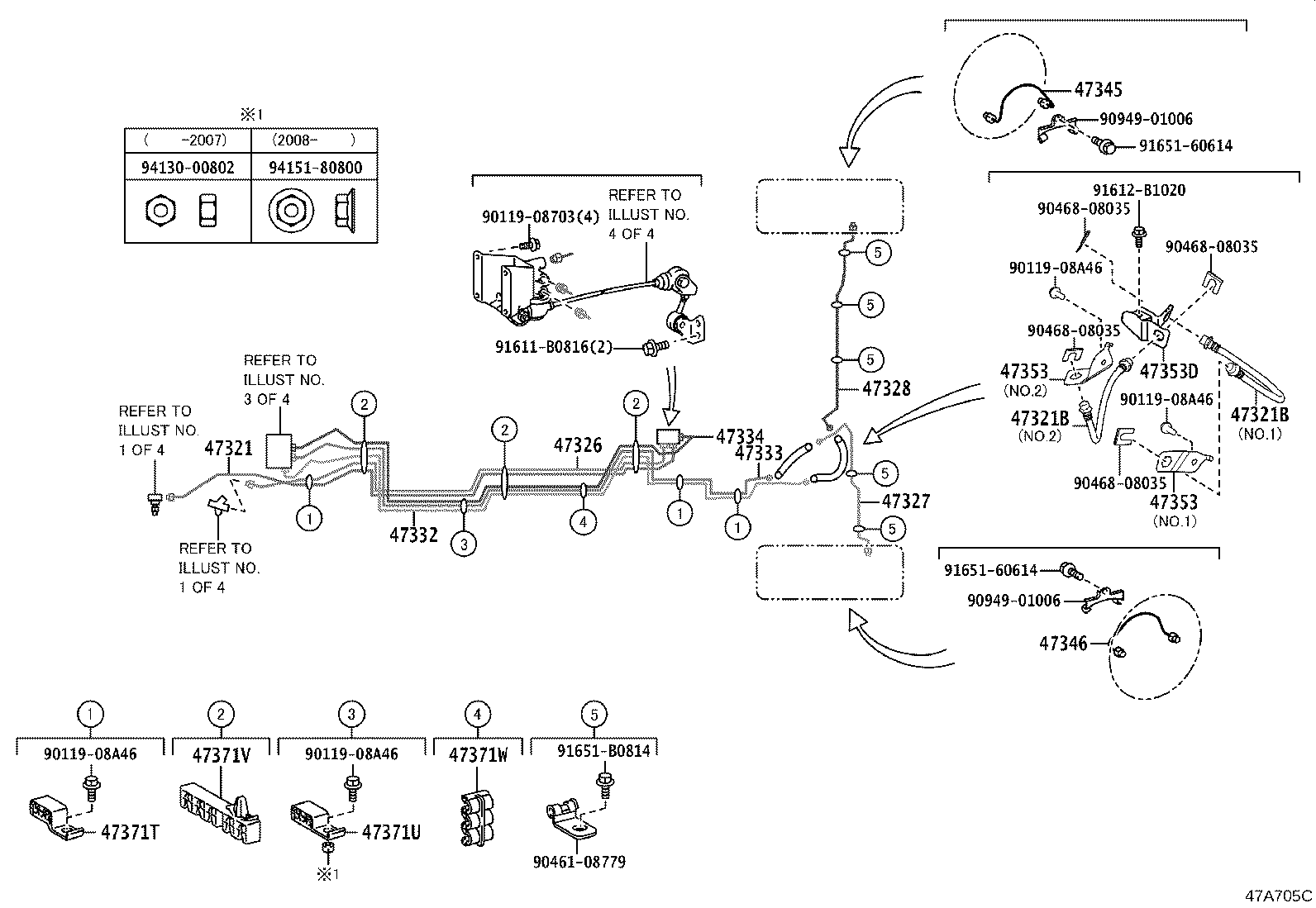

ILLUST NO. 1 OF 4(1701- )BZB60,70

Click highlighted areas on diagram

FRONT BRAKE TUBE

diagram 4702 4702 47311B 47311F 47312E 47313 47313A 47313B 47313B 47313J 47313P 47313P 47313P 47313P 47317 47321G 47322 47331 47351B 47352B 47353B 47354B 47361A 47362 47363 47364 47371A 47371B 47371C 47371P 47371P 47371Q 47371R 47372 47373A 47373A 47373A 47373B 47374 47374B 47375 47375 47375 47381 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9017906161 9046808035 9046808035 9090480004 91611B0816 91611B0816 91611B0816 91611B0816 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9413000802 9415180800
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90904-12083

XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN

 1
90412-12071

HZB70..GEN

ABS-WITH(ABS & VSC)

 1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-36552

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47311-36610

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47311-36542

HZB60,70..RHD

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-13517

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
90413-10317

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
90412-10311

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-36382

TRB70..GEN;BZB60,HZB60,70,TRB60..17S,19S,23S,25S,26S,30S

 1
47313-V4010

HZB70..GEN

ABS-WITH(ABS & VSC)

 1
47313-V4020

HZB60,70,TRB60,70..GEN

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H83

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
90947-02H77

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
90947-02H77

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 1
90947-02H77

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10023

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 2
90401-10023

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 2
90401-10023

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 2
90401-10015

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10023

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 2
90401-10023

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 2
90401-10023

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 2
90401-10015

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02H77

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 1
90947-02H77

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 1
90947-02H77

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
90947-02H83

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-36372

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47321-36430

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47321-36362

HZB60,70..RHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-36482

TRB70..GEN;BZB60,HZB60,70,TRB60..17S,19S,23S,25S,26S,30S

 1
47322-V4040

HZB60,70,TRB60,70..GEN

 1
47322-V4030

HZB70..GEN

ABS-WITH(ABS & VSC)

 1
47331 - TUBE, REAR BRAKE, NO.10
47331-36271

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47331-36300

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47331-V4030

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47331-V4020

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-36211

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 1
47351-36211

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
47351-36241

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47351-36211

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-36201

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 1
47352-36201

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
47352-36201

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 1
47352-36231

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-36260

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-36150

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
47361A - TUBE, FRONT BRAKE, NO.10
47361-36100

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47361-V4010

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47362 - TUBE, FRONT BRAKE, NO.11
47362-36060

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47362-36070

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47363 - TUBE, FRONT BRAKE, NO.12
47363-36130

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47363-V4010

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47364 - TUBE, FRONT BRAKE, NO.13
47364-36170

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47364-36150

BZB60,70

 1
47364-36160

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47364-V4020

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47364-V4010

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01D13

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
90464-00920

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 2
90949-04070

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-28020

XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN

 2
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01540

TRB70..GEN;XZB70..20S..5F;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 1
90949-01D13

HZB60,70,TRB60,70..GEN

 2
47371P - CLAMP, BRAKE TUBE, NO.14
90461-06112

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 11
90461-06112

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 5
90461-06112

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 4
90461-06112

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 6
47371P - CLAMP, BRAKE TUBE, NO.14
90461-06112

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 11
90461-06112

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 5
90461-06112

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 4
90461-06112

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 6
47371Q - CLAMP, BRAKE TUBE, NO.15
90949-01536

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 3
47371-36060

XZB70..LHD..29S;BZB60,HZB60,70,TRB60,70,XZB60,70,80..(01S,17S,20S,23S,24S,25S,26S,30S)..5F..GEN

 2
47371-36060

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47371R - CLAMP, BRAKE TUBE, NO.16
90480-01555

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
90949-01D59

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00903

HZB60,70..RHD

 1
47373A - BRACKET, TUBE CLAMP
47381-20320

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.1:REFER ILLUST.

 1
47381-36160

HZB60,70,TRB60,70..GEN

 2
47381-36160

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.2:REFER ILLUST.

 4
47373A - BRACKET, TUBE CLAMP
47381-20320

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.1:REFER ILLUST.

 1
47381-36160

HZB60,70,TRB60,70..GEN

 2
47381-36160

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.2:REFER ILLUST.

 4
47373A - BRACKET, TUBE CLAMP
47381-20320

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.1:REFER ILLUST.

 1
47381-36160

HZB60,70,TRB60,70..GEN

 2
47381-36160

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.2:REFER ILLUST.

 4
47373B - CLAMP, BRAKE TUBE, NO.3
90949-04068

BZB60,HZB60,70,XZB60..RHD

 1
90949-04066

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47374 - CONNECTOR, TUBE
47307-36110

XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN

 1
47307-36120

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00904

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
90464-00904

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 4
90949-04066

HZB70..GEN

ABS-WITH(ABS & VSC)

 2
47375 - CLAMP, BRAKE TUBE, NO.5
90480-01619

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 5
90480-01619

HZB60,70,TRB60,70..GEN

 2
90464-00920

HZB70..GEN

ABS-WITH(ABS & VSC)

 3
47375 - CLAMP, BRAKE TUBE, NO.5
90480-01619

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 5
90480-01619

HZB60,70,TRB60,70..GEN

 2
90464-00920

HZB70..GEN

ABS-WITH(ABS & VSC)

 3
47375 - CLAMP, BRAKE TUBE, NO.5
90480-01619

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 5
90480-01619

HZB60,70,TRB60,70..GEN

 2
90464-00920

HZB70..GEN

ABS-WITH(ABS & VSC)

 3
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36190

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47381-36120

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
Common parts
90119-08A46
90179-06161
90468-08035
90904-80004
91611-B0816
91651-60616
94130-00802
94151-80800
Linked diagrams
4702

ILLUST NO. 1 OF 2(1701- )BB60,HZB60,70..RHD

Click highlighted areas on diagram

FR BRAKE TUBE(DRUM BRAKE),W/O(ABS)

diagram 4702 4702 47311B 47311F 47312E 47313 47313A 47313B 47313B 47313H 47313J 47313P 47313P 47313P 47313P 47315 47321G 47322 47331 47342 47344 47351B 47352B 47353B 47354B 47355A 47356 47362 47364 47365 47371A 47371B 47371C 47371P 47371Q 47371R 47371S 47372 47373A 47373A 47373A 47373B 47374 47374B 47375 47375 47375 47381 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9017906161 9046108639 9046206017 9046206017 9046206017 9046206017 9046808035 9046808035 9090480004 9094902124 91611B0816 91611B0816 91611B0816 91611B0816 9165160614 9165160614 9165160614 9165160614 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9413000802 9415180800
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90904-12083

XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN

 1
90412-12071

HZB70..GEN

ABS-WITH(ABS & VSC)

 1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-36552

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47311-36610

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47311-36542

HZB60,70..RHD

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-13517

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
90413-10317

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
90412-10311

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-36382

TRB70..GEN;BZB60,HZB60,70,TRB60..17S,19S,23S,25S,26S,30S

 1
47313-V4010

HZB70..GEN

ABS-WITH(ABS & VSC)

 1
47313-V4020

HZB60,70,TRB60,70..GEN

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H83

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
90947-02H77

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
90947-02H77

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 1
90947-02H77

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10023

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 2
90401-10023

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 2
90401-10023

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 2
90401-10015

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10023

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 2
90401-10023

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 2
90401-10023

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 2
90401-10015

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90412-10311

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02H77

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 1
90947-02H77

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 1
90947-02H77

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
90947-02H83

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
47315 - TUBE, FRONT BRAKE, NO.5
47315-36380

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
47315-36350

TRB60,70..GEN

ABS-WITH(ABS & VSC)

 1
47315-36390

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-36372

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47321-36430

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47321-36362

HZB60,70..RHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-36482

TRB70..GEN;BZB60,HZB60,70,TRB60..17S,19S,23S,25S,26S,30S

 1
47322-V4040

HZB60,70,TRB60,70..GEN

 1
47322-V4030

HZB70..GEN

ABS-WITH(ABS & VSC)

 1
47331 - TUBE, REAR BRAKE, NO.10
47331-36271

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47331-36300

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47331-V4030

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47331-V4020

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-36091

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47342-36091

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-36211

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 1
47351-36211

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
47351-36241

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47351-36211

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-36201

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 1
47352-36201

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
47352-36201

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 1
47352-36231

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-36260

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-36150

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47351-36250

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47356 - BRACKET, FLEXIBLE HOSE, NO.6
47352-36240

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47362 - TUBE, FRONT BRAKE, NO.11
47362-36060

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47362-36070

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47364 - TUBE, FRONT BRAKE, NO.13
47364-36170

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47364-36150

BZB60,70

 1
47364-36160

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47364-V4020

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47364-V4010

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47365 - TUBE, FRONT BRAKE, NO.14
47365-36120

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47365-36140

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47365-36120

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47365-36120

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01D13

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
90464-00920

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 2
90949-04070

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-28020

XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN

 2
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01540

TRB70..GEN;XZB70..20S..5F;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 1
90949-01D13

HZB60,70,TRB60,70..GEN

 2
47371P - CLAMP, BRAKE TUBE, NO.14
90461-06112

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 11
90461-06112

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 5
90461-06112

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 4
90461-06112

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 6
47371Q - CLAMP, BRAKE TUBE, NO.15
90949-01536

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 3
47371-36060

XZB70..LHD..29S;BZB60,HZB60,70,TRB60,70,XZB60,70,80..(01S,17S,20S,23S,24S,25S,26S,30S)..5F..GEN

 2
47371-36060

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47371R - CLAMP, BRAKE TUBE, NO.16
90480-01555

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
90949-01D59

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47371S - CLAMP, BRAKE TUBE, NO.17
90949-01536

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00903

HZB60,70..RHD

 1
47373A - BRACKET, TUBE CLAMP
47381-20320

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.1:REFER ILLUST.

 1
47381-36160

HZB60,70,TRB60,70..GEN

 2
47381-36160

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.2:REFER ILLUST.

 4
47373A - BRACKET, TUBE CLAMP
47381-20320

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.1:REFER ILLUST.

 1
47381-36160

HZB60,70,TRB60,70..GEN

 2
47381-36160

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.2:REFER ILLUST.

 4
47373A - BRACKET, TUBE CLAMP
47381-20320

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.1:REFER ILLUST.

 1
47381-36160

HZB60,70,TRB60,70..GEN

 2
47381-36160

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.2:REFER ILLUST.

 4
47373B - CLAMP, BRAKE TUBE, NO.3
90949-04068

BZB60,HZB60,70,XZB60..RHD

 1
90949-04066

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47374 - CONNECTOR, TUBE
47307-36110

XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN

 1
47307-36120

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00904

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
90464-00904

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 4
90949-04066

HZB70..GEN

ABS-WITH(ABS & VSC)

 2
47375 - CLAMP, BRAKE TUBE, NO.5
90480-01619

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 5
90480-01619

HZB60,70,TRB60,70..GEN

 2
90464-00920

HZB70..GEN

ABS-WITH(ABS & VSC)

 3
47375 - CLAMP, BRAKE TUBE, NO.5
90480-01619

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 5
90480-01619

HZB60,70,TRB60,70..GEN

 2
90464-00920

HZB70..GEN

ABS-WITH(ABS & VSC)

 3
47375 - CLAMP, BRAKE TUBE, NO.5
90480-01619

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 5
90480-01619

HZB60,70,TRB60,70..GEN

 2
90464-00920

HZB70..GEN

ABS-WITH(ABS & VSC)

 3
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36190

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47381-36120

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
Common parts
90119-08A46
90179-06161
90461-08639
90462-06017
90468-08035
90904-80004
90949-02124
91611-B0816
91651-60614
91651-60616
94130-00802
94151-80800
Linked diagrams
4702

ILLUST NO. 3 OF 4(1701- )

Click highlighted areas on diagram

BRAKE ACTUATOR, W(VSC)

diagram 44510 44521A 44521A 44521A 44547B 44547B 44547B 44590 44591 9011906844 9011906844 9011906844 91673A0820 91673A0820 91673A0820
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44510-36050

HZB70..GEN

ABS-WITH

 1
44050-36200

HZB70..30S..WOC;HZB70..(23S,30S)..WC..GEN

ABS-WITH(ABS & VSC)&SRS AIR BAG-WITH(DRIVER ONLY)

 1
44050-36200

HZB70..30S..WOC;HZB70..(23S,30S)..WC..GEN

ABS-WITH(ABS & VSC)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

HZB70..30S..WOC;HZB70,TRB70..(23S,30S)..WC..GEN

ABS-WITH(ABS & VSC)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 3
44521-12050

HZB70..30S..WOC;HZB70,TRB70..(23S,30S)..WC..GEN

ABS-WITH(ABS & VSC)&SRS AIR BAG-WITH(DRIVER ONLY)

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

HZB70..30S..WOC;HZB70,TRB70..(23S,30S)..WC..GEN

ABS-WITH(ABS & VSC)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 3
44521-12050

HZB70..30S..WOC;HZB70,TRB70..(23S,30S)..WC..GEN

ABS-WITH(ABS & VSC)&SRS AIR BAG-WITH(DRIVER ONLY)

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

HZB70..30S..WOC;HZB70,TRB70..(23S,30S)..WC..GEN

ABS-WITH(ABS & VSC)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 3
44521-12050

HZB70..30S..WOC;HZB70,TRB70..(23S,30S)..WC..GEN

ABS-WITH(ABS & VSC)&SRS AIR BAG-WITH(DRIVER ONLY)

 3
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-60100

HZB70..30S..WOC;HZB70,TRB70..(23S,30S)..WC..GEN

ABS-WITH(ABS & VSC)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 3
44547-60100

HZB70..30S..WOC;HZB70,TRB70..(23S,30S)..WC..GEN

ABS-WITH(ABS & VSC)&SRS AIR BAG-WITH(DRIVER ONLY)

 3
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-60100

HZB70..30S..WOC;HZB70,TRB70..(23S,30S)..WC..GEN

ABS-WITH(ABS & VSC)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 3
44547-60100

HZB70..30S..WOC;HZB70,TRB70..(23S,30S)..WC..GEN

ABS-WITH(ABS & VSC)&SRS AIR BAG-WITH(DRIVER ONLY)

 3
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-60100

HZB70..30S..WOC;HZB70,TRB70..(23S,30S)..WC..GEN

ABS-WITH(ABS & VSC)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 3
44547-60100

HZB70..30S..WOC;HZB70,TRB70..(23S,30S)..WC..GEN

ABS-WITH(ABS & VSC)&SRS AIR BAG-WITH(DRIVER ONLY)

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-36030

HZB70..GEN

ABS-WITH

 1
44590-36060

HZB70..30S..WOC;HZB70..(23S,30S)..WC..GEN

ABS-WITH(ABS & VSC)&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 1
44590-36060

HZB70..30S..WOC;HZB70..(23S,30S)..WC..GEN

ABS-WITH(ABS & VSC)&SRS AIR BAG-WITH(DRIVER ONLY)

 1
Common parts
90119-06844
91673-A0820

ILLUST NO. 2 OF 4(1701- )HZB70 ; (1701- )4FC,5F..ARL

Click highlighted areas on diagram

REAR BRAKE TUBE, W(ABS)

diagram 47321 47321B 47321B 47326 47327 47328 47332 47333 47334 47345 47346 47353 47353 47353D 47371T 47371U 47371V 47371W 9011908703 9011908A46 9011908A46 9011908A46 9011908A46 9046108779 9046808035 9046808035 9046808035 9046808035 9094901006 9094901006 91611B0816 91612B1020 9165160614 9165160614 91651B0814 9413000802 9415180800
Part # Description Qty Price
47321 - TUBE, REAR BRAKE, NO.1
47325-36770

HZB70..GEN

ABS-WITH

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02G82

HZB70..GEN

ABS-WITH,NO.2:REFER ILLUST.

 1
90947-02H78

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC)

NO.1:REFER ILLUST.

 1
90947-02H78

HZB70..GEN

ABS-WITH,NO.1:REFER ILLUST.

 1
90947-02G82

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
90947-02G82

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC)

NO.2:REFER ILLUST.

 1
90947-02G82

HZB70..GEN

ABS-WITH(ABS & VSC),NO.2:REFER ILLUST.

 1
90947-02H78

HZB70..GEN

ABS-WITH(ABS & VSC),NO.1:REFER ILLUST.

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02G82

HZB70..GEN

ABS-WITH,NO.2:REFER ILLUST.

 1
90947-02H78

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC)

NO.1:REFER ILLUST.

 1
90947-02H78

HZB70..GEN

ABS-WITH,NO.1:REFER ILLUST.

 1
90947-02G82

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
90947-02G82

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC)

NO.2:REFER ILLUST.

 1
90947-02G82

HZB70..GEN

ABS-WITH(ABS & VSC),NO.2:REFER ILLUST.

 1
90947-02H78

HZB70..GEN

ABS-WITH(ABS & VSC),NO.1:REFER ILLUST.

 1
47326 - TUBE, REAR BRAKE, NO.6
47318-36450

HZB70..GEN

ABS-WITH

 1
47325-36790

XZB70..LHD..GEN;HZB70,TRB70..GEN

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-36251

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47327-36340

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47327-36340

HZB70..GEN

ABS-WITH

 1
47327-36340

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC)

 1
47327-36340

HZB70..GEN

ABS-WITH(ABS & VSC)

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-36380

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47328-36301

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47328-36380

HZB70..GEN

ABS-WITH

 1
47328-36380

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC)

 1
47328-36380

HZB70..GEN

ABS-WITH(ABS & VSC)

 1
47332 - TUBE, REAR BRAKE, NO.11
47332-36290

HZB70..GEN

ABS-WITH

 1
47332-V4010

HZB70..GEN

ABS-WITH(ABS & VSC)

 1
47333 - TUBE, REAR BRAKE, NO.12
47333-36170

HZB70..GEN

ABS-WITH

 1
47334 - TUBE, REAR BRAKE, NO.13
47334-36190

HZB70..GEN

ABS-WITH

 1
47334-V4010

HZB70..GEN

ABS-WITH(ABS & VSC)

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36051

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36051

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47355-36040

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47355-36040

HZB70..GEN

ABS-WITH,NO.2:REFER ILLUST.

 1
47353-36230

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC)

NO.1:REFER ILLUST.

 1
47353-36230

HZB70..GEN

ABS-WITH,NO.1:REFER ILLUST.

 1
47355-36040

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC)

NO.2:REFER ILLUST.

 1
47355-36040

HZB70..GEN

ABS-WITH(ABS & VSC),NO.2:REFER ILLUST.

 1
47353-36230

HZB70..GEN

ABS-WITH(ABS & VSC),NO.1:REFER ILLUST.

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47355-36040

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47355-36040

HZB70..GEN

ABS-WITH,NO.2:REFER ILLUST.

 1
47353-36230

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC)

NO.1:REFER ILLUST.

 1
47353-36230

HZB70..GEN

ABS-WITH,NO.1:REFER ILLUST.

 1
47355-36040

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC)

NO.2:REFER ILLUST.

 1
47355-36040

HZB70..GEN

ABS-WITH(ABS & VSC),NO.2:REFER ILLUST.

 1
47353-36230

HZB70..GEN

ABS-WITH(ABS & VSC),NO.1:REFER ILLUST.

 1
47353D - BRACKET, FLEXIBLE HOSE, NO.7
47354-36120

HZB70..GEN

ABS-WITH(ABS & VSC)

 1
47354-36120

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47354-36120

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC)

 1
47354-36120

HZB70..GEN

ABS-WITH

 1
47371T - CLAMP, BRAKE TUBE, NO.18
90949-01536

HZB70..GEN

ABS-WITH

 3
90461-08639

XZB70..LHD..GEN;HZB70,TRB70..GEN

 2
47371U - CLAMP, BRAKE TUBE, NO.19
90949-01249

HZB70..GEN

ABS-WITH

 1
90949-01945

XZB70..LHD..GEN;HZB70,TRB70..GEN

 3
47371V - CLAMP, BRAKE TUBE, NO.20
90949-01B98

HZB70..GEN

ABS-WITH

 3
90461-06112

XZB70..LHD..GEN;HZB70,TRB70..GEN

 3
47371W - CLAMP, BRAKE TUBE, NO.21
90464-00778

HZB70..GEN

ABS-WITH

 1
Common parts
90119-08703
90119-08A46
90461-08779
90468-08035
90949-01006
91611-B0816
91612-B1020
91651-60614
91651-B0814
94130-00802
94151-80800

ILLUST NO. 1 OF 4(1701- )HZB70..RHD

Click highlighted areas on diagram

FRONT BRAKE TUBE, W(ABS)

diagram 4702 4702 47311B 47311F 47312E 47313 47313A 47313B 47313B 47313H 47313J 47313P 47313P 47313P 47313P 47321D 47321G 47322 47331 47351B 47352B 47353B 47354B 47361A 47362 47363 47364 47365 47371A 47371B 47371C 47371P 47371P 47371Q 47371Q 47371R 47372 47373A 47373A 47373A 47373B 47374 47374B 47375 47375 47375 47381 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9017906161 9046808035 9046808035 9090480004 91611B0816 91611B0816 91611B0816 91611B0816 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9413000802 9415180800
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90904-12083

XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN

 1
90412-12071

HZB70..GEN

ABS-WITH(ABS & VSC)

 1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-36552

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47311-36610

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47311-36542

HZB60,70..RHD

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-13517

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
90413-10317

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
90412-10311

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-36382

TRB70..GEN;BZB60,HZB60,70,TRB60..17S,19S,23S,25S,26S,30S

 1
47313-V4010

HZB70..GEN

ABS-WITH(ABS & VSC)

 1
47313-V4020

HZB60,70,TRB60,70..GEN

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H83

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
90947-02H77

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
90947-02H77

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 1
90947-02H77

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10023

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 2
90401-10023

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 2
90401-10023

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 2
90401-10015

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10023

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 2
90401-10023

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 2
90401-10023

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 2
90401-10015

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90412-10311

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02H77

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 1
90947-02H77

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 1
90947-02H77

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
90947-02H83

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10233

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-36372

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47321-36430

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47321-36362

HZB60,70..RHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-36482

TRB70..GEN;BZB60,HZB60,70,TRB60..17S,19S,23S,25S,26S,30S

 1
47322-V4040

HZB60,70,TRB60,70..GEN

 1
47322-V4030

HZB70..GEN

ABS-WITH(ABS & VSC)

 1
47331 - TUBE, REAR BRAKE, NO.10
47331-36271

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47331-36300

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47331-V4030

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47331-V4020

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-36211

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 1
47351-36211

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
47351-36241

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47351-36211

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-36201

XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC)

 1
47352-36201

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
47352-36201

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

 1
47352-36231

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-36260

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-36150

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
47361A - TUBE, FRONT BRAKE, NO.10
47361-36100

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47361-V4010

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47362 - TUBE, FRONT BRAKE, NO.11
47362-36060

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47362-36070

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47363 - TUBE, FRONT BRAKE, NO.12
47363-36130

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47363-V4010

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47364 - TUBE, FRONT BRAKE, NO.13
47364-36170

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47364-36150

BZB60,70

 1
47364-36160

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47364-V4020

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47364-V4010

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47365 - TUBE, FRONT BRAKE, NO.14
47365-36120

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47365-36140

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 1
47365-36120

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47365-36120

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01D13

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
90464-00920

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 2
90949-04070

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-28020

XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN

 2
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01540

TRB70..GEN;XZB70..20S..5F;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 1
90949-01D13

HZB60,70,TRB60,70..GEN

 2
47371P - CLAMP, BRAKE TUBE, NO.14
90461-06112

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 11
90461-06112

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 5
90461-06112

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 4
90461-06112

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 6
47371P - CLAMP, BRAKE TUBE, NO.14
90461-06112

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 11
90461-06112

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

 5
90461-06112

XZB70..LHD..GEN;HZB70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 4
90461-06112

XZB70..LHD..GEN;HZB60,70,TRB60..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

 6
47371Q - CLAMP, BRAKE TUBE, NO.15
90949-01536

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 3
47371-36060

XZB70..LHD..29S;BZB60,HZB60,70,TRB60,70,XZB60,70,80..(01S,17S,20S,23S,24S,25S,26S,30S)..5F..GEN

 2
47371-36060

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47371Q - CLAMP, BRAKE TUBE, NO.15
90949-01536

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 3
47371-36060

XZB70..LHD..29S;BZB60,HZB60,70,TRB60,70,XZB60,70,80..(01S,17S,20S,23S,24S,25S,26S,30S)..5F..GEN

 2
47371-36060

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47371R - CLAMP, BRAKE TUBE, NO.16
90480-01555

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
90949-01D59

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00903

HZB60,70..RHD

 1
47373A - BRACKET, TUBE CLAMP
47381-20320

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.1:REFER ILLUST.

 1
47381-36160

HZB60,70,TRB60,70..GEN

 2
47381-36160

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.2:REFER ILLUST.

 4
47373A - BRACKET, TUBE CLAMP
47381-20320

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.1:REFER ILLUST.

 1
47381-36160

HZB60,70,TRB60,70..GEN

 2
47381-36160

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.2:REFER ILLUST.

 4
47373A - BRACKET, TUBE CLAMP
47381-20320

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.1:REFER ILLUST.

 1
47381-36160

HZB60,70,TRB60,70..GEN

 2
47381-36160

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

NO.2:REFER ILLUST.

 4
47373B - CLAMP, BRAKE TUBE, NO.3
90949-04068

BZB60,HZB60,70,XZB60..RHD

 1
90949-04066

HZB70..RHD

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47374 - CONNECTOR, TUBE
47307-36110

XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN

 1
47307-36120

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00904

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
90464-00904

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 4
90949-04066

HZB70..GEN

ABS-WITH(ABS & VSC)

 2
47375 - CLAMP, BRAKE TUBE, NO.5
90480-01619

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 5
90480-01619

HZB60,70,TRB60,70..GEN

 2
90464-00920

HZB70..GEN

ABS-WITH(ABS & VSC)

 3
47375 - CLAMP, BRAKE TUBE, NO.5
90480-01619

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 5
90480-01619

HZB60,70,TRB60,70..GEN

 2
90464-00920

HZB70..GEN

ABS-WITH(ABS & VSC)

 3
47375 - CLAMP, BRAKE TUBE, NO.5
90480-01619

XZB70..LHD..29S;TRB70,XZB70..(20S,23S,24S,25S,30S)..5F..GEN;BZB60,HZB60,70,TRB60,XZB60,80..(01S,17S,19S,23S,25S,26S,30S)..5F

 5
90480-01619

HZB60,70,TRB60,70..GEN

 2
90464-00920

HZB70..GEN

ABS-WITH(ABS & VSC)

 3
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36190

HZB70..GEN

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

 1
47381-36120

XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN

 1
Common parts
90119-08A46
90179-06161
90468-08035
90904-80004
91611-B0816
91651-60616
94130-00802
94151-80800
Linked diagrams
4702
