Toyota Coaster HZB70 FRONT STEERING GEAR & LINK

Manufacturers Home
Toyota
GR
COASTER
HZB70R-ZGMSS (2017)
4505 - FRONT STEERING GEAR & LINK

HZB70R-ZGMSS (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1701- )

Click highlighted areas on diagram

STEERING GEAR(1/2)

Part #	Description	Period	Qty
04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)
04445-37040	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
44251A - NUT, CASTLE(FOR PITMAN ARM)
90170-30001	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
44251D - WASHER(FOR PITMAN ARM)
90204-30040	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45312 - BRACKET, STEERING GEAR HOUSING
45312-36240	XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)	01/2017 - 12/2999	1
45411 - ARM, PITMAN
45411-36610	XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)	01/2017 - 12/2999	1
Common parts
90101-14042
90106-12005
90170-12018
90170-14026
90901-01003
90901-01004
94622-11600
94622-51400

ILLUST NO. 2 OF 3(1701- )

Click highlighted areas on diagram

STEERING GEAR(2/2)

Part #	Description	Period	Qty
44011 - PISTON SUB-ASSY, POWER
44011-36370	XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)	01/2017 - 12/2999	1
44015 - SHAFT SUB-ASSY, SECTOR
44015-36350	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
44107 - HOUSING SUB-ASSY, POWER STEERING GEAR
44107-36350	XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)	01/2017 - 12/2999	1
44108C - COVER SUB-ASSY, SECTOR
44108-37160	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
44110 - GEAR ASSY, POWER STEERING
44110-36370	XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)	01/2017 - 12/2999	1
44142 - NUT, LOCK
94130-61400	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45357 - SCREW, SECTOR SHAFT ADJUSTING
90029-02302	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
Common parts
90029-01001
90029-34002

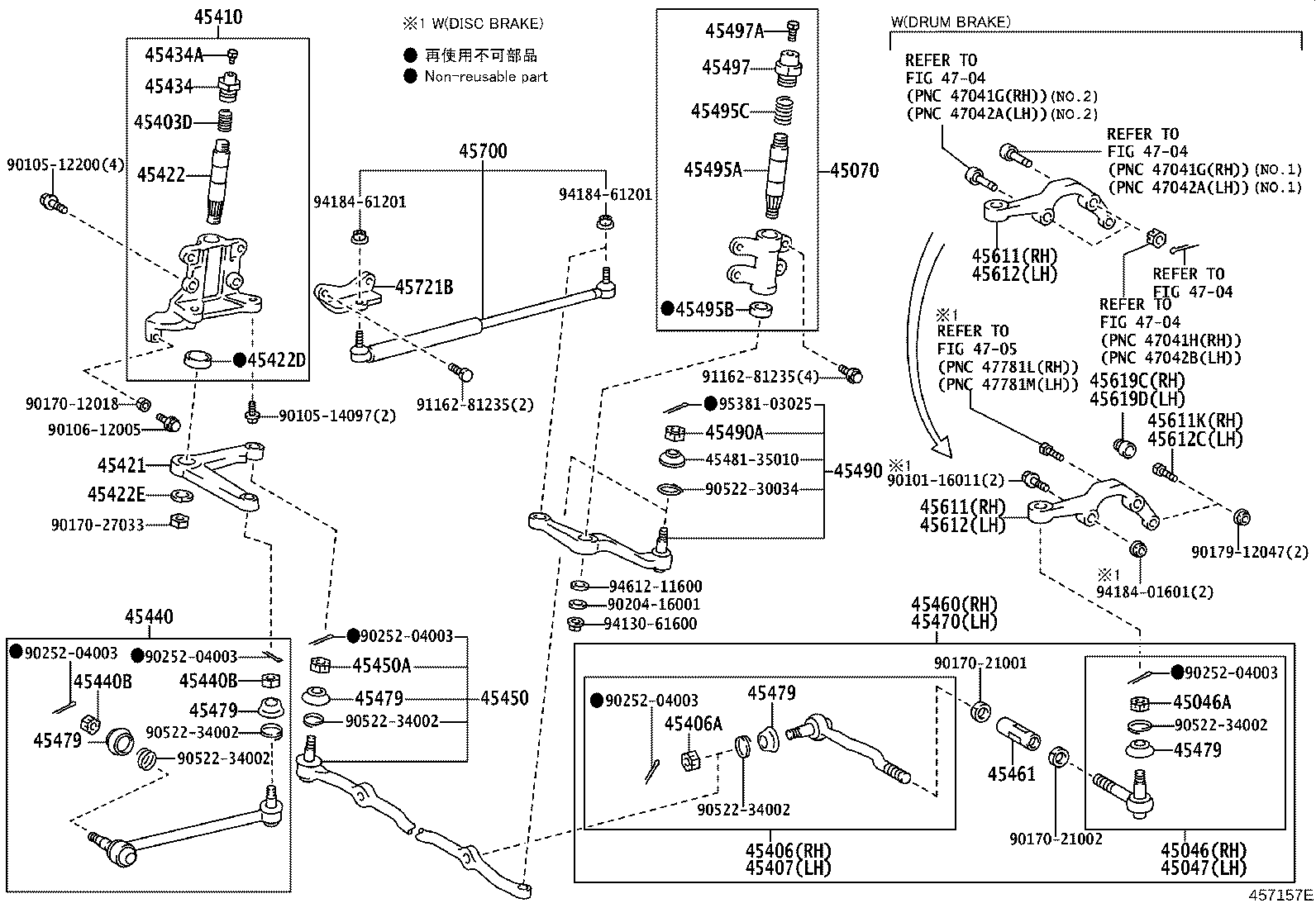

ILLUST NO. 3 OF 3(1701- )RHD

Click highlighted areas on diagram

STEERING LINK

Part #	Description	Period	Qty
45046 - END SUB-ASSY, TIE ROD, RH
45046-39275	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-18003	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	2
45047 - END SUB-ASSY, TIE ROD, LH
45046-39275	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45070 - BRACKET ASSY, IDLER ARM
45070-36030	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45403D - SPRING, COMPRESSION(FOR CENTER ARM SHAFT SET)
90501-32033	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45406 - ROD SUB-ASSY, TIE, RH
45047-39165	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45406A - NUT, CASTLE(FOR TIE ROD)
90171-18003	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	2
45407 - ROD SUB-ASSY, TIE, LH
45047-39165	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45410 - BRACKET ASSY, CENTER ARM
45410-36031	XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)	01/2017 - 12/2999	1
45421 - ARM, STEERING CENTER
45421-36020	XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)	01/2017 - 12/2999	1
45422 - SHAFT, CENTER ARM
45422-36010	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45422D - SEAL(FOR CENTER ARM SHAFT)
90311-36003	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45422E - WASHER(FOR CENTER ARM SHAFT)
90204-27020	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45434 - CAP, CENTER ARM BRACKET
45434-36011	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45434A - PLUG(FOR CENTER ARM BRACKET CAP)
90345-06014	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45440 - LINK ASSY, STEERING DRAG
45440-39105	XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)	01/2017 - 12/2999	1
45440B - NUT, CASTLE(FOR STEERING DRAG LINK)
90171-18003	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	2
45440B - NUT, CASTLE(FOR STEERING DRAG LINK)
90171-18003	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	2
45450 - ROD ASSY, STEERING RELAY
45450-39215	XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)	01/2017 - 12/2999	1
45450A - NUT, CASTLE(FOR RELAY ROD)
90171-18003	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45460 - ROD ASSY, TIE, RH
45460-80007	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45461 - ROD, STEERING TIE
45461-36120	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	2
45470 - ROD ASSY, TIE, LH
45470-39355	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45479 - SEAL, STEERING LINK JOINT DUST
45479-36030	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	5
45479 - SEAL, STEERING LINK JOINT DUST
45479-36030	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	5
45479 - SEAL, STEERING LINK JOINT DUST
45479-36030	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	5
45479 - SEAL, STEERING LINK JOINT DUST
45479-36030	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	5
45479 - SEAL, STEERING LINK JOINT DUST
45479-36030	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	5
45490 - ARM ASSY, STEERING IDLER
45490-39425	XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA)	01/2017 - 12/2999	1
45490A - NUT, CASTLE(FOR IDLER ARM)
90171-14006	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45495A - SHAFT, IDLER ARM
45495-36010	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45495B - SEAL(FOR IDLER ARM SHAFT)
90311-25009	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45495C - SPRING, COMPRESSION(FOR IDLER ARM SHAFT)
90501-32033	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45497 - CAP, IDLER ARM BRACKET
45497-36020	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45497A - PLUG(FOR IDLER ARM BRACKET CAP)
90345-06014	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45611 - ARM, STEERING KNUCKLE, RH
45611-36242	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45611 - ARM, STEERING KNUCKLE, RH
45611-36242	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45611K - BOLT(FOR STEERING KNUCKLE STOPPER RH)
90106-12015	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45612 - ARM, STEERING KNUCKLE, LH
45612-36152	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45612 - ARM, STEERING KNUCKLE, LH
45612-36152	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45612C - BOLT(FOR STEERING KNUCKLE STOPPER LH)
90106-12015	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45619C - COVER, STEERING KNUCKLE STOPPER, RH
45619-26020	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45619D - COVER, STEERING KNUCKLE STOPPER, LH
45619-26020	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45700 - DAMPER ASSY, STEERING
45700-69135	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
45721B - BRACKET, STEERING DAMPER, NO.3
45721-36020	XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
Common parts
45481-35010
90101-16011
90105-12200
90105-14097
90106-12005
90170-12018
90170-21001
90170-21002
90170-27033
90179-12047
90204-16001
90252-04003
90522-30034
90522-34002
91162-81235
94130-61600
94184-01601
94184-61201
94612-11600
95381-03025
