HZB70R-ZGMSS (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )1HZ

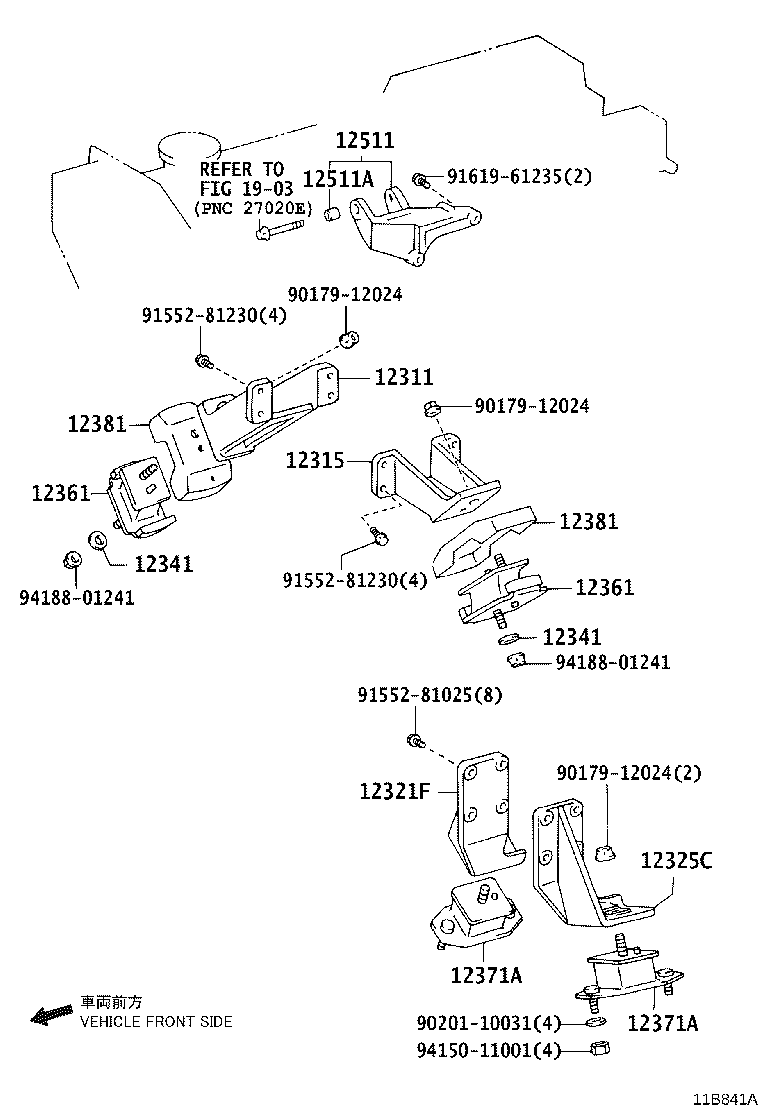

Click highlighted areas on diagram

diagram 12311 12315 12321F 12325C 12341 12341 12361 12361 12371A 12371A 12381 12381 12511 12511A 1903 9017912024 9017912024 9017912024 9020110031 9155281025 9155281230 9155281230 9161961235 9415011001 9418801241 9418801241
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-17041

1HZ..HZB60,70

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-17041

1HZ..HZB60,70

 1
12321F - BRACKET, ENGINE MOUNTING, REAR RH
12321-17020

1HZ..HZB60,70

 1
12325C - BRACKET, ENGINE MOUNTING, REAR LH
12325-17020

1HZ..HZB60,70

 1
12341 - SPACER, ENGINE MOUNTING
12319-51010

1HZ..HZB60,70

 2
12341 - SPACER, ENGINE MOUNTING
12319-51010

1HZ..HZB60,70

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-17034

1HZ..HZB60,70

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-17034

1HZ..HZB60,70

 2
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-17070

1HZ..HZB60,70

 2
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-17070

1HZ..HZB60,70

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-17021

1HZ..HZB60,70

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-17021

1HZ..HZB60,70

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-17013

1HZ..HZB60,70

 1
12511A - BUSH, ALTERNATOR BRACKET
90387-10155

1HZ..HZB60,70

 1
Common parts
90179-12024
90201-10031
91552-81025
91552-81230
91619-61235
94150-11001
94188-01241
Linked diagrams
1903
