HZB70L-ZGMTS (2018)
Toyota Coaster
(1701-2101)XZB70..4FC ; (1701-2101)XZB70..20S,22S..5F..EX,STD ; (1701-2101)BZB60,70

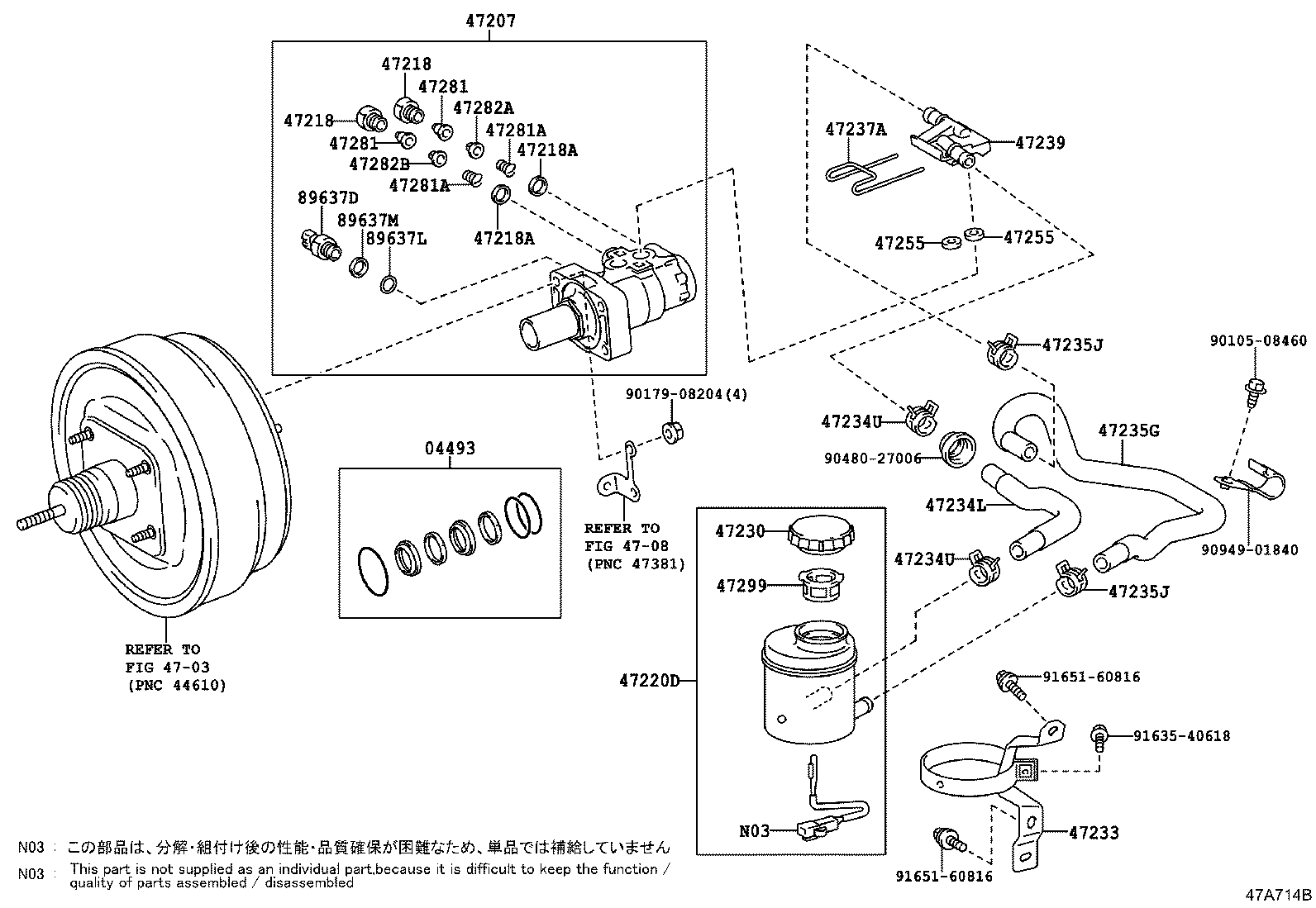

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-36230 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| 04493-37022 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 04493-37032 |
HZB70..GEN;XZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47207 - CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK | ||||
| 47207-37060 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-36091 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-36091 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90430-16013 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90430-16013 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-36130 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-36090 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 47234L - HOSE, RESERVOIR, NO.1 | ||||
| 47234-36240 |
HZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| 47234-36220 |
TRB60,70,XZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC) |
1 | ||
| 47234-36220 |
HZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC) |
1 | ||
| 47234-36230 |
HZB60,70,TRB60,70,XZB70..LHD..GEN |
1 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96133-41500 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96133-41500 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 47235G - HOSE, RESERVOIR, NO.2 | ||||
| 47235-36250 |
HZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| 47235-36230 |
TRB60,70,XZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC) |
1 | ||
| 47235-36240 |
HZB60,70,TRB60,70,XZB70..LHD..GEN |
1 | ||
| 47235-36230 |
HZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC) |
1 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96133-41500 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96133-41500 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 47237A - STOPPER, BREKE MASTER CYLINDER RESERVOIR TANK | ||||
| 47237-36020 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| 47239 - CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47239-36030 |
HZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-52010 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-52010 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-36010 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 47281-30020 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47281-30020 |
HZB60..RHD;HZB70..GEN;XZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-36010 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 47281-30020 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47281-30020 |
HZB60..RHD;HZB70..GEN;XZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE) | ||||
| 90905-01054 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 90501-05012 |
HZB60..RHD;HZB70..GEN;XZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 90501-05012 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE) | ||||
| 90905-01054 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 90501-05012 |
HZB60..RHD;HZB70..GEN;XZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 90501-05012 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47282A - SEAT, OUTLET CHECK VALVE, NO.1 | ||||
| 47282-36010 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| 47282B - SEAT, OUTLET CHECK VALVE, NO.2 | ||||
| 47282-36020 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 89637D - SENSOR, OIL PRESSURE | ||||
| 89637-51010 |
HZB70..GEN ABS-WITH&EXHAUST RETARDER-WITH |
1 | ||
| 89637-51010 |
HZB70..GEN ABS-WITH |
1 | ||
| 89637L - RING, O(FOR OIL PRESSURE SENSOR) | ||||
| 90301-15014 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| 89637M - SPACER(FOR OIL PRESSURE SENSOR) | ||||
| 90561-16009 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91635-40618 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 4708 | ||||
(1701-2101)HZB70..LHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-36230 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| 04493-37022 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 04493-37032 |
HZB70..GEN;XZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47207 - CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK | ||||
| 47207-37060 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-36091 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-36091 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90430-16013 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90430-16013 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-36130 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-36090 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 47234L - HOSE, RESERVOIR, NO.1 | ||||
| 47234-36240 |
HZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| 47234-36220 |
TRB60,70,XZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC) |
1 | ||
| 47234-36220 |
HZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC) |
1 | ||
| 47234-36230 |
HZB60,70,TRB60,70,XZB70..LHD..GEN |
1 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96133-41500 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96133-41500 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 47235G - HOSE, RESERVOIR, NO.2 | ||||
| 47235-36250 |
HZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| 47235-36230 |
TRB60,70,XZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC) |
1 | ||
| 47235-36240 |
HZB60,70,TRB60,70,XZB70..LHD..GEN |
1 | ||
| 47235-36230 |
HZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC) |
1 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96133-41500 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96133-41500 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 47237A - STOPPER, BREKE MASTER CYLINDER RESERVOIR TANK | ||||
| 47237-36020 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| 47239 - CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47239-36030 |
HZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-52010 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-52010 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-36010 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 47281-30020 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47281-30020 |
HZB60..RHD;HZB70..GEN;XZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-36010 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 47281-30020 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47281-30020 |
HZB60..RHD;HZB70..GEN;XZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE) | ||||
| 90905-01054 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 90501-05012 |
HZB60..RHD;HZB70..GEN;XZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 90501-05012 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE) | ||||
| 90905-01054 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
2 | ||
| 90501-05012 |
HZB60..RHD;HZB70..GEN;XZB70..LHD..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 90501-05012 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47282A - SEAT, OUTLET CHECK VALVE, NO.1 | ||||
| 47282-36010 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| 47282B - SEAT, OUTLET CHECK VALVE, NO.2 | ||||
| 47282-36020 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 89637D - SENSOR, OIL PRESSURE | ||||
| 89637-51010 |
HZB70..GEN ABS-WITH&EXHAUST RETARDER-WITH |
1 | ||
| 89637-51010 |
HZB70..GEN ABS-WITH |
1 | ||
| 89637L - RING, O(FOR OIL PRESSURE SENSOR) | ||||
| 90301-15014 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| 89637M - SPACER(FOR OIL PRESSURE SENSOR) | ||||
| 90561-16009 |
HZB70..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90179-08204 | ||||
| 90480-27006 | ||||
| 90949-01840 | ||||
| 91635-40618 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 4708 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
