HZB70L-ZGMSS (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )BB60,HZB60,70

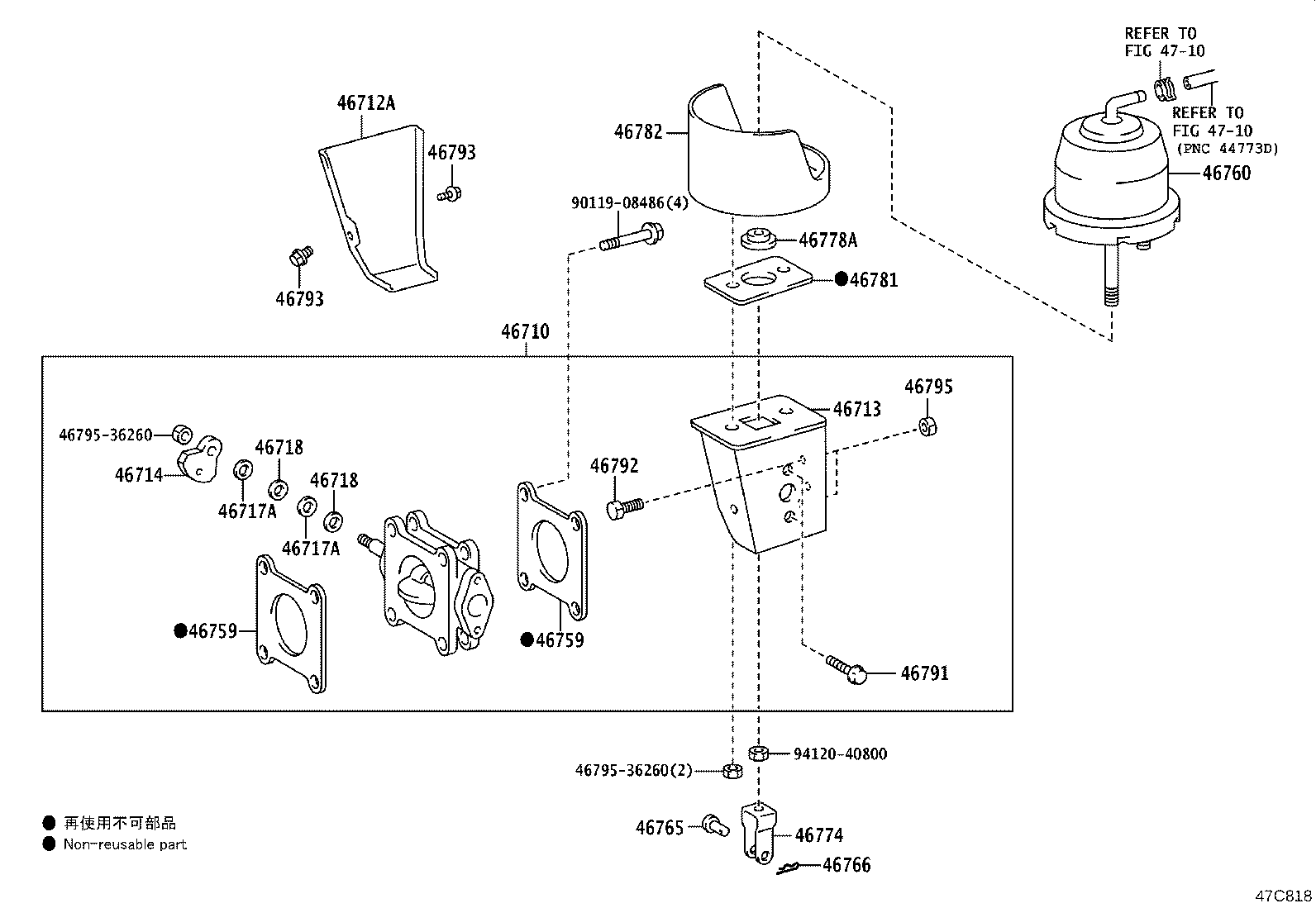

Click highlighted areas on diagram

diagram 46710 46711 46712A 46713 46714 46715 46717A 46717A 46718 46718 46759 46759 46760 46765 46766 46774 46778A 46781 46782 46791 46791 46792 46793 46793 46795 4679536260 4679536260 4710 4710 9011908486 9412040800
Part # Description Qty Price
46710 - VALVE ASSY, EXHAUST BRAKE
46710-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46710-36260

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46712A - COVER, EXHAUST BRAKE BRACKET
46712-36270

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46712-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46713 - BRACKET, EXHAUST VALVE
46713-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46713-36270

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46714 - LEVER, EXHAUST VALVE
46714-36010

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46714-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46717A - RING, EXHAUST VALVE SEAL, NO.1
46717-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46717-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
46717A - RING, EXHAUST VALVE SEAL, NO.1
46717-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46717-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
46718 - RING, EXHAUST VALVE SEAL, NO.2
46718-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46718-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
46718 - RING, EXHAUST VALVE SEAL, NO.2
46718-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46718-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
46759 - GASKET, EXHAUST RETARDER
46759-36040

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
46759-36040

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46759 - GASKET, EXHAUST RETARDER
46759-36040

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
46759-36040

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46760 - CYLINDER ASSY, EXHAUST RETARDER VACUUM
46760-36260

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46760-36260

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46765 - PIN, VACUUM CYLINDER CLEVIS
46765-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46766 - PIN, VACUUM CYLINDER CLEVIS SNAP
46766-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46774 - CLEVIS, EXHAUST BRAKE ROD
46774-36270

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46774-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46778A - BEARING, EXHAUST BRAKE CHAMBER ROD
46778-36060

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46778-36060

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46781 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.1
46781-28010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46782 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.2
46782-36130

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46782-36130

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46791 - BOLT, EXHAUST VALVE COVER
46791-25041

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46791 - BOLT, EXHAUST VALVE COVER
46791-25041

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46792 - BOLT, EXHAUST VALVE STOPPER
46792-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46793 - BOLT, EXHAUST VALVE LINK COVER
46793-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46793 - BOLT, EXHAUST VALVE LINK COVER
46793-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46795 - NUT, EXHAUST VALVE BRACKET
46795-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
Common parts
46795-36260
90119-08486
94120-40800
Linked diagrams
4710

(1701- )XZB80 ; (1701- )XZB60,70..4FC,5F

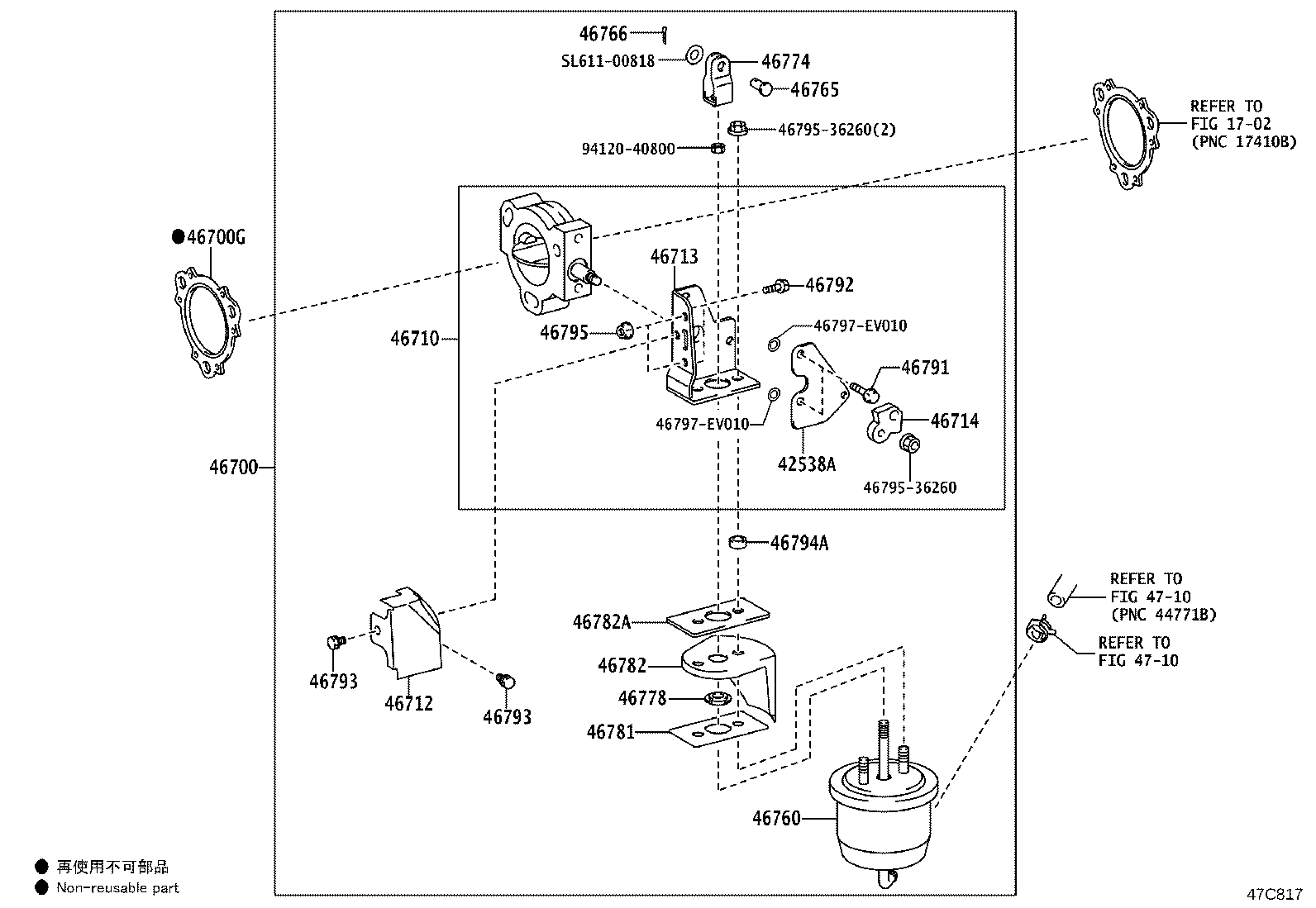

Click highlighted areas on diagram

EURO4 OR EURO6

diagram 1702 42538A 46700 46700G 46710 46712 46713 46714 46760 46765 46766 46774 46778 46781 46782 46782A 46791 46792 46793 46793 46794A 46795 4679536260 4679536260 46797EV010 46797EV010 4710 4710 9412040800 SL61100818
Part # Description Qty Price
46710 - VALVE ASSY, EXHAUST BRAKE
46710-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46710-36260

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46713 - BRACKET, EXHAUST VALVE
46713-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46713-36270

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46714 - LEVER, EXHAUST VALVE
46714-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46714-36010

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46760 - CYLINDER ASSY, EXHAUST RETARDER VACUUM
46760-36260

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46760-36260

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46765 - PIN, VACUUM CYLINDER CLEVIS
46765-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46766 - PIN, VACUUM CYLINDER CLEVIS SNAP
46766-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46774 - CLEVIS, EXHAUST BRAKE ROD
46774-36270

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46774-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46781 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.1
46781-28010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46782 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.2
46782-36130

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46782-36130

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46791 - BOLT, EXHAUST VALVE COVER
46791-25041

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46792 - BOLT, EXHAUST VALVE STOPPER
46792-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46793 - BOLT, EXHAUST VALVE LINK COVER
46793-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46793 - BOLT, EXHAUST VALVE LINK COVER
46793-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46795 - NUT, EXHAUST VALVE BRACKET
46795-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
Common parts
46795-36260
46797-EV010
94120-40800
SL611-00818
Linked diagrams
1702
4710

(1701- )XZB80 ; (1701- )XZB60,70..4FC,5F

Click highlighted areas on diagram

EXCEPT EURO4 OR EURO6

diagram 46710 46712A 46713 46714 46717A 46717A 46718 46718 46759 46759 46760 46765 46766 46774 46778A 46781 46782 46791 46792 46793 46793 46795 4679536260 4679536260 4710 4710 9011908486 9412040800
Part # Description Qty Price
46710 - VALVE ASSY, EXHAUST BRAKE
46710-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46710-36260

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46712A - COVER, EXHAUST BRAKE BRACKET
46712-36270

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46712-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46713 - BRACKET, EXHAUST VALVE
46713-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46713-36270

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46714 - LEVER, EXHAUST VALVE
46714-36010

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46714-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46717A - RING, EXHAUST VALVE SEAL, NO.1
46717-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46717-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
46717A - RING, EXHAUST VALVE SEAL, NO.1
46717-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46717-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
46718 - RING, EXHAUST VALVE SEAL, NO.2
46718-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46718-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
46718 - RING, EXHAUST VALVE SEAL, NO.2
46718-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46718-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
46759 - GASKET, EXHAUST RETARDER
46759-36040

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
46759-36040

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46759 - GASKET, EXHAUST RETARDER
46759-36040

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 2
46759-36040

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46760 - CYLINDER ASSY, EXHAUST RETARDER VACUUM
46760-36260

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46760-36260

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46765 - PIN, VACUUM CYLINDER CLEVIS
46765-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46766 - PIN, VACUUM CYLINDER CLEVIS SNAP
46766-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46774 - CLEVIS, EXHAUST BRAKE ROD
46774-36270

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46774-36270

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46778A - BEARING, EXHAUST BRAKE CHAMBER ROD
46778-36060

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46778-36060

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46781 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.1
46781-28010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46782 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.2
46782-36130

HZB60,70..GEN

EXHAUST RETARDER-WITH

 1
46782-36130

XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
46791 - BOLT, EXHAUST VALVE COVER
46791-25041

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46792 - BOLT, EXHAUST VALVE STOPPER
46792-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46793 - BOLT, EXHAUST VALVE LINK COVER
46793-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46793 - BOLT, EXHAUST VALVE LINK COVER
46793-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
46795 - NUT, EXHAUST VALVE BRACKET
46795-36010

HZB60,70..GEN

EXHAUST RETARDER-WITH

 2
Common parts
46795-36260
90119-08486
94120-40800
Linked diagrams
4710
