Toyota Coaster HZB50 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
GR
COASTER
HZB50R-ZEMSSQ (1993)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

HZB50R-ZEMSSQ (1993)

Toyota Coaster

Production Jan 1993 - Nov 2002

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

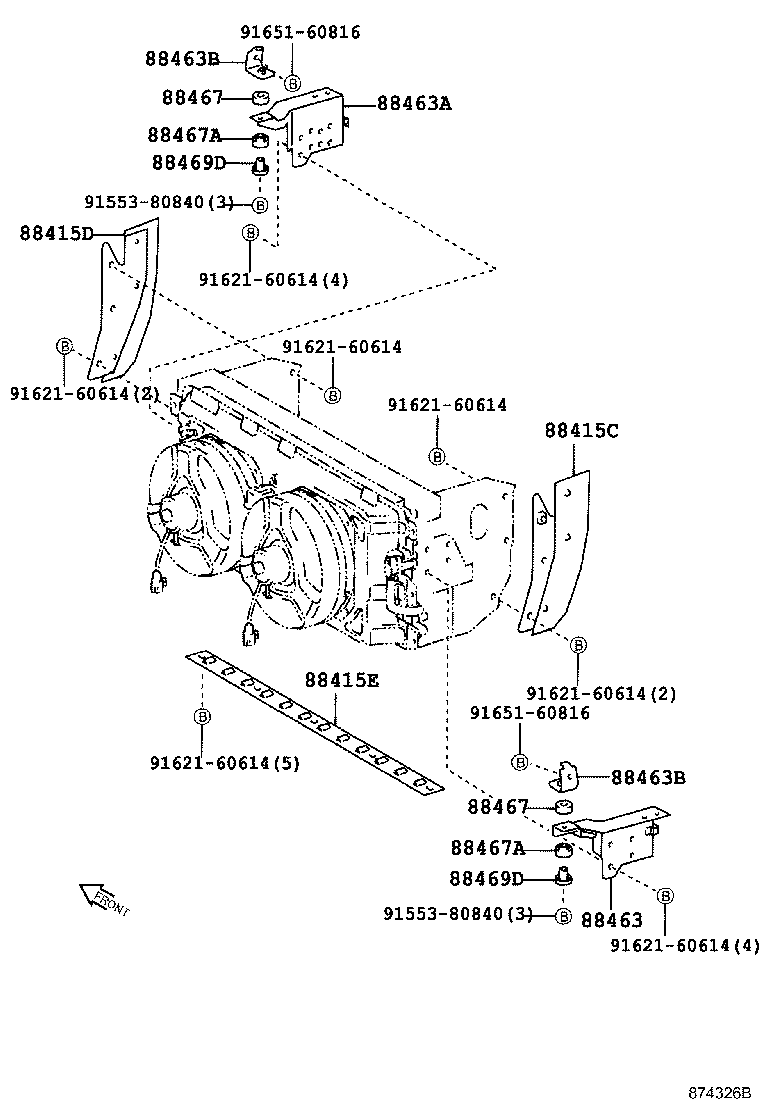

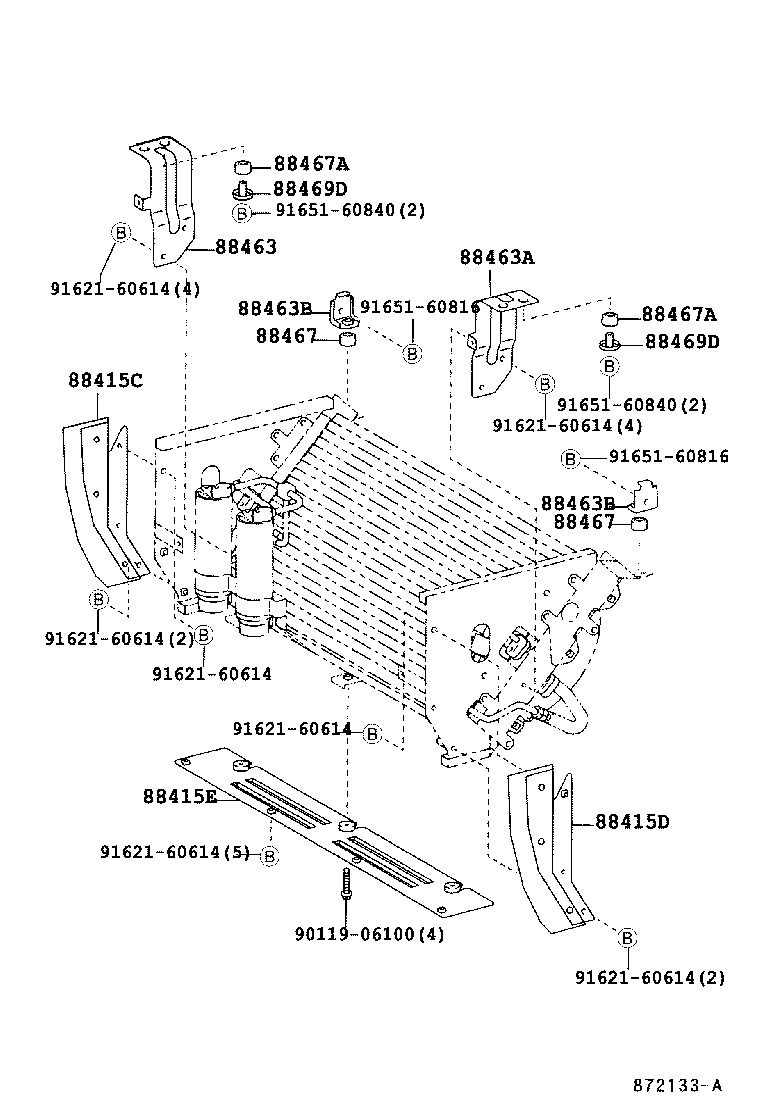

ILLUST NO. 1 OF 5(9301- )HZB50..19S,20S,22S,30S

Click highlighted areas on diagram

TYPE A

Part #	Description	Period	Qty
88415C - COVER, DUST, NO.1
88415-36060	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88415-36060	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88415-36060	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88415-36060	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88415D - COVER, DUST, NO.2
88415-36080	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88415-36080	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88415-36080	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88415-36080	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88415E - COVER, DUST, NO.3
88415-36100	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 06/1995	1
88415-36100	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 06/1995	1
88415-36140	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	06/1995 - 07/1999	1
88415-36140	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	06/1995 - 07/1999	1
88415-36140	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88415-36140	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88688-36460	RZB50..GCC;BB5#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB42,HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	06/1995 - 07/1999	1
88688-36460	RZB50..GCC;BB5#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB42,HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	06/1995 - 07/1999	1
88463-36010	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..RHD..HRF..WC..DSL;BB42,HZB50,RZB40..LHD..WC..5F	01/1993 - 06/1995	1
88463-36010	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..RHD..HRF..WC..DSL;BB42,HZB50,RZB40..LHD..WC..5F	01/1993 - 06/1995	1
88688-36460	BB50..EX..GEN;BB42,50..19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	1
88688-36460	BB50..EX..GEN;BB42,50..19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	1
88688-36460	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88688-36460	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-36020	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 06/1995	1
88463-36020	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 06/1995	1
88688-36450	RZB50..GCC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL;BB5#,RZB50..HRF..WC..(EUR,GEN)	06/1995 - 07/1999	1
88688-36450	RZB50..GCC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL;BB5#,RZB50..HRF..WC..(EUR,GEN)	06/1995 - 07/1999	1
88688-36450	BB50,HZB50,RZB50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88688-36450	BB50,HZB50,RZB50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-36060	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 06/1995	2
88463-36060	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 06/1995	2
88688-36490	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	06/1995 - 07/1999	2
88688-36490	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	06/1995 - 07/1999	2
88688-36490	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	2
88688-36490	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	2
88688-36490	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88688-36490	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-36060	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 06/1995	2
88463-36060	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 06/1995	2
88688-36490	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	06/1995 - 07/1999	2
88688-36490	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	06/1995 - 07/1999	2
88688-36490	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	2
88688-36490	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	2
88688-36490	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88688-36490	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-90B00	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	6
88467-90B00	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	6
88467-90B00	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	6
88467-90B00	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	6
88467-90B00	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	6
88467-90B00	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	6
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-90B00	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	6
88467-90B00	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	6
88467-90B00	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	6
88467-90B00	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	6
88467-90B00	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	6
88467-90B00	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	6
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-90B01	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	6
88467-90B01	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	6
88467-90B01	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	6
88467-90B01	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	6
88467-90B01	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	6
88467-90B01	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	6
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-90B01	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	6
88467-90B01	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	6
88467-90B01	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	6
88467-90B01	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	6
88467-90B01	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	6
88467-90B01	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	6
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-90B00	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	6
88469-90B00	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	6
88469-90B00	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	6
88469-90B00	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	6
88469-90B00	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	6
88469-90B00	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	6
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-90B00	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	6
88469-90B00	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	6
88469-90B00	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	6
88469-90B00	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	6
88469-90B00	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	6
88469-90B00	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	6
Common parts
90119-06100
91621-60614
91651-60816
91651-60840

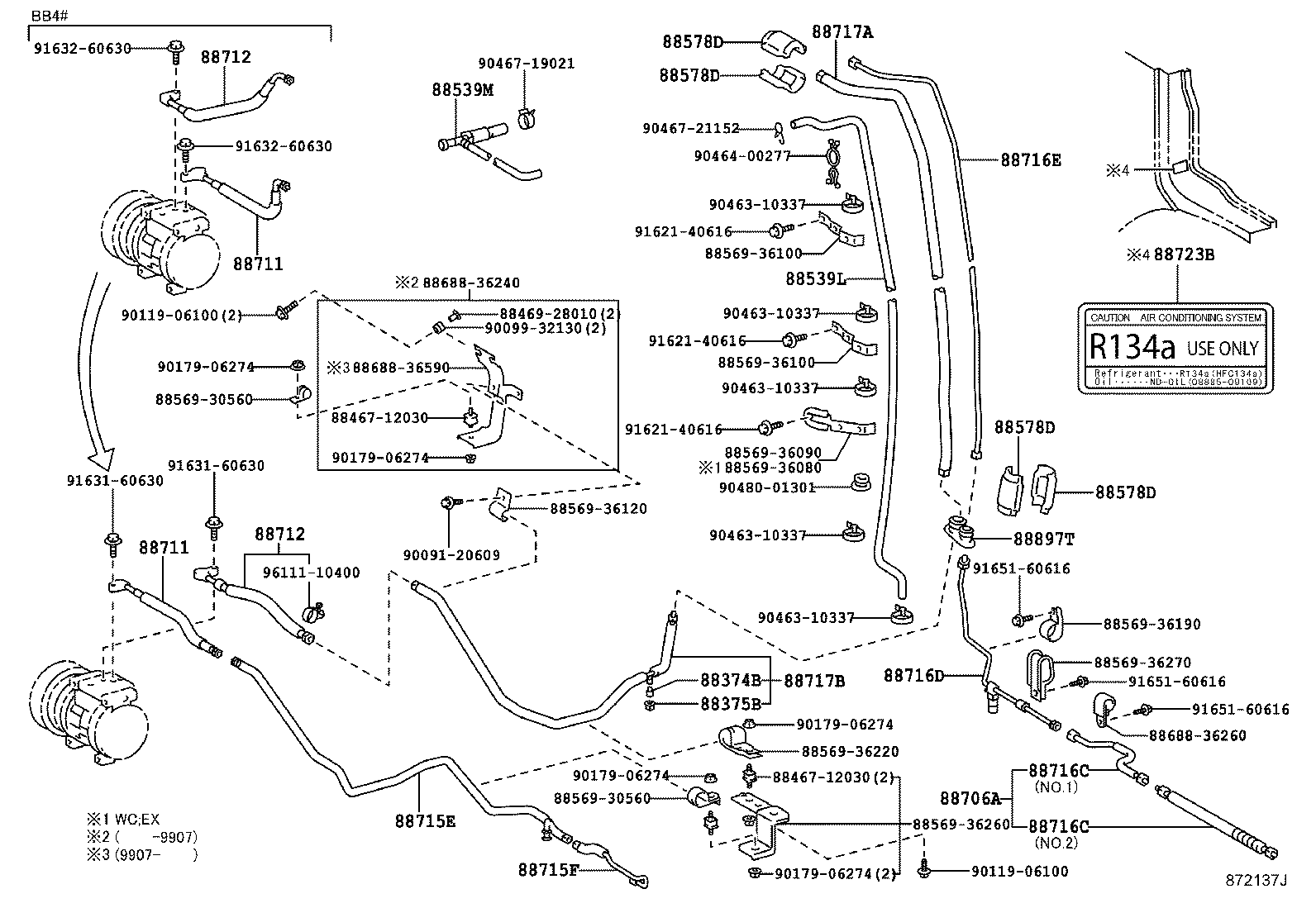

ILLUST NO. 3 OF 5(9301-1501)RHD..4FC,5F..DSL,TD

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1994	1
88374-30010	RZB50..GCC;HZB50..HRF..WC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;BB4#,5#,RZB40..WC..CBU	05/1997 - 07/1999	1
88374-30010	BB4#,HZB50..RHD..HRF..WC..DSL	09/1994 - 05/1997	1
88374-30010	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1994	1
88375-30290	RZB50..GCC;HZB50..HRF..WC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;BB4#,5#,RZB40..WC..CBU	05/1997 - 07/1999	1
88375-30290	BB4#,HZB50..RHD..HRF..WC..DSL	09/1994 - 05/1997	1
88539L - HOSE, DRAIN COOLER
88539-36150	HZB50..WC..TD	02/1993 - 05/1996	2
88539-36150	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88539-36150	HZB50..GCC..4FC;HZB50..LHD..WC..TD;BB4#,HZB50..HRF..WC..5F..DSL	01/1993 - 02/1993	1
88539-36150	HZB50..GCC..4FC;HZB50..RHD..HRF..WC..DSL;HZB50..LHD..HRF..WC..5F..DSL;BB4#,5#,RZB40,50..HRF..WC..(ARL,GCC,GEN,SCO)	02/1993 - 07/1999	1
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01	HZB50..WC..TD	02/1993 - 05/1996	8
88578-90B01	BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	4
88578-90B01	BB4#,50,HZB50..RHD..HRF..WC..CBU	01/1993 - 07/1999	4
88578-90B01	HZB50..WC..ARL	07/1999 - 11/2002	4
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01	HZB50..WC..TD	02/1993 - 05/1996	8
88578-90B01	BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	4
88578-90B01	BB4#,50,HZB50..RHD..HRF..WC..CBU	01/1993 - 07/1999	4
88578-90B01	HZB50..WC..ARL	07/1999 - 11/2002	4
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01	HZB50..WC..TD	02/1993 - 05/1996	8
88578-90B01	BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	4
88578-90B01	BB4#,50,HZB50..RHD..HRF..WC..CBU	01/1993 - 07/1999	4
88578-90B01	HZB50..WC..ARL	07/1999 - 11/2002	4
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01	HZB50..WC..TD	02/1993 - 05/1996	8
88578-90B01	BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	4
88578-90B01	BB4#,50,HZB50..RHD..HRF..WC..CBU	01/1993 - 07/1999	4
88578-90B01	HZB50..WC..ARL	07/1999 - 11/2002	4
88706A - TUBE SUB-ASSY, LIQUID, A
88706-36010	BB4#,HZB50..RHD..HRF..WC..DSL	01/1993 - 06/1995	1
88706-36050	BB4#,50,HZB50..RHD..HRF..WC..CBU	06/1995 - 07/1999	1
88706-36050	BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	1
88706-36050	HZB50..WC..ARL	07/1999 - 11/2002	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-36152	HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88711-36151	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	04/1993 - 05/1997	1
88711-36150	HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 04/1993	1
88711-36480	BB43,5#..CBU	05/1997 - 07/1999	1
88711-36152	HZB50..WC..ARL	07/1999 - 11/2002	1
88711-36480	BB43,50..RHD..5F	07/1999 - 08/2001	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-36152	HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88711-36151	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	04/1993 - 05/1997	1
88711-36150	HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 04/1993	1
88711-36480	BB43,5#..CBU	05/1997 - 07/1999	1
88711-36152	HZB50..WC..ARL	07/1999 - 11/2002	1
88711-36480	BB43,50..RHD..5F	07/1999 - 08/2001	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-36461	BB43,5#..CBU	05/1997 - 07/1999	1
88712-36150	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88712-36461	BB43,50..RHD..5F	07/1999 - 08/2001	1
88712-36150	HZB50..WC..ARL	07/1999 - 11/2002	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-36461	BB43,5#..CBU	05/1997 - 07/1999	1
88712-36150	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88712-36461	BB43,50..RHD..5F	07/1999 - 08/2001	1
88712-36150	HZB50..WC..ARL	07/1999 - 11/2002	1
88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E
88715-36140	HZB50..RHD..HRF..WC..DSL	01/1993 - 04/1993	1
88715-36141	HZB50..RHD..HRF..WC..DSL	04/1993 - 07/1999	1
88715-36071	BB50,HZB50..WC..TD	06/1995 - 06/1996	1
88715-36141	HZB50..WC..ARL	07/1999 - 11/2002	1
88715-36320	BB43,50..RHD..5F	07/1999 - 08/2001	1
88715-36320	BB43,50..RHD..CBU	05/1997 - 07/1999	1
88715F - PIPE, COOLER REFRIGERANT DISCHARGE, F
88715-36130	BB4#,50,HZB50..RHD..HRF..WC..CBU	01/1993 - 07/1999	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-36260	HZB50..WC..ARL NO.2	07/1999 - 11/2002	1
88716-36260	BB4#,50,HZB50..RHD..HRF..WC..CBU NO.2	01/1993 - 07/1999	1
88716-36320	BB4#,50,HZB50..RHD..HRF..WC..CBU NO.1	06/1995 - 07/1999	1
88716-36140	BB4#,HZB50..RHD..HRF..WC..DSL NO.1	01/1993 - 06/1995	1
88716-36320	BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN NO.1	07/1999 - 08/2001	1
88716-36320	HZB50..WC..ARL NO.1	07/1999 - 11/2002	1
88716-36260	BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN NO.2	07/1999 - 08/2001	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-36260	HZB50..WC..ARL NO.2	07/1999 - 11/2002	1
88716-36260	BB4#,50,HZB50..RHD..HRF..WC..CBU NO.2	01/1993 - 07/1999	1
88716-36320	BB4#,50,HZB50..RHD..HRF..WC..CBU NO.1	06/1995 - 07/1999	1
88716-36140	BB4#,HZB50..RHD..HRF..WC..DSL NO.1	01/1993 - 06/1995	1
88716-36320	BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN NO.1	07/1999 - 08/2001	1
88716-36320	HZB50..WC..ARL NO.1	07/1999 - 11/2002	1
88716-36260	BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN NO.2	07/1999 - 08/2001	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-36150	BB4#,50,HZB50..RHD..HRF..WC..CBU	01/1993 - 07/1999	1
88716-36150	BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	1
88716-36150	HZB50..WC..ARL	07/1999 - 11/2002	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-36080	HZB50..WC..TD	02/1993 - 05/1996	1
88716-36220	BB4#,50,HZB50..RHD..HRF..WC..CBU	01/1993 - 07/1999	1
88716-36220	BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	1
88716-36220	HZB50..WC..ARL	07/1999 - 11/2002	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-36110	BB4#,50,HZB50..RHD..HRF..WC..CBU NO.1	01/1993 - 07/1999	1
88717-36110	HZB50..WC..ARL NO.1	07/1999 - 11/2002	1
88727-36090	HZB50..WC..TD	02/1993 - 05/1996	1
88717-36110	BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN NO.1	07/1999 - 08/2001	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-36230	BB43,50..RHD..CBU	05/1997 - 07/1999	1
88727-36080	HZB50..WC..TD	02/1993 - 05/1996	1
88717-36160	BB40,42,HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88717-36230	BB43,50..RHD..5F	07/1999 - 08/2001	1
88717-36160	HZB50..WC..ARL	07/1999 - 11/2002	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88723-20040	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88897T - GROMMET, COOLER
88897-36040	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88897-36040	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40..WC..(ARL,GCC,GEN,SCO)	01/1993 - 07/1999	1
Common parts
88467-12030
88469-28010
88569-30560
88569-36080
88569-36090
88569-36100
88569-36120
88569-36190
88569-36220
88569-36260
88569-36270
88688-36240
88688-36260
88688-36590
90091-20609
90099-32130
90119-06100
90179-06274
90463-10337
90464-00277
90467-19021
90467-21152
90480-01301
91621-40616
91631-60630
91632-60630
91651-60616
96111-10400

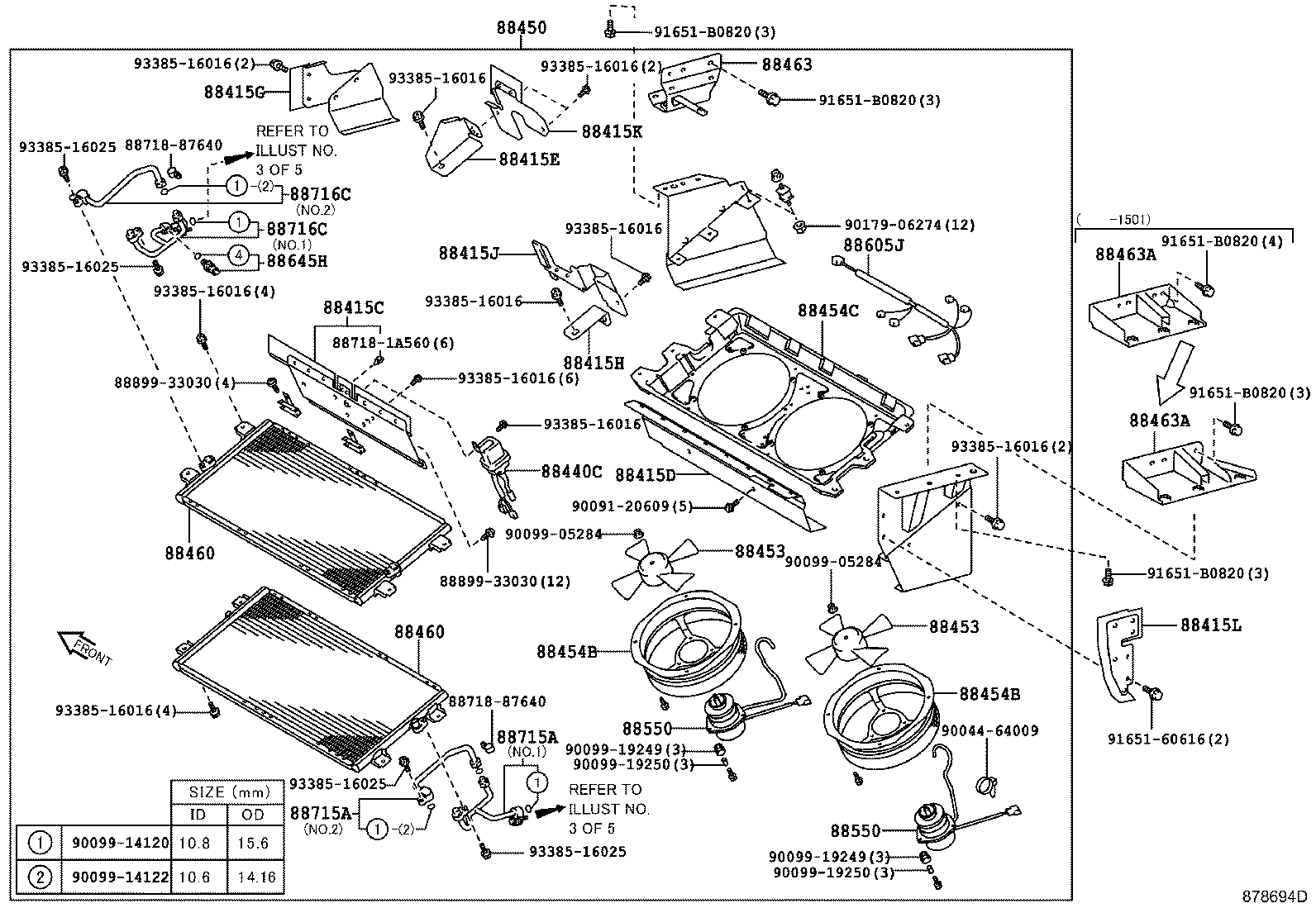

ILLUST NO. 1 OF 5(9506- )BB4#,50,59,HZB50,XZB40,5#..RHD

Click highlighted areas on diagram

TYPE B

Part #	Description	Period	Qty
88415C - COVER, DUST, NO.1
88415-36060	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88415-36060	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88415D - COVER, DUST, NO.2
88415-36080	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88415-36080	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88415E - COVER, DUST, NO.3
88415-36100	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 06/1995	1
88415-36140	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	06/1995 - 07/1999	1
88415-36140	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88688-36460	RZB50..GCC;BB5#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB42,HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	06/1995 - 07/1999	1
88463-36010	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..RHD..HRF..WC..DSL;BB42,HZB50,RZB40..LHD..WC..5F	01/1993 - 06/1995	1
88688-36460	BB50..EX..GEN;BB42,50..19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	1
88688-36460	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-36020	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 06/1995	1
88688-36450	RZB50..GCC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL;BB5#,RZB50..HRF..WC..(EUR,GEN)	06/1995 - 07/1999	1
88688-36450	BB50,HZB50,RZB50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-36060	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 06/1995	2
88688-36490	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	06/1995 - 07/1999	2
88688-36490	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	2
88688-36490	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-36060	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 06/1995	2
88688-36490	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	06/1995 - 07/1999	2
88688-36490	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	2
88688-36490	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-90B00	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	6
88467-90B00	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	6
88467-90B00	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	6
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-90B00	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	6
88467-90B00	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	6
88467-90B00	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	6
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-90B01	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	6
88467-90B01	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	6
88467-90B01	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	6
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-90B01	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	6
88467-90B01	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	6
88467-90B01	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	6
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-90B00	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	6
88469-90B00	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	6
88469-90B00	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	6
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-90B00	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	6
88469-90B00	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	6
88469-90B00	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	6
Common parts
91553-80840
91621-60614
91651-60816

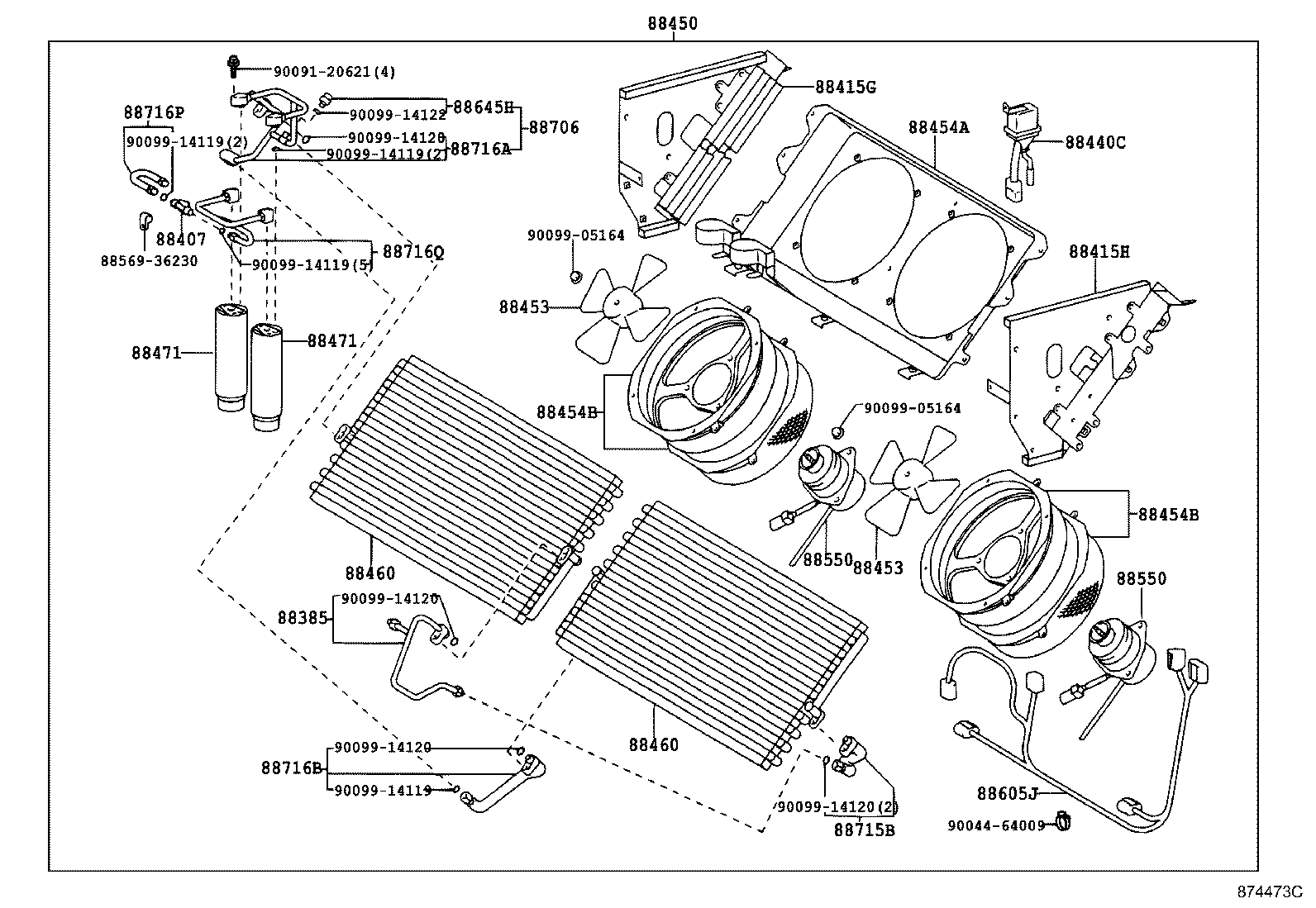

ILLUST NO. 2 OF 5(9506- )BB4#,5#,HZB50,RZB40,50,TRB40,50,XZB40,5#

Click highlighted areas on diagram

TYPE B

Part #	Description	Period	Qty
88385 - PIPE, COOLER REFRIGERANT DISCHARGE, NO.1
88715-36081	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88715-36080	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88715-36080	HZB50..WC..TD	09/1995 - 05/1996	1
88407 - GLASS SUB-ASSY, SIGHT
88407-36020	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88407-36020	HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB4#,5#,RZB40,50..WC	06/2000 - 05/2001	1
88407-36020	BB50..EX;HZB50..HRF..WC;BB50..WC..IV..5F;BB4#,RZB40,50..WC;HZB50..LHD..SRF..WC	07/1999 - 06/2000	1
88450 - CONDENSER ASSY, W/RECEIVER
88450-36111	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL TYPE A:REFER TO ILLUSTRATION	01/1993 - 04/1993	1
88450-36150	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL TYPE A:REFER TO ILLUSTRATION	11/1994 - 05/1995	1
88450-36112	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL TYPE A:REFER TO ILLUSTRATION	04/1993 - 11/1994	1
88450-36113	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL TYPE A:REFER TO ILLUSTRATION	05/1995 - 06/1995	1
88450-36150	HZB50..WC..TD TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
88450-36210	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL TYPE B:REFER TO ILLUSTRATION	06/1995 - 07/1999	1
88453 - FAN, COOLING (FOR CONDENSER)
16361-13030	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
16361-13030	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	2
88453 - FAN, COOLING (FOR CONDENSER)
16361-13030	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
16361-13030	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	2
88454A - SHROUD, FAN
88454-36070	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88454-36071	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88454-36071	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88454-36070	HZB50..WC..TD	09/1995 - 05/1996	1
88454B - SHROUD, FAN
88454-36081	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	05/1993 - 07/1999	2
88454-36080	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 05/1993	2
88454-36081	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88454B - SHROUD, FAN
88454-36081	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	05/1993 - 07/1999	2
88454-36080	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 05/1993	2
88454-36081	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88460 - CONDENSER ASSY, COOLER
88340-36010	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	2
88340-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	2
88340-36010	HZB50..WC..TD	09/1995 - 05/1996	2
88460 - CONDENSER ASSY, COOLER
88340-36010	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	2
88340-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	2
88340-36010	HZB50..WC..TD	09/1995 - 05/1996	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-30370	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 04/1994	2
88471-50020	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	04/1994 - 07/1999	2
88471-50020	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-30370	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 04/1994	2
88471-50020	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	04/1994 - 07/1999	2
88471-50020	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-36041	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	11/1996 - 07/1999	2
88550-36040	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 11/1996	2
88550-36041	BB50,HZB50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88550-36041	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-36041	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	11/1996 - 07/1999	2
88550-36040	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 11/1996	2
88550-36041	BB50,HZB50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88550-36041	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	2
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-36281	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88605-36170	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 05/1995	1
88605-36280	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	05/1995 - 09/1995	1
88605-36170	HZB50..WC..TD	05/1995 - 05/1996	1
88605-36281	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88645H - SWITCH, PRESSURE NO.1
88645-36050	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	11/1994 - 07/1999	1
88645-60030	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 11/1994	1
88645-36050	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88706 - PIPE SUB-ASSY, LIQUID
88706-36042	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88706-36040	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 11/1994	1
88706-36042	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88706-36041	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	11/1994 - 09/1995	1
88706-36041	HZB50..WC..TD	09/1995 - 05/1996	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-36090	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88715-36090	HZB50..WC..TD	09/1995 - 05/1996	1
88715-36091	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88715-36091	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-36161	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88716-36160	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88716-36160	HZB50..WC..TD	09/1995 - 05/1996	1
88716-36161	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-36171	BB50,HZB50,RZB40,50..WC..(ARL,CHI) CONDENSER SIDE	07/1999 - 11/2002	1
88716-36170	HZB50..WC..TD	09/1995 - 05/1996	1
88716-36171	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL CONDENSER SIDE	09/1995 - 07/1999	1
88716-36170	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88716P - PIPE, COOLER REFRIGERANT LIQUID, P
88716-36281	BB50..EX;HZB50..HRF..WC;BB50..WC..IV..5F;BB4#,RZB40,50..WC;HZB50..LHD..SRF..WC	07/1999 - 06/2000	1
88716-36280	HZB50..WC..TD	09/1995 - 05/1996	1
88716-36280	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88716-36281	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88716-36281	HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB4#,5#,RZB40,50..WC	06/2000 - 05/2001	1
88716Q - PIPE, COOLER REFRIGERANT LIQUID, Q
88716-36292	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	05/2001 - 11/2002	1
88716-36290	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88716-36291	HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB4#,5#,RZB40,50..WC REFER TO ILLUST.	06/2000 - 05/2001	1
88716-36291	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL REFER TO ILLUST.	09/1995 - 07/1999	1
88716-36290	HZB50..WC..TD	09/1995 - 05/1996	1
88716-36291	BB50..EX;HZB50..HRF..WC;BB50..WC..IV..5F;BB4#,RZB40,50..WC;HZB50..LHD..SRF..WC REFER TO ILLUST.	07/1999 - 06/2000	1
88716Q - PIPE, COOLER REFRIGERANT LIQUID, Q
88716-36292	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	05/2001 - 11/2002	1
88716-36290	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88716-36291	HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB4#,5#,RZB40,50..WC REFER TO ILLUST.	06/2000 - 05/2001	1
88716-36291	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL REFER TO ILLUST.	09/1995 - 07/1999	1
88716-36290	HZB50..WC..TD	09/1995 - 05/1996	1
88716-36291	BB50..EX;HZB50..HRF..WC;BB50..WC..IV..5F;BB4#,RZB40,50..WC;HZB50..LHD..SRF..WC REFER TO ILLUST.	07/1999 - 06/2000	1
Common parts
88569-36260
88569-36600
88688-36340
88688-36350
88899-35010
90044-64009
90091-20621
90099-05164
90099-05284
90099-19249
90099-19250
91651-40625
93385-16016

ILLUST NO. 2 OF 5(9301- )HZB50..19S,20S,22S,30S

Click highlighted areas on diagram

TYPE A

Part #	Description	Period	Qty
88385 - PIPE, COOLER REFRIGERANT DISCHARGE, NO.1
88715-36081	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88715-36081	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88715-36080	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88715-36080	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88715-36080	HZB50..WC..TD	09/1995 - 05/1996	1
88715-36080	HZB50..WC..TD	09/1995 - 05/1996	1
88407 - GLASS SUB-ASSY, SIGHT
88407-36020	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88407-36020	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88407-36020	HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB4#,5#,RZB40,50..WC	06/2000 - 05/2001	1
88407-36020	HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB4#,5#,RZB40,50..WC	06/2000 - 05/2001	1
88407-36020	BB50..EX;HZB50..HRF..WC;BB50..WC..IV..5F;BB4#,RZB40,50..WC;HZB50..LHD..SRF..WC	07/1999 - 06/2000	1
88407-36020	BB50..EX;HZB50..HRF..WC;BB50..WC..IV..5F;BB4#,RZB40,50..WC;HZB50..LHD..SRF..WC	07/1999 - 06/2000	1
88415G - COVER, COOLER CONDENSER DUST, NO.4
88415-36110	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 11/1994	1
88415-36110	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 11/1994	1
88415-36110	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	11/1994 - 05/1995	1
88415-36110	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	11/1994 - 05/1995	1
88415-36110	HZB50..WC..TD	05/1995 - 05/1996	1
88415-36110	HZB50..WC..TD	05/1995 - 05/1996	1
88415H - COVER, COOLER CONDENSER DUST, NO.5
88415-36120	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	11/1994 - 05/1995	1
88415-36120	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	11/1994 - 05/1995	1
88415-36120	HZB50..WC..TD	05/1995 - 05/1996	1
88415-36120	HZB50..WC..TD	05/1995 - 05/1996	1
88415-36120	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 11/1994	1
88415-36120	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 11/1994	1
88440C - RELAY ASSY, COOLER CONDENSER FAN
88440-36160	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 05/1995	1
88440-36160	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 05/1995	1
88440-36160	HZB50..WC..TD	05/1995 - 05/1996	1
88440-36160	HZB50..WC..TD	05/1995 - 05/1996	1
88450 - CONDENSER ASSY, W/RECEIVER
88450-36111	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL TYPE A:REFER TO ILLUSTRATION	01/1993 - 04/1993	1
88450-36111	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL TYPE A:REFER TO ILLUSTRATION	01/1993 - 04/1993	1
88450-36150	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL TYPE A:REFER TO ILLUSTRATION	11/1994 - 05/1995	1
88450-36150	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL TYPE A:REFER TO ILLUSTRATION	11/1994 - 05/1995	1
88450-36112	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL TYPE A:REFER TO ILLUSTRATION	04/1993 - 11/1994	1
88450-36112	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL TYPE A:REFER TO ILLUSTRATION	04/1993 - 11/1994	1
88450-36113	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL TYPE A:REFER TO ILLUSTRATION	05/1995 - 06/1995	1
88450-36113	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL TYPE A:REFER TO ILLUSTRATION	05/1995 - 06/1995	1
88450-36150	HZB50..WC..TD TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
88450-36150	HZB50..WC..TD TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
88450-36210	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL TYPE B:REFER TO ILLUSTRATION	06/1995 - 07/1999	1
88450-36210	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL TYPE B:REFER TO ILLUSTRATION	06/1995 - 07/1999	1
88453 - FAN, COOLING (FOR CONDENSER)
16361-13030	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
16361-13030	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
16361-13030	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	2
16361-13030	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	2
88453 - FAN, COOLING (FOR CONDENSER)
16361-13030	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
16361-13030	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
16361-13030	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	2
16361-13030	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	2
88454A - SHROUD, FAN
88454-36070	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88454-36070	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88454-36071	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88454-36071	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88454-36071	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88454-36071	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88454-36070	HZB50..WC..TD	09/1995 - 05/1996	1
88454-36070	HZB50..WC..TD	09/1995 - 05/1996	1
88454B - SHROUD, FAN
88454-36081	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	05/1993 - 07/1999	2
88454-36081	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	05/1993 - 07/1999	2
88454-36080	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 05/1993	2
88454-36080	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 05/1993	2
88454-36081	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88454-36081	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88454B - SHROUD, FAN
88454-36081	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	05/1993 - 07/1999	2
88454-36081	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	05/1993 - 07/1999	2
88454-36080	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 05/1993	2
88454-36080	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 05/1993	2
88454-36081	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88454-36081	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88460 - CONDENSER ASSY, COOLER
88340-36010	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	2
88340-36010	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	2
88340-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	2
88340-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	2
88340-36010	HZB50..WC..TD	09/1995 - 05/1996	2
88340-36010	HZB50..WC..TD	09/1995 - 05/1996	2
88460 - CONDENSER ASSY, COOLER
88340-36010	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	2
88340-36010	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	2
88340-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	2
88340-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	2
88340-36010	HZB50..WC..TD	09/1995 - 05/1996	2
88340-36010	HZB50..WC..TD	09/1995 - 05/1996	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-30370	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 04/1994	2
88471-30370	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 04/1994	2
88471-50020	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	04/1994 - 07/1999	2
88471-50020	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	04/1994 - 07/1999	2
88471-50020	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88471-50020	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-30370	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 04/1994	2
88471-30370	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 04/1994	2
88471-50020	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	04/1994 - 07/1999	2
88471-50020	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	04/1994 - 07/1999	2
88471-50020	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88471-50020	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-36041	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	11/1996 - 07/1999	2
88550-36041	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	11/1996 - 07/1999	2
88550-36040	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 11/1996	2
88550-36040	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 11/1996	2
88550-36041	BB50,HZB50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88550-36041	BB50,HZB50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88550-36041	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	2
88550-36041	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-36041	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	11/1996 - 07/1999	2
88550-36041	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	11/1996 - 07/1999	2
88550-36040	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 11/1996	2
88550-36040	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 11/1996	2
88550-36041	BB50,HZB50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88550-36041	BB50,HZB50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88550-36041	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	2
88550-36041	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	2
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-36281	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88605-36281	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88605-36170	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 05/1995	1
88605-36170	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 05/1995	1
88605-36280	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	05/1995 - 09/1995	1
88605-36280	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	05/1995 - 09/1995	1
88605-36170	HZB50..WC..TD	05/1995 - 05/1996	1
88605-36170	HZB50..WC..TD	05/1995 - 05/1996	1
88605-36281	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88605-36281	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88645H - SWITCH, PRESSURE NO.1
88645-36050	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	11/1994 - 07/1999	1
88645-36050	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	11/1994 - 07/1999	1
88645-60030	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 11/1994	1
88645-60030	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 11/1994	1
88645-36050	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88645-36050	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88706 - PIPE SUB-ASSY, LIQUID
88706-36042	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88706-36042	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88706-36040	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 11/1994	1
88706-36040	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 11/1994	1
88706-36042	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88706-36042	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88706-36041	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	11/1994 - 09/1995	1
88706-36041	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	11/1994 - 09/1995	1
88706-36041	HZB50..WC..TD	09/1995 - 05/1996	1
88706-36041	HZB50..WC..TD	09/1995 - 05/1996	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-36090	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88715-36090	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88715-36090	HZB50..WC..TD	09/1995 - 05/1996	1
88715-36090	HZB50..WC..TD	09/1995 - 05/1996	1
88715-36091	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88715-36091	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88715-36091	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88715-36091	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-36161	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88716-36161	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88716-36160	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88716-36160	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88716-36160	HZB50..WC..TD	09/1995 - 05/1996	1
88716-36160	HZB50..WC..TD	09/1995 - 05/1996	1
88716-36161	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88716-36161	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-36171	BB50,HZB50,RZB40,50..WC..(ARL,CHI) CONDENSER SIDE	07/1999 - 11/2002	1
88716-36171	BB50,HZB50,RZB40,50..WC..(ARL,CHI) CONDENSER SIDE	07/1999 - 11/2002	1
88716-36170	HZB50..WC..TD	09/1995 - 05/1996	1
88716-36170	HZB50..WC..TD	09/1995 - 05/1996	1
88716-36171	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL CONDENSER SIDE	09/1995 - 07/1999	1
88716-36171	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL CONDENSER SIDE	09/1995 - 07/1999	1
88716-36170	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88716-36170	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88716P - PIPE, COOLER REFRIGERANT LIQUID, P
88716-36281	BB50..EX;HZB50..HRF..WC;BB50..WC..IV..5F;BB4#,RZB40,50..WC;HZB50..LHD..SRF..WC	07/1999 - 06/2000	1
88716-36281	BB50..EX;HZB50..HRF..WC;BB50..WC..IV..5F;BB4#,RZB40,50..WC;HZB50..LHD..SRF..WC	07/1999 - 06/2000	1
88716-36280	HZB50..WC..TD	09/1995 - 05/1996	1
88716-36280	HZB50..WC..TD	09/1995 - 05/1996	1
88716-36280	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88716-36280	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88716-36281	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88716-36281	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88716-36281	HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB4#,5#,RZB40,50..WC	06/2000 - 05/2001	1
88716-36281	HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB4#,5#,RZB40,50..WC	06/2000 - 05/2001	1
88716Q - PIPE, COOLER REFRIGERANT LIQUID, Q
88716-36292	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	05/2001 - 11/2002	1
88716-36292	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	05/2001 - 11/2002	1
88716-36290	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88716-36290	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	1
88716-36291	HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB4#,5#,RZB40,50..WC REFER TO ILLUST.	06/2000 - 05/2001	1
88716-36291	HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB4#,5#,RZB40,50..WC REFER TO ILLUST.	06/2000 - 05/2001	1
88716-36291	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL REFER TO ILLUST.	09/1995 - 07/1999	1
88716-36291	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL REFER TO ILLUST.	09/1995 - 07/1999	1
88716-36290	HZB50..WC..TD	09/1995 - 05/1996	1
88716-36290	HZB50..WC..TD	09/1995 - 05/1996	1
88716-36291	BB50..EX;HZB50..HRF..WC;BB50..WC..IV..5F;BB4#,RZB40,50..WC;HZB50..LHD..SRF..WC REFER TO ILLUST.	07/1999 - 06/2000	1
88716-36291	BB50..EX;HZB50..HRF..WC;BB50..WC..IV..5F;BB4#,RZB40,50..WC;HZB50..LHD..SRF..WC REFER TO ILLUST.	07/1999 - 06/2000	1
Common parts
88569-36230
90044-64009
90091-20621
90099-05164
90099-14119
90099-14120
90099-14122

ILLUST NO. 5 OF 5(9301- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14122
90099-14126

ILLUST NO. 2 OF 5(0108- )BZB40,50

Click highlighted areas on diagram

Part #	Description	Period	Qty
88415C - COVER, DUST, NO.1
88415-36060	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88415-36060	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88415D - COVER, DUST, NO.2
88415-36080	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88415-36080	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88415E - COVER, DUST, NO.3
88415-36100	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 06/1995	1
88415-36140	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	06/1995 - 07/1999	1
88415-36140	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88415G - COVER, COOLER CONDENSER DUST, NO.4
88415-36110	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 11/1994	1
88415-36110	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	11/1994 - 05/1995	1
88415-36110	HZB50..WC..TD	05/1995 - 05/1996	1
88415H - COVER, COOLER CONDENSER DUST, NO.5
88415-36120	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	11/1994 - 05/1995	1
88415-36120	HZB50..WC..TD	05/1995 - 05/1996	1
88415-36120	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 11/1994	1
88440C - RELAY ASSY, COOLER CONDENSER FAN
88440-36160	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 05/1995	1
88440-36160	HZB50..WC..TD	05/1995 - 05/1996	1
88450 - CONDENSER ASSY, W/RECEIVER
88450-36111	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL TYPE A:REFER TO ILLUSTRATION	01/1993 - 04/1993	1
88450-36150	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL TYPE A:REFER TO ILLUSTRATION	11/1994 - 05/1995	1
88450-36112	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL TYPE A:REFER TO ILLUSTRATION	04/1993 - 11/1994	1
88450-36113	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL TYPE A:REFER TO ILLUSTRATION	05/1995 - 06/1995	1
88450-36150	HZB50..WC..TD TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
88450-36210	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL TYPE B:REFER TO ILLUSTRATION	06/1995 - 07/1999	1
88453 - FAN, COOLING (FOR CONDENSER)
16361-13030	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
16361-13030	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	2
88453 - FAN, COOLING (FOR CONDENSER)
16361-13030	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
16361-13030	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	2
88454B - SHROUD, FAN
88454-36081	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	05/1993 - 07/1999	2
88454-36080	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 05/1993	2
88454-36081	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88454B - SHROUD, FAN
88454-36081	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	05/1993 - 07/1999	2
88454-36080	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 05/1993	2
88454-36081	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88460 - CONDENSER ASSY, COOLER
88340-36010	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	2
88340-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	2
88340-36010	HZB50..WC..TD	09/1995 - 05/1996	2
88460 - CONDENSER ASSY, COOLER
88340-36010	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 09/1995	2
88340-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	2
88340-36010	HZB50..WC..TD	09/1995 - 05/1996	2
88463 - BRACKET, COOLER CONDENSER, NO.1
88688-36460	RZB50..GCC;BB5#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB42,HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	06/1995 - 07/1999	1
88463-36010	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..RHD..HRF..WC..DSL;BB42,HZB50,RZB40..LHD..WC..5F	01/1993 - 06/1995	1
88688-36460	BB50..EX..GEN;BB42,50..19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	1
88688-36460	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-36020	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 06/1995	1
88688-36450	RZB50..GCC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL;BB5#,RZB50..HRF..WC..(EUR,GEN)	06/1995 - 07/1999	1
88688-36450	BB50,HZB50,RZB50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-36020	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 06/1995	1
88688-36450	RZB50..GCC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL;BB5#,RZB50..HRF..WC..(EUR,GEN)	06/1995 - 07/1999	1
88688-36450	BB50,HZB50,RZB50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-36041	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	11/1996 - 07/1999	2
88550-36040	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 11/1996	2
88550-36041	BB50,HZB50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88550-36041	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-36041	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	11/1996 - 07/1999	2
88550-36040	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 11/1996	2
88550-36041	BB50,HZB50..WC..(ARL,CHI)	07/1999 - 11/2002	2
88550-36041	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	2
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-36281	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	09/1995 - 07/1999	1
88605-36170	BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 05/1995	1
88605-36280	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	05/1995 - 09/1995	1
88605-36170	HZB50..WC..TD	05/1995 - 05/1996	1
88605-36281	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88645H - SWITCH, PRESSURE NO.1
88645-36050	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	11/1994 - 07/1999	1
88645-60030	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 11/1994	1
88645-36050	BB50,HZB50,RZB40,50..WC..(ARL,CHI)	07/1999 - 11/2002	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-36260	HZB50..WC..ARL NO.2	07/1999 - 11/2002	1
88716-36260	BB4#,50,HZB50..RHD..HRF..WC..CBU NO.2	01/1993 - 07/1999	1
88716-36320	BB4#,50,HZB50..RHD..HRF..WC..CBU NO.1	06/1995 - 07/1999	1
88716-36140	BB4#,HZB50..RHD..HRF..WC..DSL NO.1	01/1993 - 06/1995	1
88716-36320	BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN NO.1	07/1999 - 08/2001	1
88716-36320	HZB50..WC..ARL NO.1	07/1999 - 11/2002	1
88716-36260	BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN NO.2	07/1999 - 08/2001	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-36260	HZB50..WC..ARL NO.2	07/1999 - 11/2002	1
88716-36260	BB4#,50,HZB50..RHD..HRF..WC..CBU NO.2	01/1993 - 07/1999	1
88716-36320	BB4#,50,HZB50..RHD..HRF..WC..CBU NO.1	06/1995 - 07/1999	1
88716-36140	BB4#,HZB50..RHD..HRF..WC..DSL NO.1	01/1993 - 06/1995	1
88716-36320	BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN NO.1	07/1999 - 08/2001	1
88716-36320	HZB50..WC..ARL NO.1	07/1999 - 11/2002	1
88716-36260	BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN NO.2	07/1999 - 08/2001	1
Common parts
88718-1A560
88718-87640
88899-33030
90044-64009
90091-20609
90099-05284
90099-14120
90099-14122
90099-19249
90099-19250
90179-06274
91651-60616
91651-B0820
93385-16016
93385-16025

HZB50R-ZEMSSQ (1993)

ILLUST NO. 1 OF 5(9301- )HZB50..19S,20S,22S,30S

ILLUST NO. 3 OF 5(9301-1501)RHD..4FC,5F..DSL,TD

ILLUST NO. 1 OF 5(9506- )BB4#,50,59,HZB50,XZB40,5#..RHD

ILLUST NO. 2 OF 5(9506- )BB4#,5#,HZB50,RZB40,50,TRB40,50,XZB40,5#

ILLUST NO. 2 OF 5(9301- )HZB50..19S,20S,22S,30S

ILLUST NO. 5 OF 5(9301- )

ILLUST NO. 2 OF 5(0108- )BZB40,50

Part Price Details
