Toyota Coaster HZB50 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
GR
COASTER
HZB50R-ZEMSSQ (1993)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

HZB50R-ZEMSSQ (1993)

Toyota Coaster

Production Jan 1993 - Nov 2002

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

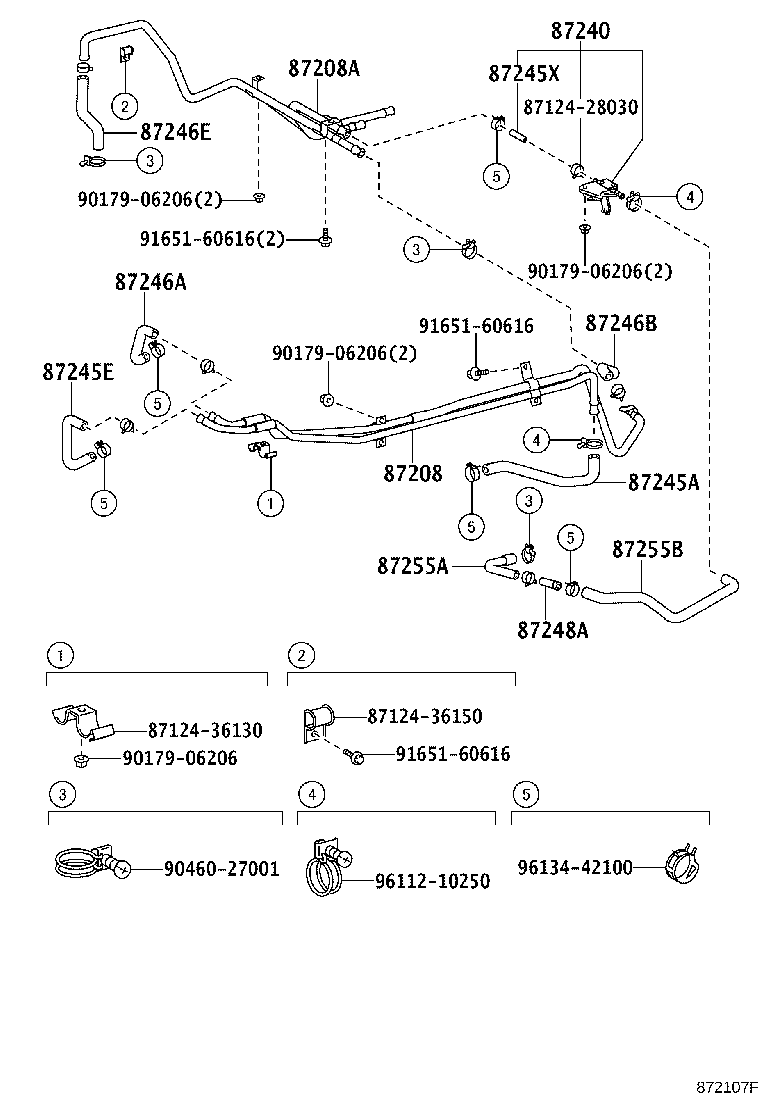

ILLUST NO. 1 OF 3(9301-9907)HZB50..RHD..ARL,GEN

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36370	HZB50..RHD	01/1993 - 05/1997	1
87208-36371	HZB50..RHD	05/1997 - 07/1999	1
87208-36372	HZB50..ARL	07/1999 - 11/2002	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..LHD..STD..WC;HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 01/1994	1
87208-36190	BB42..WC..GCC;BB42..LHD..WOC;BB42..RHD..GEN;BB40,RZB40,50..ARL,GCC	01/1993 - 05/1995	1
87208-36460	HZB50..LHD..STD..(EUR,GEN);HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..RHD..(ARL,EUR,GEN);HZB50..LHD..STD..WC..(EUR,GEN)	01/1994 - 05/1995	1
87208-36730	BB42..RHD..GEN;RZB40,50..HRF..GCC;BB42,RZB40,50..LHD..SRF;BB40,5#..STD..(ARL,GEN)	05/1997 - 07/1999	1
87208-36190	BB42..RHD..GEN;BB42,RZB40,50..LHD..SRF;BB40,50,RZB40,50..HRF..(ARL,EUR,GCC)	05/1995 - 05/1997	1
87208-36461	HZB50..RHD..5F;HZB50..LHD..STD..GEN	05/1997 - 07/1999	1
87208-36462	HZB50..ARL	07/1999 - 11/2002	1
87240 - VALVE ASSY, HEATER WATER
87240-36120	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87240-36030	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER)	01/1993 - 05/1997	1
87240-36130	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87245A - HOSE, HEATER WATER, INLET A
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36230	HZB50..RHD..TD	01/1993 - 05/1996	1
87245-36271	HZB50	05/1997 - 07/1999	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-3C541	BB42..WOC..GCC;BB42,50..19S,22S	07/1999 - 08/2001	1
87245-36272	HZB50..ARL	07/1999 - 11/2002	1
87245E - HOSE, HEATER WATER, INLET E
87245-3B391	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B391	HZB50..ARL	07/1999 - 11/2002	1
87245-3B390	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B390	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245X - HOSE, HEATER WATER
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3B400	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3C370	HZB50..ARL	07/1999 - 11/2002	1
87245-3B401	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3B410	BB42..RHD..GEN;BB40,HZB50..RHD	01/1993 - 05/1997	1
87245-3C440	BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3C380	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3B480	HZB50	01/1993 - 05/1997	1
87245-3B481	HZB50	05/1997 - 07/1999	1
87245-3C451	BB42..WOC..GCC;BB42,50..19S,22S FR MANUAL HEATER,W/O(FILTER)	07/1999 - 08/2001	1
87248A - PIPE, HEATER WATER INLET, A
87248-14090	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87248-36300	HZB50..LHD..EX;HZB50..WOC..ARL;HZB50..LHD..WOC;BB50..6F..TDEFI;HZB50..LHD..SRF..WC;BB50,58..LHD..(20S,23S,30S);HZB50..HRF..(DX,STD)..WC..5F	07/1999 - 11/2002	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-36250	HZB50..RHD..TD	01/1993 - 05/1996	1
87245-3B620	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87245-3C080	RZB40,50	09/1993 - 07/1999	1
87245-3B621	HZB50..ARL	07/1999 - 11/2002	1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-36261	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 05/1997	1
87245-36262	HZB50..5F	05/1997 - 07/1999	1
87245-36263	HZB50..ARL	07/1999 - 11/2002	1
Common parts
87124-28030
87124-36130
87124-36150
90179-06206
90460-27001
91651-60616
96112-10250
96134-42100

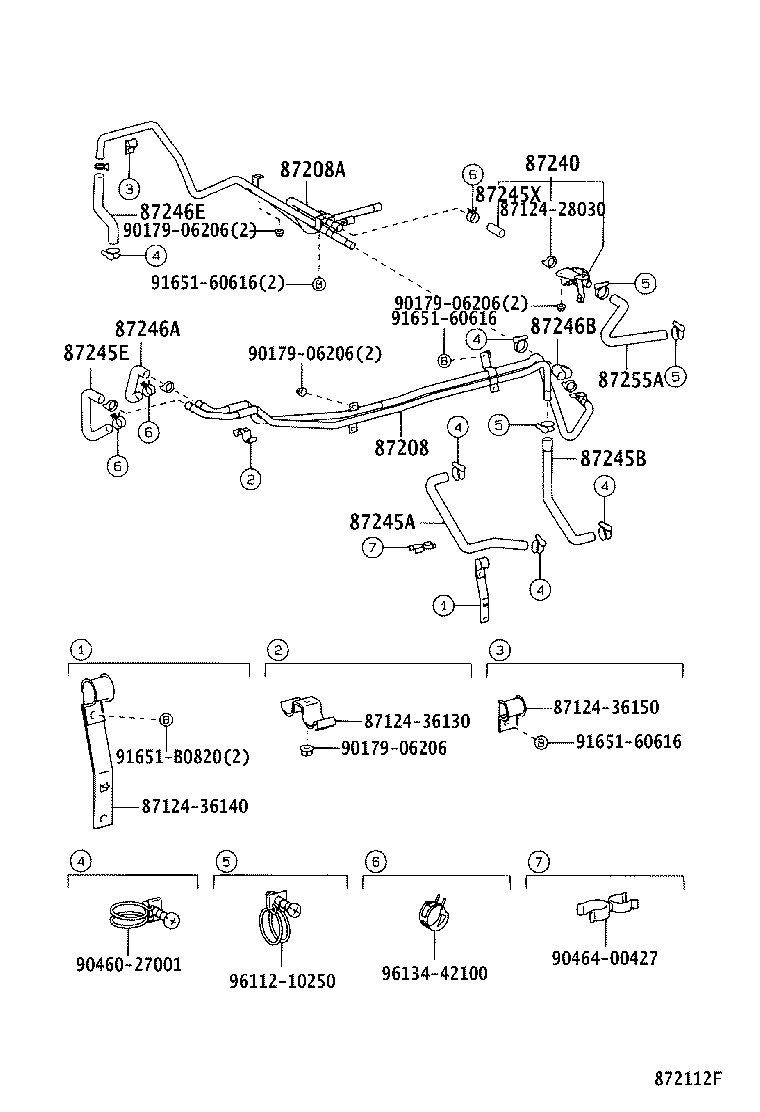

ILLUST NO. 1 OF 3(9301-9907)HZB50..RHD..TD

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36370	HZB50..RHD	01/1993 - 05/1997	1
87208-36371	HZB50..RHD	05/1997 - 07/1999	1
87208-36372	HZB50..ARL	07/1999 - 11/2002	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..LHD..STD..WC;HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 01/1994	1
87208-36190	BB42..WC..GCC;BB42..LHD..WOC;BB42..RHD..GEN;BB40,RZB40,50..ARL,GCC	01/1993 - 05/1995	1
87208-36460	HZB50..LHD..STD..(EUR,GEN);HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..RHD..(ARL,EUR,GEN);HZB50..LHD..STD..WC..(EUR,GEN)	01/1994 - 05/1995	1
87208-36730	BB42..RHD..GEN;RZB40,50..HRF..GCC;BB42,RZB40,50..LHD..SRF;BB40,5#..STD..(ARL,GEN)	05/1997 - 07/1999	1
87208-36190	BB42..RHD..GEN;BB42,RZB40,50..LHD..SRF;BB40,50,RZB40,50..HRF..(ARL,EUR,GCC)	05/1995 - 05/1997	1
87208-36461	HZB50..RHD..5F;HZB50..LHD..STD..GEN	05/1997 - 07/1999	1
87208-36462	HZB50..ARL	07/1999 - 11/2002	1
87240 - VALVE ASSY, HEATER WATER
87240-36120	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87240-36030	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER)	01/1993 - 05/1997	1
87240-36130	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87245A - HOSE, HEATER WATER, INLET A
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36230	HZB50..RHD..TD	01/1993 - 05/1996	1
87245-36271	HZB50	05/1997 - 07/1999	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-3C541	BB42..WOC..GCC;BB42,50..19S,22S	07/1999 - 08/2001	1
87245-36272	HZB50..ARL	07/1999 - 11/2002	1
87245B - HOSE, HEATER WATER, INLET B
87245-36210	HZB50..RHD..TD;HZB50..LHD..STD..WC..GEN..5F;BB42,HZB50..LHD..SRF..WOC..GEN	01/1993 - 11/1996	1
87245-3C360	HZB50..ARL	07/1999 - 11/2002	1
87245E - HOSE, HEATER WATER, INLET E
87245-3B391	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B391	HZB50..ARL	07/1999 - 11/2002	1
87245-3B390	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B390	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245X - HOSE, HEATER WATER
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3B400	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3C370	HZB50..ARL	07/1999 - 11/2002	1
87245-3B401	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3B410	BB42..RHD..GEN;BB40,HZB50..RHD	01/1993 - 05/1997	1
87245-3C440	BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3C380	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3B480	HZB50	01/1993 - 05/1997	1
87245-3B481	HZB50	05/1997 - 07/1999	1
87245-3C451	BB42..WOC..GCC;BB42,50..19S,22S FR MANUAL HEATER,W/O(FILTER)	07/1999 - 08/2001	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-36250	HZB50..RHD..TD	01/1993 - 05/1996	1
87245-3B620	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87245-3C080	RZB40,50	09/1993 - 07/1999	1
87245-3B621	HZB50..ARL	07/1999 - 11/2002	1
Common parts
87124-28030
87124-36130
87124-36140
87124-36150
90179-06206
90460-27001
90464-00427
91651-60616
91651-B0820
96112-10250
96134-42100

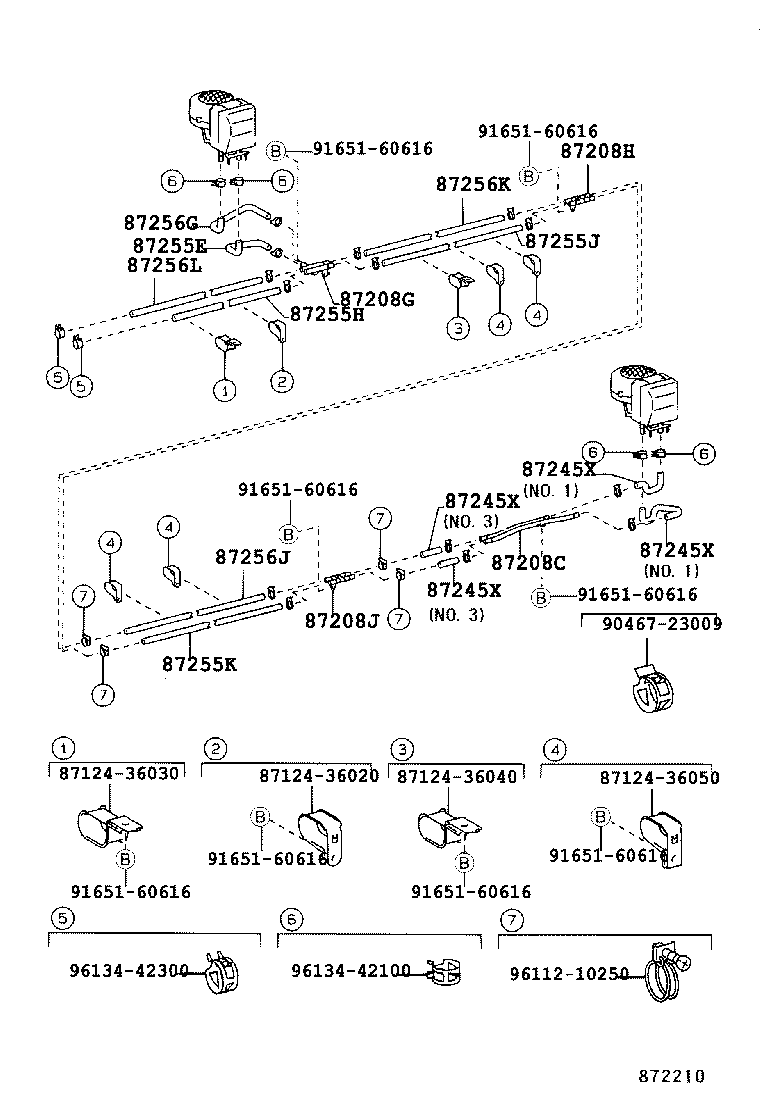

ILLUST NO. 2 OF 3(9301-9907)HZB50..RHD..DX,STD..DSL

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-36350	HZB50..RHD..(DX,STD)	01/1993 - 08/1993	1
87208-36350	HZB50..RHD..(DX,STD)..5F..DSL	08/1993 - 05/1997	1
87208-36690	HZB50..RHD..(DX,STD)..5F	05/1997 - 07/1999	1
87208G - PIPE SUB-ASSY, HEATER WATER, G
87208-36540	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87208-36550	HZB50..RHD..TD;BB42,HZB50,RZB40,50..LHD..CBU	08/1993 - 05/1995	1
87208-36540	BB50,HZB50..LHD..EUR;BB40,42,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 07/1999	1
87208-36550	RZB40,50;BB42..LHD..WC;BB42..WOC..GCC;HZB50..SRF..GCC;BB50,HZB50..RHD..TD;HZB50..LHD..HRF..DSL	05/1995 - 05/1997	1
87208-36670	BB50..WOC..5F;BB50..LHD..CBU;BB5#,HZB50,RZB50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87208-36670	BB50..LHD..CBU;BB58,HZB50,RZB50	08/2001 - 11/2002	1
87208H - PIPE SUB-ASSY, HEATER WATER, H
87208-36530	HZB50,RZB50..ARL,EUR,GCC,GEN	01/1993 - 05/1995	1
87208-36530	BB50,RZB50;HZB50..LHD..HRF;HZB50..SRF..GCC;HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36670	BB50..WOC..5F;HZB50..RHD..5F;HZB50..SRF..GCC;BB50,HZB50..LHD..HRF..CBU;BB42,5#,RZB40,50..DSL,EFI,TDEFI	07/1999 - 08/2001	1
87208-36670	HZB50..HRF;BB50..LHD..CBU;HZB50..SRF..GCC;BB42,58,RZB40,50	08/2001 - 11/2002	1
87208-36670	HZB50..RHD..5F;HZB50..LHD..HRF;HZB50..SRF..GCC;BB5#,RZB50..STD..(GCC,GEN)	05/1997 - 07/1999	1
87208J - PIPE SUB-ASSY, HEATER WATER, J
87208-36670	HZB50..5F;BB42,5#,RZB40,50..LHD..(GCC,GEN)	05/1997 - 07/1999	1
87208-36530	HZB50..30S..4FC;BB50,HZB50..LHD..TD;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	08/1993 - 05/1997	1
87208-36530	BB4#,HZB50..ARL,EUR,GCC,GEN	01/1993 - 08/1993	1
87208-36690	HZB50..ARL	08/2001 - 11/2002	1
87208-36690	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI)	07/1999 - 08/2001	1
87245X - HOSE, HEATER WATER
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245X - HOSE, HEATER WATER
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245X - HOSE, HEATER WATER
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245X - HOSE, HEATER WATER
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)	01/1993 - 08/1993	1
87245-3B681	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL	08/1993 - 05/1997	1
87245-3B671	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3C560	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3C560	HZB50..ARL NO.2	08/2001 - 11/2002	1
87245-3B671	HZB50..ARL NO.1	08/2001 - 11/2002	1
87255H - HOSE, HEATER WATER INLET, H
87245-3B661	BB40,42,HZB50..RHD..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B660	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87245-3C690	BB50..WOC..5F;BB50..LHD..CBU;BB42,5#,HZB50,RZB40,50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-3B660	BB4#,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 05/1997	1
87245-3C690	BB50..LHD..CBU;BB42,58,HZB50,RZB40,50	08/2001 - 11/2002	1
87255J - HOSE, HEATER WATER INLET, J
99556-31000	HZB50..30S..4FC;BB50,HZB50,RZB50..(ARL,EUR,GCC,GEN)..5F *H,L=980	01/1993 - 05/1997	1
87245-3C710	HZB50..ARL	08/2001 - 11/2002	1
87245-3C710	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI)	07/1999 - 08/2001	1
87245-3C700	BB50..STD..GEN;BB58,HZB50,RZB50..5F	05/1997 - 07/1999	1
87255K - HOSE, REAR HEATER WATER INLET, K
99556-31000	HZB50..30S..4FC;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F *H,L=720	09/1993 - 05/1997	1
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,GCC,GEN *H,L=720	08/1993 - 09/1993	1
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,EUR,GCC,GEN *H,L=720	01/1993 - 08/1993	1
87245-3C690	BB40,42,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87256G - HOSE, REAR HEATER WATER OUTLET, G
87245-3B670	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)	01/1993 - 08/1993	1
87245-3B670	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL	08/1993 - 05/1997	1
87245-3B671	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B671	HZB50..ARL	07/1999 - 11/2002	1
87256J - HOSE, REAR HEATER WATER OUTLRT, J
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,GCC,GEN *H,L=720	08/1993 - 09/1993	1
87245-3C690	BB40,42,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,EUR,GCC,GEN *H,L=720	01/1993 - 08/1993	1
99556-31000	HZB50..30S..4FC;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F *H,L=720	09/1993 - 05/1997	1
87256K - HOSE, REAR HEATER WATER OUTLET, K
99556-31000	HZB50..30S..4FC;BB50,HZB50,RZB50..(ARL,EUR,GCC,GEN)..5F *H,L=980	01/1993 - 05/1997	1
87245-3C700	BB50..STD..GEN;BB58,HZB50,RZB50..5F	05/1997 - 07/1999	1
87256L - HOSE, REAR HEATER WATER OUTLET, L
87245-3B650	BB4#,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 05/1997	1
87245-3B650	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87245-3B651	BB40,42,HZB50..RHD..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B651	HZB50..ARL	07/1999 - 11/2002	1
Common parts
87124-36020
87124-36030
87124-36040
87124-36050
90467-23009
91651-60616
96112-10250
96134-42100
96134-42300

ILLUST NO. 2 OF 3(9301-9907)HZB50..RHD..ARL,GEN

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87208G - PIPE SUB-ASSY, HEATER WATER, G
87208-36540	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87208-36550	HZB50..RHD..TD;BB42,HZB50,RZB40,50..LHD..CBU	08/1993 - 05/1995	1
87208-36540	BB50,HZB50..LHD..EUR;BB40,42,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 07/1999	1
87208-36550	RZB40,50;BB42..LHD..WC;BB42..WOC..GCC;HZB50..SRF..GCC;BB50,HZB50..RHD..TD;HZB50..LHD..HRF..DSL	05/1995 - 05/1997	1
87208-36670	BB50..WOC..5F;BB50..LHD..CBU;BB5#,HZB50,RZB50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87208-36670	BB50..LHD..CBU;BB58,HZB50,RZB50	08/2001 - 11/2002	1
87208H - PIPE SUB-ASSY, HEATER WATER, H
87208-36530	HZB50,RZB50..ARL,EUR,GCC,GEN	01/1993 - 05/1995	1
87208-36530	BB50,RZB50;HZB50..LHD..HRF;HZB50..SRF..GCC;HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36670	BB50..WOC..5F;HZB50..RHD..5F;HZB50..SRF..GCC;BB50,HZB50..LHD..HRF..CBU;BB42,5#,RZB40,50..DSL,EFI,TDEFI	07/1999 - 08/2001	1
87208-36670	HZB50..HRF;BB50..LHD..CBU;HZB50..SRF..GCC;BB42,58,RZB40,50	08/2001 - 11/2002	1
87208-36670	HZB50..RHD..5F;HZB50..LHD..HRF;HZB50..SRF..GCC;BB5#,RZB50..STD..(GCC,GEN)	05/1997 - 07/1999	1
87208J - PIPE SUB-ASSY, HEATER WATER, J
87208-36670	HZB50..5F;BB42,5#,RZB40,50..LHD..(GCC,GEN)	05/1997 - 07/1999	1
87208-36530	HZB50..30S..4FC;BB50,HZB50..LHD..TD;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	08/1993 - 05/1997	1
87208-36530	BB4#,HZB50..ARL,EUR,GCC,GEN	01/1993 - 08/1993	1
87208-36690	HZB50..ARL	08/2001 - 11/2002	1
87208-36690	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI)	07/1999 - 08/2001	1
87245X - HOSE, HEATER WATER
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245X - HOSE, HEATER WATER
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)	01/1993 - 08/1993	1
87245-3B681	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL	08/1993 - 05/1997	1
87245-3B671	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3C560	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3C560	HZB50..ARL NO.2	08/2001 - 11/2002	1
87245-3B671	HZB50..ARL NO.1	08/2001 - 11/2002	1
87255H - HOSE, HEATER WATER INLET, H
87245-3B661	BB40,42,HZB50..RHD..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B660	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87245-3C690	BB50..WOC..5F;BB50..LHD..CBU;BB42,5#,HZB50,RZB40,50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-3B660	BB4#,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 05/1997	1
87245-3C690	BB50..LHD..CBU;BB42,58,HZB50,RZB40,50	08/2001 - 11/2002	1
87255J - HOSE, HEATER WATER INLET, J
99556-31000	HZB50..30S..4FC;BB50,HZB50,RZB50..(ARL,EUR,GCC,GEN)..5F *H,L=980	01/1993 - 05/1997	1
87245-3C710	HZB50..ARL	08/2001 - 11/2002	1
87245-3C710	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI)	07/1999 - 08/2001	1
87245-3C700	BB50..STD..GEN;BB58,HZB50,RZB50..5F	05/1997 - 07/1999	1
87255K - HOSE, REAR HEATER WATER INLET, K
99556-31000	HZB50..30S..4FC;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F *H,L=720	09/1993 - 05/1997	1
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,GCC,GEN *H,L=720	08/1993 - 09/1993	1
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,EUR,GCC,GEN *H,L=720	01/1993 - 08/1993	1
87245-3C690	BB40,42,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87256G - HOSE, REAR HEATER WATER OUTLET, G
87245-3B670	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)	01/1993 - 08/1993	1
87245-3B670	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL	08/1993 - 05/1997	1
87245-3B671	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B671	HZB50..ARL	07/1999 - 11/2002	1
87256J - HOSE, REAR HEATER WATER OUTLRT, J
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,GCC,GEN *H,L=720	08/1993 - 09/1993	1
87245-3C690	BB40,42,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,EUR,GCC,GEN *H,L=720	01/1993 - 08/1993	1
99556-31000	HZB50..30S..4FC;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F *H,L=720	09/1993 - 05/1997	1
87256K - HOSE, REAR HEATER WATER OUTLET, K
99556-31000	HZB50..30S..4FC;BB50,HZB50,RZB50..(ARL,EUR,GCC,GEN)..5F *H,L=980	01/1993 - 05/1997	1
87245-3C700	BB50..STD..GEN;BB58,HZB50,RZB50..5F	05/1997 - 07/1999	1
87256L - HOSE, REAR HEATER WATER OUTLET, L
87245-3B650	BB4#,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 05/1997	1
87245-3B650	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87245-3B651	BB40,42,HZB50..RHD..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B651	HZB50..ARL	07/1999 - 11/2002	1
Common parts
87124-36020
87124-36030
87124-36050
90467-23009
91651-60616
96112-10250
96134-42100
96134-42300

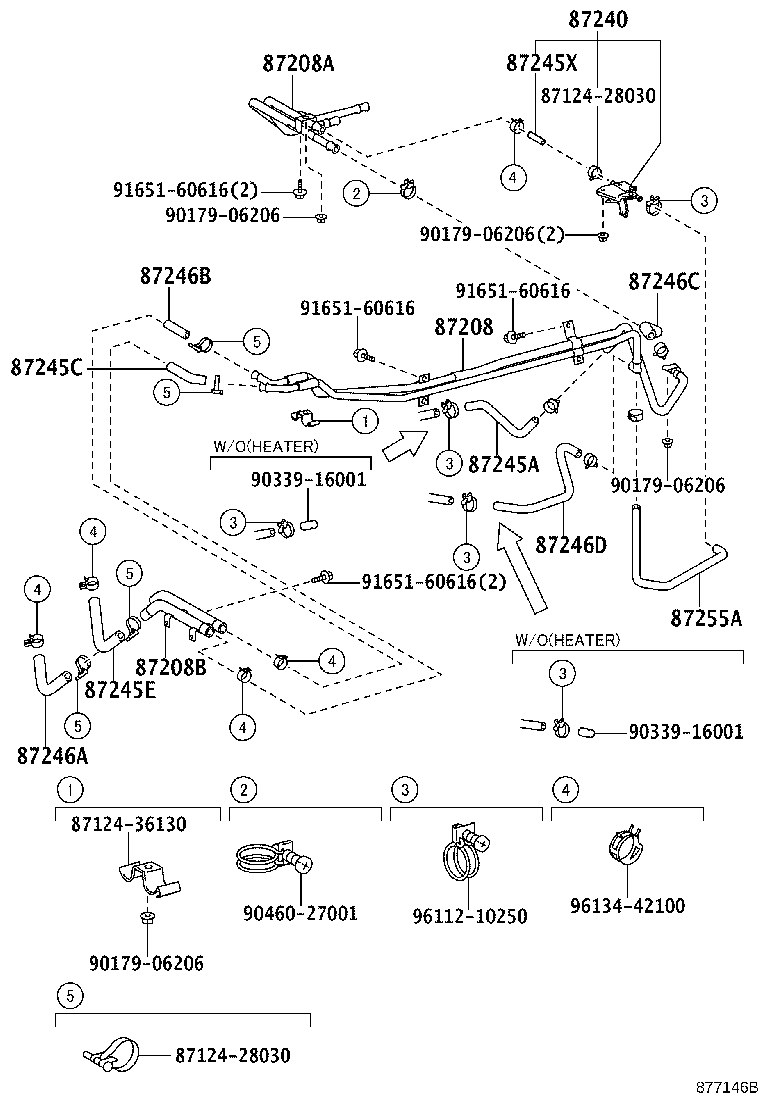

ILLUST NO. 1 OF 3(9301-9907)BB4#,5#,RZB40,50

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36370	HZB50..RHD	01/1993 - 05/1997	1
87208-36371	HZB50..RHD	05/1997 - 07/1999	1
87208-36372	HZB50..ARL	07/1999 - 11/2002	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..LHD..STD..WC;HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 01/1994	1
87208-36190	BB42..WC..GCC;BB42..LHD..WOC;BB42..RHD..GEN;BB40,RZB40,50..ARL,GCC	01/1993 - 05/1995	1
87208-36460	HZB50..LHD..STD..(EUR,GEN);HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..RHD..(ARL,EUR,GEN);HZB50..LHD..STD..WC..(EUR,GEN)	01/1994 - 05/1995	1
87208-36730	BB42..RHD..GEN;RZB40,50..HRF..GCC;BB42,RZB40,50..LHD..SRF;BB40,5#..STD..(ARL,GEN)	05/1997 - 07/1999	1
87208-36190	BB42..RHD..GEN;BB42,RZB40,50..LHD..SRF;BB40,50,RZB40,50..HRF..(ARL,EUR,GCC)	05/1995 - 05/1997	1
87208-36461	HZB50..RHD..5F;HZB50..LHD..STD..GEN	05/1997 - 07/1999	1
87208-36462	HZB50..ARL	07/1999 - 11/2002	1
87240 - VALVE ASSY, HEATER WATER
87240-36120	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87240-36030	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER)	01/1993 - 05/1997	1
87240-36130	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87245A - HOSE, HEATER WATER, INLET A
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36230	HZB50..RHD..TD	01/1993 - 05/1996	1
87245-36271	HZB50	05/1997 - 07/1999	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-3C541	BB42..WOC..GCC;BB42,50..19S,22S	07/1999 - 08/2001	1
87245-36272	HZB50..ARL	07/1999 - 11/2002	1
87245E - HOSE, HEATER WATER, INLET E
87245-3B391	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B391	HZB50..ARL	07/1999 - 11/2002	1
87245-3B390	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B390	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245X - HOSE, HEATER WATER
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3B400	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3C370	HZB50..ARL	07/1999 - 11/2002	1
87245-3B401	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3B410	BB42..RHD..GEN;BB40,HZB50..RHD	01/1993 - 05/1997	1
87245-3C440	BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3C380	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-3B481	HZB50..ARL	07/1999 - 11/2002	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-3B461	RZB40,50	05/1997 - 07/1999	1
87245-3B460	RZB40,50	09/1993 - 05/1997	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-36250	HZB50..RHD..TD	01/1993 - 05/1996	1
87245-3B620	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87245-3C080	RZB40,50	09/1993 - 07/1999	1
87245-3B621	HZB50..ARL	07/1999 - 11/2002	1
Common parts
87124-28030
87124-36130
90179-06206
90339-16001
90460-27001
91651-60616
96112-10250
96134-42100

ILLUST NO. 1 OF 3(9401-9907)RZB40,50

Click highlighted areas on diagram

FRONT ONLY

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36370	HZB50..RHD	01/1993 - 05/1997	1
87208-36371	HZB50..RHD	05/1997 - 07/1999	1
87208-36372	HZB50..ARL	07/1999 - 11/2002	1
87245A - HOSE, HEATER WATER, INLET A
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36230	HZB50..RHD..TD	01/1993 - 05/1996	1
87245-36271	HZB50	05/1997 - 07/1999	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-3C541	BB42..WOC..GCC;BB42,50..19S,22S	07/1999 - 08/2001	1
87245-36272	HZB50..ARL	07/1999 - 11/2002	1
87245E - HOSE, HEATER WATER, INLET E
87245-3B391	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B391	HZB50..ARL	07/1999 - 11/2002	1
87245-3B390	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B390	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3B400	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3C370	HZB50..ARL	07/1999 - 11/2002	1
87245-3B401	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3B410	BB42..RHD..GEN;BB40,HZB50..RHD	01/1993 - 05/1997	1
87245-3C440	BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3C380	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-3B461	RZB40,50	05/1997 - 07/1999	1
87245-3B460	RZB40,50	09/1993 - 05/1997	1
Common parts
87124-28030
87124-36130
90179-06206
90339-16001
90339-18001
91651-60616
96112-10250
96134-42100
96134-42300

HZB50R-ZEMSSQ (1993)

ILLUST NO. 1 OF 3(9301-9907)HZB50..RHD..ARL,GEN

ILLUST NO. 1 OF 3(9301-9907)HZB50..RHD..TD

ILLUST NO. 2 OF 3(9301-9907)HZB50..RHD..DX,STD..DSL

ILLUST NO. 2 OF 3(9301-9907)HZB50..RHD..ARL,GEN

ILLUST NO. 1 OF 3(9301-9907)BB4#,5#,RZB40,50

ILLUST NO. 1 OF 3(9401-9907)RZB40,50

Part Price Details
