HZB50R-ZEMSSQ (1993)
Toyota Coaster

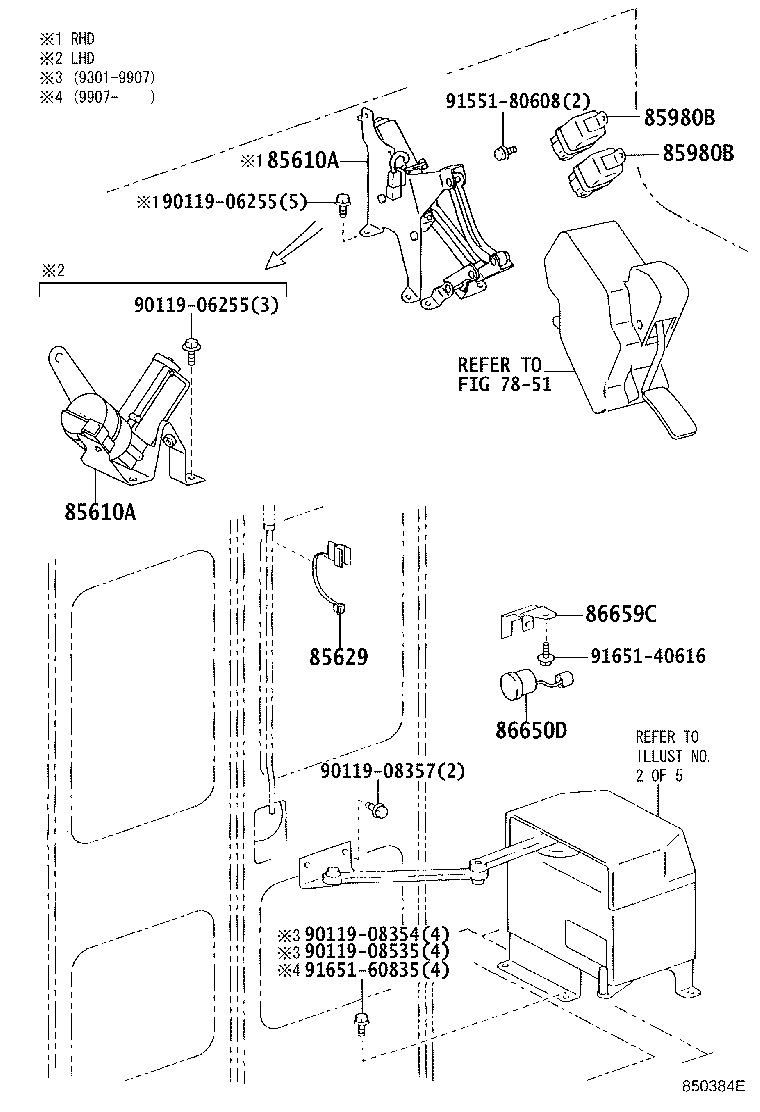

ILLUST NO. 1 OF 5(9301-1209)
FOLDING TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85610A - ACTUATOR ASSY, ACCEL INTER LOCK | ||||
| 85610-36020 |
HZB50..RHD..(DX,EX);BB42,43,50..RHD..CBU;HZB50..RHD..STD..GEN..5F |
1 | ||
| 85610-36030 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
1 | ||
| 85610-36030 |
RZB40,50 12V |
1 | ||
| 85610-36020 |
BB4#,HZB50..RHD..DSL |
1 | ||
| 85610-36060 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 85610-36041 |
BB42..WOC..GCC;BB42,50..19S,22S |
1 | ||
| 85610-36060 |
HZB50..ARL |
1 | ||
| 85610A - ACTUATOR ASSY, ACCEL INTER LOCK | ||||
| 85610-36020 |
HZB50..RHD..(DX,EX);BB42,43,50..RHD..CBU;HZB50..RHD..STD..GEN..5F |
1 | ||
| 85610-36030 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
1 | ||
| 85610-36030 |
RZB40,50 12V |
1 | ||
| 85610-36020 |
BB4#,HZB50..RHD..DSL |
1 | ||
| 85610-36060 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 85610-36041 |
BB42..WOC..GCC;BB42,50..19S,22S |
1 | ||
| 85610-36060 |
HZB50..ARL |
1 | ||
| 85629 - HOLDER, AUTOMATIC DOOR | ||||
| 85629-90B01 |
BB50..EX;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50..STD..(ARL,GCC,GEN) |
1 | ||
| 85629-90B01 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..26S..WC;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50..HRF..STD..WC..5F;BB50,58,BZB40,RZB50..17S,23S,30S;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 85629-90B01 |
HZB50..SCO;BB4#,HZB50,RZB40,50..STD..CBU |
1 | ||
| 85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR) | ||||
| 85980-36090 |
BB40;BB42..WC;HZB50..WOC..ARL;HZB50..HRF..WC..DSL;HZB50..LHD..SRF..WC 24V |
1 | ||
| 85980-36090 |
BB40;BB42..WC;HZB50..WOC..ARL;HZB50..LHD..SRF..WC;HZB50..HRF..(20S,22S,30S)..(EX,STD)..WC 24V |
1 | ||
| 88630-14010 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
2 | ||
| 85980-36090 |
HZB50..SCO;BB4#,HZB50..STD..(ARL,GCC,GEN) 24V |
2 | ||
| 88630-14010 |
RZB40,50 12V |
2 | ||
| 85980-36090 |
BB42..WOC..GCC;BB42,50..19S,22S 24V |
2 | ||
| 85980-36110 |
HZB50..ARL |
1 | ||
| 85980-36090 |
BB4#,HZB50..19S,20S,22S,26S,30S 24V |
2 | ||
| 85980-36110 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 88630-14010 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
2 | ||
| 85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR) | ||||
| 85980-36090 |
BB40;BB42..WC;HZB50..WOC..ARL;HZB50..HRF..WC..DSL;HZB50..LHD..SRF..WC 24V |
1 | ||
| 85980-36090 |
BB40;BB42..WC;HZB50..WOC..ARL;HZB50..LHD..SRF..WC;HZB50..HRF..(20S,22S,30S)..(EX,STD)..WC 24V |
1 | ||
| 88630-14010 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
2 | ||
| 85980-36090 |
HZB50..SCO;BB4#,HZB50..STD..(ARL,GCC,GEN) 24V |
2 | ||
| 88630-14010 |
RZB40,50 12V |
2 | ||
| 85980-36090 |
BB42..WOC..GCC;BB42,50..19S,22S 24V |
2 | ||
| 85980-36110 |
HZB50..ARL |
1 | ||
| 85980-36090 |
BB4#,HZB50..19S,20S,22S,26S,30S 24V |
2 | ||
| 85980-36110 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 88630-14010 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
2 | ||
| 86650D - BUZZER ASSY | ||||
| 86650-36060 |
BB4#,5#,HZB50..ARL,GCC,GEN,SCO 24V |
1 | ||
| 86650-36060 |
BB4#,5#,HZB50..CBU 24V |
1 | ||
| 86650-36050 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 86650-36050 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
1 | ||
| 86650-36060 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..WOC..ARL;BB5#..GEN..TDEFI;BB50..LHD..CBU..5F;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50..HRF..(DX,STD)..WC..5F 24V |
1 | ||
| 86650-36060 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 86659C - BRACKET, BUZZER, AUTOMATIC DOOR | ||||
| 86659-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 86659-36010 |
BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO |
1 | ||
| 86659-36010 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB5#,BZB40,RZB50..(CHI,GCC,GEN)..(EFI,LPG,TDEFI) |
1 | ||
| Common parts | ||||
| 90119-06255 | ||||
| 90119-08354 | ||||
| 90119-08357 | ||||
| 90119-08535 | ||||
| 91551-80608 | ||||
| 91651-40616 | ||||
| 91651-60835 | ||||
| Linked diagrams | ||||
| 7851 | ||||

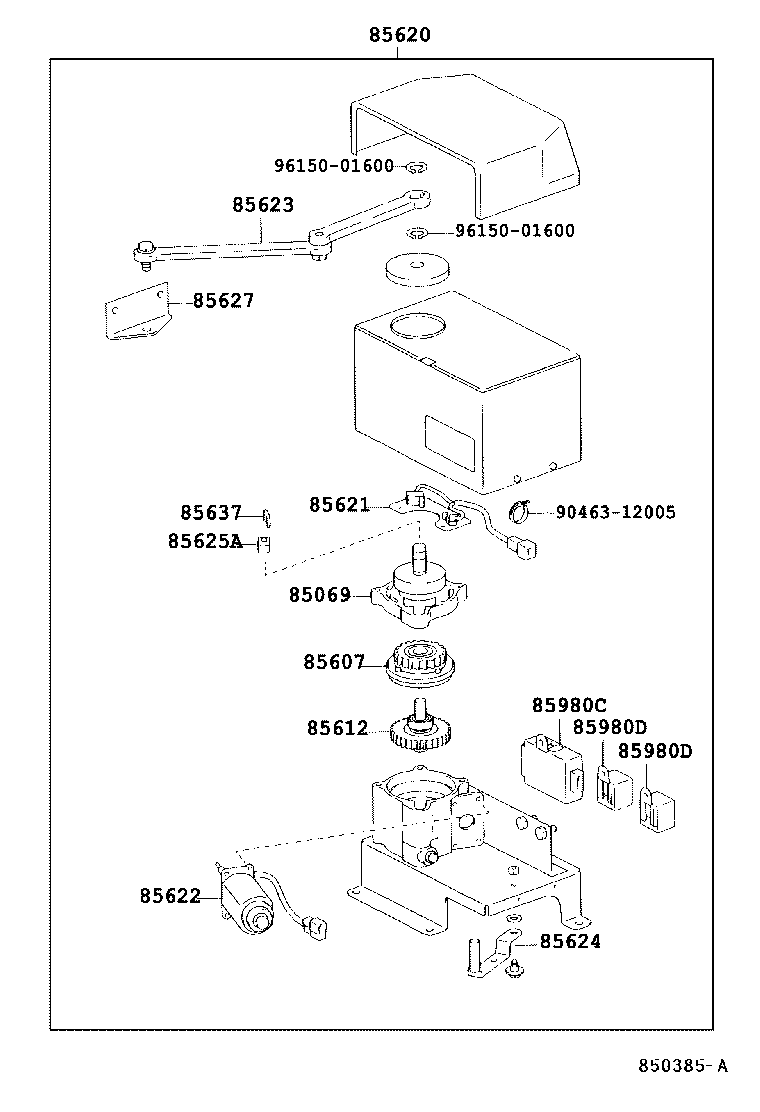

ILLUST NO. 2 OF 5(9301-1209)
FOLDING TYPE UNIT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85069 - HOUSING SUB-ASSY, AUTO DOOR | ||||
| 85069-36020 |
BB50..EX;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50..STD..(ARL,GCC,GEN) FOLDING ELECTRIC AUTO DOOR,W(BUZZER) |
1 | ||
| 85069-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..26S..WC;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50..HRF..STD..WC..5F;BB50,58,BZB40,RZB50..17S,23S,30S;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) FOLDING ELECTRIC AUTO DOOR,W(BUZZER) |
1 | ||
| 85069-36020 |
HZB50..SCO;BB4#,HZB50,RZB40,50..STD..CBU FOLDING ELECTRIC AUTO DOOR,W(BUZZER) |
1 | ||
| 85607 - GEAR SUB-ASSY, IDLE | ||||
| 85607-36010 |
BB50..EX;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50..STD..(ARL,GCC,GEN) FOLDING AUTO DOOR |
1 | ||
| 85607-36010 |
HZB50..SCO;BB4#,HZB50,RZB40,50..STD..CBU FOLDING AUTO DOOR |
1 | ||
| 85607-36010 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..26S..WC;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50..HRF..STD..WC..5F;BB50,58,BZB40,RZB50..17S,23S,30S;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) FOLDING AUTO DOOR |
1 | ||
| 85612 - GEAR, AUTOMATIC DOOR WORM WHEEL | ||||
| 85612-36011 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..26S..WC;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50..HRF..STD..WC..5F;BB50,58,BZB40,RZB50..17S,23S,30S;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 85612-36010 |
BB4#,HZB50,RZB40,50..STD..CBU |
1 | ||
| 85612-36011 |
BB50..EX;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50..STD..(ARL,GCC,GEN) |
1 | ||
| 85612-36010 |
HZB50..SCO;BB4#,HZB50..STD..DSL |
1 | ||
| 85612-36011 |
BB4#,HZB50,RZB40,50..STD..CBU |
1 | ||
| 85620 - MOTOR ASSY, AUTOMATIC DOOR REGULATOR | ||||
| 85620-36130 |
RZB40,50..STD |
1 | ||
| 85620-36120 |
BB4#,HZB50..RHD..STD..DSL |
1 | ||
| 85620-36160 |
BB4#,HZB50..RHD..STD..DSL |
1 | ||
| 85620-36170 |
RZB40,50..STD |
1 | ||
| 85620-36160 |
BB4#,HZB50..RHD..STD..(ARL,GEN) |
1 | ||
| 85620-36161 |
HZB50..RHD..STD;BB4#,50..RHD..CBU FOLDING AUTO DOOR |
1 | ||
| 85620-36171 |
RZB40,50..STD;BB42,HZB50..LHD..WOC FOLDING AUTO DOOR |
1 | ||
| 85620-36161 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN FOLDING AUTO DOOR |
1 | ||
| 85620-36161 |
HZB50..STD..ARL FOLDING AUTO DOOR |
1 | ||
| 85621 - MOTOR & LINK, AUTOMATIC DOOR REGULATOR | ||||
| 85621-36020 |
HZB50..SCO;BB4#,HZB50..RHD..STD..DSL FOLDING INTER LOCK |
1 | ||
| 85621-36021 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN FOLDING INTER LOCK |
1 | ||
| 85621-36020 |
HZB50..RHD..STD;BB4#,50..RHD..(ARL,GEN) FOLDING INTER LOCK |
1 | ||
| 85621-36021 |
HZB50..STD..ARL FOLDING INTER LOCK |
1 | ||
| 85621-36021 |
HZB50..RHD..STD;BB4#,50..RHD..CBU FOLDING INTER LOCK |
1 | ||
| 85622 - MOTOR & GEAR, AUTOMATIC DOOR REGULATOR | ||||
| 85622-36040 |
BB4#,HZB50..RHD..STD..DSL 24V,FOLDING DOOR |
1 | ||
| 85622-36040 |
HZB50..RHD..STD;BB4#,50..RHD..(ARL,GEN) 24V,FOLDING DOOR |
1 | ||
| 85622-36050 |
RZB40,50..STD;BB42,HZB50..LHD..WOC..DSL 12V,FOLDING DOOR |
1 | ||
| 85622-36040 |
HZB50..STD..ARL 24V,FOLDING DOOR |
1 | ||
| 85622-36040 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN 24V,FOLDING DOOR |
1 | ||
| 85623 - LINK, AUTOMATIC DOOR REGULATOR | ||||
| 85623-36021 |
BB4#,HZB50,RZB40,50..STD..CBU |
1 | ||
| 85623-36020 |
HZB50..SCO;BB4#,HZB50,RZB40,50..STD..CBU FOLDING AUTO DOOR |
1 | ||
| 85623-36021 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..26S..WC;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50..HRF..STD..WC..5F;BB50,58,BZB40,RZB50..17S,23S,30S;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) FOLDING AUTO DOOR |
1 | ||
| 85623-36021 |
BB50..EX;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50..STD..(ARL,GCC,GEN) FOLDING AUTO DOOR |
1 | ||
| 85624 - LEVER, AUTOMATIC DOOR REGULATOR, NO.1 | ||||
| 85624-36010 |
BB50..EX;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50..STD..(ARL,GCC,GEN) FOLDING AUTO DOOR |
1 | ||
| 85624-36010 |
HZB50..SCO;BB4#,HZB50,RZB40,50..STD..CBU FOLDING AUTO DOOR |
1 | ||
| 85624-36010 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..26S..WC;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50..HRF..STD..WC..5F;BB50,58,BZB40,RZB50..17S,23S,30S;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) FOLDING AUTO DOOR |
1 | ||
| 85625A - RACK, AUTOMATIC DOOR | ||||
| 85625-36020 |
BB50..EX;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50..STD..(ARL,GCC,GEN) FOLDING AUTO DOOR |
1 | ||
| 85625-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..26S..WC;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50..HRF..STD..WC..5F;BB50,58,BZB40,RZB50..17S,23S,30S;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) FOLDING AUTO DOOR |
1 | ||
| 85625-36020 |
HZB50..SCO;BB4#,HZB50,RZB40,50..STD..CBU FOLDING AUTO DOOR |
1 | ||
| 85627 - STAY, AUTOMATIC DOOR REGULATOR | ||||
| 85627-36010 |
HZB50..SCO;BB4#,HZB50,RZB40,50..STD..CBU |
1 | ||
| 85627-36011 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..26S..WC;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50..HRF..STD..WC..5F;BB50,58,BZB40,RZB50..17S,23S,30S;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 85627-36011 |
BB50..EX;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50..STD..(ARL,GCC,GEN) |
1 | ||
| 85627-36011 |
HZB50..SCO;BB4#,HZB50,RZB40,50..STD..CBU |
1 | ||
| 85637 - REMOVER, AUTOMATIC DOOR | ||||
| 85637-90B00 |
BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN |
1 | ||
| 85637-90B00 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 85637-90B00 |
BB4#,5#,HZB50,RZB40,50..(ARL,GCC,GEN)..CBU |
1 | ||
| 85637-90B00 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB5#,BZB40,RZB50..(CHI,GCC,GEN)..(EFI,LPG,TDEFI) |
1 | ||
| 85980C - RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR) | ||||
| 85980-36060 |
RZB40,50..STD;BB42,HZB50..LHD..WOC..DSL FOLDING AUTO DOOR,12V |
1 | ||
| 85980-36050 |
BB4#,HZB50..RHD..STD..DSL |
1 | ||
| 85980-36050 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN FOLDING AUTO DOOR |
1 | ||
| 85980-36050 |
HZB50..RHD..STD;BB4#,50..RHD..(ARL,GEN) FOLDING AUTO DOOR |
1 | ||
| 85980-36050 |
HZB50..STD..ARL FOLDING AUTO DOOR |
1 | ||
| 85980D - RELAY ASSY, DOOR CONTROL, NO.3 (FOR AUTOMATIC DOOR) | ||||
| 88630-14010 |
RZB40,50..STD;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) FOLDING AUTO DOOR |
2 | ||
| 85980-36080 |
HZB50..SCO;BB4#,HZB50..STD..DSL |
2 | ||
| 85980-36080 |
BB4#,HZB50..STD..DSL |
2 | ||
| 85980-36080 |
BB50..EX;BB50..WOC..GEN;BB4#,58,HZB50..STD..(ARL,GCC,GEN) |
2 | ||
| 88630-14010 |
RZB40,50..STD;BB42,HZB50..LHD..WOC..DSL FOLDING AUTO DOOR |
2 | ||
| 85980-36080 |
BB50,HZB50..STD..(ARL,CHI) |
2 | ||
| 85980D - RELAY ASSY, DOOR CONTROL, NO.3 (FOR AUTOMATIC DOOR) | ||||
| 88630-14010 |
RZB40,50..STD;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) FOLDING AUTO DOOR |
2 | ||
| 85980-36080 |
HZB50..SCO;BB4#,HZB50..STD..DSL |
2 | ||
| 85980-36080 |
BB4#,HZB50..STD..DSL |
2 | ||
| 85980-36080 |
BB50..EX;BB50..WOC..GEN;BB4#,58,HZB50..STD..(ARL,GCC,GEN) |
2 | ||
| 88630-14010 |
RZB40,50..STD;BB42,HZB50..LHD..WOC..DSL FOLDING AUTO DOOR |
2 | ||
| 85980-36080 |
BB50,HZB50..STD..(ARL,CHI) |
2 | ||
| Common parts | ||||
| 90463-12005 | ||||
| 96150-01600 | ||||

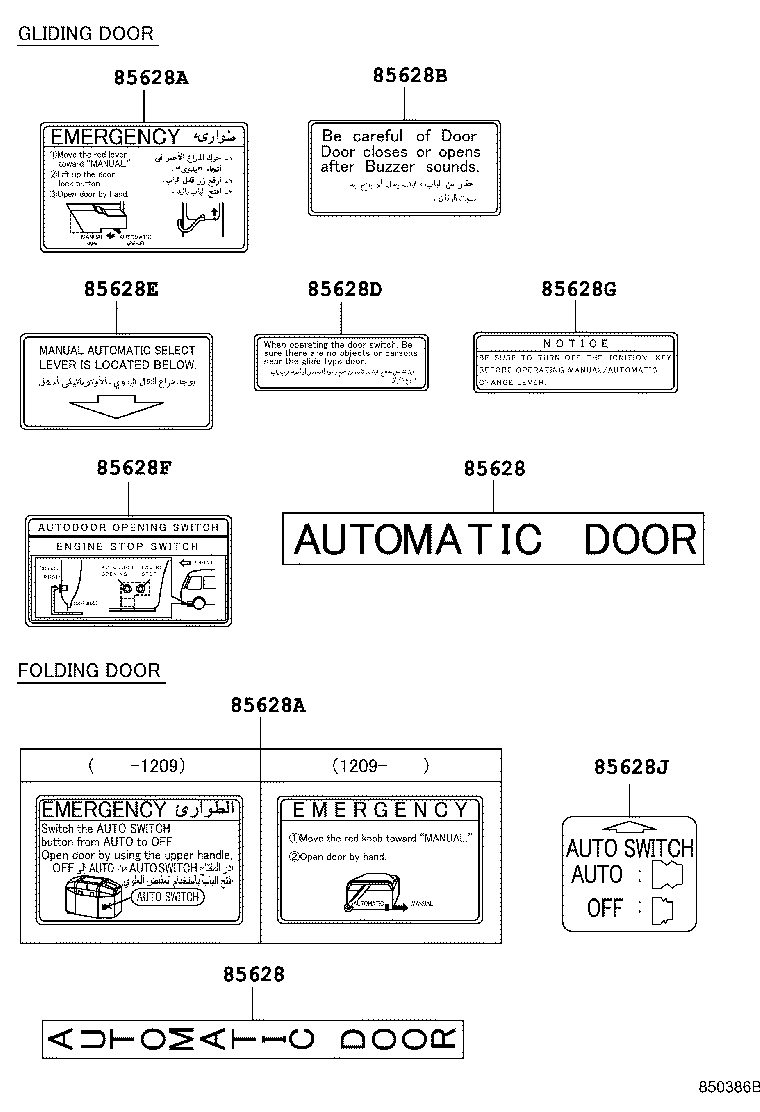

ILLUST NO. 3 OF 5(9301- )
LABEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85628 - LABEL, AUTOMATIC DOOR, NO.1 | ||||
| 85628-90B03 |
BB50..EX;HZB50..SCO;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50..STD..CBU FOLDING AUTO DOOR |
1 | ||
| 85628-90B03 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..26S..WC;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50..HRF..STD..WC..5F;BB50,58,BZB40,RZB50..17S,23S,30S;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) FOLDING AUTO DOOR |
1 | ||
| 85628 - LABEL, AUTOMATIC DOOR, NO.1 | ||||
| 85628-90B03 |
BB50..EX;HZB50..SCO;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50..STD..CBU FOLDING AUTO DOOR |
1 | ||
| 85628-90B03 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..26S..WC;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50..HRF..STD..WC..5F;BB50,58,BZB40,RZB50..17S,23S,30S;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) FOLDING AUTO DOOR |
1 | ||
| 85628A - LABEL, AUTOMATIC DOOR, NO.2 | ||||
| 85628-36050 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..STD..DSL FOLDING AUTO DOOR |
1 | ||
| 85628-36050 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN FOLDING AUTO DOOR |
1 | ||
| 85628-36050 |
HZB50..STD..ARL FOLDING AUTO DOOR |
1 | ||
| 85628A - LABEL, AUTOMATIC DOOR, NO.2 | ||||
| 85628-36050 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..STD..DSL FOLDING AUTO DOOR |
1 | ||
| 85628-36050 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN FOLDING AUTO DOOR |
1 | ||
| 85628-36050 |
HZB50..STD..ARL FOLDING AUTO DOOR |
1 | ||
| 85628F - LABEL, AUTOMATIC DOOR | ||||
| 85628-36121 |
BB40,HZB50..ARL |
1 | ||
| 85628-36111 |
BB43,50..RHD..5F |
1 | ||
| 85628-36120 |
BB40,HZB50..ARL |
1 | ||
| 85628-36121 |
HZB50..ARL |
1 | ||

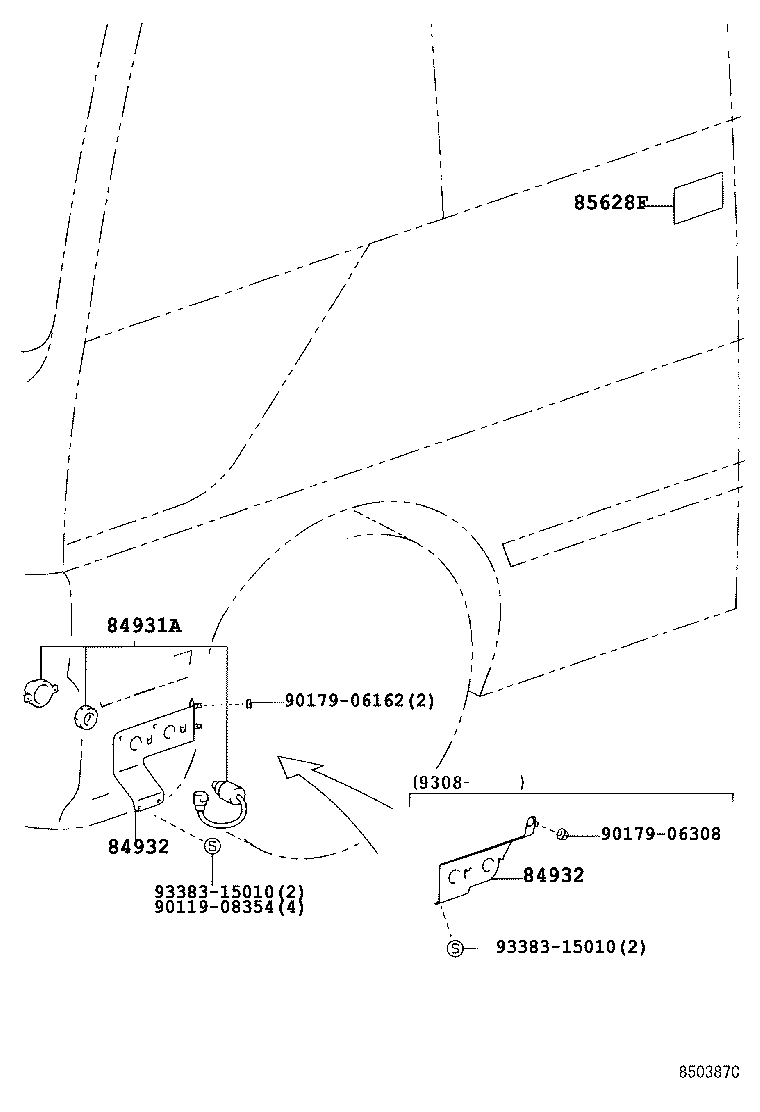

ILLUST NO. 4 OF 5(9301-1501)
AUTO DOOR OPENING SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84931A - SWITCH, AUTOMATIC DOOR CONTROL | ||||
| 84931-36010 |
HZB50..ARL,SCO;BB4#,50..17S,19S,20S |
1 | ||
| 84931-36010 |
BB50..EX..GEN;BB43,HZB50..(17S,22S)..5F |
1 | ||
| 84931-36010 |
HZB50..ARL |
1 | ||
| 84932 - BRACKET, DOOR CONTROL SWITCH | ||||
| 84932-36011 |
HZB50..ARL,SCO;BB4#,50..17S,19S,20S |
1 | ||
| 84932-36011 |
HZB50..ARL |
1 | ||
| 84932-36010 |
BB4#,HZB50..ARL,SCO |
1 | ||
| 84932-36011 |
BB43,50..RHD..5F |
1 | ||
| 84932 - BRACKET, DOOR CONTROL SWITCH | ||||
| 84932-36011 |
HZB50..ARL,SCO;BB4#,50..17S,19S,20S |
1 | ||
| 84932-36011 |
HZB50..ARL |
1 | ||
| 84932-36010 |
BB4#,HZB50..ARL,SCO |
1 | ||
| 84932-36011 |
BB43,50..RHD..5F |
1 | ||
| 85628F - LABEL, AUTOMATIC DOOR | ||||
| 85628-36121 |
BB40,HZB50..ARL |
1 | ||
| 85628-36111 |
BB43,50..RHD..5F |
1 | ||
| 85628-36120 |
BB40,HZB50..ARL |
1 | ||
| 85628-36121 |
HZB50..ARL |
1 | ||
| Common parts | ||||
| 90119-08354 | ||||
| 90179-06162 | ||||
| 90179-06308 | ||||
| 93383-15010 | ||||
ILLUST NO. 1 OF 5(9301-1209)
GLIDING TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85610A - ACTUATOR ASSY, ACCEL INTER LOCK | ||||
| 85610-36020 |
HZB50..RHD..(DX,EX);BB42,43,50..RHD..CBU;HZB50..RHD..STD..GEN..5F |
1 | ||
| 85610-36030 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
1 | ||
| 85610-36030 |
RZB40,50 12V |
1 | ||
| 85610-36020 |
BB4#,HZB50..RHD..DSL |
1 | ||
| 85610-36060 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 85610-36041 |
BB42..WOC..GCC;BB42,50..19S,22S |
1 | ||
| 85610-36060 |
HZB50..ARL |
1 | ||
| 85610A - ACTUATOR ASSY, ACCEL INTER LOCK | ||||
| 85610-36020 |
HZB50..RHD..(DX,EX);BB42,43,50..RHD..CBU;HZB50..RHD..STD..GEN..5F |
1 | ||
| 85610-36030 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
1 | ||
| 85610-36030 |
RZB40,50 12V |
1 | ||
| 85610-36020 |
BB4#,HZB50..RHD..DSL |
1 | ||
| 85610-36060 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 85610-36041 |
BB42..WOC..GCC;BB42,50..19S,22S |
1 | ||
| 85610-36060 |
HZB50..ARL |
1 | ||
| 85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR) | ||||
| 85980-36090 |
BB40;BB42..WC;HZB50..WOC..ARL;HZB50..HRF..WC..DSL;HZB50..LHD..SRF..WC 24V |
1 | ||
| 85980-36090 |
BB40;BB42..WC;HZB50..WOC..ARL;HZB50..LHD..SRF..WC;HZB50..HRF..(20S,22S,30S)..(EX,STD)..WC 24V |
1 | ||
| 88630-14010 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
2 | ||
| 85980-36090 |
HZB50..SCO;BB4#,HZB50..STD..(ARL,GCC,GEN) 24V |
2 | ||
| 88630-14010 |
RZB40,50 12V |
2 | ||
| 85980-36090 |
BB42..WOC..GCC;BB42,50..19S,22S 24V |
2 | ||
| 85980-36110 |
HZB50..ARL |
1 | ||
| 85980-36090 |
BB4#,HZB50..19S,20S,22S,26S,30S 24V |
2 | ||
| 85980-36110 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 88630-14010 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
2 | ||
| 85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR) | ||||
| 85980-36090 |
BB40;BB42..WC;HZB50..WOC..ARL;HZB50..HRF..WC..DSL;HZB50..LHD..SRF..WC 24V |
1 | ||
| 85980-36090 |
BB40;BB42..WC;HZB50..WOC..ARL;HZB50..LHD..SRF..WC;HZB50..HRF..(20S,22S,30S)..(EX,STD)..WC 24V |
1 | ||
| 88630-14010 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
2 | ||
| 85980-36090 |
HZB50..SCO;BB4#,HZB50..STD..(ARL,GCC,GEN) 24V |
2 | ||
| 88630-14010 |
RZB40,50 12V |
2 | ||
| 85980-36090 |
BB42..WOC..GCC;BB42,50..19S,22S 24V |
2 | ||
| 85980-36110 |
HZB50..ARL |
1 | ||
| 85980-36090 |
BB4#,HZB50..19S,20S,22S,26S,30S 24V |
2 | ||
| 85980-36110 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 88630-14010 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
2 | ||
| 86650D - BUZZER ASSY | ||||
| 86650-36060 |
BB4#,5#,HZB50..ARL,GCC,GEN,SCO 24V |
1 | ||
| 86650-36060 |
BB4#,5#,HZB50..CBU 24V |
1 | ||
| 86650-36050 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 86650-36050 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
1 | ||
| 86650-36060 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..WOC..ARL;BB5#..GEN..TDEFI;BB50..LHD..CBU..5F;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50..HRF..(DX,STD)..WC..5F 24V |
1 | ||
| 86650-36060 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 86659C - BRACKET, BUZZER, AUTOMATIC DOOR | ||||
| 86659-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 86659-36010 |
BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO |
1 | ||
| 86659-36010 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB5#,BZB40,RZB50..(CHI,GCC,GEN)..(EFI,LPG,TDEFI) |
1 | ||
| Common parts | ||||
| 90109-06122 | ||||
| 90119-06255 | ||||
| 90119-08511 | ||||
| 90202-08039 | ||||
| 91551-80608 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 7851 | ||||
ILLUST NO. 2 OF 5(9301- )
GLIDING TYPE UNIT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85069 - HOUSING SUB-ASSY, AUTO DOOR | ||||
| 85069-36020 |
BB50..EX;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50..STD..(ARL,GCC,GEN) FOLDING ELECTRIC AUTO DOOR,W(BUZZER) |
1 | ||
| 85069-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..26S..WC;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50..HRF..STD..WC..5F;BB50,58,BZB40,RZB50..17S,23S,30S;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) FOLDING ELECTRIC AUTO DOOR,W(BUZZER) |
1 | ||
| 85069-36020 |
HZB50..SCO;BB4#,HZB50,RZB40,50..STD..CBU FOLDING ELECTRIC AUTO DOOR,W(BUZZER) |
1 | ||
| 85607 - GEAR SUB-ASSY, IDLE | ||||
| 85607-36010 |
BB50..EX;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50..STD..(ARL,GCC,GEN) FOLDING AUTO DOOR |
1 | ||
| 85607-36010 |
HZB50..SCO;BB4#,HZB50,RZB40,50..STD..CBU FOLDING AUTO DOOR |
1 | ||
| 85607-36010 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..26S..WC;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50..HRF..STD..WC..5F;BB50,58,BZB40,RZB50..17S,23S,30S;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) FOLDING AUTO DOOR |
1 | ||
| 85620 - MOTOR ASSY, AUTOMATIC DOOR REGULATOR | ||||
| 85620-36130 |
RZB40,50..STD |
1 | ||
| 85620-36120 |
BB4#,HZB50..RHD..STD..DSL |
1 | ||
| 85620-36160 |
BB4#,HZB50..RHD..STD..DSL |
1 | ||
| 85620-36170 |
RZB40,50..STD |
1 | ||
| 85620-36160 |
BB4#,HZB50..RHD..STD..(ARL,GEN) |
1 | ||
| 85620-36161 |
HZB50..RHD..STD;BB4#,50..RHD..CBU FOLDING AUTO DOOR |
1 | ||
| 85620-36171 |
RZB40,50..STD;BB42,HZB50..LHD..WOC FOLDING AUTO DOOR |
1 | ||
| 85620-36161 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN FOLDING AUTO DOOR |
1 | ||
| 85620-36161 |
HZB50..STD..ARL FOLDING AUTO DOOR |
1 | ||
| 85621 - MOTOR & LINK, AUTOMATIC DOOR REGULATOR | ||||
| 85621-36020 |
HZB50..SCO;BB4#,HZB50..RHD..STD..DSL FOLDING INTER LOCK |
1 | ||
| 85621-36021 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN FOLDING INTER LOCK |
1 | ||
| 85621-36020 |
HZB50..RHD..STD;BB4#,50..RHD..(ARL,GEN) FOLDING INTER LOCK |
1 | ||
| 85621-36021 |
HZB50..STD..ARL FOLDING INTER LOCK |
1 | ||
| 85621-36021 |
HZB50..RHD..STD;BB4#,50..RHD..CBU FOLDING INTER LOCK |
1 | ||
| 85622 - MOTOR & GEAR, AUTOMATIC DOOR REGULATOR | ||||
| 85622-36040 |
BB4#,HZB50..RHD..STD..DSL 24V,FOLDING DOOR |
1 | ||
| 85622-36040 |
HZB50..RHD..STD;BB4#,50..RHD..(ARL,GEN) 24V,FOLDING DOOR |
1 | ||
| 85622-36050 |
RZB40,50..STD;BB42,HZB50..LHD..WOC..DSL 12V,FOLDING DOOR |
1 | ||
| 85622-36040 |
HZB50..STD..ARL 24V,FOLDING DOOR |
1 | ||
| 85622-36040 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN 24V,FOLDING DOOR |
1 | ||
| 85623 - LINK, AUTOMATIC DOOR REGULATOR | ||||
| 85623-36021 |
BB4#,HZB50,RZB40,50..STD..CBU |
1 | ||
| 85623-36020 |
HZB50..SCO;BB4#,HZB50,RZB40,50..STD..CBU FOLDING AUTO DOOR |
1 | ||
| 85623-36021 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..26S..WC;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50..HRF..STD..WC..5F;BB50,58,BZB40,RZB50..17S,23S,30S;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) FOLDING AUTO DOOR |
1 | ||
| 85623-36021 |
BB50..EX;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50..STD..(ARL,GCC,GEN) FOLDING AUTO DOOR |
1 | ||
| 85624 - LEVER, AUTOMATIC DOOR REGULATOR, NO.1 | ||||
| 85624-36010 |
BB50..EX;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50..STD..(ARL,GCC,GEN) FOLDING AUTO DOOR |
1 | ||
| 85624-36010 |
HZB50..SCO;BB4#,HZB50,RZB40,50..STD..CBU FOLDING AUTO DOOR |
1 | ||
| 85624-36010 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..26S..WC;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50..HRF..STD..WC..5F;BB50,58,BZB40,RZB50..17S,23S,30S;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) FOLDING AUTO DOOR |
1 | ||
| 85625A - RACK, AUTOMATIC DOOR | ||||
| 85625-36020 |
BB50..EX;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50..STD..(ARL,GCC,GEN) FOLDING AUTO DOOR |
1 | ||
| 85625-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..26S..WC;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50..HRF..STD..WC..5F;BB50,58,BZB40,RZB50..17S,23S,30S;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) FOLDING AUTO DOOR |
1 | ||
| 85625-36020 |
HZB50..SCO;BB4#,HZB50,RZB40,50..STD..CBU FOLDING AUTO DOOR |
1 | ||
| 85637 - REMOVER, AUTOMATIC DOOR | ||||
| 85637-90B00 |
BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN |
1 | ||
| 85637-90B00 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 85637-90B00 |
BB4#,5#,HZB50,RZB40,50..(ARL,GCC,GEN)..CBU |
1 | ||
| 85637-90B00 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN);BB5#,BZB40,RZB50..(CHI,GCC,GEN)..(EFI,LPG,TDEFI) |
1 | ||
| 85980C - RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR) | ||||
| 85980-36060 |
RZB40,50..STD;BB42,HZB50..LHD..WOC..DSL FOLDING AUTO DOOR,12V |
1 | ||
| 85980-36050 |
BB4#,HZB50..RHD..STD..DSL |
1 | ||
| 85980-36050 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN FOLDING AUTO DOOR |
1 | ||
| 85980-36050 |
HZB50..RHD..STD;BB4#,50..RHD..(ARL,GEN) FOLDING AUTO DOOR |
1 | ||
| 85980-36050 |
HZB50..STD..ARL FOLDING AUTO DOOR |
1 | ||
| 85980D - RELAY ASSY, DOOR CONTROL, NO.3 (FOR AUTOMATIC DOOR) | ||||
| 88630-14010 |
RZB40,50..STD;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) FOLDING AUTO DOOR |
2 | ||
| 85980-36080 |
HZB50..SCO;BB4#,HZB50..STD..DSL |
2 | ||
| 85980-36080 |
BB4#,HZB50..STD..DSL |
2 | ||
| 85980-36080 |
BB50..EX;BB50..WOC..GEN;BB4#,58,HZB50..STD..(ARL,GCC,GEN) |
2 | ||
| 88630-14010 |
RZB40,50..STD;BB42,HZB50..LHD..WOC..DSL FOLDING AUTO DOOR |
2 | ||
| 85980-36080 |
BB50,HZB50..STD..(ARL,CHI) |
2 | ||
| Common parts | ||||
| 90159-50131 | ||||
| 90463-12005 | ||||
| 90540-06004 | ||||
| 96150-01800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
