HZB50R-ZEMSSQ (1993)
Toyota Coaster

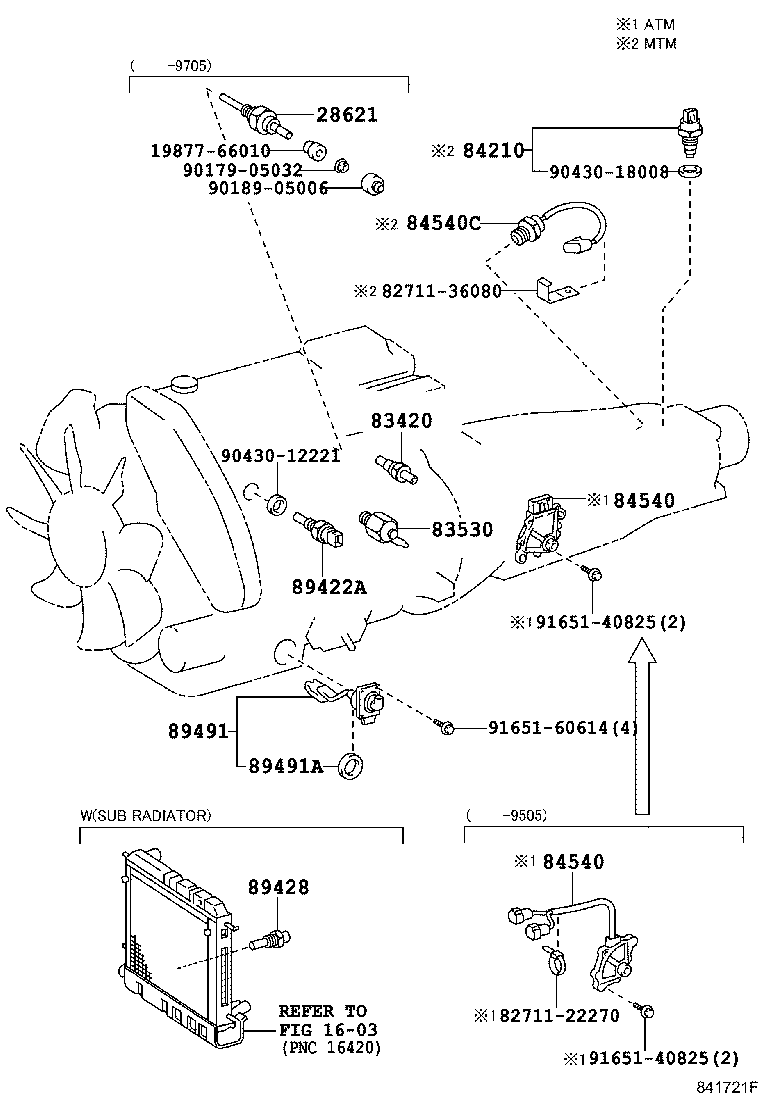

ILLUST NO. 1 OF 6(9301- )HZB50
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-68020 |
1HZT..HZB50;1HZ..HZB50..19S,22S |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
BB4#,5#,HZB50 |
1 | ||
| 83420-16050 |
RZB40,50 |
1 | ||
| 83420-16040 |
BB50,HZB50..ARL,CHI |
1 | ||
| 83420-16040 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 83420-20040 |
RZB40,50 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14060 |
RZB40,50 |
1 | ||
| 83530-30090 |
RZB40,50 |
1 | ||
| 83530-14030 |
HZB50 |
1 | ||
| 83530-28010 |
BB4#,5# |
1 | ||
| 83530-60010 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;BB42..RHD..HRF..WOC;BB4#,50..17S,19S,22S YAZAKI |
1 | ||
| 83530-28030 |
HZB50 |
1 | ||
| 83530-28010 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;BB42..RHD..HRF..WOC;BB4#,50..17S,19S,22S DENSO |
1 | ||
| 83530-14070 |
BB4#,5# |
1 | ||
| 83530-28020 |
RZB40,50 |
1 | ||
| 83530-28030 |
HZB50..ARL |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 84210-12040 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-36090 |
BB4#,5#,HZB50..5F |
1 | ||
| 84540-36090 |
BB50,HZB50..ARL,CHI |
1 | ||
| 84540-36090 |
BB50..WOC..5F;BB42..WOC..GCC;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB4#,50..17S,19S,22S;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-20010 |
BB40,5#;BB42..LHD..HRF..26S;BB42..LHD..WOC..GEN;BB42,HZB50..(17S,22S)..5F |
1 | ||
| 89422-20010 |
BB42..SCO;BB42..LHD..GEN;BB40,HZB50..ARL,EUR |
1 | ||
| 89422-20010 |
BB40,50;HZB50..TD;BB42..LHD..HRF..26S;BB42..LHD..WOC..GEN;BB42,HZB50..17S,22S |
1 | ||
| 89422-20010 |
BB40,43,5#;BB42,HZB50..17S,22S;BB42..LHD..HRF..26S;BB42..LHD..WOC..GEN |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-36090 |
RZB40,50 |
1 | ||
| 89491-36070 |
BB4#,5# |
1 | ||
| 89491-36080 |
HZB50 |
1 | ||
| 89491-60060 |
HZB50..ARL |
1 | ||
| 89491-36091 |
RZB40,50 |
1 | ||
| 89491-36070 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;BB42..RHD..HRF..WOC;BB4#,50..17S,19S,22S |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-27001 |
BB4#,HZB50,RZB40,50 |
1 | ||
| 89493-60010 |
HZB50,RZB40,50..ARL,CHI |
1 | ||
| 90430-27001 |
BB50,HZB50,RZB40,50 |
1 | ||
| 90430-27001 |
BB42..LHD..HRF..26S;BB43,5#,HZB50,RZB40,50 |
1 | ||
| 90430-27001 |
BB50..WOC..5F;BB43,50..RHD..5F;BB42,50..LHD..HRF..(19S,26S)..WC |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 82711-22270 | ||||
| 82711-36080 | ||||
| 90179-05032 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 91651-40825 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 1603 | ||||

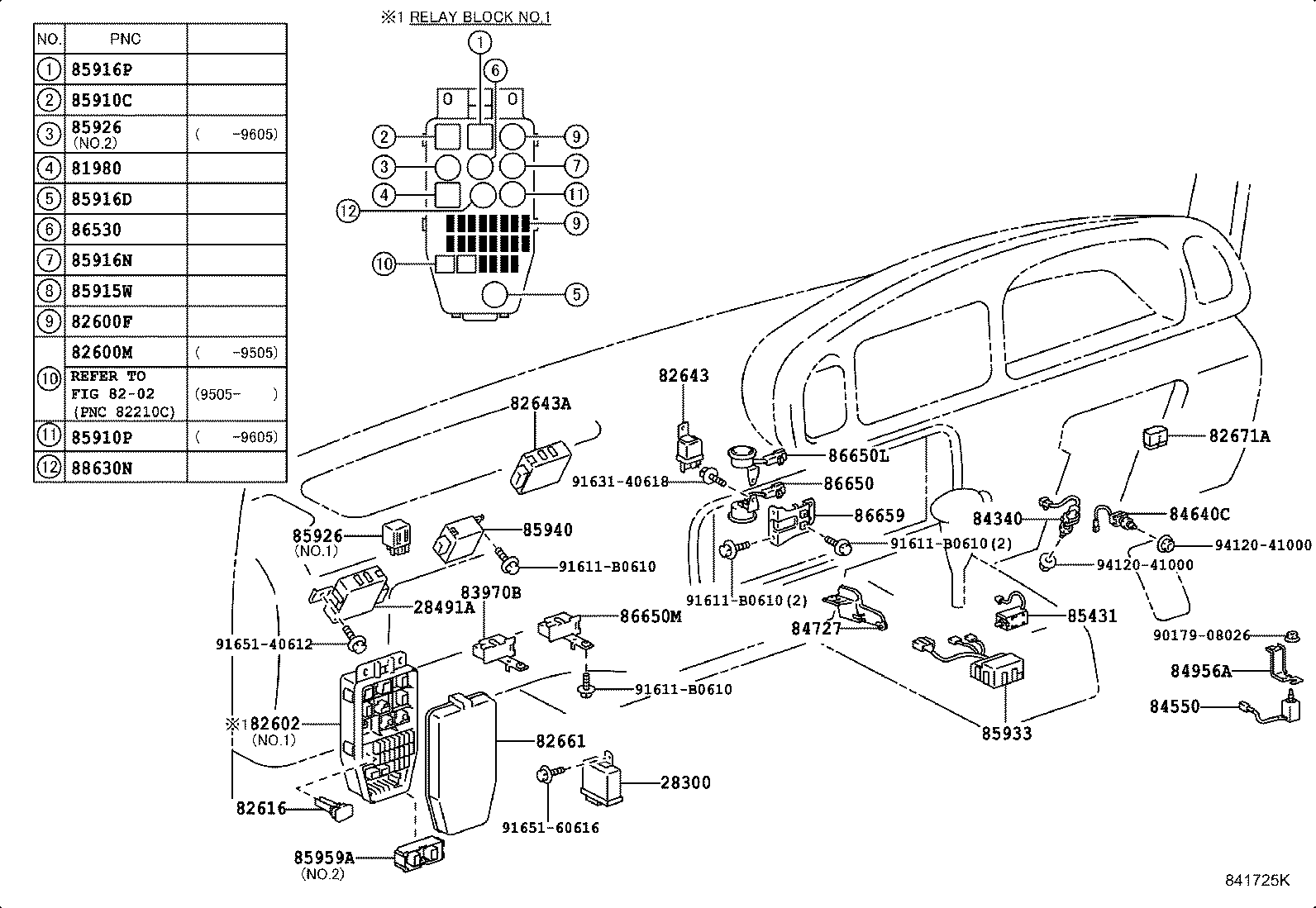

ILLUST NO. 2 OF 6(9301-0708)RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74534B - PLATE, VOLTAGE CAUTION | ||||
| 74534-90K00 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 74534-90K00 |
BB4#,5#,HZB50 |
1 | ||
| 74534-90K00 |
BB50,HZB50..ARL,CHI |
1 | ||
| 84110C - SWITCH ASSY, LIGHT CONTROL, NO.2 | ||||
| 84110-36050 |
HZB50..WC..TD |
3 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-60080 |
HZB50..TD |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-60080 |
HZB50..TD |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10100 |
HZB50..TD 24V 1.12W |
1 | ||
| 84170A - SWITCH ASSY, ROOM LAMP NO.1 | ||||
| 84170-36040 |
HZB50..TD FR |
1 | ||
| 84170-36040 |
BB4#,5#,HZB50..CBU 24V |
1 | ||
| 84170-36040 |
HZB50..ARL 24V |
1 | ||
| 84170-36040 |
BB4#,5#,HZB50..ARL,GCC,GEN,SCO 24V |
1 | ||
| 84170-36020 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 84170B - SWITCH ASSY, ROOM LAMP NO.2 | ||||
| 84170-36050 |
HZB50..TD RR |
1 | ||
| 84170-36050 |
BB4#,5#,HZB50..CBU 24V |
1 | ||
| 84170-36030 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 84170-36050 |
BB4#,5#,HZB50..ARL,GCC,GEN,SCO 24V |
1 | ||
| 84170-36050 |
BB50,HZB50..ARL,CHI 24V |
1 | ||
| 84170-36050 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 84170C - BULB,ROOM LAMP SWITCH | ||||
| 84999-10610 |
BB40,42,5#,HZB50..CBU 24V |
2 | ||
| 84999-10320 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
2 | ||
| 84999-10610 |
HZB50..TD;BB50..WOC..GEN 24V |
2 | ||
| 84999-10610 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
2 | ||
| 84999-10610 |
BB50,HZB50..ARL,CHI 24V |
2 | ||
| 84170C - BULB,ROOM LAMP SWITCH | ||||
| 84999-10610 |
BB40,42,5#,HZB50..CBU 24V |
2 | ||
| 84999-10320 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
2 | ||
| 84999-10610 |
HZB50..TD;BB50..WOC..GEN 24V |
2 | ||
| 84999-10610 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
2 | ||
| 84999-10610 |
BB50,HZB50..ARL,CHI 24V |
2 | ||
| 84170D - CAP BULB,ROOM LAMP SWITCH | ||||
| 84998-10270 |
BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO |
2 | ||
| 84998-10270 |
BB50..CBU;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50 |
2 | ||
| 84998-10270 |
BB50,HZB50,RZB40,50..ARL,CHI |
2 | ||
| 84170D - CAP BULB,ROOM LAMP SWITCH | ||||
| 84998-10270 |
BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO |
2 | ||
| 84998-10270 |
BB50..CBU;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50 |
2 | ||
| 84998-10270 |
BB50,HZB50,RZB40,50..ARL,CHI |
2 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-36090 |
BB4#,5#,HZB50 24V |
1 | ||
| 84332-36090 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 84332-36080 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 84332-36090 |
BB50,HZB50..ARL,CHI 24V |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10610 |
BB4#,5#,HZB50 28V 0.84W |
1 | ||
| 84999-10320 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 14V 0.84W |
1 | ||
| 84999-10610 |
BB50,HZB50..ARL,CHI 28V 0.84W |
1 | ||
| 84999-10610 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN 28V 0.84W |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 81936-32010 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL 14V 1.4W |
2 | ||
| 81936-32010 |
BB50,HZB50,RZB40,50..WC..(ARL,CHI) 14V 1.4W |
2 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 81936-32010 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL 14V 1.4W |
2 | ||
| 81936-32010 |
BB50,HZB50,RZB40,50..WC..(ARL,CHI) 14V 1.4W |
2 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-36070 |
HZB50..RHD..TD;BB40,50,HZB50..RHD..WOC..(ARL,EUR) 24V |
1 | ||
| 84732-36040 |
BB50..EX;BB4#,58,RZB40..WC;HZB50..HRF..WC..DSL;HZB50..LHD..SRF..WC;BB42,HZB50..LHD..WOC;BB50,RZB50..LHD..HRF..(EUR,GEN);HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD) 24V |
1 | ||
| 84732-36040 |
BB50,HZB50,RZB40,50..WC..(ARL,CHI) |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 84999-10590 |
RZB40..WC;RZB50..GCC;BB4#,5#,HZB50;RZB50..HRF..GEN 24V 2.0W |
1 | ||
| 84999-10590 |
BB50,HZB50,RZB40,50..ARL,CHI 24V 2.0W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
BB50,HZB50..ARL,CHI |
1 | ||
| 84998-10050 |
BB50..WOC..5F;HZB50..RHD..SRF;BB42,50..19S,22S;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 84998-10050 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-35010 |
BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD) |
1 | ||
| 84732-35010 |
BB50,HZB50,RZB40,50..WC..(ARL,CHI) |
1 | ||
| 84732-35010 |
HZB50..LHD..EX;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..RHD..HRF..WC..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC) |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-36050 |
HZB50..30S..4FC;HZB50..(ARL,EUR,GCC,GEN)..5F;BB40,42,5#..STD..(ARL,EUR,GCC,GEN) 24V |
1 | ||
| 84732-36080 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 84732-36050 |
BB50..WOC..5F;BB42..WOC..GCC;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,50..19S,22S;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 84732-36050 |
BB50,HZB50..ARL,CHI 24V |
1 | ||
| 84732B - BULB, REAR HEATER BLOWER SWITCH | ||||
| 84999-10590 |
HZB50..30S..4FC;HZB50..(ARL,EUR,GCC,GEN)..5F;BB40,42,5#..STD..(ARL,EUR,GCC,GEN) 24V 2.0W |
1 | ||
| 84999-10590 |
BB50..WOC..5F;BB42..WOC..GCC;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,50..19S,22S;BB42,HZB50..RHD..HRF..WOC..GEN 24V 2.0W |
1 | ||
| 90981-11014 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 14V 1.4W |
1 | ||
| 84999-10590 |
BB50,HZB50..ARL,CHI 24V 2.0W |
1 | ||
| 84732F - CAP, REAR HEATER BLOWER SWITCH | ||||
| 84998-10050 |
HZB50..30S..4FC;HZB50,RZB40..(ARL,EUR,GCC,GEN)..5F;BB40,42,5#,RZB50..STD..(ARL,EUR,GCC,GEN) |
1 | ||
| 84998-10050 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-36060 |
RZB40,50..WC;RZB40..WOC..GEN |
1 | ||
| 84790-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,50..19S,22S;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 84790-36030 |
BB42..WC..GCC;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F;BB40,42,50..STD..(ARL,GEN)..CBU |
1 | ||
| 84790-36030 |
BB50,HZB50..ARL,CHI |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
RZB40,50..WC;RZB40..WOC..GEN 14V 0.84W |
1 | ||
| 84999-10370 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,50..19S,22S;BB42,HZB50..RHD..HRF..WOC..GEN 28V 1.12W |
1 | ||
| 84999-10370 |
BB42..WC..GCC;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F;BB40,42,50..STD..(ARL,GEN)..CBU 28V 1.12W |
1 | ||
| 84999-10610 |
BB42..WC..GCC;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F;BB40,42,50..STD..(ARL,GEN)..CBU 28V 0.84W |
1 | ||
| 84999-10610 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,50..19S,22S;BB42,HZB50..RHD..HRF..WOC..GEN 28V 0.84W |
1 | ||
| 84999-10370 |
BB50,HZB50..ARL,CHI 28V 1.12W |
1 | ||
| 84999-10520 |
RZB40,50..WC;RZB40..WOC..GEN 14V 1.12W |
1 | ||
| 84999-10610 |
BB50,HZB50..ARL,CHI 28V 0.84W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
RZB40,50..WC;RZB40..WOC..GEN 14V 0.84W |
1 | ||
| 84999-10370 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,50..19S,22S;BB42,HZB50..RHD..HRF..WOC..GEN 28V 1.12W |
1 | ||
| 84999-10370 |
BB42..WC..GCC;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F;BB40,42,50..STD..(ARL,GEN)..CBU 28V 1.12W |
1 | ||
| 84999-10610 |
BB42..WC..GCC;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F;BB40,42,50..STD..(ARL,GEN)..CBU 28V 0.84W |
1 | ||
| 84999-10610 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,50..19S,22S;BB42,HZB50..RHD..HRF..WOC..GEN 28V 0.84W |
1 | ||
| 84999-10370 |
BB50,HZB50..ARL,CHI 28V 1.12W |
1 | ||
| 84999-10520 |
RZB40,50..WC;RZB40..WOC..GEN 14V 1.12W |
1 | ||
| 84999-10610 |
BB50,HZB50..ARL,CHI 28V 0.84W |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10060 |
BB42..GEN;RZB40..WC;BB42..WC..GCC;HZB50..30S..4FC;RZB40..WOC..GEN;BB40,50,RZB50..STD..CBU;HZB50..(ARL,GCC,GEN)..5F |
1 | ||
| 84998-10060 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-36010 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 84930-36020 |
HZB50;BB4#,50..ARL,EUR,GCC,GEN 24V |
1 | ||
| 84930-36020 |
BB50..EUR;BB4#,5#,HZB50..CBU 24V |
1 | ||
| 84930-36010 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
1 | ||
| 84930-36020 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 84930-36020 |
BB4#,5#,HZB50 24V |
1 | ||
| 84930-36020 |
BB50,HZB50..ARL,CHI 24V |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-36020 |
HZB50..ARL 24V |
1 | ||
| 85500-36020 |
BB4#,5#,HZB50 24V |
1 | ||
| 85500-17060 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 85500-17040 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) |
1 | ||
| 85520-95400 |
BB50..EX;BB50..GEN..IV;BB42,43,HZB50..ARL,GCC,GEN 24V |
1 | ||
| 85520-95400 |
BB50,HZB50..ARL,CHI 24V |
1 | ||
| 85520-17020 |
RZB40,50 |
1 | ||
| 85520-95400 |
BB5#..WC..CBU;BB40,42,50..ARL,EUR,SCO 24V |
1 | ||
| 85520-95400 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30040 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 85533-30040 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 88660C - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-36021 |
BB50,HZB50,RZB40,50..WC..(ARL,CHI) W/O(DESTINETION EXPRESS BOX) |
1 | ||
| 84660-36021 |
HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD) W/O(DESTINETION EXPRESS BOX) |
1 | ||
| 84660-36020 |
HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;BB4#,RZB40..WC..(ARL,GCC,GEN);HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD) |
1 | ||
| Common parts | ||||
| 55538-28010 | ||||
| 84999-10370 | ||||
ILLUST NO. 3 OF 6(9301-9907)RHD
INSTRUMENT PANEL & COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-56040 |
14B,3B,1HZ#..BB4#,HZB50 24V |
1 | ||
| 28300-56040 |
15BFT..BB50..EUR;15BFT..BB50..WC..GEN;14B,15BFT,3B,1HZ..BB40,42,58,HZB50 24V |
1 | ||
| 28300-58040 |
15BFT,1HZ..BB50,HZB50..ARL,CHI 24V |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60010 |
HZB50;BB4#,5#..CBU 24V |
1 | ||
| 81980-60010 |
HZB50..TD |
1 | ||
| 81980-60010 |
BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,5#..17S,19S,22S,23S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 81980-60010 |
HZB50..ARL 24V |
1 | ||
| 81980-12070 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
BB4#,5#,HZB50,RZB40,50 10A |
1 | ||
| 90982-09003 |
BB4#,5#,HZB50,RZB40,50 15A |
1 | ||
| 90982-09004 |
BB4#,5#,HZB50,RZB40,50 20A,YELLOW |
1 | ||
| 90982-09005 |
BB4#,5#,HZB50,RZB40,50 7.5A |
1 | ||
| 90982-09004 |
BB50,HZB50,RZB40,50..ARL,CHI 20A,YELLOW |
1 | ||
| 90982-09005 |
BB50,HZB50,RZB40,50..ARL,CHI 7.5A |
1 | ||
| 90982-09010 |
RZB40..WOC..GCC;RZB40..22S..GEN;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
BB50,HZB50,RZB40,50..ARL,CHI 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09002 |
BB50,HZB50,RZB40,50..ARL,CHI 10A |
1 | ||
| 90982-09010 |
HZB50,RZB40,50..ARL,CHI 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09003 |
BB50,HZB50,RZB40,50..ARL,CHI 15A |
1 | ||
| 90982-09008 |
BB50,HZB50,RZB40,50..ARL,CHI 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
BB50,HZB50,RZB40,50..ARL,CHI 10A,MINI FUSE,RED |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
BB4#,5#,HZB50,RZB40,50 30A,PINK |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-36010 |
BB4#,5#,HZB50,RZB40,50 NO.1 |
1 | ||
| 82602-36010 |
BB50,HZB50,RZB40,50..ARL,CHI NO.1 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 82616-12010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 82643 - RELAY, DIM-DIP LAMP | ||||
| 85940-26010 |
HZB50..RHD..TD |
2 | ||
| 82643A - RELAY, DIM-DIP LAMP | ||||
| 82643-90B00 |
HZB50..RHD..TD |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-36030 |
RZB40;BB42..RHD;BB40,RZB50..WC;BB42,HZB50..SRF..GCC;BB42,HZB50..LHD..HRF..WC;HZB50..RHD..WC..(ARL,GEN);HZB50..HRF..WOC..(EUR,GEN) |
1 | ||
| 82661-36031 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 82661-36020 |
HZB50..RHD..TD |
1 | ||
| 82661-36034 |
HZB50..ARL |
1 | ||
| 82661-36032 |
BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO |
1 | ||
| 82661-36033 |
BB50..STD..GEN;BB50..EX..GEN..CBU;BB4#,58,HZB50,RZB40,50..ARL,GCC,GEN |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-30340 |
HZB50..ARL |
1 | ||
| 82671-30340 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-36071 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 84340-36070 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 84340-36071 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-36040 |
BB4#,HZB50 |
1 | ||
| 84550-36030 |
RZB40,50 |
1 | ||
| 84550-36040 |
BB4#,5#,HZB50..ARL,GCC,GEN,SCO |
1 | ||
| 84550-36040 |
BB4#,5#,HZB50..CBU |
1 | ||
| 84550-36040 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 84550-36040 |
BB50,HZB50..ARL,CHI |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-36060 |
BB50,HZB50..ARL,CHI |
2 | ||
| 84640-36060 |
BB4#,5#,HZB50..5F |
2 | ||
| 84640-36060 |
BB50..WOC..5F;BB42..WOC..GCC;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB4#,50..17S,19S,22S;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 84956A - BRACKET, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-36040 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 84956-36040 |
BB4#,HZB50 |
1 | ||
| 84956-36040 |
BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO |
1 | ||
| 84956-36040 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
RZB40,50 |
1 | ||
| 85913-90K00 |
BB4#;HZB50..RHD;HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..GEN..4FC;HZB50..LHD..WC..(EUR,GCC) |
1 | ||
| 85913-90K00 |
BB40,50;BB42..WOC..GCC;BB42,HZB50..RHD;HZB50..LHD..HRF..WOC;HZB50..30S..GEN..4FC;HZB50..LHD..WC..(EUR,GCC);BB42,HZB50..LHD..(20S,22S,26S)..WC |
1 | ||
| 85913-90K00 |
BB40,43,5#;HZB50..GCC;BB42..SRF..WC;BB42..WOC..GCC;BB42,HZB50..RHD;HZB50..LHD..HRF..WOC |
1 | ||
| 85913-90K00 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 85913-90K00 |
BB50,HZB50..ARL,CHI |
1 | ||
| 85910P - RELAY, TURBO INDICATOR | ||||
| 90987-03002 |
BB50..GEN..IV;BB58,HZB50..TD |
1 | ||
| 85915W - RELAY, AUTOMATIC DOOR | ||||
| 90987-02005 |
BB4#,5#,HZB50..ARL,GCC,GEN,SCO 24V |
1 | ||
| 90987-02004 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 90987-02005 |
BB4#,5#,HZB50..CBU 24V |
1 | ||
| 90987-02005 |
BB50,HZB50..ARL,CHI 24V |
1 | ||
| 90987-02005 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 90987-02004 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02005 |
BB50,HZB50..TD 24V |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02005 |
BB50..EUR;BB4#,5#,HZB50..CBU 24V |
1 | ||
| 90987-02005 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 90987-02004 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 90987-02005 |
BB4#,5#,HZB50 24V |
1 | ||
| 90987-02005 |
BB50,HZB50..ARL,CHI 24V |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 90987-02007 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 90987-02007 |
BB4#,5#,HZB50 24V |
1 | ||
| 90987-02007 |
BB50,HZB50..ARL,CHI 24V |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-90K00 |
HZB50..RHD..TD NO.1 |
1 | ||
| 90987-02005 |
HZB50..RHD..TD NO.2 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-90K00 |
HZB50..RHD..TD NO.1 |
1 | ||
| 90987-02005 |
HZB50..RHD..TD NO.2 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-36040 |
BB40,42,5#,HZB50..CBU 24V |
1 | ||
| 85940-36030 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-36040 |
HZB50..TD;HZB50..RHD..SRF;BB4#,HZB50..RHD..WOC NO.2 |
1 | ||
| 85959-36040 |
BB42..LHD;HZB50..ARL,GCC;HZB50..LHD..GEN;BB40,43,5#,RZB40,50 NO.2 |
1 | ||
| 85959-36060 |
HZB50;BB4#,5#,RZB40,50..ARL,GCC,GEN,SCO NO.1 |
1 | ||
| 85959-36040 |
RZB40..WC;BB42..17S,22S;BB42..LHD..26S..WC;HZB50,RZB50..ARL,GCC;HZB50..LHD..HRF..GEN;HZB50..LHD..SRF..WC..GEN;BB40,43,5#,RZB50..HRF..(ARL,EUR,GEN) NO.2 |
1 | ||
| 85959-36040 |
BB50,HZB50,RZB40,50..ARL,CHI NO.2 |
1 | ||
| 85959-36060 |
BB50,HZB50,RZB40,50..ARL,CHI NO.1 |
1 | ||
| 85959-36040 |
BB50,HZB50..TD NO.2 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-01004 |
BB4#,5#,HZB50 24V |
1 | ||
| 90987-01003 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 90987-01004 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 90987-01004 |
BB50,HZB50..ARL,CHI 24V |
1 | ||
| 86650 - BUZZER ASSY, VACUUM INDICATOR | ||||
| 86650-36080 |
BB50,HZB50..ARL,CHI 24V |
1 | ||
| 86650-36080 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 86650-36080 |
BB4#,5#,HZB50 24V |
1 | ||
| 86650L - BUZZER ASSY, VACUUM WARNING | ||||
| 86650-36140 |
HZB50..SCO;BB4#,HZB50..RHD..(17S,19S,22S,26S,30S) 24V |
1 | ||
| 86650-36140 |
HZB50..ARL 24V |
1 | ||
| 86650-36140 |
BB58;HZB50..ARL,SCO;BB40,43,50..RHD..CBU;BB42,HZB50..RHD..HRF..STD..WC..(GEN,SCO) 24V |
1 | ||
| 86650M - BUZZER ASSY, EMERGENCY | ||||
| 86650-36110 |
BB50..GEN..IV;BB40,42,58,HZB50 24V |
1 | ||
| 86650-36110 |
HZB50..ARL 24V |
1 | ||
| 86659 - BRACKET, BUZZER | ||||
| 86659-36020 |
BB4#,5#,HZB50 |
1 | ||
| 86659-36020 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 86659-36020 |
BB50,HZB50..ARL,CHI |
1 | ||
| 88630N - RELAY ASSY, COOLER | ||||
| 90987-03002 |
BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN |
1 | ||
| 90987-03002 |
BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL |
1 | ||
| 90987-03002 |
BB50,HZB50..WC..(ARL,CHI) |
1 | ||
| Common parts | ||||
| 90179-08026 | ||||
| 91611-B0610 | ||||
| 91631-40618 | ||||
| 91651-40612 | ||||
| 91651-60616 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 4 OF 6(9301-0408)
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80143 |
BB4#,HZB50..RHD..CBU |
1 | ||
| 84112-80144 |
BB50,HZB50..RHD..TD W(FOG LAMP-HALOGEN) |
1 | ||
| 84112-80227 |
HZB50..ARL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-36150 |
BB4#,50,HZB50..RHD |
1 | ||
| 84140-36180 |
HZB50..ARL |
1 | ||
| 84140-36190 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-36510 |
BB4#,HZB50..RHD..(19S,22S,26S,30S)..5F |
1 | ||
| 84310-36530 |
HZB50..SCO;BB4#,HZB50..RHD..(17S,19S,22S,26S,30S)..(ARL,GEN) W(*EB) |
1 | ||
| 84310-36510 |
BB40,42,HZB50..RHD..(DX,STD)..5F |
1 | ||
| 84310-36560 |
BB43,50..RHD..CBU |
1 | ||
| 84310-36530 |
BB40,42,HZB50..RHD..(DX,STD) W(*EB) |
1 | ||
| 84310-36510 |
BB4#,HZB50..RHD..(DX,STD)..5F |
1 | ||
| 84310-3B170 |
HZB50..ARL |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 84312-20011 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 84314 - SWITCH, CORNERING LAMP | ||||
| 84314-36010 |
BB43,50,HZB50..RHD..TD |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-36050 |
BB4#,50,HZB50..RHD |
1 | ||
| 84329-36080 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 84329-36070 |
HZB50..ARL |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36090 |
HZB50..ARL,EUR;BB4#,5#,RZB40,50 |
1 | ||
| 84450-36110 |
HZB50..ARL |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36090 |
HZB50..ARL,EUR;BB4#,5#,RZB40,50 |
1 | ||
| 84450-36110 |
HZB50..ARL |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-36430 |
BB40,42,HZB50..RHD..(19S,22S,26S,30S)..5F W(*EB) |
1 | ||
| 84652-36410 |
BB4#,HZB50..RHD..(ARL,GEN)..5F W/O(*RW) |
1 | ||
| 84652-36430 |
HZB50..SCO;HZB50..22S..4FC;BB43,50..RHD..CBU |
1 | ||
| 84652-36410 |
BB40,42,HZB50..RHD..5F W/O(REAR WIPER) |
1 | ||
| 84652-36570 |
HZB50..ARL |
1 | ||
| Common parts | ||||
| 82711-30130 | ||||
| 82817-36030 | ||||
| 90080-46104 | ||||
| 90149-40013 | ||||
| 90168-40129 | ||||
| 90463-13003 | ||||
| 90464-00232 | ||||
| 91611-G0612 | ||||
| 93319-15012 | ||||

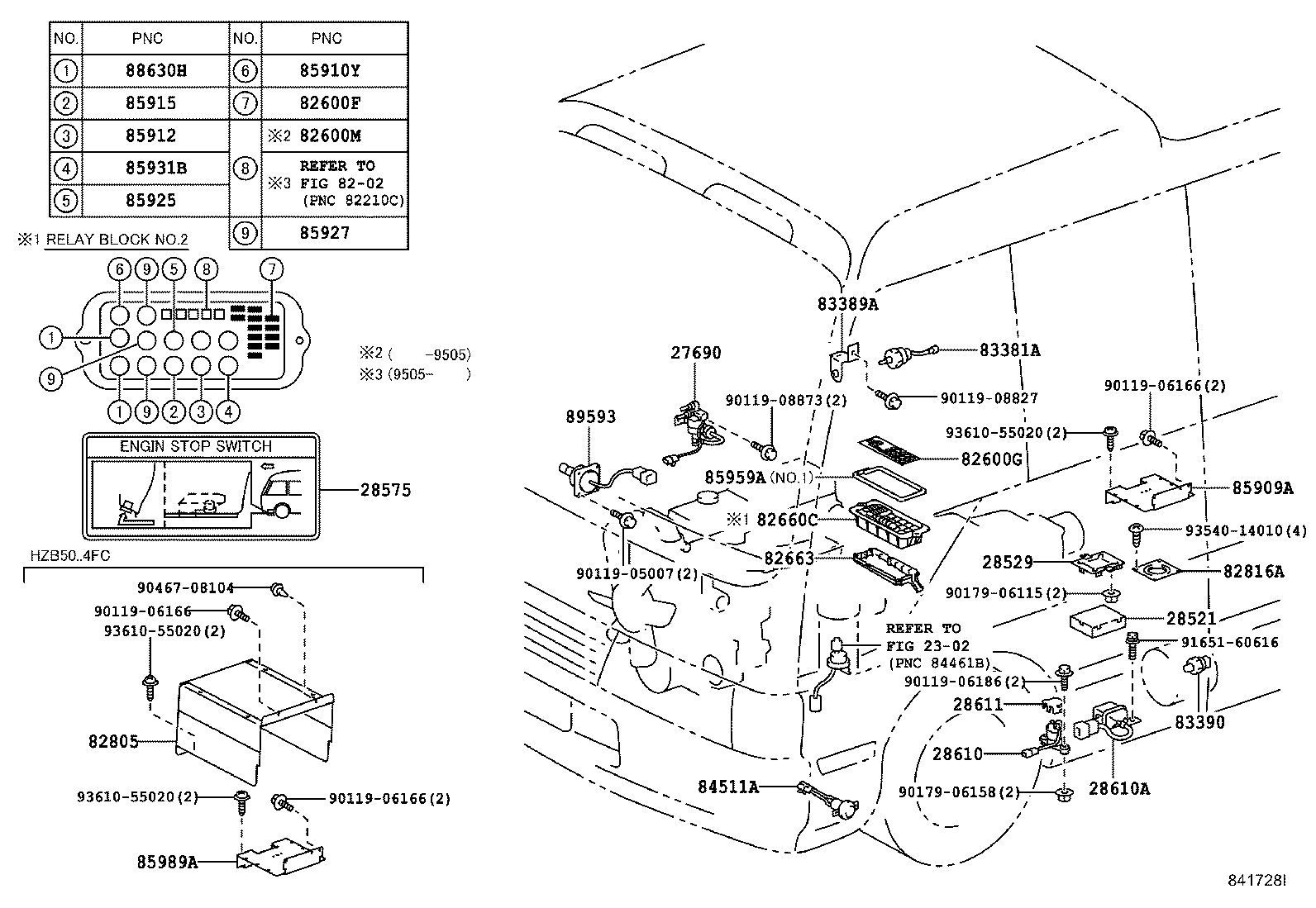

ILLUST NO. 5 OF 6(9301-9705)BB4#,50,HZB50
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-56150 |
1HZ..HZB50..GCC;14B..BB42..WOC..GCC;1HZ..HZB50..LHD..WOC;15BFT,3B..BB40,43,5#;14B,1HZ..BB42,HZB50..RHD;14B,1HZ..BB42,HZB50..LHD..(20S,22S,26S)..WC |
1 | ||
| 27690-56150 |
1HZ..HZB50..GCC;14B..BB42..WOC..GCC;14B,1HZ..BB42,HZB50..RHD;1HZ..HZB50..LHD..HRF..WOC;1HZ..HZB50..30S..GEN..4FC;15BFT,3B,1HZT..BB40,50,HZB50;14B,1HZ..BB42,HZB50..LHD..(20S,22S,26S)..WC |
1 | ||
| 27690-56150 |
1HZ..HZB50..ARL COLD SPEC & *EB |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-56060 |
1HZT..HZB50;1HZ..HZB50..19S,22S |
1 | ||
| 28521-17180 |
1HZ..HZB50..ARL |
1 | ||
| 28521-17180 |
1HZ..HZB50..ARL |
1 | ||
| 28521-17180 |
1HZ..HZB50..22S |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-56010 |
1HZ..HZB50..19S,22S;14B,15BFT,3B,1HZT..BB4#,50,HZB50..ARL,EUR,SCO |
1 | ||
| 28529-56060 |
1HZ..HZB50..22S |
1 | ||
| 28529-56060 |
1HZ..HZB50..ARL |
1 | ||
| 28529-56060 |
1HZ..HZB50..ARL |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58110 |
1HZ..HZB50..ARL;14B..BB42..LHD..GEN;1HZ..HZB50..SRF..WOC;1HZ..HZB50..LHD..STD..WC..GEN..5F;14B,3B,1HZT..BB4#,HZB50..ARL,EUR,SCO |
1 | ||
| 28610-58110 |
14B..BB42..LHD..HRF..26S;14B,1HZ..BB42,HZB50..17S,22S;15BFT,3B,1HZT..BB40,50,HZB50;1HZ..HZB50..LHD..STD..WC..GEN..5F;14B,1HZ..BB42,HZB50..LHD..SRF..WOC..GEN |
1 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-58120 |
3B,1HZ#..BB40,HZB50..RHD 24V |
1 | ||
| 28610-58120 |
1HZ..HZB50..ARL 24V |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-58060 |
1HZ..HZB50..ARL;14B..BB42..LHD..GEN;1HZ..HZB50..SRF..WOC;1HZ..HZB50..LHD..STD..WC..GEN..5F;14B,3B,1HZT..BB4#,HZB50..ARL,EUR,SCO |
1 | ||
| 28611-58060 |
14B..BB42..LHD..HRF..26S;14B,1HZ..BB42,HZB50..17S,22S;15BFT,3B,1HZT..BB40,50,HZB50;1HZ..HZB50..LHD..STD..WC..GEN..5F;14B,1HZ..BB42,HZB50..LHD..SRF..WOC..GEN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
BB4#,5#,HZB50,RZB40,50 10A |
1 | ||
| 90982-09003 |
BB4#,5#,HZB50,RZB40,50 15A |
1 | ||
| 90982-09004 |
BB4#,5#,HZB50,RZB40,50 20A,YELLOW |
1 | ||
| 90982-09005 |
BB4#,5#,HZB50,RZB40,50 7.5A |
1 | ||
| 90982-09004 |
BB50,HZB50,RZB40,50..ARL,CHI 20A,YELLOW |
1 | ||
| 90982-09005 |
BB50,HZB50,RZB40,50..ARL,CHI 7.5A |
1 | ||
| 90982-09010 |
RZB40..WOC..GCC;RZB40..22S..GEN;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
BB50,HZB50,RZB40,50..ARL,CHI 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09002 |
BB50,HZB50,RZB40,50..ARL,CHI 10A |
1 | ||
| 90982-09010 |
HZB50,RZB40,50..ARL,CHI 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09003 |
BB50,HZB50,RZB40,50..ARL,CHI 15A |
1 | ||
| 90982-09008 |
BB50,HZB50,RZB40,50..ARL,CHI 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
BB50,HZB50,RZB40,50..ARL,CHI 10A,MINI FUSE,RED |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-36010 |
BB42,RZB40;BB40,RZB50..WC;HZB50..WOC..TD;HZB50..GCC..4FC;HZB50..HRF..WC..5F;HZB50..LHD..SRF..WC |
1 | ||
| 82683-36010 |
BB4#,HZB50 |
1 | ||
| 82683-36010 |
BB4#;HZB50..GCC..4FC;HZB50..HRF..WC..5F;HZB50..LHD..SRF..WC;HZB50..WOC..(ARL,EUR) |
1 | ||
| 82683-36010 |
BB42,RZB40;BB40,RZB50..WC;HZB50..WOC..TD;HZB50..GCC..4FC;HZB50..HRF..WC..5F;HZB50..LHD..SRF..WC |
1 | ||
| 82683-36010 |
HZB50..TD |
1 | ||
| 82683-36110 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) |
1 | ||
| 82683-36010 |
BB42;HZB50..WOC..TD;HZB50..GCC..4FC;HZB50..LHD..SRF..WC;BB40,HZB50..HRF..WC..5F |
1 | ||
| 82683-36120 |
BB40,42,HZB50 24V |
1 | ||
| 82683-36021 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 82683-36121 |
BB42,HZB50 24V |
1 | ||
| 82683-36030 |
BB4#,HZB50..(EX,STD)..DSL 24V |
1 | ||
| 82683-36131 |
BB43,5#..STD;BB50..EX..CBU 12V |
1 | ||
| 82683-36111 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 82683-36122 |
HZB50..ARL 24V |
1 | ||
| 82683-36112 |
RZB40,50;HZB50..WOC..GEN 12V |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
BB4#,5#,HZB50,RZB40,50 30A,PINK |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 82660-36010 |
BB4#,HZB50,RZB40,50 |
1 | ||
| 82660-36020 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 82660-36010 |
BB4#,HZB50 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-36010 |
BB4#,HZB50,RZB40,50 |
1 | ||
| 82663-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 82663-36010 |
BB4#,HZB50 |
1 | ||
| 82663-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 82816A - BRACKET, WIRING HARNESS GROMMET | ||||
| 82816-36010 |
HZB50;BB4#,5#,RZB40,50..CBU |
1 | ||
| 82816-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 83381A - SWITCH, PRESSURE | ||||
| 83381-36040 |
BB43,5#,HZB50..TD |
1 | ||
| 83381-36040 |
BB50..WOC..5F;BB50..CBU..6F;BB43,50..RHD..5F |
1 | ||
| 83389A - BRACKET, PRESSURE SWITCH | ||||
| 83389-36040 |
BB50..WOC..5F;BB50..CBU..6F;BB43,50..RHD..5F |
1 | ||
| 83389-36040 |
BB43,5# |
1 | ||
| 83389-36030 |
BB50,HZB50..TD |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-36020 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 83390-36020 |
BB4#,5#,HZB50 |
1 | ||
| 83390-36020 |
BB50,HZB50..ARL,CHI |
1 | ||
| 84511A - SWITCH, ENGINE STOP | ||||
| 84511-36020 |
BB43,50..RHD..5F |
1 | ||
| 85909A - BRACKET SUB-ASSY, RELAY BLOCK | ||||
| 85909-36030 |
BB4#,HZB50..STD..(ARL,SCO) |
1 | ||
| 85909-36030 |
HZB50..SCO;BB4#,HZB50..RHD..STD..(ARL,GEN) FOLDING AUTO DOOR |
1 | ||
| 85909-36010 |
HZB50..TD |
1 | ||
| 85909-36010 |
HZB50..5F;BB4#..ARL,GCC,GEN |
1 | ||
| 85909-36031 |
BB4#,HZB50..STD..(ARL,SCO) |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02005 |
BB50..EUR;HZB50..30S..4FC;BB50..STD..WC..GEN;BB40,42,58,HZB50..(ARL,EUR,GCC,GEN)..5F 24V |
1 | ||
| 90987-02004 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 90987-02017 |
BB50..WOC..5F;BB42..WOC..GCC;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,50..19S,22S;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 90987-02017 |
BB50,HZB50..ARL,CHI 24V |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02005 |
BB42..WC..GCC;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F;BB40,42,50..STD..(ARL,GEN)..CBU 24V |
1 | ||
| 90987-02004 |
RZB40,50..WC;HZB50..RHD..SRF;BB42,HZB50,RZB40..WOC..GEN 12V |
1 | ||
| 90987-02017 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,50..19S,22S;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 90987-02004 |
RZB40,50..WC;RZB40..WOC..GEN 12V |
1 | ||
| 90987-02017 |
BB50,HZB50..ARL,CHI 24V |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02005 |
BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL |
3 | ||
| 90987-02017 |
BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN 24V |
3 | ||
| 90987-02017 |
BB50,HZB50..WC..(ARL,CHI) 24V |
3 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-36040 |
HZB50..TD;HZB50..RHD..SRF;BB4#,HZB50..RHD..WOC NO.2 |
1 | ||
| 85959-36040 |
BB42..LHD;HZB50..ARL,GCC;HZB50..LHD..GEN;BB40,43,5#,RZB40,50 NO.2 |
1 | ||
| 85959-36060 |
HZB50;BB4#,5#,RZB40,50..ARL,GCC,GEN,SCO NO.1 |
1 | ||
| 85959-36040 |
RZB40..WC;BB42..17S,22S;BB42..LHD..26S..WC;HZB50,RZB50..ARL,GCC;HZB50..LHD..HRF..GEN;HZB50..LHD..SRF..WC..GEN;BB40,43,5#,RZB50..HRF..(ARL,EUR,GEN) NO.2 |
1 | ||
| 85959-36040 |
BB50,HZB50,RZB40,50..ARL,CHI NO.2 |
1 | ||
| 85959-36060 |
BB50,HZB50,RZB40,50..ARL,CHI NO.1 |
1 | ||
| 85959-36040 |
BB50,HZB50..TD NO.2 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02005 |
BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL 24V |
1 | ||
| 90987-02005 |
BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL 24V |
2 | ||
| 90987-02017 |
BB50,HZB50..WC..(ARL,CHI) 24V |
2 | ||
| 90987-02005 |
HZB50..WC..TD 24V |
1 | ||
| 90987-02017 |
BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN 24V |
2 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-26010 |
BB4#,HZB50..DSL |
1 | ||
| Common parts | ||||
| 90119-05007 | ||||
| 90119-06166 | ||||
| 90119-06186 | ||||
| 90119-08827 | ||||
| 90119-08873 | ||||
| 90179-06115 | ||||
| 90179-06158 | ||||
| 90467-08104 | ||||
| 91651-60616 | ||||
| 93540-14010 | ||||
| 93610-55020 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||

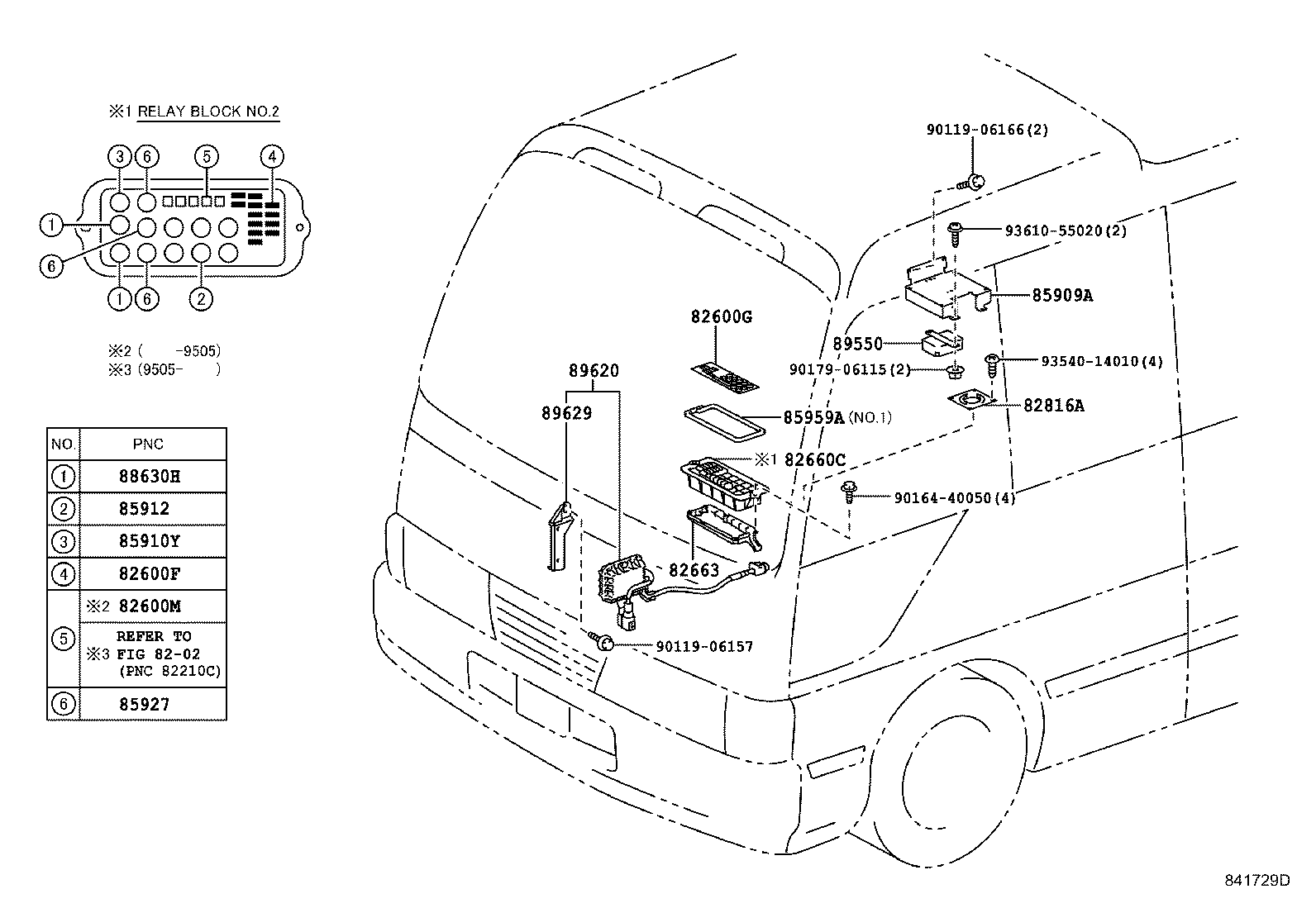

ILLUST NO. 5 OF 6(9309-9705)RZB40,50
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
BB4#,5#,HZB50,RZB40,50 10A |
1 | ||
| 90982-09003 |
BB4#,5#,HZB50,RZB40,50 15A |
1 | ||
| 90982-09004 |
BB4#,5#,HZB50,RZB40,50 20A,YELLOW |
1 | ||
| 90982-09005 |
BB4#,5#,HZB50,RZB40,50 7.5A |
1 | ||
| 90982-09004 |
BB50,HZB50,RZB40,50..ARL,CHI 20A,YELLOW |
1 | ||
| 90982-09005 |
BB50,HZB50,RZB40,50..ARL,CHI 7.5A |
1 | ||
| 90982-09010 |
RZB40..WOC..GCC;RZB40..22S..GEN;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
BB50,HZB50,RZB40,50..ARL,CHI 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09002 |
BB50,HZB50,RZB40,50..ARL,CHI 10A |
1 | ||
| 90982-09010 |
HZB50,RZB40,50..ARL,CHI 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09003 |
BB50,HZB50,RZB40,50..ARL,CHI 15A |
1 | ||
| 90982-09008 |
BB50,HZB50,RZB40,50..ARL,CHI 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
BB50,HZB50,RZB40,50..ARL,CHI 10A,MINI FUSE,RED |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-36010 |
BB42,RZB40;BB40,RZB50..WC;HZB50..WOC..TD;HZB50..GCC..4FC;HZB50..HRF..WC..5F;HZB50..LHD..SRF..WC |
1 | ||
| 82683-36010 |
BB4#,HZB50 |
1 | ||
| 82683-36010 |
BB4#;HZB50..GCC..4FC;HZB50..HRF..WC..5F;HZB50..LHD..SRF..WC;HZB50..WOC..(ARL,EUR) |
1 | ||
| 82683-36010 |
BB42,RZB40;BB40,RZB50..WC;HZB50..WOC..TD;HZB50..GCC..4FC;HZB50..HRF..WC..5F;HZB50..LHD..SRF..WC |
1 | ||
| 82683-36010 |
HZB50..TD |
1 | ||
| 82683-36110 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) |
1 | ||
| 82683-36010 |
BB42;HZB50..WOC..TD;HZB50..GCC..4FC;HZB50..LHD..SRF..WC;BB40,HZB50..HRF..WC..5F |
1 | ||
| 82683-36120 |
BB40,42,HZB50 24V |
1 | ||
| 82683-36021 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 82683-36121 |
BB42,HZB50 24V |
1 | ||
| 82683-36030 |
BB4#,HZB50..(EX,STD)..DSL 24V |
1 | ||
| 82683-36131 |
BB43,5#..STD;BB50..EX..CBU 12V |
1 | ||
| 82683-36111 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 82683-36122 |
HZB50..ARL 24V |
1 | ||
| 82683-36112 |
RZB40,50;HZB50..WOC..GEN 12V |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
BB4#,5#,HZB50,RZB40,50 30A,PINK |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 82660-36010 |
BB4#,HZB50,RZB40,50 |
1 | ||
| 82660-36020 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 82660-36010 |
BB4#,HZB50 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-36010 |
BB4#,HZB50,RZB40,50 |
1 | ||
| 82663-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 82663-36010 |
BB4#,HZB50 |
1 | ||
| 82663-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 82816A - BRACKET, WIRING HARNESS GROMMET | ||||
| 82816-36010 |
HZB50;BB4#,5#,RZB40,50..CBU |
1 | ||
| 82816-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 85909A - BRACKET SUB-ASSY, RELAY BLOCK | ||||
| 85909-36030 |
BB4#,HZB50..STD..(ARL,SCO) |
1 | ||
| 85909-36030 |
HZB50..SCO;BB4#,HZB50..RHD..STD..(ARL,GEN) FOLDING AUTO DOOR |
1 | ||
| 85909-36010 |
HZB50..TD |
1 | ||
| 85909-36010 |
HZB50..5F;BB4#..ARL,GCC,GEN |
1 | ||
| 85909-36031 |
BB4#,HZB50..STD..(ARL,SCO) |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02005 |
BB50..EUR;HZB50..30S..4FC;BB50..STD..WC..GEN;BB40,42,58,HZB50..(ARL,EUR,GCC,GEN)..5F 24V |
1 | ||
| 90987-02004 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 90987-02017 |
BB50..WOC..5F;BB42..WOC..GCC;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,50..19S,22S;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 90987-02017 |
BB50,HZB50..ARL,CHI 24V |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02005 |
BB42..WC..GCC;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F;BB40,42,50..STD..(ARL,GEN)..CBU 24V |
1 | ||
| 90987-02004 |
RZB40,50..WC;HZB50..RHD..SRF;BB42,HZB50,RZB40..WOC..GEN 12V |
1 | ||
| 90987-02017 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,50..19S,22S;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 90987-02004 |
RZB40,50..WC;RZB40..WOC..GEN 12V |
1 | ||
| 90987-02017 |
BB50,HZB50..ARL,CHI 24V |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02005 |
BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL |
3 | ||
| 90987-02017 |
BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN 24V |
3 | ||
| 90987-02017 |
BB50,HZB50..WC..(ARL,CHI) 24V |
3 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-36040 |
HZB50..TD;HZB50..RHD..SRF;BB4#,HZB50..RHD..WOC NO.2 |
1 | ||
| 85959-36040 |
BB42..LHD;HZB50..ARL,GCC;HZB50..LHD..GEN;BB40,43,5#,RZB40,50 NO.2 |
1 | ||
| 85959-36060 |
HZB50;BB4#,5#,RZB40,50..ARL,GCC,GEN,SCO NO.1 |
1 | ||
| 85959-36040 |
RZB40..WC;BB42..17S,22S;BB42..LHD..26S..WC;HZB50,RZB50..ARL,GCC;HZB50..LHD..HRF..GEN;HZB50..LHD..SRF..WC..GEN;BB40,43,5#,RZB50..HRF..(ARL,EUR,GEN) NO.2 |
1 | ||
| 85959-36040 |
BB50,HZB50,RZB40,50..ARL,CHI NO.2 |
1 | ||
| 85959-36060 |
BB50,HZB50,RZB40,50..ARL,CHI NO.1 |
1 | ||
| 85959-36040 |
BB50,HZB50..TD NO.2 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02005 |
BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL 24V |
1 | ||
| 90987-02005 |
BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL 24V |
2 | ||
| 90987-02017 |
BB50,HZB50..WC..(ARL,CHI) 24V |
2 | ||
| 90987-02005 |
HZB50..WC..TD 24V |
1 | ||
| 90987-02017 |
BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN 24V |
2 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-36120 |
RZB40,50 |
1 | ||
| 89550-36140 |
RZB40,50 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-36050 |
RZB40,50 |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-16040 |
RZB40,50 |
1 | ||
| Common parts | ||||
| 90119-06157 | ||||
| 90119-06166 | ||||
| 90164-40050 | ||||
| 90179-06115 | ||||
| 93540-14010 | ||||
| 93610-55020 | ||||
| Linked diagrams | ||||
| 8202 | ||||

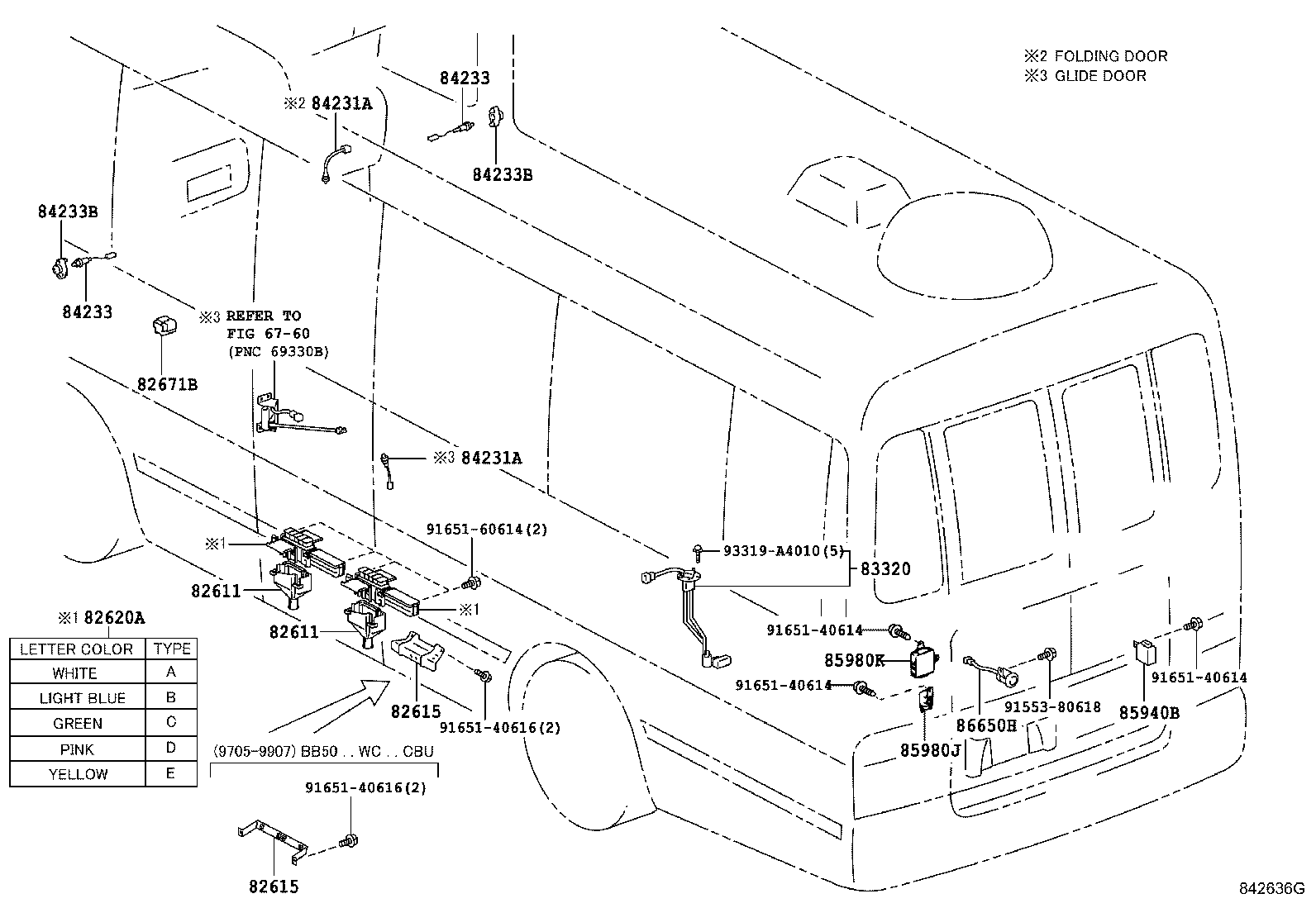

ILLUST NO. 6 OF 6(9301-9907) ; (9907-0608)STD..IV
DOOR,ROOF,FLOOR & BACK DOOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-36030 |
BB4#,RZB40,50;HZB50..WOC..ARL;HZB50..GCC,GEN,SCO |
1 | ||
| 82611-36030 |
HZB50..DSL;BB4#,5#,RZB40,50 |
2 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-36030 |
BB4#,RZB40,50;HZB50..WOC..ARL;HZB50..GCC,GEN,SCO |
1 | ||
| 82611-36030 |
HZB50..DSL;BB4#,5#,RZB40,50 |
2 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-36020 |
BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 82615-36020 |
BB50..EX;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 82615-36020 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-36020 |
BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 82615-36020 |
BB50..EX;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 82615-36020 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-36020 |
BB4#,5#,HZB50,RZB40,50 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82620-36050 |
RZB40,50 TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 82620-36010 |
BB50;HZB50..WOC..TD;HZB50..WC..(ARL,EUR) TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82620-36010 |
BB5#..STD;HZB50..22S..WC TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82620-36010 |
BB50..EUR;BB50,HZB50..22S..WC TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82620-36080 |
HZB50..ARL |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30350 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 82671-30350 |
BB50,HZB50,RZB40,50..ARL,CHI |
2 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80261 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 83320-80261 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-36020 |
BB4#,HZB50..19S,20S,22S,26S,30S |
1 | ||
| 84231-36020 |
HZB50..30S;HZB50..DX,EX;BB42,50,RZB40,50..CBU |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-36020 |
BB4#,HZB50..19S,20S,22S,26S,30S |
1 | ||
| 84231-36020 |
HZB50..30S;HZB50..DX,EX;BB42,50,RZB40,50..CBU |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22060 |
RZB40..EX;BB40,50,HZB50..(19S,20S,22S)..5F |
1 | ||
| 84231-22060 |
BB50,HZB50..(20S,22S)..(ARL,CHI) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22060 |
RZB40..EX;BB40,50,HZB50..(19S,20S,22S)..5F |
1 | ||
| 84231-22060 |
BB50,HZB50..(20S,22S)..(ARL,CHI) |
1 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
RZB40..EX;BB40,50,HZB50..(19S,20S,22S)..5F |
1 | ||
| 84234-22010 |
BB50,HZB50..(20S,22S)..(ARL,CHI) |
1 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
RZB40..EX;BB40,50,HZB50..(19S,20S,22S)..5F |
1 | ||
| 84234-22010 |
BB50,HZB50..(20S,22S)..(ARL,CHI) |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-36070 |
BB42..WOC..GCC;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,50..19S,22S;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 85940-36060 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 85980J - RELAY ASSY, DOOR LOCK, NO.1 | ||||
| 85980-36090 |
HZB50..ARL |
1 | ||
| 85980-36090 |
BB40,HZB50..ARL |
1 | ||
| 85980K - RELAY ASSY, DOOR LOCK, NO.2 | ||||
| 85980-36100 |
HZB50..ARL |
1 | ||
| 85980-36100 |
BB40,HZB50..ARL |
1 | ||
| 86650H - BUZZER ASSY, BACK | ||||
| 86650-36100 |
BB50,HZB50..ARL,CHI 24V |
1 | ||
| 86650-36090 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 86650-36100 |
BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN 24V |
1 | ||
| 86650-36100 |
BB4#,5#,HZB50..CBU 24V |
1 | ||
| Common parts | ||||
| 91553-80618 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-60614 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 6760 | ||||

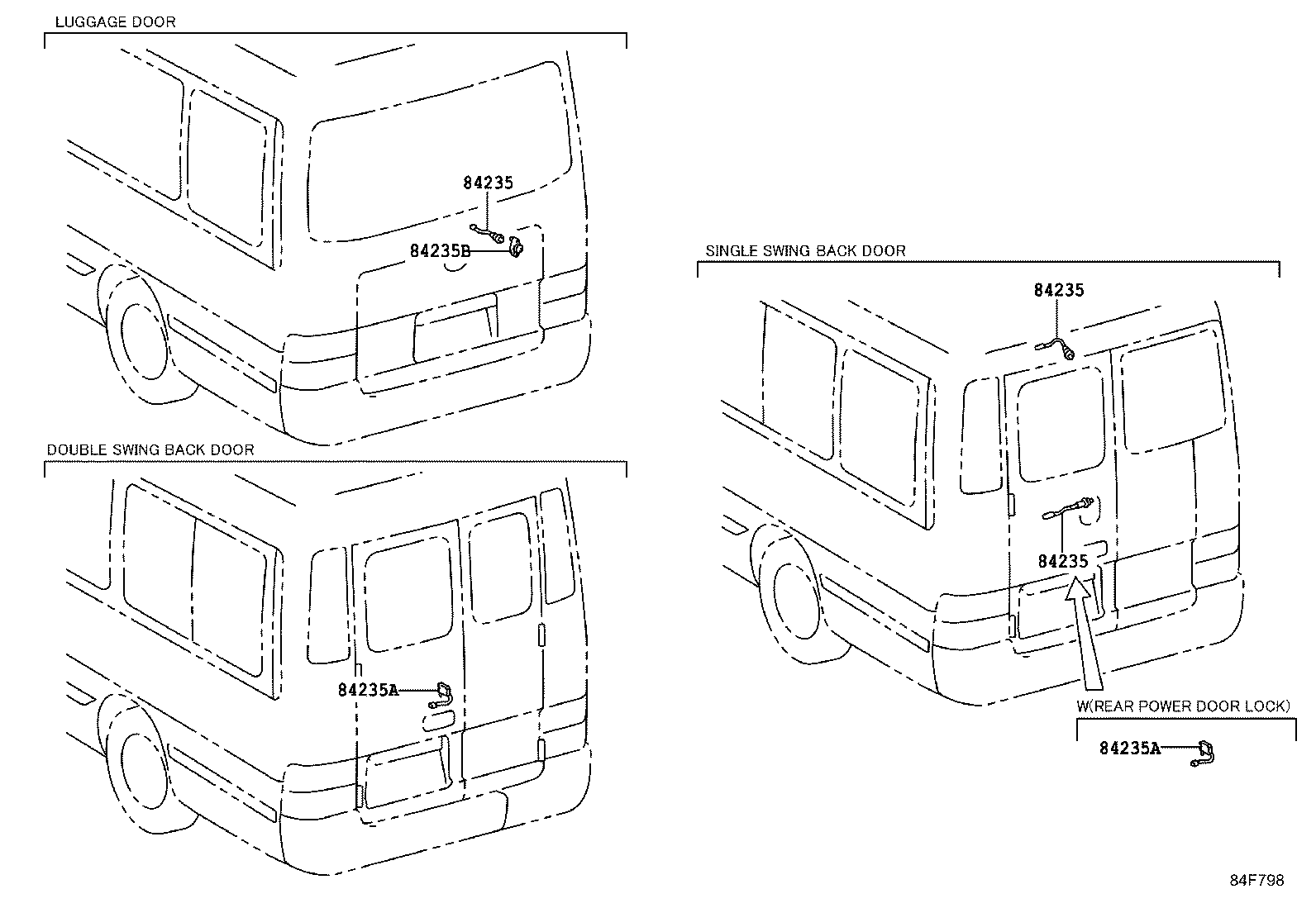

ILLUST NO. 6 OF 6(9301- )
DOOR,ROOF,FLOOR & BACK DOOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-36040 |
HZB50..SCO;BB4#..ARL,SCO;HZB50..19S,22S |
2 | ||
| 84231-28010 |
BB40,HZB50..ARL |
1 | ||
| 84231-28010 |
HZB50..ARL |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-36040 |
HZB50..SCO;BB4#..ARL,SCO;HZB50..19S,22S |
2 | ||
| 84231-28010 |
BB40,HZB50..ARL |
1 | ||
| 84231-28010 |
HZB50..ARL |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-36040 |
HZB50..SCO;BB4#..ARL,SCO;HZB50..19S,22S |
2 | ||
| 84231-28010 |
BB40,HZB50..ARL |
1 | ||
| 84231-28010 |
HZB50..ARL |
1 | ||
| 84235A - SWITCH, COURTESY LAMP | ||||
| 84535-22080 |
HZB50..ARL |
1 | ||
| 84535-22080 |
BB40,58,HZB50..(19S,22S)..5F INNER |
1 | ||
| 84235A - SWITCH, COURTESY LAMP | ||||
| 84535-22080 |
HZB50..ARL |
1 | ||
| 84535-22080 |
BB40,58,HZB50..(19S,22S)..5F INNER |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
