HZB50R-ZEMSSQ (1993)

Toyota Coaster

Production Jan 1993 - Nov 2002
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301- )ARL

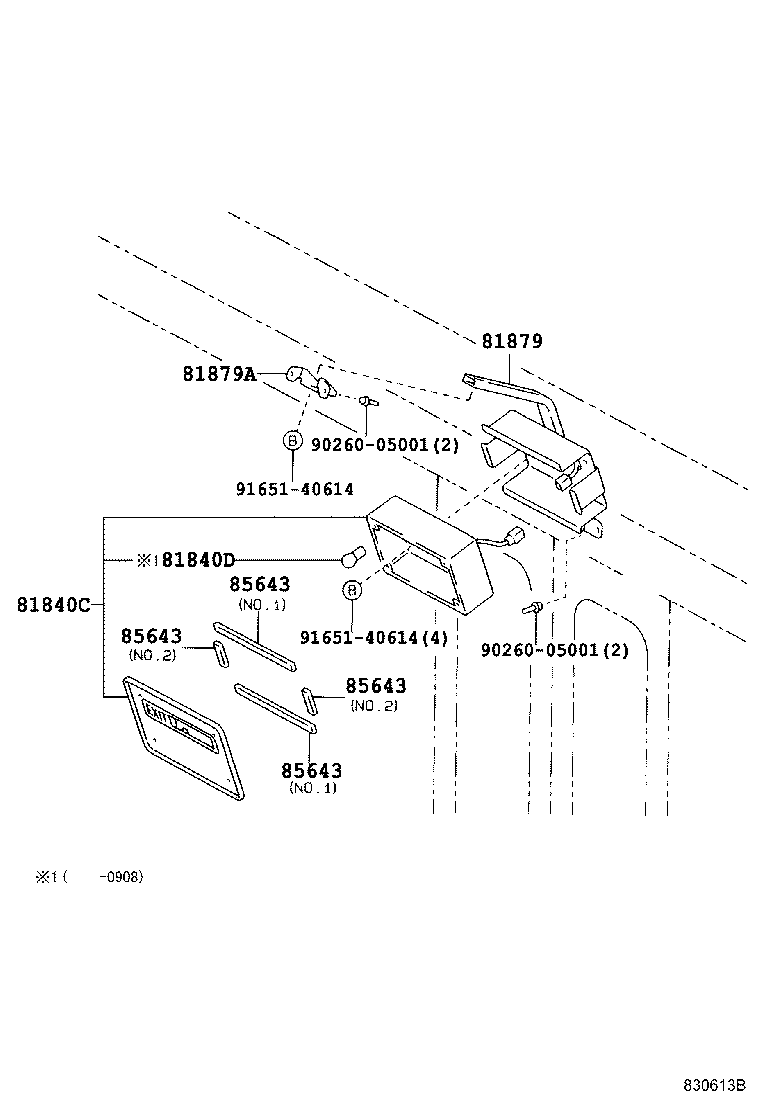

Click highlighted areas on diagram

DOOR INDICATOR LAMP

diagram 81840C 81840D 81879 81879A 85643 85643 85643 85643 9026005001 9026005001 9165140614 9165140614
Part # Description Qty Price
81840C - LAMP ASSY, DOOR INDICATOR
81840-36010B0

HZB50..ARL

MD.CHARCOAL,TRIM1#

 1
81840-36010A0

HZB50..ARL

IVORY,TRIM4#

 1
81840-36010A1

HZB50..ARL

IVORY,TRIM4#

 1
81840-36010A1

HZB50..ARL

IVORY,TRIM4#

 1
81840D - BULB, DOOR INDICATOR LAMP
99134-13060

HZB50..ARL

 3
99134-13060

BB40,HZB50..ARL

 3
81879 - BRACKET, INDICATOR LAMP
81879-36011

BB40,HZB50..WC..ARL

 1
81879-36011

HZB50..WC..ARL

 1
81879A - BRACKET, INDICATOR LAMP NO.2
81879-36030

HZB50..ARL

 1
81879-36030

BB40,HZB50..ARL

 1
85643 - CUSHION, AUTO DOOR BRACKET STOPPER
85643-36010

BB40,HZB50..WC..ARL

NO.1

 2
85643-36020

HZB50..WC..ARL

NO.2

 2
85643-36010

HZB50..WC..ARL

NO.1

 2
85643-36020

BB40,HZB50..WC..ARL

NO.2

 2
85643 - CUSHION, AUTO DOOR BRACKET STOPPER
85643-36010

BB40,HZB50..WC..ARL

NO.1

 2
85643-36020

HZB50..WC..ARL

NO.2

 2
85643-36010

HZB50..WC..ARL

NO.1

 2
85643-36020

BB40,HZB50..WC..ARL

NO.2

 2
85643 - CUSHION, AUTO DOOR BRACKET STOPPER
85643-36010

BB40,HZB50..WC..ARL

NO.1

 2
85643-36020

HZB50..WC..ARL

NO.2

 2
85643-36010

HZB50..WC..ARL

NO.1

 2
85643-36020

BB40,HZB50..WC..ARL

NO.2

 2
85643 - CUSHION, AUTO DOOR BRACKET STOPPER
85643-36010

BB40,HZB50..WC..ARL

NO.1

 2
85643-36020

HZB50..WC..ARL

NO.2

 2
85643-36010

HZB50..WC..ARL

NO.1

 2
85643-36020

BB40,HZB50..WC..ARL

NO.2

 2
Common parts
90260-05001
91651-40614
