Toyota Coaster HZB50 WIRING & CLAMP

HZB50R-ZEMSSQ (1993)

Toyota Coaster

Production Jan 1993 - Nov 2002

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 6 OF 9(9301- )

Click highlighted areas on diagram

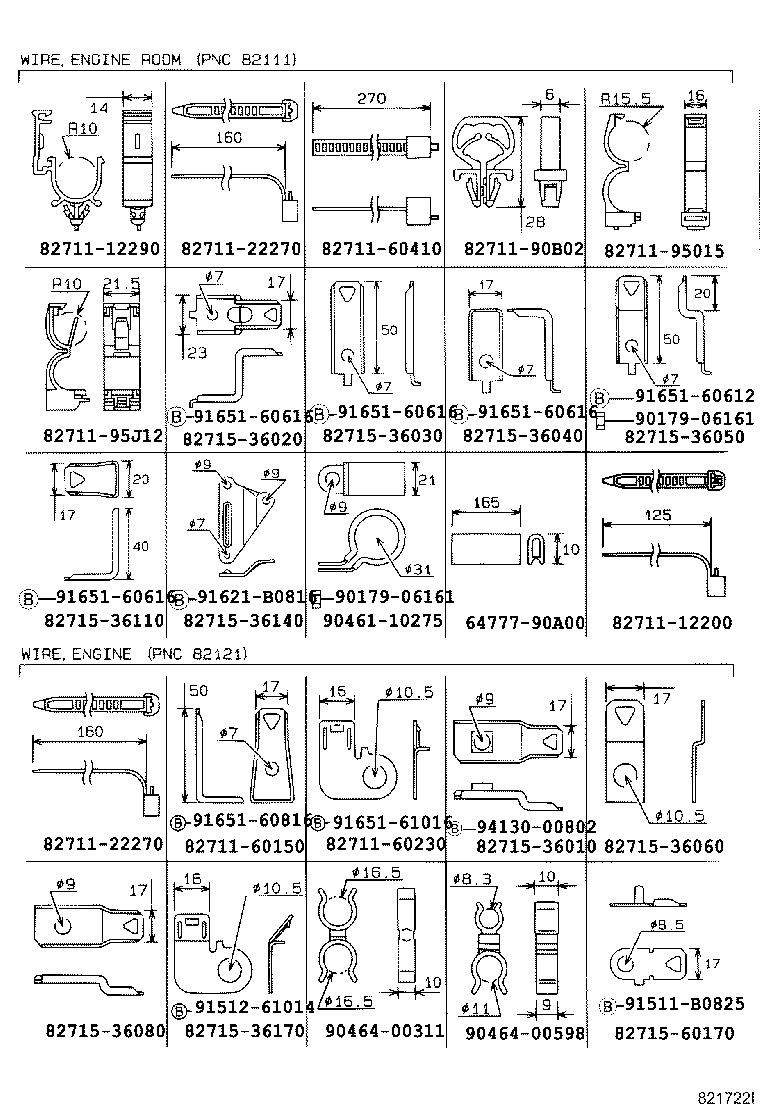

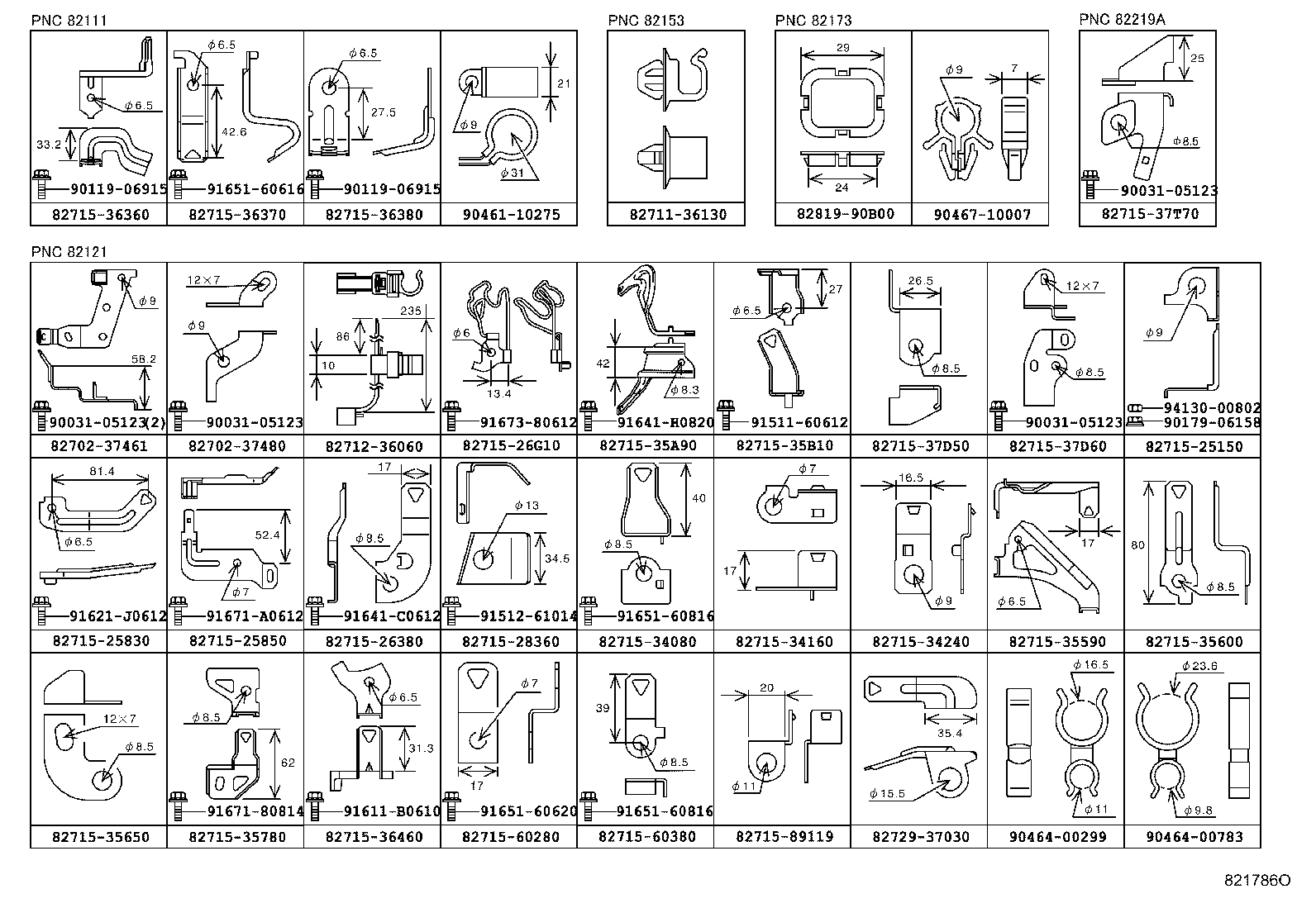

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-1E320
82711-1E360
82711-2A710
82711-33270
82711-36120
82715-26390
82715-36060
82715-37150
82715-37160
82715-37240
82715-60040
82715-60170
82715-60360
82729-35040
90463-10521
90480-12002
91512-61014
91531-60610
91621-J0814
91641-C0814
91651-60612
91651-60816
91651-61016
91651-B0822

ILLUST NO. 5 OF 9(9301-1501)

Click highlighted areas on diagram

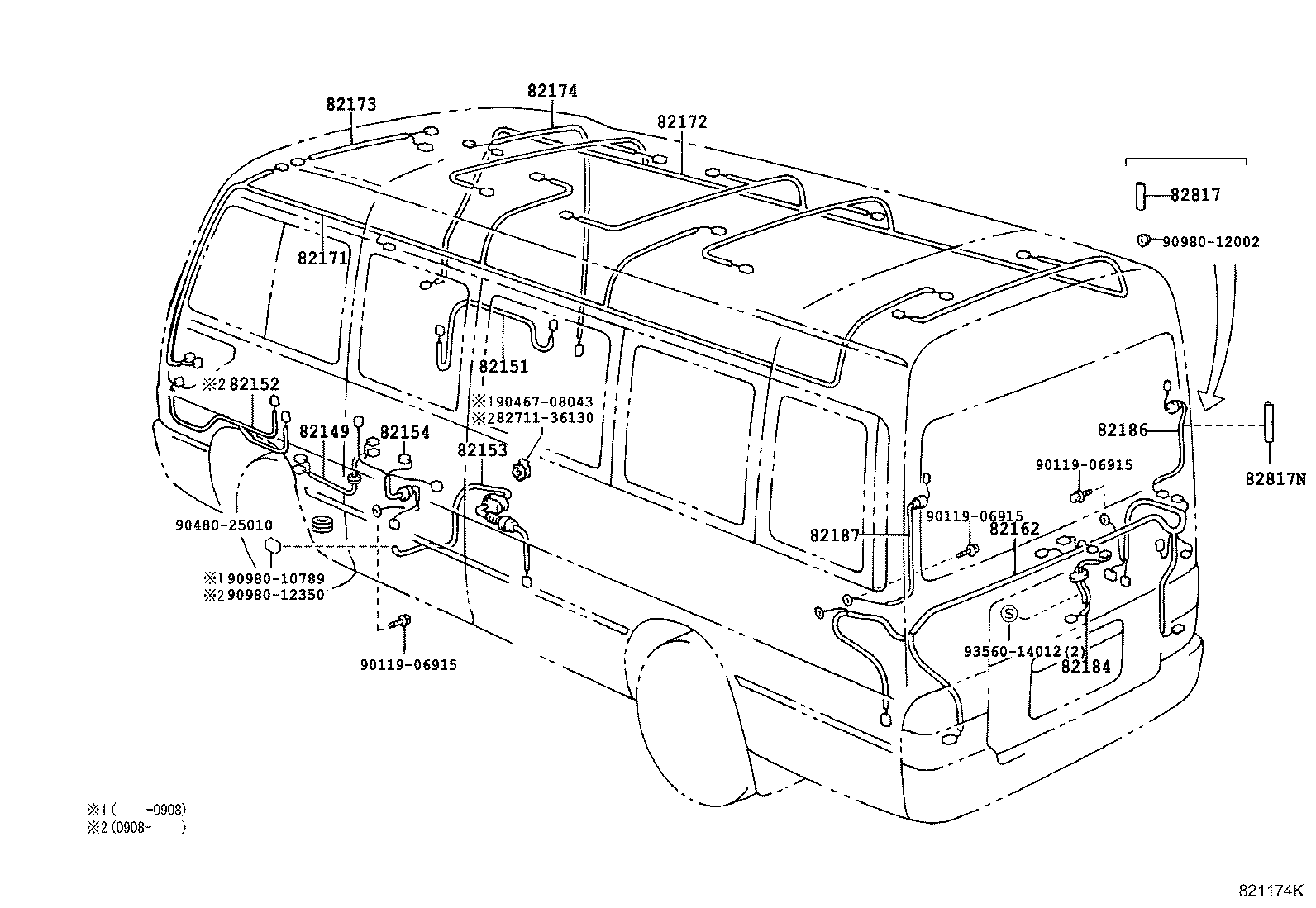

ROOF, DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-36010	BB50,HZB50..(20S,22S)..(ARL,CHI)	07/1999 - 11/2002	1
82151-36010	RZB40..EX;BB40,50,HZB50..(19S,20S,22S)..5F	01/1993 - 07/1999	1
82162 - WIRE, FLOOR, NO.2
82162-36012	HZB50..(GCC,GEN)..5F;BB42,50,RZB40,50..17S,19S,22S,26S,30S	07/1999 - 08/2000	1
82162-36010	HZB50..TD;BB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN)	01/1993 - 07/1995	1
82171 - WIRE, ROOF, NO.1
82171-36060	BB4#,HZB50..RHD..HRF..(DX,STD)..(ARL,EUR,GEN) W/O(DESTINATION EXPRESS BOX)	01/1993 - 05/1995	1
82171-36060	BB4#,HZB50..RHD..HRF..(DX,STD)..5F W/O(DESTINATION EXPRESS BOX)	05/1995 - 07/1999	1
82171-36070	BB4#,HZB50..RHD..HRF..(19S,20S,22S,26S,30S) W(CLOCK) & W/O(DESTINATION EXPRESS BOX)	01/1993 - 05/1995	1
82171-36070	BB4#,50,HZB50..RHD..HRF..CBU..5F W(CLOCK) & W/O(DESTINATION EXPRESS BOX)	05/1995 - 07/1999	1
82171-36060	HZB50..ARL W/O(DESTINATION EXPRESS BOX)	07/1999 - 11/2002	1
82171-36070	HZB50..ARL W(CLOCK) & W/O(DESTINATION EXPRESS BOX)	07/1999 - 11/2002	1
82172 - WIRE, ROOF, NO.2
82172-36040	BB4#,HZB50..RHD..HRF..STD..DSL W(2 SPEAKER)	01/1993 - 05/1995	1
82172-36050	BB4#,HZB50..STD..(ARL,SCO) W(CASSETTE)	01/1993 - 05/1995	1
82172-36050	BB40,50,HZB50..RHD..(19S,20S,22S)	05/1995 - 07/1999	1
82172-36050	HZB50..STD..ARL W(CASSETTE)	07/1999 - 11/2002	1
82173 - WIRE, ROOF, NO.3
82173-36010	HZB50..LHD..EX;BB4#,50,HZB50..RHD..CBU..5F W/O(DESTINATION EXPRESS BOX)	05/1993 - 07/1999	1
82173-36010	HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN W/O(DESTINATION EXPRESS BOX)	07/1999 - 08/2001	1
82173-36010	HZB50..LHD..EX;BB4#,HZB50..RHD..(19S,20S,22S,26S,30S) W/O(DESTINATION EXPRESS BOX)	01/1993 - 05/1993	1
82173-36010	HZB50..ARL W/O(DESTINATION EXPRESS BOX)	07/1999 - 11/2002	1
82174 - WIRE, ROOF, NO.4
82174-36020	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 01/1994	1
82174-36020	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1994 - 07/1999	1
82174-36020	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	1
82174-36020	BB50,HZB50..WC..(ARL,CHI)	07/1999 - 11/2002	1
82184 - WIRE, BACK DOOR, NO.1
82184-36010	HZB50..TD;HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)	01/1993 - 07/1999	1
82184-36050	BB40,HZB50..ARL	05/1997 - 07/1999	1
82184-36040	HZB50..SCO;BB4#..ARL,SCO;HZB50..19S,22S	01/1993 - 10/1995	1
82184-36041	HZB50..SCO;BB4#,HZB50..RHD..(17S,19S,22S)	10/1995 - 05/1997	1
82184-36050	HZB50..ARL	07/1999 - 11/2002	1
82184-36021	BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(DOUBLE SWING BACK DOOR)	08/1998 - 07/1999	1
82186 - WIRE, REAR WINDOW, NO.1
82186-36020	RZB40,50..WC;HZB50..RHD..SRF;BB42,HZB50,RZB40..WOC..GEN 12V	01/1993 - 05/1995	1
82186-36020	RZB40,50..WC;RZB40..WOC..GEN 12V	05/1995 - 07/1999	1
82186-36040	BB40,HZB50..ARL	03/1994 - 07/1999	1
82186-36010	HZB50..RHD..EX;HZB50..RHD..SRF;BB42,50..19S,22S;BB42,HZB50..RHD..HRF..WOC..GEN 24V	07/1999 - 08/2001	1
82186-36041	HZB50..ARL	07/1999 - 11/2002	1
82187 - WIRE, REAR WINDOW, NO.2
82187-36010	RZB40,50..WC;RZB40..WOC..GEN	05/1995 - 07/1999	1
82187-36010	RZB40,50..WC;HZB50..RHD..SRF;BB42,HZB50,RZB40..WOC..GEN	01/1993 - 05/1995	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-60040	HZB50..ARL	07/1999 - 11/2002	1
82817-60040	BB40,HZB50..ARL	03/1994 - 07/1999	1
82817N - PROTECTOR, WIRING HARNESS, NO.13
82817-60030	HZB50..ARL	07/1999 - 11/2002	1
Common parts
82711-36130
90119-06915
90467-08043
90480-25010
90980-10789
90980-12002
90980-12350
93560-14012

ILLUST NO. 1 OF 9(9301-9907)RHD ; (9907-0608)RHD..IV..6F

Click highlighted areas on diagram

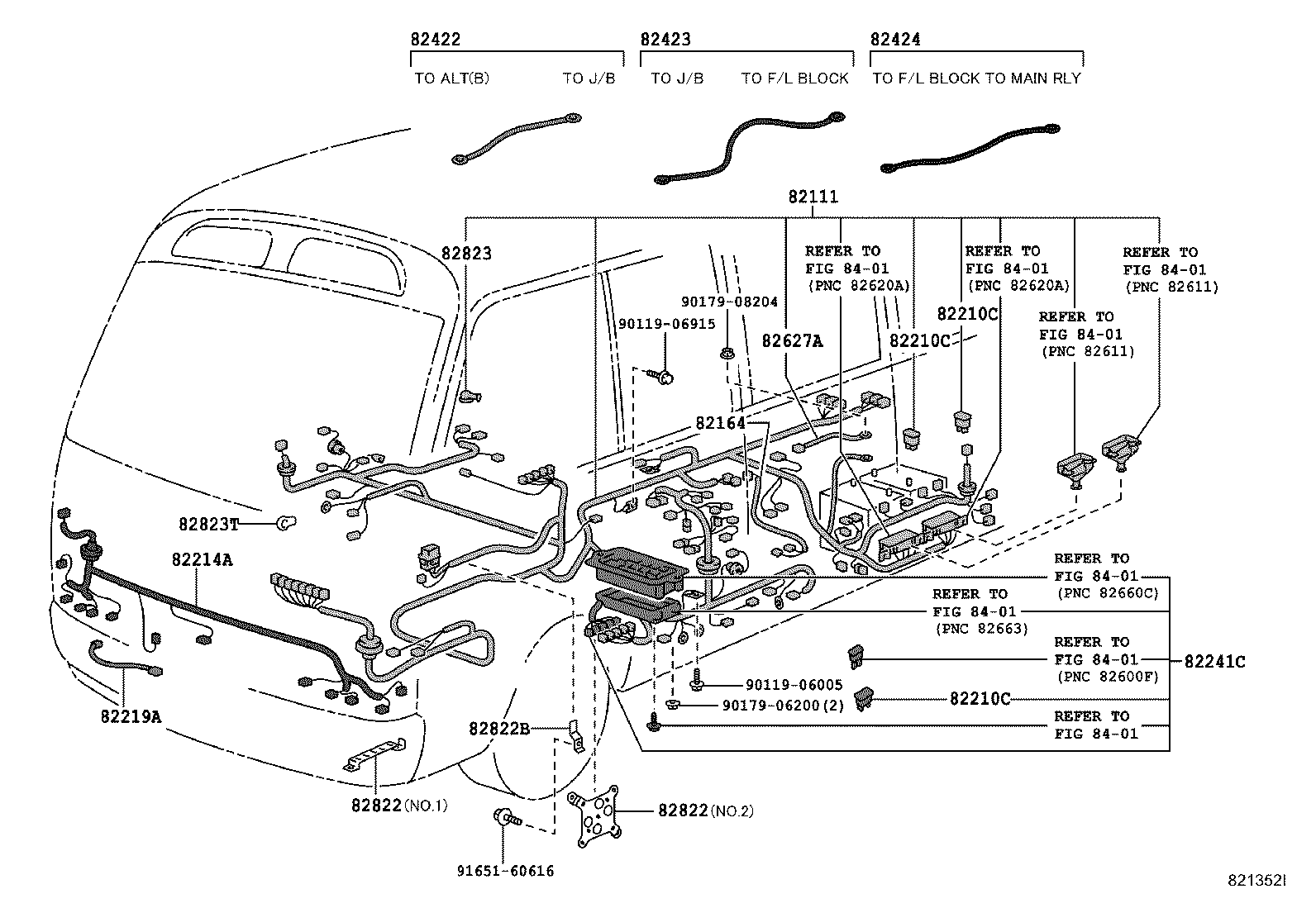

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-36580	RZB40,50..WC FOLDING AUTO DOOR	09/1993 - 02/1994	1
82111-36370	HZB50..WC..ARL	01/1993 - 09/1993	1
82111-36240	HZB50..STD..WC..ARL FOLDING AUTO DOOR	01/1993 - 05/1995	1
82111-36581	RZB40,50..WC FOLDING AUTO DOOR	02/1994 - 05/1995	1
82111-36390	HZB50..WC..TD	01/1993 - 05/1996	1
82111-36241	HZB50..WC..ARL	05/1995 - 05/1997	1
82111-36290	HZB50..RHD..TD	01/1993 - 05/1996	1
82111-36583	RZB40,50	08/1998 - 11/1998	1
82111-36242	HZB50..WC..ARL	05/1997 - 07/1999	1
82111-36584	RZB40,50	11/1998 - 07/1999	1
82111-36243	HZB50..ARL	07/1999 - 08/2001	1
82111-36244	HZB50..ARL	08/2001 - 11/2002	1
82210C - FUSIBLE LINK
90982-08203	BB4#,5#,HZB50,RZB40,50 80A,TERM.:MALE,BLK	01/1993 - 07/1999	1
90982-08223	BB4#,5#,HZB50,RZB40,50 30A,TERM.:MALE,PNK	01/1993 - 07/1999	1
90982-08216	BB4#,HZB50,RZB40,50 30A,TERM.:FEMALE,PNK,NO.3	01/1993 - 05/1995	1
90982-08273	RZB40,50 100A,TERM.:MALE,BLUE,NO.1	09/1993 - 05/1995	1
90982-08202	BB4#,5#,HZB50,RZB40,50 60A,TERM.:MALE,YEL	01/1993 - 07/1999	1
90982-08280	BB4#,5#,HZB50,RZB40,50 30A,TERM.:FEMALE,PNK,YAZAKI	05/1995 - 07/1999	1
90982-08228	BB4#,5#,HZB50,RZB40,50 50A,TERM.:MALE,RED	01/1993 - 07/1999	1
90982-08246	BB4#,5#,HZB50,RZB40,50 100A,TERM.:MALE,BLUE	01/1993 - 07/1999	1
90982-08188	BB4#,5#,HZB50,RZB40,50 30A,TERM.:FEMALE,PNK,PACIFIC	01/1993 - 07/1999	1
90982-08202	BB50,HZB50,RZB40,50..ARL,CHI 60A,TERM.:MALE,YEL	07/1999 - 11/2002	1
90982-08188	HZB50..ARL 30A,TERM.:FEMALE,PNK,PACIFIC	07/1999 - 11/2002	1
90982-08203	BB50,HZB50..ARL,CHI 80A,TERM.:MALE,BLK	07/1999 - 11/2002	1
90982-08223	HZB50..ARL 30A,TERM.:MALE,PNK	07/1999 - 11/2002	1
90982-08246	BB50,HZB50,RZB40,50..ARL,CHI 100A,TERM.:MALE,BLUE	07/1999 - 11/2002	1
90982-08281	BB50,HZB50,RZB40,50..ARL,CHI 40A,TERM.:FEMALE,GRN	07/1999 - 11/2002	1
90982-08280	BB50,HZB50,RZB40,50..ARL,CHI 30A,TERM.:FEMALE,PNK,YAZAKI	07/1999 - 11/2002	1
90982-08228	HZB50..ARL 50A,TERM.:MALE,RED	07/1999 - 11/2002	1
90982-08282	BB50,HZB50,RZB40,50..ARL,CHI 50A,TERM.:FEMALE,RED	07/1999 - 11/2002	1
82210C - FUSIBLE LINK
90982-08203	BB4#,5#,HZB50,RZB40,50 80A,TERM.:MALE,BLK	01/1993 - 07/1999	1
90982-08223	BB4#,5#,HZB50,RZB40,50 30A,TERM.:MALE,PNK	01/1993 - 07/1999	1
90982-08216	BB4#,HZB50,RZB40,50 30A,TERM.:FEMALE,PNK,NO.3	01/1993 - 05/1995	1
90982-08273	RZB40,50 100A,TERM.:MALE,BLUE,NO.1	09/1993 - 05/1995	1
90982-08202	BB4#,5#,HZB50,RZB40,50 60A,TERM.:MALE,YEL	01/1993 - 07/1999	1
90982-08280	BB4#,5#,HZB50,RZB40,50 30A,TERM.:FEMALE,PNK,YAZAKI	05/1995 - 07/1999	1
90982-08228	BB4#,5#,HZB50,RZB40,50 50A,TERM.:MALE,RED	01/1993 - 07/1999	1
90982-08246	BB4#,5#,HZB50,RZB40,50 100A,TERM.:MALE,BLUE	01/1993 - 07/1999	1
90982-08188	BB4#,5#,HZB50,RZB40,50 30A,TERM.:FEMALE,PNK,PACIFIC	01/1993 - 07/1999	1
90982-08202	BB50,HZB50,RZB40,50..ARL,CHI 60A,TERM.:MALE,YEL	07/1999 - 11/2002	1
90982-08188	HZB50..ARL 30A,TERM.:FEMALE,PNK,PACIFIC	07/1999 - 11/2002	1
90982-08203	BB50,HZB50..ARL,CHI 80A,TERM.:MALE,BLK	07/1999 - 11/2002	1
90982-08223	HZB50..ARL 30A,TERM.:MALE,PNK	07/1999 - 11/2002	1
90982-08246	BB50,HZB50,RZB40,50..ARL,CHI 100A,TERM.:MALE,BLUE	07/1999 - 11/2002	1
90982-08281	BB50,HZB50,RZB40,50..ARL,CHI 40A,TERM.:FEMALE,GRN	07/1999 - 11/2002	1
90982-08280	BB50,HZB50,RZB40,50..ARL,CHI 30A,TERM.:FEMALE,PNK,YAZAKI	07/1999 - 11/2002	1
90982-08228	HZB50..ARL 50A,TERM.:MALE,RED	07/1999 - 11/2002	1
90982-08282	BB50,HZB50,RZB40,50..ARL,CHI 50A,TERM.:FEMALE,RED	07/1999 - 11/2002	1
82210C - FUSIBLE LINK
90982-08203	BB4#,5#,HZB50,RZB40,50 80A,TERM.:MALE,BLK	01/1993 - 07/1999	1
90982-08223	BB4#,5#,HZB50,RZB40,50 30A,TERM.:MALE,PNK	01/1993 - 07/1999	1
90982-08216	BB4#,HZB50,RZB40,50 30A,TERM.:FEMALE,PNK,NO.3	01/1993 - 05/1995	1
90982-08273	RZB40,50 100A,TERM.:MALE,BLUE,NO.1	09/1993 - 05/1995	1
90982-08202	BB4#,5#,HZB50,RZB40,50 60A,TERM.:MALE,YEL	01/1993 - 07/1999	1
90982-08280	BB4#,5#,HZB50,RZB40,50 30A,TERM.:FEMALE,PNK,YAZAKI	05/1995 - 07/1999	1
90982-08228	BB4#,5#,HZB50,RZB40,50 50A,TERM.:MALE,RED	01/1993 - 07/1999	1
90982-08246	BB4#,5#,HZB50,RZB40,50 100A,TERM.:MALE,BLUE	01/1993 - 07/1999	1
90982-08188	BB4#,5#,HZB50,RZB40,50 30A,TERM.:FEMALE,PNK,PACIFIC	01/1993 - 07/1999	1
90982-08202	BB50,HZB50,RZB40,50..ARL,CHI 60A,TERM.:MALE,YEL	07/1999 - 11/2002	1
90982-08188	HZB50..ARL 30A,TERM.:FEMALE,PNK,PACIFIC	07/1999 - 11/2002	1
90982-08203	BB50,HZB50..ARL,CHI 80A,TERM.:MALE,BLK	07/1999 - 11/2002	1
90982-08223	HZB50..ARL 30A,TERM.:MALE,PNK	07/1999 - 11/2002	1
90982-08246	BB50,HZB50,RZB40,50..ARL,CHI 100A,TERM.:MALE,BLUE	07/1999 - 11/2002	1
90982-08281	BB50,HZB50,RZB40,50..ARL,CHI 40A,TERM.:FEMALE,GRN	07/1999 - 11/2002	1
90982-08280	BB50,HZB50,RZB40,50..ARL,CHI 30A,TERM.:FEMALE,PNK,YAZAKI	07/1999 - 11/2002	1
90982-08228	HZB50..ARL 50A,TERM.:MALE,RED	07/1999 - 11/2002	1
90982-08282	BB50,HZB50,RZB40,50..ARL,CHI 50A,TERM.:FEMALE,RED	07/1999 - 11/2002	1
82214A - WIRE, LAMP
82214-36060	HZB50..RHD..TD	01/1993 - 05/1996	1
82214-36030	BB4#,HZB50..RHD..DSL	01/1993 - 05/1997	1
82214-36050	HZB50..RHD..DSL W(AIR CLEANER)	01/1993 - 05/1995	1
82214-36031	BB4#,HZB50..RHD	05/1997 - 07/1999	1
82214-36032	HZB50..RHD..SRF;BB42,HZB50..RHD..HRF..WOC..GEN;BB43,HZB50..RHD..(17S,20S,22S)	07/1999 - 08/2001	1
82214-36112	HZB50..ARL	08/2001 - 11/2002	1
82241C - WIRE, RELAY
82241-36070	BB4#,HZB50..(19S,22S,26S)..(DX,STD)..WC	01/1993 - 09/1993	1
82241-36030	BB40,HZB50..STD..WC..ARL W(FOLDING AUTO DOOR)	01/1993 - 05/1995	1
82241-36050	HZB50..TD	01/1993 - 05/1996	1
82241-36031	HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;BB4#,HZB50..RHD..HRF..(17S,19S,20S,22S,30S)..WC	05/1995 - 05/1997	1
82241-36032	HZB50..HRF..WC;HZB50..LHD..SRF..WC;BB40,42..WC..(ARL,SCO)	05/1997 - 11/1998	1
82241-36102	RZB40,50	08/1998 - 11/1998	1
82241-36032	BB40,HZB50..RHD..HRF..WC	11/1998 - 07/1999	1
82241-36033	HZB50..WOC..ARL;BB4#,50,HZB50..RHD..HRF..WC	07/1999 - 08/2001	1
82241-36140	BB50..GEN..IV;BB43,50..RHD..CBU	11/1998 - 07/1999	1
82241-36034	BB42,50,59,HZB50..RHD..5F	08/2001 - 11/2002	1
82422 - WIRE, ALTERNATOR SUB, NO.1
82422-36010	HZB50..TD	01/1993 - 05/1996	1
82423 - WIRE, ALTERNATOR SUB, NO.2
82423-36010	HZB50..TD	01/1993 - 05/1996	1
82424 - WIRE, ALTERNATOR SUB, NO.3
82424-36010	HZB50..TD	01/1993 - 05/1996	1
82822 - BRACKET,CONNECTOR BLOCK
82822-36030	BB4#,HZB50,RZB40,50 NO.1	02/1994 - 05/1997	1
82822-36030	BB4#,HZB50,RZB40,50 NO.1	01/1993 - 01/1994	1
82822-36070	HZB50..ARL NO.2	07/1999 - 11/2002	1
82822-36070	BB50..WOC..5F;HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN NO.2	07/1999 - 08/2001	1
82822-36030	BB4#,HZB50 NO.1	01/1994 - 02/1994	1
82822-36070	BB4#,5#,HZB50,RZB40,50..CBU NO.2	06/1998 - 11/1998	1
82822-36070	HZB50..LHD..WOC;BB4#,50,HZB50..RHD..CBU NO.2	11/1998 - 07/1999	1
82822-36070	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO NO.2	05/1997 - 06/1998	1
82822 - BRACKET,CONNECTOR BLOCK
82822-36030	BB4#,HZB50,RZB40,50 NO.1	02/1994 - 05/1997	1
82822-36030	BB4#,HZB50,RZB40,50 NO.1	01/1993 - 01/1994	1
82822-36070	HZB50..ARL NO.2	07/1999 - 11/2002	1
82822-36070	BB50..WOC..5F;HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN NO.2	07/1999 - 08/2001	1
82822-36030	BB4#,HZB50 NO.1	01/1994 - 02/1994	1
82822-36070	BB4#,5#,HZB50,RZB40,50..CBU NO.2	06/1998 - 11/1998	1
82822-36070	HZB50..LHD..WOC;BB4#,50,HZB50..RHD..CBU NO.2	11/1998 - 07/1999	1
82822-36070	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO NO.2	05/1997 - 06/1998	1
82822B - BRACKET, CONNECTOR BLOCK
82822-36010	BB4#,HZB50,RZB40,50	01/1993 - 05/1995	1
82823 - CAP, TERMINAL, NO.1
82823-95401	BB50..WOC..5F;BB50..CBU..6F;BB43,50..RHD..5F	07/1999 - 08/2001	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	BB50,HZB50,RZB40,50..ARL,CHI DARK GRAY	08/2001 - 11/2002	1
82823-22050	BB4#,5#,HZB50,RZB40,50..CBU DARK GRAY	11/1997 - 07/1999	1
82823-22050	BB4#,RZB40,50 DARK GRAY	01/1993 - 05/1995	1
82823-22050	BB50..EX;BB50..TDEFI;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 DARK GRAY	07/1999 - 08/2001	1
82823-22050	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO DARK GRAY	05/1995 - 11/1997	1
Common parts
90119-06005
90119-06915
90179-06200
90179-08204
91651-60616
Linked diagrams
8401

ILLUST NO. 2 OF 9(9301-1501)BB4#,5#,HZB50

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-36010	HZB50..ARL,EUR	01/1993 - 05/1995	1
82121-36011	HZB50..ARL	05/1995 - 05/1997	1
82121-36080	RZB40,50	09/1993 - 05/1995	1
82121-36010	HZB50..TD	05/1995 - 05/1996	1
82121-36081	RZB40,50	05/1995 - 05/1997	1
82121-36012	HZB50..ARL	05/1997 - 07/1999	1
82121-36082	RZB40,50	05/1997 - 07/1999	1
82121-36160	BB43,50..CBU	05/1997 - 07/1999	1
82121-36013	HZB50..ARL	07/1999 - 11/2002	1
82121-36161	BB43,50..RHD..5F	07/1999 - 08/2001	1
82121 - WIRE, ENGINE
82121-36010	HZB50..ARL,EUR	01/1993 - 05/1995	1
82121-36011	HZB50..ARL	05/1995 - 05/1997	1
82121-36080	RZB40,50	09/1993 - 05/1995	1
82121-36010	HZB50..TD	05/1995 - 05/1996	1
82121-36081	RZB40,50	05/1995 - 05/1997	1
82121-36012	HZB50..ARL	05/1997 - 07/1999	1
82121-36082	RZB40,50	05/1997 - 07/1999	1
82121-36160	BB43,50..CBU	05/1997 - 07/1999	1
82121-36013	HZB50..ARL	07/1999 - 11/2002	1
82121-36161	BB43,50..RHD..5F	07/1999 - 08/2001	1
82122 - WIRE, ENGINE, NO.2
82122-36020	HZB50..RHD..DSL	01/1993 - 05/1995	1
82122-36040	RZB40,50	09/1993 - 05/1995	1
82122-36060	HZB50..TD	01/1993 - 05/1996	1
82122-36041	RZB40,50	05/1995 - 05/1997	1
82122-36083	BB50..WOC..5F;BB42..WOC..GCC;BB42,50..19S,22S	07/1999 - 08/2001	1
82122-36042	RZB40,50	05/1997 - 07/1999	1
82122-36072	BB4#,50..RHD..CBU	05/1997 - 07/1999	1
82122-36073	BB43,50..RHD..5F;BB42..RHD..HRF..WOC	07/1999 - 08/2001	1
82122-36021	HZB50..RHD..DSL	05/1995 - 07/1999	1
82122-36022	HZB50..ARL	07/1999 - 11/2002	1
82122-36073	BB42..RHD..SRF;BB42,50,59..RHD..WC..(DSL,TDEFI)	07/1999 - 11/2002	1
82122 - WIRE, ENGINE, NO.2
82122-36020	HZB50..RHD..DSL	01/1993 - 05/1995	1
82122-36040	RZB40,50	09/1993 - 05/1995	1
82122-36060	HZB50..TD	01/1993 - 05/1996	1
82122-36041	RZB40,50	05/1995 - 05/1997	1
82122-36083	BB50..WOC..5F;BB42..WOC..GCC;BB42,50..19S,22S	07/1999 - 08/2001	1
82122-36042	RZB40,50	05/1997 - 07/1999	1
82122-36072	BB4#,50..RHD..CBU	05/1997 - 07/1999	1
82122-36073	BB43,50..RHD..5F;BB42..RHD..HRF..WOC	07/1999 - 08/2001	1
82122-36021	HZB50..RHD..DSL	05/1995 - 07/1999	1
82122-36022	HZB50..ARL	07/1999 - 11/2002	1
82122-36073	BB42..RHD..SRF;BB42,50,59..RHD..WC..(DSL,TDEFI)	07/1999 - 11/2002	1
82124 - WIRE, ENGINE, NO.4
82124-36010	BB4#,HZB50	01/1993 - 05/1995	1
82124-36011	BB4#,5#;HZB50..DSL	05/1995 - 07/1999	1
82124-36010	HZB50..TD	05/1995 - 05/1996	1
82124-36011	BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN	07/1999 - 08/2001	1
82124-36011	BB50,HZB50..ARL,CHI	07/1999 - 11/2002	1
82124 - WIRE, ENGINE, NO.4
82124-36010	BB4#,HZB50	01/1993 - 05/1995	1
82124-36011	BB4#,5#;HZB50..DSL	05/1995 - 07/1999	1
82124-36010	HZB50..TD	05/1995 - 05/1996	1
82124-36011	BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN	07/1999 - 08/2001	1
82124-36011	BB50,HZB50..ARL,CHI	07/1999 - 11/2002	1
82221 - WIRE, OIL PRESSURE SWITCH
82221-36011	RZB40,50	05/1997 - 07/1999	1
82221-36010	RZB40,50	09/1993 - 05/1997	1
82261A - WIRE, ALTERNATOR
82261-36010	HZB50..GCC..4FC;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL	01/1993 - 05/1995	1
82261-36011	HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL	05/1995 - 05/1997	1
82261-36020	HZB50..TD	01/1993 - 05/1996	1
82261-36012	HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
82261-36060	BB43,5#..CBU	11/1997 - 07/1999	1
82261-36061	BB43,50..CBU	07/1999 - 08/2001	1
82261-36013	HZB50..WC..ARL	07/1999 - 11/2002	1
82671 - BLOCK, JUNCTION
82671-28010	HZB50	01/1993 - 05/1995	1
82671-28010	BB50..WOC..5F;BB50..CBU..6F;BB43,50..RHD..5F	07/1999 - 08/2001	2
82671-28010	HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
82671-28010	HZB50,RZB40,50	05/1995 - 07/1999	1
82671 - BLOCK, JUNCTION
82671-28010	HZB50	01/1993 - 05/1995	1
82671-28010	BB50..WOC..5F;BB50..CBU..6F;BB43,50..RHD..5F	07/1999 - 08/2001	2
82671-28010	HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
82671-28010	HZB50,RZB40,50	05/1995 - 07/1999	1
82822B - BRACKET, CONNECTOR BLOCK
82822-36010	BB4#,HZB50,RZB40,50	01/1993 - 05/1995	1
82823 - CAP, TERMINAL, NO.1
82823-95401	BB50..WOC..5F;BB50..CBU..6F;BB43,50..RHD..5F	07/1999 - 08/2001	1
82823S - CAP, STARTER TERMINAL
82823-30100	HZB50..LHD;BB4#,5#..ARL,GCC,GEN,SCO	05/1997 - 07/1999	1
82823S - CAP, STARTER TERMINAL
82823-30100	HZB50..LHD;BB4#,5#..ARL,GCC,GEN,SCO	05/1997 - 07/1999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	BB50,HZB50,RZB40,50..ARL,CHI DARK GRAY	08/2001 - 11/2002	1
82823-22050	BB4#,5#,HZB50,RZB40,50..CBU DARK GRAY	11/1997 - 07/1999	1
82823-22050	BB4#,RZB40,50 DARK GRAY	01/1993 - 05/1995	1
82823-22050	BB50..EX;BB50..TDEFI;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 DARK GRAY	07/1999 - 08/2001	1
82823-22050	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO DARK GRAY	05/1995 - 11/1997	1
Common parts
90119-06915
90119-08063
90119-08827
90179-06158
90179-08204
91512-61014
91622-G1014
91641-80812
91651-40620
91651-60620
91651-B0820
94130-00802
Linked diagrams

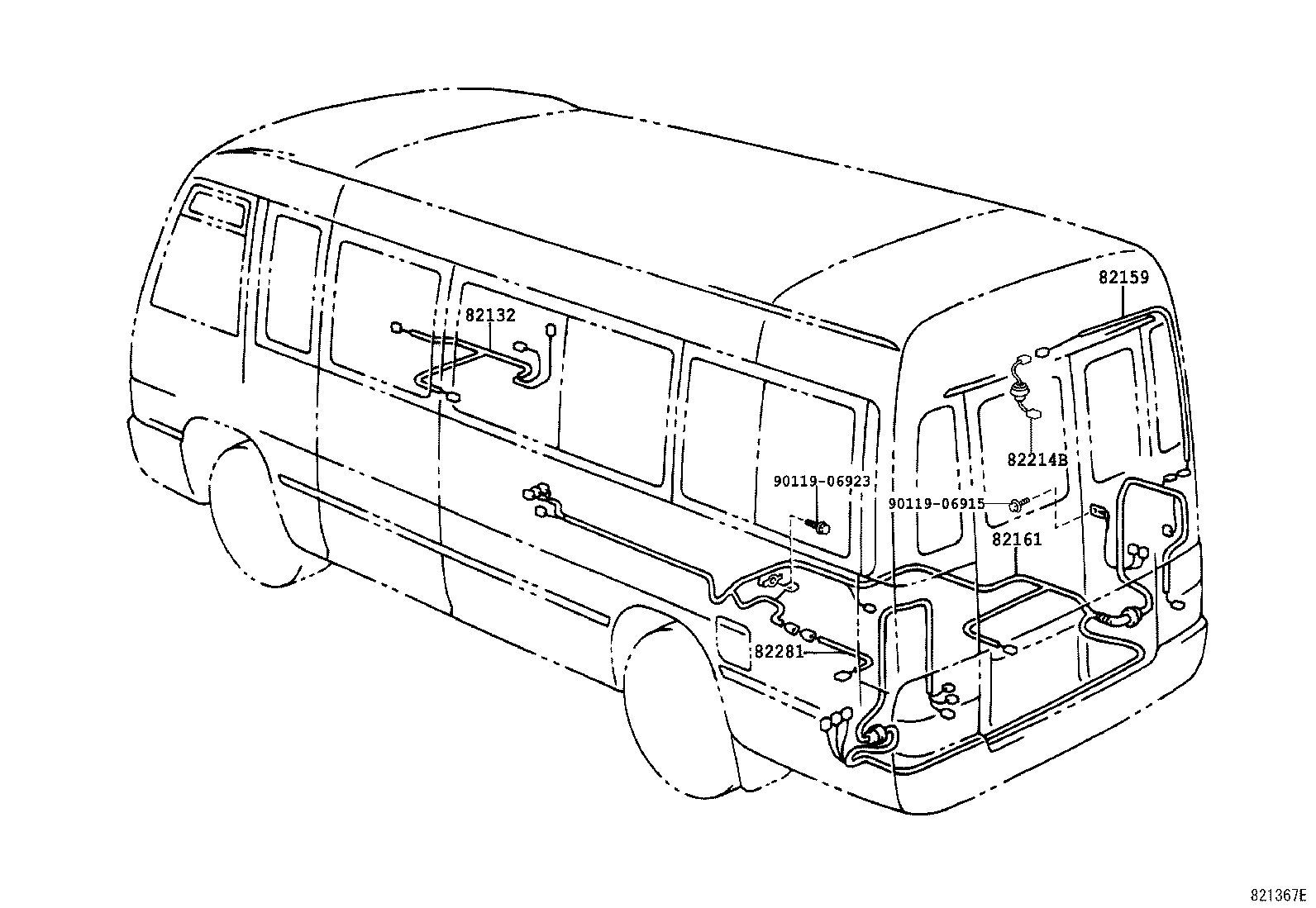

8201

ILLUST NO. 4 OF 9(9301-1501)

Click highlighted areas on diagram

FLOOR

Part #	Description	Period	Qty
82132 - WIRE, COWL, NO.2
82132-36040	BB40,HZB50..19S,20S,22S	01/1993 - 04/1993	1
82132-36092	RZB40,50	05/1997 - 07/1999	1
82132-36011	BB40,50,HZB50..RHD..(19S,20S,22S)..5F	05/1997 - 07/1999	1
82132-36040	BB40,HZB50..RHD..(19S,20S,22S)..5F	04/1993 - 05/1997	1
82132-36131	BB50..WOC..5F;BB42..WOC..GCC;BB42,50..19S,22S	07/1999 - 08/2001	1
82132-36012	HZB50..ARL	07/1999 - 11/2002	1
82161 - WIRE, FLOOR
82161-36030	HZB50..SCO;HZB50..19S,22S	01/1993 - 10/1995	1
82161-36270	HZB50..RHD..TD	01/1994 - 05/1996	1
82161-36031	HZB50..22S;HZB50..SCO	10/1995 - 05/1997	1
82161-36310	BB50..EX;HZB50..RHD..(DX,STD) W(SINGLE SWING BACK DOOR)	05/1997 - 07/1999	1
82161-36312	BB50,HZB50..RHD..5F W(DOUBLE SWING BACK DOOR)	08/2001 - 11/2001	1
82161-36313	BB50,HZB50..RHD..5F W(SINGLE SWING BACK DOOR)	11/2001 - 11/2002	1
82161-36311	BB50..EX..GEN..CBU;HZB50..RHD..(DX,STD) W(SINGLE SWING BACK DOOR)	07/1999 - 08/2001	1
82281 - WIRE, GAGE
82281-36020	BB4#,HZB50,RZB40,50	01/1993 - 10/1995	1
82281-36021	BB4#,5#,HZB50,RZB40,50	10/1995 - 07/1999	1
82281-36021	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
82824E - CONNECTOR, WIRING HARNESS
82824-36050	BB4#,HZB50,RZB40,50	01/1993 - 05/1997	1
Common parts
90119-06915
90119-06923

ILLUST NO. 4 OF 9(9301-1501)

Click highlighted areas on diagram

FLOOR W(BACK DOOR)

Part #	Description	Period	Qty
82132 - WIRE, COWL, NO.2
82132-36040	BB40,HZB50..19S,20S,22S	01/1993 - 04/1993	1
82132-36092	RZB40,50	05/1997 - 07/1999	1
82132-36011	BB40,50,HZB50..RHD..(19S,20S,22S)..5F	05/1997 - 07/1999	1
82132-36040	BB40,HZB50..RHD..(19S,20S,22S)..5F	04/1993 - 05/1997	1
82132-36131	BB50..WOC..5F;BB42..WOC..GCC;BB42,50..19S,22S	07/1999 - 08/2001	1
82132-36012	HZB50..ARL	07/1999 - 11/2002	1
82161 - WIRE, FLOOR
82161-36030	HZB50..SCO;HZB50..19S,22S	01/1993 - 10/1995	1
82161-36270	HZB50..RHD..TD	01/1994 - 05/1996	1
82161-36031	HZB50..22S;HZB50..SCO	10/1995 - 05/1997	1
82161-36310	BB50..EX;HZB50..RHD..(DX,STD) W(SINGLE SWING BACK DOOR)	05/1997 - 07/1999	1
82161-36312	BB50,HZB50..RHD..5F W(DOUBLE SWING BACK DOOR)	08/2001 - 11/2001	1
82161-36313	BB50,HZB50..RHD..5F W(SINGLE SWING BACK DOOR)	11/2001 - 11/2002	1
82161-36311	BB50..EX..GEN..CBU;HZB50..RHD..(DX,STD) W(SINGLE SWING BACK DOOR)	07/1999 - 08/2001	1
82281 - WIRE, GAGE
82281-36020	BB4#,HZB50,RZB40,50	01/1993 - 10/1995	1
82281-36021	BB4#,5#,HZB50,RZB40,50	10/1995 - 07/1999	1
82281-36021	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
Common parts
90119-06915
90119-06923

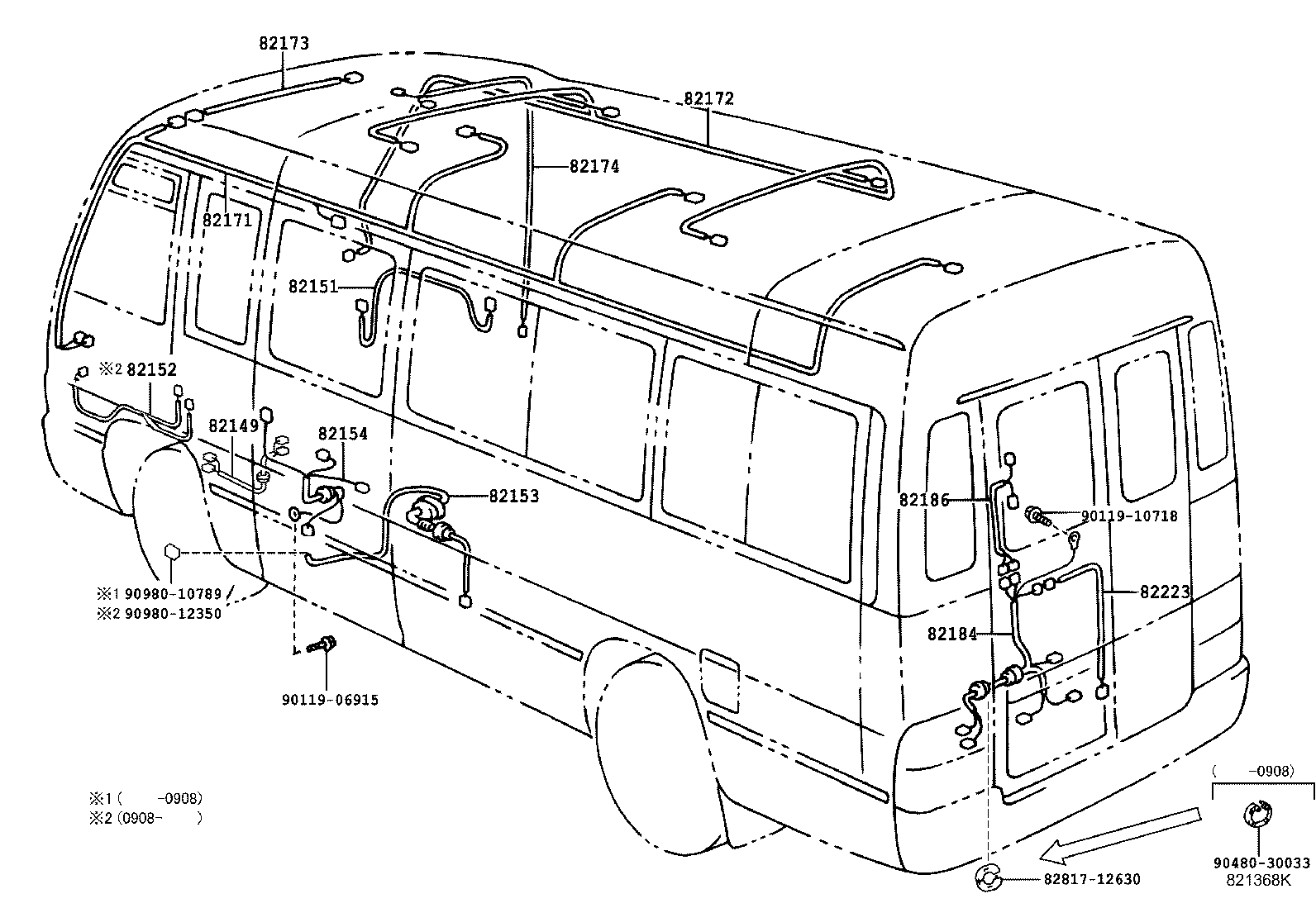

ILLUST NO. 5 OF 9(9301-1501)

Click highlighted areas on diagram

ROOF, DOOR W(BACK DOOR)

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-36010	BB50,HZB50..(20S,22S)..(ARL,CHI)	07/1999 - 11/2002	1
82151-36010	RZB40..EX;BB40,50,HZB50..(19S,20S,22S)..5F	01/1993 - 07/1999	1
82171 - WIRE, ROOF, NO.1
82171-36060	BB4#,HZB50..RHD..HRF..(DX,STD)..(ARL,EUR,GEN) W/O(DESTINATION EXPRESS BOX)	01/1993 - 05/1995	1
82171-36060	BB4#,HZB50..RHD..HRF..(DX,STD)..5F W/O(DESTINATION EXPRESS BOX)	05/1995 - 07/1999	1
82171-36070	BB4#,HZB50..RHD..HRF..(19S,20S,22S,26S,30S) W(CLOCK) & W/O(DESTINATION EXPRESS BOX)	01/1993 - 05/1995	1
82171-36070	BB4#,50,HZB50..RHD..HRF..CBU..5F W(CLOCK) & W/O(DESTINATION EXPRESS BOX)	05/1995 - 07/1999	1
82171-36060	HZB50..ARL W/O(DESTINATION EXPRESS BOX)	07/1999 - 11/2002	1
82171-36070	HZB50..ARL W(CLOCK) & W/O(DESTINATION EXPRESS BOX)	07/1999 - 11/2002	1
82172 - WIRE, ROOF, NO.2
82172-36040	BB4#,HZB50..RHD..HRF..STD..DSL W(2 SPEAKER)	01/1993 - 05/1995	1
82172-36050	BB4#,HZB50..STD..(ARL,SCO) W(CASSETTE)	01/1993 - 05/1995	1
82172-36050	BB40,50,HZB50..RHD..(19S,20S,22S)	05/1995 - 07/1999	1
82172-36050	HZB50..STD..ARL W(CASSETTE)	07/1999 - 11/2002	1
82173 - WIRE, ROOF, NO.3
82173-36010	HZB50..LHD..EX;BB4#,50,HZB50..RHD..CBU..5F W/O(DESTINATION EXPRESS BOX)	05/1993 - 07/1999	1
82173-36010	HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN W/O(DESTINATION EXPRESS BOX)	07/1999 - 08/2001	1
82173-36010	HZB50..LHD..EX;BB4#,HZB50..RHD..(19S,20S,22S,26S,30S) W/O(DESTINATION EXPRESS BOX)	01/1993 - 05/1993	1
82173-36010	HZB50..ARL W/O(DESTINATION EXPRESS BOX)	07/1999 - 11/2002	1
82174 - WIRE, ROOF, NO.4
82174-36020	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 01/1994	1
82174-36020	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1994 - 07/1999	1
82174-36020	BB50..EX..GEN;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN	07/1999 - 08/2001	1
82174-36020	BB50,HZB50..WC..(ARL,CHI)	07/1999 - 11/2002	1
82184 - WIRE, BACK DOOR, NO.1
82184-36010	HZB50..TD;HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)	01/1993 - 07/1999	1
82184-36050	BB40,HZB50..ARL	05/1997 - 07/1999	1
82184-36040	HZB50..SCO;BB4#..ARL,SCO;HZB50..19S,22S	01/1993 - 10/1995	1
82184-36041	HZB50..SCO;BB4#,HZB50..RHD..(17S,19S,22S)	10/1995 - 05/1997	1
82184-36050	HZB50..ARL	07/1999 - 11/2002	1
82184-36021	BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(DOUBLE SWING BACK DOOR)	08/1998 - 07/1999	1
82186 - WIRE, REAR WINDOW, NO.1
82186-36020	RZB40,50..WC;HZB50..RHD..SRF;BB42,HZB50,RZB40..WOC..GEN 12V	01/1993 - 05/1995	1
82186-36020	RZB40,50..WC;RZB40..WOC..GEN 12V	05/1995 - 07/1999	1
82186-36040	BB40,HZB50..ARL	03/1994 - 07/1999	1
82186-36010	HZB50..RHD..EX;HZB50..RHD..SRF;BB42,50..19S,22S;BB42,HZB50..RHD..HRF..WOC..GEN 24V	07/1999 - 08/2001	1
82186-36041	HZB50..ARL	07/1999 - 11/2002	1
82223 - WIRE, SWITCH
82223-36020	HZB50..SCO;BB42,43,50..RHD..WC;HZB50..RHD..HRF..STD..WC..GEN	05/1995 - 07/1999	1
82223-36030	BB40,HZB50..ARL	01/1993 - 05/1997	1
82223-36031	HZB50..ARL	07/1999 - 11/2002	1
82223-36031	BB40,HZB50..ARL	05/1997 - 07/1999	1
Common parts
82817-12630
90119-06915
90119-10718
90480-30033
90980-10789
90980-12350

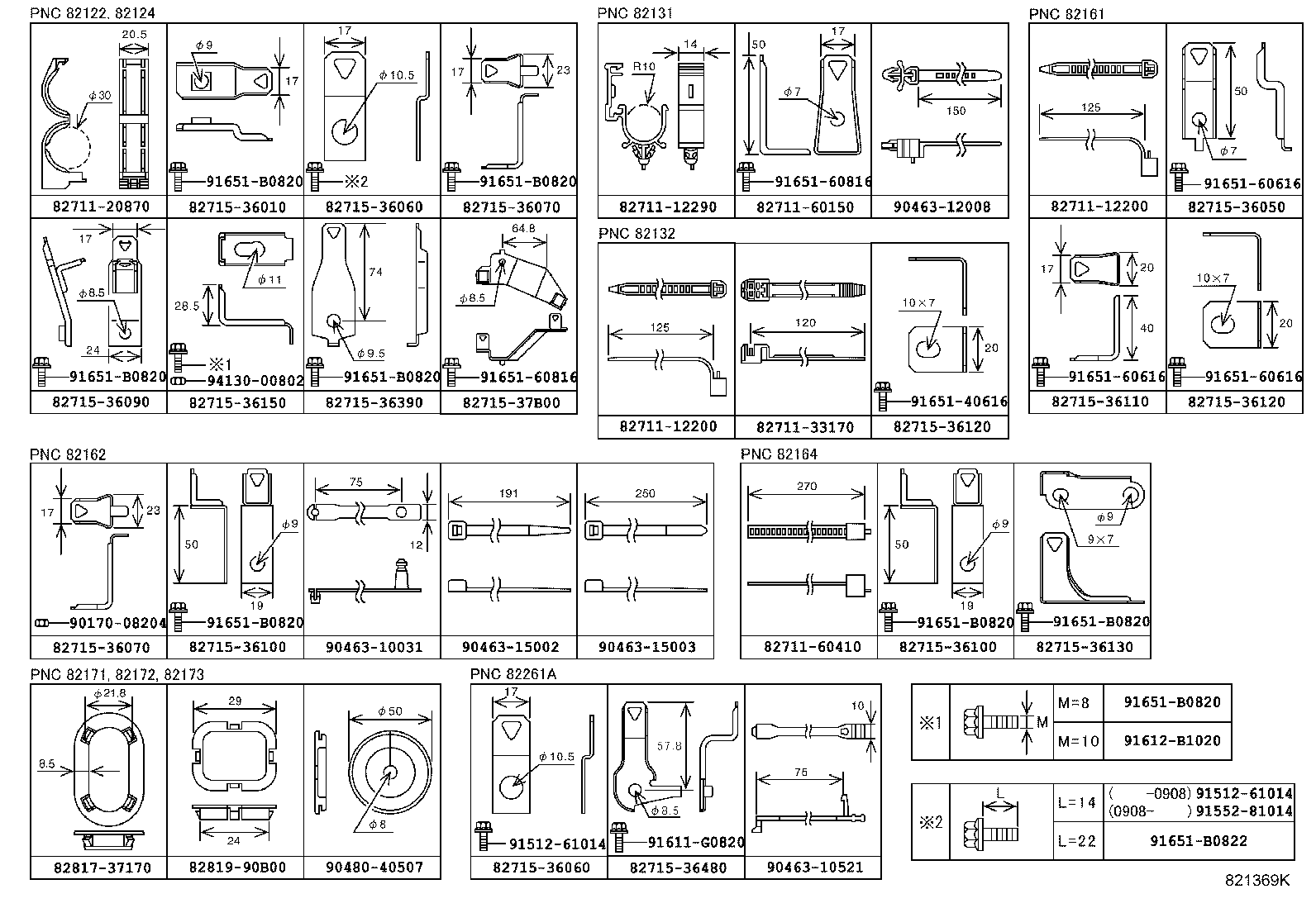

ILLUST NO. 6 OF 9(9301- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-12290
82711-20870
82711-33170
82711-60150
82711-60410
82715-36010
82715-36050
82715-36060
82715-36070
82715-36090
82715-36100
82715-36110
82715-36120
82715-36130
82715-36150
82715-36390
82715-36480
82715-37B00
82817-37170
82819-90B00
90170-08204
90463-10031
90463-10521
90463-12008
90463-15002
90463-15003
90480-40507
91512-61014
91552-81014
91611-G0820
91612-B1020
91651-40616
91651-60616
91651-60816
91651-B0820
91651-B0822
94130-00802

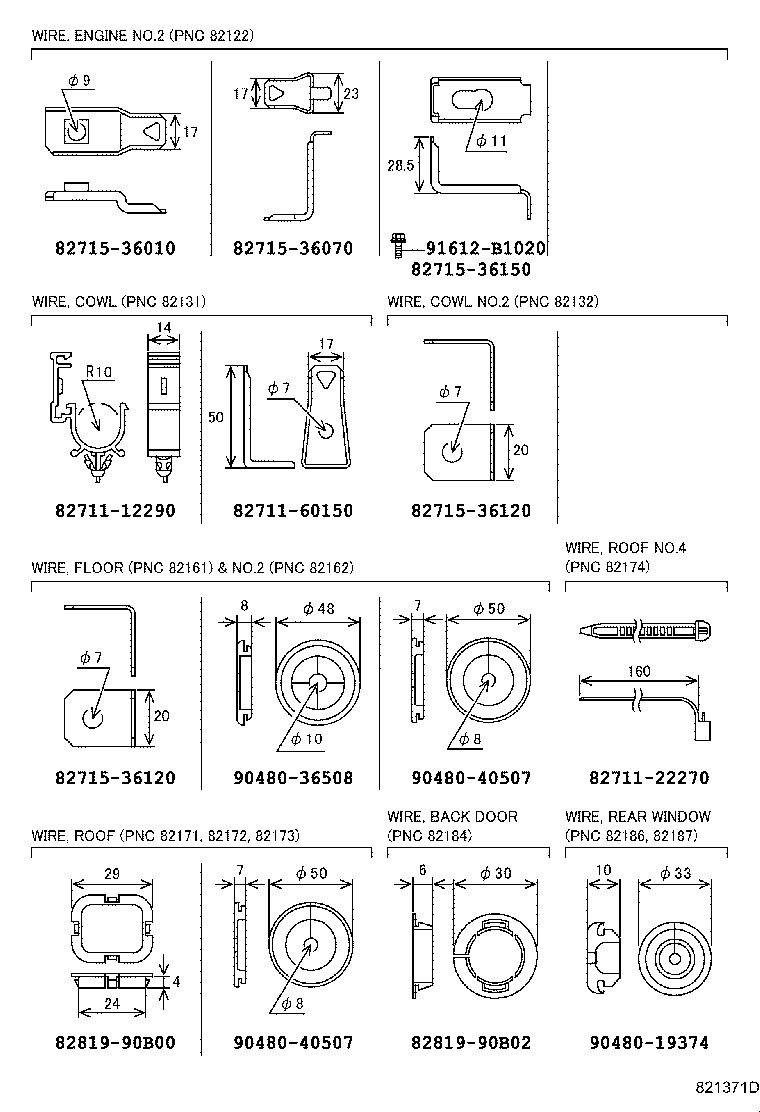

ILLUST NO. 6 OF 9(9301- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82702-36020
82711-12200
82711-26070
82711-60340
82711-60410
82711-90B02
82711-95015
82711-95J12
82715-26240
82715-36020
82715-36030
82715-36040
82715-36050
82715-36060
82715-36080
82715-36110
82715-36160
82715-36430
82715-36440
82715-36470
82715-36560
82715-36580
82715-36610
82715-36620
82715-60110
82715-60170
82715-60480
90031-05123
90031-05124
90179-06161
90463-15002
91512-61014
91551-80816
91552-81014
91651-60616
91651-60816

ILLUST NO. 6 OF 9(9301- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-12290
82711-22270
82711-60150
82715-36010
82715-36070
82715-36120
82715-36150
82819-90B00
82819-90B02
90480-19374
90480-36508
90480-40507
91612-B1020

ILLUST NO. 6 OF 9(9301- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
64777-90A00
82711-12200
82711-12290
82711-22270
82711-60150
82711-60230
82711-60410
82711-90B02
82711-95015
82711-95J12
82715-36010
82715-36020
82715-36030
82715-36040
82715-36050
82715-36060
82715-36080
82715-36110
82715-36140
82715-36170
82715-60170
90179-06161
90461-10275
90464-00311
90464-00598
91511-B0825
91512-61014
91621-B0816
91651-60612
91651-60616
91651-60816
91651-61016
94130-00802

ILLUST NO. 3 OF 9(9301-0408)RHD

Click highlighted areas on diagram

COWL & INSTRUMENT PANEL

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-36320	BB4#,HZB50..RHD..HRF..WC..(ARL,GEN)	01/1993 - 05/1995	1
82131-36080	HZB50..WC..TD	01/1993 - 05/1996	1
82131-36150	HZB50..RHD..TD	01/1993 - 05/1996	1
82131-36321	BB4#,HZB50..RHD..(ARL,GEN)..5F	05/1995 - 05/1997	1
82131-36530	BB40,HZB50..ARL	05/1997 - 07/1999	1
82131-36422	RZB40,50	08/1998 - 07/1999	1
82131-36532	HZB50..ARL	08/2001 - 11/2002	1
82131-36531	HZB50..ARL;BB50..EX..GEN..CBU SINGAPORE SPEC	07/1999 - 08/2001	1
82141 - WIRE, INSTRUMENT PANEL
82141-36040	BB40,HZB50..WC..ARL	01/1993 - 09/1993	1
82141-36060	HZB50..RHD..TD	01/1993 - 05/1996	1
82141-36042	BB40,HZB50..ARL	05/1995 - 05/1997	1
82141-36040	BB40,HZB50..ARL	09/1993 - 03/1994	1
82141-36044	BB4#,50,HZB50..RHD..(4FC,5F)	07/1999 - 08/2001	1
82141-36043	BB4#,50,HZB50..RHD..CBU	05/1997 - 07/1999	1
82141-36200	RZB40,50	08/2000 - 08/2001	1
82141-36045	HZB50..ARL	08/2001 - 11/2002	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-36110	BB40,HZB50..ARL	01/1993 - 05/1995	1
82142-36100	HZB50..TD	01/1993 - 05/1996	1
82142-36112	BB4#,50,HZB50..RHD..CBU..5F	05/1997 - 07/1999	1
82142-36111	BB40,HZB50..ARL	05/1995 - 05/1997	1
82142-36113	HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN	07/1999 - 08/2001	1
82142-36113	HZB50..ARL	07/1999 - 11/2002	1
82345 - DIODE
82345-32020	BB4#,5#,HZB50,RZB40,50 NO.2	01/1993 - 07/1999	1
82345-22051	BB4#,5#,HZB50,RZB40,50 NO.3	01/1993 - 07/1999	1
82345-12050	BB4#,5#,HZB50,RZB40,50 NO.1	01/1993 - 07/1999	1
82345-32020	BB50,HZB50,RZB40,50..ARL,CHI NO.2	07/1999 - 11/2002	1
82345-22051	HZB50..ARL NO.3	07/1999 - 11/2002	1
82345-12050	BB50,HZB50,RZB40,50..ARL,CHI NO.1	07/1999 - 11/2002	1
82345 - DIODE
82345-32020	BB4#,5#,HZB50,RZB40,50 NO.2	01/1993 - 07/1999	1
82345-22051	BB4#,5#,HZB50,RZB40,50 NO.3	01/1993 - 07/1999	1
82345-12050	BB4#,5#,HZB50,RZB40,50 NO.1	01/1993 - 07/1999	1
82345-32020	BB50,HZB50,RZB40,50..ARL,CHI NO.2	07/1999 - 11/2002	1
82345-22051	HZB50..ARL NO.3	07/1999 - 11/2002	1
82345-12050	BB50,HZB50,RZB40,50..ARL,CHI NO.1	07/1999 - 11/2002	1
82345 - DIODE
82345-32020	BB4#,5#,HZB50,RZB40,50 NO.2	01/1993 - 07/1999	1
82345-22051	BB4#,5#,HZB50,RZB40,50 NO.3	01/1993 - 07/1999	1
82345-12050	BB4#,5#,HZB50,RZB40,50 NO.1	01/1993 - 07/1999	1
82345-32020	BB50,HZB50,RZB40,50..ARL,CHI NO.2	07/1999 - 11/2002	1
82345-22051	HZB50..ARL NO.3	07/1999 - 11/2002	1
82345-12050	BB50,HZB50,RZB40,50..ARL,CHI NO.1	07/1999 - 11/2002	1
82372 - WIRE, RADIO INSTALLATION
82372-36010	BB50..GEN..IV;BB40,42,HZB50..(DX,STD)..(ARL,GCC,GEN)..5F	02/1998 - 06/1998	1
82372-36010	BB4#;HZB50..HRF..GCC;HZB50..GEN..4FC;HZB50..LHD..SRF..WC;HZB50..LHD..WOC..DSL;HZB50..RHD..(DX,STD)..DSL	01/1993 - 05/1995	1
82666A - HOLDER, CONNECTOR NO.2
82666-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
82666-36010	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
82666B - HOLDER, CONNECTOR NO.3
82666-36020	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
82666-36020	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-36060	BB50,HZB50,RZB40,50..ARL,CHI	12/2000 - 11/2002	1
82824 - CONNECTOR, WIRING HARNESS
82824-22060	HZB50..DSL;HZB50..LHD..TD;BB4#,5#,RZB40,50	05/1995 - 07/1999	1
82824-30130	HZB50..ARL	08/2001 - 11/2002	1
82824F - CONNECTOR, WIRING HARNESS
82824-36060	BB40,HZB50..(DX,STD)..ARL	01/1993 - 02/1993	1
82824-36060	BB4#,HZB50..RHD..(DX,STD)	05/1997 - 07/1999	1
82824-36060	HZB50..ARL	07/1999 - 11/2002	1
82824-36060	BB4#,HZB50..RHD..(DX,STD)..DSL	02/1993 - 05/1995	1
82824H - CONNECTOR, WIRING HARNESS
82824-30130	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	2
85996A - BRACKET, RELAY, NO.2
85996-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
85996-36010	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
Common parts
85999-36100
90119-06048
90119-06166
90119-06915
90463-12008
91651-40616
93568-55014
Linked diagrams
8401

ILLUST NO. 8 OF 9(9301- )

Click highlighted areas on diagram

DIODE

Part #	Description	Period	Qty
82345 - DIODE
82345-32020	BB4#,5#,HZB50,RZB40,50 NO.2	01/1993 - 07/1999	1
82345-22051	BB4#,5#,HZB50,RZB40,50 NO.3	01/1993 - 07/1999	1
82345-12050	BB4#,5#,HZB50,RZB40,50 NO.1	01/1993 - 07/1999	1
82345-32020	BB50,HZB50,RZB40,50..ARL,CHI NO.2	07/1999 - 11/2002	1
82345-22051	HZB50..ARL NO.3	07/1999 - 11/2002	1
82345-12050	BB50,HZB50,RZB40,50..ARL,CHI NO.1	07/1999 - 11/2002	1
82345 - DIODE
82345-32020	BB4#,5#,HZB50,RZB40,50 NO.2	01/1993 - 07/1999	1
82345-22051	BB4#,5#,HZB50,RZB40,50 NO.3	01/1993 - 07/1999	1
82345-12050	BB4#,5#,HZB50,RZB40,50 NO.1	01/1993 - 07/1999	1
82345-32020	BB50,HZB50,RZB40,50..ARL,CHI NO.2	07/1999 - 11/2002	1
82345-22051	HZB50..ARL NO.3	07/1999 - 11/2002	1
82345-12050	BB50,HZB50,RZB40,50..ARL,CHI NO.1	07/1999 - 11/2002	1
82345 - DIODE
82345-32020	BB4#,5#,HZB50,RZB40,50 NO.2	01/1993 - 07/1999	1
82345-22051	BB4#,5#,HZB50,RZB40,50 NO.3	01/1993 - 07/1999	1
82345-12050	BB4#,5#,HZB50,RZB40,50 NO.1	01/1993 - 07/1999	1
82345-32020	BB50,HZB50,RZB40,50..ARL,CHI NO.2	07/1999 - 11/2002	1
82345-22051	HZB50..ARL NO.3	07/1999 - 11/2002	1
82345-12050	BB50,HZB50,RZB40,50..ARL,CHI NO.1	07/1999 - 11/2002	1

ILLUST NO. 6 OF 9(9301- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82702-37461
82702-37480
82711-36130
82712-36060
82715-25150
82715-25830
82715-25850
82715-26380
82715-26G10
82715-28360
82715-34080
82715-34160
82715-34240
82715-35590
82715-35600
82715-35650
82715-35780
82715-35A90
82715-35B10
82715-36360
82715-36370
82715-36380
82715-36460
82715-37D50
82715-37D60
82715-37T70
82715-60280
82715-60380
82715-89119
82729-37030
82819-90B00
90031-05123
90119-06915
90179-06158
90461-10275
90464-00299
90464-00783
90467-10007
91511-60612
91512-61014
91611-B0610
91621-J0612
91641-C0612
91641-H0820
91651-60616
91651-60620
91651-60816
91671-80814
91671-A0612
91673-80612
94130-00802

ILLUST NO. 9 OF 9(9301- )

Click highlighted areas on diagram

CONNECTOR

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90980-10619
90980-10825
90980-10942
90980-10988
90980-11016
90980-11051
90980-11148
90980-11149
90980-11159
90980-11162
90980-11290
90980-11314
90980-12211

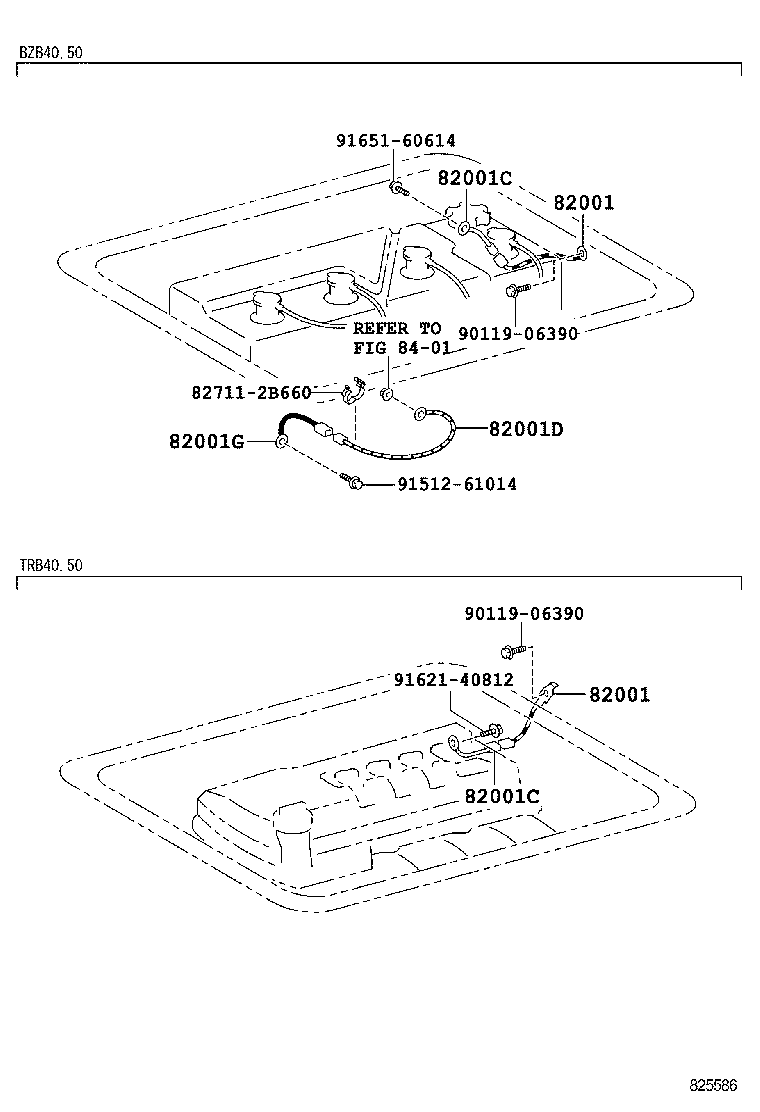

ILLUST NO. 7 OF 9(0108- )BZB40,50 ; (0708- )TRB40,50

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07239	RZB40,50	09/1993 - 07/1999	1
82001 - CABLE, BOND, NO.1
90980-07239	RZB40,50	09/1993 - 07/1999	1
82001C - CABLE, BOND, NO.2
90980-07342	RZB40,50	09/1993 - 07/1999	1
82001C - CABLE, BOND, NO.2
90980-07342	RZB40,50	09/1993 - 07/1999	1
Common parts
82711-2B660
90119-06390
91512-61014
91621-40812
91651-60614
Linked diagrams
8401

HZB50R-ZEMSSQ (1993)

ILLUST NO. 6 OF 9(9301- )

ILLUST NO. 5 OF 9(9301-1501)

ILLUST NO. 1 OF 9(9301-9907)RHD ; (9907-0608)RHD..IV..6F

ILLUST NO. 2 OF 9(9301-1501)BB4#,5#,HZB50

ILLUST NO. 4 OF 9(9301-1501)

ILLUST NO. 4 OF 9(9301-1501)

ILLUST NO. 5 OF 9(9301-1501)

ILLUST NO. 6 OF 9(9301- )

ILLUST NO. 6 OF 9(9301- )

ILLUST NO. 6 OF 9(9301- )

ILLUST NO. 6 OF 9(9301- )

ILLUST NO. 3 OF 9(9301-0408)RHD

ILLUST NO. 8 OF 9(9301- )

ILLUST NO. 6 OF 9(9301- )

ILLUST NO. 9 OF 9(9301- )

ILLUST NO. 7 OF 9(0108- )BZB40,50 ; (0708- )TRB40,50

Part Price Details
