HZB50R-ZEMSSQ (1993)
Toyota Coaster
(9301- )

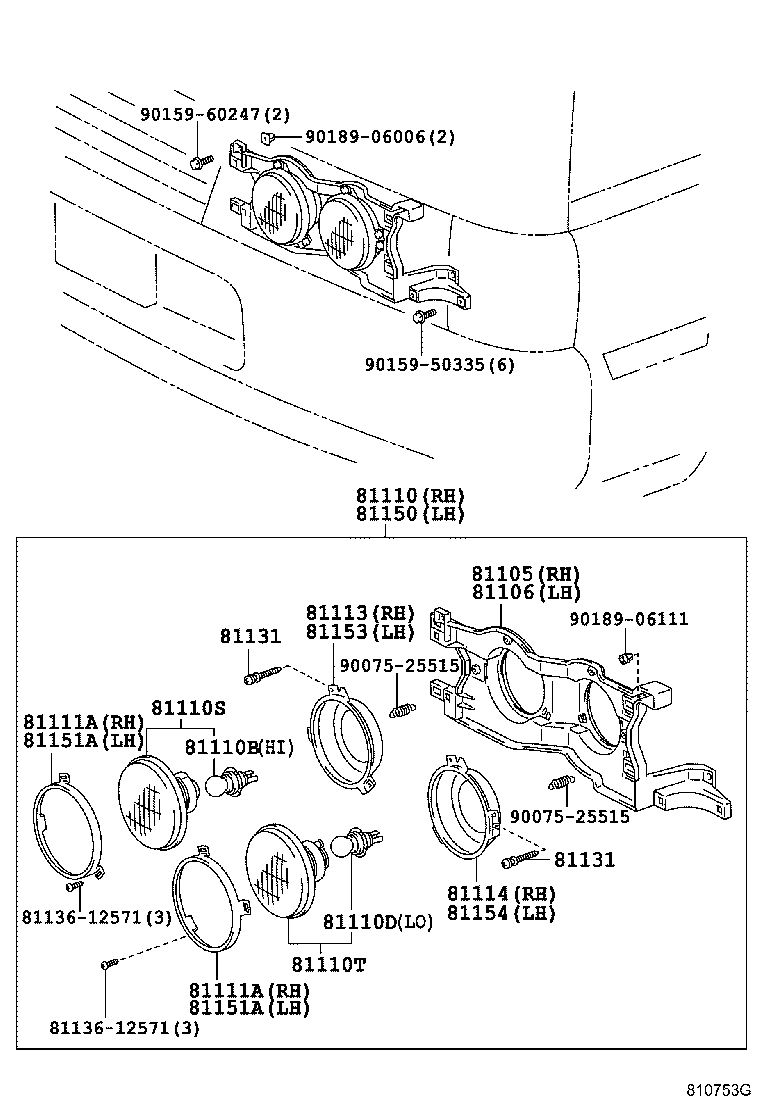

SEMI-SEALD BEAM HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-36190 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 81105-36190 |
BB50..STD..GEN..CBU..5F;BB4#,HZB50,RZB40,50..ARL,GCC,GEN |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-36170 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 81106-36170 |
BB50..STD..GEN..CBU..5F;BB4#,HZB50,RZB40,50..ARL,GCC,GEN |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-36190 |
BB40,HZB50..ARL 24V |
1 | ||
| 81110-36211 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
1 | ||
| 81110-36191 |
BB40,HZB50..ARL 24V |
1 | ||
| 81110-36191 |
HZB50..ARL 24V |
1 | ||
| 81110-36251 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V, YELLOW BULB |
1 | ||
| 81110-36370 |
HZB50..ARL |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13014 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V 45/40W,YELLOW |
2 | ||
| 90981-17015 |
BB40,HZB50..ARL 24V 70W,*HAL *WH |
2 | ||
| 90981-17015 |
HZB50..ARL 24V 70W,*HAL *WH |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13014 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V 45/40W,YELLOW |
2 | ||
| 90981-17011 |
BB40,HZB50..ARL 24V 75/70W,*HAL *WH |
2 | ||
| 90981-17011 |
BB40,43,5#..ARL,GEN;BB42,HZB50..(17S,22S)..5F;BB42,HZB50..LHD..HRF..(20S,26S,30S)..WC..GEN 24V 75/70W,*HAL *WH |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-02020 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V 45/40W,*YSB |
2 | ||
| 90981-02051 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V 50W,*WB |
2 | ||
| 90981-08025 |
BB40,HZB50..ARL 24V 70W,*HWS |
2 | ||
| 90981-08025 |
HZB50..ARL 24V 70W,*HWS |
2 | ||
| 81110T - SEALED BEAM UNIT, NO.2 | ||||
| 90981-08027 |
BB40,HZB50..ARL 24V 75/70W,*WSB |
2 | ||
| 90981-02013 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V 37.5/50W,*WB |
2 | ||
| 90981-02021 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V 45/40W,*YSB |
2 | ||
| 90981-08027 |
HZB50..ARL 24V 75/70W,*WSB |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-20280 |
BB4#,HZB50,RZB40,50..CBU |
2 | ||
| 81111-20280 |
BB50..STD..GEN..CBU..5F;BB4#,HZB50,RZB40,50..ARL,GCC,GEN |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-20280 |
BB4#,HZB50,RZB40,50..CBU |
2 | ||
| 81111-20280 |
BB50..STD..GEN..CBU..5F;BB4#,HZB50,RZB40,50..ARL,GCC,GEN |
2 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81153-95010 |
BB50..STD..GEN..CBU..5F;BB4#,HZB50,RZB40,50..ARL,GCC,GEN |
1 | ||
| 81153-95010 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 81114 - RING, SEALED BEAM MOUNTING, NO.2 RH | ||||
| 81114-95010 |
BB50..STD..GEN..CBU..5F;BB4#,HZB50,RZB40,50..ARL,GCC,GEN |
1 | ||
| 81114-95010 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-20043 |
BB4#,HZB50,RZB40,50..CBU |
8 | ||
| 90075-00001 |
BB4#,HZB50,RZB40,50..CBU |
8 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-20043 |
BB4#,HZB50,RZB40,50..CBU |
8 | ||
| 90075-00001 |
BB4#,HZB50,RZB40,50..CBU |
8 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-36170 |
BB40,HZB50..ARL |
1 | ||
| 81150-36231 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V, YELLOW BULB |
1 | ||
| 81150-36191 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
1 | ||
| 81150-36171 |
BB40,HZB50..ARL 24V |
1 | ||
| 81150-36171 |
HZB50..ARL 24V |
1 | ||
| 81150-36350 |
HZB50..ARL |
1 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-20280 |
BB4#,HZB50,RZB40,50..CBU |
2 | ||
| 81111-20280 |
BB42..WC..GCC;HZB50..ARL,GCC;RZB40..WOC..GEN;BB42,HZB50..LHD..(20S,26S,30S)..GEN;BB50,RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
2 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-20280 |
BB4#,HZB50,RZB40,50..CBU |
2 | ||
| 81111-20280 |
BB42..WC..GCC;HZB50..ARL,GCC;RZB40..WOC..GEN;BB42,HZB50..LHD..(20S,26S,30S)..GEN;BB50,RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
2 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81113-95010 |
BB50..STD..GEN..CBU..5F;BB4#,HZB50,RZB40,50..ARL,GCC,GEN |
1 | ||
| 81113-95010 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 81154 - RING, SEALED BEAM MOUNTING, NO.2 LH | ||||
| 81154-95010 |
BB50..STD..GEN..CBU..5F;BB4#,HZB50,RZB40,50..ARL,GCC,GEN |
1 | ||
| 81154-95010 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| Common parts | ||||
| 81136-12571 | ||||
| 90075-25515 | ||||
| 90159-50335 | ||||
| 90159-60247 | ||||
| 90189-06006 | ||||
| 90189-06111 | ||||

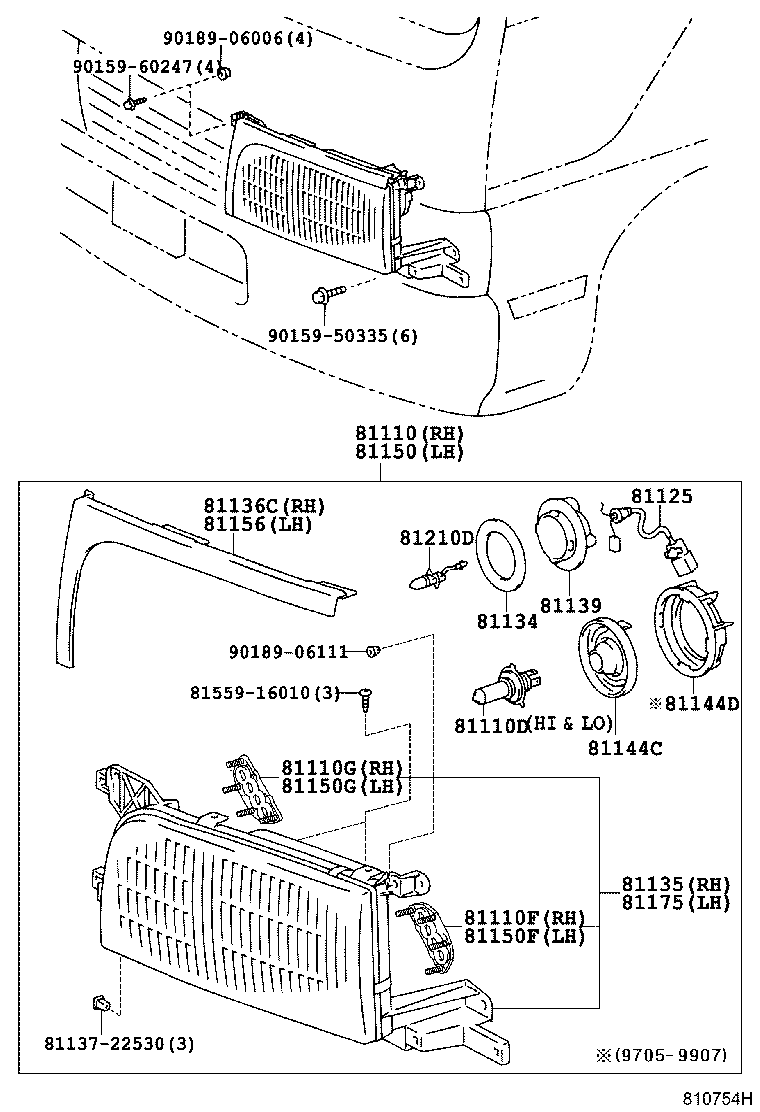

(9301-0108) ; (0108-0408)EX..TD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-36190 |
BB40,HZB50..ARL 24V |
1 | ||
| 81110-36211 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
1 | ||
| 81110-36191 |
BB40,HZB50..ARL 24V |
1 | ||
| 81110-36191 |
HZB50..ARL 24V |
1 | ||
| 81110-36251 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V, YELLOW BULB |
1 | ||
| 81110-36370 |
HZB50..ARL |
1 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13014 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V 45/40W,YELLOW |
2 | ||
| 90981-17011 |
BB40,HZB50..ARL 24V 75/70W,*HAL *WH |
2 | ||
| 90981-17011 |
BB40,43,5#..ARL,GEN;BB42,HZB50..(17S,22S)..5F;BB42,HZB50..LHD..HRF..(20S,26S,30S)..WC..GEN 24V 75/70W,*HAL *WH |
2 | ||
| 81110F - GEAR UNIT ASSY, RH NO.1 | ||||
| 90075-50019 |
BB43,50..RHD..5F |
1 | ||
| 90075-50019 |
BB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI) |
1 | ||
| 81110G - GEAR UNIT ASSY, RH NO.2 | ||||
| 90075-50021 |
BB43,50..RHD..5F |
1 | ||
| 90075-50021 |
BB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI) |
1 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-36170 |
BB50..WOC..5F;BB50..CBU..6F;BB43,50..RHD..5F |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 81134-36170 |
HZB50..ARL |
2 | ||
| 81134-36170 |
BB50..WOC..5F;BB50..CBU..6F;BB43,50..RHD..5F |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-36370 |
HZB50..ARL |
1 | ||
| 81130-36270 |
BB43,50..RHD..5F |
1 | ||
| 81136C - RIM, HEADLAMP, RH | ||||
| 81116-36380 |
BB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI) |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81139-36170 |
HZB50..ARL |
2 | ||
| 81139-36170 |
BB50..WOC..5F;BB50..CBU..6F;BB43,50..RHD..5F |
2 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-65002 |
HZB50..ARL |
2 | ||
| 90075-65002 |
BB50..WOC..5F;BB50..CBU..6F;BB43,50..RHD..5F |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-36170 |
BB40,HZB50..ARL |
1 | ||
| 81150-36231 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V, YELLOW BULB |
1 | ||
| 81150-36191 |
RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V |
1 | ||
| 81150-36171 |
BB40,HZB50..ARL 24V |
1 | ||
| 81150-36171 |
HZB50..ARL 24V |
1 | ||
| 81150-36350 |
HZB50..ARL |
1 | ||
| 81150F - GEAR UNIT ASSY, LH NO.1 | ||||
| 90075-50020 |
BB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI) |
1 | ||
| 90075-50020 |
BB43,50..RHD..5F |
1 | ||
| 81150G - GEAR UNIT ASSY, LH NO.2 | ||||
| 90075-50022 |
BB43,50..RHD..5F |
1 | ||
| 90075-50022 |
BB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI) |
1 | ||
| 81156 - RIM, HEADLAMP, LH | ||||
| 81156-36360 |
BB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-36250 |
BB43,50..RHD..5F |
1 | ||
| 81170-36350 |
HZB50..ARL |
1 | ||
| Common parts | ||||
| 81137-22530 | ||||
| 81559-16010 | ||||
| 90159-50335 | ||||
| 90159-60247 | ||||
| 90189-06006 | ||||
| 90189-06111 | ||||
