Toyota Coaster HZB50 ACCELERATOR LINK

HZB50R-ZEMSSQ (1993)

Toyota Coaster

Production Jan 1993 - Nov 2002

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

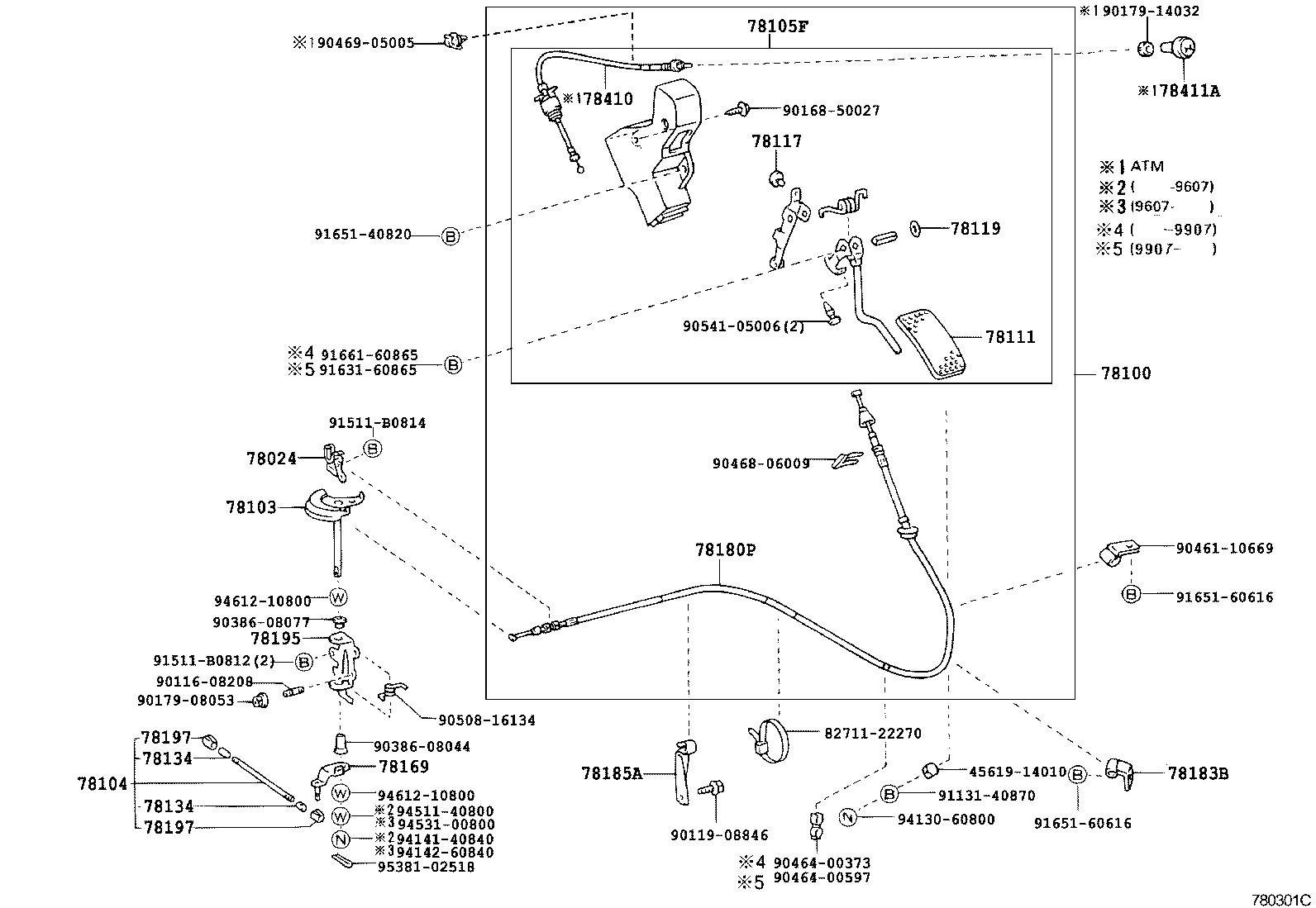

(9301-0309)HZB50..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-34010	RZB40,50	09/1993 - 08/1997	1
78024-60010	HZB50	01/1993 - 07/1999	1
78024-60010	HZB50..ARL	07/1999 - 11/2002	1
78024-34011	RZB40,50	08/1997 - 07/1999	1
78100 - LINK ASSY, ACCELERATOR
78100-36170	BB43,50..RHD..CBU	05/1997 - 07/1999	1
78100-36060	RZB40,50	09/1993 - 05/1997	1
78100-36070	HZB50..RHD..5F	01/1993 - 07/1999	1
78100-36200	RZB40,50	05/1997 - 07/1999	1
78100-36170	BB43,50..RHD..5F	07/1999 - 08/2001	1
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-60022	HZB50	07/1996 - 07/1999	1
78103-60022	HZB50..ARL	07/1999 - 11/2002	1
78103-60021	HZB50	01/1993 - 07/1996	1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-60010	HZB50	01/1993 - 07/1999	1
78104-60010	HZB50..ARL	07/1999 - 11/2002	1
78105F - LINK SUB-ASSY, ACCELERATOR
78105-36060	RZB40,50	07/1999 - 09/1999	1
78105-36040	HZB50..RHD..SRF;HZB50..RHD..WOC..GEN;HZB50..RHD..(20S,22S)..5F	07/1999 - 11/2002	1
78111 - PEDAL, ACCELERATOR
78111-95110	BB4#,HZB50,RZB40,50	01/1993 - 05/1995	1
78111-95110	HZB50..DSL;HZB50..RHD..TD;BB4#,5#,RZB40,50	05/1995 - 07/1999	1
78111-95110	HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06036	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90541-06036	HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-95J00	HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
78119-95J00	HZB50..DSL;HZB50..RHD..TD;BB4#,5#,RZB40,50	05/1995 - 07/1999	1
78119-95J00	BB4#,HZB50,RZB40,50	01/1993 - 05/1995	1
78134 - END, ACCELERATOR CONNECTING ROD
78134-10010	HZB50	01/1993 - 07/1999	2
78134-10010	HZB50..ARL	07/1999 - 11/2002	2
78134 - END, ACCELERATOR CONNECTING ROD
78134-10010	HZB50	01/1993 - 07/1999	2
78134-10010	HZB50..ARL	07/1999 - 11/2002	2
78169 - HANGER, ACCELERATOR SPRING
78169-60010	BB58,HZB50;BB50..GEN..IV	01/1993 - 07/1999	1
78169-60010	HZB50..ARL	07/1999 - 11/2002	1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-36070	HZB50..RHD..5F	01/1993 - 07/1999	1
78180-36060	RZB40,50	09/1993 - 05/1997	1
78180-36170	BB43,50..RHD..CBU	05/1997 - 07/1999	1
78180-36170	BB43,50..RHD..5F	07/1999 - 08/2001	1
78180-36200	RZB40,50	05/1997 - 07/1999	1
78180-36070	HZB50..ARL	07/1999 - 11/2002	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-36040	RZB40,50 NO.2	09/1993 - 07/1999	1
78183-36010	BB50..RHD..IV;BB40,42,HZB50..RHD	01/1993 - 07/1999	1
78183-36020	RZB40,50 NO.1	09/1993 - 07/1999	1
78183-36050	BB43,50..RHD..CBU	05/1997 - 07/1999	1
78183-36050	BB43,50..RHD..5F	07/1999 - 08/2001	1
78183-36010	HZB50..ARL	07/1999 - 11/2002	1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78185-36010	HZB50	01/1993 - 05/1995	1
78185-36010	HZB50..DSL;HZB50..RHD..TD	05/1995 - 07/1999	1
78185-36040	RZB40,50	09/1993 - 07/1999	1
78187-36030	BB43,50..RHD..5F	07/1999 - 08/2001	1
78187-36030	BB43,50..RHD..CBU	05/1997 - 07/1999	1
78185-36010	HZB50..ARL	07/1999 - 11/2002	1
78195 - BRACKET, ACCELERATOR LINK
78195-60011	HZB50..ARL	07/1999 - 11/2002	1
78195-60011	HZB50	01/1993 - 07/1999	1
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010	HZB50..ARL	07/1999 - 11/2002	2
78197-10010	HZB50	01/1993 - 07/1999	2
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010	HZB50..ARL	07/1999 - 11/2002	2
78197-10010	HZB50	01/1993 - 07/1999	2
Common parts
45619-14010
82711-22270
90116-08208
90119-08846
90168-50027
90179-08053
90179-14032
90386-08044
90386-08077
90461-10669
90464-00373
90464-00597
90468-06009
90469-05005
90508-16134
90541-05006
91131-40870
91511-B0812
91511-B0814
91631-60865
91651-40820
91651-60616
91661-60865
94130-60800
94141-40840
94142-60840
94511-40800
94531-00800
94612-10800
95381-02518

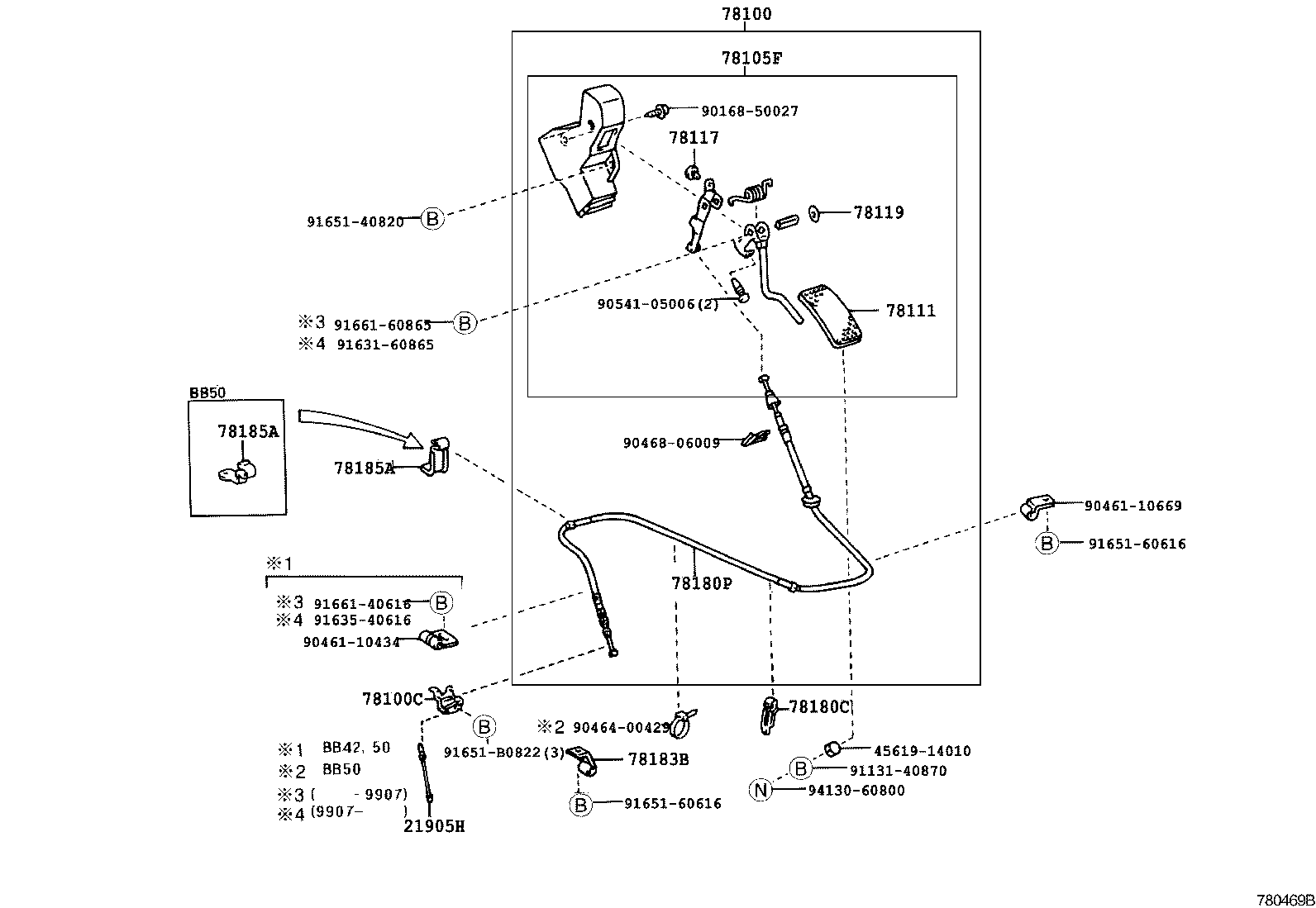

(9301-0309)BB4#,50..RHD..DSL,TD

Click highlighted areas on diagram

Part #	Description	Period	Qty
78100 - LINK ASSY, ACCELERATOR
78100-36170	BB43,50..RHD..CBU	05/1997 - 07/1999	1
78100-36060	RZB40,50	09/1993 - 05/1997	1
78100-36070	HZB50..RHD..5F	01/1993 - 07/1999	1
78100-36200	RZB40,50	05/1997 - 07/1999	1
78100-36170	BB43,50..RHD..5F	07/1999 - 08/2001	1
78100C - LINK ASSY, ACCELERATOR, NO.2
78100-36160	BB50..EUR;BB43,50..CBU	05/1996 - 07/1999	1
78100-36160	BB50..CBU..6F;BB43,50..RHD..5F	07/1999 - 08/2001	1
78105F - LINK SUB-ASSY, ACCELERATOR
78105-36060	RZB40,50	07/1999 - 09/1999	1
78105-36040	HZB50..RHD..SRF;HZB50..RHD..WOC..GEN;HZB50..RHD..(20S,22S)..5F	07/1999 - 11/2002	1
78111 - PEDAL, ACCELERATOR
78111-95110	BB4#,HZB50,RZB40,50	01/1993 - 05/1995	1
78111-95110	HZB50..DSL;HZB50..RHD..TD;BB4#,5#,RZB40,50	05/1995 - 07/1999	1
78111-95110	HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06036	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90541-06036	HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-95J00	HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
78119-95J00	HZB50..DSL;HZB50..RHD..TD;BB4#,5#,RZB40,50	05/1995 - 07/1999	1
78119-95J00	BB4#,HZB50,RZB40,50	01/1993 - 05/1995	1
78180C - SPRING, TENSION (FOR ACCELERATOR WIRE)
78188-36020	BB43,50..RHD..CBU	05/1997 - 07/1999	1
78188-36020	BB43,50..RHD..5F	07/1999 - 08/2001	1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-36070	HZB50..RHD..5F	01/1993 - 07/1999	1
78180-36060	RZB40,50	09/1993 - 05/1997	1
78180-36170	BB43,50..RHD..CBU	05/1997 - 07/1999	1
78180-36170	BB43,50..RHD..5F	07/1999 - 08/2001	1
78180-36200	RZB40,50	05/1997 - 07/1999	1
78180-36070	HZB50..ARL	07/1999 - 11/2002	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-36040	RZB40,50 NO.2	09/1993 - 07/1999	1
78183-36010	BB50..RHD..IV;BB40,42,HZB50..RHD	01/1993 - 07/1999	1
78183-36020	RZB40,50 NO.1	09/1993 - 07/1999	1
78183-36050	BB43,50..RHD..CBU	05/1997 - 07/1999	1
78183-36050	BB43,50..RHD..5F	07/1999 - 08/2001	1
78183-36010	HZB50..ARL	07/1999 - 11/2002	1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78185-36010	HZB50	01/1993 - 05/1995	1
78185-36010	HZB50..DSL;HZB50..RHD..TD	05/1995 - 07/1999	1
78185-36040	RZB40,50	09/1993 - 07/1999	1
78187-36030	BB43,50..RHD..5F	07/1999 - 08/2001	1
78187-36030	BB43,50..RHD..CBU	05/1997 - 07/1999	1
78185-36010	HZB50..ARL	07/1999 - 11/2002	1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78185-36010	HZB50	01/1993 - 05/1995	1
78185-36010	HZB50..DSL;HZB50..RHD..TD	05/1995 - 07/1999	1
78185-36040	RZB40,50	09/1993 - 07/1999	1
78187-36030	BB43,50..RHD..5F	07/1999 - 08/2001	1
78187-36030	BB43,50..RHD..CBU	05/1997 - 07/1999	1
78185-36010	HZB50..ARL	07/1999 - 11/2002	1
Common parts
45619-14010
90168-50027
90461-10434
90461-10669
90464-00429
90468-06009
90541-05006
91131-40870
91631-60865
91635-40616
91651-40820
91651-60616
91651-B0822
91661-40616
91661-60865
94130-60800
