HZB50R-ZEMSSQ (1993)
Toyota Coaster

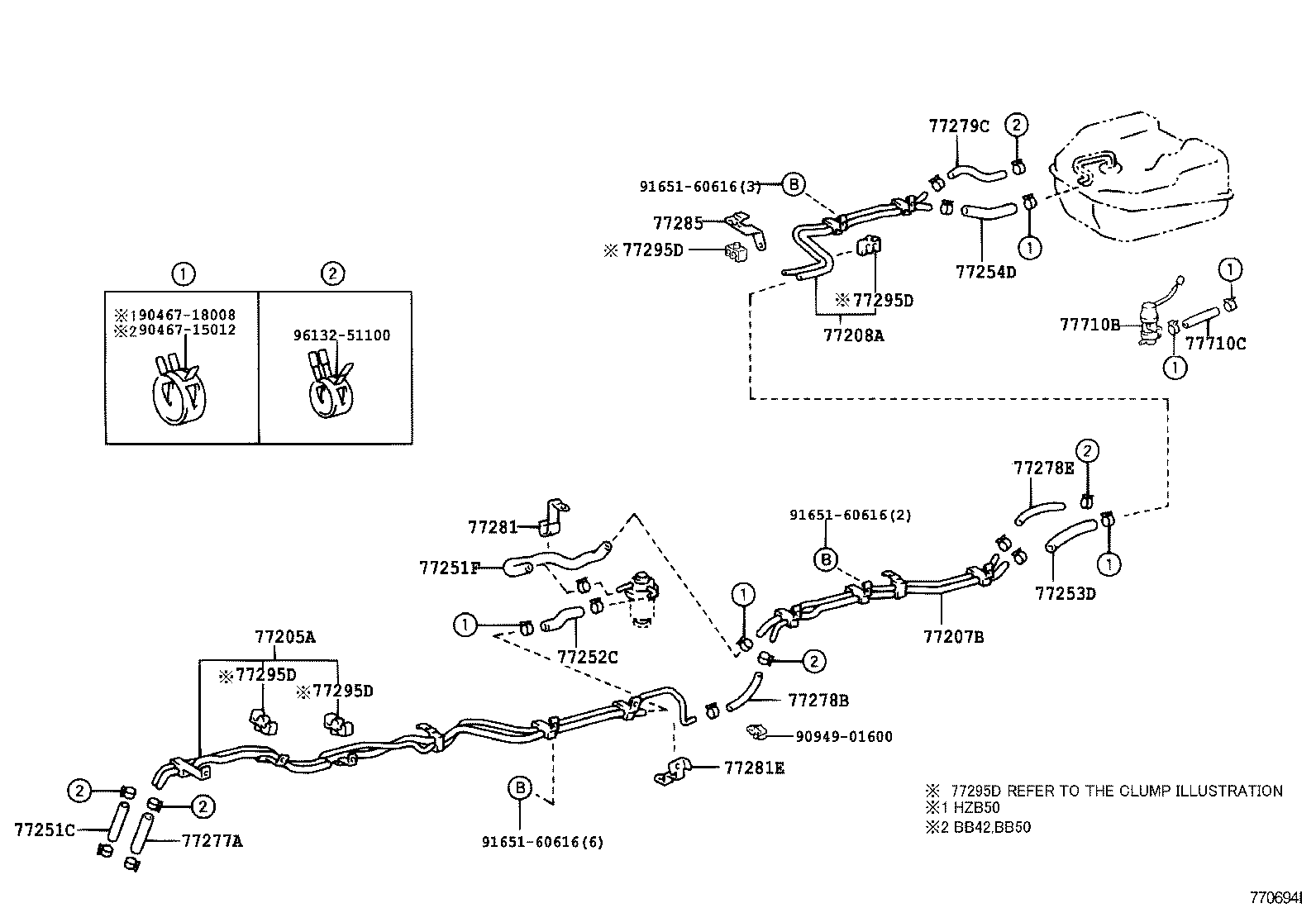

ILLUST NO. 2 OF 4(9301-9907)HZB50
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205A - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-36800 |
BB4#,50..RHD..STD |
1 | ||
| 77205-36780 |
HZB50..RHD |
1 | ||
| 77205-36830 |
RZB40,50 |
1 | ||
| 77205-36870 |
BB43,50..RHD..CBU |
1 | ||
| 77205-3B120 |
BB43,50..RHD..CBU |
1 | ||
| 77205-3B060 |
HZB50..ARL |
1 | ||
| 77205A - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-36800 |
BB4#,50..RHD..STD |
1 | ||
| 77205-36780 |
HZB50..RHD |
1 | ||
| 77205-36830 |
RZB40,50 |
1 | ||
| 77205-36870 |
BB43,50..RHD..CBU |
1 | ||
| 77205-3B120 |
BB43,50..RHD..CBU |
1 | ||
| 77205-3B060 |
HZB50..ARL |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-36020 |
HZB50 |
1 | ||
| 77207-36100 |
HZB50..ARL |
1 | ||
| 77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4 | ||||
| 77208-36140 |
HZB50,RZB40,50 |
1 | ||
| 77208-36150 |
BB4#,5# |
1 | ||
| 77208-36200 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;BB42..RHD..HRF..WOC;BB4#,50..17S,19S,22S |
1 | ||
| 77208-36190 |
HZB50..ARL |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-36150 |
HZB50 |
1 | ||
| 95332-10030 |
BB50..CBU..6F;BB43,50..RHD..5F *H,L=280 |
1 | ||
| 77259-36180 |
HZB50..ARL |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 95334-12018 |
RZB40,50 |
1 | ||
| 95332-12015 |
HZB50 |
1 | ||
| 95334-12019 |
RZB40,50 |
1 | ||
| 77259-36190 |
HZB50..ARL |
1 | ||
| 95332-10030 |
BB50..EUR;BB43,50..CBU |
1 | ||
| 77253D - HOSE, FUEL | ||||
| 95332-12018 |
HZB50 |
1 | ||
| 95332-12019 |
HZB50 |
1 | ||
| 95332-10018 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;BB42..RHD..HRF..WOC;BB4#,50..17S,19S,22S |
1 | ||
| 95332-12022 |
HZB50 |
1 | ||
| 95332-12018 |
HZB50..ARL |
1 | ||
| 77254D - HOSE, FUEL | ||||
| 95334-12018 |
RZB40,50 |
1 | ||
| 95332-10018 |
BB4#,5# |
1 | ||
| 95332-12018 |
HZB50 |
1 | ||
| 95332-10018 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;BB42..RHD..HRF..WOC;BB4#,50..17S,19S,22S |
1 | ||
| 95332-12018 |
HZB50..ARL |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
HZB50 *H,L=280 |
1 | ||
| 95334-12030 |
RZB40,50 L=300 |
1 | ||
| 95333-06030 |
BB50..CBU..6F;BB43,50..RHD..5F *H,L=300 |
1 | ||
| 95333-06030 |
HZB50..ARL *H,L=280 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
BB50,HZB50 *H,L=180 |
1 | ||
| 95333-06020 |
BB4#,HZB50 *H,L=180 |
1 | ||
| 95333-06030 |
BB50..EUR;BB43,50..CBU *H,L=240 |
1 | ||
| 95333-06020 |
BB50..GEN..IV;BB40,42,58,HZB50 *H,L=180 |
1 | ||
| 95333-06020 |
RZB40,50 *H,L=180 |
1 | ||
| 95333-06020 |
HZB50..ARL *H,L=150 |
1 | ||
| 95333-06030 |
BB50..CBU..6F;BB43,50..RHD..5F *H,L=240 |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95333-06020 |
HZB50 |
1 | ||
| 95333-06020 |
BB4#,5#,HZB50 |
1 | ||
| 95333-06020 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 95333-06020 |
BB50,HZB50..ARL,CHI |
1 | ||
| 77279C - HOSE, FUEL | ||||
| 95333-06020 |
BB50,HZB50..ARL,CHI |
1 | ||
| 95333-06020 |
BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO |
1 | ||
| 95333-06020 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 95333-06020 |
BB4#,50,HZB50,RZB40,50 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-36010 |
BB50..GEN..IV;BB40,42,58,HZB50 |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-36040 |
HZB50..TD |
1 | ||
| 77710C - HOSE, FUEL | ||||
| 95332-12250 |
HZB50..TD NO.2 |
1 | ||
| 95332-12150 |
HZB50..TD NO.1 |
1 | ||
| 95332-12150 |
HZB50..TD |
1 | ||
| 77710C - HOSE, FUEL | ||||
| 95332-12250 |
HZB50..TD NO.2 |
1 | ||
| 95332-12150 |
HZB50..TD NO.1 |
1 | ||
| 95332-12150 |
HZB50..TD |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90467-18008 | ||||
| 90480-01553 | ||||
| 90949-01600 | ||||
| 90959-02009 | ||||
| 91651-60616 | ||||
| 96132-30600 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 2302 | ||||

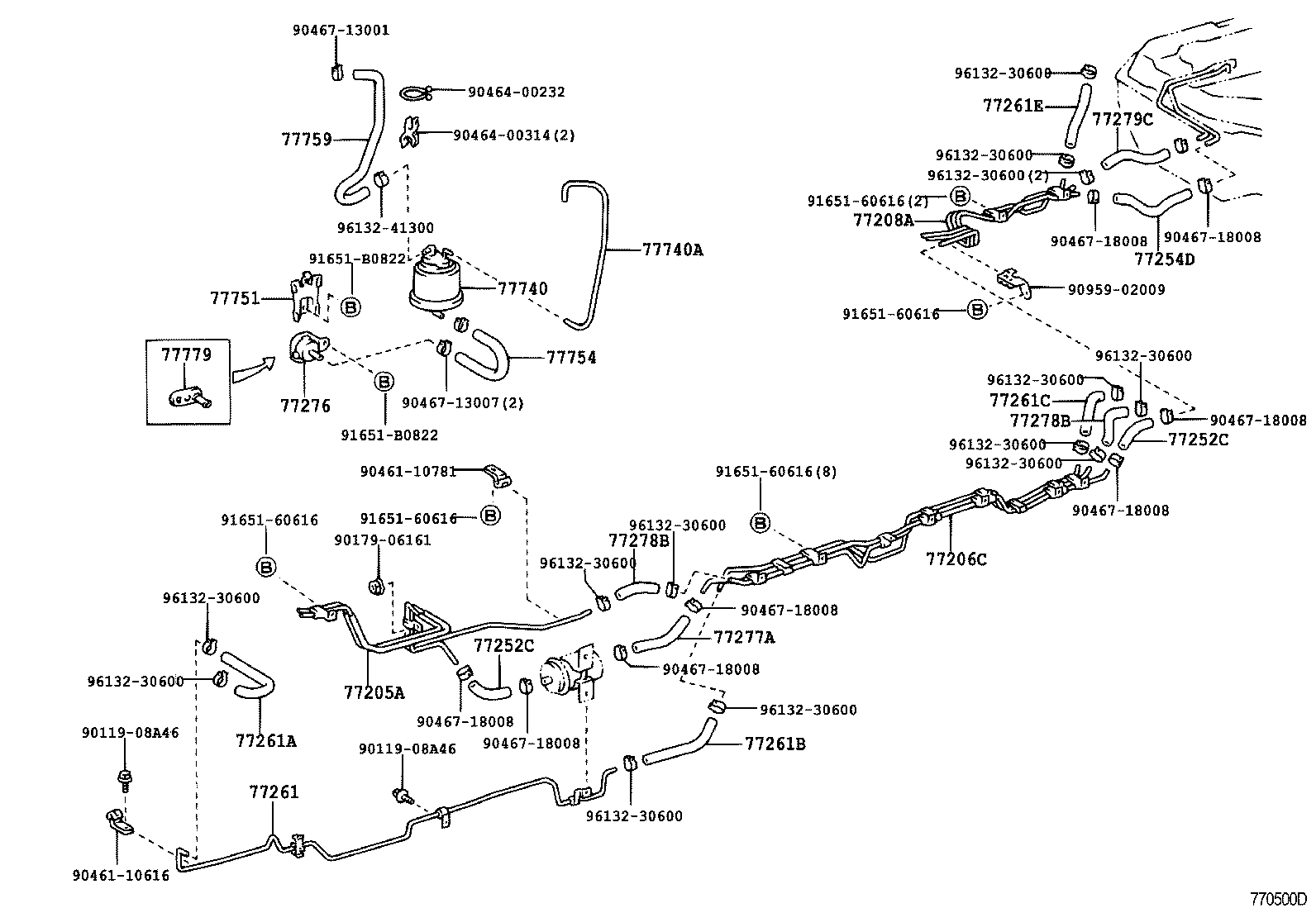

ILLUST NO. 2 OF 4(9705-9907)RZB40,50
CHINA SPEC FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205A - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-36800 |
BB4#,50..RHD..STD |
1 | ||
| 77205-36780 |
HZB50..RHD |
1 | ||
| 77205-36830 |
RZB40,50 |
1 | ||
| 77205-36870 |
BB43,50..RHD..CBU |
1 | ||
| 77205-3B120 |
BB43,50..RHD..CBU |
1 | ||
| 77205-3B060 |
HZB50..ARL |
1 | ||
| 77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4 | ||||
| 77208-36140 |
HZB50,RZB40,50 |
1 | ||
| 77208-36150 |
BB4#,5# |
1 | ||
| 77208-36200 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;BB42..RHD..HRF..WOC;BB4#,50..17S,19S,22S |
1 | ||
| 77208-36190 |
HZB50..ARL |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 95334-12018 |
RZB40,50 |
1 | ||
| 95332-12015 |
HZB50 |
1 | ||
| 95334-12019 |
RZB40,50 |
1 | ||
| 77259-36190 |
HZB50..ARL |
1 | ||
| 95332-10030 |
BB50..EUR;BB43,50..CBU |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 95334-12018 |
RZB40,50 |
1 | ||
| 95332-12015 |
HZB50 |
1 | ||
| 95334-12019 |
RZB40,50 |
1 | ||
| 77259-36190 |
HZB50..ARL |
1 | ||
| 95332-10030 |
BB50..EUR;BB43,50..CBU |
1 | ||
| 77254D - HOSE, FUEL | ||||
| 95334-12018 |
RZB40,50 |
1 | ||
| 95332-10018 |
BB4#,5# |
1 | ||
| 95332-12018 |
HZB50 |
1 | ||
| 95332-10018 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;BB42..RHD..HRF..WOC;BB4#,50..17S,19S,22S |
1 | ||
| 95332-12018 |
HZB50..ARL |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-26081 |
RZB40,50 |
1 | ||
| 77276-26080 |
RZB40,50 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
HZB50 *H,L=280 |
1 | ||
| 95334-12030 |
RZB40,50 L=300 |
1 | ||
| 95333-06030 |
BB50..CBU..6F;BB43,50..RHD..5F *H,L=300 |
1 | ||
| 95333-06030 |
HZB50..ARL *H,L=280 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
BB50,HZB50 *H,L=180 |
1 | ||
| 95333-06020 |
BB4#,HZB50 *H,L=180 |
1 | ||
| 95333-06030 |
BB50..EUR;BB43,50..CBU *H,L=240 |
1 | ||
| 95333-06020 |
BB50..GEN..IV;BB40,42,58,HZB50 *H,L=180 |
1 | ||
| 95333-06020 |
RZB40,50 *H,L=180 |
1 | ||
| 95333-06020 |
HZB50..ARL *H,L=150 |
1 | ||
| 95333-06030 |
BB50..CBU..6F;BB43,50..RHD..5F *H,L=240 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
BB50,HZB50 *H,L=180 |
1 | ||
| 95333-06020 |
BB4#,HZB50 *H,L=180 |
1 | ||
| 95333-06030 |
BB50..EUR;BB43,50..CBU *H,L=240 |
1 | ||
| 95333-06020 |
BB50..GEN..IV;BB40,42,58,HZB50 *H,L=180 |
1 | ||
| 95333-06020 |
RZB40,50 *H,L=180 |
1 | ||
| 95333-06020 |
HZB50..ARL *H,L=150 |
1 | ||
| 95333-06030 |
BB50..CBU..6F;BB43,50..RHD..5F *H,L=240 |
1 | ||
| 77279C - HOSE, FUEL | ||||
| 95333-06020 |
BB50,HZB50..ARL,CHI |
1 | ||
| 95333-06020 |
BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO |
1 | ||
| 95333-06020 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 95333-06020 |
BB4#,50,HZB50,RZB40,50 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-26040 |
RZB40,50 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90999-92003 |
RZB40,50 *H,L=600,MARK=#* |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-36050 |
RZB40,50 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-36010 |
RZB40,50 |
1 | ||
| 77754-36011 |
RZB40,50 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-36050 |
RZB40,50 |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-36010 |
RZB40,50 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06161 | ||||
| 90461-10616 | ||||
| 90461-10781 | ||||
| 90464-00232 | ||||
| 90464-00314 | ||||
| 90467-13001 | ||||
| 90467-13007 | ||||
| 90467-18008 | ||||
| 90959-02009 | ||||
| 91651-60616 | ||||
| 91651-B0822 | ||||
| 96132-30600 | ||||
| 96132-41300 | ||||
