HZB50R-ZEMSSQ (1993)

Toyota Coaster

Production Jan 1993 - Nov 2002
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301- )

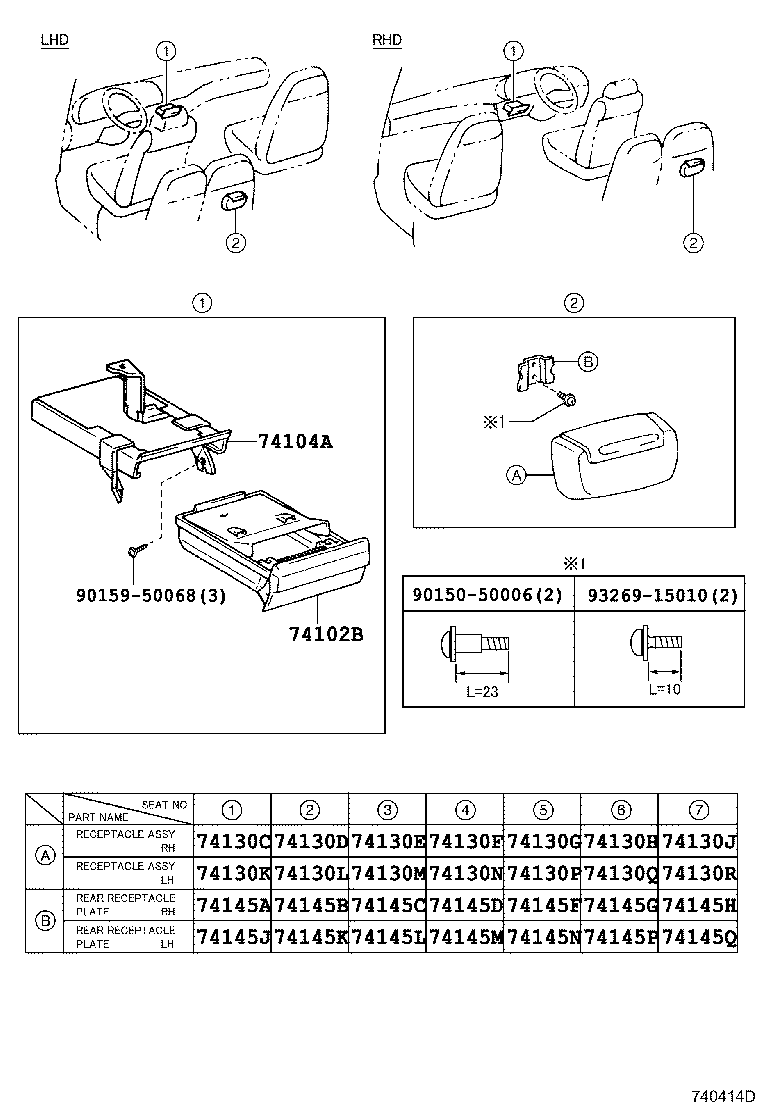

Click highlighted areas on diagram

diagram 74102B 74104A 74130C 74130D 74130E 74130F 74130G 74130H 74130J 74130K 74130L 74130M 74130N 74130P 74130Q 74130R 74145A 74145B 74145C 74145D 74145F 74145G 74145H 74145J 74145K 74145L 74145M 74145N 74145P 74145Q 9015050006 9015950068 9326915010
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-36010

BB50,HZB50,RZB40,50..ARL,CHI

 1
74102-36010

BB4#,5#,HZB50,RZB40,50

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-36010

BB4#,50,HZB50..RHD

 1
74104-36010

HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN

 1
74104-36010

HZB50..ARL

 1
74130D - RECEPTACLE ASSY, REAR ASH
74130-36010E0

BB4#,HZB50..RHD..(ARL,GEN)

GREIGE,TRIM4#

 1
74130E - RECEPTACLE ASSY, REAR ASH, NO.3 RH
74130-36010E0

BB4#,HZB50..RHD..(ARL,GEN)

GREIGE,TRIM4#

 1
74130F - RECEPTACLE ASSY, REAR ASH, NO.4 RH
74130-36010E0

BB42..26S;BB42..LHD..22S;BB40,HZB50..ARL,GCC,GEN

GREIGE,TRIM4#

 1
74130G - RECEPTACLE ASSY, REAR ASH, NO.5 RH
74130-36010E0

HZB50..(DX,STD)..DSL

GREIGE,TRIM4#

 1
74130H - RECEPTACLE ASSY, REAR ASH, NO.6 RH
74130-36010E0

BB4#,HZB50..ARL,GCC,GEN

GREIGE,TRIM4#

 1
74130J - RECEPTACLE ASSY, REAR ASH, NO.7 RH
74130-36010E0

BB4#,HZB50..ARL,GCC,GEN

GREIGE,TRIM4#

 1
74130N - RECEPTACLE ASSY, REAR ASH, NO.4 LH
74130-36010E0

BB42..26S;BB40,HZB50..ARL,GCC,GEN

GREIGE,TRIM4#

 1
74130P - RECEPTACLE ASSY, REAR ASH, NO.5 LH
74130-36010E0

HZB50..(DX,STD)..DSL

GREIGE,TRIM4#

 1
74130Q - RECEPTACLE ASSY, REAR ASH, NO.6 LH
74130-36010E0

BB4#,HZB50..ARL,GCC,GEN

GREIGE,TRIM4#

 1
74130R - RECEPTACLE ASSY, REAR ASH, NO.7 LH
74130-36010E0

BB4#,HZB50..ARL,GCC,GEN

GREIGE,TRIM4#

 1
74145B - PLATE, REAR ASH RECEPTACLE, NO.2 RH
74145-36010

BB4#,HZB50..RHD..(ARL,GEN)

 1
74145C - PLATE, REAR ASH RECEPTACLE, NO.3 RH
74145-36010

BB4#,HZB50..RHD..(ARL,GEN)

 1
74145D - PLATE, REAR ASH RECEPTACLE, NO.4 RH
74145-36010

BB42..26S;BB42..LHD..22S;BB40,HZB50..ARL,GCC,GEN

 1
74145F - PLATE, REAR ASH RECEPTACLE, NO.5 RH
74145-36010

HZB50..(DX,STD)..DSL

 1
74145G - PLATE, REAR ASH RECEPTACLE, NO.6 RH
74145-36010

BB4#,HZB50..ARL,GCC,GEN

 1
74145H - PLATE, REAR ASH RECEPTACLE, NO.7 RH
74145-36010

BB4#,HZB50..ARL,GCC,GEN

 1
74145M - PLATE, REAR ASH RECEPTACLE, NO.4 LH
74145-36010

BB42..26S;BB40,HZB50..ARL,GCC,GEN

 1
74145N - PLATE, REAR ASH RECEPTACLE, NO.5 LH
74145-36010

HZB50..(DX,STD)..DSL

 1
74145P - PLATE, REAR ASH RECEPTACLE, NO.6 LH
74145-36010

BB4#,HZB50..ARL,GCC,GEN

 1
74145Q - PLATE, REAR ASH RECEPTACLE, NO.7 LH
74145-36010

BB4#,HZB50..ARL,GCC,GEN

 1
Common parts
90150-50006
90159-50068
93269-15010
