HZB50R-ZEMSSQ (1993)
Toyota Coaster
ILLUST NO. 2 OF 2(9301-0608)
LUGGAGE DOOR(TRIM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-07054A1 |
BB4#,50..RHD..5F;HZB50..RHD..(DX,STD) IVORY,TRIM4# |
12 | ||
| 90467-07054A1 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) IVORY,TRIM4# |
12 | ||
| 90467-07054B3 |
HZB50..ARL MD.CHARCOAL,TRIM1# |
12 | ||
| 90467-07054A1 |
BB43,5#..CBU W(DOUBLE SWING BACK DOOR),IVORY,TRIM4# |
26 | ||

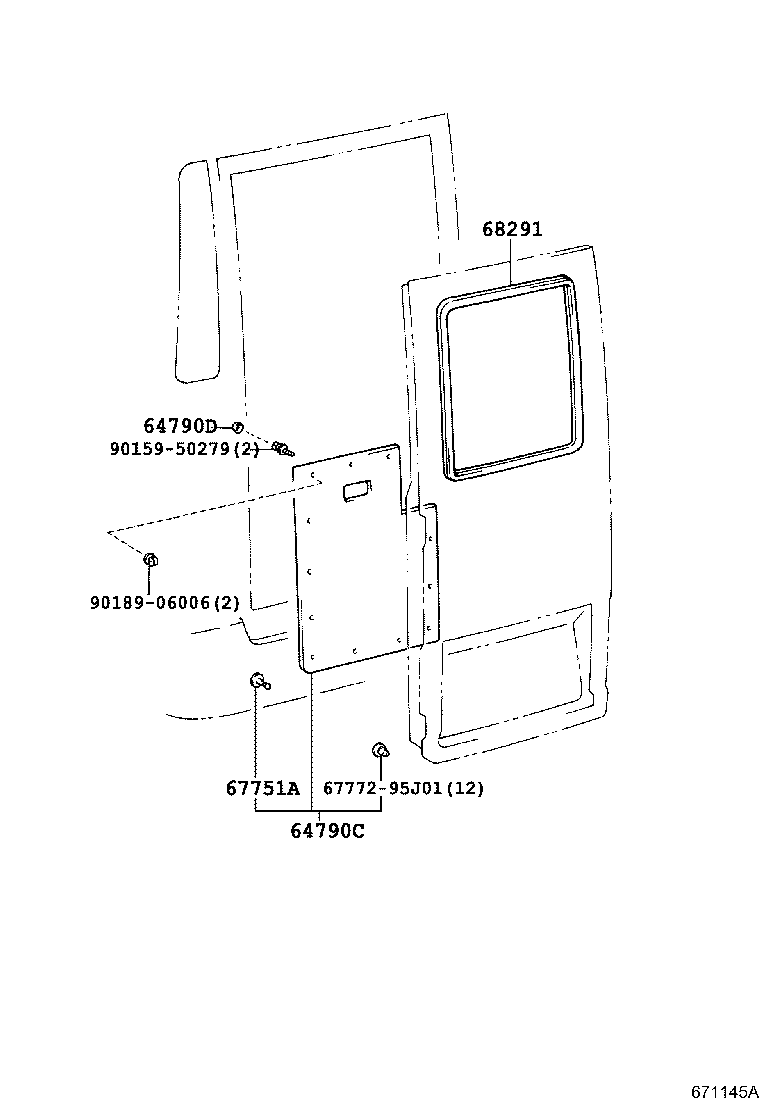

ILLUST NO. 2 OF 2(9301- )
SINGLE SWING BACK DOOR(TRIM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64790C - PANEL ASSY, BACK DOOR TRIM, LH | ||||
| 64790-36020E0 |
BB42,HZB50..(17S,20S,22S)..(EX,STD)..WC..(ARL,SCO) GREIGE,TRIM4# |
1 | ||
| 64790-36040E0 |
BB40,HZB50..ARL GREIGE,TRIM4# |
1 | ||
| 64790-36020E0 |
BB4#,HZB50..RHD..(17S,19S,22S) GREIGE,TRIM4# |
1 | ||
| 64790-36021E0 |
BB42,43,50..RHD..CBU;HZB50..RHD..STD..GEN W(*SSBD),GREIGE,TRIM4# |
1 | ||
| 64790-36040E2 |
HZB50..ARL IVORY,TRIM4# |
1 | ||
| 64790-36010E1 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(DOUBLE SWING BACK DOOR),GREIGE,TRIM4# |
1 | ||
| 64790-36040B0 |
HZB50..ARL MD. CHARCOAL,TRIM1# |
1 | ||
| 64790D - CAP, BACK DOOR TRIM PANEL | ||||
| 90339-10005A0 |
BB4#,50..RHD..5F;HZB50..RHD..(DX,STD) IVORY,TRIM4# |
2 | ||
| 90339-10005A0 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..DSL IVORY,TRIM4# |
2 | ||
| 90339-10005B0 |
HZB50..ARL MD.CHARCOAL,TRIM1# |
2 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-07054A1 |
BB4#,50..RHD..5F;HZB50..RHD..(DX,STD) IVORY,TRIM4# |
12 | ||
| 90467-07054A1 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) IVORY,TRIM4# |
12 | ||
| 90467-07054B3 |
HZB50..ARL MD.CHARCOAL,TRIM1# |
12 | ||
| 90467-07054A1 |
BB43,5#..CBU W(DOUBLE SWING BACK DOOR),IVORY,TRIM4# |
26 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-36010 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F RH |
1 | ||
| 68292-36010 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) |
1 | ||
| 68292-36010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN W(SINGLE SWING BACK DOOR) |
1 | ||
| 68292-36010 |
BB40,42,HZB50..RHD..(DX,STD) |
1 | ||
| 68292-36010 |
HZB50..ARL W(SINGLE SWING BACK DOOR) |
1 | ||
| 68292-36010 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F LH |
1 | ||
| Common parts | ||||
| 67772-95J01 | ||||
| 90159-50279 | ||||
| 90189-06006 | ||||

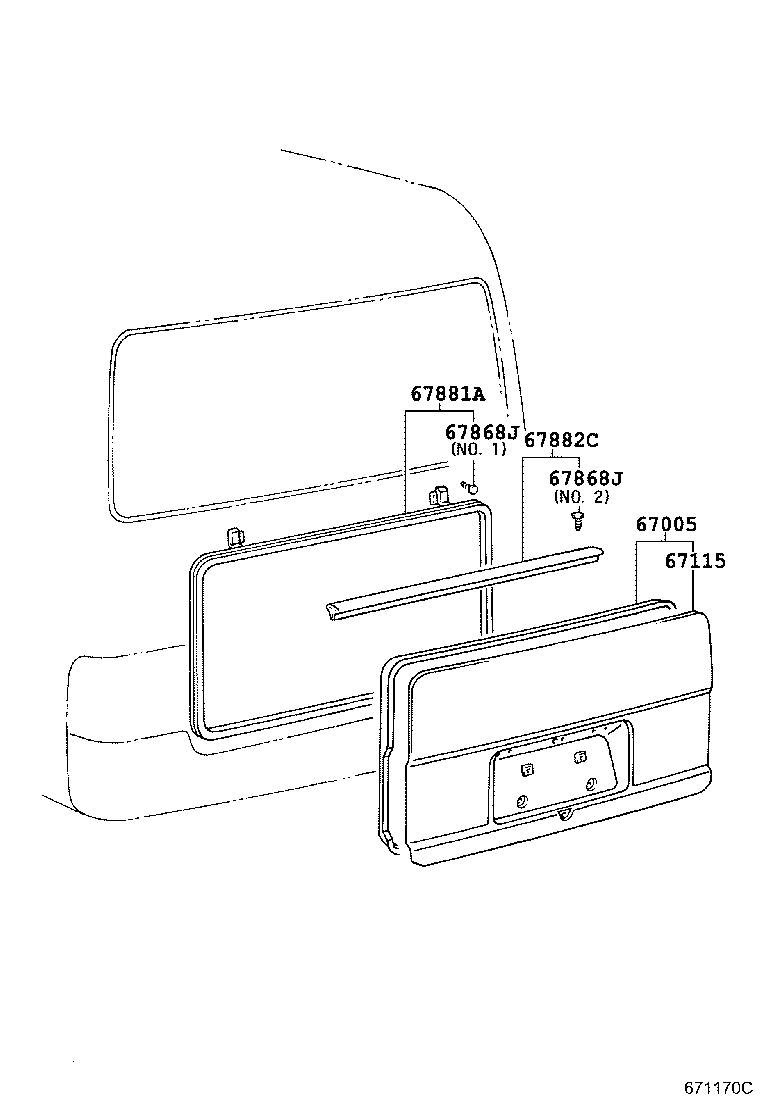

ILLUST NO. 1 OF 2(9301- )
LUGGAGE DOOR(PANEL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67006-36040 |
HZB50..SCO;BB4#..ARL,SCO;HZB50..19S,22S W(*SSBD) |
1 | ||
| 67006-36160 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN W(*SSBD) |
1 | ||
| 67006-36160 |
BB42,43,50..RHD..CBU;HZB50..RHD..STD..GEN W(*SSBD) |
1 | ||
| 67006-36110 |
HZB50..ARL W(*SSBD) |
1 | ||
| 67006-36110 |
BB40,HZB50..ARL W(*SSBD) |
1 | ||
| 67868J - RETAINER, DOOR WEATHERSTRIP | ||||
| 67868-30040 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF W(*DSBD),RH |
10 | ||
| 67868-30040 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) W(SINGLE SWING BACK DOOR) |
17 | ||
| 67868-3003001 |
BB43,5#..CBU BLACK,TRIM4# |
4 | ||
| 67868-30040 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF W(*DSBD),LH |
17 | ||
| 67868-30040 |
BB43,50..RHD..CBU W(*DSBD) |
27 | ||
| 67868-30040 |
HZB50..ARL W(SINGLE SWING BACK DOOR) |
17 | ||
| 67868J - RETAINER, DOOR WEATHERSTRIP | ||||
| 67868-30040 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF W(*DSBD),RH |
10 | ||
| 67868-30040 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) W(SINGLE SWING BACK DOOR) |
17 | ||
| 67868-3003001 |
BB43,5#..CBU BLACK,TRIM4# |
4 | ||
| 67868-30040 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF W(*DSBD),LH |
17 | ||
| 67868-30040 |
BB43,50..RHD..CBU W(*DSBD) |
27 | ||
| 67868-30040 |
HZB50..ARL W(SINGLE SWING BACK DOOR) |
17 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-36030 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF W(*DSBD) |
1 | ||
| 67881-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN W(SINGLE SWING BACK DOOR) |
1 | ||
| 67881-36030 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(DOUBLE SWING BACK DOOR) |
1 | ||
| 67881-36020 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) W(SINGLE SWING BACK DOOR) |
1 | ||
| 67881-36020 |
HZB50..ARL W(SINGLE SWING BACK DOOR) |
1 | ||
| 67882C - WEATHERSTRIP, BACK DOOR, NO.2 | ||||
| 67882-36020 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(*DSBD) |
1 | ||
| 67882-36020 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF W(*DSBD) |
1 | ||

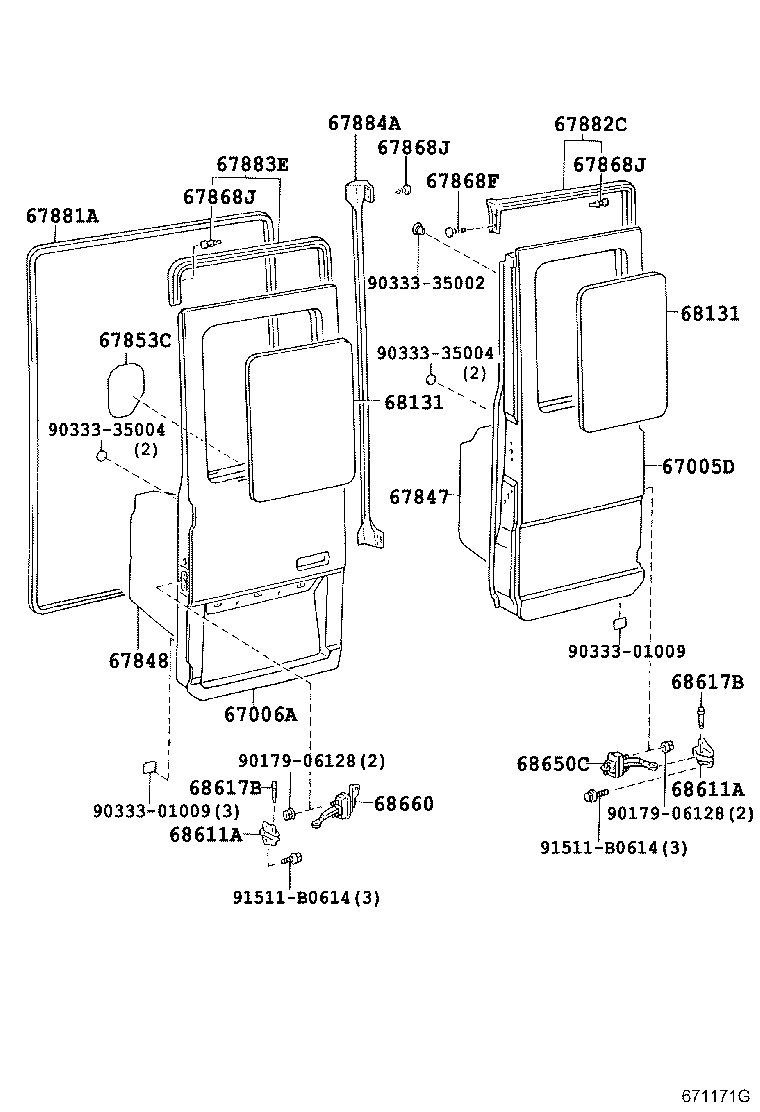

ILLUST NO. 1 OF 2(9301- )
DOUBLE SWING BACK DOOR(PANEL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005D - PANEL SUB-ASSY, BACK DOOR, RH | ||||
| 67005-36080 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F |
1 | ||
| 67005-36080 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF |
1 | ||
| 67006A - PANEL SUB-ASSY, BACK DOOR, LH | ||||
| 67006-36050 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF W(*DSBD) |
1 | ||
| 67006-36050 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF |
1 | ||
| 67847 - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-36010 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F |
1 | ||
| 67847-36010 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF |
1 | ||
| 67848 - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-36010 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 67848-36010 |
HZB50..ARL |
1 | ||
| 67848-36010 |
BB42..RHD;BB42..22S;HZB50..SCO;BB42..LHD..SRF;BB40,HZB50,RZB40,50..(DX,STD)..CBU |
1 | ||
| 67848-36010 |
BB4#,5#,RZB50..CBU;HZB50,RZB40..DX,STD |
1 | ||
| 67853C - COVER, BACK DOOR SERVICE HOLE, NO.3 | ||||
| 67853-36010 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F |
1 | ||
| 67853-36010 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF |
1 | ||
| 67868F - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67868-3003001 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F BLACK,TRIM4# |
2 | ||
| 67868J - RETAINER, DOOR WEATHERSTRIP | ||||
| 67868-30040 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF W(*DSBD),RH |
10 | ||
| 67868-30040 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) W(SINGLE SWING BACK DOOR) |
17 | ||
| 67868-3003001 |
BB43,5#..CBU BLACK,TRIM4# |
4 | ||
| 67868-30040 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF W(*DSBD),LH |
17 | ||
| 67868-30040 |
BB43,50..RHD..CBU W(*DSBD) |
27 | ||
| 67868-30040 |
HZB50..ARL W(SINGLE SWING BACK DOOR) |
17 | ||
| 67868J - RETAINER, DOOR WEATHERSTRIP | ||||
| 67868-30040 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF W(*DSBD),RH |
10 | ||
| 67868-30040 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) W(SINGLE SWING BACK DOOR) |
17 | ||
| 67868-3003001 |
BB43,5#..CBU BLACK,TRIM4# |
4 | ||
| 67868-30040 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF W(*DSBD),LH |
17 | ||
| 67868-30040 |
BB43,50..RHD..CBU W(*DSBD) |
27 | ||
| 67868-30040 |
HZB50..ARL W(SINGLE SWING BACK DOOR) |
17 | ||
| 67868J - RETAINER, DOOR WEATHERSTRIP | ||||
| 67868-30040 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF W(*DSBD),RH |
10 | ||
| 67868-30040 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) W(SINGLE SWING BACK DOOR) |
17 | ||
| 67868-3003001 |
BB43,5#..CBU BLACK,TRIM4# |
4 | ||
| 67868-30040 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF W(*DSBD),LH |
17 | ||
| 67868-30040 |
BB43,50..RHD..CBU W(*DSBD) |
27 | ||
| 67868-30040 |
HZB50..ARL W(SINGLE SWING BACK DOOR) |
17 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-36030 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF W(*DSBD) |
1 | ||
| 67881-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN W(SINGLE SWING BACK DOOR) |
1 | ||
| 67881-36030 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(DOUBLE SWING BACK DOOR) |
1 | ||
| 67881-36020 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) W(SINGLE SWING BACK DOOR) |
1 | ||
| 67881-36020 |
HZB50..ARL W(SINGLE SWING BACK DOOR) |
1 | ||
| 67882C - WEATHERSTRIP, BACK DOOR, NO.2 | ||||
| 67882-36020 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(*DSBD) |
1 | ||
| 67882-36020 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF W(*DSBD) |
1 | ||
| 67883E - WEATHERSTRIP, BACK DOOR, NO.3 | ||||
| 67883-36020 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F |
1 | ||
| 67883-36020 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF |
1 | ||
| 67884A - WEATHERSTRIP, BACK DOOR, CENTER | ||||
| 67884-36010 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF |
1 | ||
| 67884-36010 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68132-36020 |
HZB50..SCO;BB4#..ARL,SCO;HZB50..19S,22S *TT,T=3.5,BLUE |
1 | ||
| 68132-36100 |
BB42,5#,HZB50,RZB40,50..STD..(ARL,GCC,GEN)..CBU..5F *TT,T=3.5,GREEN,LH |
1 | ||
| 68131-36050 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F *TT,T=3.5,GREEN,RH |
1 | ||
| 68132-36100 |
HZB50..ARL *TT,T=3.5,GREEN |
1 | ||
| 68132-36100 |
HZB50,RZB40..STD..5F;BB42,43,5#,RZB50..CBU *TT,T=3.5,GREEN,LH |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68132-36020 |
HZB50..SCO;BB4#..ARL,SCO;HZB50..19S,22S *TT,T=3.5,BLUE |
1 | ||
| 68132-36100 |
BB42,5#,HZB50,RZB40,50..STD..(ARL,GCC,GEN)..CBU..5F *TT,T=3.5,GREEN,LH |
1 | ||
| 68131-36050 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F *TT,T=3.5,GREEN,RH |
1 | ||
| 68132-36100 |
HZB50..ARL *TT,T=3.5,GREEN |
1 | ||
| 68132-36100 |
HZB50,RZB40..STD..5F;BB42,43,5#,RZB50..CBU *TT,T=3.5,GREEN,LH |
1 | ||
| 68611A - BASE, BACK DOOR CHECK | ||||
| 68611-90K00 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(DOUBLE SWING BACK DOOR) |
2 | ||
| 68611-90K00 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 68611-90K00 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) |
1 | ||
| 68611-90K00 |
HZB50..ARL |
1 | ||
| 68611A - BASE, BACK DOOR CHECK | ||||
| 68611-90K00 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(DOUBLE SWING BACK DOOR) |
2 | ||
| 68611-90K00 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 68611-90K00 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) |
1 | ||
| 68611-90K00 |
HZB50..ARL |
1 | ||
| 68617B - PIN, BACK DOOR CHECK | ||||
| 68617-50010 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) |
1 | ||
| 68617-50010 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(DOUBLE SWING BACK DOOR) |
2 | ||
| 68617-50010 |
HZB50..ARL |
1 | ||
| 68617-50010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 68617B - PIN, BACK DOOR CHECK | ||||
| 68617-50010 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) |
1 | ||
| 68617-50010 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(DOUBLE SWING BACK DOOR) |
2 | ||
| 68617-50010 |
HZB50..ARL |
1 | ||
| 68617-50010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 68650C - CHECK ASSY, BACK DOOR, RH | ||||
| 68650-36010 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F |
1 | ||
| 68660 - CHECK ASSY, BACK DOOR, LH | ||||
| 68660-36010 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F |
1 | ||
| Common parts | ||||
| 90179-06128 | ||||
| 90333-01009 | ||||
| 90333-35002 | ||||
| 90333-35004 | ||||
| 91511-B0614 | ||||
ILLUST NO. 1 OF 2(9301-1501)
SINGLE SWING BACK DOOR(PANEL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55521B - KNOB, BACK DOOR HANDLE COVER | ||||
| 55521-95260 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 55521-95260 |
HZB50..ARL |
1 | ||
| 55521-95260 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) |
1 | ||
| 64561 - GLASS, EMERGENCY BACK DOOR WINDSHIELD | ||||
| 68129-90B00 |
HZB50..SCO;BB4#,HZB50..RHD..(17S,19S,22S,26S,30S) |
1 | ||
| 68129-36020A0 |
BB40,HZB50..STD..ARL WHITE,TRIM4#&045 ,2AQ |
1 | ||
| 68129-90B00 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 68129-36020A1 |
BB40,HZB50..STD..ARL IVORY WHITE,TRIM4#&053 ,22V |
1 | ||
| 68129-90B00 |
HZB50..SCO;HZB50..22S..4FC;BB42,43,50..RHD..CBU;HZB50..RHD..(19S,30S) |
1 | ||
| 64562 - WEATHERSTRIP, BACK DOOR WINDOW EMERGENCY GLASS, OUTER | ||||
| 68297-90B00 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 68297-90B00 |
BB42,43,50..RHD..CBU;HZB50..RHD..STD..GEN |
1 | ||
| 68297-90B00 |
HZB50..SCO;BB4#,HZB50..RHD..(17S,19S,22S,26S,30S) |
1 | ||
| 64563 - WEATHERSTRIP, BACK DOOR WINDOW EMERGENCY GLASS, INNER | ||||
| 68298-90B00 |
BB42,43,50..RHD..CBU;HZB50..RHD..STD..GEN |
1 | ||
| 68298-90B00 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 68298-90B00 |
HZB50..SCO;BB4#,HZB50..RHD..(17S,19S,22S,26S,30S) |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67006-36040 |
HZB50..SCO;BB4#..ARL,SCO;HZB50..19S,22S W(*SSBD) |
1 | ||
| 67006-36160 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN W(*SSBD) |
1 | ||
| 67006-36160 |
BB42,43,50..RHD..CBU;HZB50..RHD..STD..GEN W(*SSBD) |
1 | ||
| 67006-36110 |
HZB50..ARL W(*SSBD) |
1 | ||
| 67006-36110 |
BB40,HZB50..ARL W(*SSBD) |
1 | ||
| 67199 - COVER, BACK DOOR HANDLE | ||||
| 67199-36010 |
HZB50..SCO;BB4#,HZB50..RHD..(17S,19S,22S,26S,30S) |
1 | ||
| 67297 - WEATHERSTRIP, BACK DOOR COVER | ||||
| 67297-90B00 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 67297-90B00 |
BB42,43,50..RHD..CBU;HZB50..RHD..STD..GEN |
1 | ||
| 67297-90B00 |
HZB50..SCO;BB4#,HZB50..RHD..(17S,19S,22S,26S,30S) |
1 | ||
| 67807 - COVER SUB-ASSY, BACK DOOR SERVICE HOLE | ||||
| 67807-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 67807-36010 |
BB40,HZB50..ARL |
1 | ||
| 67807-36010 |
HZB50..ARL |
1 | ||
| 67807-36020 |
BB42,43,50..RHD..CBU;HZB50..RHD..STD..GEN |
1 | ||
| 67848 - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-36010 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 67848-36010 |
HZB50..ARL |
1 | ||
| 67848-36010 |
BB42..RHD;BB42..22S;HZB50..SCO;BB42..LHD..SRF;BB40,HZB50,RZB40,50..(DX,STD)..CBU |
1 | ||
| 67848-36010 |
BB4#,5#,RZB50..CBU;HZB50,RZB40..DX,STD |
1 | ||
| 67868J - RETAINER, DOOR WEATHERSTRIP | ||||
| 67868-30040 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF W(*DSBD),RH |
10 | ||
| 67868-30040 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) W(SINGLE SWING BACK DOOR) |
17 | ||
| 67868-3003001 |
BB43,5#..CBU BLACK,TRIM4# |
4 | ||
| 67868-30040 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF W(*DSBD),LH |
17 | ||
| 67868-30040 |
BB43,50..RHD..CBU W(*DSBD) |
27 | ||
| 67868-30040 |
HZB50..ARL W(SINGLE SWING BACK DOOR) |
17 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-36030 |
BB42..22S;HZB50..30S;RZB40,50..STD;BB42..RHD..GEN;BB42..LHD..SRF W(*DSBD) |
1 | ||
| 67881-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN W(SINGLE SWING BACK DOOR) |
1 | ||
| 67881-36030 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(DOUBLE SWING BACK DOOR) |
1 | ||
| 67881-36020 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) W(SINGLE SWING BACK DOOR) |
1 | ||
| 67881-36020 |
HZB50..ARL W(SINGLE SWING BACK DOOR) |
1 | ||
| 67883C - WEATHERSTRIP, BACK DOOR, LOWER RH | ||||
| 67883-36010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 67883-36010 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) |
1 | ||
| 67883-36010 |
HZB50..ARL |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68132-36020 |
HZB50..SCO;BB4#..ARL,SCO;HZB50..19S,22S *TT,T=3.5,BLUE |
1 | ||
| 68132-36100 |
BB42,5#,HZB50,RZB40,50..STD..(ARL,GCC,GEN)..CBU..5F *TT,T=3.5,GREEN,LH |
1 | ||
| 68131-36050 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F *TT,T=3.5,GREEN,RH |
1 | ||
| 68132-36100 |
HZB50..ARL *TT,T=3.5,GREEN |
1 | ||
| 68132-36100 |
HZB50,RZB40..STD..5F;BB42,43,5#,RZB50..CBU *TT,T=3.5,GREEN,LH |
1 | ||
| 68611A - BASE, BACK DOOR CHECK | ||||
| 68611-90K00 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(DOUBLE SWING BACK DOOR) |
2 | ||
| 68611-90K00 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 68611-90K00 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) |
1 | ||
| 68611-90K00 |
HZB50..ARL |
1 | ||
| 68617B - PIN, BACK DOOR CHECK | ||||
| 68617-50010 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) |
1 | ||
| 68617-50010 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(DOUBLE SWING BACK DOOR) |
2 | ||
| 68617-50010 |
HZB50..ARL |
1 | ||
| 68617-50010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 68650 - CHECK ASSY, BACK DOOR | ||||
| 68660-36010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 68660-36010 |
HZB50..ARL |
1 | ||
| 68660-36010 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) |
1 | ||
| 69411C - CATCH, BACK DOOR | ||||
| 69411-36020 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 69411-36010 |
HZB50..SCO;BB4#,HZB50..RHD..(17S,19S,22S,26S,30S) |
1 | ||
| 69411-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 69411-36020 |
HZB50..ARL |
1 | ||
| Common parts | ||||
| 90119-06324 | ||||
| 90179-06128 | ||||
| 90333-01009 | ||||
| 90333-35004 | ||||
| 91511-B0614 | ||||
| 91553-80614 | ||||
| 93540-14010 | ||||
ILLUST NO. 2 OF 2(9301- )
DOUBLE SWING BACK DOOR(TRIM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55521B - KNOB, BACK DOOR HANDLE COVER | ||||
| 55521-95260 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 55521-95260 |
HZB50..ARL |
1 | ||
| 55521-95260 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) |
1 | ||
| 64780C - PANEL ASSY, BACK DOOR TRIM, RH | ||||
| 64780-36010E1 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F GREIGE,TRIM4# |
1 | ||
| 64790C - PANEL ASSY, BACK DOOR TRIM, LH | ||||
| 64790-36020E0 |
BB42,HZB50..(17S,20S,22S)..(EX,STD)..WC..(ARL,SCO) GREIGE,TRIM4# |
1 | ||
| 64790-36040E0 |
BB40,HZB50..ARL GREIGE,TRIM4# |
1 | ||
| 64790-36020E0 |
BB4#,HZB50..RHD..(17S,19S,22S) GREIGE,TRIM4# |
1 | ||
| 64790-36021E0 |
BB42,43,50..RHD..CBU;HZB50..RHD..STD..GEN W(*SSBD),GREIGE,TRIM4# |
1 | ||
| 64790-36040E2 |
HZB50..ARL IVORY,TRIM4# |
1 | ||
| 64790-36010E1 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(DOUBLE SWING BACK DOOR),GREIGE,TRIM4# |
1 | ||
| 64790-36040B0 |
HZB50..ARL MD. CHARCOAL,TRIM1# |
1 | ||
| 64790C - PANEL ASSY, BACK DOOR TRIM, LH | ||||
| 64790-36020E0 |
BB42,HZB50..(17S,20S,22S)..(EX,STD)..WC..(ARL,SCO) GREIGE,TRIM4# |
1 | ||
| 64790-36040E0 |
BB40,HZB50..ARL GREIGE,TRIM4# |
1 | ||
| 64790-36020E0 |
BB4#,HZB50..RHD..(17S,19S,22S) GREIGE,TRIM4# |
1 | ||
| 64790-36021E0 |
BB42,43,50..RHD..CBU;HZB50..RHD..STD..GEN W(*SSBD),GREIGE,TRIM4# |
1 | ||
| 64790-36040E2 |
HZB50..ARL IVORY,TRIM4# |
1 | ||
| 64790-36010E1 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(DOUBLE SWING BACK DOOR),GREIGE,TRIM4# |
1 | ||
| 64790-36040B0 |
HZB50..ARL MD. CHARCOAL,TRIM1# |
1 | ||
| 64790D - CAP, BACK DOOR TRIM PANEL | ||||
| 90339-10005A0 |
BB4#,50..RHD..5F;HZB50..RHD..(DX,STD) IVORY,TRIM4# |
2 | ||
| 90339-10005A0 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..DSL IVORY,TRIM4# |
2 | ||
| 90339-10005B0 |
HZB50..ARL MD.CHARCOAL,TRIM1# |
2 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-07054A1 |
BB4#,50..RHD..5F;HZB50..RHD..(DX,STD) IVORY,TRIM4# |
12 | ||
| 90467-07054A1 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) IVORY,TRIM4# |
12 | ||
| 90467-07054B3 |
HZB50..ARL MD.CHARCOAL,TRIM1# |
12 | ||
| 90467-07054A1 |
BB43,5#..CBU W(DOUBLE SWING BACK DOOR),IVORY,TRIM4# |
26 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-07054A1 |
BB4#,50..RHD..5F;HZB50..RHD..(DX,STD) IVORY,TRIM4# |
12 | ||
| 90467-07054A1 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) IVORY,TRIM4# |
12 | ||
| 90467-07054B3 |
HZB50..ARL MD.CHARCOAL,TRIM1# |
12 | ||
| 90467-07054A1 |
BB43,5#..CBU W(DOUBLE SWING BACK DOOR),IVORY,TRIM4# |
26 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-07054A1 |
BB4#,50..RHD..5F;HZB50..RHD..(DX,STD) IVORY,TRIM4# |
12 | ||
| 90467-07054A1 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) IVORY,TRIM4# |
12 | ||
| 90467-07054B3 |
HZB50..ARL MD.CHARCOAL,TRIM1# |
12 | ||
| 90467-07054A1 |
BB43,5#..CBU W(DOUBLE SWING BACK DOOR),IVORY,TRIM4# |
26 | ||
| 67807 - COVER SUB-ASSY, BACK DOOR SERVICE HOLE | ||||
| 67807-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 67807-36010 |
BB40,HZB50..ARL |
1 | ||
| 67807-36010 |
HZB50..ARL |
1 | ||
| 67807-36020 |
BB42,43,50..RHD..CBU;HZB50..RHD..STD..GEN |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-36010 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F RH |
1 | ||
| 68292-36010 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) |
1 | ||
| 68292-36010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN W(SINGLE SWING BACK DOOR) |
1 | ||
| 68292-36010 |
BB40,42,HZB50..RHD..(DX,STD) |
1 | ||
| 68292-36010 |
HZB50..ARL W(SINGLE SWING BACK DOOR) |
1 | ||
| 68292-36010 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F LH |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-36010 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F RH |
1 | ||
| 68292-36010 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S) |
1 | ||
| 68292-36010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN W(SINGLE SWING BACK DOOR) |
1 | ||
| 68292-36010 |
BB40,42,HZB50..RHD..(DX,STD) |
1 | ||
| 68292-36010 |
HZB50..ARL W(SINGLE SWING BACK DOOR) |
1 | ||
| 68292-36010 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F LH |
1 | ||
| 69411C - CATCH, BACK DOOR | ||||
| 69411-36020 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 69411-36010 |
HZB50..SCO;BB4#,HZB50..RHD..(17S,19S,22S,26S,30S) |
1 | ||
| 69411-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 69411-36020 |
HZB50..ARL |
1 | ||
| Common parts | ||||
| 67772-95J01 | ||||
| 90159-50279 | ||||
| 90189-06006 | ||||
| 91553-80614 | ||||
| 93540-14010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
