HZB50R-ZEMSSQ (1993)
Toyota Coaster
(9301-0408)
GLIDE DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67868M - CLIP, DOOR WEATHERSTRIP | ||||
| 67868-30040 |
BB4#,HZB50..RHD..STD..CBU |
11 | ||
| 67868-30040 |
HZB50..STD..ARL W(FOLDING SIDE DOOR) |
11 | ||
| 67868M - CLIP, DOOR WEATHERSTRIP | ||||
| 67868-30040 |
BB4#,HZB50..RHD..STD..CBU |
11 | ||
| 67868-30040 |
HZB50..STD..ARL W(FOLDING SIDE DOOR) |
11 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 67771-28020 | ||||
| 67771-30090 | ||||
| 90333-35002 | ||||
| 91651-60616 | ||||
| 93229-25012 | ||||
| 93239-25012 | ||||
| 93319-25016 | ||||

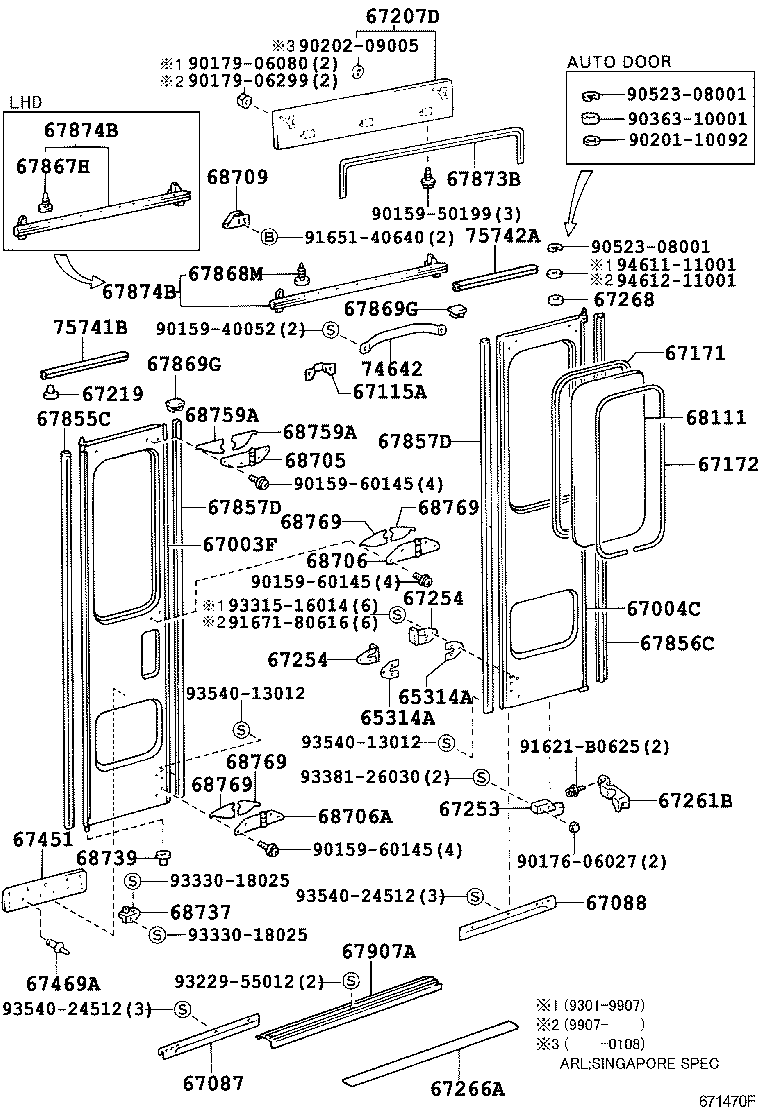

(9301-0408)
FOLDING DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003F - PANEL SUB-ASSY, CENTER DOOR, FRONT | ||||
| 67003-36070 |
BB4#,HZB50..RHD..STD..(ARL,GEN) W(*FD AUTO(W/BUZZER)) |
1 | ||
| 67003-36071 |
BB40,HZB50..(19S,22S)..STD W(*FD AUTO(W/BUZZER)) |
1 | ||
| 67003-36070 |
BB40,HZB50..STD..ARL W(*FD AUTO(W/BUZZER)) |
1 | ||
| 67003-36020 |
BB4#,HZB50..RHD..STD..(ARL,GEN) W(*FD) |
1 | ||
| 67003-36071 |
HZB50..STD..ARL W(*FD AUTO(W/BUZZER)) |
1 | ||
| 67004C - PANEL SUB-ASSY, CENTER DOOR, REAR | ||||
| 67004-36030 |
BB4#,HZB50..RHD..STD..CBU |
1 | ||
| 67004-36030 |
HZB50..STD..ARL |
1 | ||
| 67087 - PLATE SUB-ASSY, CENTER DOOR DUST SEAL, FRONT | ||||
| 67087-36011 |
BB4#,50..RHD..CBU;HZB50..RHD..STD..DSL |
1 | ||
| 67087-36011 |
HZB50..STD..ARL |
1 | ||
| 67087-36010 |
BB4#,HZB50..RHD..STD..DSL |
1 | ||
| 67087-36011 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 67088 - PLATE SUB-ASSY, CENTER DOOR DUST SEAL, REAR | ||||
| 67088-36010 |
BB4#,HZB50..RHD..STD..DSL |
1 | ||
| 67088-36011 |
BB4#,50..RHD..CBU;HZB50..RHD..STD..DSL |
1 | ||
| 67088-36011 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 67088-36011 |
BB42..RHD..SRF;HZB50..WOC..ARL;HZB50..RHD..HRF..STD..WC..5F;BB42,50,BZB40..RHD..WC..(DSL,LPG,TDEFI) |
1 | ||
| 67088-36030 |
HZB50..STD..ARL |
1 | ||
| 67171 - WEATHERSTRIP, CENTER DOOR GLASS, OUTER | ||||
| 68163-90B00 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) |
2 | ||
| 68163-90B00 |
BB4#,58,HZB50,RZB40,50..STD..CBU |
2 | ||
| 67172 - WEATHERSTRIP, CENTER DOOR GLASS, INNER | ||||
| 68173-90B00 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) |
2 | ||
| 68173-90B00 |
BB4#,58,HZB50,RZB40,50..STD..CBU |
2 | ||
| 67207D - COVER SUB-ASSY, CENTER DOOR, OUTER | ||||
| 67207-36010 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) |
1 | ||
| 67207-36010 |
BB50..EX;BB4#,58,HZB50,RZB40,50..STD..CBU |
1 | ||
| 67219 - BUSH, CENTER DOOR UPPER BEARING CASE | ||||
| 67219-90501 |
BB4#,58,HZB50,RZB40,50..STD..CBU |
1 | ||
| 67219-90501 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) |
1 | ||
| 67253 - PIECE, CENTER DOOR GUIDE | ||||
| 67253-36010 |
BB4#,HZB50..RHD..STD..CBU |
1 | ||
| 67253-36010 |
HZB50..STD..ARL |
1 | ||
| 67254 - STOPPER, CENTER DOOR, INSIDE NO.1 | ||||
| 67254-90B00 |
BB4#,58,HZB50,RZB40,50..STD..CBU |
2 | ||
| 67254-90B00 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) |
2 | ||
| 67254 - STOPPER, CENTER DOOR, INSIDE NO.1 | ||||
| 67254-90B00 |
BB4#,58,HZB50,RZB40,50..STD..CBU |
2 | ||
| 67254-90B00 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) |
2 | ||
| 67261B - CASE, CENTER DOOR GUIDE | ||||
| 67261-36010 |
HZB50..STD..ARL |
1 | ||
| 67261-36010 |
BB4#,HZB50..RHD..STD..CBU |
1 | ||
| 67266A - STOPPER, CENTER DOOR RAIL | ||||
| 67266-36010 |
HZB50..STD..ARL |
1 | ||
| 67266-36010 |
BB40,HZB50..STD..ARL |
1 | ||
| 67268 - ROLLAR, REAR DOOR, UPPER | ||||
| 67268-90B00 |
BB4#,HZB50,RZB40,50..STD..(ARL,GCC,GEN) |
1 | ||
| 67855C - WEATHERSTRIP, CENTER DOOR FRONT | ||||
| 67855-36030 |
BB4#,HZB50..RHD..STD..CBU *H,L=1635 |
1 | ||
| 67856C - WEATHERSTRIP, CENTER DOOR, REAR | ||||
| 67856-36030 |
BB4#,HZB50..RHD..STD..DSL *H,L=1665 |
1 | ||
| 67856-36040 |
BB4#,HZB50..RHD..STD *H,L=1665 |
1 | ||
| 67857D - WEATHERSTRIP, CENTER DOOR, CENTER | ||||
| 67857-36030 |
BB4#,HZB50..RHD..STD..CBU *H,L=1685 |
2 | ||
| 67857D - WEATHERSTRIP, CENTER DOOR, CENTER | ||||
| 67857-36030 |
BB4#,HZB50..RHD..STD..CBU *H,L=1685 |
2 | ||
| 67868M - CLIP, DOOR WEATHERSTRIP | ||||
| 67868-30040 |
BB4#,HZB50..RHD..STD..CBU |
11 | ||
| 67868-30040 |
HZB50..STD..ARL W(FOLDING SIDE DOOR) |
11 | ||
| 67869G - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-90B00 |
BB4#,58,HZB50,RZB40,50..STD..CBU |
2 | ||
| 67869-90B00 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) |
2 | ||
| 67869G - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-90B00 |
BB4#,58,HZB50,RZB40,50..STD..CBU |
2 | ||
| 67869-90B00 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) |
2 | ||
| 67873B - WEATHERSTRIP, REAR DOOR GLASS, FRONT RH | ||||
| 67873-36010 |
BB50..EX;BB4#,58,HZB50,RZB40,50..STD..CBU |
1 | ||
| 67873-36010 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) |
1 | ||
| 67874B - WEATHERSTRIP, CENTER DOOR, UPPER NO.2 | ||||
| 67874-36020 |
HZB50..STD..ARL |
1 | ||
| 67874-36020 |
BB4#,HZB50..RHD..STD..CBU |
1 | ||
| 67874B - WEATHERSTRIP, CENTER DOOR, UPPER NO.2 | ||||
| 67874-36020 |
HZB50..STD..ARL |
1 | ||
| 67874-36020 |
BB4#,HZB50..RHD..STD..CBU |
1 | ||
| 68111 - GLASS, CENTER DOOR | ||||
| 68113-36040 |
BB4#,HZB50,RZB40,50..STD..CBU *TEM,T=3.5 |
2 | ||
| 68113-36070 |
BB4#,58,HZB50,RZB40,50..STD *TT,T=3.5,GREEN |
2 | ||
| 68113-36070 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) *TT,T=3.5,GREEN |
2 | ||
| 68113-90B01 |
BB4#,HZB50,RZB40,50..STD..CBU *TT,T=3.5 |
2 | ||
| 68705 - HINGE SUB-ASSY, CENTER DOOR, OUTER NO.1 | ||||
| 68705-90B00 |
BB4#,HZB50..RHD..STD..(ARL,GEN) |
1 | ||
| 68705-90B01 |
HZB50..STD..ARL W(*FD AUTO(W/BUZZER)) |
1 | ||
| 68705-90B01 |
BB4#,HZB50..RHD..STD..(ARL,GEN) W(*FD AUTO(W/BUZZER)) |
1 | ||
| 68705-90B01 |
BB4#,HZB50..RHD..STD..CBU |
1 | ||
| 68706 - HINGE SUB-ASSY, CENTER DOOR, OUTER NO.1 | ||||
| 68706-90B00 |
BB4#,HZB50..RHD..STD..(ARL,GEN) |
1 | ||
| 68706-90B01 |
BB4#,HZB50..RHD..STD..(ARL,GEN) W(*FD AUTO(W/BUZZER)) |
1 | ||
| 68706-90B01 |
BB4#,HZB50..RHD..STD..CBU |
1 | ||
| 68706-90B01 |
HZB50..STD..ARL W(*FD AUTO(W/BUZZER)) |
1 | ||
| 68706A - HINGE SUB-ASSY, CENTER DOOR, OUTER NO.1 | ||||
| 68706-90B01 |
BB4#,HZB50..RHD..STD..CBU |
1 | ||
| 68706-90B01 |
HZB50..STD..ARL |
1 | ||
| 68709 - CASE SUB-ASSY, CENTER DOOR UPPER BEARING | ||||
| 68709-90B00 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) |
1 | ||
| 68709-90B00 |
BB4#,58,HZB50,RZB40,50..STD..CBU |
1 | ||
| 68737 - CASE, CENTER DOOR LOWER BEARING | ||||
| 68737-36010 |
BB4#,HZB50..RHD..STD..CBU |
1 | ||
| 68737-36010 |
HZB50..STD..ARL |
1 | ||
| 68739 - BALL, CENTER DOOR LOWER BEARING | ||||
| 68739-90B01 |
BB4#,58,HZB50,RZB40,50..STD..CBU |
1 | ||
| 68739-90B01 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) |
1 | ||
| 68759A - SPACER, CENTER DOOR HINGE | ||||
| 68769-90B00 |
BB4#,HZB50..RHD..STD..DSL |
2 | ||
| 68759-90B00 |
BB4#,HZB50..STD..DSL |
2 | ||
| 68769-90B00 |
BB4#,58,HZB50,RZB40,50..STD..CBU |
2 | ||
| 68769-90B00 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) |
2 | ||
| 68759A - SPACER, CENTER DOOR HINGE | ||||
| 68769-90B00 |
BB4#,HZB50..RHD..STD..DSL |
2 | ||
| 68759-90B00 |
BB4#,HZB50..STD..DSL |
2 | ||
| 68769-90B00 |
BB4#,58,HZB50,RZB40,50..STD..CBU |
2 | ||
| 68769-90B00 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) |
2 | ||
| 68769 - SPACER, CENTER DOOR HINGE, NO.2 | ||||
| 68769-90B00 |
BB4#,58,HZB50,RZB40,50..STD..CBU |
4 | ||
| 68769-90B00 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) |
4 | ||
| 68769 - SPACER, CENTER DOOR HINGE, NO.2 | ||||
| 68769-90B00 |
BB4#,58,HZB50,RZB40,50..STD..CBU |
4 | ||
| 68769-90B00 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) |
4 | ||
| 68769 - SPACER, CENTER DOOR HINGE, NO.2 | ||||
| 68769-90B00 |
BB4#,58,HZB50,RZB40,50..STD..CBU |
4 | ||
| 68769-90B00 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) |
4 | ||
| 68769 - SPACER, CENTER DOOR HINGE, NO.2 | ||||
| 68769-90B00 |
BB4#,58,HZB50,RZB40,50..STD..CBU |
4 | ||
| 68769-90B00 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) |
4 | ||
| 74642 - GRIP, GLIDE DOOR ASSIST | ||||
| 74642-90B00 |
BB50..EX;BB4#,58,HZB50,RZB40,50..STD..CBU |
1 | ||
| 74642-90B00 |
BB50,HZB50,RZB40,50..STD..(ARL,CHI) |
1 | ||
| 75741B - MOULDING, CENTER DOOR, FRONT | ||||
| 75741-90B00 |
BB4#,HZB50..RHD..HRF..STD..DSL |
1 | ||
| 75742A - MOULDING, CENTER DOOR, REAR | ||||
| 75742-90B00 |
BB4#,HZB50..RHD..HRF..STD..DSL |
1 | ||
| Common parts | ||||
| 90159-40052 | ||||
| 90159-50199 | ||||
| 90159-60145 | ||||
| 90176-06027 | ||||
| 90179-06080 | ||||
| 90179-06299 | ||||
| 90201-10092 | ||||
| 90202-09005 | ||||
| 90363-10001 | ||||
| 90523-08001 | ||||
| 91621-B0625 | ||||
| 91651-40640 | ||||
| 91671-80616 | ||||
| 93229-55012 | ||||
| 93315-16014 | ||||
| 93330-18025 | ||||
| 93381-26030 | ||||
| 93540-13012 | ||||
| 93540-24512 | ||||
| 94611-11001 | ||||
| 94612-11001 | ||||
