HZB50R-ZEMSSQ (1993)
Toyota Coaster
ILLUST NO. 5 OF 7(9301- )ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62019D - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36031 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62019-36010 |
BB4#,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62019-36010 |
BB4#,HZB50,RZB40,50..(DX,STD)..CBU |
1 | ||
| 62019-36032 |
BB40,HZB50..ARL |
1 | ||
| 62019-36033 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62019-36033 |
BB4#,5#,HZB50,RZB40,50..17S,22S,23S,26S,30S |
1 | ||
| 62019-36034 |
BB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI) |
1 | ||
| 62019J - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36044 |
HZB50,RZB40..ARL,CHI |
1 | ||
| 62211N - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36020 |
BB42,RZB40,50;HZB50..GCC,GEN *TT,T=5.0,BLUE |
1 | ||
| 62711-36070 |
BB40,HZB50..ARL *TT,T=5.0,GREEN |
1 | ||
| 62711-36070 |
HZB50..ARL *TT,T=5.0,GREEN |
1 | ||
| 62711-36010 |
BB40,HZB50..WC..ARL *TT,T=5.0,BLUE |
1 | ||
| 62711-36090 |
HZB50..ARL *TT,T=5.0,DK.GREEN,W(SLIDE WINDOW) |
2 | ||
| 62211P - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62221-36020 |
BB42,RZB40,50;HZB50..GCC,GEN *TT,T=5.0,BLUE |
1 | ||
| 62711-36010 |
BB40,HZB50..WC..ARL *TT,T=5.0,BLUE |
1 | ||
| 62711-36070 |
BB40,HZB50..ARL *TT,T=5.0,GREEN |
1 | ||
| 62711-36070 |
HZB50..ARL *TT,T=5.0,GREEN |
1 | ||
| 62269K - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
10 | ||
| 62269-90K01 |
BB50,HZB50,RZB40,50..ARL,CHI |
10 | ||
| 62279H - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
6 | ||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62279H - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
6 | ||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62376-36010B0 |
BB50,HZB50,RZB40,50..ARL,CHI MD.CHARCOAL,TRIM10 |
5 | ||
| 62376-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM41 |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010B0 |
BB50,HZB50,RZB40,50..ARL,CHI MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
5 | ||
| 62384-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62391H - STOPPER, SIDE WINDOW, NO.1 | ||||
| 62391-36010 |
BB40,HZB50..ARL |
2 | ||
| 62391-36010 |
HZB50..ARL |
2 | ||
| 62451H - RUN, REAR SIDE WINDOW, RH | ||||
| 62451-36070 |
BB40,HZB50..ARL |
1 | ||
| 62451-36070 |
BB40,HZB50..WC..ARL |
1 | ||
| 62451-36030 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62451-36071 |
HZB50..ARL |
1 | ||
| 62451-36071 |
BB40,HZB50..ARL |
1 | ||
| 62451-36072 |
HZB50..ARL |
1 | ||
| 62451-36070 |
BB40,HZB50..ARL |
1 | ||
| 62707C - FRAME SUB-ASSY, SIDE REAR WINDOW, RH | ||||
| 62707-36040 |
BB40,HZB50..(DX,STD)..ARL |
1 | ||
| 62707-36041 |
BB40,HZB50..ARL SILVER |
1 | ||
| 62707-36110 |
HZB50..ARL BLACK |
1 | ||
| 62707-36041 |
HZB50..ARL SILVER |
1 | ||
| 62777F - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62777-36010 |
BB4#,HZB50,RZB40,50..(DX,STD)..CBU |
1 | ||
| 62777-36011 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62777-36012 |
BB4#,5#,HZB50,RZB40,50..17S,22S,23S,26S,30S |
1 | ||
| 62777-36012 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62777-36030 |
BB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI) |
1 | ||
| 62777W - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36030 |
HZB50,RZB40..ARL,CHI |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||

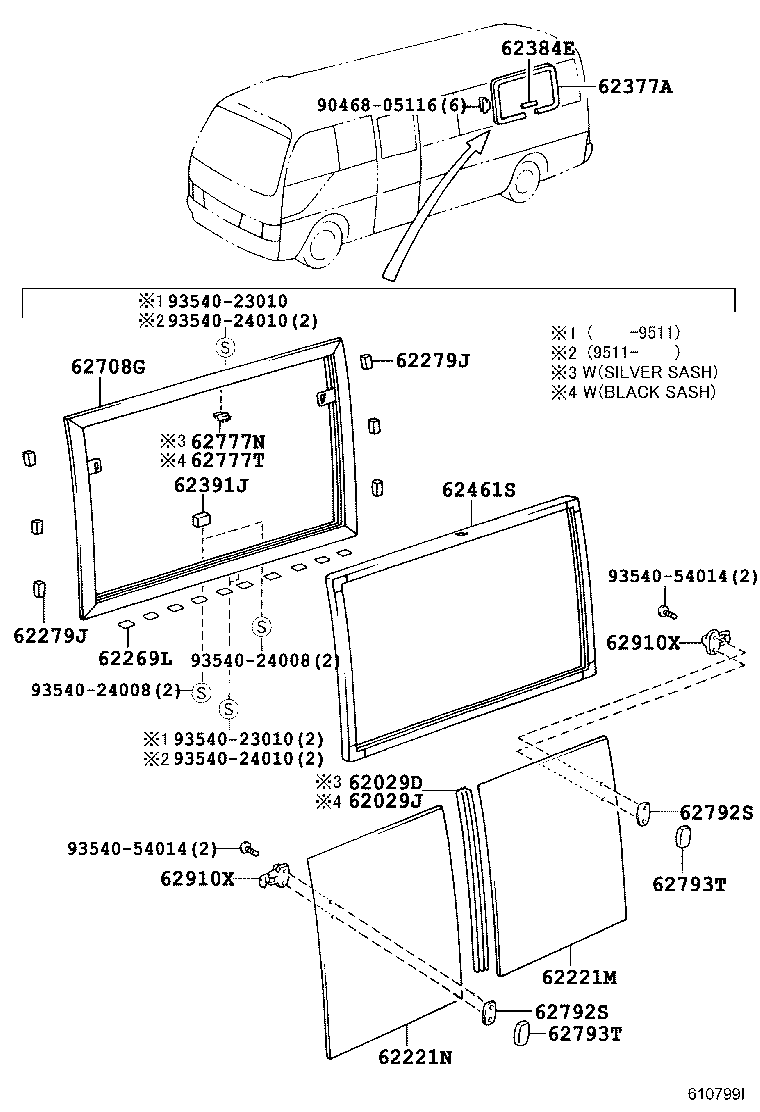

ILLUST NO. 6 OF 7(9301- )ARL ; (9301- )XZB40,59..HRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62029D - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36010 |
BB4#,RZB40,50..STD;HZB50..19S,22S,30S |
1 | ||
| 62029-36034 |
BB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI) |
1 | ||
| 62029-36031 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62029-36010 |
BB4#,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62029-36033 |
BB4#,5#,HZB50,RZB40,50..17S,22S,23S,26S,30S |
1 | ||
| 62029-36032 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62029-36033 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62029J - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36044 |
HZB50,RZB40..ARL,CHI |
1 | ||
| 62221M - GLASS, SIDE WINDOW, REAR LH | ||||
| 62211-36020 |
BB4#..WC;BB42..WOC..GCC;HZB50..GCC..4FC;HZB50..LHD..SRF..WC;HZB50..HRF..(20S,22S,30S)..WC..(ARL,GCC,GEN)..5F *TT,T=5.0,BLUE |
1 | ||
| 62211-36020 |
BB42,RZB40;BB40,RZB50..WC;HZB50..WOC..GEN;HZB50..(20S,22S,30S)..WC..(ARL,GCC,GEN) *TT,T=5.0,BLUE |
1 | ||
| 62211-36020 |
BB42,RZB40;HZB50..WOC..GEN;BB40,HZB50,RZB50..(DX,STD)..WC..CBU *TT,T=5.0,BLUE |
1 | ||
| 62211-36070 |
BB50,HZB50,RZB40,50..ARL,CHI *TT,T=5.0,DK.GREEN |
1 | ||
| 62211-36080 |
BB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI) *TT,T=5.0,GREEN |
1 | ||
| 62211-36080 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S *TT,T=5.0,GREEN |
1 | ||
| 62221N - GLASS, SIDE WINDOW, FRONT LH | ||||
| 62221-36020 |
BB42,RZB40;HZB50..WOC..GEN;BB40,HZB50,RZB50..(DX,STD)..WC..CBU *TT,T=5.0,BLUE |
1 | ||
| 62221-36020 |
BB42,RZB40;BB40,RZB50..WC;HZB50..WOC..GEN;HZB50..(20S,22S,30S)..WC..(ARL,GCC,GEN) *TT,T=5.0,BLUE |
1 | ||
| 62221-36100 |
BB50,HZB50,RZB40,50..ARL,CHI *TT,T=5.0,DK.GREEN |
1 | ||
| 62221-36020 |
BB4#..WC;BB42..WOC..GCC;HZB50..GCC..4FC;HZB50..LHD..SRF..WC;HZB50..HRF..(20S,22S,30S)..WC..(ARL,GCC,GEN)..5F *TT,T=5.0,BLUE |
1 | ||
| 62221-36070 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S *TT,T=5.0,GREEN |
1 | ||
| 62221-36070 |
BB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI) *TT,T=5.0,GREEN |
1 | ||
| 62269L - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB50,HZB50,RZB40,50..ARL,CHI |
10 | ||
| 62269-90K01 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
10 | ||
| 62279J - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62279-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
6 | ||
| 62279J - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62279-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
6 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62376-36010B0 |
BB50,HZB50,RZB40,50..ARL,CHI MD.CHARCOAL,TRIM10 |
5 | ||
| 62376-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM41 |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010B0 |
BB50,HZB50,RZB40,50..ARL,CHI MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
5 | ||
| 62384-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62391J - STOPPER, SIDE WINDOW, NO.1 | ||||
| 62391-36010 |
HZB50..ARL |
2 | ||
| 62391-36010 |
BB40,HZB50..ARL |
2 | ||
| 62461S - RUN, REAR SIDE WINDOW, LH | ||||
| 62461-36040 |
BB40,HZB50..(DX,STD)..ARL |
1 | ||
| 62461-36041 |
BB40,HZB50..ARL |
1 | ||
| 62461-36041 |
HZB50..ARL |
1 | ||
| 62461-36042 |
HZB50..ARL |
1 | ||
| 62461-36030 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62708G - FRAME SUB-ASSY, SIDE REAR WINDOW, LH | ||||
| 62706-36011 |
BB40,HZB50..ARL SILVER |
1 | ||
| 62706-36010 |
BB40,HZB50..(DX,STD)..ARL |
1 | ||
| 62706-36030 |
HZB50..ARL BLACK |
1 | ||
| 62706-36011 |
HZB50..ARL SILVER |
1 | ||
| 62777N - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36040 |
BB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI) |
1 | ||
| 62777-36010 |
BB4#,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62777-36012 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62777-36012 |
BB4#,5#,HZB50,RZB40,50..17S,22S,23S,26S,30S |
1 | ||
| 62777-36011 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62777-36010 |
BB4#,RZB40,50..STD;HZB50..19S,22S,30S |
1 | ||
| 62777T - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36040 |
HZB50,RZB40..ARL,CHI |
1 | ||
| 62792S - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB40,HZB50..(DX,STD)..ARL |
2 | ||
| 62792-95A00 |
HZB50..ARL |
2 | ||
| 62792-95A00 |
HZB50..22S..4FC;HZB50..(19S,20S,30S)..(ARL,GCC,GEN);BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62792S - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB40,HZB50..(DX,STD)..ARL |
2 | ||
| 62792-95A00 |
HZB50..ARL |
2 | ||
| 62792-95A00 |
HZB50..22S..4FC;HZB50..(19S,20S,30S)..(ARL,GCC,GEN);BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62793T - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
HZB50..22S..4FC;HZB50..(19S,20S,30S)..(ARL,GCC,GEN);BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62793-95J00 |
HZB50..ARL |
2 | ||
| 62793-95J00 |
BB40,HZB50..(DX,STD)..ARL |
2 | ||
| 62793T - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
HZB50..22S..4FC;HZB50..(19S,20S,30S)..(ARL,GCC,GEN);BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62793-95J00 |
HZB50..ARL |
2 | ||
| 62793-95J00 |
BB40,HZB50..(DX,STD)..ARL |
2 | ||
| 62910X - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB40,HZB50..(DX,STD)..ARL |
2 | ||
| 62910-95702 |
HZB50..22S..4FC;HZB50..(19S,20S,30S)..(ARL,GCC,GEN);BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62910-95702 |
HZB50..ARL |
2 | ||
| 62910X - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB40,HZB50..(DX,STD)..ARL |
2 | ||
| 62910-95702 |
HZB50..22S..4FC;HZB50..(19S,20S,30S)..(ARL,GCC,GEN);BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62910-95702 |
HZB50..ARL |
2 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||

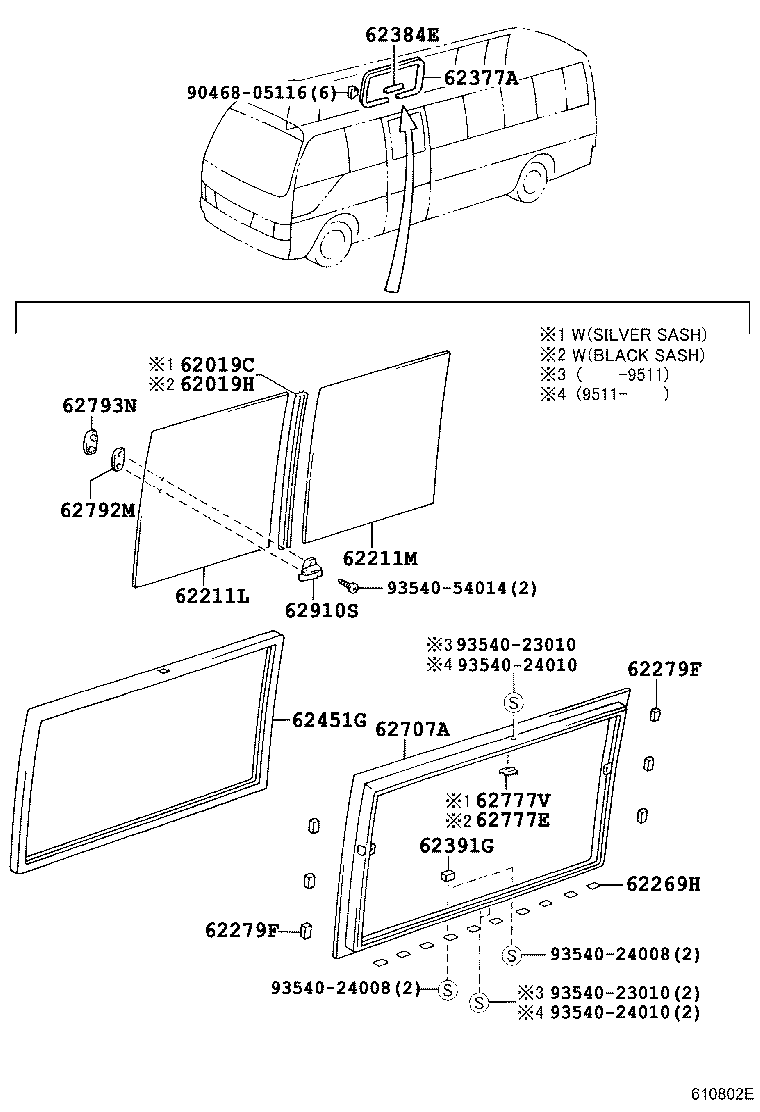

ILLUST NO. 4 OF 7(9301- )ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62019C - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36010 |
BB4#,HZB50..RHD..(DX,STD)..DSL |
1 | ||
| 62019-36034 |
HZB50..ARL |
1 | ||
| 62019-36031 |
BB4#,HZB50..RHD..(DX,STD) |
1 | ||
| 62019-36033 |
BB4#,HZB50..RHD..(DX,STD) |
1 | ||
| 62019-36033 |
BB4#,HZB50..RHD..(DX,STD) |
1 | ||
| 62019H - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36044 |
HZB50..ARL |
1 | ||
| 62211L - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36020 |
BB42..RHD..WC;HZB50..RHD..HRF..(20S,22S,30S)..WC..(ARL,GEN) *TT,T=5.0,BLUE |
1 | ||
| 62211-36020 |
BB42..RHD;HZB50..RHD..WOC..GEN;HZB50..RHD..(DX,STD)..WC..DSL *TT,T=5.0,BLUE |
1 | ||
| 62711-36010 |
BB40,HZB50..WC..ARL *TT,T=5.0,BLUE |
1 | ||
| 62211-36020 |
BB42..RHD;HZB50..RHD..WOC..GEN;HZB50..RHD..(20S,22S,30S)..WC..(ARL,GEN) *TT,T=5.0,BLUE |
1 | ||
| 62211-36080 |
BB42,43,HZB50..RHD..(DX,STD) *TT,T=5.0,GREEN |
1 | ||
| 62211-36070 |
HZB50..ARL *TT,T=5.0,DK.GREEN |
1 | ||
| 62211-36080 |
HZB50..ARL *TT,T=5.0,GREEN |
1 | ||
| 62211M - GLASS, SIDE WINDOW, REAR RH | ||||
| 62711-36070 |
BB40,HZB50..ARL *TT,T=5.0,GREEN |
1 | ||
| 62711-36090 |
HZB50..ARL *TT,T=5.0,DK.GREEN |
1 | ||
| 62711-36010 |
BB40,HZB50..WC..ARL *TT,T=5.0,BLUE |
1 | ||
| 62711-36070 |
HZB50..ARL *TT,T=5.0,GREEN |
1 | ||
| 62269H - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
10 | ||
| 62269-90K01 |
BB50,HZB50,RZB40,50..ARL,CHI |
10 | ||
| 62279F - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB4#..RHD;HZB50..RHD..(ARL,GEN) |
6 | ||
| 62279-36010 |
HZB50..ARL |
6 | ||
| 62279F - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB4#..RHD;HZB50..RHD..(ARL,GEN) |
6 | ||
| 62279-36010 |
HZB50..ARL |
6 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62376-36010B0 |
BB50,HZB50,RZB40,50..ARL,CHI MD.CHARCOAL,TRIM10 |
5 | ||
| 62376-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM41 |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010B0 |
BB50,HZB50,RZB40,50..ARL,CHI MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
5 | ||
| 62384-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62391G - STOPPER, SIDE WINDOW, NO.1 | ||||
| 62391-36010 |
HZB50..ARL |
2 | ||
| 62391-36010 |
BB40,HZB50..ARL |
2 | ||
| 62451G - RUN, REAR SIDE WINDOW, RH | ||||
| 62451-36070 |
BB40,HZB50..ARL |
1 | ||
| 62451-36081 |
HZB50..ARL |
1 | ||
| 62451-36081 |
HZB50..ARL |
1 | ||
| 62451-36082 |
HZB50..ARL |
1 | ||
| 62451-36080 |
HZB50..ARL |
1 | ||
| 62707A - FRAME SUB-ASSY, SIDE FRONT WINDOW, RH | ||||
| 62707-36061 |
HZB50..ARL SILVER |
1 | ||
| 62707-36060 |
HZB50..22S..5F |
1 | ||
| 62707-36040 |
BB40,HZB50..(DX,STD)..ARL |
1 | ||
| 62707-36061 |
HZB50..ARL SILVER |
1 | ||
| 62707-36100 |
HZB50..ARL BLACK |
1 | ||
| 62777E - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,HZB50..RHD..(DX,STD)..DSL |
1 | ||
| 62777-36011 |
BB4#,HZB50..RHD..(DX,STD) |
1 | ||
| 62777-36012 |
BB42,43,HZB50..RHD..(DX,STD) |
1 | ||
| 62777-36030 |
HZB50..ARL |
1 | ||
| 62777-36012 |
BB4#,HZB50..RHD..(DX,STD) |
1 | ||
| 62777V - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36030 |
HZB50..ARL |
1 | ||
| 62792M - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB42,43..RHD;HZB50..RHD..(20S,22S,30S)..(ARL,GEN) |
1 | ||
| 62792-95A00 |
HZB50..ARL |
1 | ||
| 62793N - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB42,43..RHD;HZB50..RHD..(20S,22S,30S)..(ARL,GEN) |
1 | ||
| 62793-95J00 |
HZB50..ARL |
1 | ||
| 62910S - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
HZB50..ARL |
1 | ||
| 62910-95702 |
BB42,43..RHD;HZB50..RHD..(20S,22S,30S)..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||

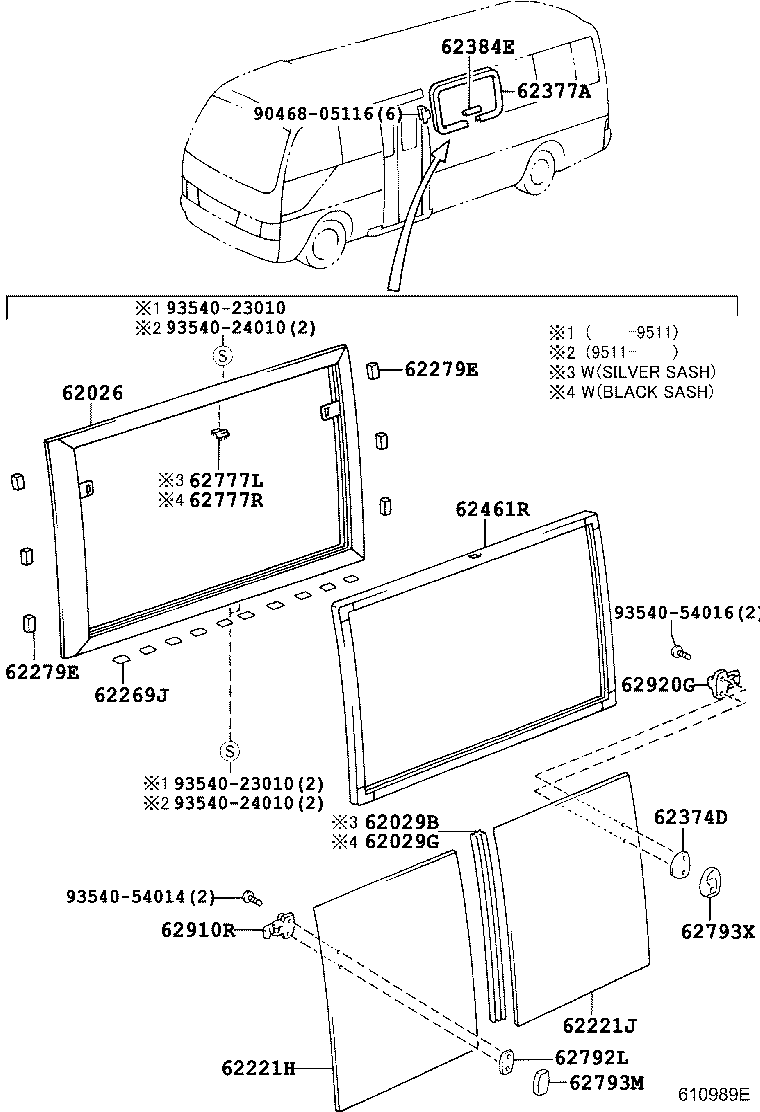

ILLUST NO. 3 OF 7(9301- )BB4#,50,59,BZB40,50,HZB50,XZB40,50..RHD
FOLDING DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62026 - FRAME SUB-ASSY, SIDE NO.2 WINDOW, OUTER LH | ||||
| 62026-36010 |
BB4#,HZB50..RHD..STD..DSL |
1 | ||
| 62026-36011 |
HZB50..STD..ARL SILVER |
1 | ||
| 62026-36031 |
HZB50..STD..ARL W(BRONZE GLASS) |
1 | ||
| 62026-36011 |
BB4#,HZB50..RHD..STD SILVER |
1 | ||
| 62029B - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36032 |
BB4#,HZB50..RHD..(DX,STD) |
1 | ||
| 62029-36010 |
BB4#,HZB50..RHD..(DX,STD)..DSL |
1 | ||
| 62029-36031 |
BB4#,HZB50..RHD..(DX,STD) |
1 | ||
| 62029-36033 |
BB4#,HZB50..RHD..(DX,STD) |
1 | ||
| 62029-36033 |
BB4#,HZB50..RHD..(DX,STD) |
1 | ||
| 62029-36034 |
HZB50..ARL |
1 | ||
| 62029G - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36044 |
HZB50..ARL |
1 | ||
| 62221H - GLASS, SIDE WINDOW, FRONT LH | ||||
| 62221-36020 |
BB4#,HZB50..RHD..HRF..STD..WC..DSL *TT,T=5.0,BLUE |
1 | ||
| 62221-36070 |
BB4#,HZB50..RHD..STD *TT,T=5.0,GREEN |
1 | ||
| 62221-36020 |
BB40,HZB50..STD..WC..ARL;BB42,HZB50..RHD..STD..(GEN,SCO) *TT,T=5.0,BLUE |
1 | ||
| 62221-36070 |
HZB50..STD..ARL *TT,T=5.0,GREEN |
1 | ||
| 62221-36100 |
HZB50..STD..ARL *TT,T=5.0,DK.GREEN,W(GLIDING SIDE DOOR) |
1 | ||
| 62221J - GLASS, SIDE WINDOW, REAR LH | ||||
| 62211-36020 |
BB40..WC;BB42..RHD;HZB50..RHD..WOC..GEN;HZB50..RHD..(20S,22S,30S)..WC..(ARL,GEN) *TT,T=5.0,BLUE |
1 | ||
| 62211-36020 |
BB4#..RHD..WC;HZB50..RHD..HRF..(20S,22S,30S)..WC..(ARL,GEN) *TT,T=5.0,BLUE |
1 | ||
| 62211-36080 |
BB4#,HZB50..RHD..(DX,STD) *TT,T=5.0,GREEN |
1 | ||
| 62211-36080 |
HZB50..ARL *TT,T=5.0,GREEN |
1 | ||
| 62211-36070 |
HZB50..ARL *TT,T=5.0,DK.GREEN |
1 | ||
| 62211-36020 |
BB42..RHD;HZB50..RHD..WOC..GEN;BB40,HZB50..RHD..(DX,STD)..WC..DSL *TT,T=5.0,BLUE |
1 | ||
| 62269J - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
10 | ||
| 62269-90K01 |
BB50,HZB50,RZB40,50..ARL,CHI |
10 | ||
| 62279E - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
6 | ||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62279E - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
6 | ||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62374D - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB4#..RHD;HZB50..RHD..(ARL,GEN) |
1 | ||
| 62792-95A00 |
HZB50..STD..ARL |
2 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62376-36010B0 |
BB50,HZB50,RZB40,50..ARL,CHI MD.CHARCOAL,TRIM10 |
5 | ||
| 62376-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM41 |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010B0 |
BB50,HZB50,RZB40,50..ARL,CHI MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
5 | ||
| 62384-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62461R - RUN, REAR SIDE WINDOW, LH | ||||
| 62461-36031 |
BB4#,HZB50..RHD..STD |
1 | ||
| 62461-36031 |
BB4#,HZB50..RHD..STD |
1 | ||
| 62461-36030 |
BB4#,HZB50..RHD..STD..CBU |
1 | ||
| 62461-36070 |
HZB50..STD..ARL |
1 | ||
| 62777L - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36011 |
BB4#,HZB50..RHD..(DX,STD) |
1 | ||
| 62777-36040 |
HZB50..ARL |
1 | ||
| 62777-36010 |
BB4#,HZB50..RHD..(DX,STD)..DSL |
1 | ||
| 62777-36012 |
BB4#,HZB50..RHD..(DX,STD) |
1 | ||
| 62777-36012 |
BB4#,HZB50..RHD..(DX,STD) |
1 | ||
| 62777R - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36040 |
HZB50..ARL |
1 | ||
| 62792L - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
HZB50..STD..ARL |
1 | ||
| 62792-95A00 |
BB4#,HZB50..RHD..STD..CBU |
1 | ||
| 62793M - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
HZB50..STD..ARL |
1 | ||
| 62793-95J00 |
BB4#,HZB50..RHD..STD..CBU |
1 | ||
| 62793X - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
BB4#..RHD;HZB50..RHD..(ARL,GEN) |
1 | ||
| 62793-36010 |
HZB50..ARL |
1 | ||
| 62910R - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB4#,HZB50..RHD..STD..CBU |
1 | ||
| 62910-95702 |
HZB50..STD..ARL |
2 | ||
| 62920G - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB4#..RHD;HZB50..RHD..(ARL,GEN) |
1 | ||
| 62910-95702 |
HZB50..STD..ARL |
2 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||

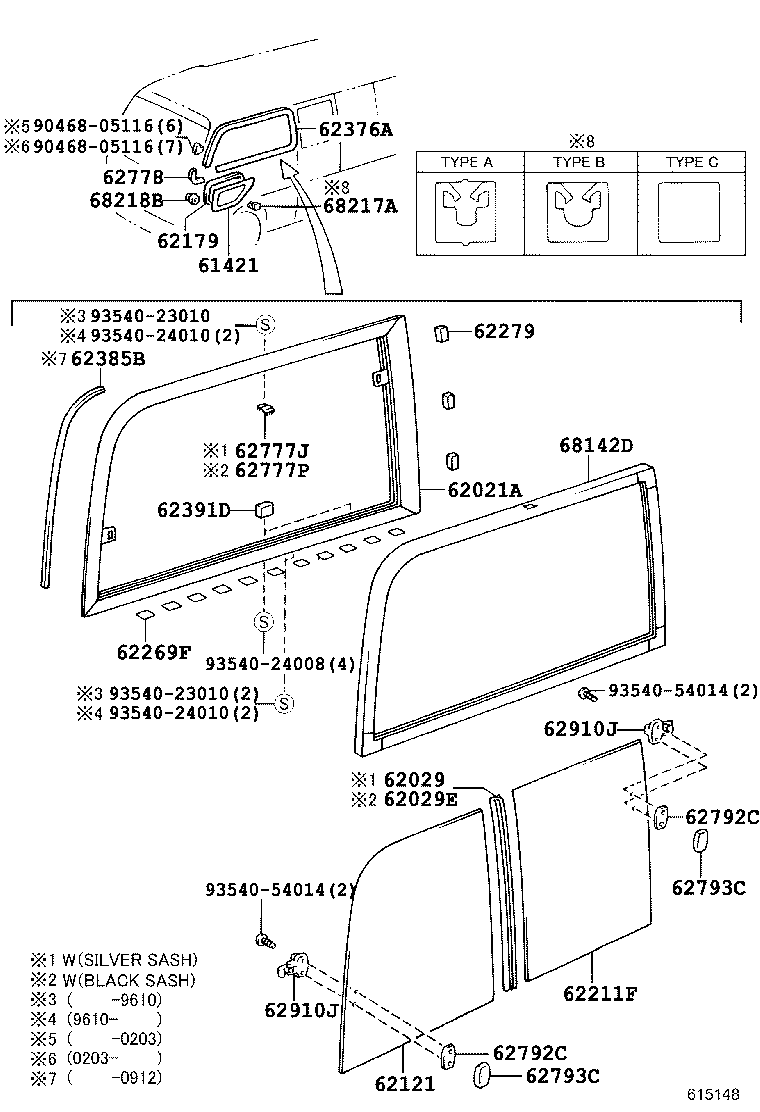

ILLUST NO. 1 OF 7(9301- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61421 - GLASS, SIDE LOWER WINDOW | ||||
| 62171-36020 |
BB4#,HZB50..RHD..DSL *TT,T=3.5,BLUE |
1 | ||
| 62171-36080 |
BB4#,50,HZB50..RHD..CBU *TT,T=3.5,GREEN |
1 | ||
| 62171-36080 |
HZB50..ARL *TT,T=3.5,GREEN |
1 | ||
| 62171-36080 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN *TT,T=3.5,GREEN |
1 | ||
| 62021A - FRAME SUB-ASSY, FRONT SIDE WINDOW, OUTER LH | ||||
| 62021-36010 |
BB4#,HZB50..RHD..(DX,STD)..DSL |
1 | ||
| 62021-36011 |
BB4#,HZB50..RHD..(DX,STD)..DSL |
1 | ||
| 62021-36012 |
BB4#,HZB50..RHD..(DX,STD)..CBU SILVER |
1 | ||
| 62021-36012 |
HZB50..ARL SILVER |
1 | ||
| 62021-36032 |
HZB50..ARL W(BRONZE GLASS) |
1 | ||
| 62029 - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36010 |
BB4#,HZB50..RHD..(DX,STD)..DSL |
1 | ||
| 62029-36034 |
HZB50..ARL |
1 | ||
| 62029-36030 |
BB4#,HZB50..RHD..(DX,STD)..DSL |
1 | ||
| 62029-36033 |
BB4#,HZB50..RHD..(DX,STD) |
1 | ||
| 62029-36033 |
BB4#,HZB50..RHD..(DX,STD) |
1 | ||
| 62029-36031 |
BB4#,HZB50..RHD..(DX,STD)..DSL |
1 | ||
| 62029-36032 |
BB4#,HZB50..RHD..(DX,STD) |
1 | ||
| 62029E - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36044 |
HZB50..ARL |
1 | ||
| 62121 - GLASS, FRONT SIDE WINDOW, FRONT LH | ||||
| 62121-36020 |
BB40..WC;BB42..RHD;HZB50..RHD..WOC..GEN;HZB50..RHD..(20S,22S,30S)..WC *TT,T=5.0,BLUE |
1 | ||
| 62121-36020 |
BB42..RHD;HZB50..SCO;HZB50..RHD..WOC..GEN;BB40,HZB50..RHD..(DX,STD)..WC..DSL *TT,T=5.0,BLUE |
1 | ||
| 62121-36020 |
BB4#..RHD..WC;HZB50..RHD..HRF..(20S,22S,30S)..WC *TT,T=5.0,BLUE |
1 | ||
| 62121-36050 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) *TT,T=5.0,GREEN |
1 | ||
| 62121-36050 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN *TT,T=5.0,GREEN |
1 | ||
| 62121-36021 |
BB42..RHD;HZB50..SCO;HZB50..RHD..WOC..GEN;BB40,HZB50..RHD..(DX,STD)..WC..DSL *TT,T=5.0,BLUE |
1 | ||
| 62121-36050 |
HZB50..ARL *TT,T=5.0,GREEN |
1 | ||
| 62179 - DAM, SIDE LOWER WINDOW | ||||
| 62179-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 62179-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 62211F - GLASS, SIDE WINDOW, REAR LH | ||||
| 62211-36020 |
BB4#..RHD..WC;HZB50..RHD..HRF..(20S,22S,30S)..WC *TT,T=5.0,BLUE |
1 | ||
| 62211-36020 |
BB40..WC;BB42..RHD;HZB50..RHD..WOC..GEN;HZB50..RHD..(20S,22S,30S)..WC *TT,T=5.0,BLUE |
1 | ||
| 62211-36080 |
HZB50..ARL *TT,T=5.0,GREEN |
1 | ||
| 62211-36080 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) *TT,T=5.0,GREEN |
1 | ||
| 62211-36080 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN *TT,T=5.0,GREEN |
1 | ||
| 62211-36020 |
BB42..RHD;HZB50..SCO;HZB50..RHD..WOC..GEN;BB40,HZB50..RHD..(DX,STD)..WC..DSL *TT,T=5.0,BLUE |
1 | ||
| 62269F - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB50,HZB50,RZB40,50..ARL,CHI |
11 | ||
| 62269-90K01 |
BB4#,5#,HZB50,RZB40,50..CBU |
11 | ||
| 62279 - SPACER, SIDE WINDOW FRAME, UPPER | ||||
| 62279-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
7 | ||
| 62279-36010 |
BB4#,HZB50,RZB40,50..CBU |
3 | ||
| 62279-36030 |
BB4#,5#,HZB50,RZB40,50..CBU |
7 | ||
| 62279-36030 |
BB50,HZB50,RZB40,50..ARL,CHI |
7 | ||
| 62376A - CLIP, SIDE WINDOW, NO.2 | ||||
| 62376-36010A1 |
BB4#,5#,HZB50,RZB40,50..CBU IVORY,TRIM4# |
1 | ||
| 62376-36010A0 |
BB4#,HZB50..DSL IVORY,TRIM4# |
1 | ||
| 62376-36010A1 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
1 | ||
| 62376-36010B0 |
BB50,HZB50,RZB40,50..ARL,CHI MD.CHARCOAL,TRIM1# |
1 | ||
| 62385B - SEAL, SIDE WINDOW, NO.5 | ||||
| 62385-36020 |
HZB50,RZB40..ARL,CHI |
1 | ||
| 62391D - STOPPER, SIDE WINDOW, NO.1 LH | ||||
| 62391-36010 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 62391-36010 |
HZB50..ARL |
2 | ||
| 62391-36010 |
BB4#,50,HZB50..RHD..CBU |
2 | ||
| 62777J - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,HZB50..RHD..(DX,STD)..DSL |
1 | ||
| 62777-36021 |
BB4#,HZB50..RHD..(DX,STD) |
1 | ||
| 62777-36020 |
BB4#,HZB50..RHD..(DX,STD)..CBU |
1 | ||
| 62777-36021 |
BB4#,HZB50..RHD..(DX,STD) |
1 | ||
| 62777-36060 |
HZB50..ARL |
1 | ||
| 62777P - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36060 |
HZB50..ARL |
1 | ||
| 62778 - CAP, SIDE WINDOW FRONT SASH | ||||
| 62778-36010B0 |
BB50,HZB50,RZB40,50..ARL,CHI MD.CHARCOAL,TRIM1# |
1 | ||
| 62778-36010A1 |
BB4#,5#,HZB50,RZB40,50..CBU IVORY,TRIM4# |
1 | ||
| 62778-36010A1 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
1 | ||
| 62778-36010A0 |
BB4#,HZB50..DSL IVORY,TRIM4# |
1 | ||
| 62792C - PACKING, SIDE WINDOW LOCK, LH | ||||
| 62792-95A00 |
BB4#..RHD;HZB50..RHD..(ARL,GEN) |
2 | ||
| 62792-95A00 |
HZB50..ARL |
4 | ||
| 62792-95A00 |
BB4#,HZB50..RHD..DSL |
2 | ||
| 62792-95A00 |
BB4#,50,HZB50..RHD..CBU |
2 | ||
| 62792-95A00 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
4 | ||
| 62792C - PACKING, SIDE WINDOW LOCK, LH | ||||
| 62792-95A00 |
BB4#..RHD;HZB50..RHD..(ARL,GEN) |
2 | ||
| 62792-95A00 |
HZB50..ARL |
4 | ||
| 62792-95A00 |
BB4#,HZB50..RHD..DSL |
2 | ||
| 62792-95A00 |
BB4#,50,HZB50..RHD..CBU |
2 | ||
| 62792-95A00 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
4 | ||
| 62793C - RETAINER, SIDE WINDOW LOCK, LH | ||||
| 62793-95J00 |
BB4#,HZB50..RHD..DSL |
2 | ||
| 62793-95J00 |
BB4#..RHD;HZB50..RHD..(ARL,GEN) |
2 | ||
| 62793-95J00 |
BB4#,50,HZB50..RHD..CBU |
2 | ||
| 62793-95J00 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
4 | ||
| 62793-95J00 |
HZB50..ARL |
4 | ||
| 62793C - RETAINER, SIDE WINDOW LOCK, LH | ||||
| 62793-95J00 |
BB4#,HZB50..RHD..DSL |
2 | ||
| 62793-95J00 |
BB4#..RHD;HZB50..RHD..(ARL,GEN) |
2 | ||
| 62793-95J00 |
BB4#,50,HZB50..RHD..CBU |
2 | ||
| 62793-95J00 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
4 | ||
| 62793-95J00 |
HZB50..ARL |
4 | ||
| 62910J - LOCK ASSY, SIDE WINDOW, LH | ||||
| 62910-95702 |
BB4#,HZB50..RHD..DSL |
2 | ||
| 62910-95702 |
BB4#..RHD;HZB50..RHD..(ARL,GEN) |
2 | ||
| 62910-95702 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
4 | ||
| 62910-95702 |
HZB50..ARL |
4 | ||
| 62910-95702 |
BB4#,50,HZB50..RHD..CBU |
2 | ||
| 62910J - LOCK ASSY, SIDE WINDOW, LH | ||||
| 62910-95702 |
BB4#,HZB50..RHD..DSL |
2 | ||
| 62910-95702 |
BB4#..RHD;HZB50..RHD..(ARL,GEN) |
2 | ||
| 62910-95702 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
4 | ||
| 62910-95702 |
HZB50..ARL |
4 | ||
| 62910-95702 |
BB4#,50,HZB50..RHD..CBU |
2 | ||
| 68142D - RUN, SIDE FRONT WINDOW, LH | ||||
| 68142-36012 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 68142-36012 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 68142-36011 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 68142-36013 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 68142-36010 |
BB4#,HZB50..RHD..DSL |
1 | ||
| 68142-36013 |
HZB50..ARL |
1 | ||
| 68217A - PIN, SIDE WINDOW , NO.1 | ||||
| 68217-36010 |
BB4#,5#,HZB50,RZB40,50..CBU TYPE A:REFER TO ILLUSTRATION,ORANGE OR BLACK |
1 | ||
| 68217-36030 |
BB4#,5#,HZB50,RZB40,50..CBU TYPE B:REFER TO ILLUSTRATION,ORANGE OR BLACK |
1 | ||
| 68217-36020 |
BB4#,5#,HZB50,RZB40,50..CBU TYPE C:REFER TO ILLUSTRATION,GRAY OR GREEN |
1 | ||
| 68217-36020 |
BB50,HZB50,RZB40,50..ARL,CHI TYPE C:REFER TO ILLUSTRATION,GRAY OR GREEN |
1 | ||
| 68217-36010 |
BB50,HZB50,RZB40,50..ARL,CHI TYPE A:REFER TO ILLUSTRATION,ORANGE OR BLACK |
1 | ||
| 68217-36030 |
BB50,HZB50,RZB40,50..ARL,CHI TYPE B:REFER TO ILLUSTRATION,ORANGE OR BLACK |
1 | ||
| 68218B - BUSH, SIDE WINDOW | ||||
| 68218-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
3 | ||
| 68218-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
3 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
ILLUST NO. 5 OF 7(9301- )BB42,43,58,BZB40,50,RZB50,TRB40,50,XZB40..STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62019D - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36031 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62019-36031 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62019-36010 |
BB4#,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62019-36010 |
BB4#,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62019-36010 |
BB4#,HZB50,RZB40,50..(DX,STD)..CBU |
1 | ||
| 62019-36010 |
BB4#,HZB50,RZB40,50..(DX,STD)..CBU |
1 | ||
| 62019-36032 |
BB40,HZB50..ARL |
1 | ||
| 62019-36032 |
BB40,HZB50..ARL |
1 | ||
| 62019-36033 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62019-36033 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62019-36033 |
BB4#,5#,HZB50,RZB40,50..17S,22S,23S,26S,30S |
1 | ||
| 62019-36033 |
BB4#,5#,HZB50,RZB40,50..17S,22S,23S,26S,30S |
1 | ||
| 62019-36034 |
BB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI) |
1 | ||
| 62019-36034 |
BB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI) |
1 | ||
| 62019J - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36044 |
HZB50,RZB40..ARL,CHI |
1 | ||
| 62019-36044 |
HZB50,RZB40..ARL,CHI |
1 | ||
| 62211N - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36020 |
BB42,RZB40,50;HZB50..GCC,GEN *TT,T=5.0,BLUE |
1 | ||
| 62211-36020 |
BB42,RZB40,50;HZB50..GCC,GEN *TT,T=5.0,BLUE |
1 | ||
| 62711-36070 |
BB40,HZB50..ARL *TT,T=5.0,GREEN |
1 | ||
| 62711-36070 |
BB40,HZB50..ARL *TT,T=5.0,GREEN |
1 | ||
| 62711-36070 |
HZB50..ARL *TT,T=5.0,GREEN |
1 | ||
| 62711-36070 |
HZB50..ARL *TT,T=5.0,GREEN |
1 | ||
| 62711-36010 |
BB40,HZB50..WC..ARL *TT,T=5.0,BLUE |
1 | ||
| 62711-36010 |
BB40,HZB50..WC..ARL *TT,T=5.0,BLUE |
1 | ||
| 62711-36090 |
HZB50..ARL *TT,T=5.0,DK.GREEN,W(SLIDE WINDOW) |
2 | ||
| 62711-36090 |
HZB50..ARL *TT,T=5.0,DK.GREEN,W(SLIDE WINDOW) |
2 | ||
| 62211P - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62221-36020 |
BB42,RZB40,50;HZB50..GCC,GEN *TT,T=5.0,BLUE |
1 | ||
| 62221-36020 |
BB42,RZB40,50;HZB50..GCC,GEN *TT,T=5.0,BLUE |
1 | ||
| 62711-36010 |
BB40,HZB50..WC..ARL *TT,T=5.0,BLUE |
1 | ||
| 62711-36010 |
BB40,HZB50..WC..ARL *TT,T=5.0,BLUE |
1 | ||
| 62711-36070 |
BB40,HZB50..ARL *TT,T=5.0,GREEN |
1 | ||
| 62711-36070 |
BB40,HZB50..ARL *TT,T=5.0,GREEN |
1 | ||
| 62711-36070 |
HZB50..ARL *TT,T=5.0,GREEN |
1 | ||
| 62711-36070 |
HZB50..ARL *TT,T=5.0,GREEN |
1 | ||
| 62269K - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
10 | ||
| 62269-90K01 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
10 | ||
| 62269-90K01 |
BB50,HZB50,RZB40,50..ARL,CHI |
10 | ||
| 62269-90K01 |
BB50,HZB50,RZB40,50..ARL,CHI |
10 | ||
| 62279H - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
6 | ||
| 62279-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
6 | ||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62279H - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
6 | ||
| 62279-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
6 | ||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62279-36010 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
6 | ||
| 62374G - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62792-95A00 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62376-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62376-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62376-36010B0 |
BB50,HZB50,RZB40,50..ARL,CHI MD.CHARCOAL,TRIM10 |
5 | ||
| 62376-36010B0 |
BB50,HZB50,RZB40,50..ARL,CHI MD.CHARCOAL,TRIM10 |
5 | ||
| 62376-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM41 |
5 | ||
| 62376-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM41 |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010B0 |
BB50,HZB50,RZB40,50..ARL,CHI MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010B0 |
BB50,HZB50,RZB40,50..ARL,CHI MD.CHARCOAL,TRIM1# |
5 | ||
| 62384-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
5 | ||
| 62384-36010A1 |
BB50..LHD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
5 | ||
| 62384-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62384-36010A0 |
BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
5 | ||
| 62391H - STOPPER, SIDE WINDOW, NO.1 | ||||
| 62391-36010 |
BB40,HZB50..ARL |
2 | ||
| 62391-36010 |
BB40,HZB50..ARL |
2 | ||
| 62391-36010 |
HZB50..ARL |
2 | ||
| 62391-36010 |
HZB50..ARL |
2 | ||
| 62451H - RUN, REAR SIDE WINDOW, RH | ||||
| 62451-36070 |
BB40,HZB50..ARL |
1 | ||
| 62451-36070 |
BB40,HZB50..ARL |
1 | ||
| 62451-36070 |
BB40,HZB50..WC..ARL |
1 | ||
| 62451-36070 |
BB40,HZB50..WC..ARL |
1 | ||
| 62451-36030 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62451-36030 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62451-36071 |
HZB50..ARL |
1 | ||
| 62451-36071 |
HZB50..ARL |
1 | ||
| 62451-36071 |
BB40,HZB50..ARL |
1 | ||
| 62451-36071 |
BB40,HZB50..ARL |
1 | ||
| 62451-36072 |
HZB50..ARL |
1 | ||
| 62451-36072 |
HZB50..ARL |
1 | ||
| 62451-36070 |
BB40,HZB50..ARL |
1 | ||
| 62451-36070 |
BB40,HZB50..ARL |
1 | ||
| 62707C - FRAME SUB-ASSY, SIDE REAR WINDOW, RH | ||||
| 62707-36040 |
BB40,HZB50..(DX,STD)..ARL |
1 | ||
| 62707-36040 |
BB40,HZB50..(DX,STD)..ARL |
1 | ||
| 62707-36041 |
BB40,HZB50..ARL SILVER |
1 | ||
| 62707-36041 |
BB40,HZB50..ARL SILVER |
1 | ||
| 62707-36110 |
HZB50..ARL BLACK |
1 | ||
| 62707-36110 |
HZB50..ARL BLACK |
1 | ||
| 62707-36041 |
HZB50..ARL SILVER |
1 | ||
| 62707-36041 |
HZB50..ARL SILVER |
1 | ||
| 62777F - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62777-36010 |
BB4#,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62777-36010 |
BB4#,HZB50,RZB40,50..(DX,STD)..CBU |
1 | ||
| 62777-36010 |
BB4#,HZB50,RZB40,50..(DX,STD)..CBU |
1 | ||
| 62777-36011 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62777-36011 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62777-36012 |
BB4#,5#,HZB50,RZB40,50..17S,22S,23S,26S,30S |
1 | ||
| 62777-36012 |
BB4#,5#,HZB50,RZB40,50..17S,22S,23S,26S,30S |
1 | ||
| 62777-36012 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62777-36012 |
BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S |
1 | ||
| 62777-36030 |
BB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI) |
1 | ||
| 62777-36030 |
BB50,HZB50,RZB40,50..(DX,STD)..(ARL,CHI) |
1 | ||
| 62777W - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36030 |
HZB50,RZB40..ARL,CHI |
1 | ||
| 62777-36030 |
HZB50,RZB40..ARL,CHI |
1 | ||
| 62792R - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62792-95A00 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62793S - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62793-95J00 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62794B - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62793-36010 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62910W - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62910-95702 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62920K - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| 62910-95702 |
HZB50..GCC,GEN;BB42,43,5#,RZB40,50..17S,22S,26S,30S |
1 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-23010 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
