HZB50R-ZEMSSQ (1993)
Toyota Coaster

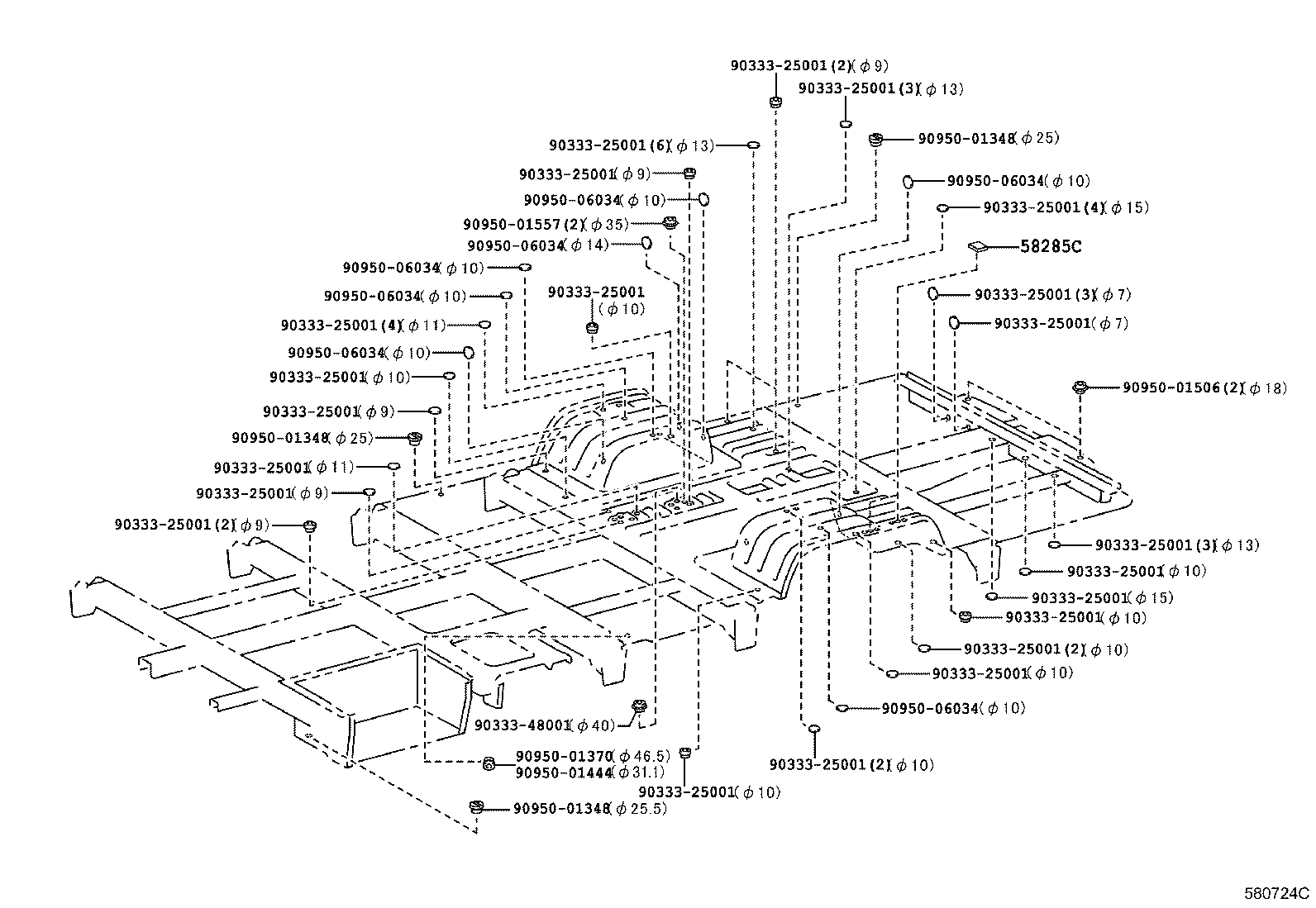

ILLUST NO. 4 OF 4(9301-1501)
HOLE PLUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58285C - COVER, REAR FLOOR HOLE | ||||
| 62429-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 62429-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| Common parts | ||||
| 90333-25001 | ||||
| 90333-48001 | ||||
| 90950-01348 | ||||
| 90950-01370 | ||||
| 90950-01444 | ||||
| 90950-01506 | ||||
| 90950-01557 | ||||
| 90950-06034 | ||||

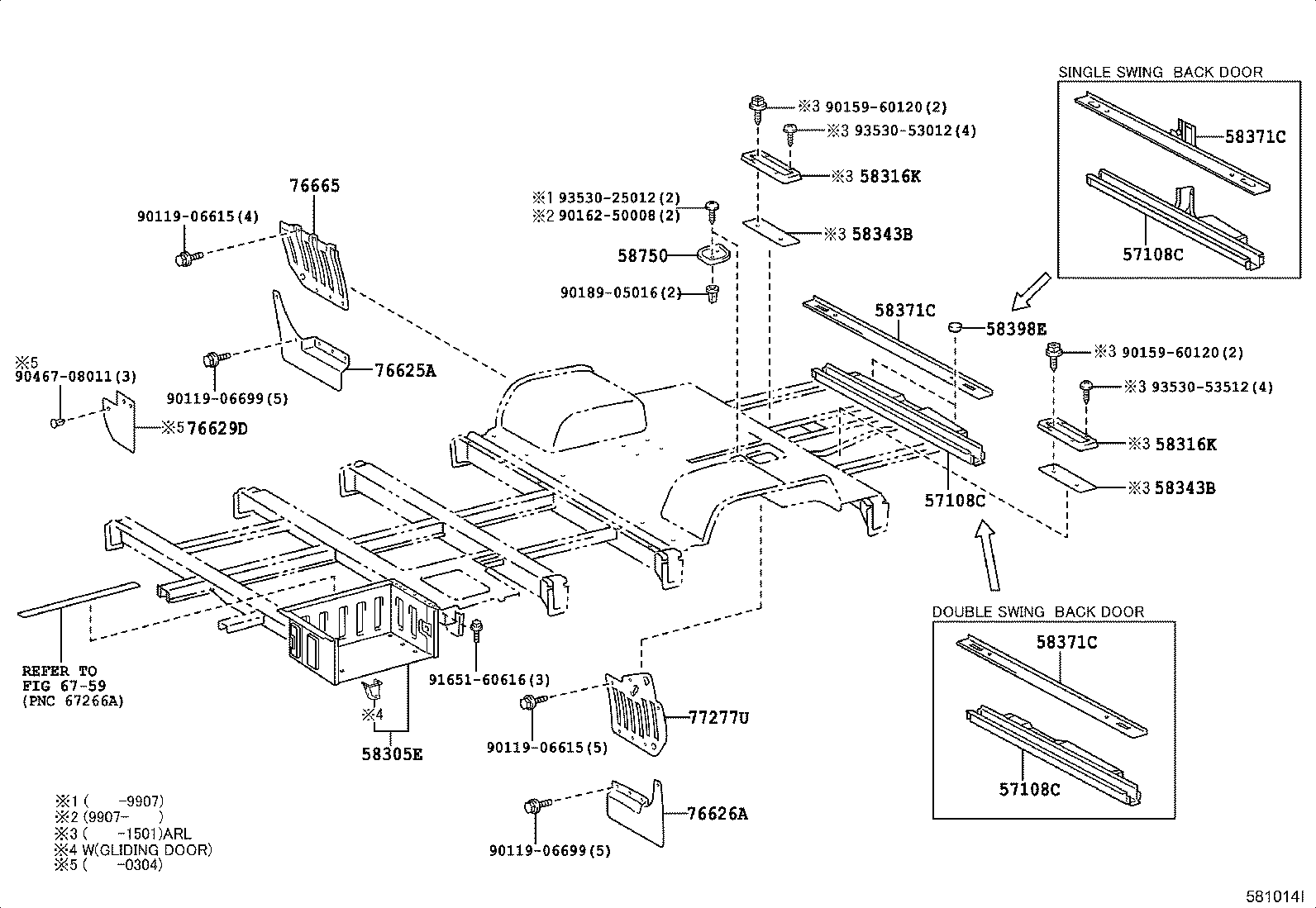

ILLUST NO. 1 OF 4(9301- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57108C - CROSSMEMBER SUB-ASSY, FLOOR, NO.8 | ||||
| 57108-36050 |
BB50..EX;HZB50..SCO;BB4#,HZB50..(17S,19S,22S,26S,30S)..(ARL,GEN,SCO) W(*SSBD) |
1 | ||
| 57108-36040 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(*DSBD) |
1 | ||
| 57108-36050 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN W(*SSBD) |
1 | ||
| 57108-36050 |
HZB50..ARL W(*SSBD) |
1 | ||
| 57108C - CROSSMEMBER SUB-ASSY, FLOOR, NO.8 | ||||
| 57108-36050 |
BB50..EX;HZB50..SCO;BB4#,HZB50..(17S,19S,22S,26S,30S)..(ARL,GEN,SCO) W(*SSBD) |
1 | ||
| 57108-36040 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(*DSBD) |
1 | ||
| 57108-36050 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN W(*SSBD) |
1 | ||
| 57108-36050 |
HZB50..ARL W(*SSBD) |
1 | ||
| 57108C - CROSSMEMBER SUB-ASSY, FLOOR, NO.8 | ||||
| 57108-36050 |
BB50..EX;HZB50..SCO;BB4#,HZB50..(17S,19S,22S,26S,30S)..(ARL,GEN,SCO) W(*SSBD) |
1 | ||
| 57108-36040 |
BB42,43,5#,RZB50..CBU;HZB50,RZB40..STD..(GCC,GEN)..5F W(*DSBD) |
1 | ||
| 57108-36050 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN W(*SSBD) |
1 | ||
| 57108-36050 |
HZB50..ARL W(*SSBD) |
1 | ||
| 58305E - PANEL SUB-ASSY, CENTER DOOR STEP | ||||
| 58305-36020 |
BB4#,HZB50..RHD..STD..CBU |
1 | ||
| 58305-36020 |
HZB50..STD..ARL |
1 | ||
| 58316K - PLATE, FOOTREST, REAR | ||||
| 58316-36010E0 |
BB40,HZB50..(DX,STD)..ARL GREIGE,TRIM4# |
2 | ||
| 58316-36010B0 |
HZB50..ARL MD.CHARCOAL,TRIM1# |
2 | ||
| 58316-36010E0 |
HZB50..ARL GREIGE,TRIM4# |
2 | ||
| 58316K - PLATE, FOOTREST, REAR | ||||
| 58316-36010E0 |
BB40,HZB50..(DX,STD)..ARL GREIGE,TRIM4# |
2 | ||
| 58316-36010B0 |
HZB50..ARL MD.CHARCOAL,TRIM1# |
2 | ||
| 58316-36010E0 |
HZB50..ARL GREIGE,TRIM4# |
2 | ||
| 58343B - BRACKET, FUEL HOSE PROTECTOR, FRONT | ||||
| 58343-36010E0 |
HZB50..ARL GRAIGE,TRIM4# |
2 | ||
| 58343-36010E0 |
BB40,HZB50..(DX,STD)..ARL GRAIGE,TRIM4# |
2 | ||
| 58343-36010B0 |
HZB50..ARL MD.CHARCOAL,TRIM1# |
2 | ||
| 58343B - BRACKET, FUEL HOSE PROTECTOR, FRONT | ||||
| 58343-36010E0 |
HZB50..ARL GRAIGE,TRIM4# |
2 | ||
| 58343-36010E0 |
BB40,HZB50..(DX,STD)..ARL GRAIGE,TRIM4# |
2 | ||
| 58343-36010B0 |
HZB50..ARL MD.CHARCOAL,TRIM1# |
2 | ||
| 58371C - PANEL, BODY LOWER BACK, UPPER | ||||
| 58307-36010 |
HZB50..ARL W(*SSBD) |
1 | ||
| 58307-36010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN W(*SSBD) |
1 | ||
| 58307-36010 |
BB50..EX;HZB50..SCO;BB4#,HZB50..(17S,19S,22S,26S,30S)..(ARL,GEN,SCO) W(*SSBD) |
1 | ||
| 58371C - PANEL, BODY LOWER BACK, UPPER | ||||
| 58307-36010 |
HZB50..ARL W(*SSBD) |
1 | ||
| 58307-36010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN W(*SSBD) |
1 | ||
| 58307-36010 |
BB50..EX;HZB50..SCO;BB4#,HZB50..(17S,19S,22S,26S,30S)..(ARL,GEN,SCO) W(*SSBD) |
1 | ||
| 58371C - PANEL, BODY LOWER BACK, UPPER | ||||
| 58307-36010 |
HZB50..ARL W(*SSBD) |
1 | ||
| 58307-36010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN W(*SSBD) |
1 | ||
| 58307-36010 |
BB50..EX;HZB50..SCO;BB4#,HZB50..(17S,19S,22S,26S,30S)..(ARL,GEN,SCO) W(*SSBD) |
1 | ||
| 58398E - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-36020 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 58398-36020 |
BB50,HZB50,RZB40,50..ARL,CHI |
2 | ||
| 58750 - COVER ASSY, FUEL TANK INSPECTION HOLE | ||||
| 58750-36010E0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 GREIGE,TRIM4# |
1 | ||
| 58750-36010E0 |
BB4#,5#,HZB50,RZB40,50..CBU GREIGE,TRIM4# |
1 | ||
| 58750-36010B1 |
BB50,HZB50,RZB40,50..ARL,CHI MD.CHARCOAL,TRIM1# |
1 | ||
| 58750-36010E0 |
BB4#,HZB50..DSL GREIGE,TRIM4# |
1 | ||
| 76625A - MUDGUARD, REAR BODY, RH | ||||
| 76625-36010 |
BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO |
1 | ||
| 76625-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 76626A - MUDGUARD, REAR BODY, LH | ||||
| 76626-36010 |
BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO |
1 | ||
| 76626-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 76665 - BRACE, REAR MUDGUARD | ||||
| 76665-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 76665-36010 |
BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO |
1 | ||
| 76665-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 77277U - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 77277-36010 |
BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO |
1 | ||
| 77277-36010 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| Common parts | ||||
| 90119-06615 | ||||
| 90119-06699 | ||||
| 90159-60120 | ||||
| 90162-50008 | ||||
| 90189-05016 | ||||
| 90467-08011 | ||||
| 91651-60616 | ||||
| 93530-25012 | ||||
| 93530-53012 | ||||
| 93530-53512 | ||||
| Linked diagrams | ||||
| 6759 | ||||
ILLUST NO. 3 OF 4(9301-1501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90161-40029 | ||||
| 90161-50002 | ||||
| 93540-14010 | ||||
