HZB50R-ZEMSSQ (1993)

Toyota Coaster

Production Jan 1993 - Nov 2002
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301- )

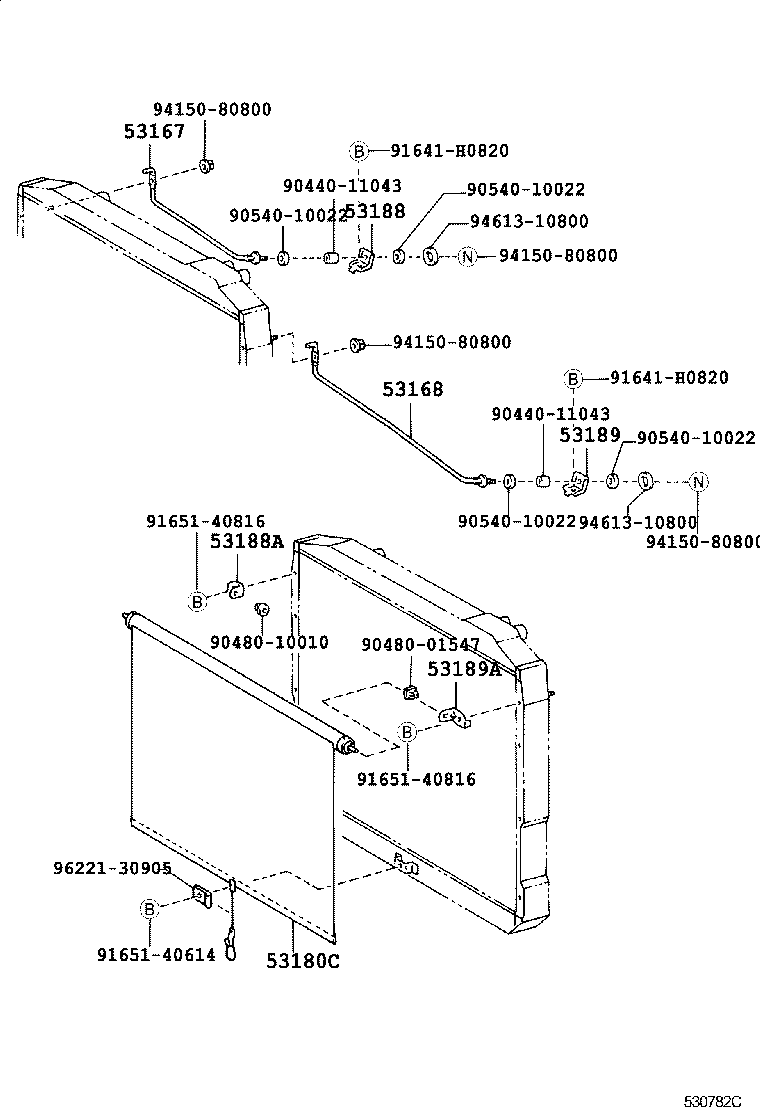

Click highlighted areas on diagram

diagram 53167 53168 53180C 53188 53188A 53189 53189A 9044011043 9044011043 9048001547 9048010010 9054010022 9054010022 9054010022 9054010022 91641H0820 91641H0820 9165140614 9165140816 9165140816 9415080800 9415080800 9415080800 9415080800 9461310800 9461310800 9622130905
Part # Description Qty Price
53167 - ROD, RADIATOR BRACE, RH
53167-36100

BB40,42,HZB50..RHD

 1
53167-36120

BB43,50..RHD

 1
16533-58080

BB43,50..RHD..STD;BB50..EX..GEN..CBU

 1
16533-17030

HZB50..ARL

 1
16533-58090

BB43,50..RHD..TD

 1
53168 - ROD, RADIATOR BRACE, LH
53169-36110

BB43,50..RHD

 1
53169-36090

BB40,42,HZB50..RHD

 1
16534-58050

BB43,50..RHD..5F

 1
16534-17020

HZB50..ARL

 1
53188 - BRACKET, RADIATOR BRACE ROD, RH
53168-36010

BB50,HZB50,RZB40,50..ARL,CHI

 1
53168-36010

BB4#,5#,HZB50,RZB40,50

 1
53189 - BRACKET, RADIATOR BRACE ROD, LH
53168-36010

BB4#,5#,HZB50,RZB40,50

 1
53168-36010

BB50,HZB50,RZB40,50..ARL,CHI

 1
Common parts
90440-11043
90480-01547
90480-10010
90540-10022
91641-H0820
91651-40614
91651-40816
94150-80800
94613-10800
96221-30905
