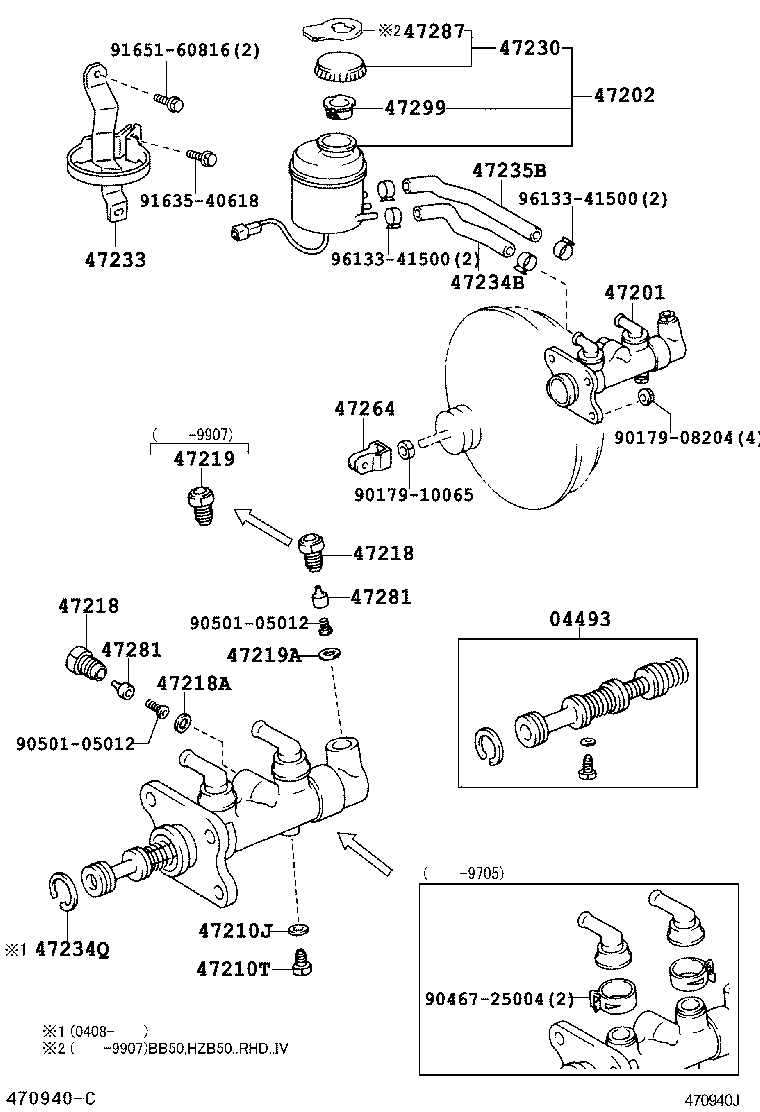

HZB50R-ZEMSSQ (1993)
Toyota Coaster
(9301-9907)RHD ; (9907-1501)BZB50..EX ; (9907-1501)XZB50..STD..GEN ; (9907-1501)BB4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-37030 |
HZB50..TD W(FR DISC BRAKE:RR AUTO ADJUSTER) |
1 | ||
| 04493-37030 |
HZB50..TD W(FR DISC BRAKE:RR AUTO ADJUSTER) |
1 | ||
| 04493-37030 |
HZB50..RHD..TD;HZB50,RZB50..LHD W(FR DISC BRAKE:RR AUTO ADJUSTER) |
1 | ||
| 04493-37030 |
HZB50..RHD..TD;HZB50,RZB50..LHD W(FR DISC BRAKE:RR AUTO ADJUSTER) |
1 | ||
| 04493-36170 |
BB4#,HZB50,RZB40..(17S,19S,22S,26S)..5F W(FRONT DISC BRAKE) |
1 | ||
| 04493-36170 |
BB4#,HZB50,RZB40..(17S,19S,22S,26S)..5F W(FRONT DISC BRAKE) |
1 | ||
| 04493-36171 |
BB4#,HZB50,RZB40..(17S,19S,22S,26S)..5F W(FRONT DISC BRAKE) |
1 | ||
| 04493-36171 |
BB4#,HZB50,RZB40..(17S,19S,22S,26S)..5F W(FRONT DISC BRAKE) |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-36400 |
BB4#,HZB50..RHD..(17S,19S,22S,26S)..5F W(FRONT DISC BRAKE) |
1 | ||
| 47201-36400 |
BB4#,HZB50..RHD..(17S,19S,22S,26S)..5F W(FRONT DISC BRAKE) |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-36080 |
BB4#,50,HZB50..RHD..CBU..5F |
1 | ||
| 47220-36080 |
BB4#,50,HZB50..RHD..CBU..5F |
1 | ||
| 47220-36080 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 47220-36080 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 47220-36080 |
HZB50..ARL |
1 | ||
| 47220-36080 |
HZB50..ARL |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90430-06104 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90109-06008 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-36070 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 47218-36070 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 47218-36091 |
HZB50..ARL |
2 | ||
| 47218-36091 |
HZB50..ARL |
2 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-36070 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 47218-36070 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 47218-36091 |
HZB50..ARL |
2 | ||
| 47218-36091 |
HZB50..ARL |
2 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 90430-11001 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 90430-16013 |
HZB50..ARL |
2 | ||
| 90430-16013 |
HZB50..ARL |
2 | ||
| 47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE) | ||||
| 47218-36080 |
HZB50..19S,22S;BB40,50..ARL,EUR;HZB50,RZB50..CBR,TD |
1 | ||
| 47218-36080 |
HZB50..19S,22S;BB40,50..ARL,EUR;HZB50,RZB50..CBR,TD |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-11001 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 90430-11001 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-24010 |
BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU |
1 | ||
| 47230-24010 |
BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU |
1 | ||
| 47230-24010 |
HZB50..ARL |
1 | ||
| 47230-24010 |
HZB50..ARL |
1 | ||
| 47230-24010 |
BB50..EX;BB50..WOC..5F;BB50..STD..CBU..5F;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 47230-24010 |
BB50..EX;BB50..WOC..5F;BB50..STD..CBU..5F;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-36060 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 47233-36060 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 47233-36060 |
HZB50..ARL |
1 | ||
| 47233-36060 |
HZB50..ARL |
1 | ||
| 47233-36060 |
BB4#,50,HZB50..RHD |
1 | ||
| 47233-36060 |
BB4#,50,HZB50..RHD |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-36160 |
BB4#,50,HZB50..RHD |
1 | ||
| 47234-36160 |
BB4#,50,HZB50..RHD |
1 | ||
| 47234-36180 |
HZB50..ARL |
1 | ||
| 47234-36180 |
HZB50..ARL |
1 | ||
| 47234-36160 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 47234-36160 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-36160 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 47235-36160 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 47235-36160 |
BB4#,50,HZB50..RHD |
1 | ||
| 47235-36160 |
BB4#,50,HZB50..RHD |
1 | ||
| 47235-36190 |
HZB50..ARL |
1 | ||
| 47235-36190 |
HZB50..ARL |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 47264-50010 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 47264-50010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47264-50010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
HZB50..19S,22S;BB40,50..ARL,EUR;HZB50,RZB50..CBR,TD |
1 | ||
| 47281-30020 |
HZB50..19S,22S;BB40,50..ARL,EUR;HZB50,RZB50..CBR,TD |
1 | ||
| 47281-36010 |
HZB50..ARL |
2 | ||
| 47281-36010 |
HZB50..ARL |
2 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
HZB50..19S,22S;BB40,50..ARL,EUR;HZB50,RZB50..CBR,TD |
1 | ||
| 47281-30020 |
HZB50..19S,22S;BB40,50..ARL,EUR;HZB50,RZB50..CBR,TD |
1 | ||
| 47281-36010 |
HZB50..ARL |
2 | ||
| 47281-36010 |
HZB50..ARL |
2 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-17010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47299-17010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47299-17010 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 47299-17010 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
| 90467-25004 | ||||
| 90501-05012 | ||||
| 91635-40618 | ||||
| 91651-60816 | ||||
| 96133-41500 | ||||
(9907-0211)HZB50..22S ; (9907- )XZB50..GEN..4FC ; (9907- )BB50,XZB50..RHD..AR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-37030 |
HZB50..TD W(FR DISC BRAKE:RR AUTO ADJUSTER) |
1 | ||
| 04493-37030 |
HZB50..RHD..TD;HZB50,RZB50..LHD W(FR DISC BRAKE:RR AUTO ADJUSTER) |
1 | ||
| 04493-36170 |
BB4#,HZB50,RZB40..(17S,19S,22S,26S)..5F W(FRONT DISC BRAKE) |
1 | ||
| 04493-36171 |
BB4#,HZB50,RZB40..(17S,19S,22S,26S)..5F W(FRONT DISC BRAKE) |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-36080 |
BB4#,50,HZB50..RHD..CBU..5F |
1 | ||
| 47220-36080 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 47220-36080 |
HZB50..ARL |
1 | ||
| 47207 - CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK | ||||
| 47207-36010 |
HZB50..ARL |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-36070 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 47218-36091 |
HZB50..ARL |
2 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-36070 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 47218-36091 |
HZB50..ARL |
2 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 90430-16013 |
HZB50..ARL |
2 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 90430-16013 |
HZB50..ARL |
2 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-24010 |
BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU |
1 | ||
| 47230-24010 |
HZB50..ARL |
1 | ||
| 47230-24010 |
BB50..EX;BB50..WOC..5F;BB50..STD..CBU..5F;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-36060 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 47233-36060 |
HZB50..ARL |
1 | ||
| 47233-36060 |
BB4#,50,HZB50..RHD |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-36160 |
BB4#,50,HZB50..RHD |
1 | ||
| 47234-36180 |
HZB50..ARL |
1 | ||
| 47234-36160 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-36160 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 47235-36160 |
BB4#,50,HZB50..RHD |
1 | ||
| 47235-36190 |
HZB50..ARL |
1 | ||
| 47237A - STOPPER, BREKE MASTER CYLINDER RESERVOIR TANK | ||||
| 47237-36020 |
HZB50..ARL |
1 | ||
| 47239 - CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47239-36020 |
HZB50..ARL |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-52010 |
HZB50..ARL |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-52010 |
HZB50..ARL |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 47264-50010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
HZB50..19S,22S;BB40,50..ARL,EUR;HZB50,RZB50..CBR,TD |
1 | ||
| 47281-36010 |
HZB50..ARL |
2 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
HZB50..19S,22S;BB40,50..ARL,EUR;HZB50,RZB50..CBR,TD |
1 | ||
| 47281-36010 |
HZB50..ARL |
2 | ||
| 47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE) | ||||
| 90905-01054 |
HZB50..ARL |
2 | ||
| 47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE) | ||||
| 90905-01054 |
HZB50..ARL |
2 | ||
| 47282A - SEAT, OUTLET CHECK VALVE, NO.1 | ||||
| 47282-36010 |
HZB50..ARL |
1 | ||
| 47282B - SEAT, OUTLET CHECK VALVE, NO.2 | ||||
| 47282-36020 |
HZB50..ARL |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-17010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47299-17010 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 89637D - SENSOR, OIL PRESSURE | ||||
| 89637-51010 |
HZB50..ARL |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
| 90561-16009 | ||||
| 91635-40618 | ||||
| 91651-60816 | ||||
| 96133-41500 | ||||
