HZB50R-ZEMSSQ (1993)
Toyota Coaster

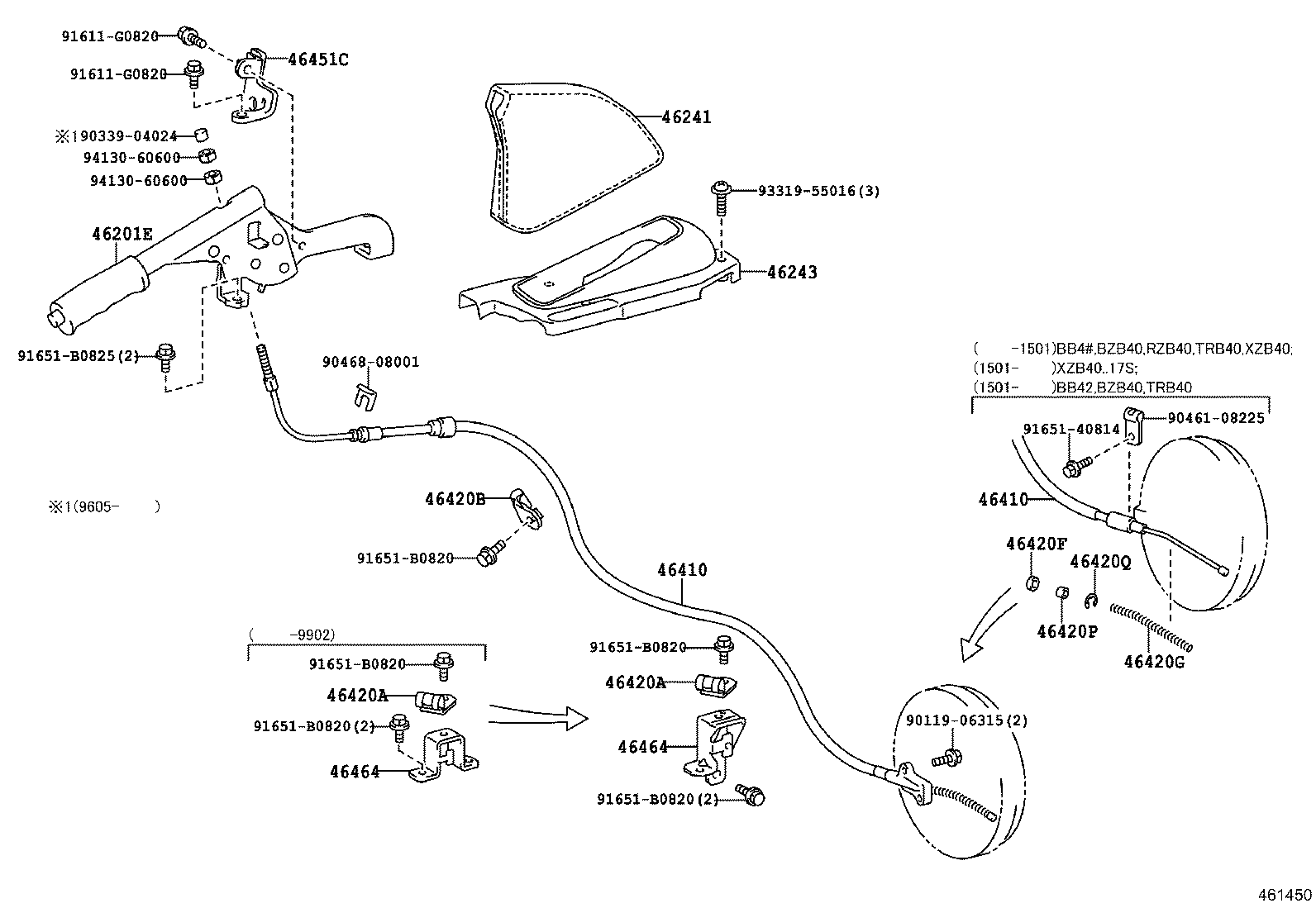

ILLUST NO. 1 OF 2(9301-9907)ARL,GCC,GEN,SCO ; (9907- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46210-36040E0 |
BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO GRAIGE,TRIM4# |
1 | ||
| 46210-36040E0 |
BB50..EX;BB50..WOC..5F;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 GRAIGE,TRIM4# |
1 | ||
| 46210-36040B1 |
BB50,HZB50,RZB40,50..ARL,CHI MD.CHARCOAL,TRIM1# |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-36020E0 |
BB4#,50,HZB50..RHD..CBU GRAIGE,TRIM4# |
1 | ||
| 46241-36020E0 |
BB4#,50,HZB50..RHD..(4FC,5F) GRAIGE,TRIM4# |
1 | ||
| 46241-36020B1 |
HZB50..ARL MD.CHARCOAL,TRIM1# |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-36020E0 |
BB4#,50,HZB50..RHD..CBU GRAIGE,TRIM4# |
1 | ||
| 46243-36021E0 |
BB4#,50,HZB50..RHD..(4FC,5F) GREIGE,TRIM4# |
1 | ||
| 46243-36021B1 |
HZB50..ARL MD.CHARCOAL,TRIM1# |
1 | ||
| 46243-36020E0 |
BB4#,50,HZB50..RHD..CBU GRAIGE,TRIM4# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-36410 |
BB50,HZB50..RHD..CBU..5F |
1 | ||
| 46410-36410 |
HZB50..ARL |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-36410 |
BB50,HZB50..RHD..CBU..5F |
1 | ||
| 46410-36410 |
HZB50..ARL |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01839 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90949-01839 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01839 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90949-01839 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01841 |
BB4#,50,HZB50..RHD |
1 | ||
| 90949-01841 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 90949-01841 |
HZB50..ARL |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-36060 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 46451-36060 |
BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO |
1 | ||
| 46464 - PLATE, CABLE CLAMP SUPPORT | ||||
| 46464-36020 |
BB4#,50,HZB50..RHD |
1 | ||
| 46464-36020 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 46464-36020 |
HZB50..ARL |
1 | ||
| 46464-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 46464 - PLATE, CABLE CLAMP SUPPORT | ||||
| 46464-36020 |
BB4#,50,HZB50..RHD |
1 | ||
| 46464-36020 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 46464-36020 |
HZB50..ARL |
1 | ||
| 46464-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90339-04024 | ||||
| 90461-08225 | ||||
| 90468-08001 | ||||
| 91611-G0820 | ||||
| 91651-40814 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 93319-55016 | ||||
| 94130-60600 | ||||
