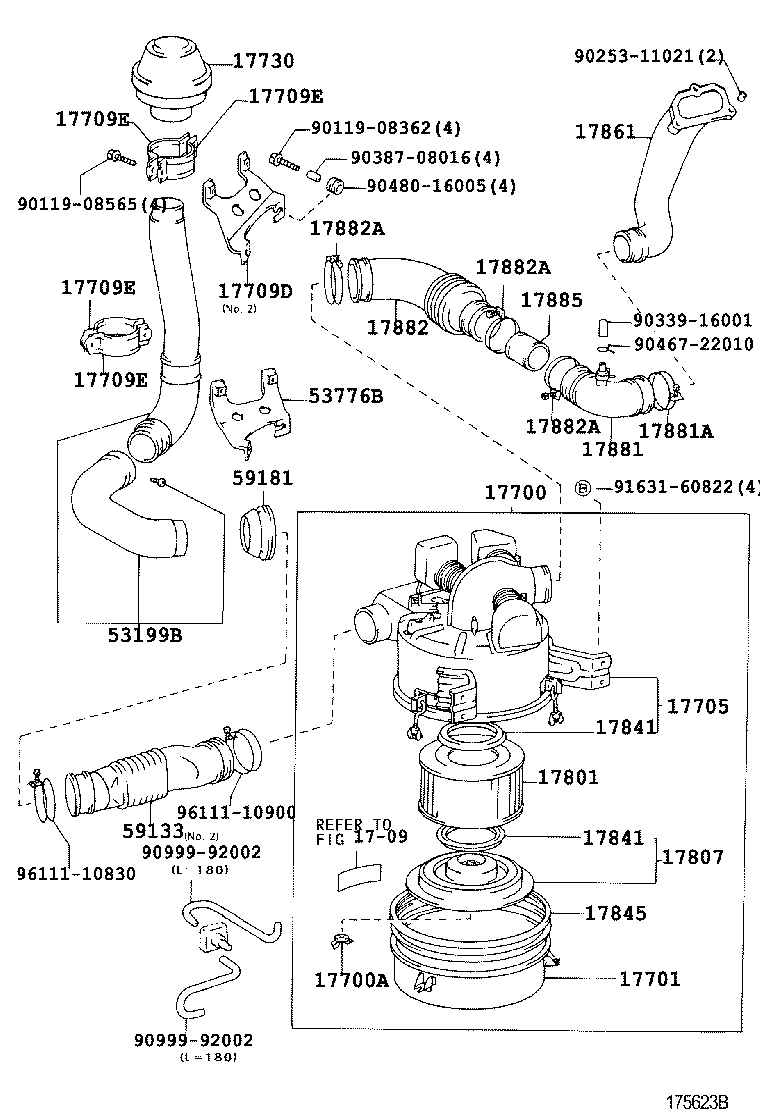

HZB50R-ZEMSSQ (1993)
Toyota Coaster
(9301-9907)1HZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-17150 |
1HZ..HZB50 |
1 | ||
| 17700-17260 |
1HZ..HZB50..ARL |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
1HZ#..HZB50 |
1 | ||
| 90175-08008 |
1HZ..HZB50..ARL |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-68101 |
1HZ#..HZB50 |
1 | ||
| 17701-17160 |
1HZ..HZB50..ARL |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-17060 |
1HZ..HZB50 |
1 | ||
| 17705-17180 |
1HZ..HZB50..ARL |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-61030 |
1HZ..HZB50 |
1 | ||
| 17801-61030 |
1HZ..HZB50..ARL |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-68010 |
1HZ#..HZB50 |
1 | ||
| 17807-58020 |
1HZ..HZB50..ARL |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
1HZ#..HZB50 |
2 | ||
| 17841-68010 |
1HZ..HZB50..ARL |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
1HZ#..HZB50 |
2 | ||
| 17841-68010 |
1HZ..HZB50..ARL |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-68020 |
1HZ#..HZB50 |
1 | ||
| 17845-58010 |
1HZ..HZB50..ARL |
1 | ||
| 17845-17010 |
1HZ#..HZB50 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-17010 |
1HZ..HZB50 |
1 | ||
| 17861-17010 |
1HZ..HZB50..ARL |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-17050 |
1HZ#..HZB50 |
1 | ||
| 17881-17050 |
1HZ..HZB50..ARL |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
1HZ#..HZB50 |
1 | ||
| 96111-10800 |
1HZ..HZB50..ARL |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-17020 |
1HZ#..HZB50 |
1 | ||
| 17882-17021 |
1HZ..HZB50..ARL |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
1HZ#..HZB50 NO.1 |
2 | ||
| 96111-10900 |
1HZ#..HZB50 NO.2 |
1 | ||
| 96111-10900 |
1HZ..HZB50..ARL NO.2 |
1 | ||
| 96111-10780 |
1HZ..HZB50..ARL NO.1 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
1HZ#..HZB50 NO.1 |
2 | ||
| 96111-10900 |
1HZ#..HZB50 NO.2 |
1 | ||
| 96111-10900 |
1HZ..HZB50..ARL NO.2 |
1 | ||
| 96111-10780 |
1HZ..HZB50..ARL NO.1 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
1HZ#..HZB50 NO.1 |
2 | ||
| 96111-10900 |
1HZ#..HZB50 NO.2 |
1 | ||
| 96111-10900 |
1HZ..HZB50..ARL NO.2 |
1 | ||
| 96111-10780 |
1HZ..HZB50..ARL NO.1 |
2 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 59132-36020 |
1HZ..HZB50..ARL |
1 | ||
| 59132-36020 |
1HZ#..HZB50 |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-17010 |
1HZ..HZB50..ARL |
1 | ||
| 17885-17010 |
1HZ#..HZB50 |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-36060 |
RZB40,50 COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36030 |
HZB50 |
1 | ||
| 53207-36030 |
BB50..WOC..5F;BB50..CBU..6F;BB43,50..RHD..5F |
1 | ||
| 53207-36030 |
BB43,5# |
1 | ||
| 53207-36030 |
HZB50..ARL |
1 | ||
| 53207-36040 |
RZB40,50 |
1 | ||
| 53207-36090 |
RZB40,50 COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 55871B - SEAL, AIR DUCT | ||||
| 55871-36020 |
RZB40,50 |
1 | ||
| 55871-36020 |
BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;BB42..RHD..HRF..WOC;BB4#,50..17S,19S,22S |
1 | ||
| 55871-36020 |
HZB50 |
1 | ||
| 55871-36020 |
BB4#,5# |
1 | ||
| 55871-36020 |
HZB50..ARL |
1 | ||
| 58257 - PLATE, AIR CLEANER HOUSE | ||||
| 58257-36020 |
HZB50 |
1 | ||
| 58257-36020 |
RZB40,50 |
1 | ||
| 58257-36020 |
BB43,5# |
1 | ||
| 58257-36020 |
HZB50..ARL |
1 | ||
| 58257-36020 |
BB50..WOC..5F;BB50..CBU..6F;BB43,50..RHD..5F |
1 | ||
| Common parts | ||||
| 90253-11021 | ||||
| 90339-16001 | ||||
| 90467-22010 | ||||
| 90999-92002 | ||||
| 91631-60816 | ||||
| 91631-60822 | ||||
| 91651-60616 | ||||
| 93560-54012 | ||||
| 96111-10900 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(9301-9907)1HZ
W(PRE AIR CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-17150 |
1HZ..HZB50 |
1 | ||
| 17700-17260 |
1HZ..HZB50..ARL |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
1HZ#..HZB50 |
1 | ||
| 90175-08008 |
1HZ..HZB50..ARL |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-68101 |
1HZ#..HZB50 |
1 | ||
| 17701-17160 |
1HZ..HZB50..ARL |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-17060 |
1HZ..HZB50 |
1 | ||
| 17705-17180 |
1HZ..HZB50..ARL |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-61030 |
1HZ..HZB50 |
1 | ||
| 17801-61030 |
1HZ..HZB50..ARL |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-68010 |
1HZ#..HZB50 |
1 | ||
| 17807-58020 |
1HZ..HZB50..ARL |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
1HZ#..HZB50 |
2 | ||
| 17841-68010 |
1HZ..HZB50..ARL |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
1HZ#..HZB50 |
2 | ||
| 17841-68010 |
1HZ..HZB50..ARL |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-68020 |
1HZ#..HZB50 |
1 | ||
| 17845-58010 |
1HZ..HZB50..ARL |
1 | ||
| 17845-17010 |
1HZ#..HZB50 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-17010 |
1HZ..HZB50 |
1 | ||
| 17861-17010 |
1HZ..HZB50..ARL |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-17050 |
1HZ#..HZB50 |
1 | ||
| 17881-17050 |
1HZ..HZB50..ARL |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
1HZ#..HZB50 |
1 | ||
| 96111-10800 |
1HZ..HZB50..ARL |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-17020 |
1HZ#..HZB50 |
1 | ||
| 17882-17021 |
1HZ..HZB50..ARL |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
1HZ#..HZB50 NO.1 |
2 | ||
| 96111-10900 |
1HZ#..HZB50 NO.2 |
1 | ||
| 96111-10900 |
1HZ..HZB50..ARL NO.2 |
1 | ||
| 96111-10780 |
1HZ..HZB50..ARL NO.1 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
1HZ#..HZB50 NO.1 |
2 | ||
| 96111-10900 |
1HZ#..HZB50 NO.2 |
1 | ||
| 96111-10900 |
1HZ..HZB50..ARL NO.2 |
1 | ||
| 96111-10780 |
1HZ..HZB50..ARL NO.1 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
1HZ#..HZB50 NO.1 |
2 | ||
| 96111-10900 |
1HZ#..HZB50 NO.2 |
1 | ||
| 96111-10900 |
1HZ..HZB50..ARL NO.2 |
1 | ||
| 96111-10780 |
1HZ..HZB50..ARL NO.1 |
2 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-17010 |
1HZ..HZB50..ARL |
1 | ||
| 17885-17010 |
1HZ#..HZB50 |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-36060 |
RZB40,50 COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36030 |
HZB50 |
1 | ||
| 53207-36030 |
BB50..WOC..5F;BB50..CBU..6F;BB43,50..RHD..5F |
1 | ||
| 53207-36030 |
BB43,5# |
1 | ||
| 53207-36030 |
HZB50..ARL |
1 | ||
| 53207-36040 |
RZB40,50 |
1 | ||
| 53207-36090 |
RZB40,50 COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53776B - BRACKET, COOL AIR INTAKE DUCT MOUNT, NO.2 | ||||
| 53776-36020 |
RZB40,50 |
1 | ||
| 53776-36021 |
RZB40,50 |
1 | ||
| 59133 - HOSE, COOL AIR INTAKE, NO.3 | ||||
| 59133-36060 |
RZB40,50 |
1 | ||
| 59133-36030 |
RZB40,50 |
1 | ||
| 59181 - SEAL, AIR CLEANER INLET DUCT, NO.1 | ||||
| 90480-99006 |
RZB40,50 |
1 | ||
| 59181-36010 |
RZB40,50 |
1 | ||
| Common parts | ||||
| 90119-08362 | ||||
| 90119-08565 | ||||
| 90253-11021 | ||||
| 90339-16001 | ||||
| 90387-08016 | ||||
| 90467-22010 | ||||
| 90480-16005 | ||||
| 90999-92002 | ||||
| 91631-60822 | ||||
| 96111-10830 | ||||
| 96111-10900 | ||||
| Linked diagrams | ||||
| 1709 | ||||
