HZB50R-ZEMSSQ (1993)
Toyota Coaster
ILLUST NO. 3 OF 3(9705- )1HZ
W(SUB RADIATOR)
| Part # | Description | Qty | Price |
|---|

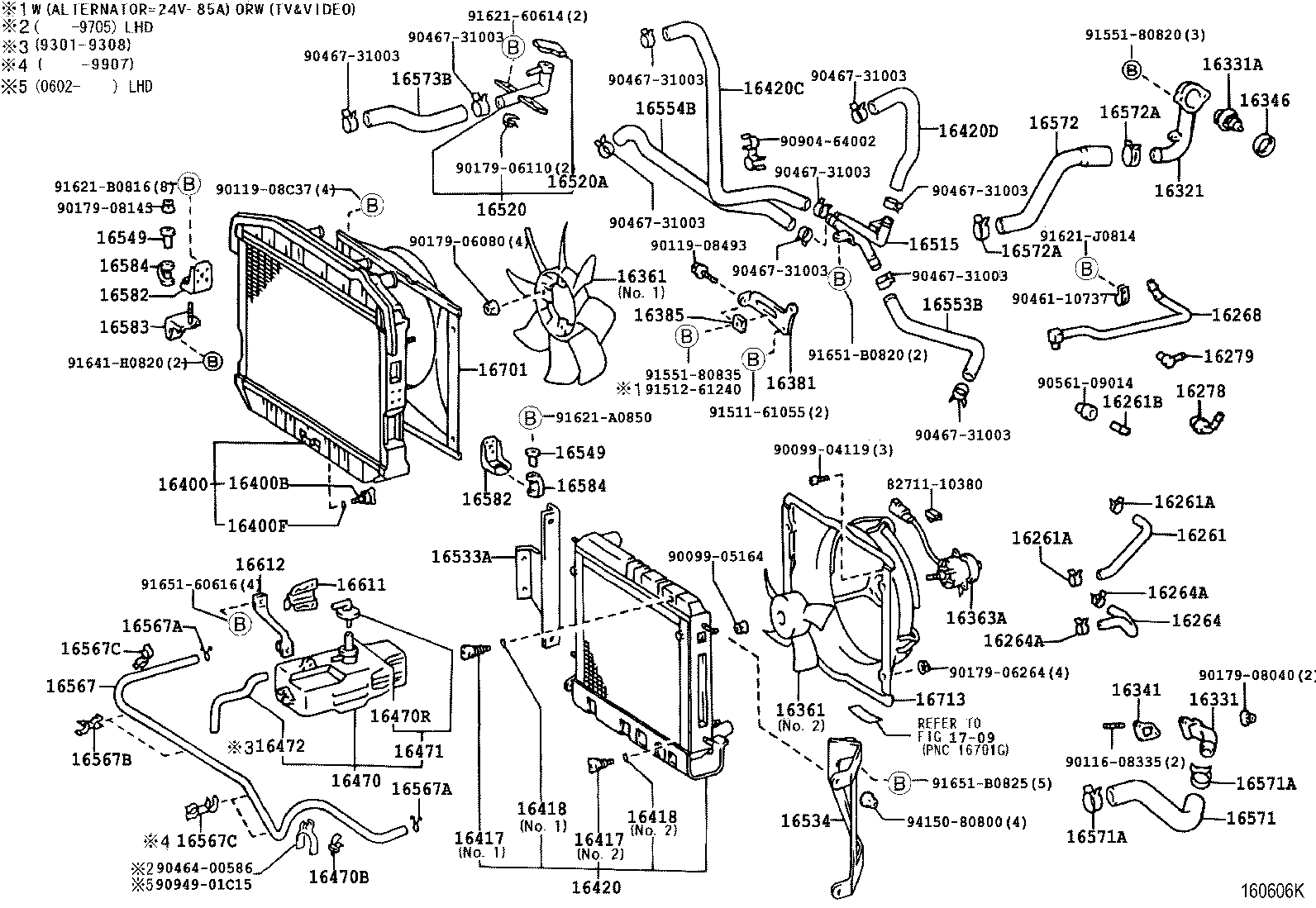

ILLUST NO. 1 OF 3(9301- )1HZ
W(SUB RADIATOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-17010 |
1HZ#..HZB50..ARL,EUR |
1 | ||
| 16261-17010 |
1HZ..HZB50..ARL |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1HZ#..HZB50..ARL,EUR |
2 | ||
| 90467-15022 |
1HZ..HZB50..ARL |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1HZ#..HZB50..ARL,EUR |
2 | ||
| 90467-15022 |
1HZ..HZB50..ARL |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90406-10014 |
1HZ#..HZB50..ARL,EUR |
1 | ||
| 90406-10014 |
1HZ..HZB50..ARL |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-17010 |
1HZ#..HZB50..ARL,EUR;1HZ..HZB50..SRF..WOC;1HZ..HZB50..LHD..STD..WC..GEN..5F |
1 | ||
| 16264-17011 |
1HZ..HZB50..ARL;1HZ..HZB50..SRF..WOC;1HZ..HZB50..LHD..STD..WC..GEN..5F |
1 | ||
| 16264-17011 |
1HZ..HZB50..ARL |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1HZ..HZB50..ARL |
2 | ||
| 90467-15022 |
1HZ#..HZB50..ARL,EUR;1HZ..HZB50..SRF..WOC;1HZ..HZB50..LHD..STD..WC..GEN..5F |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1HZ..HZB50..ARL |
2 | ||
| 90467-15022 |
1HZ#..HZB50..ARL,EUR;1HZ..HZB50..SRF..WOC;1HZ..HZB50..LHD..STD..WC..GEN..5F |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-17010 |
1HZ..HZB50..RHD;1HZ..HZB50..GCC;1HZ..HZB50..GEN..4FC |
1 | ||
| 16268-17010 |
1HZ..HZB50..RHD;1HZ..HZB50..GCC;1HZ..HZB50..LHD..HRF..WOC;1HZ..HZB50..30S..GEN..4FC |
1 | ||
| 16268-17010 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..WOC..ARL;1HZ..HZB50..LHD..SRF..WC;1HZ..HZB50..HRF..(DX,STD)..WC..5F |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-17010 |
1HZ#..HZB50..EUR,GCC;1HZ..HZB50..LHD..HRF..WOC;1HZ..HZB50..30S..GEN..4FC;1HZ..HZB50..RHD..(ARL,GEN)..5F |
1 | ||
| 16278-17010 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..WOC..ARL;1HZ..HZB50..LHD..SRF..WC;1HZ..HZB50..HRF..(DX,STD)..WC..5F |
1 | ||
| 16278-17010 |
1HZ#..HZB50..EUR,GCC;1HZ..HZB50..GEN..4FC;1HZ..HZB50..RHD..(ARL,GEN) |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-17010 |
1HZ#..HZB50 |
1 | ||
| 16279-17010 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..WOC..ARL;1HZ..HZB50..LHD..SRF..WC;1HZ..HZB50..HRF..(DX,STD)..WC..5F |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-17010 |
1HZ..HZB50..ARL |
1 | ||
| 16321-17010 |
1HZ..HZB50 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-17010 |
1HZ..HZB50..5F |
1 | ||
| 16331-17010 |
1HZ..HZB50..ARL |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03089 |
1HZ#..HZB50 *WAX 76-90 |
1 | ||
| 90916-03089 |
1HZ..HZB50..ARL *WAX 76-90 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-17010 |
1HZ#..HZB50 |
1 | ||
| 16341-17010 |
1HZ..HZB50..ARL |
1 | ||
| 16341-17010 |
1HZ..HZB50 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-66020 |
1HZ..HZB50..ARL |
1 | ||
| 16346-66020 |
1HZ#..HZB50 |
1 | ||
| 16361 - FAN | ||||
| 16361-17010 |
1HZ..HZB50..ARL,GEN,SCO NO.1 |
1 | ||
| 16361-17030 |
1HZ..HZB50..ARL NO.1 |
1 | ||
| 16361 - FAN | ||||
| 16361-17010 |
1HZ..HZB50..ARL,GEN,SCO NO.1 |
1 | ||
| 16361-17030 |
1HZ..HZB50..ARL NO.1 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-17020 |
1HZ..HZB50..HRF..WC;1HZ..HZB50..WOC..ARL;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 16381-17020 |
1HZ..HZB50..ARL |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-17010 |
1HZ..HZB50 |
1 | ||
| 16385-17010 |
1HZ..HZB50..ARL |
1 | ||

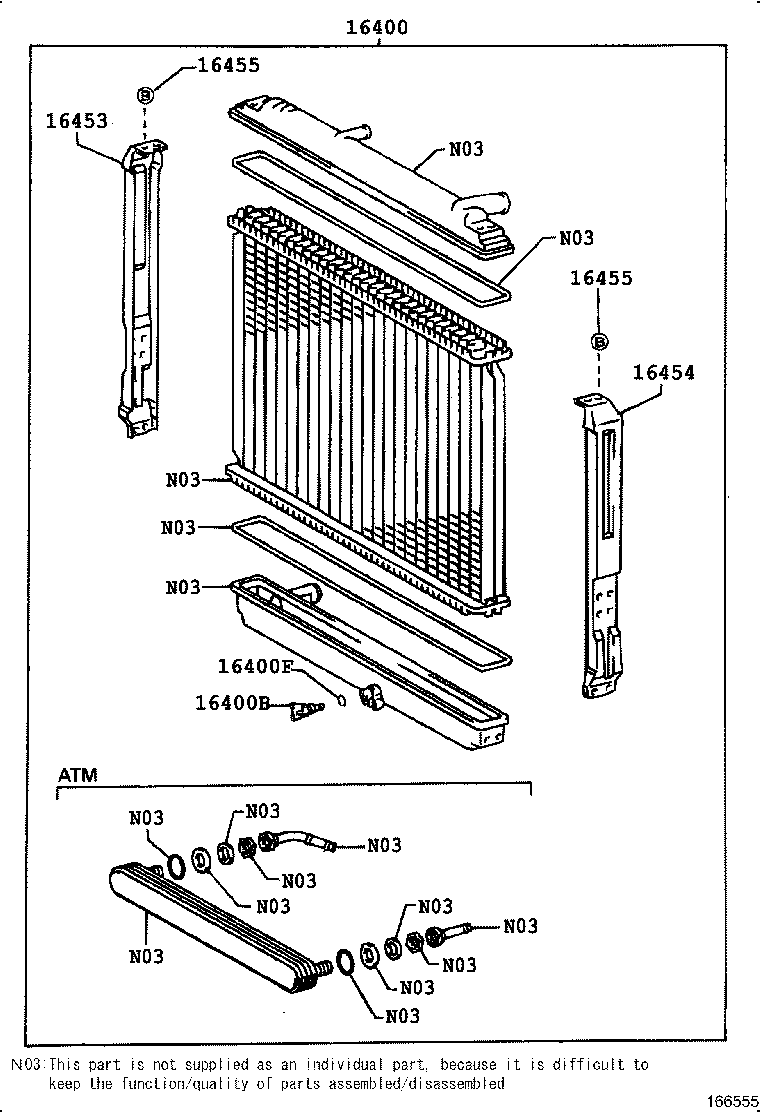

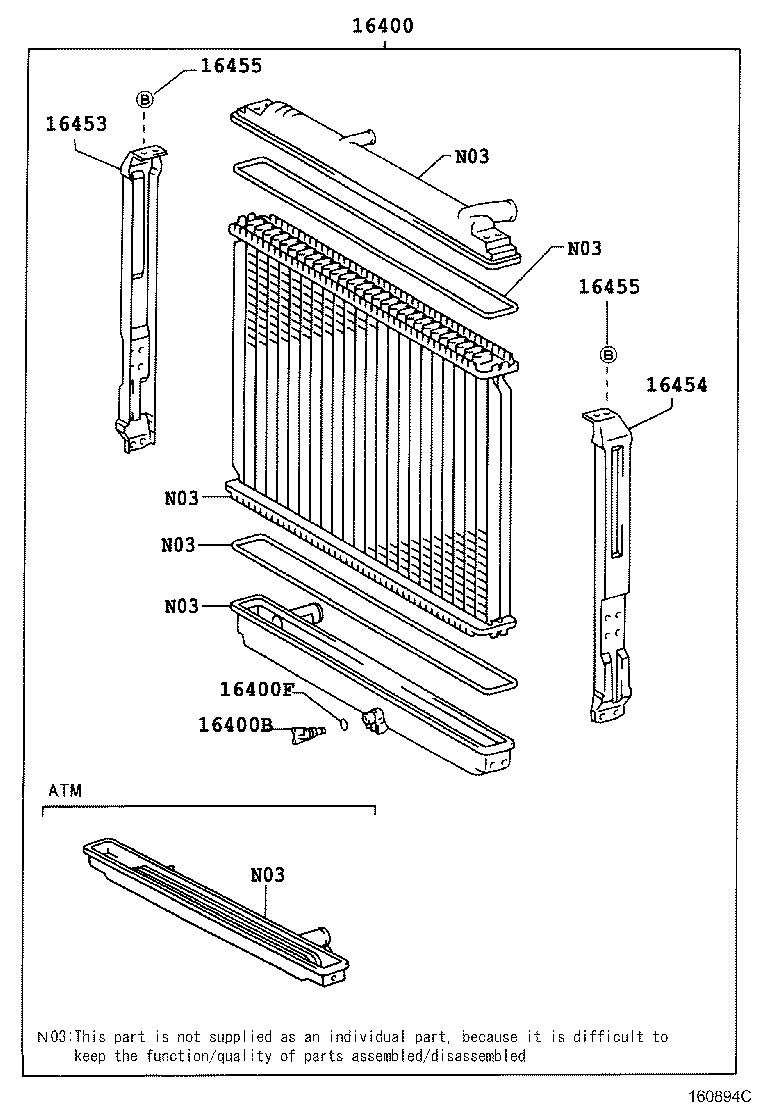

| 16400 - RADIATOR ASSY | ||||
| 16400-17170 |
1HZ..HZB50..ARL,SCO |
1 | ||
| 16400-17260 |
1HZ..HZB50..ARL |
1 | ||
| 16400-17261 |
1HZ..HZB50..ARL |
1 | ||
| 16400-17261 |
1HZ..HZB50..ARL |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1HZ..HZB50 |
1 | ||
| 16417-15210 |
1HZ..HZB50..ARL |
1 | ||
| 16417-24200 |
1HZ#..HZB50 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-50121 |
1HZ..HZB50 |
1 | ||
| 16418-15520 |
1HZ..HZB50 |
1 | ||
| 16418-24200 |
1HZ#..HZB50 |
1 | ||
| 16418-15520 |
1HZ..HZB50..ARL |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-17060 |
1HZ#..HZB50 |
1 | ||
| 16470-17061 |
1HZ..HZB50..ARL |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-12026 |
1HZ#..HZB50 |
1 | ||
| 90467-12026 |
1HZ..HZB50..ARL |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1HZ#..HZB50 *H,L=135 |
1 | ||
| 90445-12078 |
1HZ..HZB50..ARL *H,L=135 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-17030 |
1HZ..HZB50..ARL |
1 | ||
| 16405-17030 |
1HZ#..HZB50 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16472-17060 |
1HZ#..HZB50 |
1 | ||
| 16520 - FILLER ASSY, WATER | ||||
| 16520-17020 |
1HZ..HZB50..ARL |
1 | ||
| 16520-17010 |
1HZ#..HZB50 |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-72090 |
1HZ#..HZB50 |
1 | ||
| 16401-62100 |
1HZ..HZB50..ARL |
1 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61010 |
1HZ#..HZB50 |
2 | ||
| 16549-61010 |
1HZ..HZB50..ARL |
2 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61010 |
1HZ#..HZB50 |
2 | ||
| 16549-61010 |
1HZ..HZB50..ARL |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-17020 |
1HZ..HZB50..ARL |
1 | ||
| 16567-17010 |
1HZ#..HZB50 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1HZ#..HZB50 |
2 | ||
| 90467-11085 |
1HZ..HZB50..ARL |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1HZ#..HZB50 |
2 | ||
| 90467-11085 |
1HZ..HZB50..ARL |
2 | ||
| 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) | ||||
| 90464-00460 |
1HZ..HZB50..ARL |
2 | ||
| 90464-00460 |
1HZ#..HZB50..RHD |
3 | ||
| 16567C - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3) | ||||
| 90464-00618 |
1HZ#..HZB50 |
3 | ||
| 90464-00618 |
1HZ..HZB50..ARL |
1 | ||
| 16567C - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3) | ||||
| 90464-00618 |
1HZ#..HZB50 |
3 | ||
| 90464-00618 |
1HZ..HZB50..ARL |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-17061 |
1HZ..HZB50..RHD |
1 | ||
| 16571-17060 |
1HZ#..HZB50..RHD |
1 | ||
| 16571-17061 |
1HZ..HZB50..ARL |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-43002 |
1HZ..HZB50 RADIATOR SIDE |
1 | ||
| 90467-41006 |
1HZ#..HZB50 ENGINE SIDE |
1 | ||
| 90467-42001 |
1HZ#..HZB50 RADIATOR SIDE |
1 | ||
| 90466-41008 |
1HZ..HZB50..ARL ENGINE SIDE |
1 | ||
| 90467-43002 |
1HZ..HZB50..ARL RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-43002 |
1HZ..HZB50 RADIATOR SIDE |
1 | ||
| 90467-41006 |
1HZ#..HZB50 ENGINE SIDE |
1 | ||
| 90467-42001 |
1HZ#..HZB50 RADIATOR SIDE |
1 | ||
| 90466-41008 |
1HZ..HZB50..ARL ENGINE SIDE |
1 | ||
| 90467-43002 |
1HZ..HZB50..ARL RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-17091 |
1HZ..HZB50..RHD |
1 | ||
| 16572-17090 |
1HZ..HZB50..RHD |
1 | ||
| 16572-17091 |
1HZ..HZB50..ARL |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-42001 |
1HZ#..HZB50 RADIATOR SIDE |
1 | ||
| 90467-43002 |
1HZ..HZB50 |
2 | ||
| 96111-10530 |
1HZ#..HZB50 ENGINE SIDE |
1 | ||
| 90467-43002 |
1HZ..HZB50..ARL |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-42001 |
1HZ#..HZB50 RADIATOR SIDE |
1 | ||
| 90467-43002 |
1HZ..HZB50 |
2 | ||
| 96111-10530 |
1HZ#..HZB50 ENGINE SIDE |
1 | ||
| 90467-43002 |
1HZ..HZB50..ARL |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-17010 |
1HZ#..HZB50..RHD |
1 | ||
| 16573-17010 |
1HZ..HZB50..ARL |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-17010 |
1HZ#..HZB50 |
2 | ||
| 16582-17010 |
1HZ..HZB50..ARL |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-17010 |
1HZ#..HZB50 |
2 | ||
| 16582-17010 |
1HZ..HZB50..ARL |
2 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-17010 |
1HZ#..HZB50 |
1 | ||
| 16583-17010 |
1HZ..HZB50..ARL |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61020 |
1HZ#..HZB50 |
2 | ||
| 16584-61020 |
1HZ..HZB50..ARL |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61020 |
1HZ#..HZB50 |
2 | ||
| 16584-61020 |
1HZ..HZB50..ARL |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-16010 |
1HZ#..HZB50 |
1 | ||
| 16611-16010 |
1HZ..HZB50..ARL |
1 | ||
| 16612 - BRACKET, RADIATOR RESERVE TANK, NO.2 | ||||
| 16612-17010 |
1HZ..HZB50..ARL |
1 | ||
| 16612-17010 |
1HZ#..HZB50 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-17060 |
1HZ#..HZB50..RHD |
1 | ||
| 16711-17062 |
1HZ..HZB50..RHD |
1 | ||
| 16711-17061 |
1HZ#..HZB50..RHD |
1 | ||
| 16711-17120 |
1HZ..HZB50..ARL |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90116-08335 | ||||
| 90119-08493 | ||||
| 90119-08C37 | ||||
| 90179-06080 | ||||
| 90179-06110 | ||||
| 90179-06264 | ||||
| 90179-08040 | ||||
| 90179-08143 | ||||
| 90461-10737 | ||||
| 90464-00586 | ||||
| 90467-31003 | ||||
| 90561-09014 | ||||
| 90904-64002 | ||||
| 90949-01C15 | ||||
| 91511-61055 | ||||
| 91512-61240 | ||||
| 91551-80820 | ||||
| 91551-80835 | ||||
| 91621-60614 | ||||
| 91621-A0850 | ||||
| 91621-B0816 | ||||
| 91621-J0814 | ||||
| 91641-H0820 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 1709 | ||||
ILLUST NO. 1 OF 3(9301- )1HZ
W/O(SUB RADIATOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-17010 |
1HZ#..HZB50..ARL,EUR |
1 | ||
| 16261-17010 |
1HZ..HZB50..ARL |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1HZ#..HZB50..ARL,EUR |
2 | ||
| 90467-15022 |
1HZ..HZB50..ARL |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1HZ#..HZB50..ARL,EUR |
2 | ||
| 90467-15022 |
1HZ..HZB50..ARL |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1HZ#..HZB50..ARL,EUR |
2 | ||
| 90467-15022 |
1HZ..HZB50..ARL |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1HZ#..HZB50..ARL,EUR |
2 | ||
| 90467-15022 |
1HZ..HZB50..ARL |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90406-10014 |
1HZ#..HZB50..ARL,EUR |
1 | ||
| 90406-10014 |
1HZ..HZB50..ARL |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-17010 |
1HZ#..HZB50..ARL,EUR;1HZ..HZB50..SRF..WOC;1HZ..HZB50..LHD..STD..WC..GEN..5F |
1 | ||
| 16264-17011 |
1HZ..HZB50..ARL;1HZ..HZB50..SRF..WOC;1HZ..HZB50..LHD..STD..WC..GEN..5F |
1 | ||
| 16264-17011 |
1HZ..HZB50..ARL |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-17010 |
1HZ..HZB50..RHD;1HZ..HZB50..GCC;1HZ..HZB50..GEN..4FC |
1 | ||
| 16268-17010 |
1HZ..HZB50..RHD;1HZ..HZB50..GCC;1HZ..HZB50..LHD..HRF..WOC;1HZ..HZB50..30S..GEN..4FC |
1 | ||
| 16268-17010 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..WOC..ARL;1HZ..HZB50..LHD..SRF..WC;1HZ..HZB50..HRF..(DX,STD)..WC..5F |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-17010 |
1HZ#..HZB50..EUR,GCC;1HZ..HZB50..LHD..HRF..WOC;1HZ..HZB50..30S..GEN..4FC;1HZ..HZB50..RHD..(ARL,GEN)..5F |
1 | ||
| 16278-17010 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..WOC..ARL;1HZ..HZB50..LHD..SRF..WC;1HZ..HZB50..HRF..(DX,STD)..WC..5F |
1 | ||
| 16278-17010 |
1HZ#..HZB50..EUR,GCC;1HZ..HZB50..GEN..4FC;1HZ..HZB50..RHD..(ARL,GEN) |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-17010 |
1HZ#..HZB50 |
1 | ||
| 16279-17010 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..WOC..ARL;1HZ..HZB50..LHD..SRF..WC;1HZ..HZB50..HRF..(DX,STD)..WC..5F |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-17010 |
1HZ..HZB50..ARL |
1 | ||
| 16321-17010 |
1HZ..HZB50 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-17010 |
1HZ..HZB50..5F |
1 | ||
| 16331-17010 |
1HZ..HZB50..ARL |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03089 |
1HZ#..HZB50 *WAX 76-90 |
1 | ||
| 90916-03089 |
1HZ..HZB50..ARL *WAX 76-90 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-17010 |
1HZ#..HZB50 |
1 | ||
| 16341-17010 |
1HZ..HZB50..ARL |
1 | ||
| 16341-17010 |
1HZ..HZB50 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-66020 |
1HZ..HZB50..ARL |
1 | ||
| 16346-66020 |
1HZ#..HZB50 |
1 | ||
| 16361 - FAN | ||||
| 16361-17010 |
1HZ..HZB50..ARL,GEN,SCO NO.1 |
1 | ||
| 16361-17030 |
1HZ..HZB50..ARL NO.1 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-17020 |
1HZ..HZB50..HRF..WC;1HZ..HZB50..WOC..ARL;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 16381-17020 |
1HZ..HZB50..ARL |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-17010 |
1HZ..HZB50 |
1 | ||
| 16385-17010 |
1HZ..HZB50..ARL |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-17170 |
1HZ..HZB50..ARL,SCO |
1 | ||
| 16400-17260 |
1HZ..HZB50..ARL |
1 | ||
| 16400-17261 |
1HZ..HZB50..ARL |
1 | ||
| 16400-17261 |
1HZ..HZB50..ARL |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1HZ..HZB50 |
1 | ||
| 16417-15210 |
1HZ..HZB50..ARL |
1 | ||
| 16417-24200 |
1HZ#..HZB50 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-50121 |
1HZ..HZB50 |
1 | ||
| 16418-15520 |
1HZ..HZB50 |
1 | ||
| 16418-24200 |
1HZ#..HZB50 |
1 | ||
| 16418-15520 |
1HZ..HZB50..ARL |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-17060 |
1HZ#..HZB50 |
1 | ||
| 16470-17061 |
1HZ..HZB50..ARL |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-12026 |
1HZ#..HZB50 |
1 | ||
| 90467-12026 |
1HZ..HZB50..ARL |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1HZ#..HZB50 *H,L=135 |
1 | ||
| 90445-12078 |
1HZ..HZB50..ARL *H,L=135 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-17030 |
1HZ..HZB50..ARL |
1 | ||
| 16405-17030 |
1HZ#..HZB50 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16472-17060 |
1HZ#..HZB50 |
1 | ||
| 16520 - FILLER ASSY, WATER | ||||
| 16520-17020 |
1HZ..HZB50..ARL |
1 | ||
| 16520-17010 |
1HZ#..HZB50 |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-72090 |
1HZ#..HZB50 |
1 | ||
| 16401-62100 |
1HZ..HZB50..ARL |
1 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61010 |
1HZ#..HZB50 |
2 | ||
| 16549-61010 |
1HZ..HZB50..ARL |
2 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61010 |
1HZ#..HZB50 |
2 | ||
| 16549-61010 |
1HZ..HZB50..ARL |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-17020 |
1HZ..HZB50..ARL |
1 | ||
| 16567-17010 |
1HZ#..HZB50 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1HZ#..HZB50 |
2 | ||
| 90467-11085 |
1HZ..HZB50..ARL |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1HZ#..HZB50 |
2 | ||
| 90467-11085 |
1HZ..HZB50..ARL |
2 | ||
| 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) | ||||
| 90464-00460 |
1HZ..HZB50..ARL |
2 | ||
| 90464-00460 |
1HZ#..HZB50..RHD |
3 | ||
| 16567C - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3) | ||||
| 90464-00618 |
1HZ#..HZB50 |
3 | ||
| 90464-00618 |
1HZ..HZB50..ARL |
1 | ||
| 16567C - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3) | ||||
| 90464-00618 |
1HZ#..HZB50 |
3 | ||
| 90464-00618 |
1HZ..HZB50..ARL |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-17061 |
1HZ..HZB50..RHD |
1 | ||
| 16571-17060 |
1HZ#..HZB50..RHD |
1 | ||
| 16571-17061 |
1HZ..HZB50..ARL |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-43002 |
1HZ..HZB50 RADIATOR SIDE |
1 | ||
| 90467-41006 |
1HZ#..HZB50 ENGINE SIDE |
1 | ||
| 90467-42001 |
1HZ#..HZB50 RADIATOR SIDE |
1 | ||
| 90466-41008 |
1HZ..HZB50..ARL ENGINE SIDE |
1 | ||
| 90467-43002 |
1HZ..HZB50..ARL RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-43002 |
1HZ..HZB50 RADIATOR SIDE |
1 | ||
| 90467-41006 |
1HZ#..HZB50 ENGINE SIDE |
1 | ||
| 90467-42001 |
1HZ#..HZB50 RADIATOR SIDE |
1 | ||
| 90466-41008 |
1HZ..HZB50..ARL ENGINE SIDE |
1 | ||
| 90467-43002 |
1HZ..HZB50..ARL RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-17091 |
1HZ..HZB50..RHD |
1 | ||
| 16572-17090 |
1HZ..HZB50..RHD |
1 | ||
| 16572-17091 |
1HZ..HZB50..ARL |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-42001 |
1HZ#..HZB50 RADIATOR SIDE |
1 | ||
| 90467-43002 |
1HZ..HZB50 |
2 | ||
| 96111-10530 |
1HZ#..HZB50 ENGINE SIDE |
1 | ||
| 90467-43002 |
1HZ..HZB50..ARL |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-42001 |
1HZ#..HZB50 RADIATOR SIDE |
1 | ||
| 90467-43002 |
1HZ..HZB50 |
2 | ||
| 96111-10530 |
1HZ#..HZB50 ENGINE SIDE |
1 | ||
| 90467-43002 |
1HZ..HZB50..ARL |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-17010 |
1HZ#..HZB50..RHD |
1 | ||
| 16573-17010 |
1HZ..HZB50..ARL |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-17010 |
1HZ#..HZB50 |
2 | ||
| 16582-17010 |
1HZ..HZB50..ARL |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-17010 |
1HZ#..HZB50 |
2 | ||
| 16582-17010 |
1HZ..HZB50..ARL |
2 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-17010 |
1HZ#..HZB50 |
1 | ||
| 16583-17010 |
1HZ..HZB50..ARL |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61020 |
1HZ#..HZB50 |
2 | ||
| 16584-61020 |
1HZ..HZB50..ARL |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61020 |
1HZ#..HZB50 |
2 | ||
| 16584-61020 |
1HZ..HZB50..ARL |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-16010 |
1HZ#..HZB50 |
1 | ||
| 16611-16010 |
1HZ..HZB50..ARL |
1 | ||
| 16612 - BRACKET, RADIATOR RESERVE TANK, NO.2 | ||||
| 16612-17010 |
1HZ..HZB50..ARL |
1 | ||
| 16612-17010 |
1HZ#..HZB50 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-17060 |
1HZ#..HZB50..RHD |
1 | ||
| 16711-17062 |
1HZ..HZB50..RHD |
1 | ||
| 16711-17061 |
1HZ#..HZB50..RHD |
1 | ||
| 16711-17120 |
1HZ..HZB50..ARL |
1 | ||
| Common parts | ||||
| 90116-08335 | ||||
| 90119-08493 | ||||
| 90119-08C37 | ||||
| 90179-06080 | ||||
| 90179-06110 | ||||
| 90179-08040 | ||||
| 90179-08143 | ||||
| 90461-10737 | ||||
| 90464-00586 | ||||
| 90467-31003 | ||||
| 90561-09014 | ||||
| 91512-61055 | ||||
| 91512-61240 | ||||
| 91551-80820 | ||||
| 91551-80835 | ||||
| 91621-60614 | ||||
| 91621-A0850 | ||||
| 91621-B0816 | ||||
| 91621-J0814 | ||||
| 91641-H0820 | ||||
| 91651-60616 | ||||

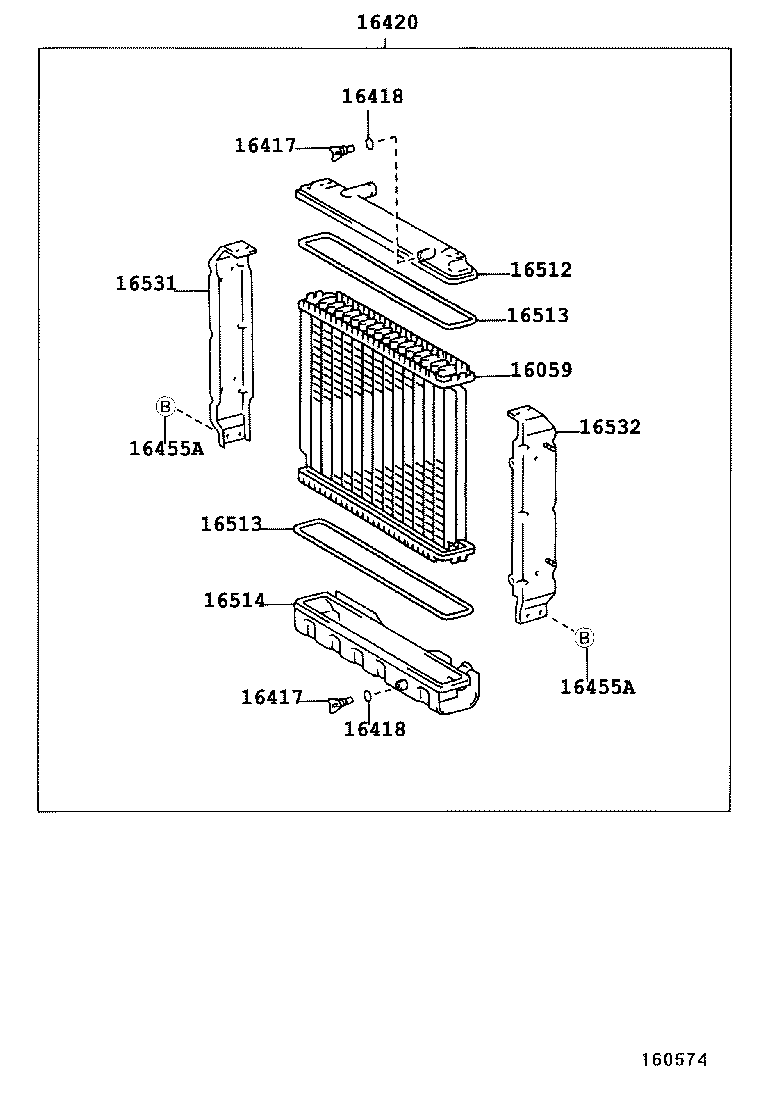

ILLUST NO. 2 OF 3(9903- )1HZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-17170 |
1HZ..HZB50..ARL,SCO |
1 | ||
| 16400-17260 |
1HZ..HZB50..ARL |
1 | ||
| 16400-17261 |
1HZ..HZB50..ARL |
1 | ||
| 16400-17261 |
1HZ..HZB50..ARL |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1HZ..HZB50 |
1 | ||
| 16417-15210 |
1HZ..HZB50..ARL |
1 | ||
| 16417-24200 |
1HZ#..HZB50 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-50121 |
1HZ..HZB50 |
1 | ||
| 16418-15520 |
1HZ..HZB50 |
1 | ||
| 16418-24200 |
1HZ#..HZB50 |
1 | ||
| 16418-15520 |
1HZ..HZB50..ARL |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-17260 |
1HZ..HZB50 |
1 | ||
| 16453-17261 |
1HZ..HZB50..ARL |
1 | ||
| 16453-17261 |
1HZ..HZB50..ARL |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-17260 |
1HZ..HZB50 |
1 | ||
| 16454-17261 |
1HZ..HZB50..ARL |
1 | ||
| 16454-17261 |
1HZ..HZB50..ARL |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
1HZ..HZB50..ARL |
8 | ||
| 16455-67020 |
1HZ..HZB50 |
8 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
1HZ..HZB50..ARL |
8 | ||
| 16455-67020 |
1HZ..HZB50 |
8 | ||
ILLUST NO. 2 OF 3(9705-9903)1HZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-17170 |
1HZ..HZB50..ARL,SCO |
1 | ||
| 16400-17260 |
1HZ..HZB50..ARL |
1 | ||
| 16400-17261 |
1HZ..HZB50..ARL |
1 | ||
| 16400-17261 |
1HZ..HZB50..ARL |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1HZ..HZB50 |
1 | ||
| 16417-15210 |
1HZ..HZB50..ARL |
1 | ||
| 16417-24200 |
1HZ#..HZB50 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-50121 |
1HZ..HZB50 |
1 | ||
| 16418-15520 |
1HZ..HZB50 |
1 | ||
| 16418-24200 |
1HZ#..HZB50 |
1 | ||
| 16418-15520 |
1HZ..HZB50..ARL |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-17260 |
1HZ..HZB50 |
1 | ||
| 16453-17261 |
1HZ..HZB50..ARL |
1 | ||
| 16453-17261 |
1HZ..HZB50..ARL |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-17260 |
1HZ..HZB50 |
1 | ||
| 16454-17261 |
1HZ..HZB50..ARL |
1 | ||
| 16454-17261 |
1HZ..HZB50..ARL |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
1HZ..HZB50..ARL |
8 | ||
| 16455-67020 |
1HZ..HZB50 |
8 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
1HZ..HZB50..ARL |
8 | ||
| 16455-67020 |
1HZ..HZB50 |
8 | ||
Part Price Details
Loading price information...
Part Number:
Price:
