HZB50R-ZEMSSQ (1993)
Toyota Coaster
(9301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

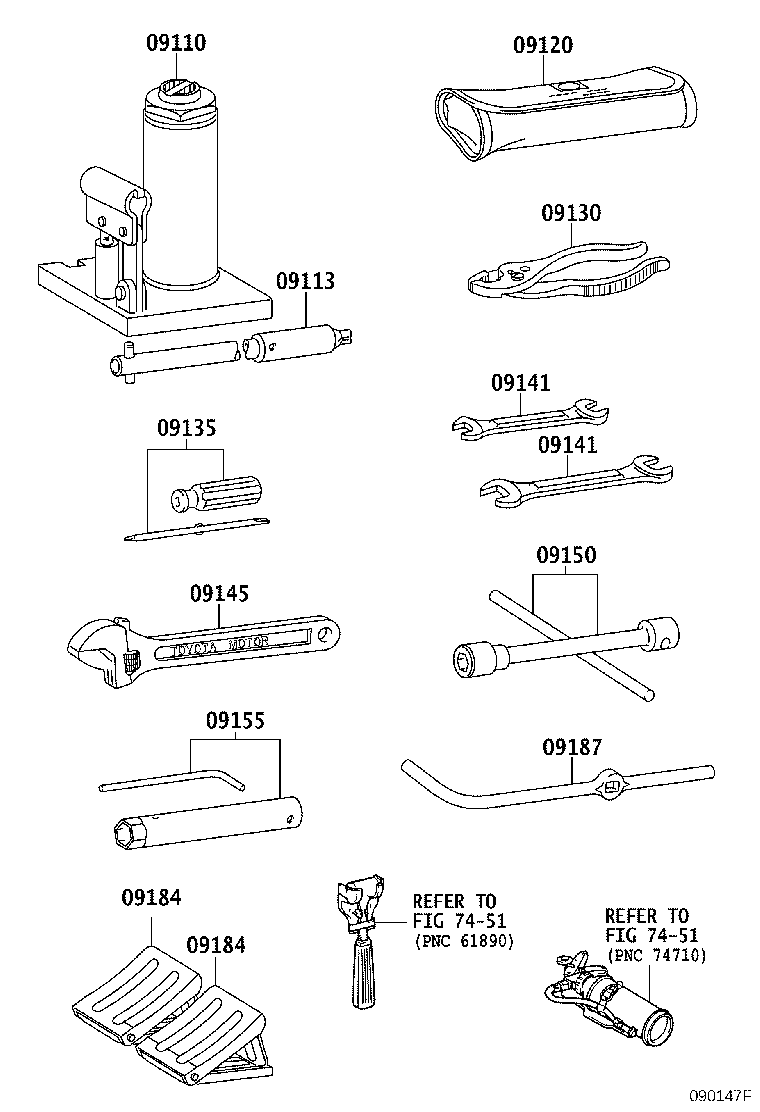

| 09110 - JACK ASSY | ||||
| 09110-36260 |
BB40,HZB50..ARL |
1 | ||
| 09110-36260 |
HZB50..ARL |
1 | ||
| 09113 - HANDLE, JACK | ||||
| 09113-36160 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 09113-36160 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-36070 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 09120-36070 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 09130 - PLIERS | ||||
| 99913-11500 |
BB4#,HZB50..DSL |
1 | ||
| 99913-11500 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 99913-11500 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 99915-10700 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 99915-10700 |
BB4#,HZB50..DSL |
1 | ||
| 99915-10700 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11417 |
HZB50..TD 14 X 17 |
1 | ||
| 99914-11012 |
BB4#,HZB50..DSL 10 X 12 |
1 | ||
| 99914-11214 |
HZB50..DSL;BB4#,5#,RZB40,50 12 X 14 |
1 | ||
| 99914-11417 |
BB4#,HZB50,RZB40,50 14 X 17 |
1 | ||
| 99914-10810 |
HZB50..DSL;BB4#,5#,RZB40,50 8 X 10 |
1 | ||
| 99914-11012 |
HZB50..TD 10 X 12 |
1 | ||
| 99914-10810 |
BB50,HZB50,RZB40,50..ARL,CHI 8 X 10 |
1 | ||
| 99914-11417 |
BB4#,HZB50..DSL 14 X 17 |
1 | ||
| 99914-11012 |
BB4#,HZB50,RZB40,50 10 X 12 |
1 | ||
| 99914-11214 |
BB50,HZB50,RZB40,50..ARL,CHI 12 X 14 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11417 |
HZB50..TD 14 X 17 |
1 | ||
| 99914-11012 |
BB4#,HZB50..DSL 10 X 12 |
1 | ||
| 99914-11214 |
HZB50..DSL;BB4#,5#,RZB40,50 12 X 14 |
1 | ||
| 99914-11417 |
BB4#,HZB50,RZB40,50 14 X 17 |
1 | ||
| 99914-10810 |
HZB50..DSL;BB4#,5#,RZB40,50 8 X 10 |
1 | ||
| 99914-11012 |
HZB50..TD 10 X 12 |
1 | ||
| 99914-10810 |
BB50,HZB50,RZB40,50..ARL,CHI 8 X 10 |
1 | ||
| 99914-11417 |
BB4#,HZB50..DSL 14 X 17 |
1 | ||
| 99914-11012 |
BB4#,HZB50,RZB40,50 10 X 12 |
1 | ||
| 99914-11214 |
BB50,HZB50,RZB40,50..ARL,CHI 12 X 14 |
1 | ||
| 09145 - WRENCH, MONKEY | ||||
| 99911-11200 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 99911-11200 |
BB4#,HZB50..DSL |
1 | ||
| 99911-11200 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-55020 |
HZB50..TD |
1 | ||
| 09150-36030 |
BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO |
1 | ||
| 09150-36030 |
BB4#,HZB50 |
1 | ||
| 09150-36030 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| 09155 - WRENCH, SPARK PLUG | ||||
| 09155-74010 |
RZB40,50 |
1 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-00031 |
HZB50..TD |
2 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-00031 |
HZB50..TD |
2 | ||
| 09187 - HANDLE, SPARE WHEEL CARRIER | ||||
| 09187-36070 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 09187-36070 |
BB50,HZB50,RZB40,50..ARL,CHI |
1 | ||
| Linked diagrams | ||||
| 7451 | ||||
