Toyota Coaster HZB50 STEERING COLUMN & SHAFT

Manufacturers Home
Toyota
GR
COASTER
HZB50R-ZEMNSQ (1993)
4501 - STEERING COLUMN & SHAFT

HZB50R-ZEMNSQ (1993)

Toyota Coaster

Production Jan 1993 - Nov 2002

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9301- )BB50,XZB50..MTM..CHI,EUR,GEN,TAIW ; (9301- )BB4#,58,59,BZB40,50,HZB50

Click highlighted areas on diagram

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-36150	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
45025-36140	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	BB4#,5#,HZB50,RZB40,50 T=1.20,UPPER	01/1993 - 07/1999	1
90520-17042	BB4#,5#,HZB50,RZB40,50 T=1.20,LOWER	01/1993 - 07/1999	2
90520-17269	BB50,HZB50,RZB40,50..ARL,CHI T=1.20	07/1999 - 11/2002	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	BB4#,5#,HZB50,RZB40,50 T=1.20,UPPER	01/1993 - 07/1999	1
90520-17042	BB4#,5#,HZB50,RZB40,50 T=1.20,LOWER	01/1993 - 07/1999	2
90520-17269	BB50,HZB50,RZB40,50..ARL,CHI T=1.20	07/1999 - 11/2002	2
45201D - RING(FOR STEERING MAIN SHAFT)
96152-00300	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
96152-00300	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-36190	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45204-36200	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-36200	HZB50..TD;HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)..5F	01/1993 - 07/1999	1
45205-36220	HZB50..ARL	07/1999 - 11/2002	1
45210 - SHAFT ASSY, STEERING MAIN
45210-36100	HZB50..ARL	07/1999 - 11/2002	1
45210-36090	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45225 - BLOCK, BEARING
45225-26010	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
45225-26010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45263 - RING, STEERING COLUMN, NO.1
45263-32010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45263-32010	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
45275 - BRACKET, STEERING COLUMN, UPPER
45307-36230	HZB50..ARL,EUR;BB4#,5#,RZB40,50	01/1993 - 07/1999	1
45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45283-22010	HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN	07/1999 - 08/2001	1
45283-22010	BB4#,50,HZB50..RHD	01/1993 - 07/1999	1
45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45283-22010	HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN	07/1999 - 08/2001	1
45283-22010	BB4#,50,HZB50..RHD	01/1993 - 07/1999	1
45286B - COVER, STEERING COLUMN, UPR
45286-36820E0	BB4#,50..RHD;HZB50..RHD..TD;HZB50..RHD..(20S,22S,30S)..(EX,STD)..5F GRAIGE,TRIM4#	01/1993 - 07/1999	1
45286-36830E0	HZB50..22S..4FC;HZB50..(DX,EX)..ARL GRAIGE,TRIM4#	01/1993 - 07/1999	1
45286-36850B0	HZB50..ARL DK.CHARCOAL,TRIM1#	08/2001 - 11/2002	1
45286-36850E0	HZB50..22S GREIGE,TRIM4#	07/1999 - 08/2001	1
45287 - COVER, STEERING COLUMN, LWR
45287-36350E0	BB4#,50,HZB50..RHD GRAIGE,TRIM4#	01/1993 - 07/1999	1
45287-36370E0	HZB50..22S GREIGE,TRIM4#	07/1999 - 08/2001	1
45287-36370B0	HZB50..ARL DK.CHARCOAL,TRIM1#	08/2001 - 11/2002	1
45292A - COVER, MAIN SHAFT LOWER DUST
45292-36060	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
45292-27020	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45872 - COVER, STEERING COLUMN TUBE
45872-36040	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
45872-36040	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45897 - BOLT, STEERING LOCK SET
45897-12030	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 02/2002	1
45897-25010	BB50,HZB50,RZB40,50..ARL,CHI	02/2002 - 11/2002	1
45897-12030	HZB50..TD;HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)..5F	01/1993 - 07/1999	1
Common parts
90119-06936
90119-08560
90164-50048
91611-G0820
91612-60820
91631-B0820
91651-40820
91661-B0820
93315-14012
93568-55014
Linked diagrams
8401

(9301-9907)22S..4FC ; (9301-9907)DX,EX..ARL

Click highlighted areas on diagram

W(TILT STEERING)

Part #	Description	Period	Qty

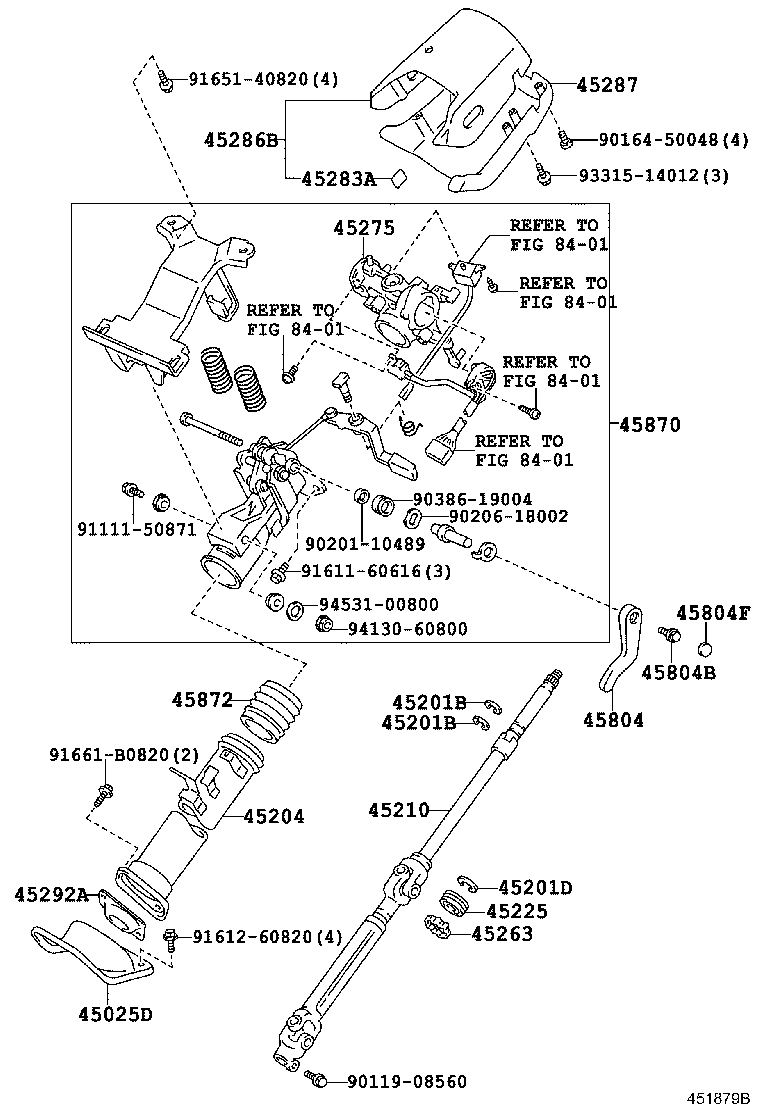

45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-36150	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
45025-36140	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	BB4#,5#,HZB50,RZB40,50 T=1.20,UPPER	01/1993 - 07/1999	1
90520-17042	BB4#,5#,HZB50,RZB40,50 T=1.20,LOWER	01/1993 - 07/1999	2
90520-17269	BB50,HZB50,RZB40,50..ARL,CHI T=1.20	07/1999 - 11/2002	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	BB4#,5#,HZB50,RZB40,50 T=1.20,UPPER	01/1993 - 07/1999	1
90520-17042	BB4#,5#,HZB50,RZB40,50 T=1.20,LOWER	01/1993 - 07/1999	2
90520-17269	BB50,HZB50,RZB40,50..ARL,CHI T=1.20	07/1999 - 11/2002	2
45201D - RING(FOR STEERING MAIN SHAFT)
96152-00300	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
96152-00300	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-36190	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45204-36200	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
45210 - SHAFT ASSY, STEERING MAIN
45210-36100	HZB50..ARL	07/1999 - 11/2002	1
45210-36090	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45225 - BLOCK, BEARING
45225-26010	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
45225-26010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45263 - RING, STEERING COLUMN, NO.1
45263-32010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45263-32010	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
45275 - BRACKET, STEERING COLUMN, UPPER
45307-36230	HZB50..ARL,EUR;BB4#,5#,RZB40,50	01/1993 - 07/1999	1
45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45283-22010	HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN	07/1999 - 08/2001	1
45283-22010	BB4#,50,HZB50..RHD	01/1993 - 07/1999	1
45286B - COVER, STEERING COLUMN, UPR
45286-36820E0	BB4#,50..RHD;HZB50..RHD..TD;HZB50..RHD..(20S,22S,30S)..(EX,STD)..5F GRAIGE,TRIM4#	01/1993 - 07/1999	1
45286-36830E0	HZB50..22S..4FC;HZB50..(DX,EX)..ARL GRAIGE,TRIM4#	01/1993 - 07/1999	1
45286-36850B0	HZB50..ARL DK.CHARCOAL,TRIM1#	08/2001 - 11/2002	1
45286-36850E0	HZB50..22S GREIGE,TRIM4#	07/1999 - 08/2001	1
45287 - COVER, STEERING COLUMN, LWR
45287-36350E0	BB4#,50,HZB50..RHD GRAIGE,TRIM4#	01/1993 - 07/1999	1
45287-36370E0	HZB50..22S GREIGE,TRIM4#	07/1999 - 08/2001	1
45287-36370B0	HZB50..ARL DK.CHARCOAL,TRIM1#	08/2001 - 11/2002	1
45292A - COVER, MAIN SHAFT LOWER DUST
45292-36060	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
45292-27020	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45804 - LEVER SUB-ASSY, STEERING TILT
45804-36020E0	HZB50..22S..4FC;HZB50..(DX,EX)..ARL GRAIGE,TRIM4#	01/1993 - 07/1999	1
45804B - BOLT(FOR STEERING TILT LEVER)
90105-10204	HZB50..22S..4FC;HZB50..(DX,EX)..ARL	01/1993 - 07/1999	1
45804F - PLUG(FOR STEERING TILT LEVER)
90339-28001E0	HZB50..22S..4FC;HZB50..(DX,EX)..ARL GRAIGE,TRIM4#	01/1993 - 07/1999	1
45870 - TUBE ASSY, STEERING COLUMN
45870-36030	HZB50..(DX,EX)..ARL	01/1993 - 07/1999	1
45872 - COVER, STEERING COLUMN TUBE
45872-36040	BB50,HZB50,RZB40,50..ARL,CHI	07/1999 - 11/2002	1
45872-36040	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
Common parts
90119-08560
90164-50048
90201-10489
90206-18002
90386-19004
91111-50871
91611-60616
91612-60820
91651-40820
91661-B0820
93315-14012
94130-60800
94531-00800
Linked diagrams
8401

HZB50R-ZEMNSQ (1993)

(9301- )BB50,XZB50..MTM..CHI,EUR,GEN,TAIW ; (9301- )BB4#,58,59,BZB40,50,HZB50

(9301-9907)22S..4FC ; (9301-9907)DX,EX..ARL
